4-Port 4K Triple View DisplayPort KVMP Switch with USB 3.0 Hub
UPC: 881317518682
Choose options

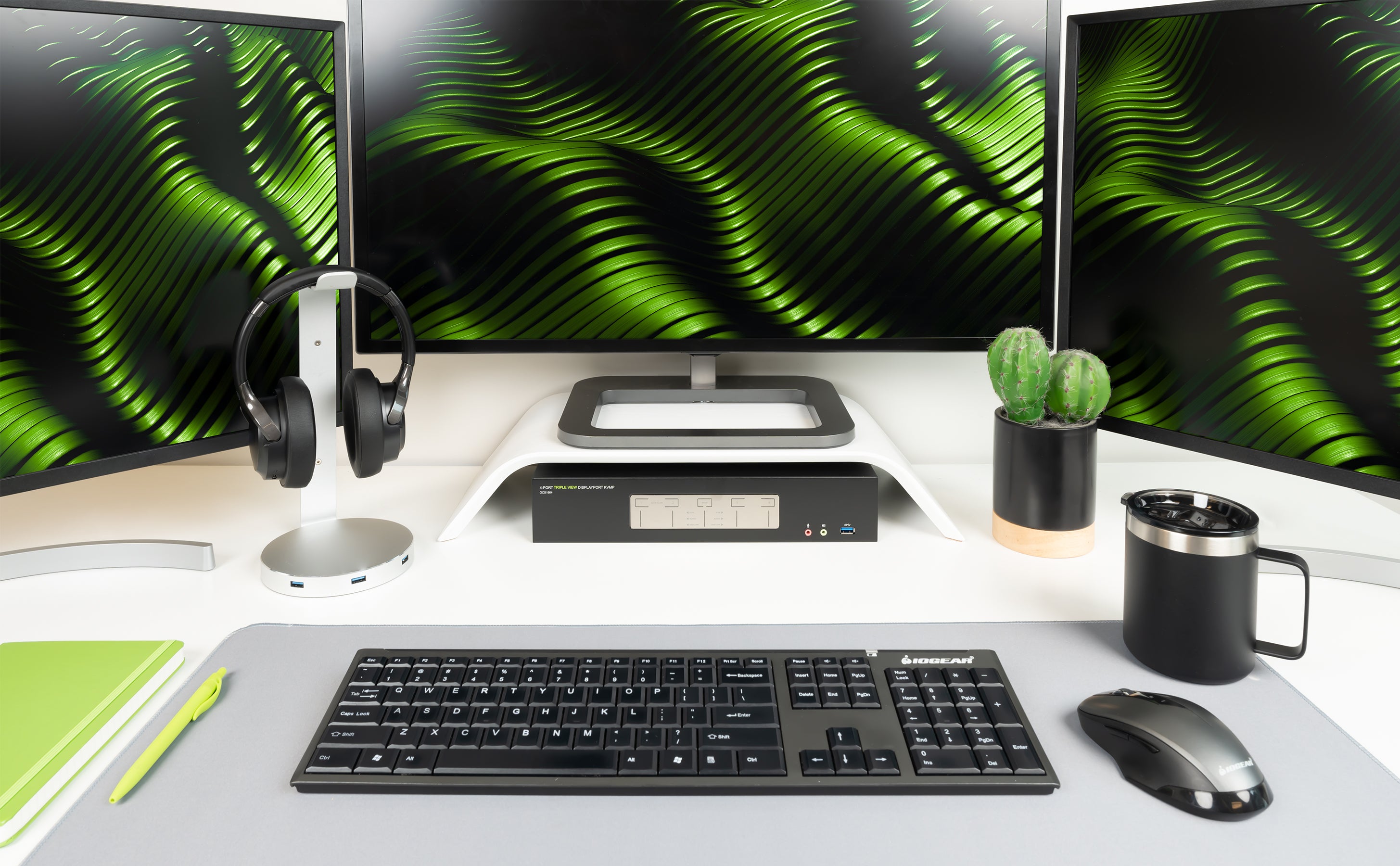

Enhance Your High-End Multi-Monitor Workstation
A Triple Cinema 4K Experience
Convenient Switching Methods
Multi-Platform Support
• Maximize & expand your high-end multi-monitor workstation superior video resolutions
• Operate 4 DisplayPort computers with 1 keyboard, mouse, and 3 HDMI monitors
• Supports cinema 4K HDMI monitors with resolutions up to 4096 x 2160 @60Hz
• Converts the DisplayPort signal for output to HDMI monitors
• Add a second GCS1964 to expand up to six 4K monitors
• Allows independent switching of the KVM, USB, and audio devices
• Control/share USB 3.0 peripherals between 4 computers; eliminate duplicate devices
• Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
• Select computer via front panel push-buttons, hotkeys, or mouse1
• Video DynaSyncTM - Optimizes resolution when switching among different sources and eliminates boot-up display problems
• DynaSync eliminates the DisplayPort switching delay between source and display
• N-Key Rollover2 (NKRO) ensures every keystroke in any combo is successfully input
• DisplayPort 1.2 compliant, HDCP compliant
• Supports 7.1 HD audio through DisplayPort3
• Full bass response for high-quality 2.1 channel audio
• SuperSpeed 5Gbps data transfer rate
• Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
• Multi-platform support - Windows®7, Windows 8.1, Windows 10, Mac OS®, and Linux®
• Multilingual keyboard mapping supports English, French, German, and Japanese keyboards
• Mac® keyboard support and emulation4
• RS-232 Commands5
• Auto-Scan Mode allows you to monitor each computer
• Power on detection
• Hot pluggable
• Firmware upgradable
• Includes all KVM, USB and audio cables
1 Mouse port switching supported alongside mouse emulation mode using a USB 3-button mouse wheel
2 N-Key Rollover feature works with NKRO keyboards
3 HD audio through DisplayPort-HDMI cannot be switched independently
4 PC keyboard combinations emulate Mac® keyboards. Mac keyboards only work with their own OS.
5 DB9 to RJ-45 cable not included. DCC switch must be set on s position for the KVM switch to receive RS-232 command via RJ-45 to DB-9 cable
Console:
- 3 x HDMI compatible monitors
- Standard 104 key wired USB keyboard
- Standard 2 or 3 button wired USB mouse
- Microphone and speakers (optional)
Computer:
- 3 x DisplayPort ports
- Type A USB port
- Audio ports (optional)
*Use with video adapter may change performance
Package Content:
- 1 x 4-Port 4K Triple View DisplayPort KVMP Switch with USB 3.0 Hub and Audio
- 6 x DisplayPort Cables (5ft.)
- 2 x USB 3.0 Cables (6ft.)
- 2 x Audio Cable Set (6ft.)
- 1 x Power Adapter
- 1 x Quick Start Guide
The included cable sets are for two computer connections. Optional cable set G2L9302U is available for separate purchase
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GCS1964 |
|---|---|
| Computer Connections | |
| Direct | 4 |
| Daisy Chain or Cascading | 4 |
| Port Selection | Pushbuttons, Hotkey, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode), or RS-232 commands |
| Console Connectors | |
| Monitor | 3 x HDMI (Black) |
| Keyboard | 1 x USB Type A (Black) |
| Mouse | 1 x USB Type A (Black) |
| Audio | 2 x 3.5mm Mini Stereo Jack (Green; Front and Rear) |
| Microphone | 2 x 3.5mm Mini Stereo Jack (Pink; Front and Rear) |
| CPU Connectors | |
| Monitor | 12 x DisplayPort (Black) |
| Keyboard & Mouse | 4 x USB 3.0 Type B (Blue |
| Audio | 4 x 3.5mm Mini Stereo Jack (Green) |
| Microphone | 4 x 3.5mm Mini Stereo Jack (Pink) |
| Switches | |
| F/W Upgrade | 1 x USB Type B |
| Port Selection | 4 x Pushbutton |
| Connectors | |
| USB | 1 x USB 3.0 Type A (Blue; Front), 1 x USB 3.0 Type A (Blue; Rear) |
| Serial | 1 x RJ-45 (DCC) |
| LEDs | |
| On Line | Green |
| Selected | Green |
| Audio | Green |
| USB Peripherals | Green |
| Emulation | |
| Keyboard | USB |
| Mouse | USB |
| Video Resolution | 4096 x 2160 @60 Hz (Cinema 4K); 3840 x 2160 @60Hz (4K UHD) |
| Scan Interval | 1- 99 seconds (5 seconds default) |
| Power Consumption | DC 12V; 15.49W |
| Environment | |
| Storage Temperature | -20~60 C |
| Operation Temperature | 0~40 C |
| Humidity | 0~80% RH, Non-condensing |
| Housing | |
| Case | Metal |
| Dimensions | GCS1964 |
|---|---|
| Unit Dimensions | |
| Height | 2.25" (5.7cm) |
| Length | 13.25" (33.66cm) |
| Depth | 6.125" (15.56cm) |
| Unit Package Dimensions | |
| Height | 9.5" (24.13cm) |
| Width | 21.5" (54.61cm) |
| Depth | 4.75" (12.07cm) |
| Master Carton | |
| Height | 10.5" (26.67cm) |
| Width | 22.25" (56.5cm) |
| Depth | 15.25" (38.74cm) |
| Master Carton Qty. | 3 |
| Weight | |
| Master Carton Wt. | 25.8lb (11.73kg) |
| Unit Pack Wt. | 8.35lb (3.79kg) |
| Unit Wt. | 4.3lb (1.95kg) |
