2-Port DisplayPort 1.2 KVMP Switch with USB 3.1 Gen1 Hub and Audio

Name: 2-Port DisplayPort 1.2 KVMP Switch with USB 3.1 Gen1 Hub and Audio
Brand: IOGear
SKU: GCS1932
Price: 399.95 USD
Availability: InStock

2-Port DisplayPort TAA Compliant

MPN: GCS1932

UPC: 881317514431

$399.95

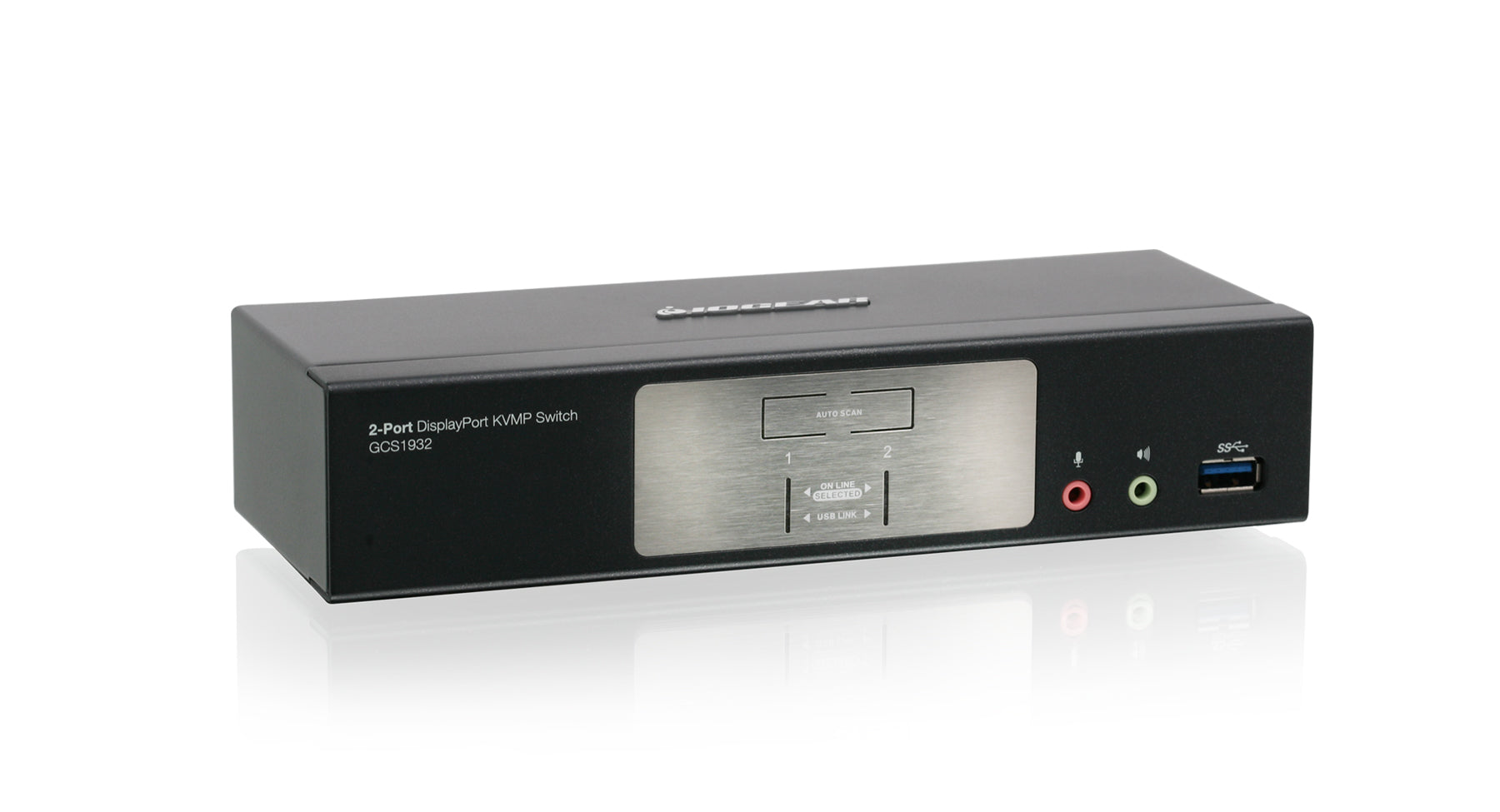

IOGEAR's 2-Port DisplayPort 1.2 KVMP Switch provides the latest innovations in DisplayPort KVM technology. Connect your powerhouse computers and experience Cinema 4K resolution while switching between the two computers and sharing two USB peripherals with the push of a button. The 2-Port DisplayPort 1.2 KVMP Switch combines the functionality of a KVM switch with a DisplayPort 1.2 digital interface, built-in USB 3.1 Gen 1 hub, and audio.

2-Port DisplayPort 1.2 KVMP Switch with USB 3.1 Gen1 Hub and Audio

$399.95

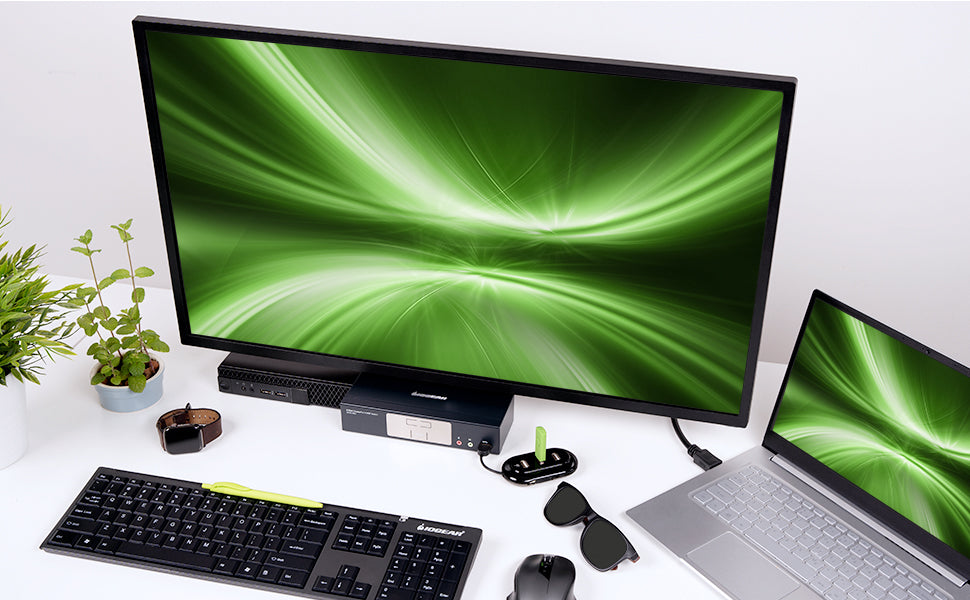

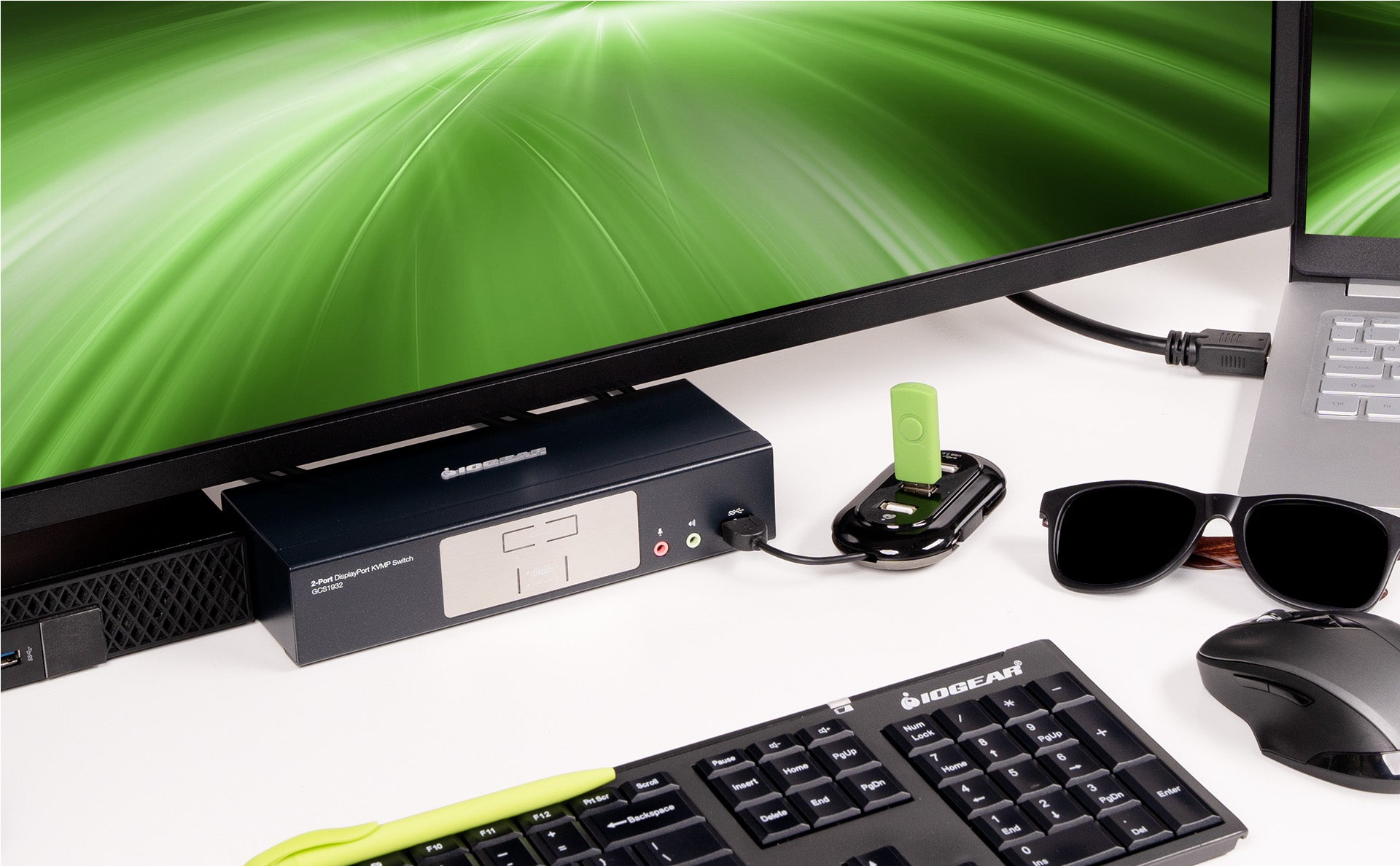

4K Work Experience

Maximize your high-end workstations with the GCS1932 2-Port DisplayPort 1.2 KVMP. Experience Cinema 4K resolution up to 4096x2160@60Hz along with rich bass and 7.1 surround sound while switching between both computers and sharing two USB 3.0 peripherals.

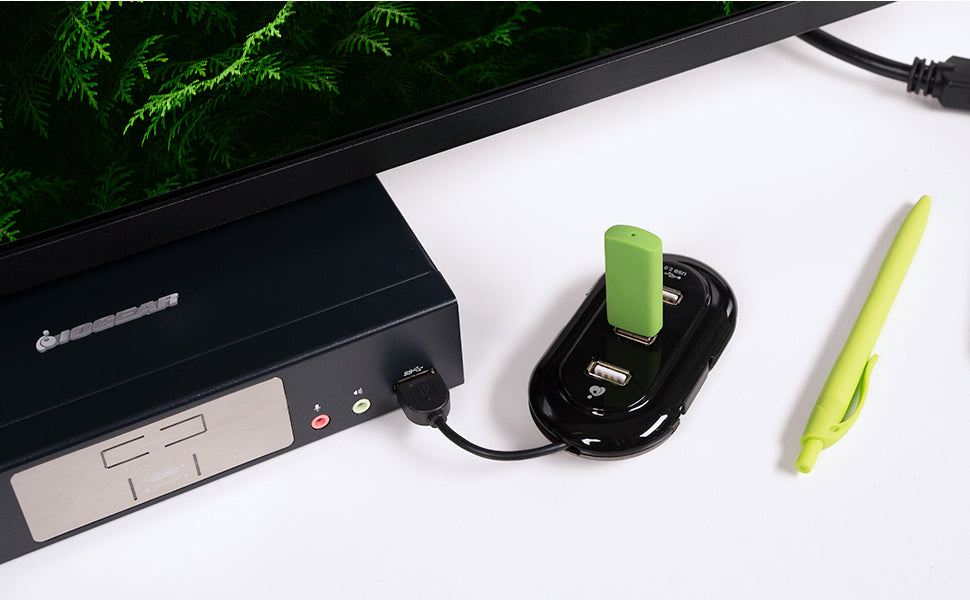

Built-in USB3.0 peripheral sharing

Control/share two USB 3.0 peripherals between two computers at up to 5Gbps data transfer speed. In addition, the USB peripheral can be separated from the KVM port switching, so when one computer is working with the connected USB device, user can switch to the other computer for other tasks without causing issues.

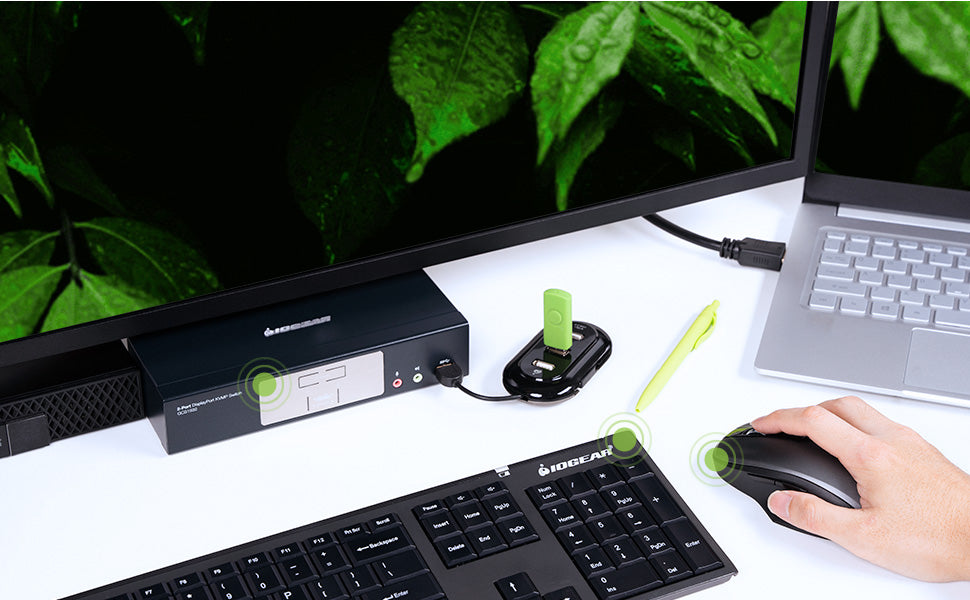

Convenient Switching Methods

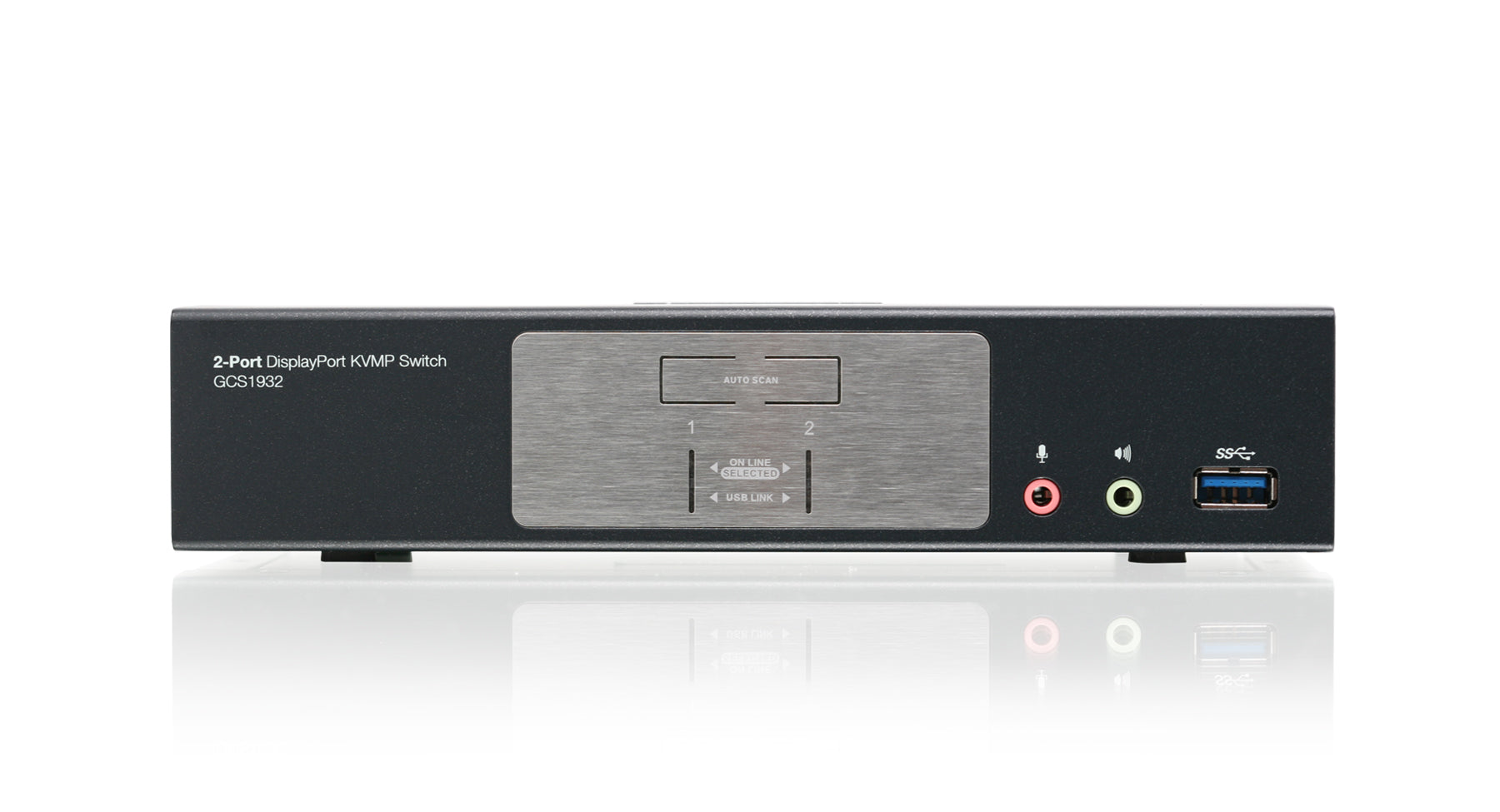

3 ways for GCS1932 Port switching. Hotkeys, pushbuttons on the front panel and mouse wheel button, pick the way best fit for your needs.

Control 2 computers using a single keyboard, mouse, and DisplayPort video console
Superior video quality – Cinema 4K (4096x2160@60Hz)
DisplayPort 1.2 compliant, HDCP compliant
2-Port USB3.1 Gen1 Hub with SuperSpeed 5Gbps transfer rate

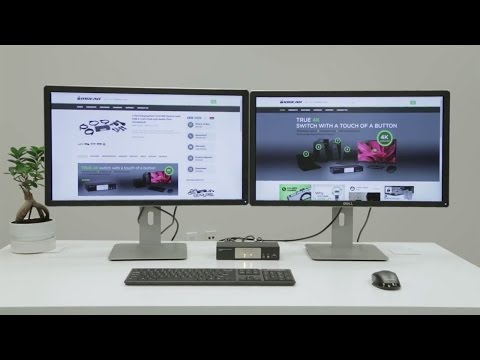

MST (Multi-Stream Transport)¹
DP++ supports HDMI and DVI output²
Computer selection via front panel pushbuttons, hotkeys, and mouse³
Independent switching of the KVM, USB, and 2.1 channel audio
Supports 7.1 HD audio through DisplayPort⁴
Full bass response for high quality 7.1 channel audio
Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows®7, Windows®8.1, Windows®10, Mac®, and Linux®
Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
Mac® keyboard support and emulation⁵
Auto Scan Mode to monitor all computers
Power On Detection
Hot pluggable
Firmware Upgradable
All cables included

Note

¹ MST requires two monitors capable of DisplayPort 1.2 daisychaining, or use of a powered DisplayPort MST Hub. PC Source must be DisplayPort 1.2 compliant. A DisplayPort 1.1a monitor can be the last monitor in a DP1.2 chain

² Dual-Mode DisplayPort (DP++) requires active HDMI and DVI adapters for most display setups.

³ Mouse port switching supported alongside mouse emulation mode using a USB 3-button mouse wheel

⁴ HD audio through DisplayPort cannot be switched independently

⁵ PC keyboard combinations emulate Mac® keyboards. Keyboards only work using their own Operating System

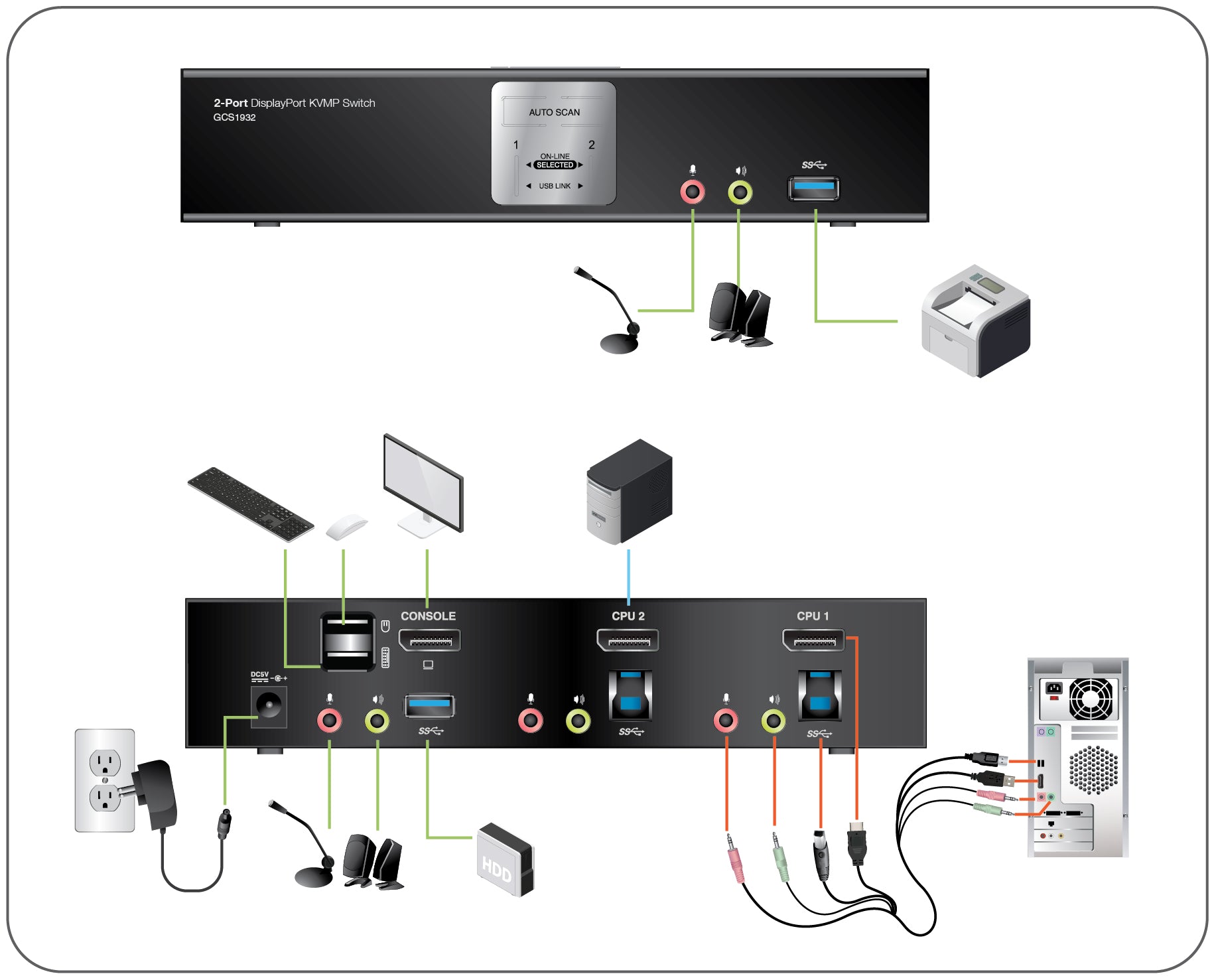

Console
DisplayPort compatible monitor
Standard 104 key wired USB keyboard
Standard 2 or 3 button wired USB mouse
Microphone and speakers (optional)

Computer
DisplayPort port
Type A USB port
Audio ports (optional)

*Use with video adapter may change performance

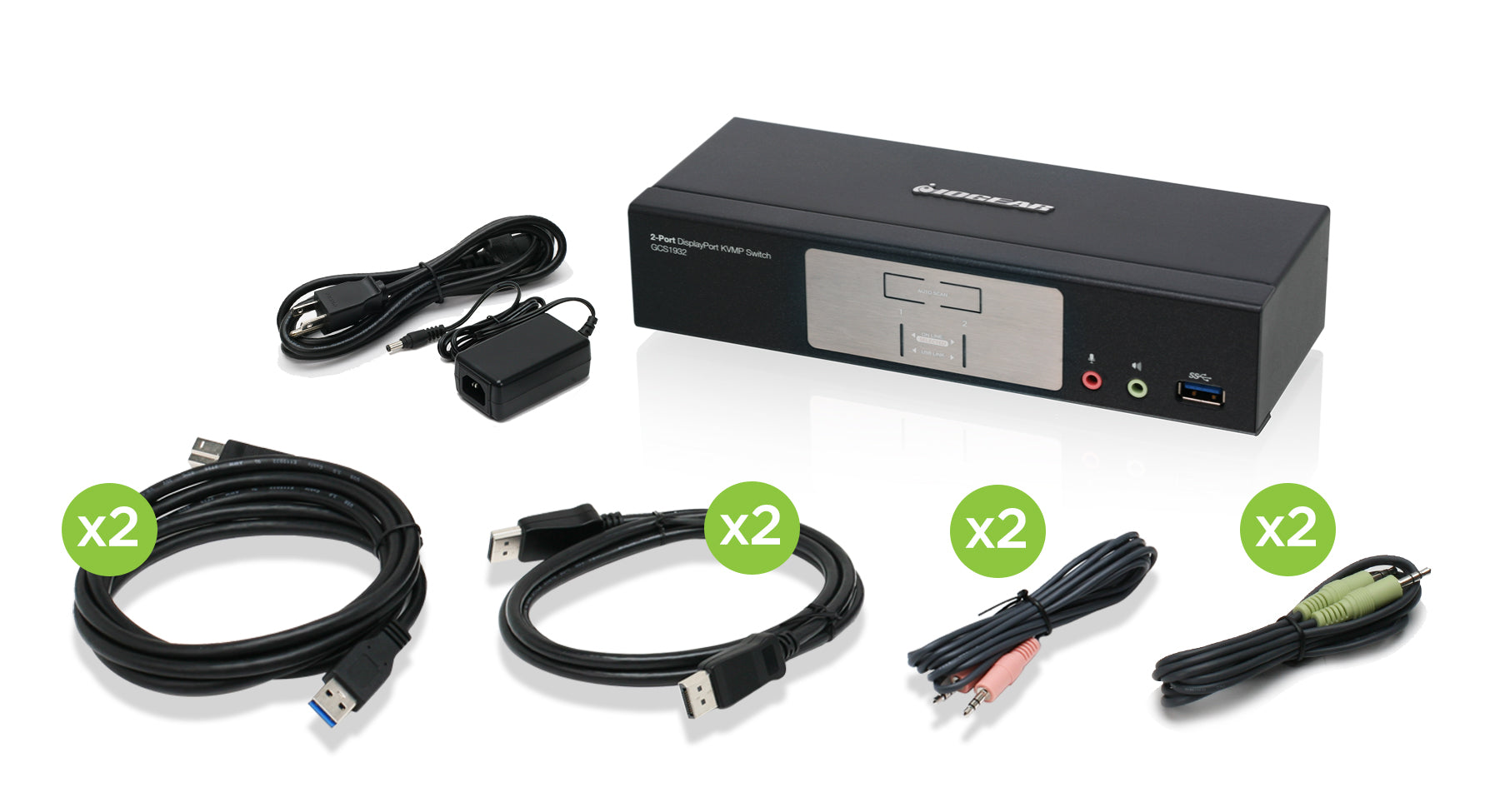

1 x GCS1932
2 x DisplayPort Cables (5ft.)
2 x USB 3.0 Cables (6ft.)
4 x Audio Cables (6ft.)
1 x Power Adapter
1 x Manual

GCS1932 Product Manual Download

GCS1932 Firmware V 1.1.105 Download

Release Date 05/22/2019

Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCS1932
Computer Connections
Direct	2
Port Selection	Pushbutton, Hotkeys, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode)
Console Connectors
Monitor	1 x DisplayPort
Keyboard	1 x USB Type A
Mouse	1 x USB Type A
Audio	2 x 3.5mm Mini Stereo Jack (Front and Rear)
Microphone	2 x 3.5mm Mini Stereo Jack (Front and Rear)

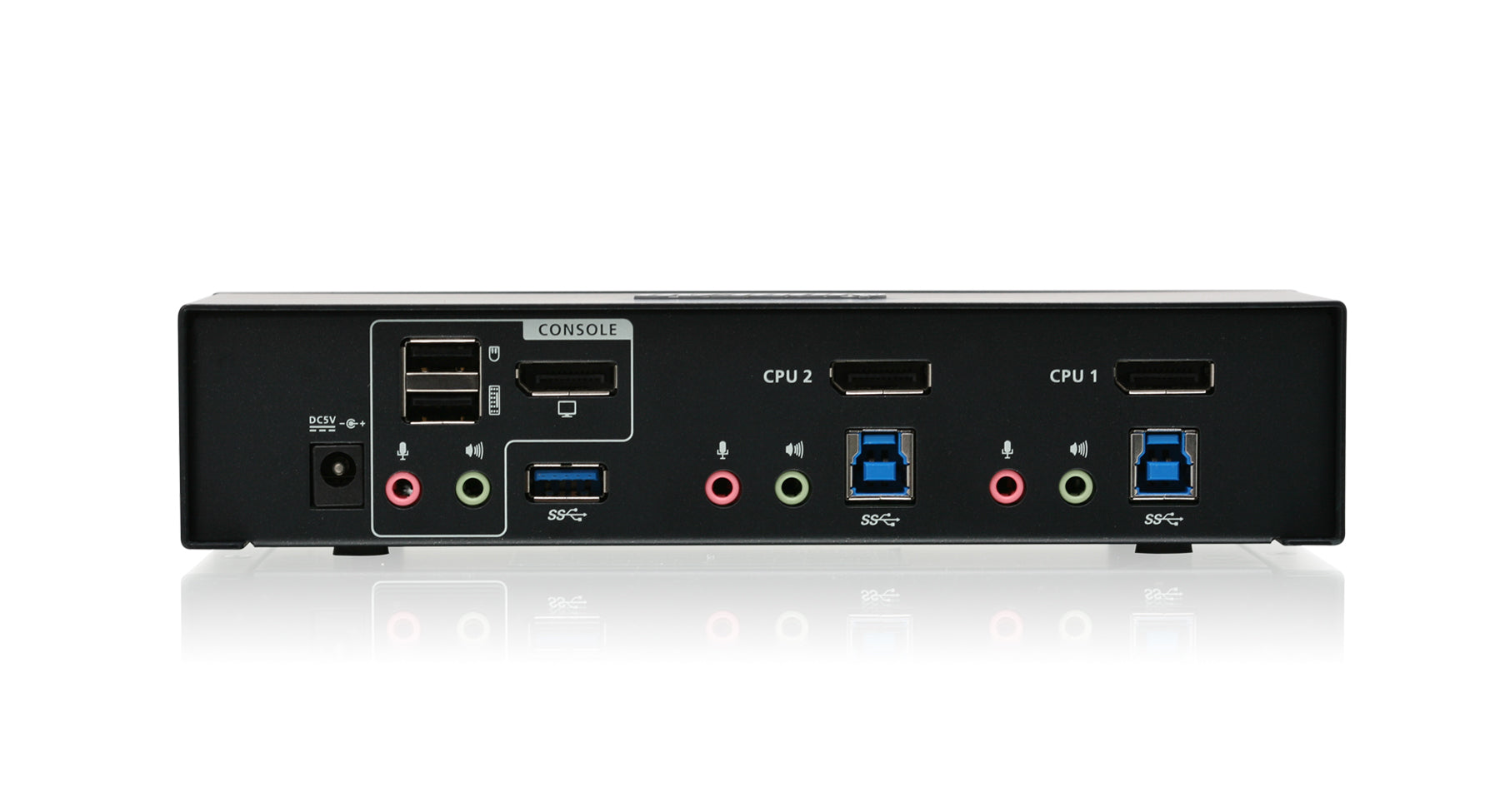

CPU Connectors
Monitor	2 x DisplayPort
Keyboard & Mouse	2 x USB3.1 Gen1 Type B
Audio	2 x 3.5mm Mini Stereo Jack
Microphone	2 x 3.5mm Mini Stereo Jack
Switches
F/W Upgrade	1 x USB Type B
Port Selection	2 x Pushbutton
Power Connections	1 x DC 5V Jack
Connectors
USB	2 x USB 3.1 Gen1 Type A (Front and Rear)
LEDs
Mode	2 x Orange
KVM	2 x Orange
Audio	2 x Orange
USB Peripherals	2 x Green
Emulation
Keyboard	USB
Mouse	USB
Video Resolution	4096 x 2160 @ 60Hz (4K DCI)
Scan Interval	1~99 seconds (5 seconds default)
Power
Voltage	DC 5V
Amps
Environment
Operation Temperature	0~50C
Storage Temperature	-20~60C
Humidity	0~80% RH, Non-condensing
Housing
Case	Metal
Cable Length	DisplayPort cables (5ft); USB 3.0 cables (6ft); Audio cables (6ft)

Dimensions	GCS1932
Unit Dimensions
Height	2.94" (7.47cm)
Length	7.875" (20cm)
Depth	1.69" (4.29cm)
Unit Package Dimensions
Height	6.81" (17.3cm)
Width	11.25" (28.58cm)
Depth	4" (10.16cm)
Master Carton
Height	14.75" (37.47cm)
Width	12.5" (31.75cm)
Depth	12" (30.48cm)
Master Carton Qty.	6
Weight
Master Carton Wt.	24.7lb (11.24kg)
Unit Pack Wt.	3.68lb (1.67kg)
Unit Wt.	1.458lb (0.662kg)

3 Year Limited Warranty
