2-Port 4K USB-C Desktop KVM Kit with DisplayPort to HDMI Adapter

2 Port Desktop KVMs

2-Port 4K USB-C Desktop KVM Kit with DisplayPort to HDMI Adapter

Name: 2-Port 4K USB-C Desktop KVM Kit with DisplayPort to HDMI Adapter
Brand: IOGEAR
SKU: GCS1602CCKIT
Price: 179.95 USD
Availability: OutOfStock

DisplayPort HDMI TAA Compliant USB-C

MPN: GCS1602CCKIT

UPC: 881317521941

$179.95

Easily switch between two USB-C devices and control them with up to 4 USB-A peripherals and view content on one 4k DisplayPort or HDMI monitor. IOGEAR's GCS1602CC USB-C KVM Switch requires no software and comes complete with the Power Delivery function, USB-C cables, and a 6-foot push-button remote switch. The GCS1602CC is also TAA compliant, providing easy and reliable switching that you can trust.

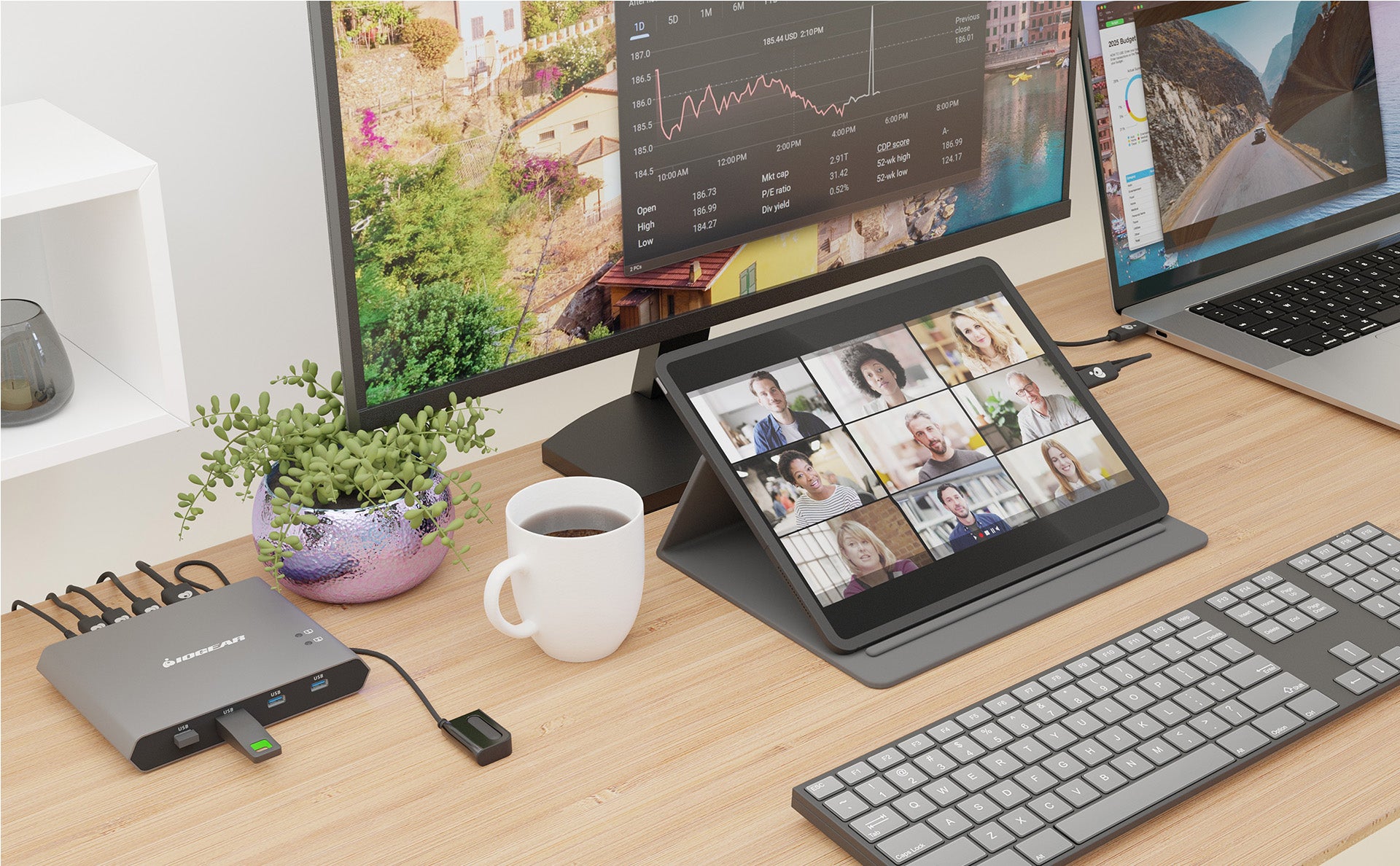

USB-C KVM - Switch Between Two USB-C Devices

Easily switch between two USB-C devices and control them with up to 4 USB-A peripherals and view content on one 4k monitor. IOGEAR's GCS1602CC USB-C KVM Switch requires no software and comes complete with the Power Delivery function, USB-C cables, and a 6-foot push-button remote switch. The GCS1602CC is also TAA compliant, providing easy and reliable switching that you can trust.

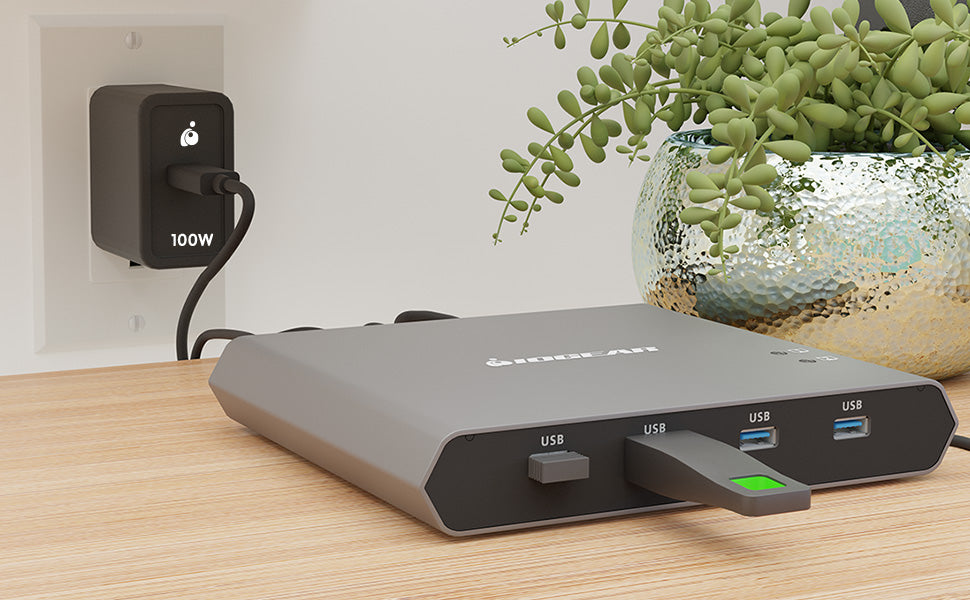

Work While Charging with 100W Power to Port 1

Supports PD 3.0 up to 100 Watt USB charging on Port 1 - allows your laptop to obtain the maximum power via your USB-C power adapter.

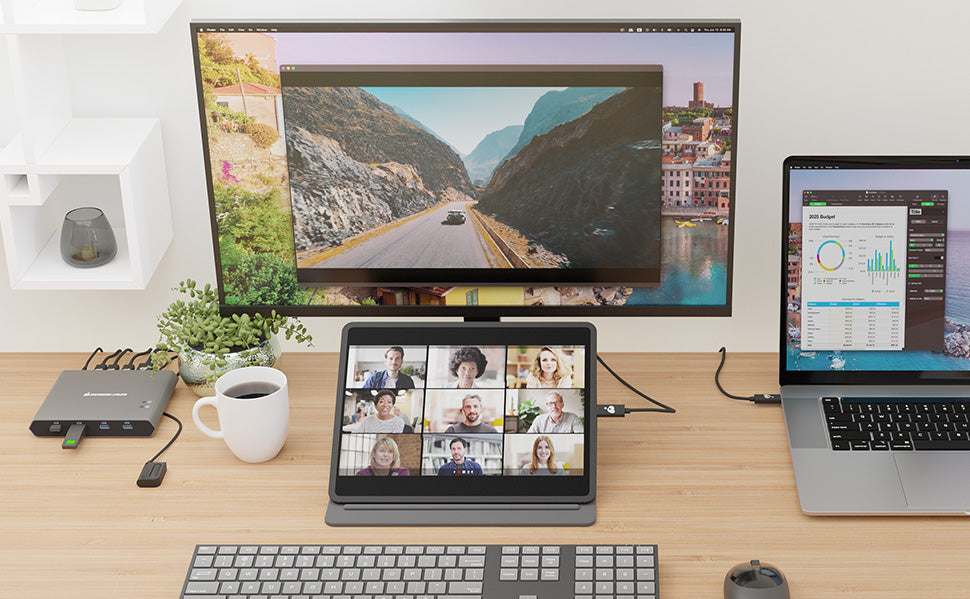

Dock & Switch Apple Devices

Expand the functionality of your new USB-C or Thunderbolt 3/4 device including the MacBook Air® and MacBook Pro® laptops and the new iPad Pro®. Add a keyboard, mouse, 2 USB devices and a 4k Ultra HD display to take full advantage of the newest iPad Pro capabilities.

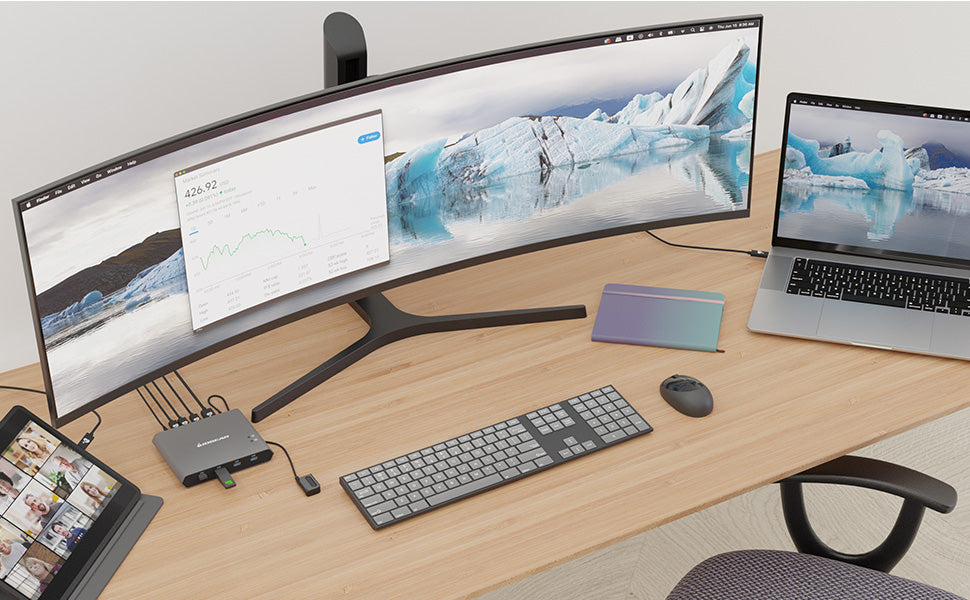

4k Ultra HD Support

The GCS1602CC empowers your desktop operations with stunning 4k UHD. It supports up to 3840x2160@60Hz and also works with 21:9 Ultrawide and 32:9 super Ultrawide monitors for graphics-intensive work.

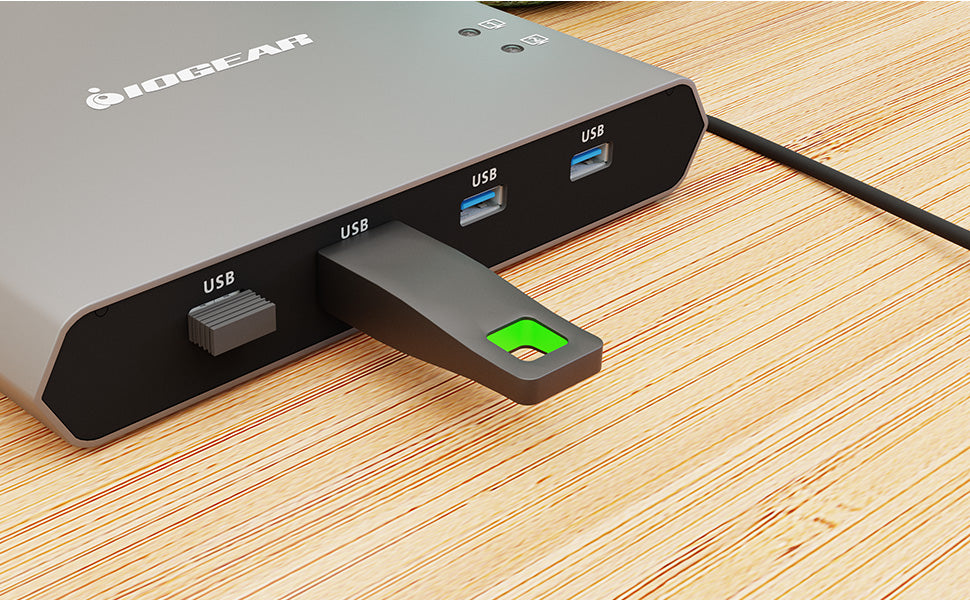

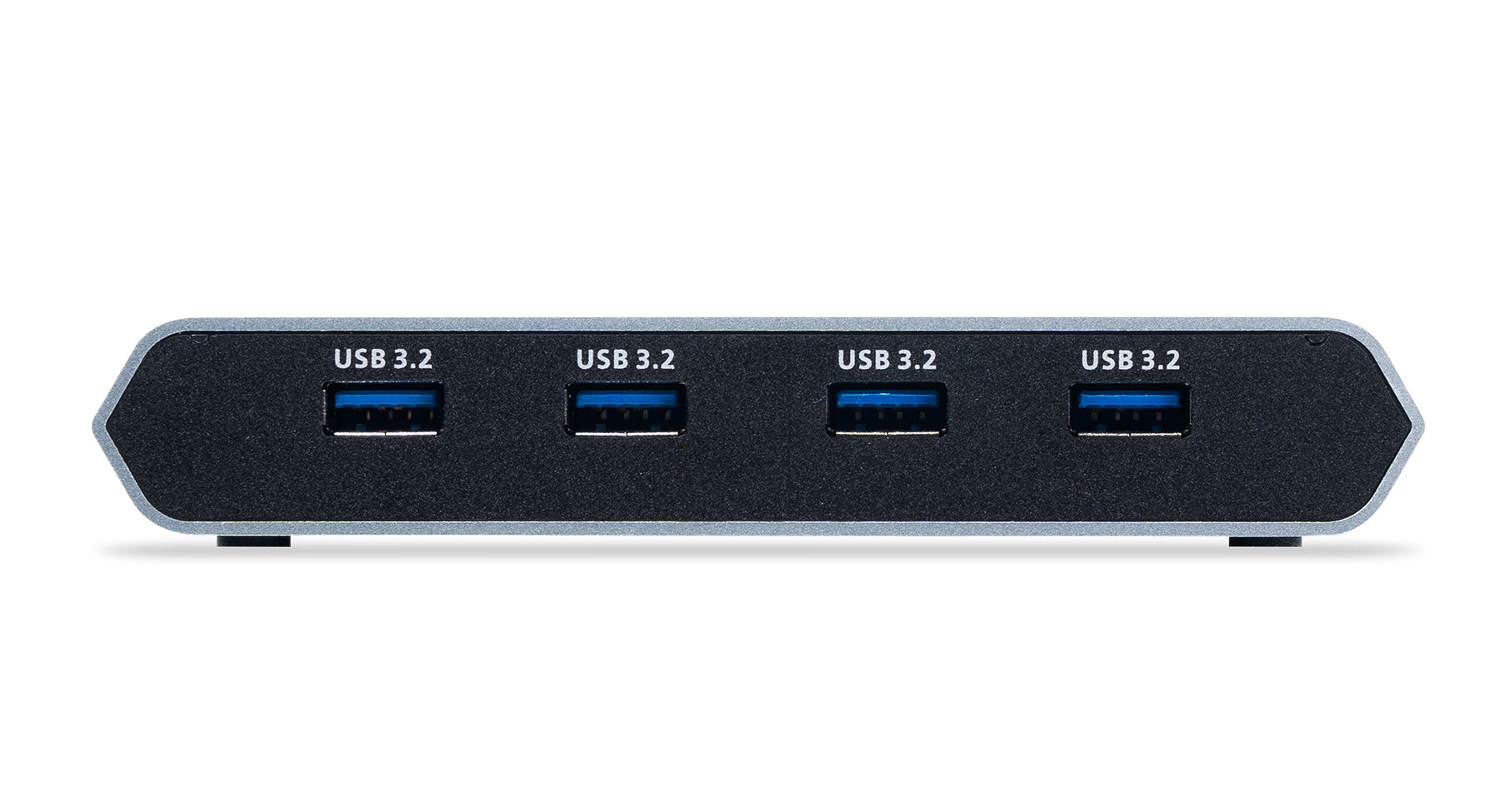

Built-in USB-A 3.2 Gen 1 Hub

Expand your USB-C devices' connectivity with 4 additional USB-A 3.2 Gen 1 ports. Connect to USB devices such as hard drives, flash drives, keyboards, mice, cameras and more. Easily share your peripherals between the two connected USB-C hosts.

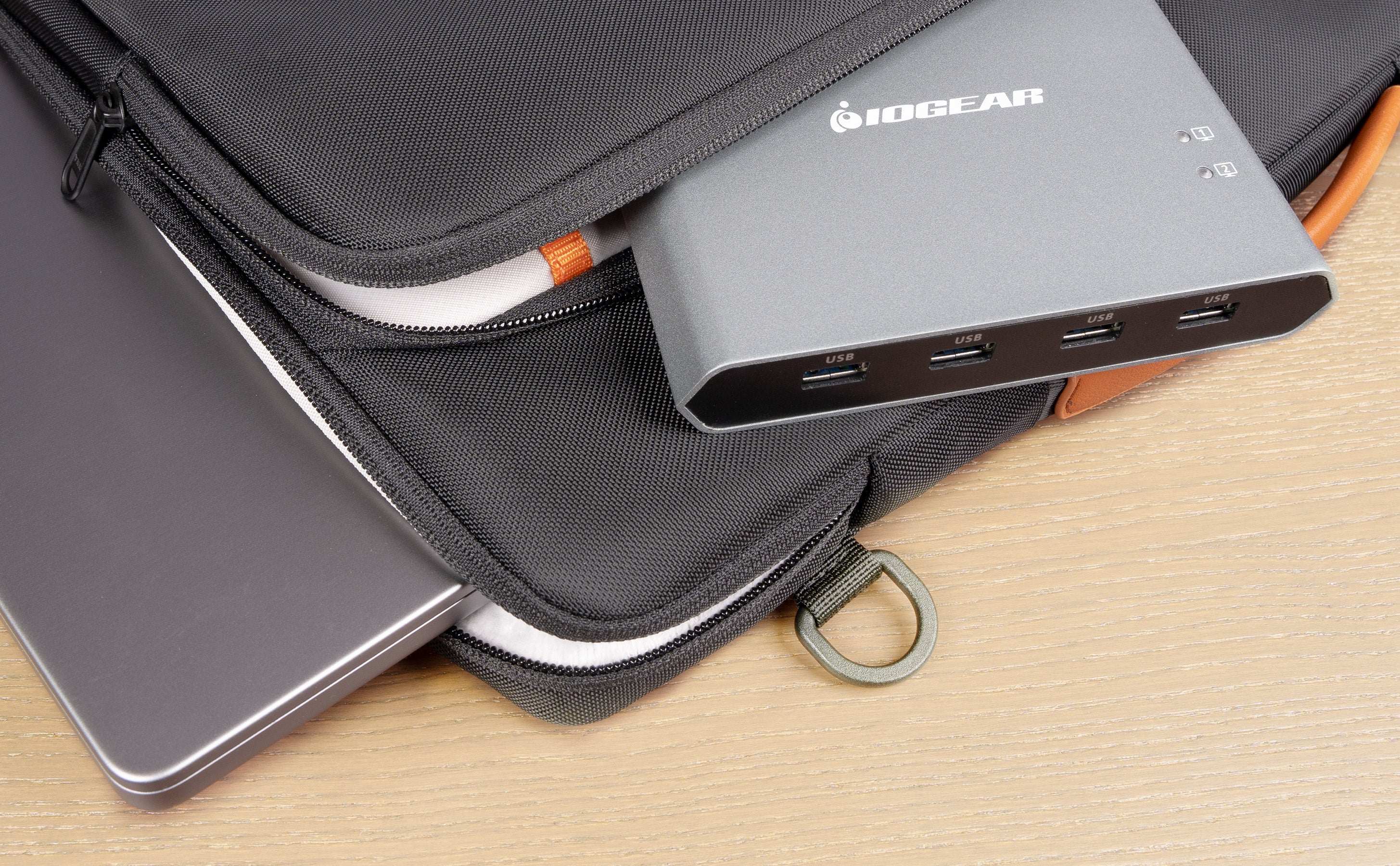

Optimal Function in a Compact KVM

With its compact form factor and compatibility with Thunderbolt 3 / 4 devices, the USB-C DVM Switch is a desktop and mobile powerhouse, ready to increase your productivity at home, work or on-the-go. The USB-C KVM's small footprint ensures it takes up little space at your workstation while fitting conveniently into your travel bag.

Control and share 2 USB-C devices with DP Alt Mode from one keyboard, mouse, and a DisplayPort or HDMI monitor.
Resolution up to 4K UHD 3840 x 2160 @60Hz
Two additional USB peripheral ports built in for more USB connectivity
Video DynaSync - Optimizes resolution when switching among different sources and eliminates boot-up display problems.
USB 3.2 Gen 1 compliant and up to 5 Gbps data transfer rates
Support Power Delivery 3.0 up to 100W USB PD charging on Port 1 with additional USB-C Power Supply (Sold separately)
Plug-n-Play; no software or driver needed.
Supports USB-C/Thunderbolt 4 host device with DP Alt Mode
Supports DP 1.4 Alt Mode

Console:

-DisplayPort or HDMI monitor
-Standard 104-key wired USB keyboard
-Standard 3 button wired USB mouse

Computers:

-USB-C enabled computer with DP Alt Mode*

Operating Systems

Windows® 10, 11
Mac OS X 10.12+
iPadOS 13.1 or later
Android 8+

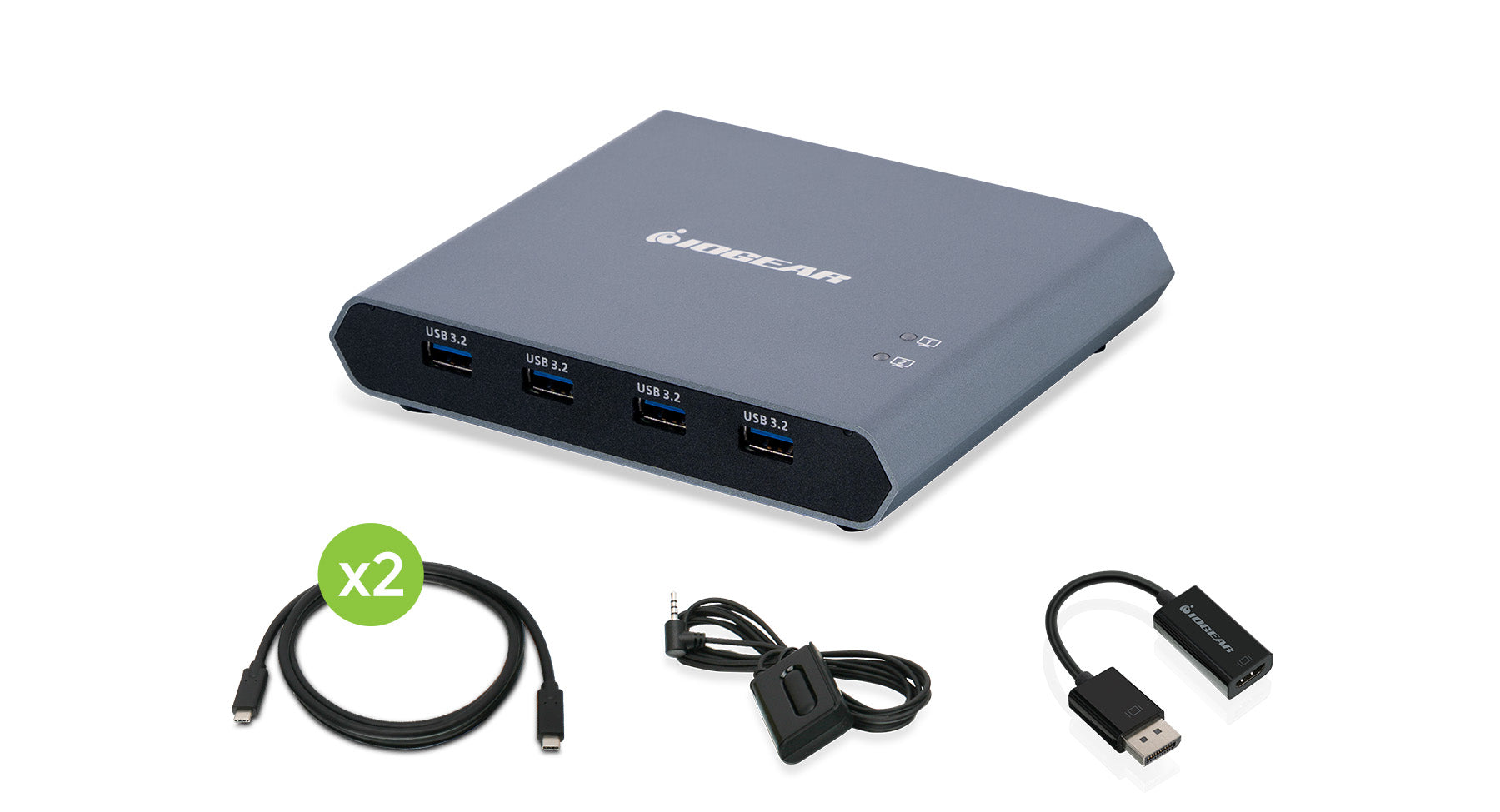

1x 2-Port USB-C KVM Switch
2x USB-C to USB-C Cables
1x DisplayPort to HDMI adapter (GDPHD4KA)
1x Remote Port Selector
1x Power Adapter
1x Quick Start Guide
1x Warranty Card

GCS1602CC Quick Start Guide Download

Need more help with this product? Visit IOGEAR Knowledge Base

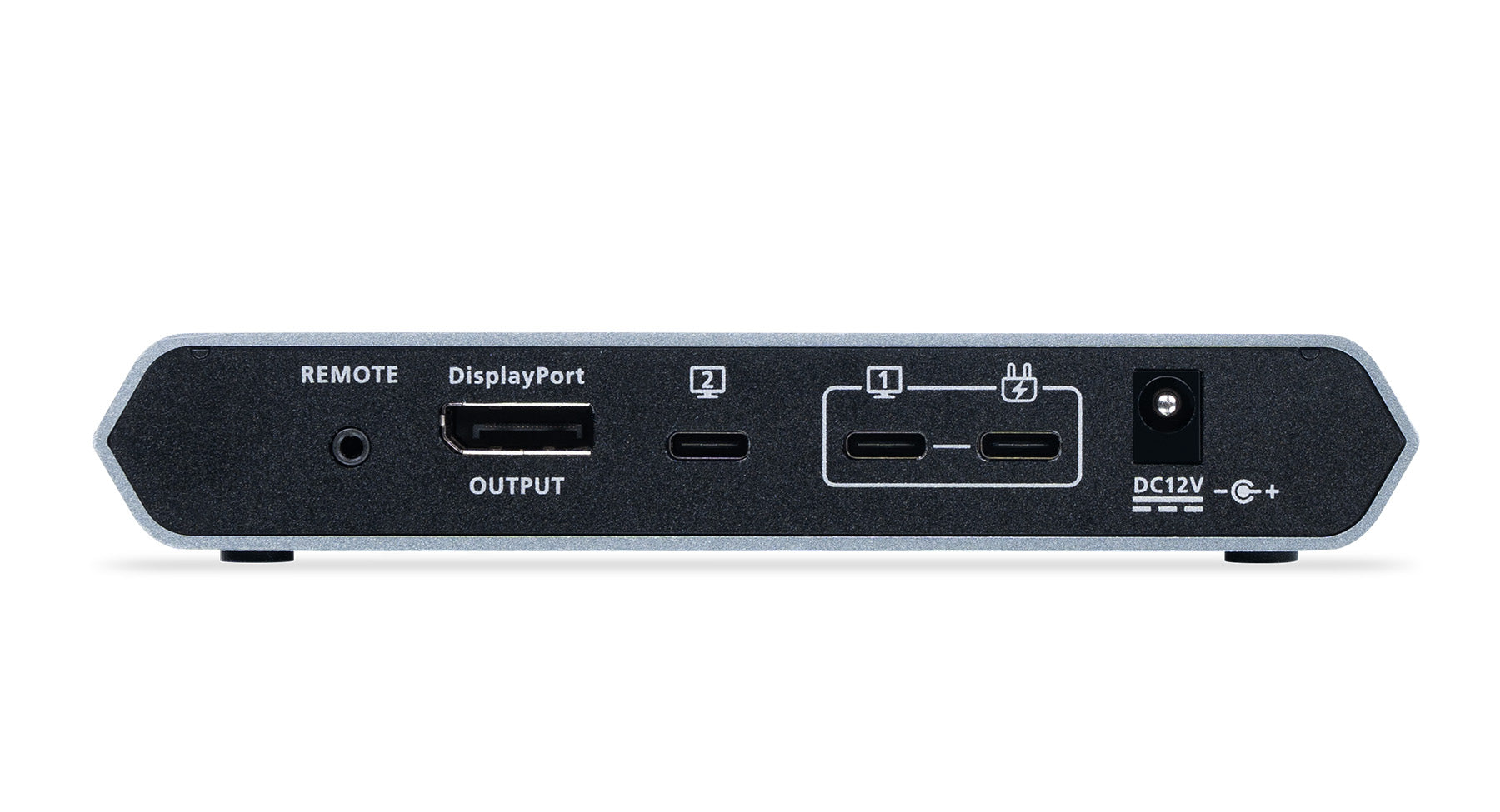

Function	GCS1602CCKIT
Upstream Port
USB-C	2x USB-C for Laptops; data rate up to 5Gbps
Downstream Port
DisplayPort	1x DP 1.4 compliant, up to 4k60Hz
HDMI	1x up to 4k60Hz with included DP to HDMI adapter
USB-A	4x USB-A 3.2 Gen 1, data rate up to 5Gbps
USB-C	1x USB-C for Power Delivery Pass-Thru
Power
Power Delivery Pass-Thru	Port 1: Supports 100W USB-C PD laptop charging at 5V, 9V, 15V, and 20V output2 Port 2: Supports max. 5V, 3A output
Input Rating	DC12V, 3.3A
Operating System Requirements
Mac	Mac OS® X 9.0+
Windows	Windows® 10, 11 (32-bit / 64-bit) with 7th-Gen Intel Core Processor or above
Android	Android 8+
iOS	iPadOS 13.1 or later
Environment
Humidity	0?80% RH, Non-condensing
Operation Temperature	32 - 104°F (0?40°C)
Storage Temperature	-4 - 140°F (-20?60°C)

Dimensions	GCS1602CC
Unit Package Dimensions
Height	6.8 in. (17.3 cm)
Length	11.2 in (28.3 cm)
Width	2.5 in. (6.2 cm)
Master Carton
Height	7.6 in. (19.4 cm)
Length	15.8 in. (40.2 cm)
Width	11.8 in. (30 cm)
Master Carton Qty.	6
Weight
Master Carton Wt.	15.3 lb. (6.9 kg)
Unit Pack Wt.	2.3 lb. (1.02 kg)

3 Year Limited Warranty
