3 Port Desktop KVMs

3-Port 4K USB-C and DisplayPort KVMP Switch with Power Delivery

3-Port DisplayPort TAA Compliant USB-C
MPN: GCS1953

UPC: 881317518675

Sale price$499.95

Switch and control 1 USB-C (with DP Alt Mode) device and 2 DisplayPort computers from a single USB keyboard, mouse and 4K DisplayPort monitor using IOGEAR's 3-Port 4K USB-C KVMP Switch. Perfect setup for anyone who relies on accessing multiple desktops and a USB-C laptop or any USB-C device for work. Easily share two USB peripherals across multiple devices. Includes all necessary cables to get connected and maximizing your workstation.

3-Port 4K USB-C and DisplayPort KVMP Switch with Power Delivery
3-Port 4K USB-C and DisplayPort KVMP Switch with Power Delivery Sale price$499.95
Cinema 4K Clarity Necessary for Many Industries

IOGEAR's 3-Port 4K USB-C and DisplayPort KVMP switch delivers clear image resolutions up to Cinema 4K (4096 x 2160). This switch supports high-resolution graphics that are increasingly necessary in many industries: graphic design, animation studios, healthcare imaging, engineering, finance, government and more.

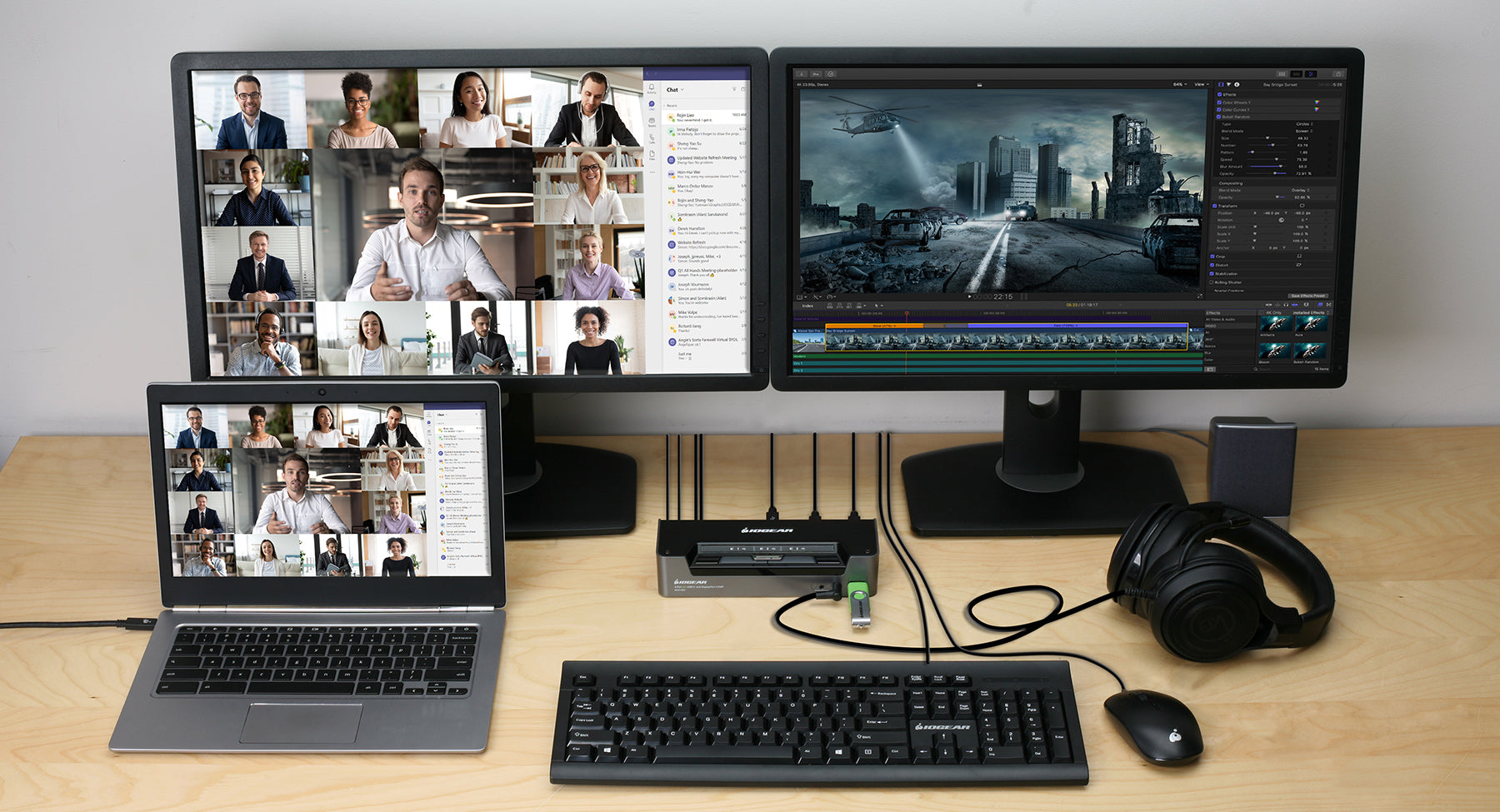

Easier, More Productive Multi-Tasking

Adding more than one monitor to your perfect setup is easy with a GCS1953 KVMP switch. It supports Multi Stream Transport (MST) which enables you to expand to two DisplayPort monitors. Email and chat on one screen while working on another. Compare and contrast between two images or documents quickly and intuitively.

Make Your Work Life Easier

KVMPs are the answer to desk clutter. You can switch from each device from the easy-to-use front panel push buttons, hotkeys, mouse and a 6ft long remote port selector. Your equipment's cords stay in the background, out of the way. Set up your KVMP switch once and quickly connect/disconnect laptops, tablets and phones. Additionally, its fast power-delivery system means there is no need to use the laptop's power cable, you can leave it in your bag.

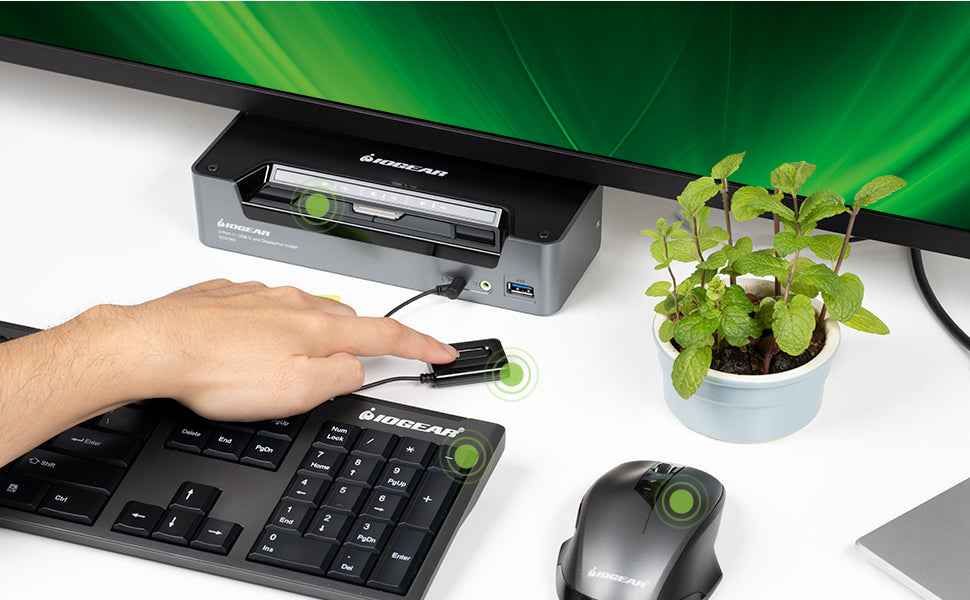

Multiple Switching Methods

Switch and access up to 2 DisplayPort computers and 1 USB-C device from the push-button panel, hotkey combinations on your keyboard or utilize the latest in mouse port-switching functionality to change devices by simply clicking the wheel button on your 3-button USB mouse.

Cost Efficient for Both Home and Office

This TAA-Compliant streamlined solution saves money on desk space as well as additional computer accessories--you only need one keyboard, mouse and monitors. It is perfectly suited for newer laptop (USB-C) and older desktop combinations without the need for an external docking station - so you don't need new equipment.

  • Switch and Control between 2 DisplayPort and 1 USB-C devices/computers from one USB keyboard, mouse and 4K DisplayPort monitor and share two USB peripherals
  • Power Delivery 3.0 allows for USB-C device charging up to 45W1
  • Cinema 4K resolution (4096 x 2160 @60Hz)2 with one monitor
  • DisplayPort 1.2 compliant; HDCP 1.4 compliant
  • Multi Stream Transport (MST) Support, enable to expand to two DisplayPort monitors3
  • 2-Port USB 3.1 Gen 1 for SuperSpeed 5Gbps data transfer rate2
  • DisplayPort Alternate Mode (DP Alt Mode), enable USB-C connection to carry DisplayPort signals
  • Computer selection via front panel pushbutton, hotkeys, mouse4 and remote port selector
  • Supports HD Audio5
  • DisplayPort Dual-Mode technology(DP++)6
  • USB Powered
  • HDCP compliant
  • Firmware upgradable

1Please connect the included power adapter with GCS1953
2For USB-C devices, resolution 4K@60Hz when using USB2.0 transfer rate, 4K@30Hz when using USB3.0 transfer rate
3First DisplayPort monitor must have DP1.2 MST support, second DisplayPort monitor can be DP1.1, resolutions will be shared between the two monitors
4Mouse emulation must be enabled and use with USB 3-key wheel mice
5HD Audio through DisplayPort cannot be switched independently
6DisplayPort signals can be converted to HDMI or DVI

Computer side:

  • DisplayPort or USB-C ports
  • USB-A ports
  • 3.5mm audio ports (optional)
  • Minimum DP1.2 Compliance to Support DP related festures.

Console side:

  • Minimum DP1.2 Complaint Display
  • Standard 104 Key wired USB keyboard
  • Standard 2 or 3 button wired USB mouse
  • Speakers(optional)
  • 1 x 3-Port USB-C and DisplayPort KVMP Switch with Audio
  • 2 x DisplayPort cables
  • 2 x USB Type-A to Type-B cables
  • 1 x USB Type-C cable
  • 3 x 3.5mm Audio Cables
  • 1 x 6Ft. Remote Port Selector
  • 1 x Power Adapter
  • 1 x Quick Start Guide
  • 1 x Warranty Card



GCS1953 Firmware V 1.1.102 Download

Release Date: 03/12/24

Windows 10 32-bit
Windows 10 64-bit
Windows 11

GCS1953 Firmware V 2 Download

Release Date: 07/24/23

Windows 10 32-bit
Windows 10 64-bit
Windows 11

Need more help with this product? Visit IOGEAR Knowledge Base

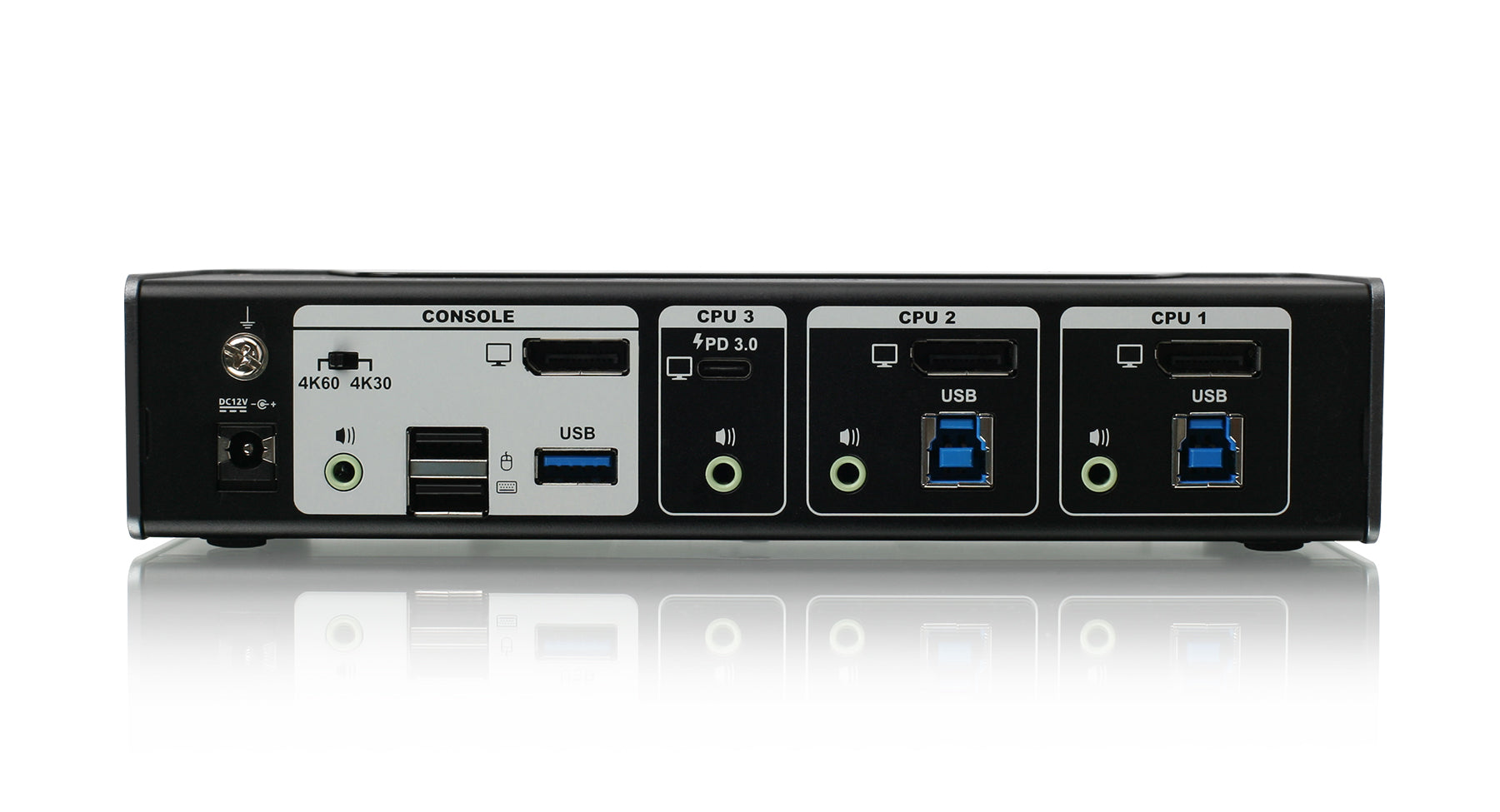

FunctionGCS1953
Console Connectors
Audio2 x 3.5mm Mini Stereo Jack
Microphone1 x 3.5mm Mini Stereo Jack
Keyboard2 x USB 2.0 Type A
Mouse2 x USB 2.0 Type A
Monitor1 x DisplayPort
CPU Connectors
Audio3 x 3.5mm Mini Stereo Jack
Keyboard2 x USB 3.0 Type B (Blue), 1 x USB Type C
Monitor2 x DisplayPort, 1 x USB Type C
Microphone1 x 3.5mm Mini Stereo Jack
Mouse2 x USB 3.0 Type B (Blue), 1 x USB Type C
Switches
Port Selection3 x Pushbutton
Connectors
USB1 x USB 3.0 Type A (Blue; Front), 1 x USB 3.0 Type A (Blue; Rear)
Emulation
KeyboardUSB
MouseUSB
Video Resolution4096 x 2160 @60 Hz (4K DCI)
Power SupplyDC 12V
Environment
Humidity0~80% RH, Non-condensing
Operation Temperature0~40 C
Storage Temperature-20~60 C
DimensionsGCS1953
Unit Dimensions
Height8.1in (20.6cm)
Width3in (7.6cm)
Depth1.7in (4.3cm)
Unit Package Dimensions
Height8.3in (21.1cm)
Width3in (9.7cm)
Depth13in (33.02cm)
Master Carton
Height14in (35.56cm)
Width17.5in (44.45cm)
Depth12.8in (32.5cm)
Master Carton Qty.6
Weight
Master Carton Wt.27.9lb (12.66kg)
Unit Pack Wt.1.96lb (0.88kg)
Unit Wt.1.1lb (0.5kg)
