4-Port Displayport 1.2 KVMP with Built in USB 3.1 Gen 1 Hub and Audio (TAA)

4-Port DisplayPort TAA Compliant
MPN: GCS1934

UPC: 881317514448

Sale price$624.95

Featuring a revolutionary combination of Cinema 4K resolution, the next generation USB 3.1 hub, and enhanced user-friendly operation, IOGEAR's 4-Port DisplayPort1.2 KVMP Switch provides the latest innovations in DisplayPort KVM technology. Connect your powerhouse computers and experience Cinema 4K resolution while switching between the four computers and sharing two USB peripherals with the push of a button. The 4-Port DisplayPort 1.2 KVMP Switch combines the functionality of a KVM switch with a DisplayPort 1.2 digital interface, built-in USB 3.1 Gen 1 hub, and audio.

4-Port Displayport 1.2 KVMP with Built in USB 3.1 Gen 1 Hub and Audio (TAA)
4-Port Displayport 1.2 KVMP with Built in USB 3.1 Gen 1 Hub and Audio (TAA) Sale price$624.95
Cinema 4K Experience

Connect a Cinema 4K DisplayPort monitor to your desktop or laptop to experience superior screen, image, and video quality. GCS1934 delivers a 4K resolution up to 4096 x 2160 at 60Hz. This 4-Port KVMP switch is designed for environments requiring cinematic graphic resolution, such as professional film and video production industries.

Built-in USB3.0 peripheral sharing

Control/share two USB 3.0 peripherals between four computers at up to 5Gbps data transfer speed. In addition, the USB peripheral can be separated from the KVM port switching, so when one computer is working with the connected USB device, user can switch to the other computers for other tasks without causing issues.

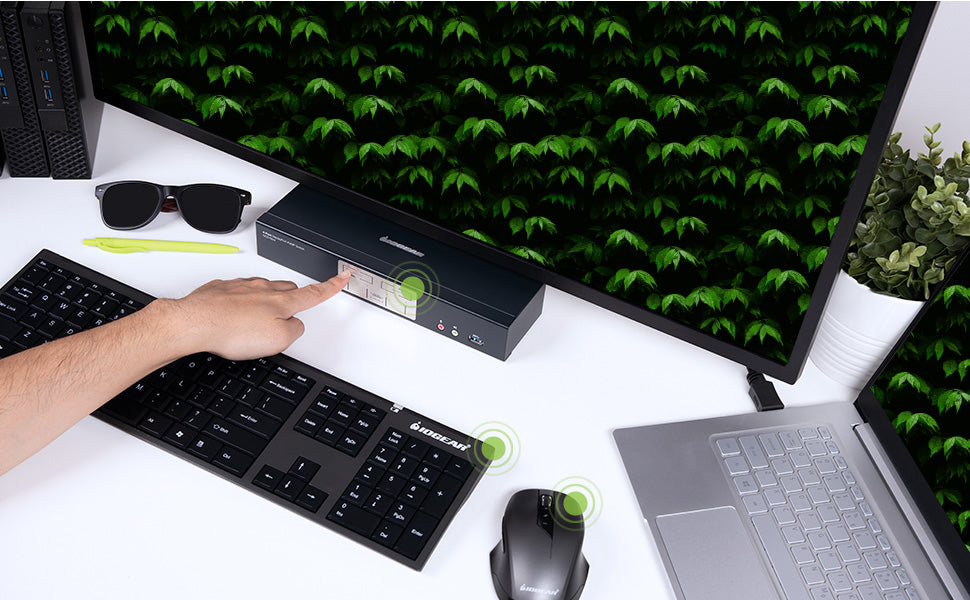

Convenient Switching Methods

3 ways for GCS1934 Port switching. Hotkeys, pushbuttons on the front panel and mouse wheel button, pick the way best fit for your needs.

  • Control 4 computers using a single keyboard, mouse, and DisplayPort video console
  • Superior video quality – Cinema 4K (4096x2160@60Hz)
  • DisplayPort 1.2 compliant, HDCP compliant
  • 2-Port USB3.1 Gen1 Hub with SuperSpeed 5Gbps transfer rate
  • MST (Multi-Stream Transport)1
  • DP++ supports HDMI and DVI output2
  • Computer selection via front panel pushbuttons, hotkeys, and mouse3
  • Independent switching of the KVM, USB, and 2.1 channel audio
  • Supports 7.1 HD audio through DisplayPort4
  • Full bass response for high quality 7.1 channel audio
  • Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
  • Multi-platform support – Windows®7, Windows®8.1, Windows®10, Mac®, and Linux®
  • Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
  • Mac® keyboard support and emulation5
  • Auto Scan Mode to monitor all computers
  • Power On Detection
  • Hot pluggable
  • Firmware Upgradable
  • All cables included

Note

1MST requires two monitors capable of DisplayPort 1.2 daisychaining, or use of a powered DisplayPort MST Hub. PC Source must be DisplayPort 1.2 compliant. A DisplayPort 1.1a monitor can be the last monitor in a DP1.2 chain

2 Dual-Mode DisplayPort (DP++) requires active HDMI and DVI adapters for most display setups.

3 Mouse port switching supported alongside mouse emulation mode using a USB 3-button mouse wheel

4 HD audio through DisplayPort cannot be switched independently

5 PC keyboard combinations emulate Mac® keyboards. Keyboards only work using their own Operating System



  • Console
  • DisplayPort compatible monitor
  • Standard 104 key wired USB keyboard
  • Standard 2 or 3 button wired USB mouse
  • Microphone and speakers (optional)
  •
  • Computers
  • DisplayPort port
  • Type A USB port
  • Audio ports (optional)

*Use with video adapter may change performance

  • 1 x GCS1934
  • 4 x DisplayPort Cables (5ft.)
  • 4 x USB 3.0 Cables (6ft.)
  • 8 x Audio Cables (6ft.)
  • 1 x Power Adapter
  • 1 x Manual

FunctionGCS1934
Computer Connections
Direct4
Port SelectionPushbutton, Hotkeys, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode)
Console Connectors
Monitor1 x DisplayPort
Keyboard1 x USB Type A
Mouse1 x USB Type A
Audio2 x 3.5mm Mini Stereo Jack (Front and Rear)
Microphone2 x 3.5mm Mini Stereo Jack (Front and Rear)

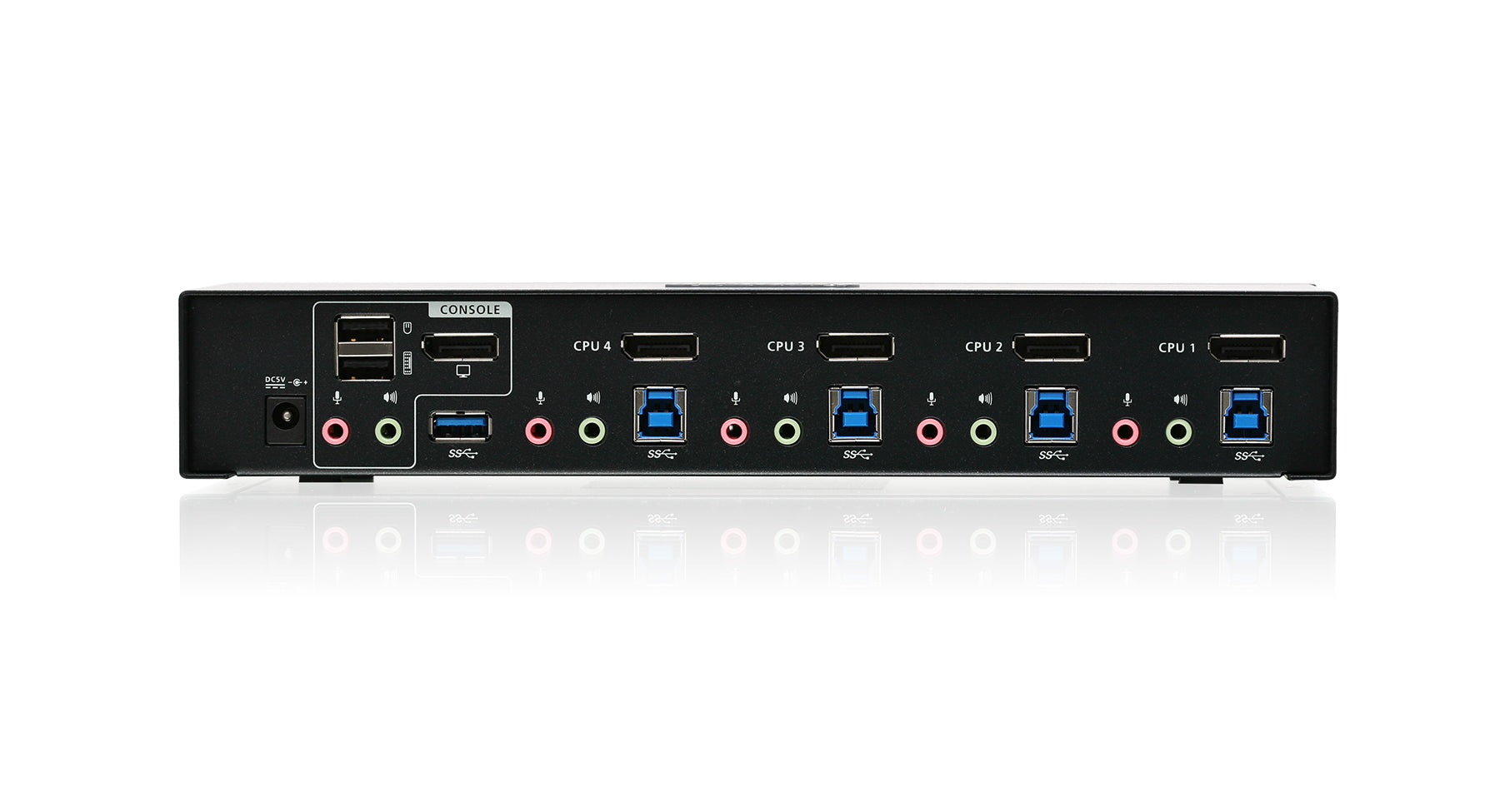

CPU Connectors
Monitor4 x DisplayPort
Keyboard & Mouse4 x USB 3.1 Gen1 Type B
Audio4 x 3.5mm Mini Stereo Jack
Microphone4 x 3.5mm Mini Stereo Jack
Switches
F/W Upgrade1 x USB Type B
Port Selection4 x Pushbuttons
Connectors
USB2 x USB 3.1 Gen1 Type A
LEDs
Mode4 x Orange
KVM4 x Orange
Audio4 x Orange
USB Peripherals4 x Green
Emulation
KeyboardUSB
MouseUSB
Video Resolution4096 x 2160 @ 60Hz (4K DCI)
Scan Interval1~99 seconds (5 seconds default)
Power
VoltageDC 5.3V
Environment
Operation Temperature0~50C
Storage Temperature-20~60C
Humidity0~80% RH, Non-condensing
Housing
CaseMetal
Cable LengthDisplayPort cables (5ft); USB 3.0 cables (6ft); Audio cables (6ft)
DimensionsGCS1934
Unit Dimensions
Height2.94" (7.47cm)
Length10.25" (26.03cm)
Depth1.69" (4.29cm)
Unit Package Dimensions
Height8.27" (21cm)
Width12.8" (32.5cm)
Depth4" (10.16cm)
Master Carton
Height14.25" (36.2cm)
Width17.5" (44.45cm)
Depth12.69" (32.23cm)
Master Carton Qty.6
Weight
Master Carton Wt.34.87lb (15.85kg)
Unit Pack Wt.5.46lb (2.47kg)
Unit Wt.1.895lb (0.859kg)
