4-Port 4K UHD DisplayPort KVMP with Keyboard and Mouse (TAA)

2-Port DisplayPort TAA Compliant
MPN: GCS1904-KM

UPC: 881317516183

Sale price$449.95

  • Affordable DisplayPort KVMP Option
  • Kit Includes:
  • 4-Port 4K UHD KVMP (GCS1904)
  • Wireless Keyboard and Mouse(GKM558R)
  • KVM and audio cables - no separate purchase needed
4-Port 4K UHD DisplayPort KVMP with Keyboard and Mouse (TAA)
4-Port 4K UHD DisplayPort KVMP with Keyboard and Mouse (TAA) Sale price$449.95

DisplayPort 1.1 KVMP Switch with Wireless Keyboard and Mouse

IOGEAR's 4-Port 4K UHD DisplayPort KVMP bundle comes complete with a set of IOGEAR's state-of-the-art wireless keyboard and mouse. Streamline your 4K setup with this computer switch, IOGEAR's low-profile keyboard and touch sensor mouse. With a combination of 4K UHD resolution support, the next generation USB3.0 hub, and enhanced user-friendly operation, IOGEAR's DisplayPort KVMP Bundle provides the latest innovations in DisplayPort KVM technology and convenience in desktop setup. Your most affordable computer switching connectivity solution is ready for setup straight out-of-the-box!

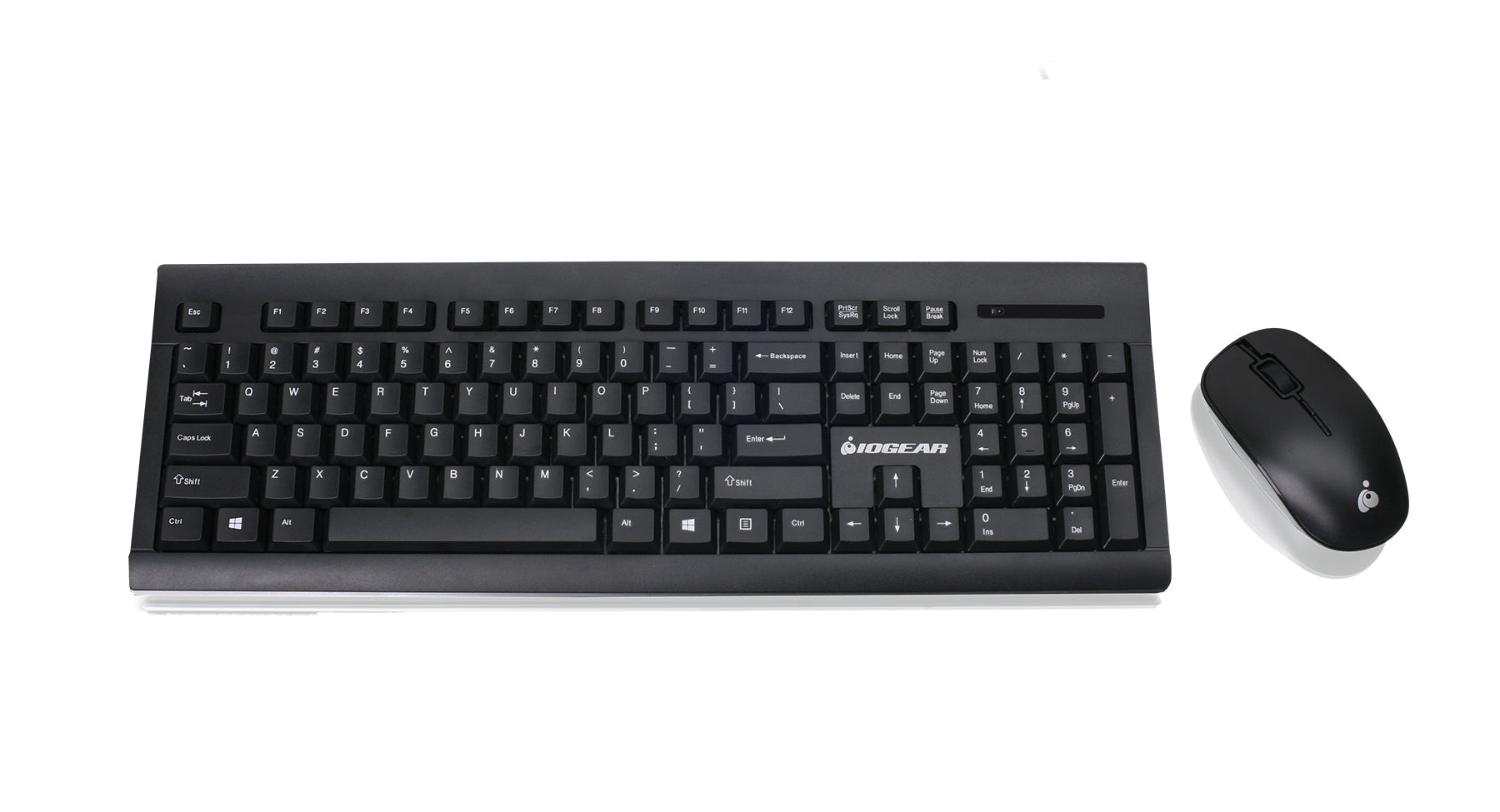

Tacturus Keyboard and Mouse

The Tacturus keyboard and mouse set is the perfect complement to your digital desktop. The Chiclet style key layout on the keyboard allows for extra space in between the keys and a slightly larger key area to improve typing accuracy. The built-in touch pad on the mouse allows for a more comfortable navigating experience. The mouse supports both vertical and horizontal animation scrolling.

Smart Connectivity

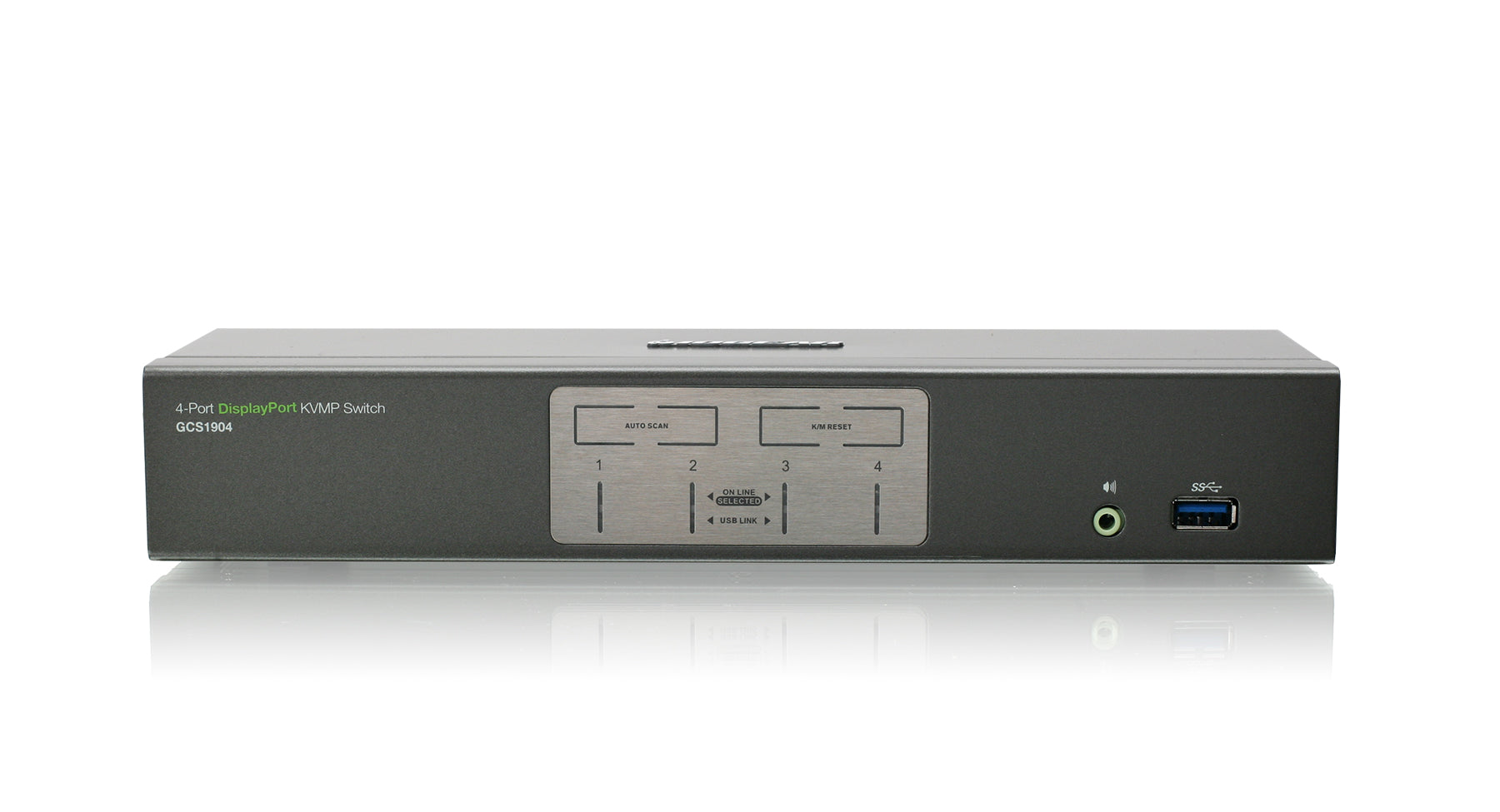

Switching between computers cannot be any easier. A convenient push button located on the front of the KVM provides quick and easy access your second computer. Additionally, switch between computers easily by typing in hotkey combination from the keyboard. The Power on Detection feature ensures that this KVMP will automatically connect to the next powered on computer. The built in USB3.0 ports allows connectivity of up to SuperSpeed 5Gbps data transfer speeds and provides backwards compatibility with USB 2.0 and USB 1.1 legacy devices.

Save Time and Money When You Bundle

Avoid unplugging and plugging USB peripherals, monitors and other devices between four computers. Share your peripherals* with the push of a button and forget about purchasing additional keyboards, mice, monitors, hard drives, flash drives, printers and more. This KVMP stays up to date by allowing firmware updates and eliminates the need to purchase upgraded KVMP switches. Additionally, this bundle allows us to offer a great feeling keyboard and mouse at a fantastic price.



*Compatible with IOGEAR'S USB-C docking stations

  • DisplayPort KVMP:
  • Switch between 4 computers at the push of a button
  • Control 4 computers using a single keyboard, mouse, and DisplayPort video console
  • Superior video quality – 4K UHD (3840x2160@30Hz)
  • DisplayPort 1.1 compliant, HDCP compliant
  • 2-Port USB3.0 Hub with SuperSpeed 5Gbps transfer rate
  • DP++ supports HDMI and DVI output1
  • Switch between computers via front panel pushbuttons, hotkeys
  • Independent switching of the video, USB, and audio
  • Supports superior HD quality audio2
  • Multi-platform support – Windows®7, Windows®8.1, Windows®10, Mac®, and Linux®
  • Auto Scan Mode to monitor all computers
  • Power On Detection and hot pluggable
  • Firmware Upgradable
  • Supports keyboard and mouse emulation
  •
  • Wireless Keyboard and Mouse:
  • 2.4 GHz wireless- up to 33ft range
  • 1000dpi resolution wireless mouse with touch pad
  • Low-profile keys for quiet, comfortable typing
  • Touch Mouse supports smooth horizontal and vertical animation scrolling
  • 12 multimedia hotkeys for quick access to your music, e-mail, browser and more
  • Chiclet style keyboard layout
  • Durable keys with a durability of 10 million cycles

1Dual-Mode DisplayPort (DP++)requires Active HDMI or DVI adapter for most single display setups.
2HD audio through DisplayPort cannot be switched independently

  • Console
  • DisplayPort compatible monitor
  •
  • Computer
  • DisplayPort port
  • USB Type-A port
  •
  • Wireless Keyboard and Mouse
  • Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
  • Mac OS X 10.3+*

*Some function keys may not work with older Mac OS Systems
**Use with video adapter may change performance

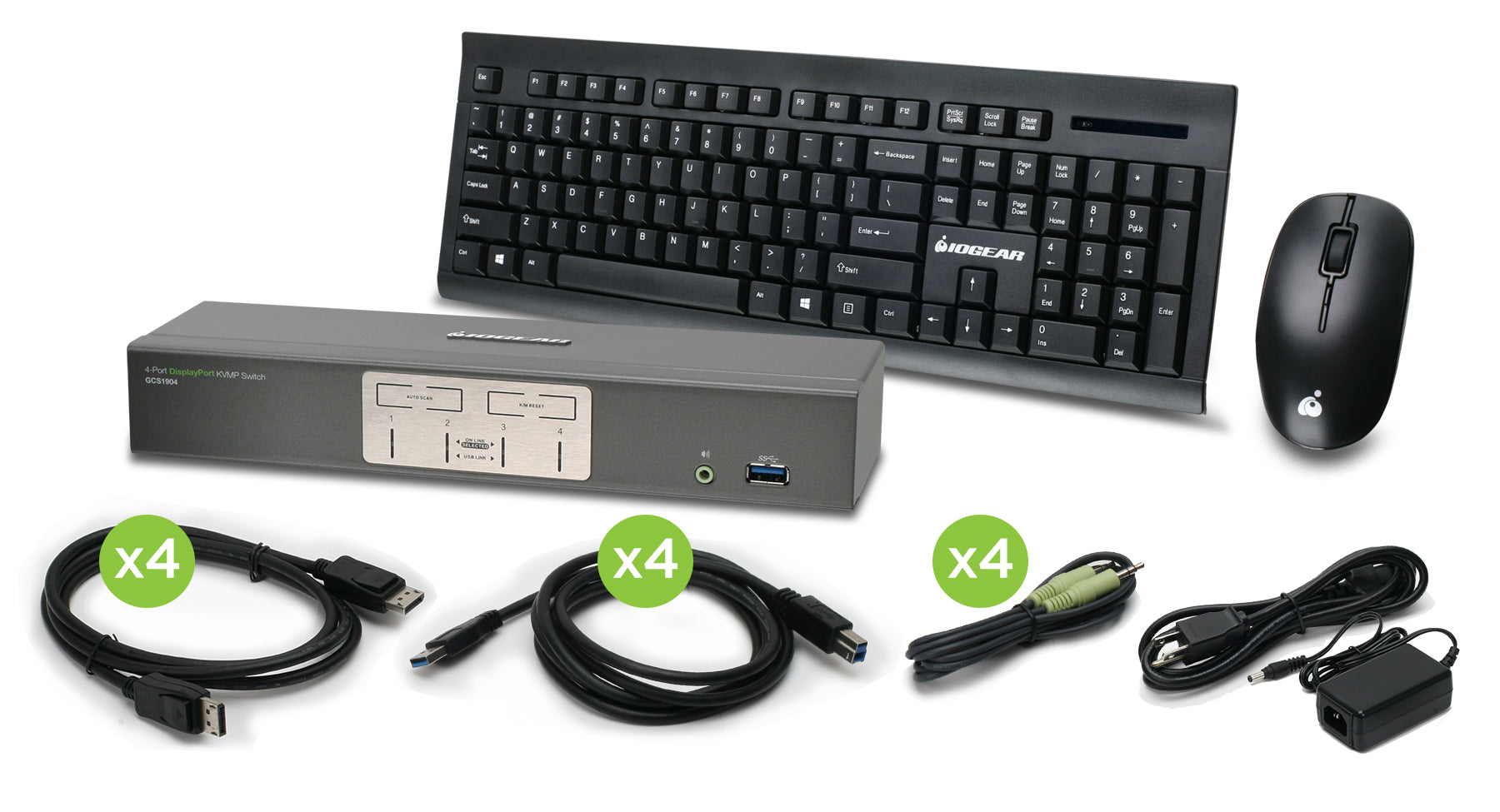

  • 1 x 4-Port 4K UHD DisplayPort 1.1 KVMP
  • 1 x Wireless Keyboard
  • 1 x Wireless Touch Sensor Mouse
  • 1 x USB RF Receiver
  • 4 x DisplayPort Cables (5ft.)
  • 4 x USB 3.0 Cables (6ft.)
  • 4 x Audio Cables (6ft.)
  • 1 x Power Adapter
  • 1 x Manual

GCS1904 Firmware V 1.1.102 Download

Release Date: 05/09/2019

Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCS1904-KM
Computer Connections
Direct4
Port SelectionPushbutton & Hotkeys
Console Connectors
Monitor1 x DisplayPort
Keyboard1 x USB Type A
Mouse1 x USB Type A
Audio2 x 3.5mm Mini Stereo Jack (Front and Rear)
CPU Connectors
Monitor4 x DisplayPort
Keyboard & Mouse4 x USB 3.0 Type B
Audio4 x 3.5mm Mini Stereo Jack
Switches
F/W Upgrade1 x USB Type B
Port Selection4 x Pushbuttons
Connectors
USB2 x USB 3.0 Type A
LEDs
Mode4 x Orange
KVM4 x Orange
Audio4 x Orange
USB Peripherals4 x Green
Emulation
KeyboardUSB
MouseUSB
Video Resolution3840 x 2160 @ 30Hz (4K UHD)
Scan Interval1~99 seconds (5 seconds default)
Power
VoltageDC 5.3V
Environment
Operation Temperature0~50C
Storage Temperature-20~60C
Humidity0~80% RH, Non-condensing
Housing
CaseKVM: Metal; Keyboard & Mouse: Plastic
Operating System SupportKeyboard: Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.3+
InterfaceKeyboard & Mouse: USB 2.0 and USB 1.1
ResolutionMouse: 1000dpi
Radio FrequencyKeyboard & Mouse: 2.4GHz
Battery TypeKeyboard: 1 x AAA, Mouse: 1 x AA
Operating RangeKeyboard & Mouse: Up to 33ft (10m)
DimensionsGCS1904-KM
Master Carton
Height10" (25.4cm)
Width9" (22.86cm)
Depth22" (55.88cm)
Master Carton Qty.1
Weight
Master Carton Wt.7.65lb (3.48kg)
