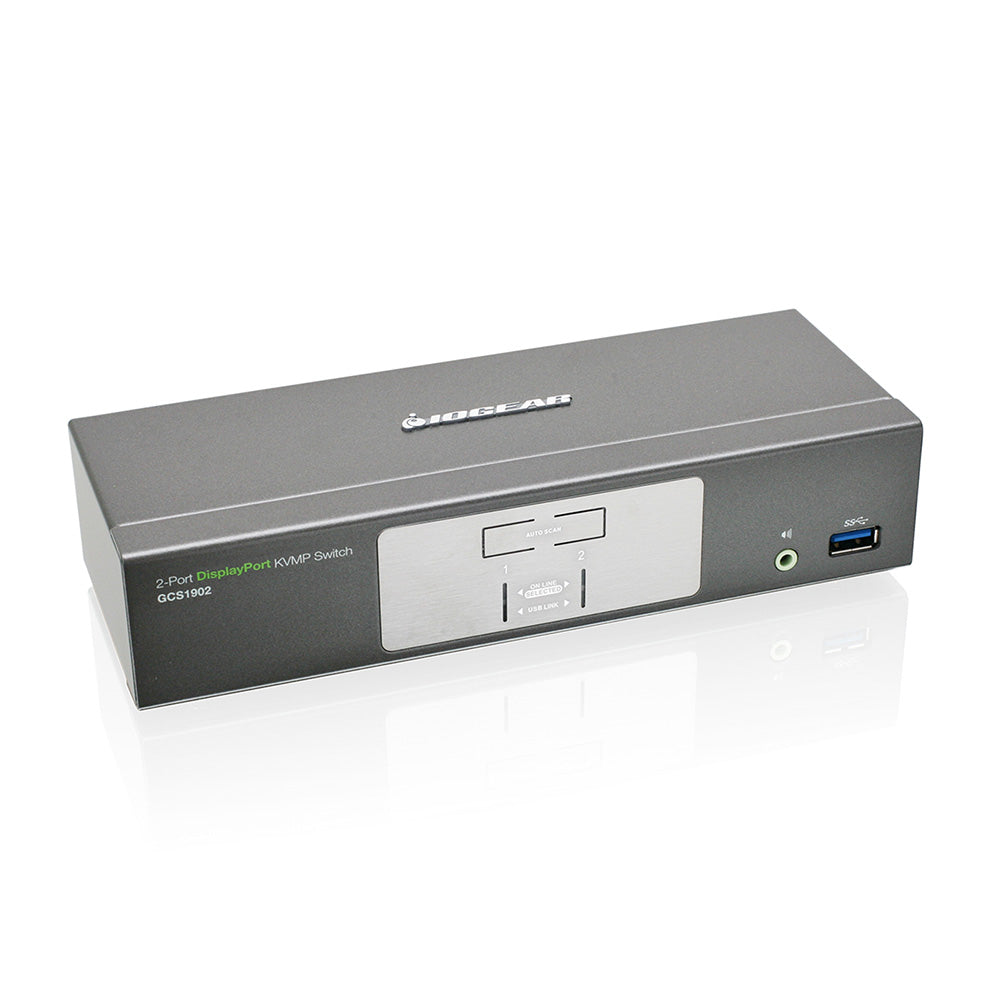

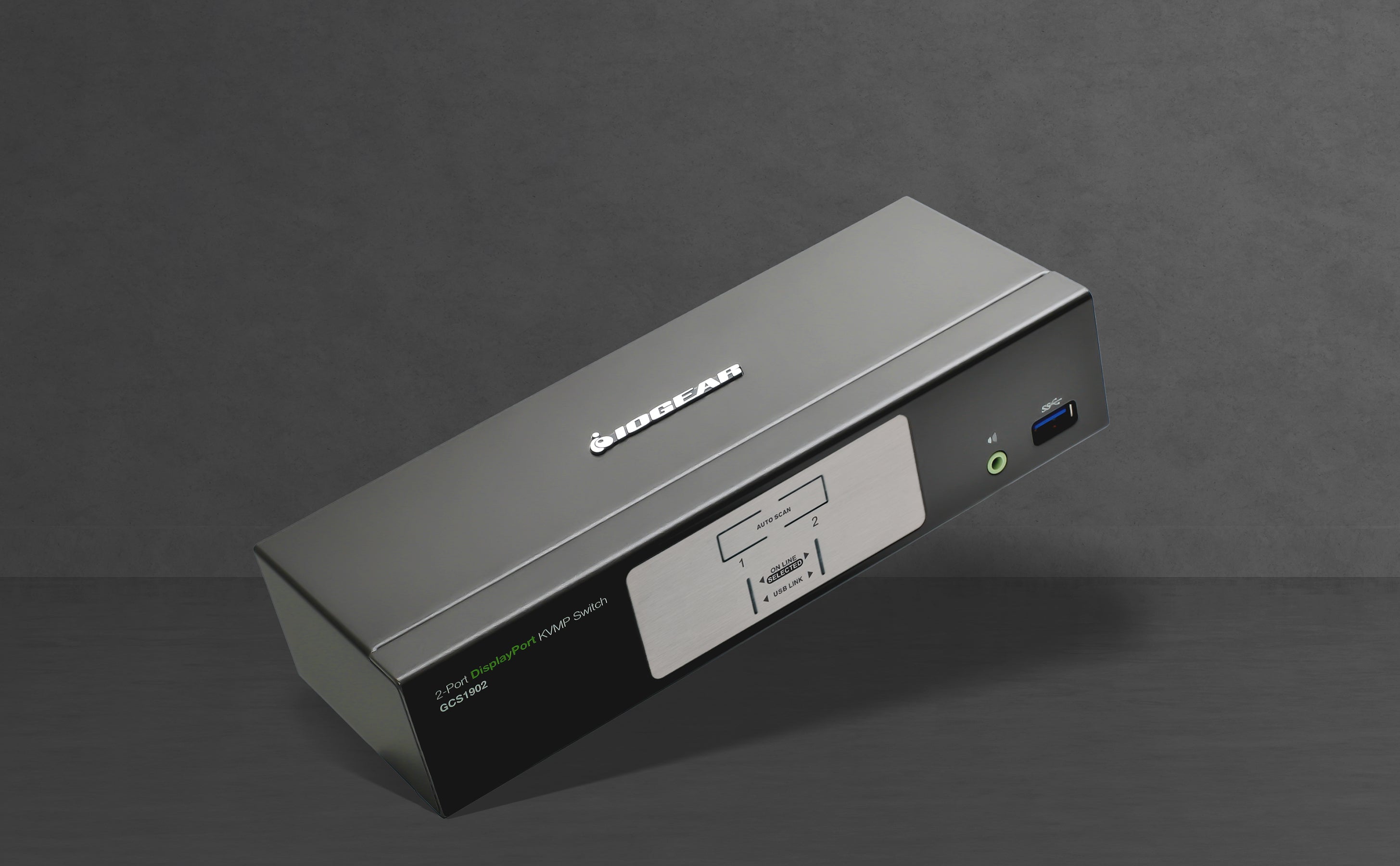

2-Port DisplayPort KVMP Switch with USB 3.0 Hub (TAA Compliant)

2 Port Desktop KVMs

2-Port DisplayPort KVMP Switch with USB 3.0 Hub (TAA Compliant)

Name: 2-Port DisplayPort KVMP Switch with USB 3.0 Hub (TAA Compliant)
Brand: IOGEAR
SKU: GCS1902
Price: 149.95 USD
Availability: InStock

2-Port DisplayPort TAA Compliant

MPN: GCS1902

UPC: 881317514875

$149.95

Experience 3840x2160 @30Hz resolution while switching between two computers and chare two USB peripherals with the push of a button. Control Two DisplayPort computers with ease using a single keyboard, mouse, and DisplayPort monitor.

2-Port DisplayPort KVMP Switch with USB 3.0 Hub (TAA Compliant)

$149.95

4K UHD Experience

The DisplayPort 1.1 KVMP technology delivers up to 4K UHD resolution; 3840x2160 @ 30Hz frame rate. This 2-Port KVMP switch is designed for environments requiring 4K resolution, such as professional film and video production industries. The IOGEAR DisplayPort/HDMI KVMP switch also enhances professional applications in motion graphics design, animation, engineering, architecture, and media design.

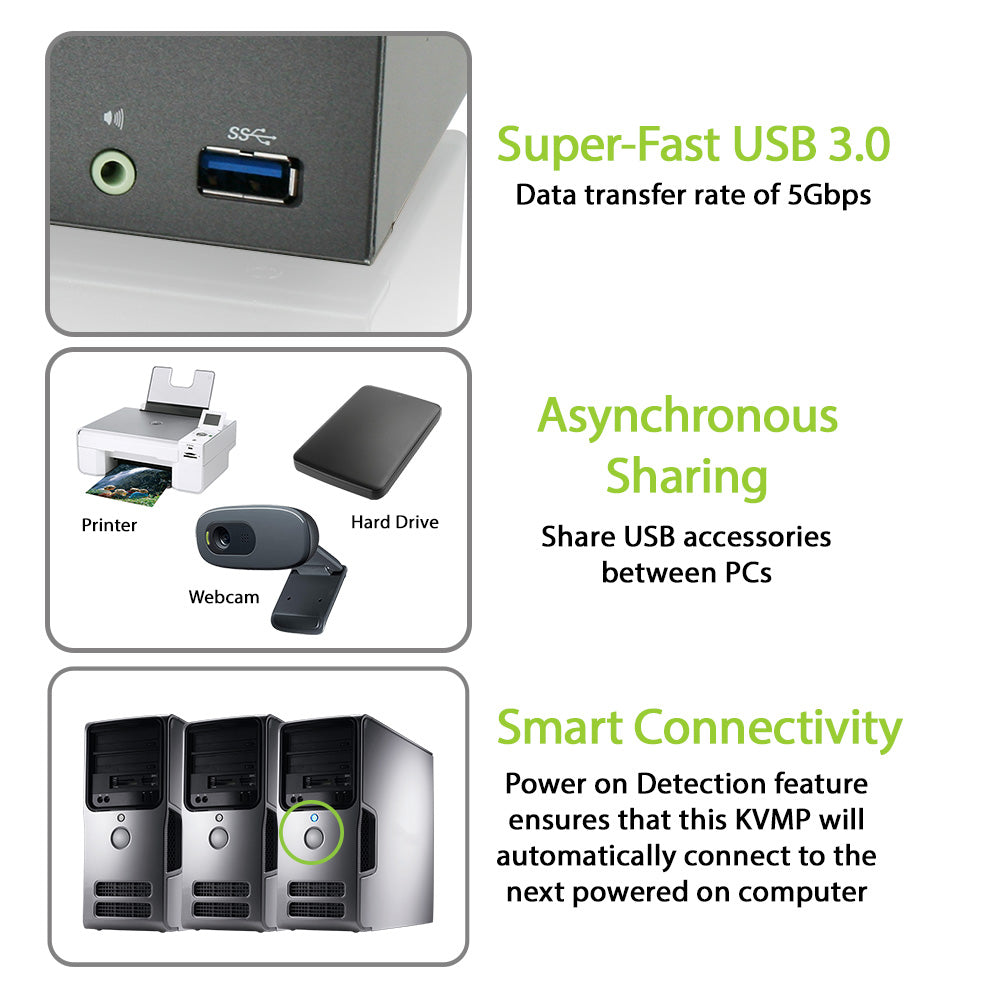

Built-in USB3.0 peripheral sharing

Control and share two USB 3.0 peripherals between two computers at up to 5Gbps data transfer speed. In addition, the USB peripheral can be separated from the KVM port switching, so when one computer is working with the connected USB device, user can switch to the other computer for other tasks without causing issues.

Smart Connectivity

Additional smart connectivity features turn your workstation into a convenient and easy-to-use Plug-N-Play setup. The GCS1902 supports USB hot plugging - Components can be remoted and added back into the installation without the need to shut the unit down. The Built in USB3.0 ports allows connectivity of up to SuperSpeed 5Gbps data transfer speeds and provides backwards compatibility with USB 2.0 and USB 1.1 legacy devices.

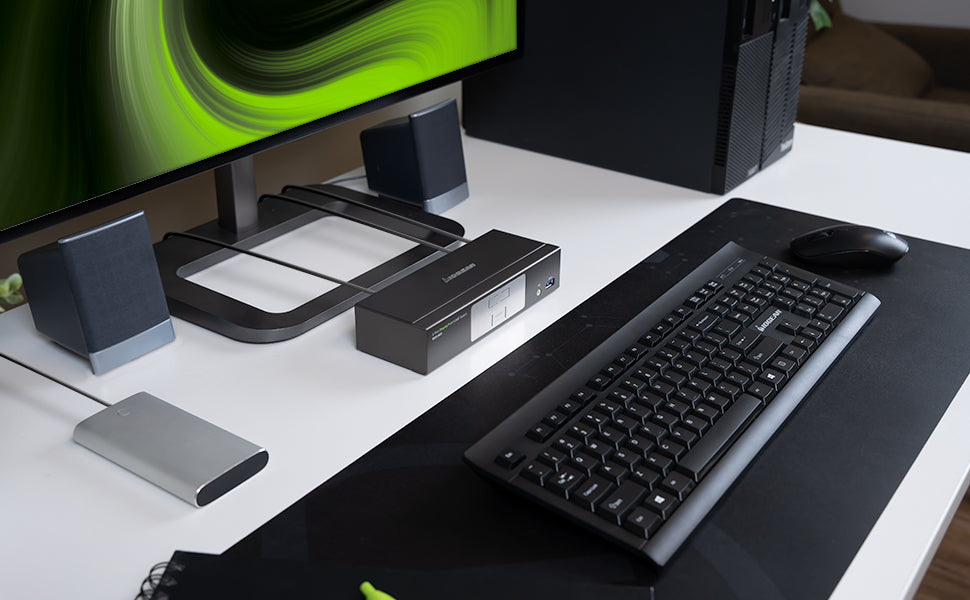

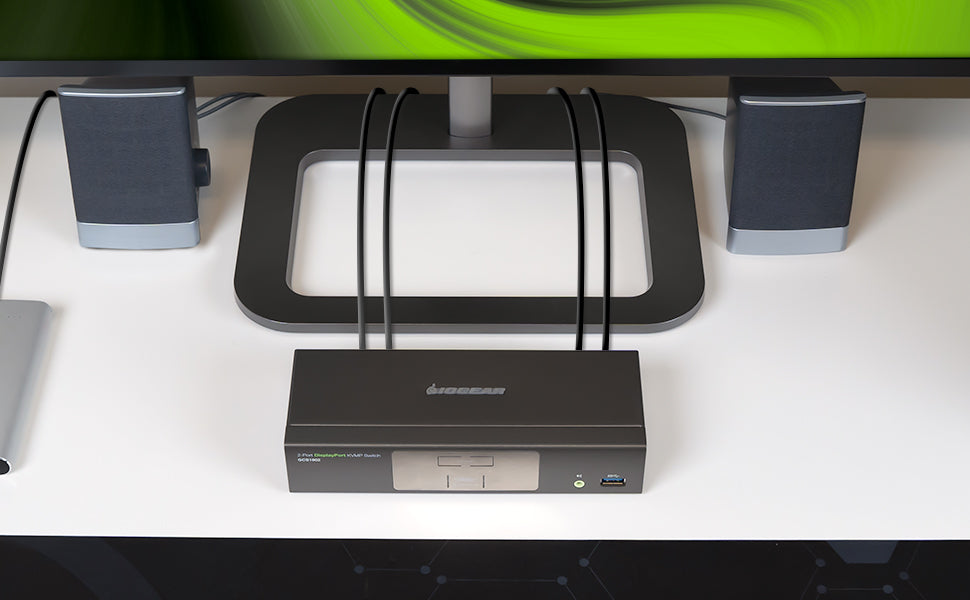

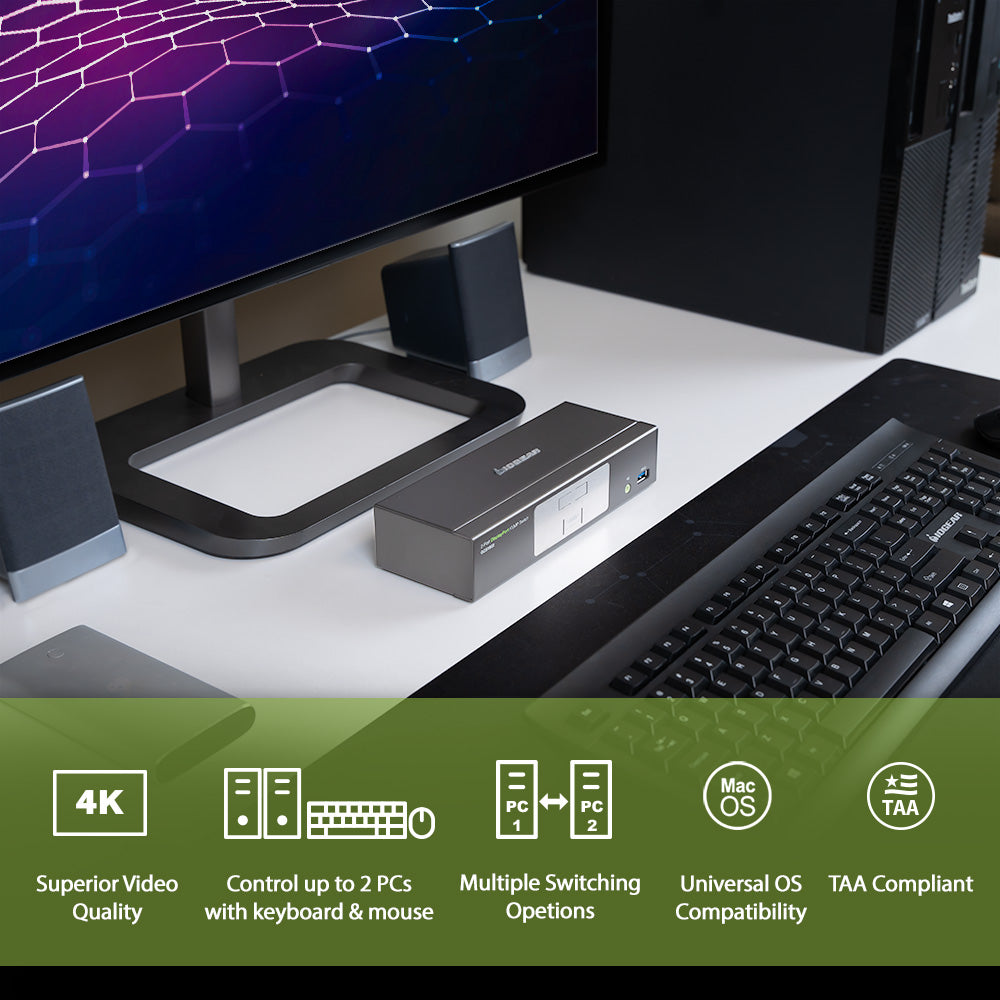

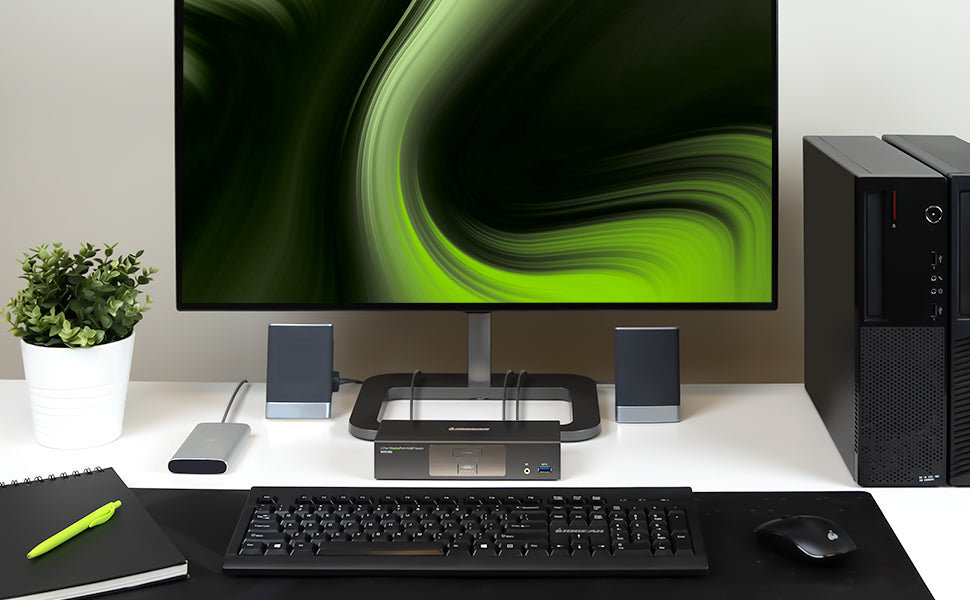

Control 2 computers using a single keyboard, mouse, and DisplayPort video console
Superior video quality – 4K UHD (3840x2160 @ 30Hz)
DisplayPort 1.1 compliant & HDCP compliant
2-Port USB 3.0 Hub with SuperSpeed 5Gbps transfer rate
DP++ supports HDMI and DVI output1

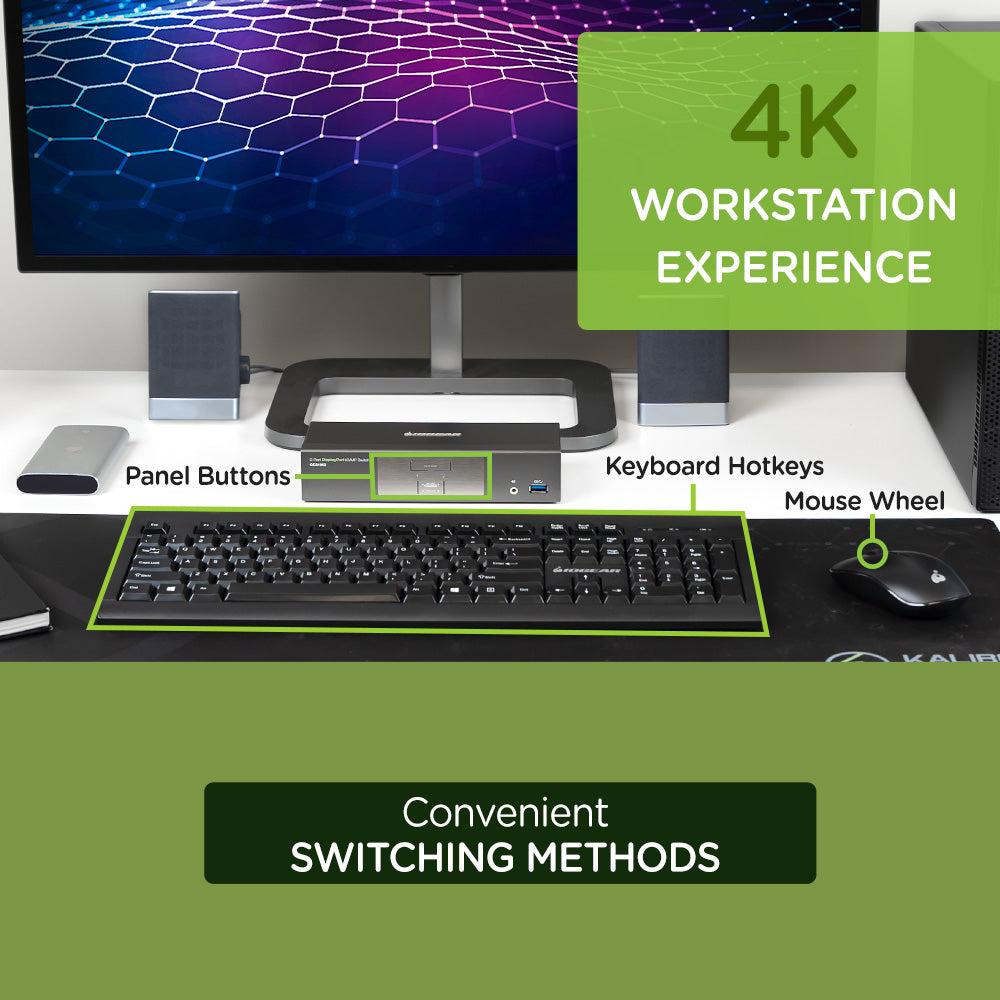

Computer selection via front panel pushbuttons, hotkeys, and mouse2
Independent switching of the KVM, USB, and 2.1 channel audio
Supports 7.1 HD audio through DisplayPort3
Mouse emulation or bypass feature supports most mouse drivers and multifunction mice

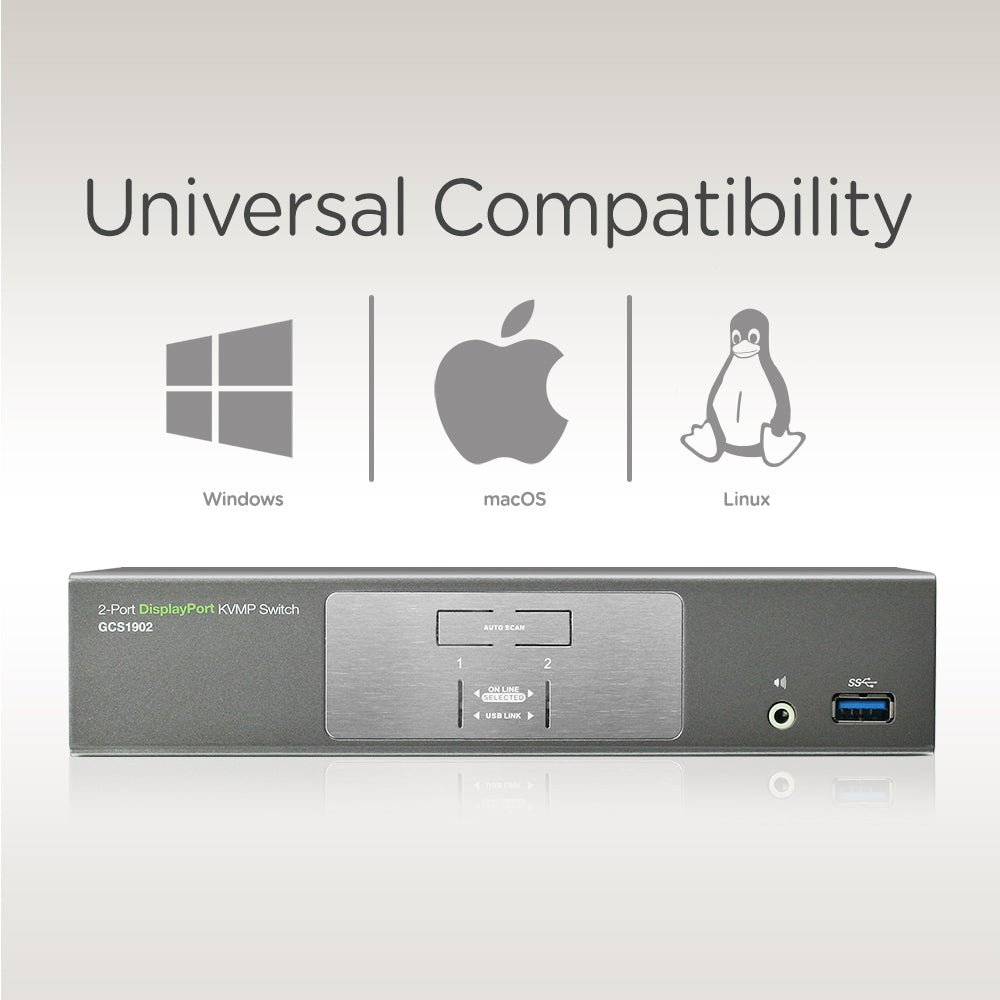

Multi-platform support – Windows®7, Windows®8.1, Windows®10, Mac®, and Linux®
Multilingual keyboard mapping supports English, Japanese, French, and German keyboards
Mac® keyboard support and emulation4
Auto Scan Mode to monitor all computers
Power On Detection
Hot pluggable
Firmware Upgradable
All cables included

1 Dual-Mode DisplayPort (DP++) requires active HDMI and DVI adapters for most display setups.

2Mouse port switching supported alongside mouse emulation mode using a USB 3-button mouse wheel

3HD audio through DisplayPort cannot be switched independently

4PC keyboard combinations emulate Mac® keyboards. Keyboards only work using their own Operating System

Console:

DisplayPort compatible monitor
Standard 104 key wired USB keyboard
Standard 2 or 3 button wired USB mouse
Speakers (optional)

Computers:

DisplayPort port
USB Type-A port
Audio ports (optional)

Cables:

Use only specifically designed IOGEAR DisplayPort KVM Cable sets included

*Use with video adapter may change performance

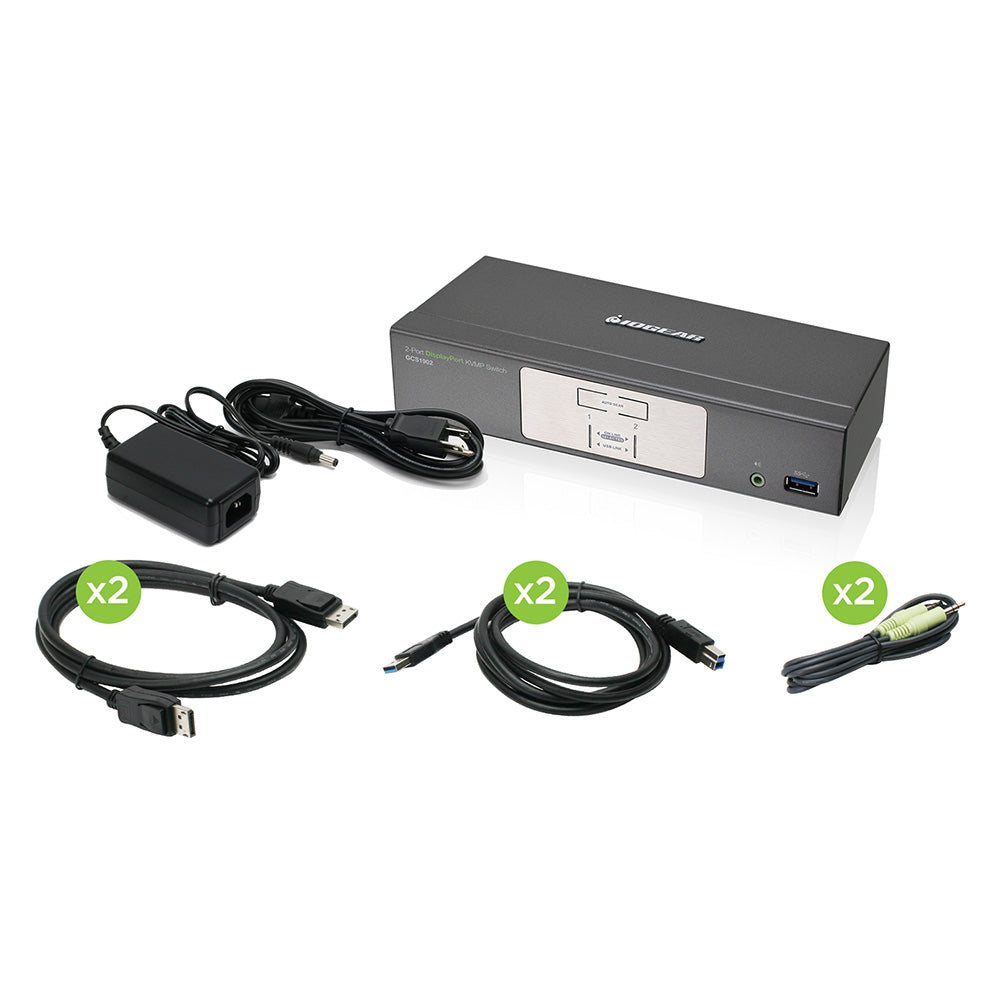

1 x GCS1902
2 x DisplayPort cables (5ft.)
2 x USB 3.0 cables (6ft.)
2 x Audio cables (6ft.)
1 x Power adapter
1 x Manual

GCS1902 Product Manual Download

GCS1902 Firmware Version 1.1.105 Download

Release Date: 02/05/2025

Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit

GCS1902 Firmware V1.1.102 Download

Windows 10 32-bit
Windows 10 64-bit
Windows 7 32-bit

Windows 7 64-bit

Windows 8.1 32-bit

Windows 8.1 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCS1902
Computer Connections
Direct	2
Port Selection	Pushbutton, Hotkeys, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode)

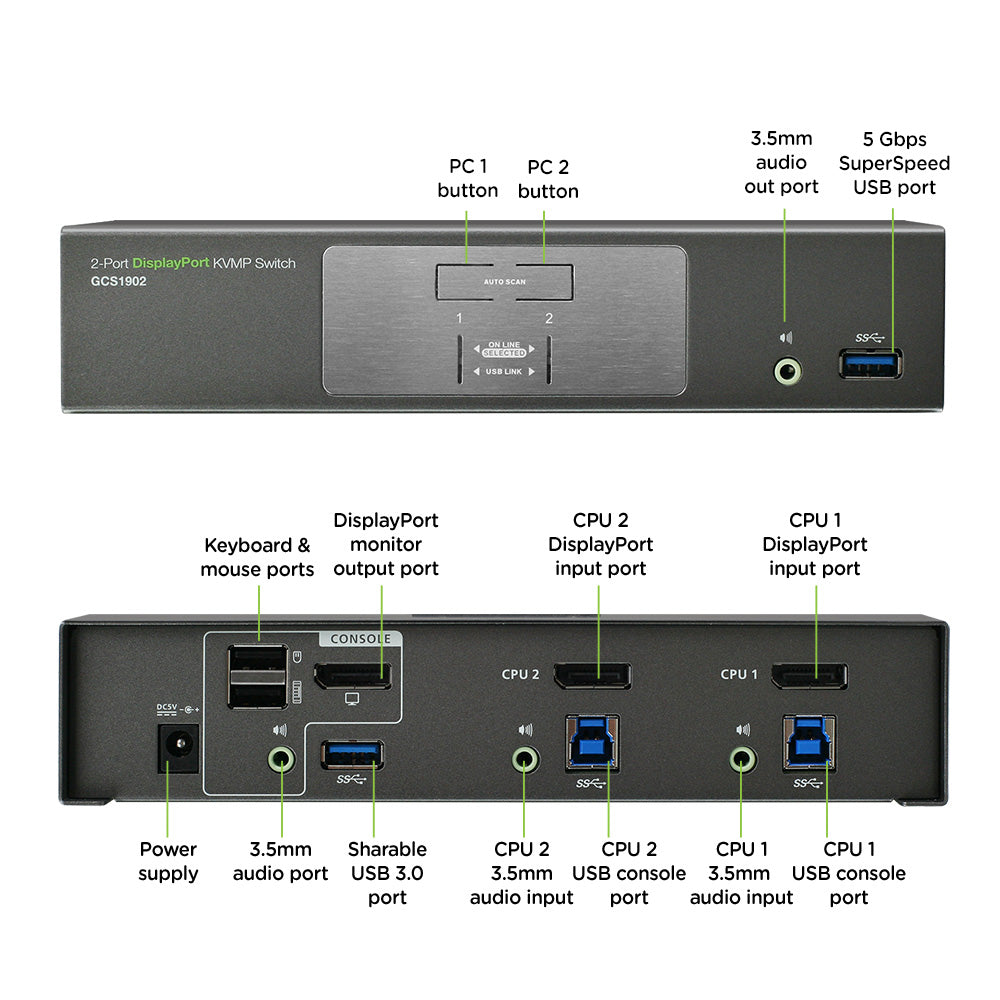

Console Connectors
Monitor	1 x DisplayPort
Keyboard	1 x USB 3.0 Type A
Mouse	1 x USB 3.0 Type A
Audio	2 x 3.5mm Mini Stereo Jack (Front and Rear)
CPU Connectors
Monitor	2 x DisplayPort
Audio	2 x 3.5mm Mini Stereo Jack
Keyboard & Mouse	2 x USB 3.0 Type B
Switches
F/W Upgrade	1 x USB Type B
Port Selection	2 x Pushbutton
Power Connections	1 x DC 5V Jack
Connectors
USB	2 x USB 3.0 Type A (Front and Rear)
LEDs
Mode	2 x Orange
On Line	2 x Green
KVM	2 x Orange
Audio	2 x Orange
USB Peripherals	2 x Green
Emulation
Keyboard	USB
Mouse	USB
Video Resolution	2560 x 1600 @ 60Hz, 3840 x 2160 @ 30Hz (4K UHD)
Scan Interval	1~99 seconds (5 seconds default)
Power
Voltage	DC 5V
Amps
Environment
Operation Temperature	0~50C
Storage Temperature	-20~60C
Humidity	0~80% RH, Non-condensing
Housing
Case	Metal
Cable Length	DisplayPort cables (5ft); USB 3.0 cables (6ft); Audio cables (6ft)

Dimensions	GCS1902
Unit Dimensions
Height	2.94" (7.47cm)
Length	7.875" (20cm)
Depth	1.69" (4.29cm)
Unit Package Dimensions
Height	6.81" (17.3cm)
Width	11.25" (28.58cm)
Depth	4" (10.16cm)
Master Carton
Height	14.75" (37.47cm)
Width	12.5" (31.75cm)
Depth	12" (30.48cm)
Master Carton Qty.	6
Weight
Master Carton Wt.	24.7lb (11.24kg)
Unit Pack Wt.	3.68lb (1.67kg)
Unit Wt.	1.45lb (0.66kg)
