4-Port HDMI and DisplayPort KVMP Kit

Name: 4-Port HDMI and DisplayPort KVMP Kit
Brand: IOGEAR
SKU: GCS1794DPKIT
Price: 324.95 USD
Availability: OutOfStock

4-Port DisplayPort HDMI

MPN: GCS1794DPKIT

UPC: 881317515148

$324.95

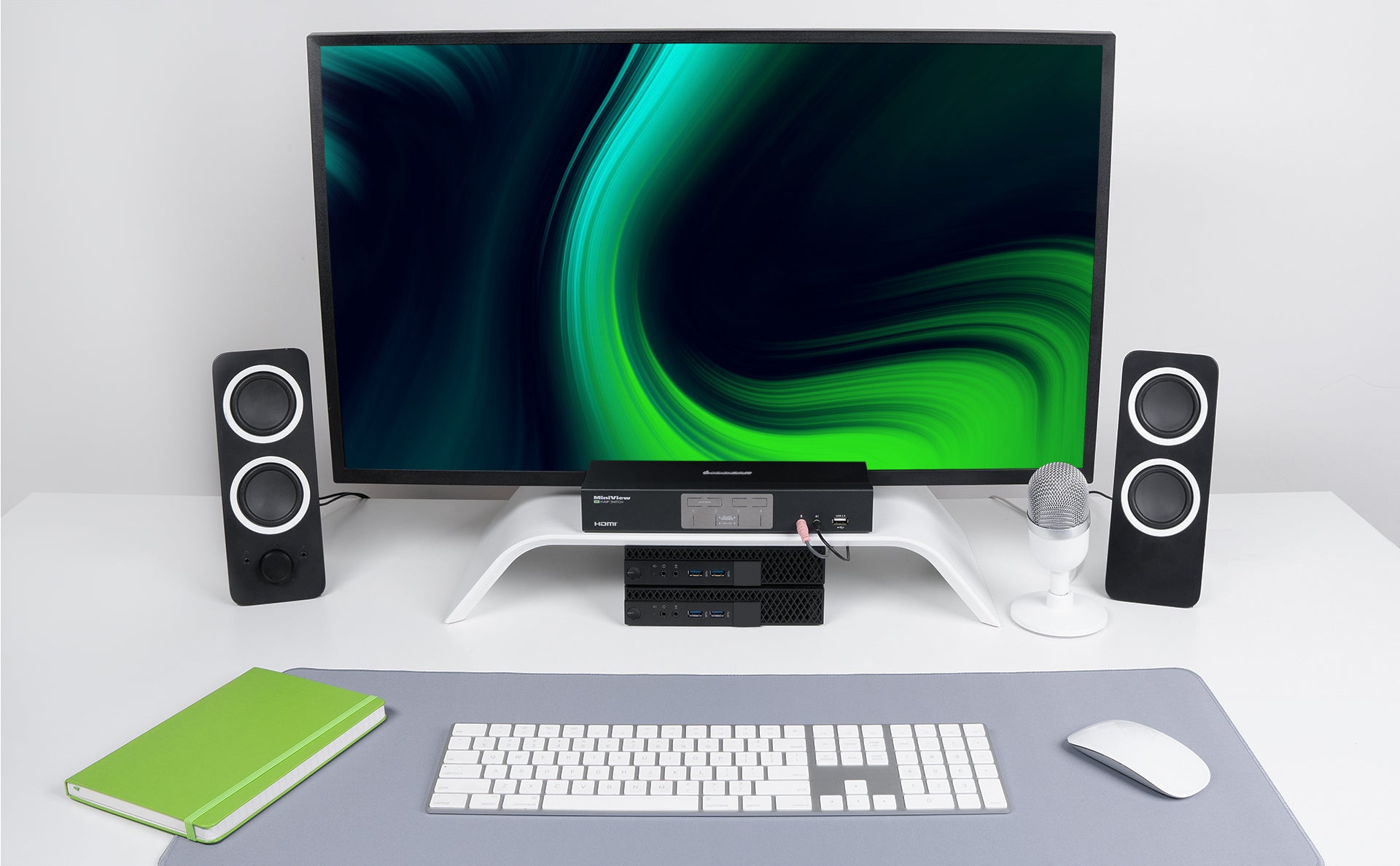

IOGEAR's HD and DisplayPort KVM Solution enables effortless control over 4 HDMI or DisplayPort computers using a single USB keyboard, USB mouse and single high definition display (720P or 1080P) or HDTV. This bundle is perfect for a home office or small / medium size business, as it offers the flexibility of choosing between HD and/or DisplayPort connections. Take advantage of your existing computers, and use the included DisplayPort adapters to display content from your DisplayPort enabled devices on a large external HDMI display or HDMI projector.

EDID Support (Plan-n-play and Smart Display Settings)

Connect your high-definition display or HDTV (flat panel, plasma, DLP, digital TV's) to the 4-Port HDMI KVM switch to conveniently control four computers. This desktop KVM switch is also equipped with IOGEAR's DynaSync™ technology which reads and remembers the monitor's parameters (EDID), eliminating any delays or change in video resolution when switching between, or booting computers.

Expanded Connectivity

IOGEAR's 4-Port HDMI KVM Switch features two USB 2.0 peripheral ports for asynchronously sharing USB devices between your computers. The patented asynchronous switching allows the user to independently switch applications between the connected computers. You can run one application on one computer while running another application on the other. A powered USB hub may be attached to the peripheral ports for added functionality.

Convenient Switching Methods

2 ways for GCS1794 Port switching. Simply press the front panel Pushbutton from the multimedia KVMP switch or trigger hotkeys from your keyboard.

Multi-Platform Support

The IOGEAR GCS1794 supports multiple operating systems, including Windows®7, Windows 8.1, Windows 10, Windows 11, Mac OS®, Linux®, etc.

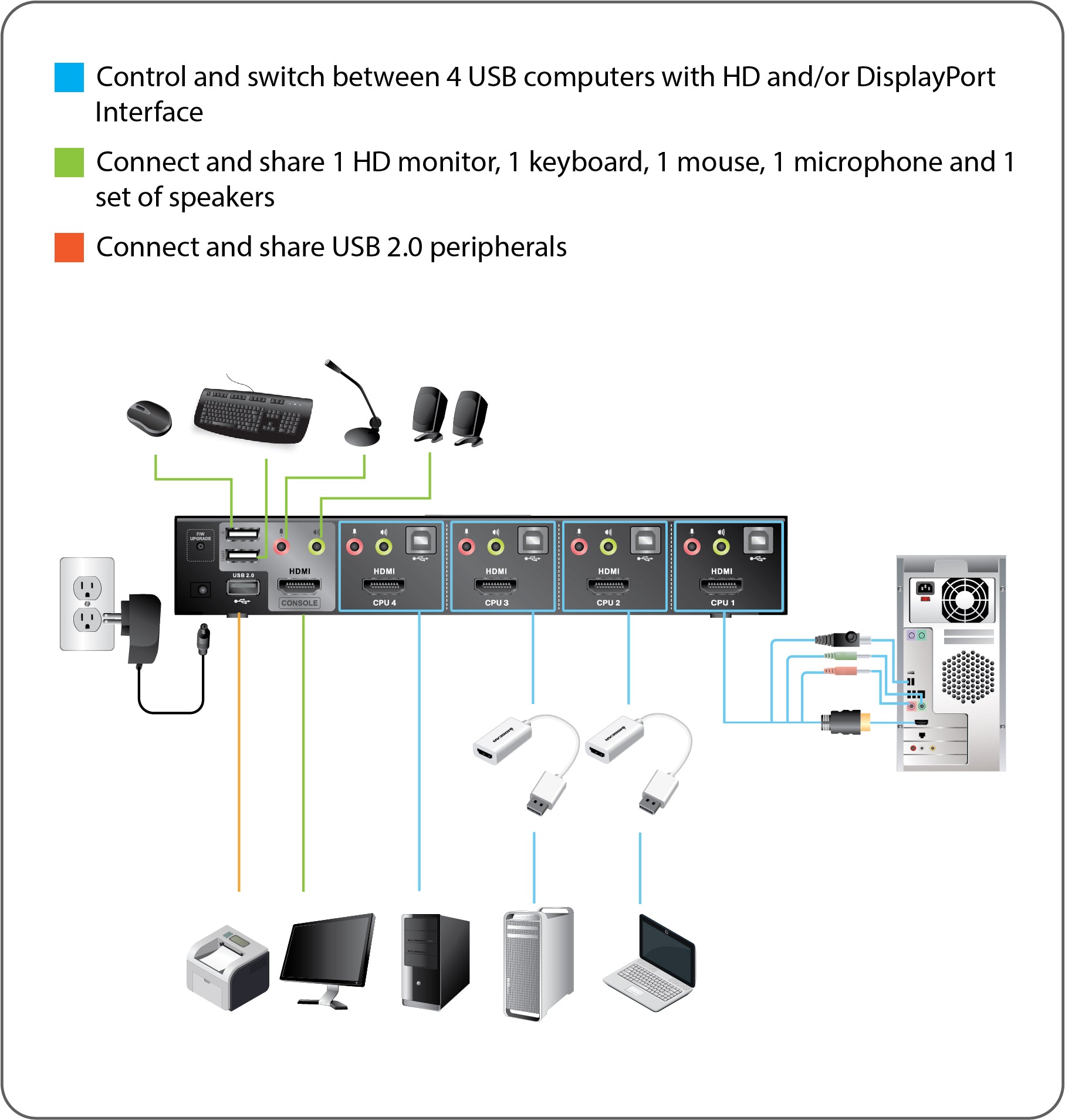

Share a Keyboard, Mouse, Surround Sound System, USB device(s) and an HDTV or HD display between 4 HD or DisplayPort interface computers
Video Resolutions: 480i, 480p, 720i, 720p, 1080i and 1080p
- Maximum video resolution: 1920 x 1200
Built in USB 2.0 hub to share your peripherals between four connected computers
Dolby True HD and DTS HD Master Audio Support
Multi-platform OS support - Windows®, Mac®, Sun Solaris™ , Linux®
HDCP compliant
IOGEAR's DynaSync* reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers*
Power-on Detection - If one of the computers is powered off, it will automatically switch to the next powered-on computer
Asynchronous hotkey switching between KVM focus, USB peripherals, and Audio ports
Complete keyboard and mouse emulation for error free booting and real time switching
Console mouse port can support emulation or bypass
Firmware upgradeable
All cables are included
Plug & Play - No software installation required

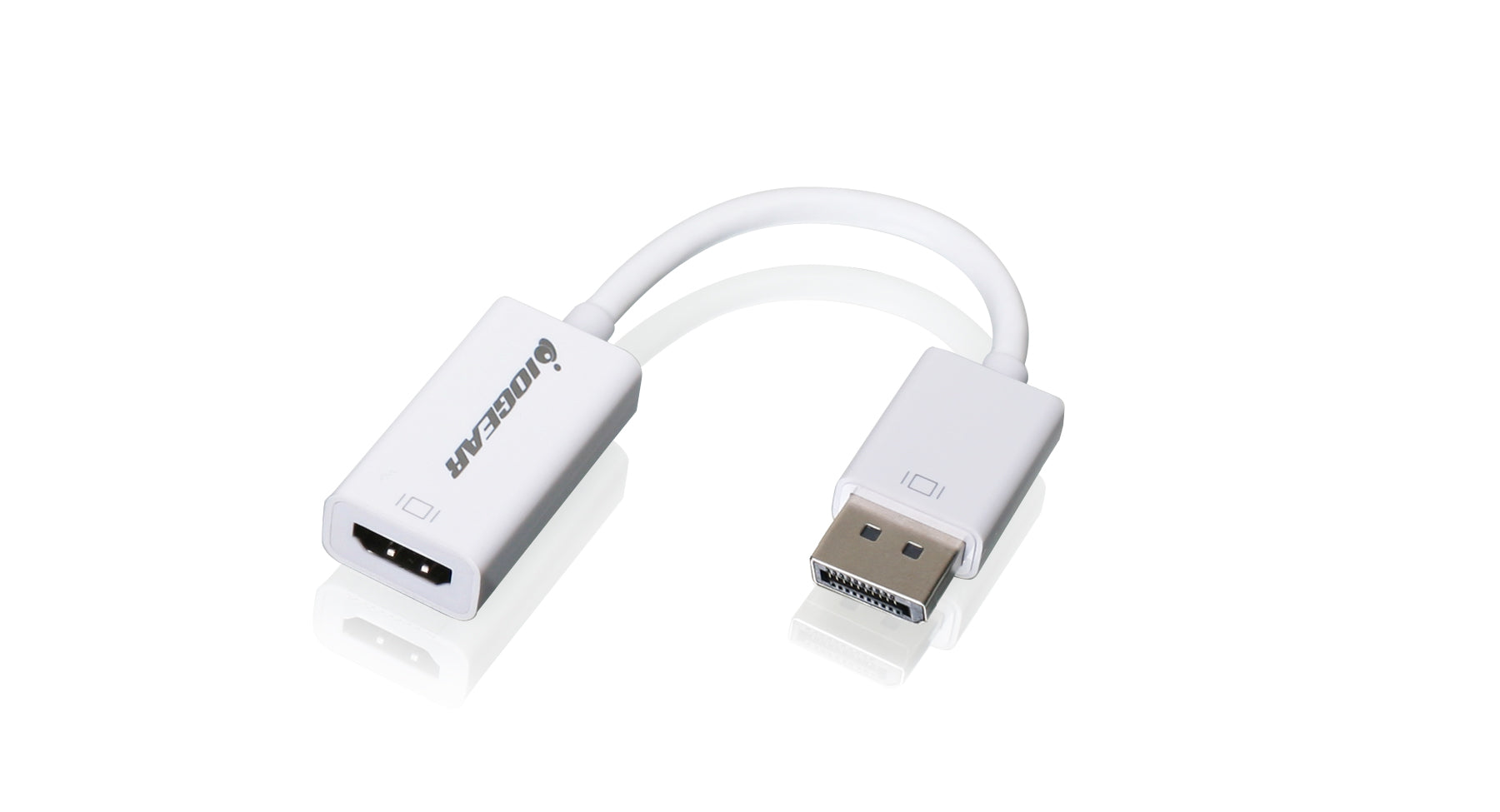

DisplayPort to HD Adapters:
- Converts your DisplayPort to HDMI so you can connect to your HDMI projector, TV or monitor
- Works with computer systems using DisplayPort
- Compliant with Displayport Specification 1.1a for both 1.62 Gbps and 2.7 Gbps
- Support full DisplayPort link tracking
- Supported resolutions:
  - Full HD 1080p
  - 1920x1200
- Compliant with DVI 1.0 up to 1.65Gbps
- Support interrupt request output for expansion function
- Support Deep Sleep Mode (suspend mode)

*IOGEAR's DynaSync provides the EDID support for Windows 7

Console:

1 HDMI or DVI display**
1 standard 104 key wired USB keyboard
1 standard 2 or 3 button wired USB mouse

Source devices:

1 HDMI or DVI** or DisplayPort output
1 USB port (if source supports keyboard, mouse or peripheral)

Operating Systems:

Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
Mac OS 9 to 10.x
Oracle® Solaris
Linux®, Unix and other USB supported systems*

*Additional drivers and support may be needed

**(To connect to a DVI computer or monitor please use the GHDFDVIMW6 / GHDMDVIF adapter, available at www.iogear.com)

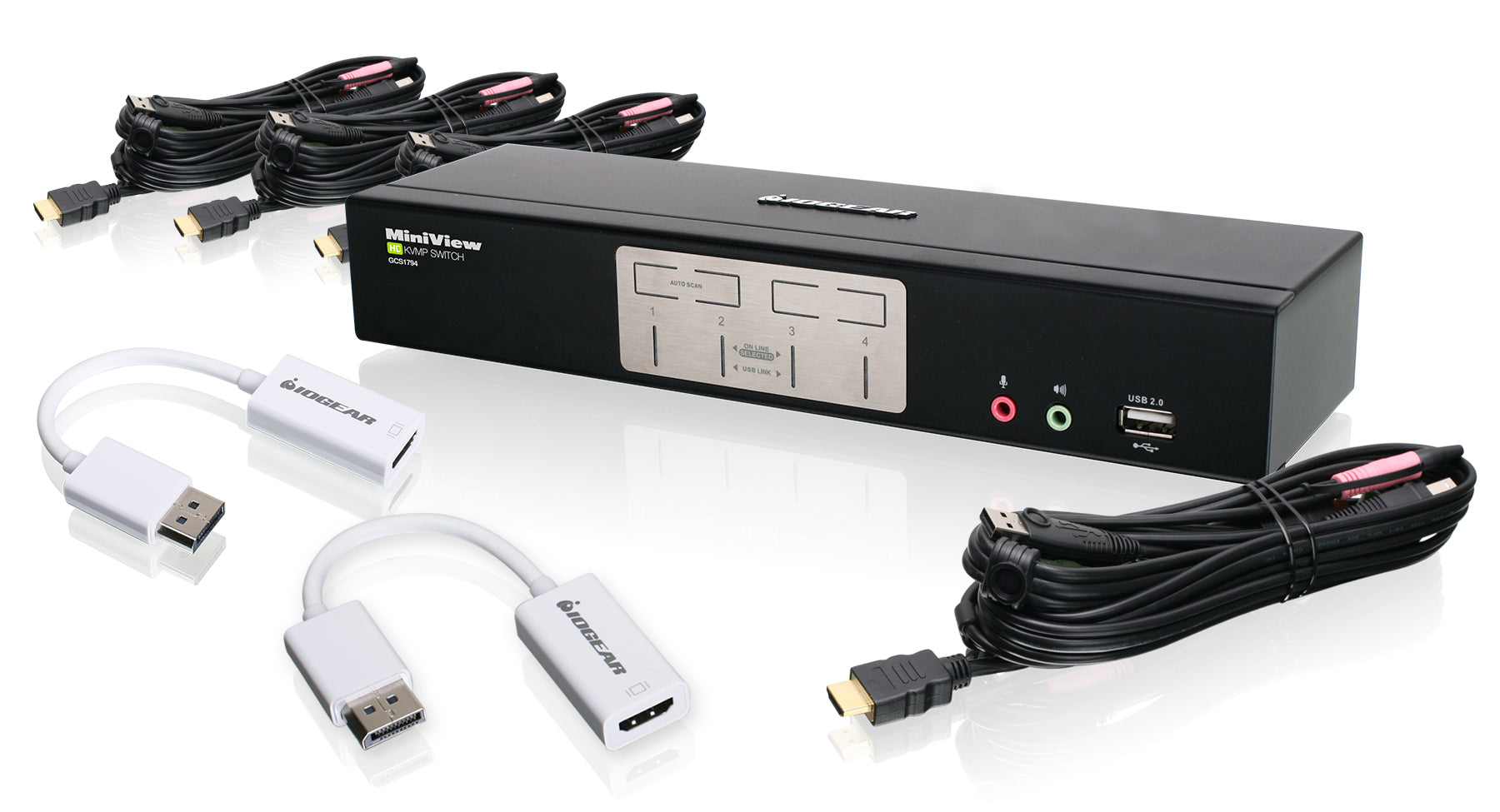

1 x GCS1794
2 x DisplayPort to HDMI Adapters
4 x HDMI KVM Cables
1 x Firmware Upgrade Cable
1 x Power Adapter
1 x Installation Guide
1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

Distributor	Part #
Ingram	8N7121
DH	GCS1794DPKIT
Synnex	4793107

Function	GCS1794DPKIT
Computer Connections
Direct	4
Port Selection	Hotkeys or Front Panel Switch Button

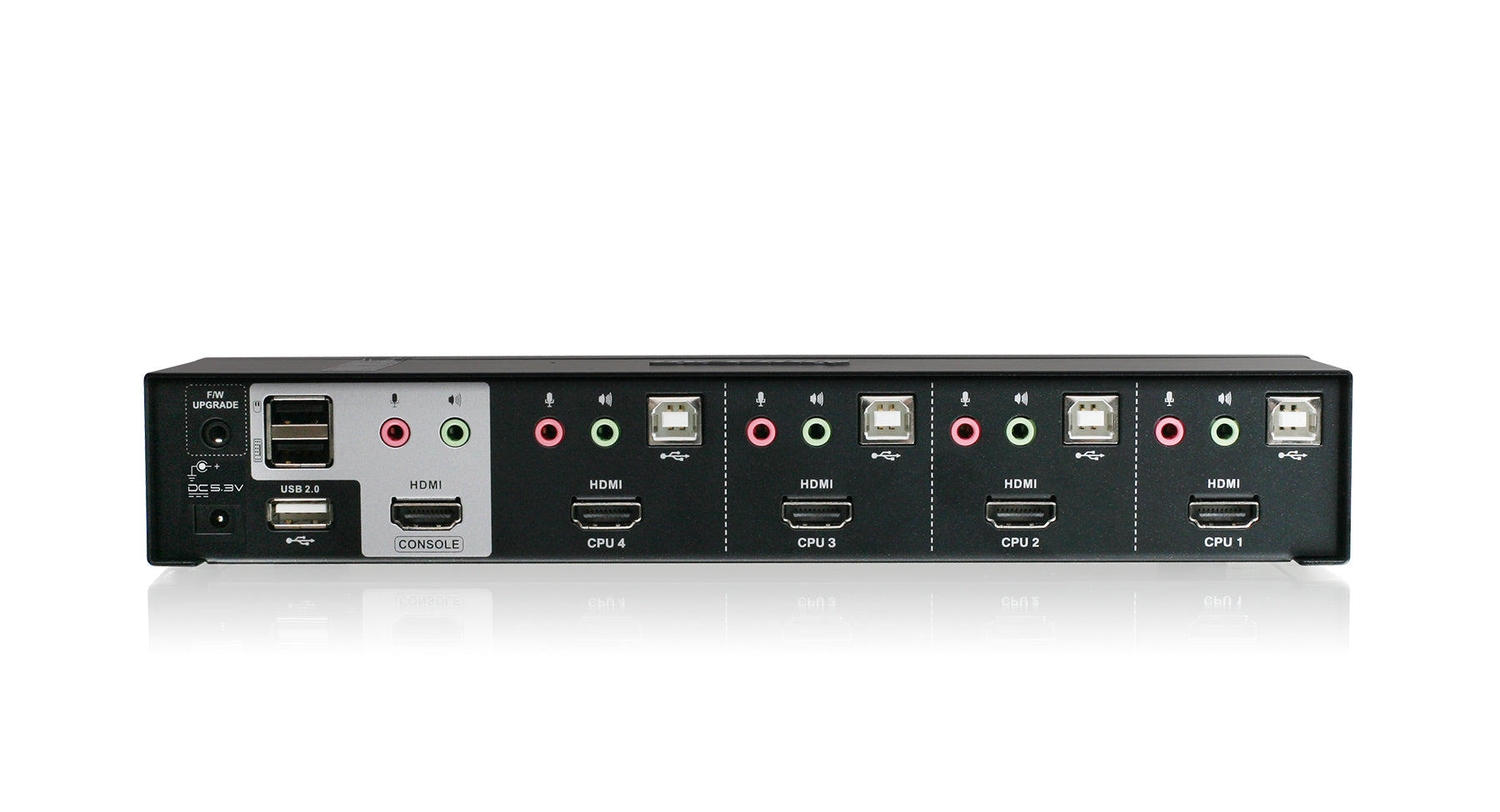

Console Connectors
Monitor	1 x HDMI Female
Keyboard	1 x USB Type A Female
Mouse	1 x USB Type A Female
Audio	2 x Mini Stereo Jack Female (Green; 1 x Front Panel, 1 x Rear Panel); through HDMI Type A Female if CPU's audio is sending through HDMI port along with Video
Microphone	2 x Mini Stereo Jack Female (Pink; 1 x Front Panel, 1 x Rear Panel)
Flash ROM Upgrade	1 x 4-conductor 3.5mm Jack (Black)
CPU Connectors
Monitor	4 x HDMI; 2 x DisplayPort (with adapters)
Keyboard	4 x USB Type B Female
Mouse	4 x USB Type B Female
Audio	4 x Mini Stereo Jack Female (Green)
Microphone	4 x Mini Stereo Jack Female (Pink)
Connectors
USB	2 x USB 2.0 Type A Female (1 x Front Panel, 1 x Rear Panel)
Power	1 x DC Jack
LEDs
USB Peripherals	4 x Green
On Line	4 x Orange
Emulation
Keyboard	USB
Mouse	USB
Video Resolution	1080p; 1920x1200
Scan Interval	1~99 seconds
Power
Voltage	5.3V
Amps	2.4A
Environment
Operation Temperature	0~50?C
Storage Temperature	-20~60?C
Humidity	0~80%; Non-condensing
Housing
Case	Metal

Dimensions	GCS1794DPKIT
Unit Dimensions
Height	10.25" (26.03cm)
Length	3" (7.62cm)
Depth	1.625" (4.13cm)
Unit Package Dimensions
Height	8.5" (21.59cm)
Width	13" (33.02cm)
Depth	4" (10.16cm)
Master Carton
Height	9.5" (24.13cm)
Width	13" (33.02cm)
Depth	13.625" (34.61cm)
Master Carton Qty.	3
Weight
Master Carton Wt.	18.06lb (8.21kg)
Unit Pack Wt.	5.58lb (2.54kg)
Unit Wt.	1.98lb (0.9kg)

3 Year Limited Warranty
