2-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio

2-Port KVM & KVMPs

2-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio

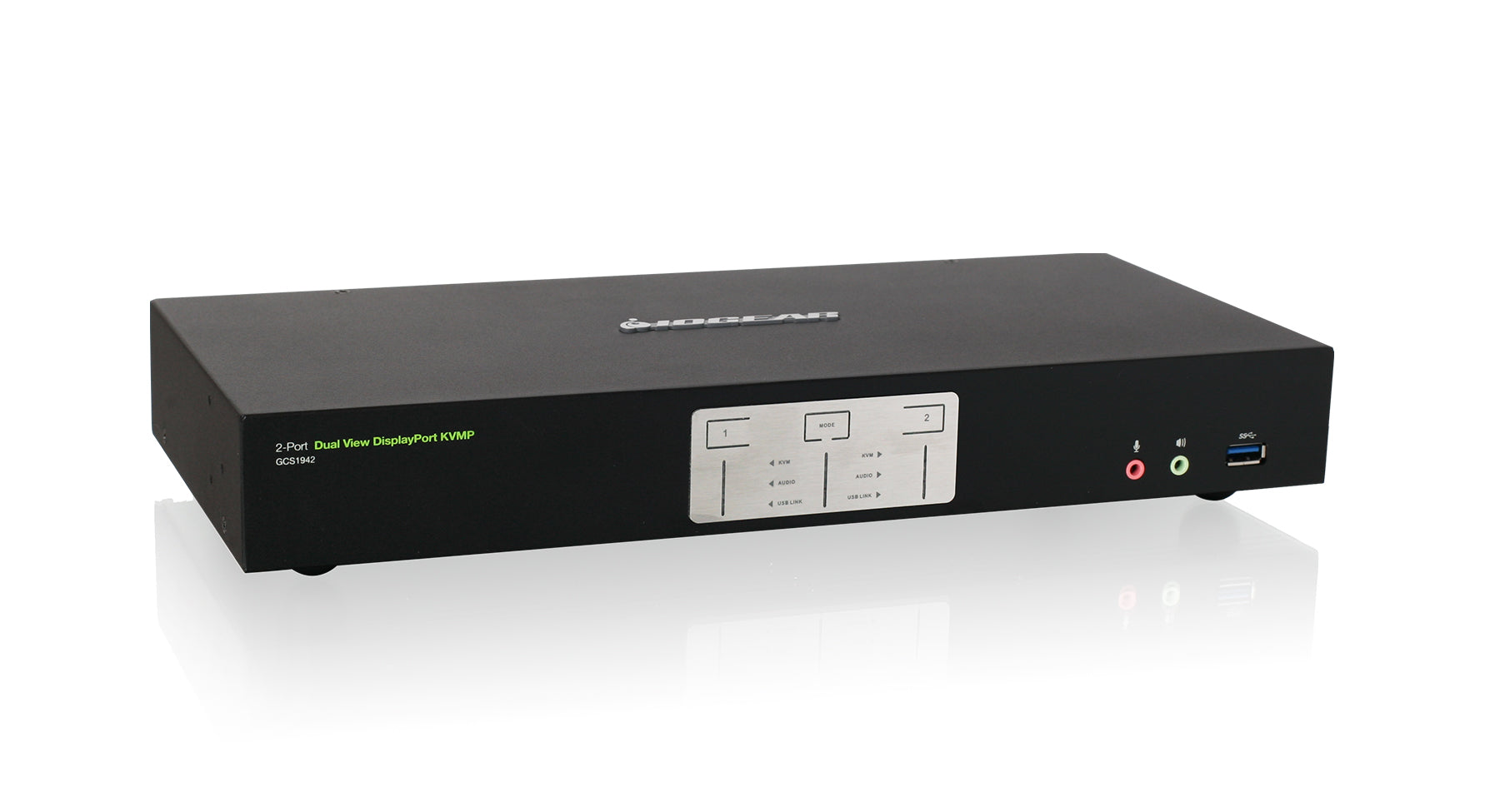

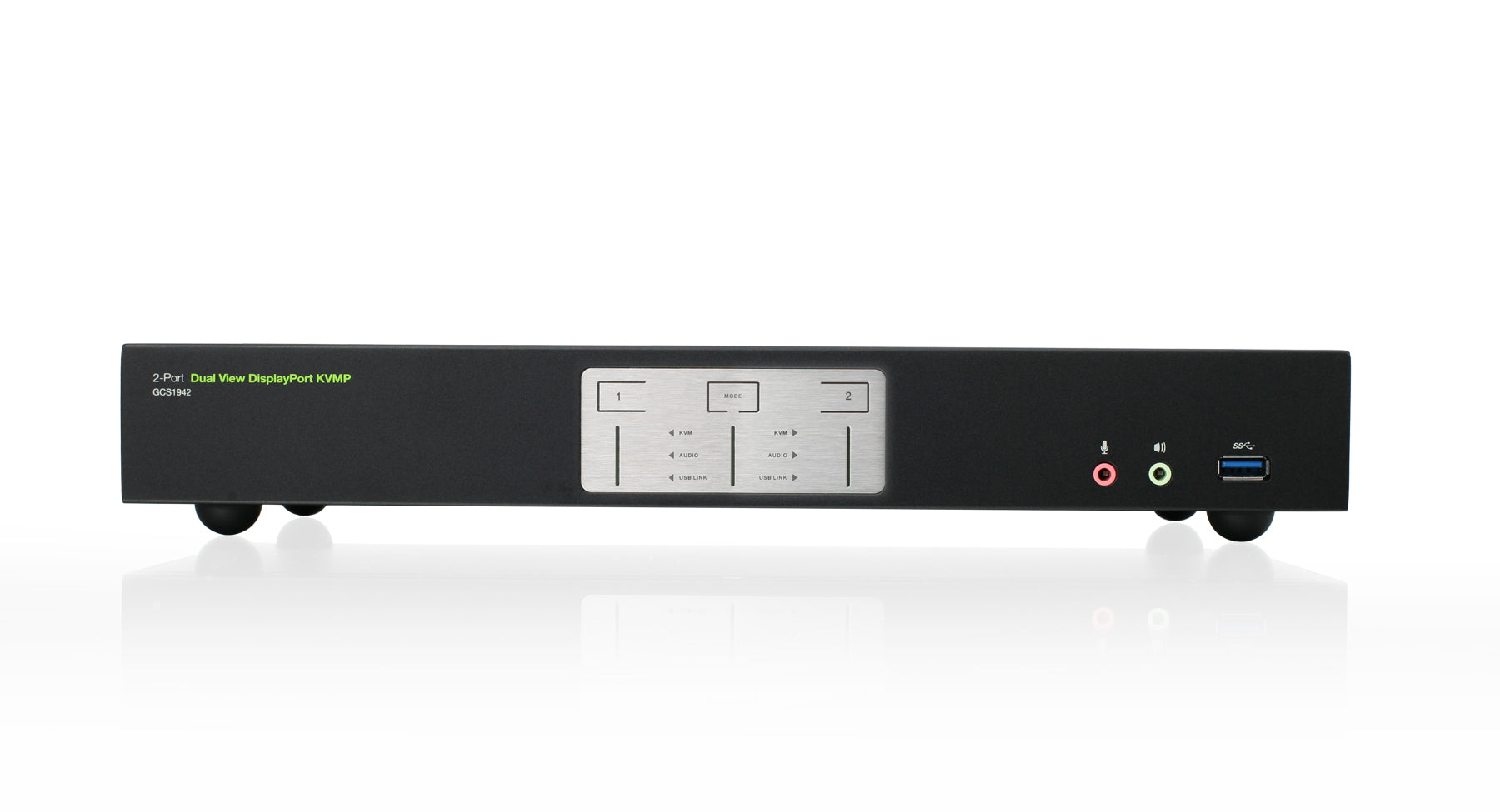

Name: 2-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio
Brand: IOGEAR
SKU: GCS1942
Price: 349.95 USD
Availability: InStock

2-Port DisplayPort Dual View

MPN: GCS1942

UPC: 881317516671

$349.95

Maximize your high-end multi-monitor workstation with superior video resolution
Share dual Cinema 4K DisplayPort monitors (4096 x 2160 @60Hz)
Operate 2 DisplayPort computers with 1 keyboard, mouse, and 2 monitors
Save Cabling Costs: ALL cables are included
Added features via firmware updates

2-Port 4K Dual View DisplayPort KVMP with USB 3.0 Hub and Audio

$349.95

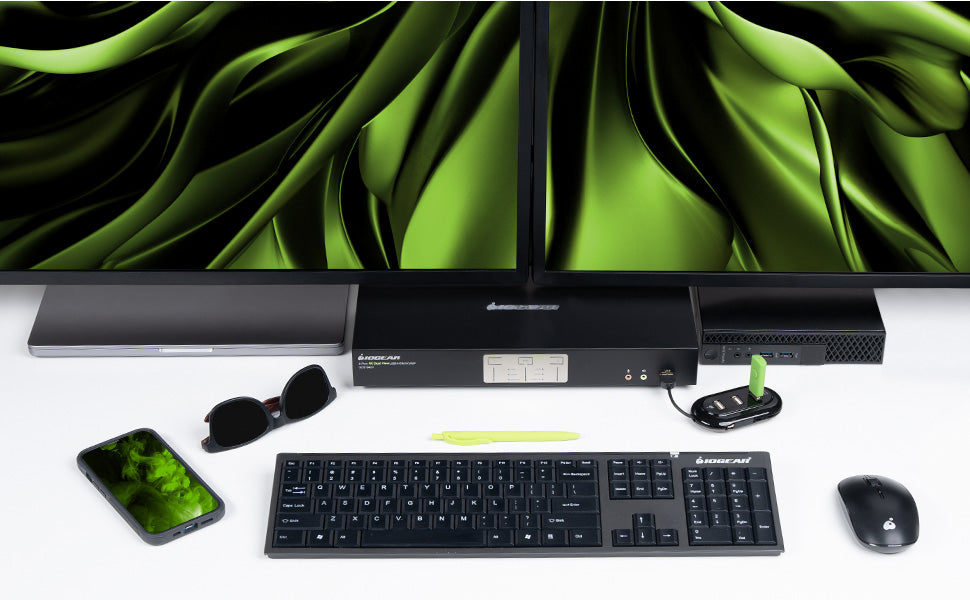

Dual View for better visual experience

Connect two Cinema 4K DisplayPort monitors to your desktop or laptop to experience superior screen, image, and video quality. GCS1942 delivers a 4K resolution up to 4096 x 2160 at 60Hz on each monitor. Now the desktop can extend from each connected computer for better viewing and to handles more tasks.

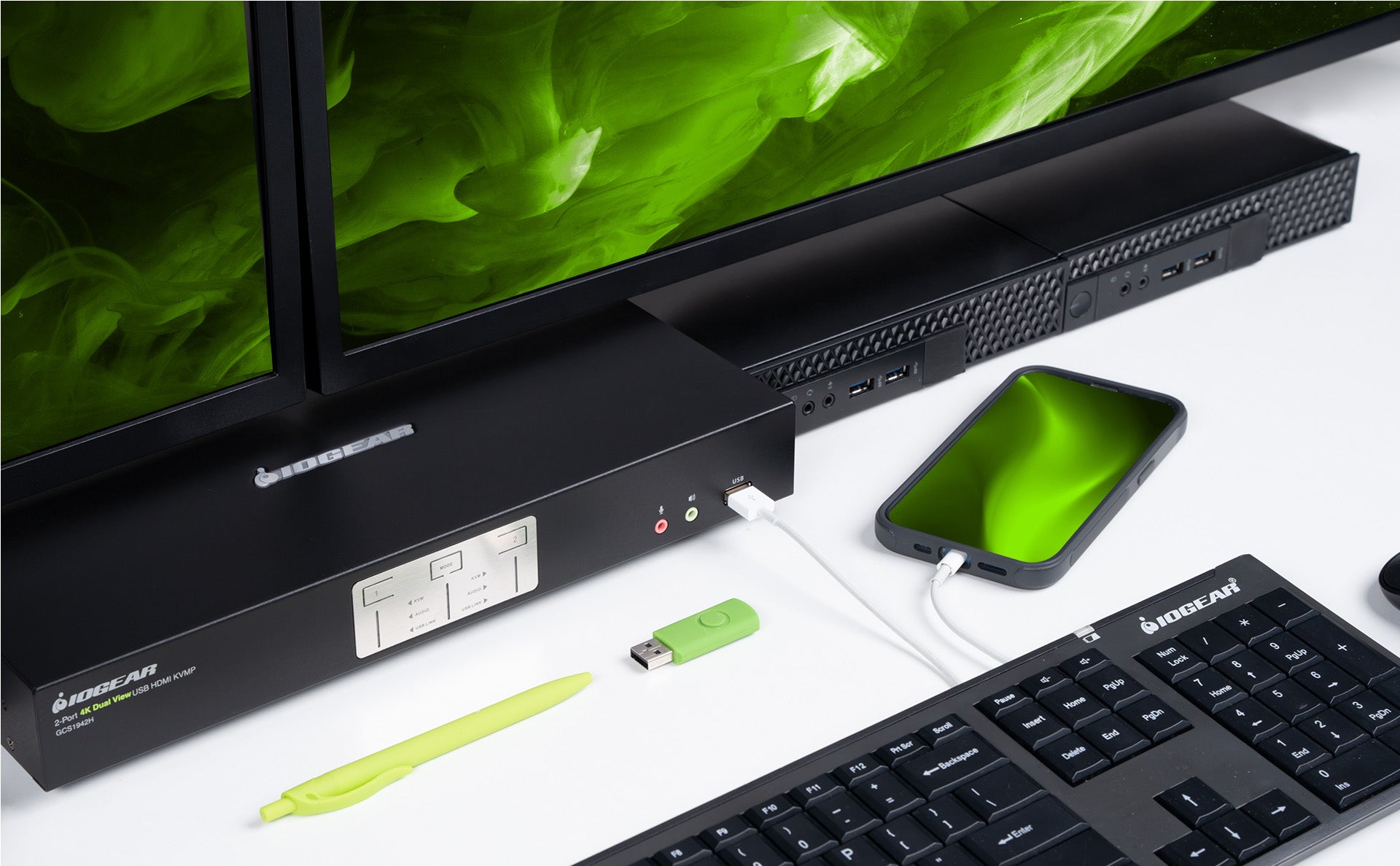

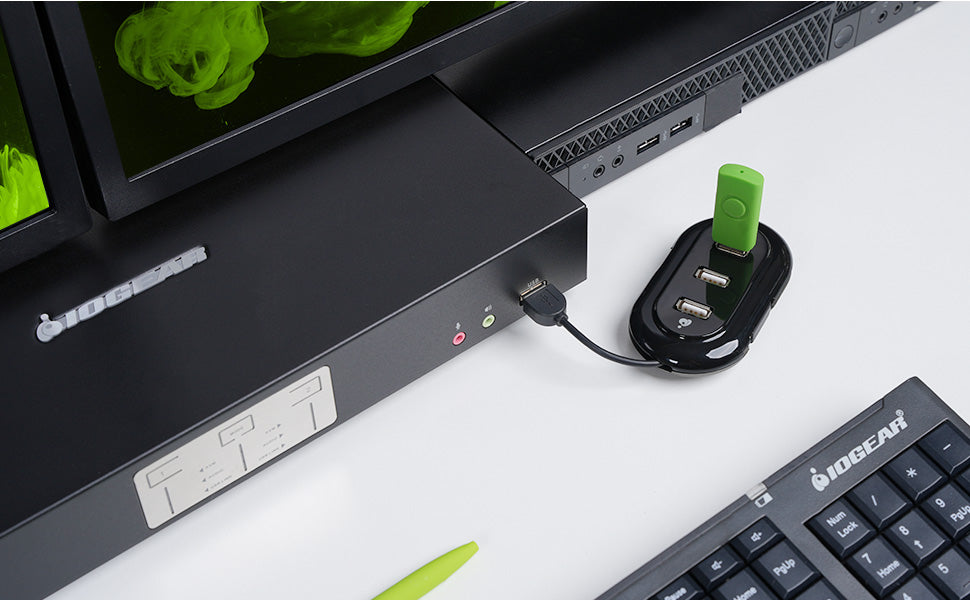

Built-in USB3.0 peripheral sharing

Control/share two USB 3.0 peripherals between two computers at up to 5Gbps data transfer speed. In addition, the USB peripheral can be separated from the KVM port switching, so when one computer is working with the connected USB device, user can switch to the other computer for other tasks without causing issues.

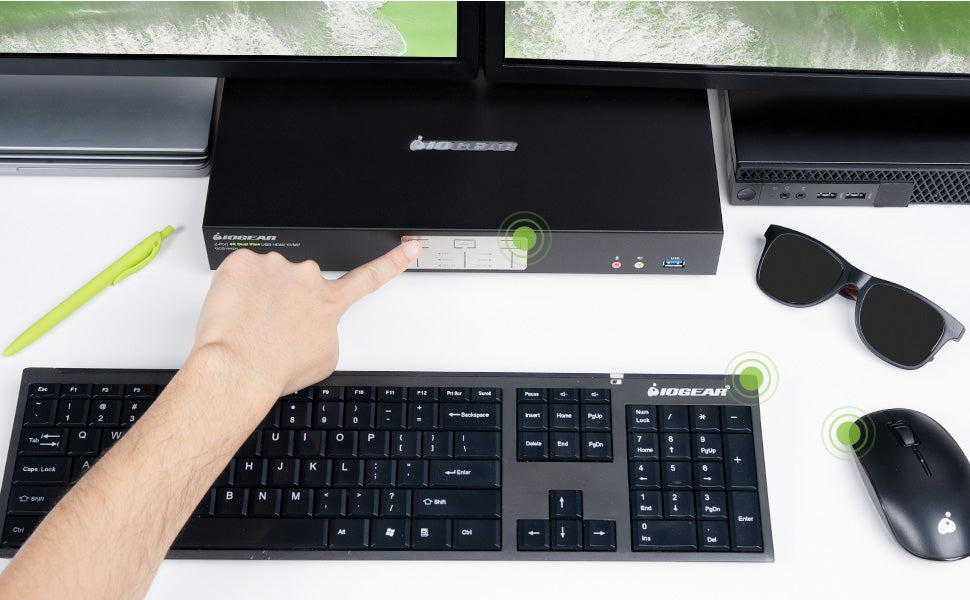

Convenient Switching Methods

3 ways for GCS1942 Port switching. Hotkeys, pushbuttons on the front panel and mouse wheel button, pick the way best fit for your needs.

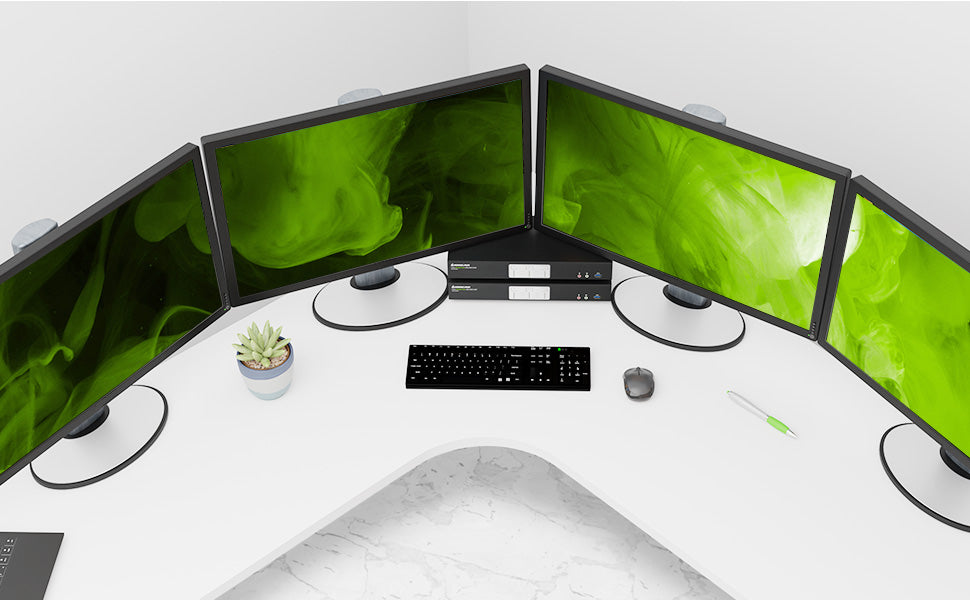

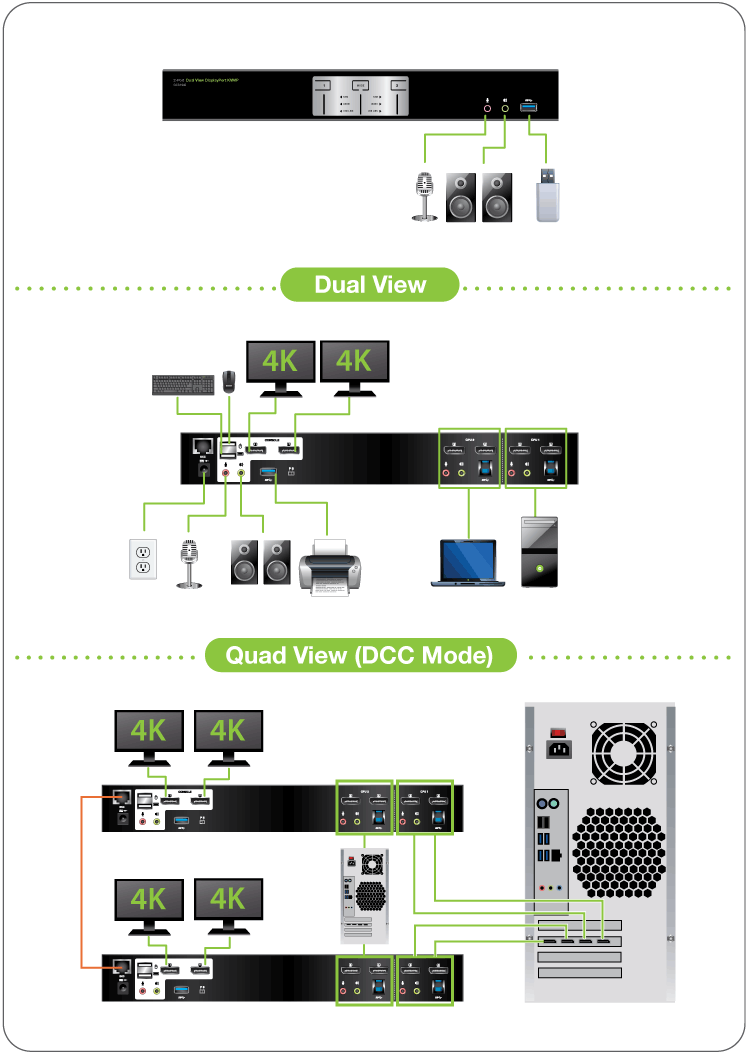

Up to Quad View when daisy-chaining two GCS1942 together

Tackle large projects and double your desktop viewing space by adding a second 2-Port KVMP (GCS1942). Expand your workstations to accommodate up to four Cinema 4K DisplayPort monitors.

Maximize your high-end multi-monitor workstation with superior video resolution
Share dual Cinema 4K DisplayPort monitors (4096 x 2160 @60Hz)
Operate 2 DisplayPort computers with 1 keyboard, mouse, and 2 monitors
Add another GCS1942 to expand up to four 4K monitors
DisplayPort 1.2 compliant, HDCP compliant
Allows independent switching of the KVM, USB, and audio devices
Control/share USB3.0 peripherals between 2 computers; save money on duplicate devices
Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
SuperSpeed 5Gbps transfer rate
MST (Multi-Stream Transport)*
DP++ supports HDMI and DVI output**
Computer selection via front panel pushbuttons, hotkeys, or mouse***
Supports 7.1 HD audio through DisplayPort****
Full bass response for high quality 2.1 channel audio
Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows®7, Windows 8.1, Windows 10, Mac OS®, and Linux®
Multilingual keyboard mapping supports English, French, and German keyboards
Mac® keyboard support and emulation*****
RS-232 Commands******
Auto-Scan Mode to monitor all computers
Power on detection
Hot pluggable
Firmware upgradable
Includes all KVM and audio cables

*MST requires two monitors capable of DisplayPort 1.2 daisychaining, or use of an external DisplayPort MST Hub. PC Source must be DisplayPort 1.2 compliant. A DisplayPort 1.1a monitor can be the last monitor in a DP1.2 chain.
**Dual-Mode DisplayPort (DP++) requires active HDMI and DVI adapters for most display setups.
***Mouse port switching supported alongside mouse emulation mode using a USB 3-button mouse wheel.
****HD audio through DisplayPort cannot be switched independently.
*****PC keyboard combinations emulate Mac® keyboards.
******DB9 to RJ-45 cable not included.

Console

2 x DisplayPort compatible monitors
Standard 104-key wired USB keyboard
Standard 2 or 3-button wired USB mouse
Microphone and speakers (optional)

Computer

2 x DisplayPort ports
Type-A USB port
Audio ports (optional)

*Use with video adapter may change performance

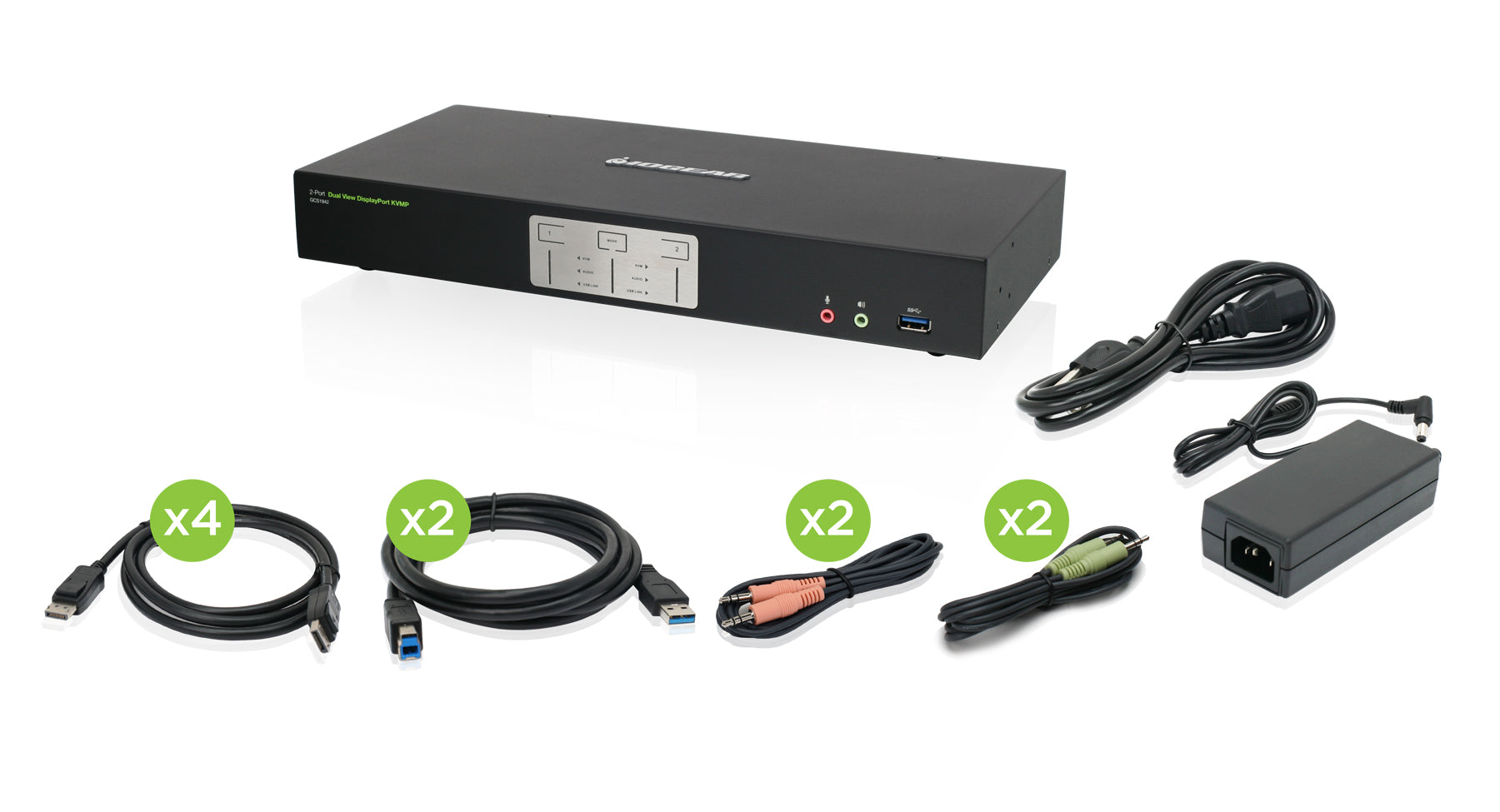

1 x 2-Port 4K Dual View DisplayPort KVMP Switch with USB 3.0 Hub and Audio
4 x DisplayPort Cables (5ft.)
2 x USB 3.0 Cables (6ft.)
2 x Audio Cable Set (6ft.)
1 x Power Adapter
1 x Quick Start Guide
1 x Warranty Card

GCS1942 Product Manual download

GCS1942 Quick Start Guide Download

GCS1942 RS232 Commands Manual Download

GCS1942 Firmware V1.1.104 Download

Version 1.1.104 firmware is for improved Logitech keyboard compatibility.

GCS1942 Firmware V1.1.103 Download

Version 1.1.103 firmware is for improved XKEY keyboard compatibility.

Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit
Windows 10 32-bit
Windows 10 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCS1942
Computer Connections
Direct	2
Daisy Chain or Cascading	2
Port Selection	Pushbuttons, Hotkey, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode), or RS-232 commands
Console Connectors
Monitor	2 x DisplayPort (Black)
Keyboard	1 x USB Type A (Black)
Mouse	1 x USB Type A (Black)
Audio	2 x 3.5mm Mini Stereo Jack (Green; Front and Rear)
Microphone	2 x 3.5mm Mini Stereo Jack (Pink; Front and Rear)

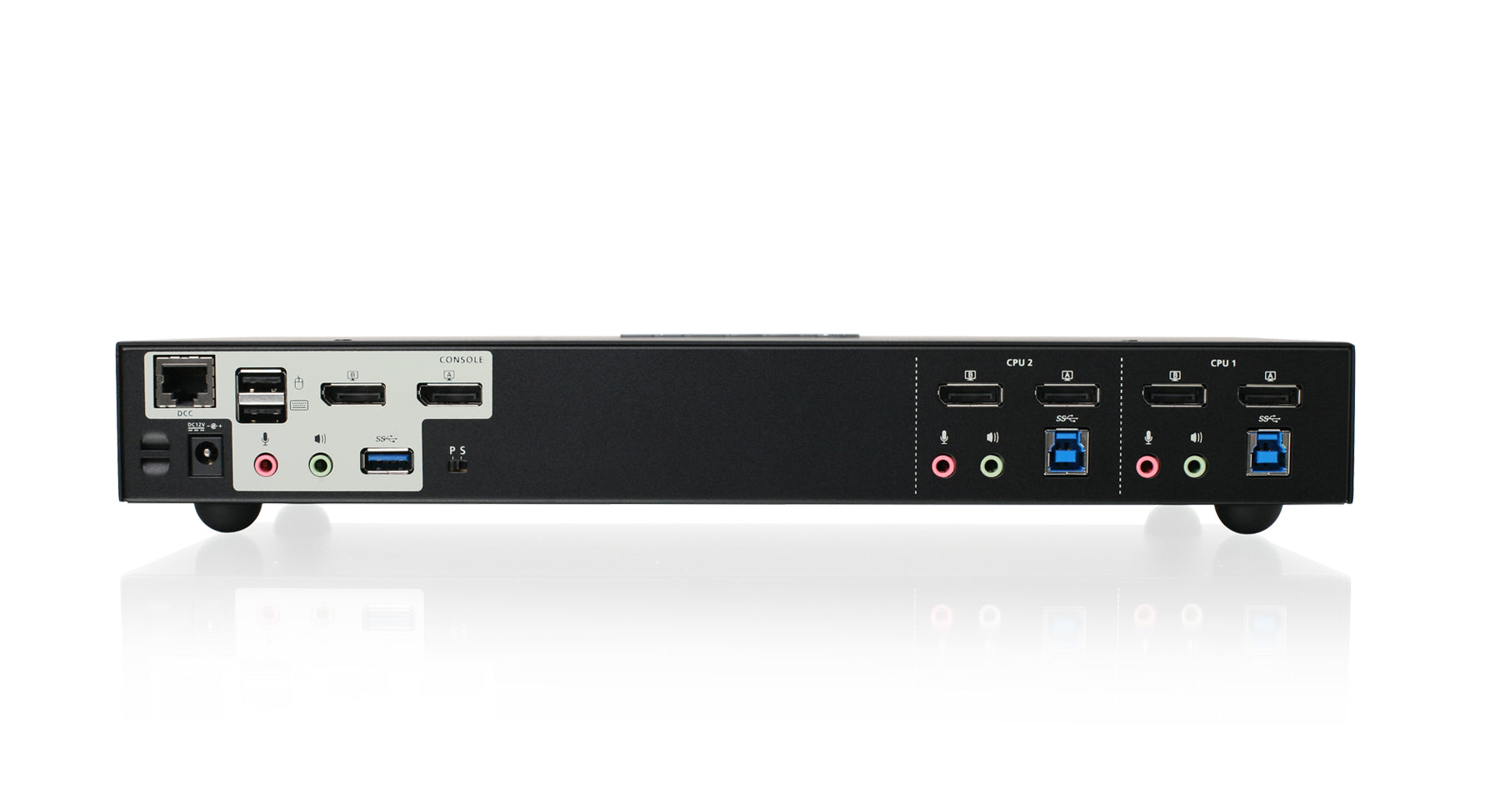

CPU Connectors
Monitor	2 x DisplayPort (Black)
Keyboard & Mouse	2 x USB 3.0 Type B (Blue)
Audio	2 x 3.5mm Mini Stereo Jack (Green)
Microphone	2 x 3.5mm Mini Stereo Jack (Pink)
Switches
F/W Upgrade	1 x USB Type B
Port Selection	2 x Pushbutton
Connectors
USB	1 x USB 3.0 Type A (Blue; Front), 1 x USB 3.0 Type A (Blue; Rear)
Serial	1 x RJ-45 (DCC)
LEDs
On Line	2 x Orange
Selected	2 x Orange
Audio	2 x Green
USB Peripherals	2 x Green
Emulation
Keyboard	USB
Mouse	USB
Video Resolution	4096 x 2160 @60 Hz (4K DCI)
Scan Interval	1~255 seconds (5 seconds default)
Power Consumption	DC 12V
Environment
Operation Temperature	0~40 C
Storage Temperature	-20~60 C
Humidity	0~80% RH, Non-condensing
Housing
Case	Metal

Dimensions	GCS1942
Unit Dimensions
Height	2.125" (5.39cm)
Length	13.19" (33.5cm)
Depth	6.125" (15.56cm)
Unit Package Dimensions
Height	9.5" (24.13cm)
Width	21.5" (54.61cm)
Depth	4.75" (12.07cm)
Master Carton
Height	10.5" (26.67cm)
Width	22.25" (56.5cm)
Depth	15.25" (38.74cm)
Master Carton Qty.	3
Weight
Master Carton Wt.	22.55lb (10.25kg)
Unit Pack Wt.	7.35lb (3.34kg)
Unit Wt.	3.5lb (1.59kg)

3 Year Limited Warranty
