2-Port 4K KVMP Switch with HDMI Connection, USB 3.0 Hub, and Audio

2 Port Desktop KVMs

2-Port 4K KVMP Switch with HDMI Connection, USB 3.0 Hub, and Audio

Name: 2-Port 4K KVMP Switch with HDMI Connection, USB 3.0 Hub, and Audio
Brand: IOGEAR
SKU: GCS1932H
Price: 299.95 USD
Availability: InStock

2-Port HDMI TAA Compliant

MPN: GCS1932H

UPC: 881317518934

$299.95

Control 2 computers using a single keyboard, mouse, and 4K HDMI monitor
Superior video quality - Cinema 4K (4096 x 2160 @60Hz) as specified by HDMI 2.0
HDCP 2.2 compliant, HDR Support
2-Port USB 3.1 Gen1 Hub with SuperSpeed 5Gbps transfer rate
Computer selection via front panel pushbuttons, hotkeys, mouse, or RS-232 command

2-Port 4K KVMP Switch with HDMI Connection, USB 3.0 Hub, and Audio

$299.95

4K Work Experience

Maximize your high-end workstations with the GCS1932H 2-Port 4K Single View HDMI KVMP. Experience Cinema 4K resolution up to 4096x2160@60Hz along with rich bass and 7.1 surround sound while switching between both computers and sharing two USB 3.0.

Built-in USB3.0 Peripheral Sharing

Control/share two USB 3.0 peripherals between two computers at up to 5Gbps data transfer speed. In addition, the USB peripheral can be separated from the KVM port switching, so when one computer is working with the connected USB device, user can switch to the other computer for other tasks without causing issues.

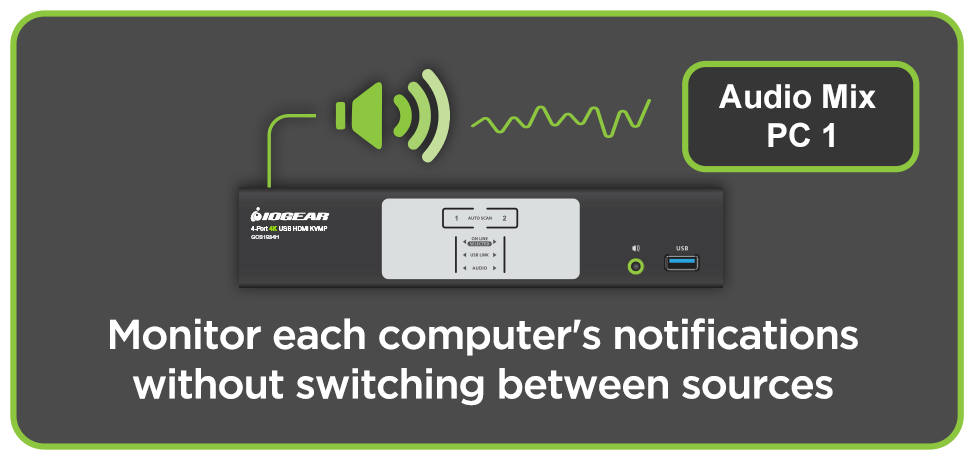

Audi Mixer for multi-task operation

Sound can serve as a helpful alert for better situational awareness while multitasking. When using the Audio Mixer feature, the audio coming from both computers can be mixed up to hear both audio sources simultaneously, regardless of which computer is in focus.

Convenient Switching Methods

3 ways for GCS1932H Port switching. Hotkeys, Pushbuttons at front panel and Mouse wheel button, pick the way best fit for your needs.

Control 2 computers using a single keyboard, mouse, and 4K HDMI monitor
Superior video quality - Cinema 4K (4096 x 2160 @60Hz)as specified by HDMI 2.0
HDCP 2.2 compliant, HDR Support
2-Port USB 3.1 Gen1 Hub with SuperSpeed 5Gbps transfer rate
Computer selection via front panel pushbuttons, hotkeys, mouse¹, or RS-232 command²
Independent switching of the KVM, USB, and audio
Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
Supports HD Audio
Audio Mixer Modes -Mixes up to two audio sources as audio output
Multi-platform support - Windows®7, Windows 8.1, Windows 10, Mac®, and Linux®
Multilingual keyboard mapping supports English, French, and German keyboards
Mac® keyboard support and emulation³
Auto Scan Mode to monitor all computers
Power On Detection
Hot Pluggable
Firmware Upgradable
Support N-Key Rollover(NKRO) - permits collision - free keying

Note

¹ Mouse port switching supported alongside mouse emulation mode using a USB 3-button mouse wheel

² Supports RS-232 commands when the station slide switch is located to position s. DB9 to RJ-11 cable not included.

³ PC keyboard combinations emulate Mac® keyboards.

Console

HDMI compatible monitor
Standard 104 key wired USB keyboard
Standard 2 or 3 button wired USB mouse
Speakers (optional)

Computer

HDMI port
Type A USB port
Audio ports (optional)

*Use with video adapter may change performance

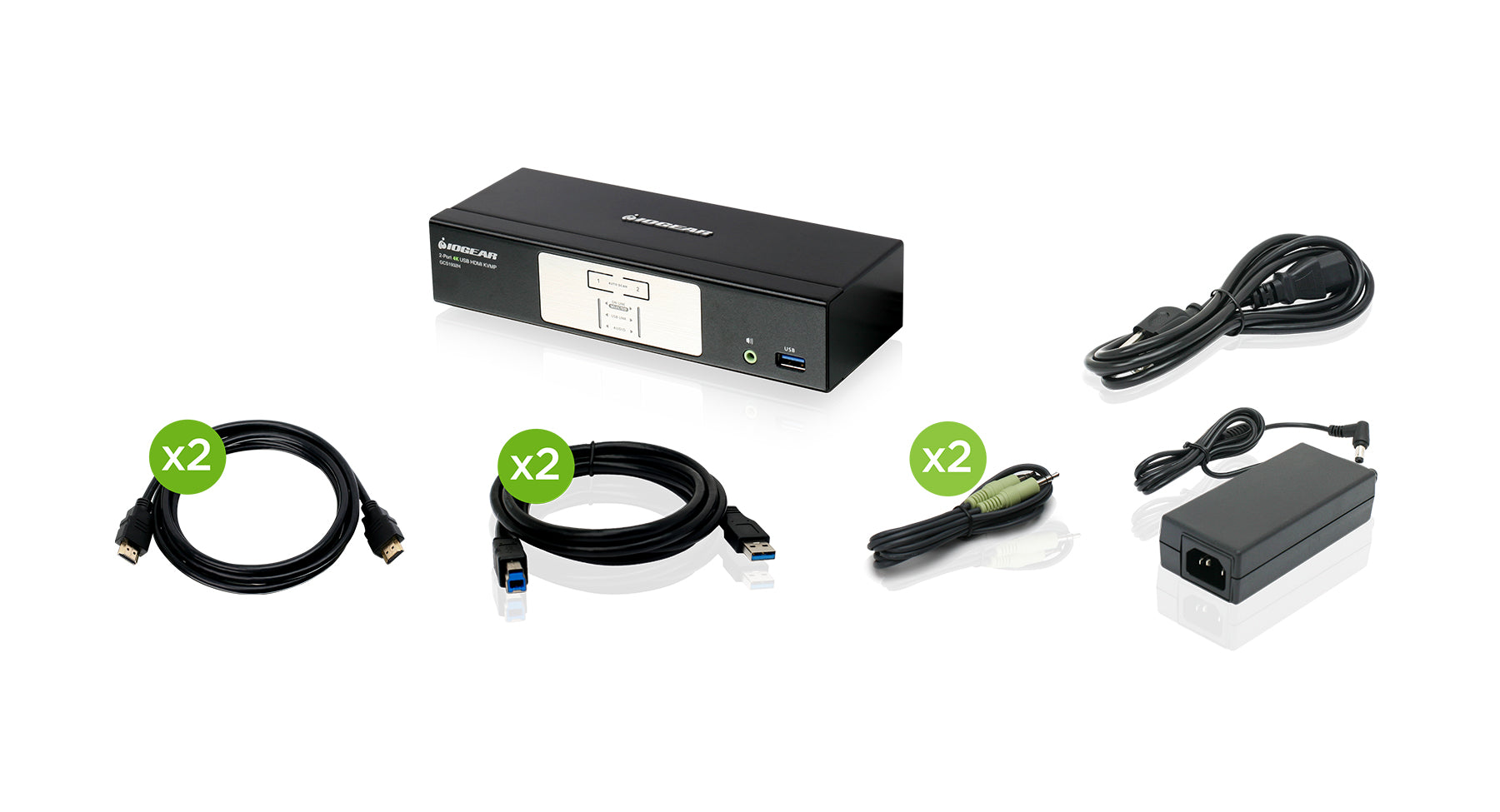

1 x 2-Port 4K HD KVMP Switch with USB 3.0 Hub and Audio Mixer
2 x HDMI Cables (6ft.)
2 x USB 3.0 Cables (6ft.)
2 x Audio Cable Set (6ft.)
1 x Power Adapter
1 x QSG

GCS1932H Product Manual Download

GCS1932H Quick Start Guide Download

GCS1932H RS232 Manual Download

GCS1932H Firmware Download Version 1.1.103

NEW Firmware V1.1.103 can support Dual QHD Curved Monitor 5120x1440

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCS1932H
Computer Connections
Direct	2
Port Selection	Pushbutton, Hotkey, RS-232 and Mouse (mouse emulation enabled)
Console Connectors
Monitor	1 x HDMI Female (Black)
Keyboard	1 x USB Type A
Mouse	1 x USB Type A
Audio	2 x 3.5mm Speaker Jack (Front and Rear)

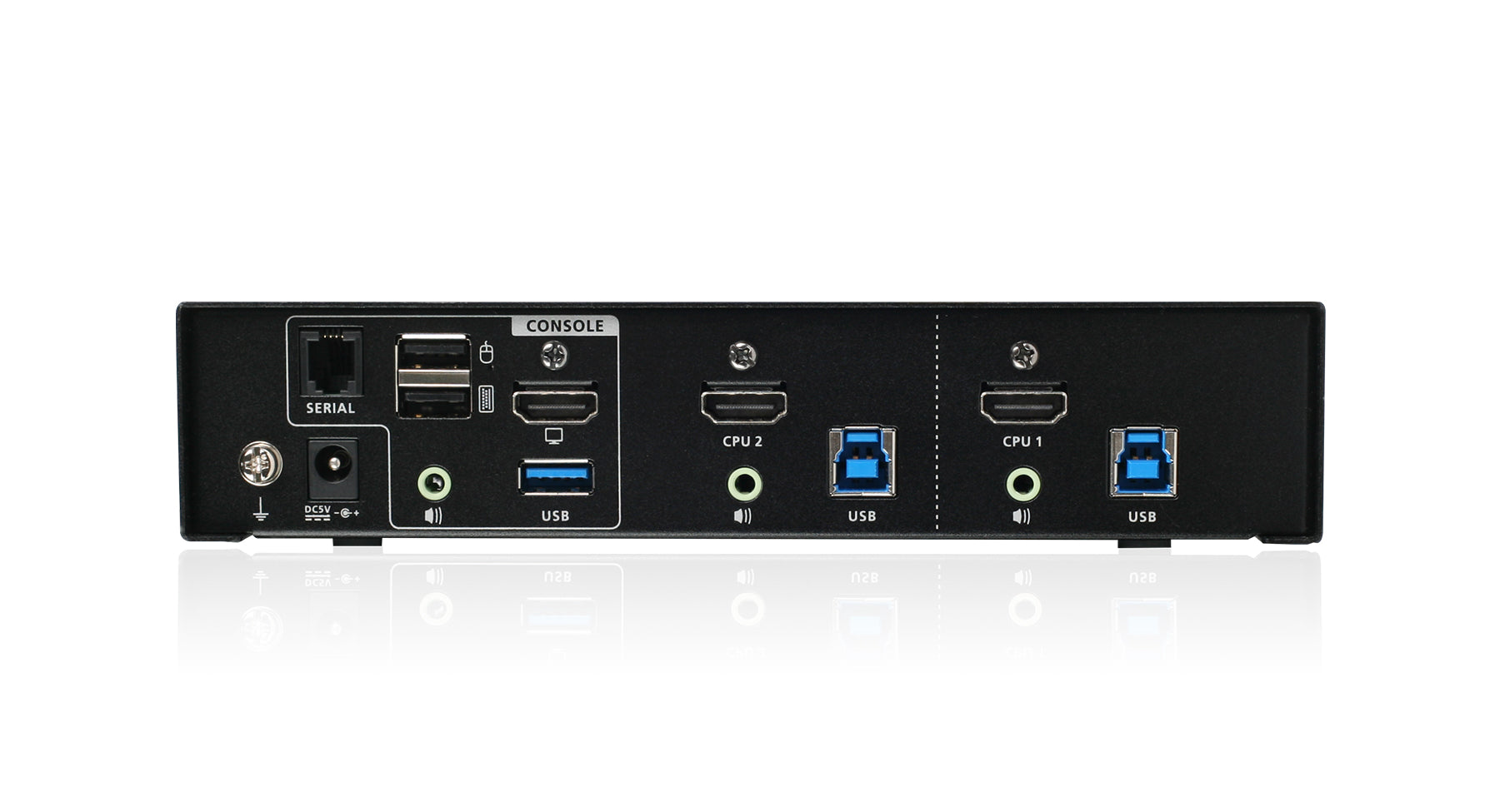

CPU Connectors
Monitor	2 x HDMI Female (Black)
Keyboard & Mouse	2 x USB 3.1 Gen1 Type B (Blue)
Audio	2 x 3.5mm Speaker Jack (green)
Switches
Port Selection	2 x Pushbuttons
Power Connections	1 x DC 5V Jack
Connectors
USB	2 x USB 3.1 Gen1 Type A (Blue, Front and Rear)
RS-232	1 x RJ-11
LEDs
Mode
KVM	2 (Orange)
Audio	2 (Green)
USB Peripherals	2 (Green)
Emulation
Keyboard	USB
Mouse	USB
Video Resolution	4096 x 2160 @ 60Hz (Cinema 4K)
Scan Interval	5~99 seconds (5 seconds default)
Power Consumption	DC 5V:1.78W: 50.97 BTU
Environment
Operation Temperature	0?40ºC
Storage Temperature	-20?60ºC
Humidity	0?80% RH, Non-condensing
Housing
Case	Metal, plastic

Dimensions	GCS1932H
Unit Dimensions
Height	1.69" (4.3cm)
Length	7.875" (20cm)
Depth	2.94" (7.47cm)
Unit Package Dimensions
Height	6.81" (17.3cm)
Width	11.25" (28.58cm)
Depth	4" (10.16cm)
Master Carton
Height	14.75" (37.47cm)
Width	12.5" (31.75cm)
Depth	12" (30.48cm)
Master Carton Qty.	6
Weight
Master Carton Wt.	22.5lb (10.23kg)
Unit Pack Wt.	3.65lb (1.66kg)
Unit Wt.	1.45lb (0.66kg)

3 Year Limited Warranty
