4-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub, and Audio (TAA)

4 Port Desktop KVMs

4-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub, and Audio (TAA)

Name: 4-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub, and Audio (TAA)
Brand: IOGEAR
SKU: GCS1944H
Price: 699.95 USD
Availability: InStock

4-Port Dual Monitor HDMI TAA Compliant

MPN: GCS1944H

UPC: 881317518965

$699.95

Maximize your high-end dual HD workstations by connecting them to the IOGEAR 4-Port 4K Dual View KVMP with HDMI(R) connection. Experience 4K Cinema resolutions along with rich bass and 7.1 surround sound while switching between both computers and sharing two USB 3.0 peripherals with the push of a button.

4-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub, and Audio (TAA)

$699.95

Enhance High-End Multi-Monitor Workstation

Maximize your high-end dual HD workstations by connecting them to the IOGEAR 4-Port 4K Dual View KVMP with HDMI(R) connection. Experience 4K Cinema resolutions along with rich bass and 7.1 surround sound while switching between both computers and sharing two USB 3.0 peripherals with the push of a button.

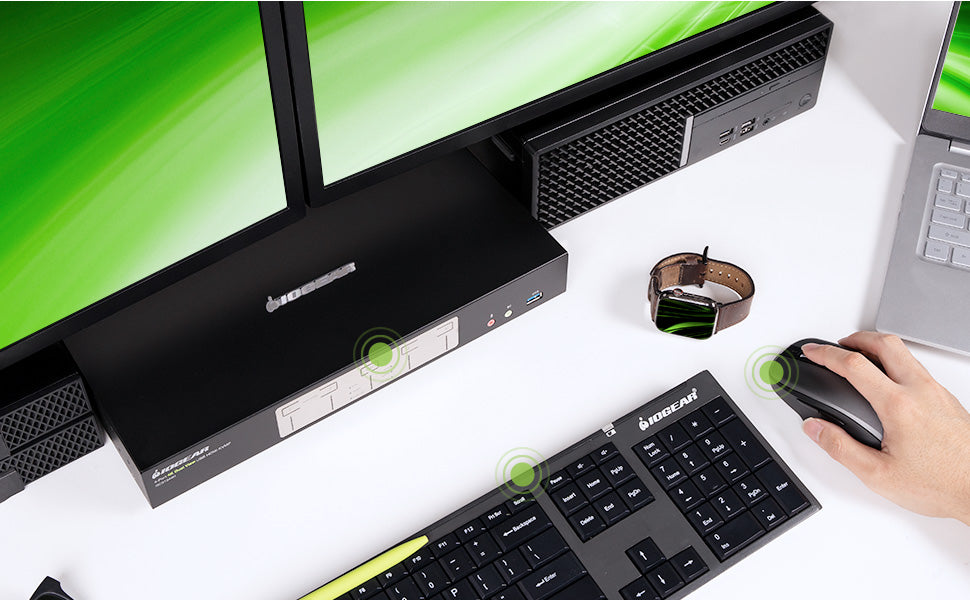

Convenient Switching Methods

Switch and access four (4) HDMI-enabled computers from a push-button on the front panel or hotkey combination on your keyboard. IOGEAR's 4-Port HDMI KVM Switch also offers the latest mouse port-switching functionality. Easily switch between connected computers by clicking the wheel button on your 3-button USB mouse. For those who need controlled access, this 4K HDMI KVM switch supports RS-232 commands.

Smart Connectivity

Additional smart connectivity features turn your workstation into a convenient, easy-to-use powerhouse. The Power on Detection ensures automatic connection to the next powered-on computer. Expand your workstations to accommodate up to four 4K Cinema HDMI monitors. The built-in USB 3.0 ports provide connectivity speeds up to 5Gbps and compatibility with legacy USB 2.0 and 1.1 devices.

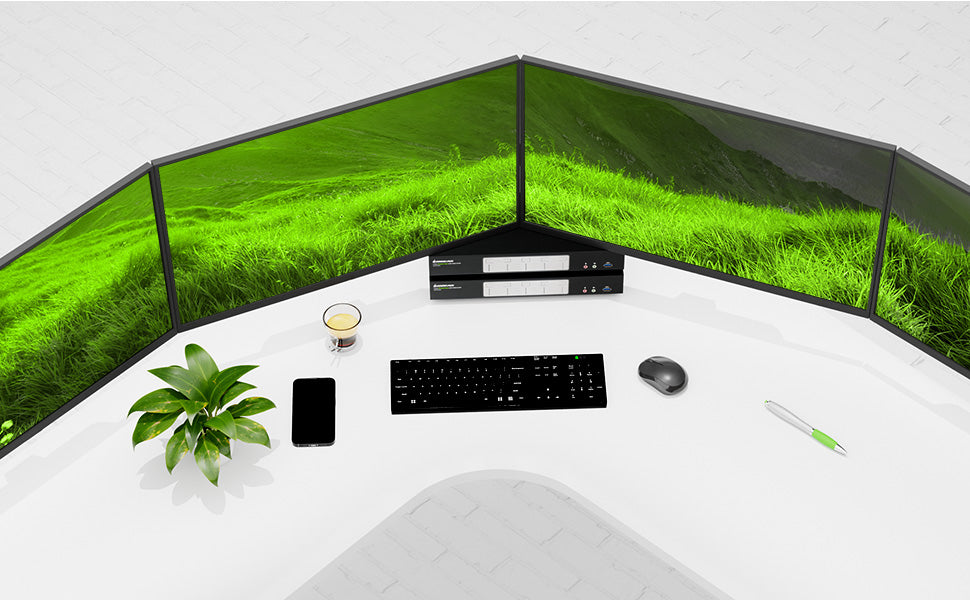

Expand to Utilize Up to Four 4K Monitors

Tackle large projects and double your desktop viewing space by adding a second 4-Port KVMP (GCS1944H). Expand your workstations to accommodate up to four 4K Cinema HDMI enabled monitors.

Maximize your high-end multi-monitor workstation with superior video resolution
Share dual Cinema 4K HDMI-enabled monitors (4096 x 2160 @60Hz)
Video DynaSync™ optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports
Operate 4 HDMI computers with 1 keyboard, mouse, and 2 monitors
Add another GCS1944H to expand up to four 4K monitors
HDMI 2.0 compliant, HDCP 2.2 compliant
Allows independent switching of the KVM, USB, and audio devices
Control/share USB3.0 peripherals between 4 computers; save money on duplicate devices
Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
SuperSpeed 5Gbps transfer rate
Computer selection via front panel pushbuttons, hotkeys, or mouse¹
Supports 7.1 HD audio through HD²
Full bass response for high quality 2.1 channel audio
Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows®7, Windows 8.1, Windows 10, Mac OS®, and Linux®
Multilingual keyboard mapping supports English, French, and German keyboards
Mac® keyboard support and emulation³
RS-232 Commands⁴
Auto-Scan Mode to monitor all computers
Power on detection
Hot pluggable
Firmware upgradable
Includes all KVM and audio cables

¹ Mouse port switching supported alongside mouse emulation mode using a USB 3-button mouse wheel.
² HD audio through HDMI cannot be switched independently.
³ PC keyboard combinations emulate Mac® keyboards.
⁴ DB9 to RJ-45 cable not included.

Console

2 x HDMI-enabled monitors
Standard 104-key wired USB keyboard
Standard 2 or 3-button wired USB mouse
Microphone and speakers (optional)

Computer

2 x HDMI ports
Type-A USB port
Audio ports (optional)

*Use with video adapter may change performance

1 x 4-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio
8 x HDMI Cables (6ft.)
4 x USB 3.0 Cables (6ft.)
4 x Audio Cable Set (6ft.)
1 x Power Adapter
1 x Remote Port Selector
1 x Quick Start Guide

GCS1944H Product Manual Download

GCS1944H Quick Start Guide Download

GCS1944H Firmware V 1.1.101 Download

Release Date: 08/03/23

Windows 10 32-bit
Windows 10 64-bit
Windows 11

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCS1944H
Computer Connections
Direct	4
Daisy Chain or Cascading	4
Port Selection	Hotkey, Pushbutton, Mouse, RS-232 Commands, Remote Port Selector
Console Connectors
Monitor	2 x HDMI (Black)
Keyboard	1 x USB Type A (Black)
Mouse	1 x USB Type A (Black)
Audio	2 x 3.5mm Mini Stereo Jack (Green; Front and Rear)
Microphone	2 x 3.5mm Mini Stereo Jack (Pink; Front and Rear)

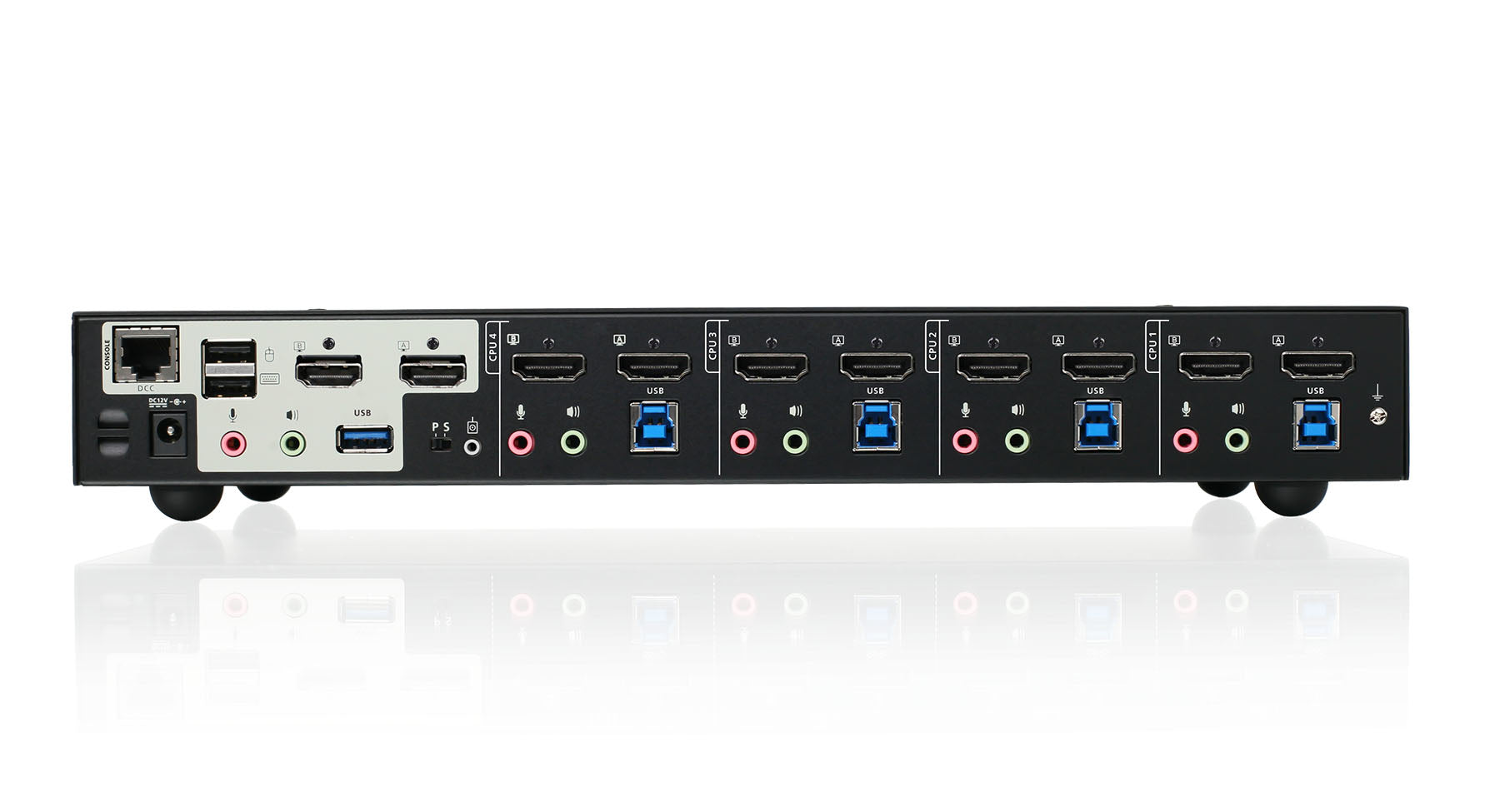

CPU Connectors
Monitor	8 x HDMI (Black)
Keyboard & Mouse	4 x USB 3.0 Type B (Blue)
Audio
Microphone	4 x 3.5mm Mini Stereo Jack (Pink)
Daisy Chain	1 x RJ-45 Female
Switches
Port Selection	4 x Pushbutton
Select	1 x Slide Switch
Connectors
USB	1 x USB 3.0 Type A (Blue; Front), 1 x USB 3.0 Type A (Blue; Rear)
Serial	1 x RJ-45 (DCC)
Remote Port Selector	1 x 2.5mm Audio Jack Female
LEDs
On Line	5 x Orange
Selected	5 x Orange
Audio	5 x Green
USB Peripherals	5 x Green
Emulation
Keyboard	USB
Mouse	USB
Video Resolution	4096 x 2160 @60 Hz (4K DCI)
Scan Interval	1-99 Seconds (Default: 5 sec.)
Power Consumption	DC12V:4.42W:63BTU
Environment
Operation Temperature	32~ 104F (0~40 C)
Storage Temperature	-4~140 F (-20~60 C)
Humidity	0~80% RH, Non-condensing
Housing
Case	Metal

Dimensions	GCS1944H
Unit Dimensions
Height	1.7 in. (4.4 cm)
Length	13.2 in. (33.5 cm)
Width	6.3 in. (16.1 cm)
Unit Package Dimensions
Height	9.2 in. (23.2 cm)
Length	21.3 in. (54.0 cm)
Width	4.8 in. (12.0 cm)
Master Carton
Height	10.3 in. (26.0 cm)
Length	22.0 in. (56.0 cm)
Width	15.2 in. (38.4 cm)
Master Carton Qty.	3
Weight
Master Carton Wt.	29.0 lb. (13.2 kg)
Unit Pack Wt.	9.0 lb. (4.1kg)
Unit Wt.	3.5 lb. (1.6kg)

3 Year Limited Warranty
