The GCS1904H 4-Port 4K KVMP switch controls 4 PCs with one keyboard, mouse, and HDMI monitor. It supports 4K @ 60Hz, USB 2.0 peripheral sharing, and Video DynaSync™ technology to keep layouts consistent. Includes all cables for a quick, tidy setup.

4-Port DisplayPort KVMP Switch with HDMI® connection USB 2.0 Hub and Audio

$119.95

Maximize Productivity with Seamless 4K Control

The IOGEAR GCS1904H is a high-performance 4-Port KVMP™ switch designed to streamline multi-computer workflows without sacrificing visual quality. Effortlessly control four PCs using a single 4K HDMI monitor, keyboard, and mouse, while sharing two USB 2.0 peripherals across all connected systems.

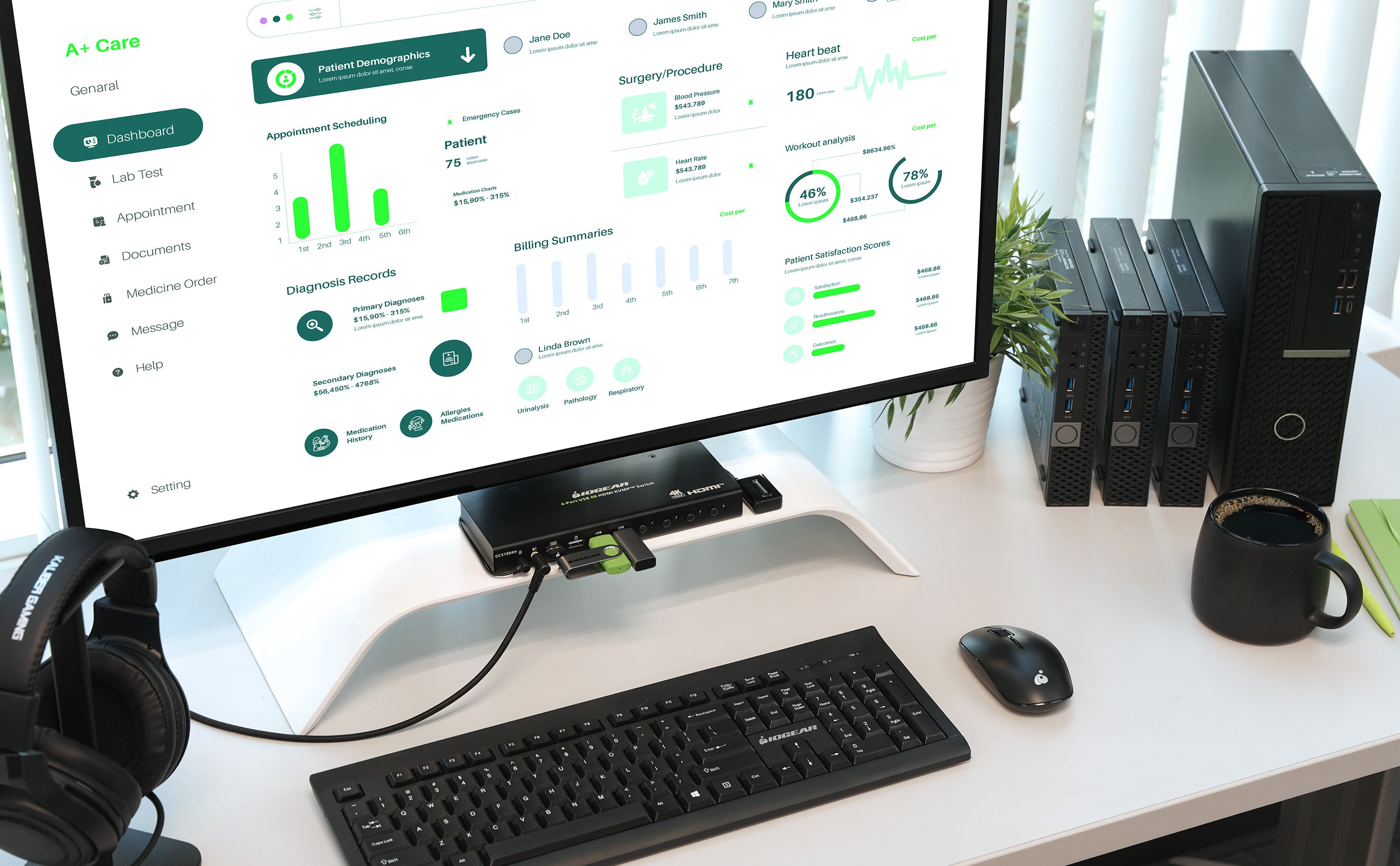

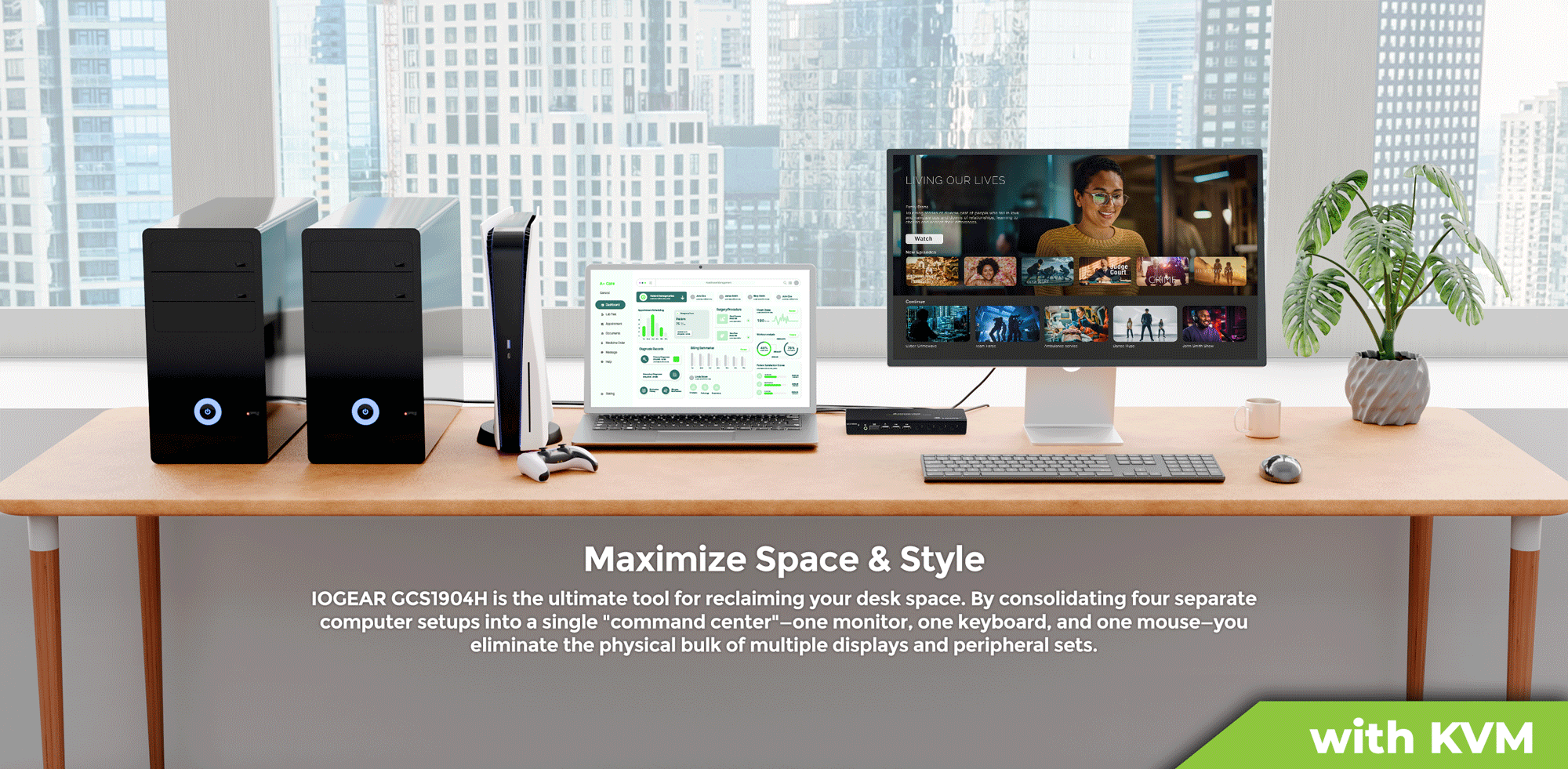

Space-Efficient Desktop Setup

This high-performance KVM switch grants you seamless control over four HDMI systems using a single monitor, keyboard, and mouse. By consolidating your setup and sharing two USB 2.0 peripherals, it eliminates cable chaos to create a truly refined, efficient workspace.

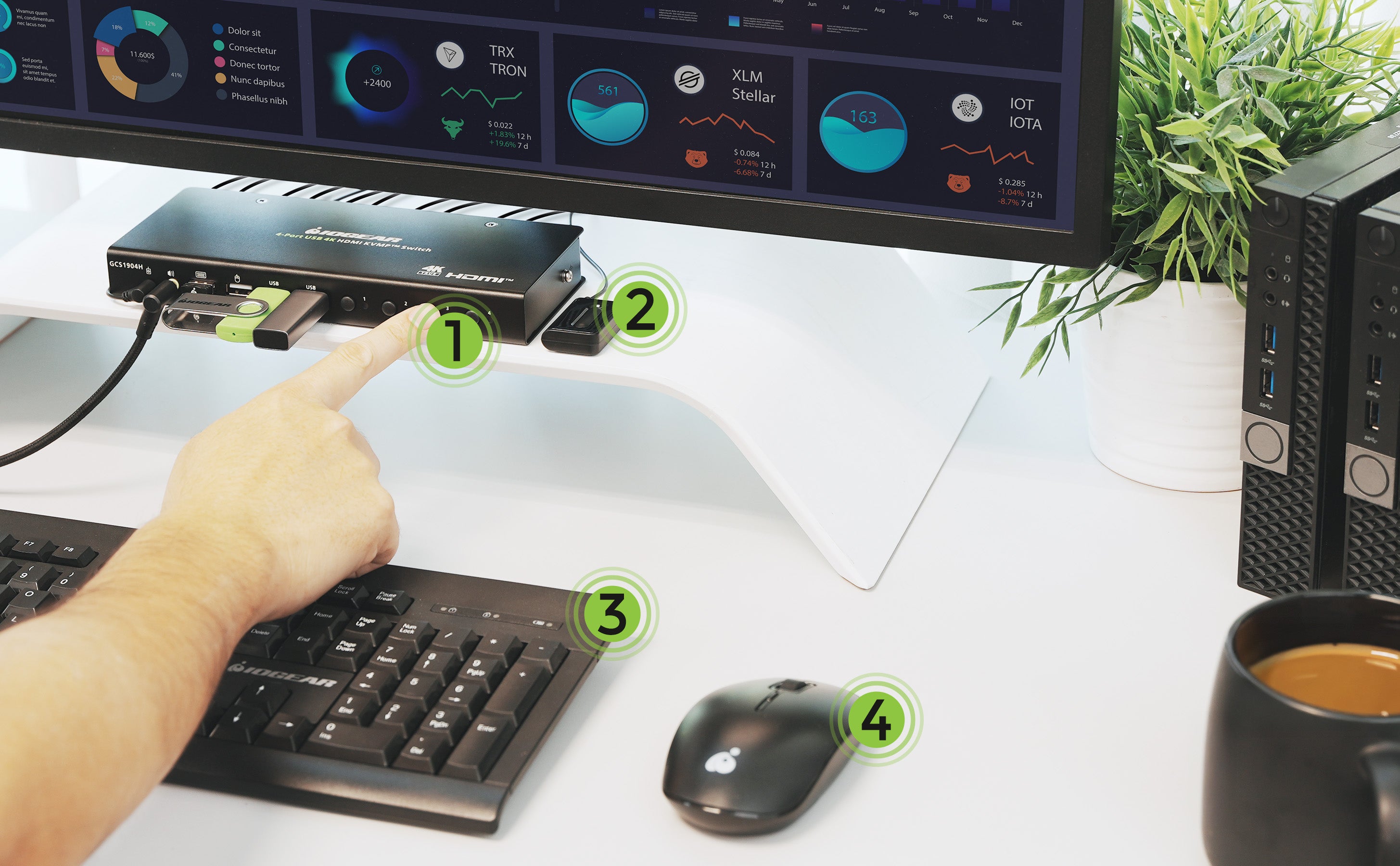

Convenient Switching Methods

Four ways for GCS1904H Port switching. Pushbuttons on the front panel, Remote Port Selector, Hotkeys, and the Mouse wheel button - pick the option that best fits your needs.

1. Push Buttons
2. Remote Switch
3. Keyboard Hot Key
4. Mouse wheel

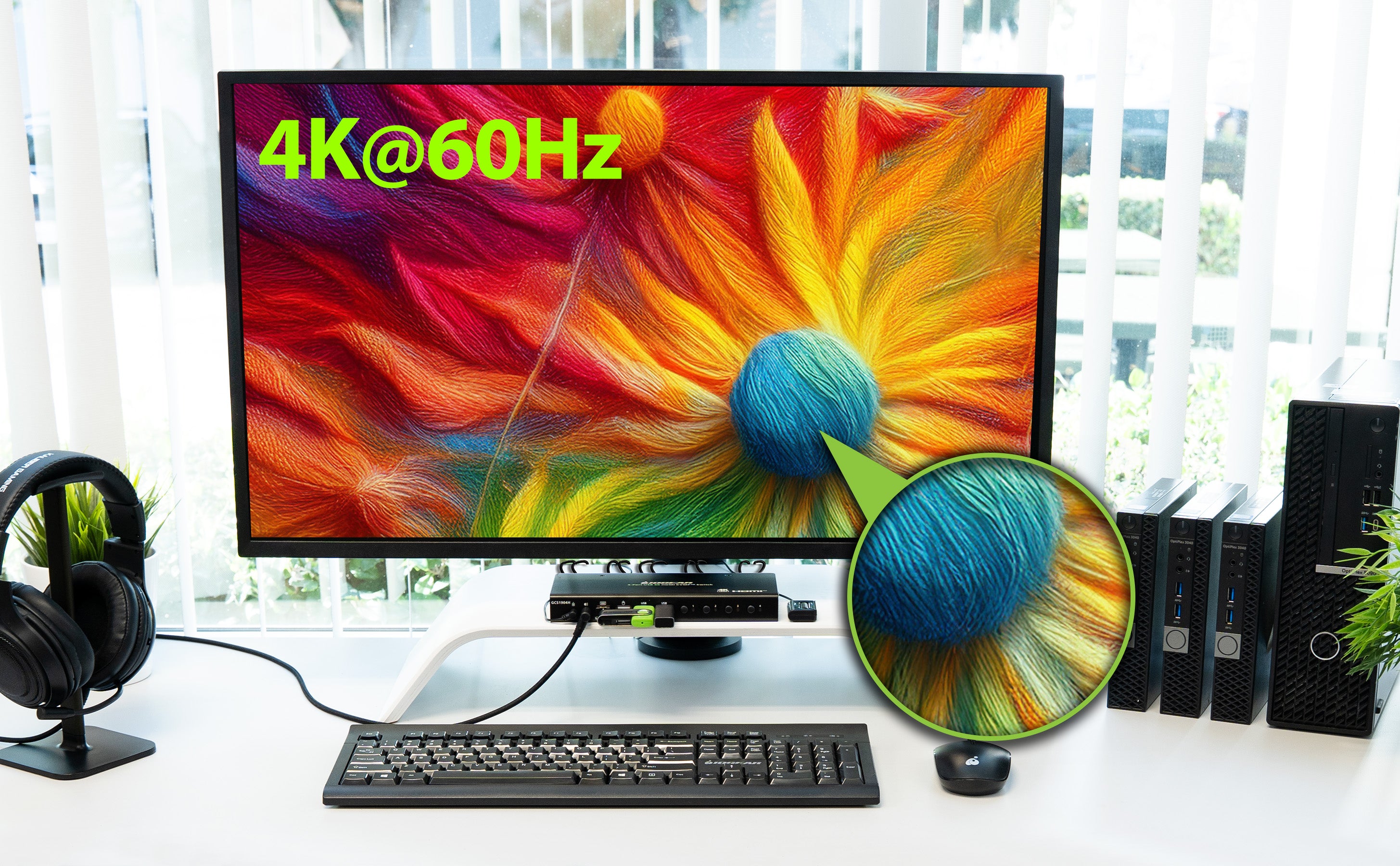

4K Work Experience

The KVM switch is designed to deliver exceptional visual performance, supporting 1080p@60, 4K@60, and up to 5120×1440@60.

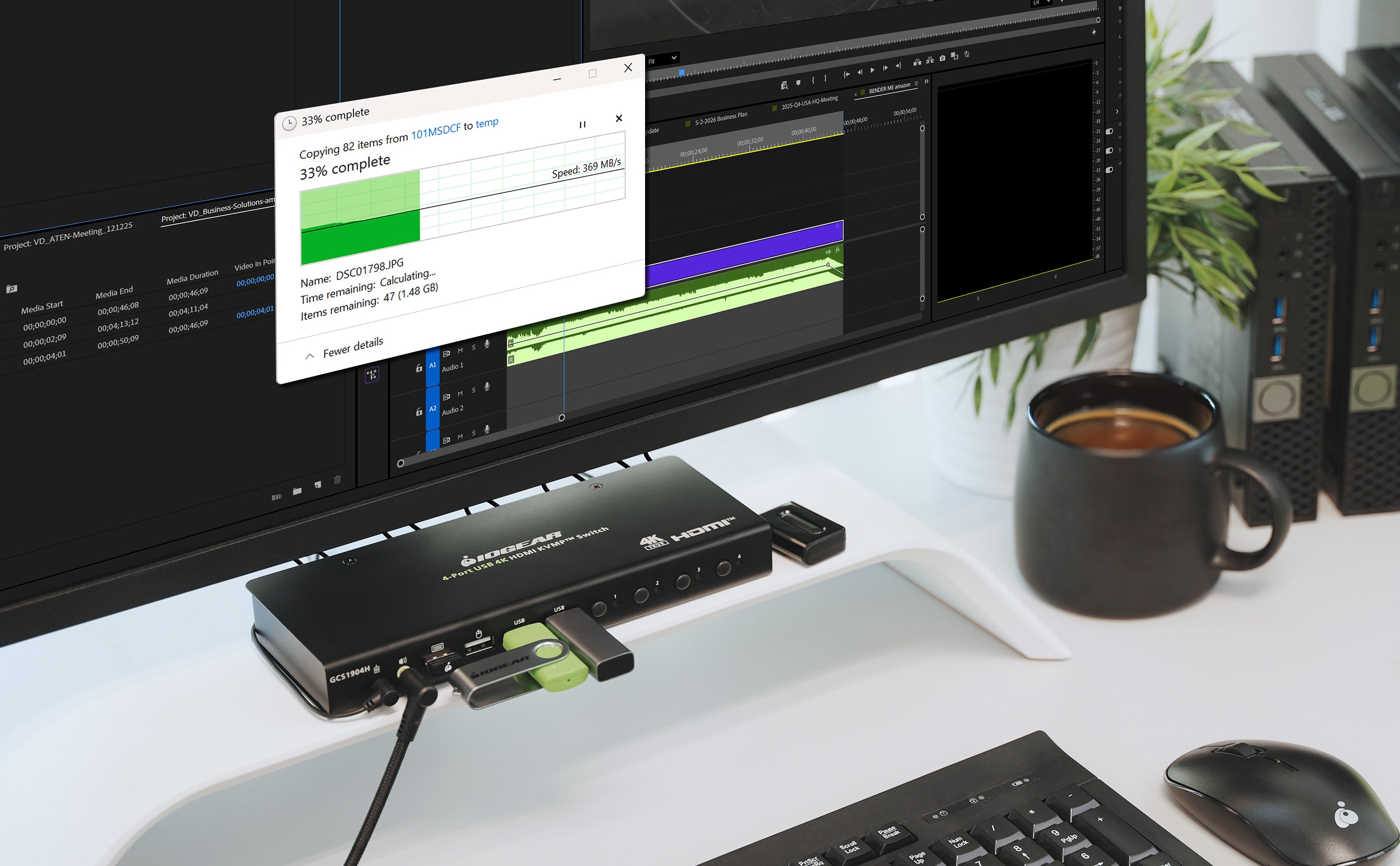

Built-in USB 2.0 Peripheral Sharing

Control/share two USB 2.0 peripherals between two computers at up to 480 Mbps data transfer speed with plug-n-play support. Attach even more peripherals by adding a USB 2.0 Hub. (Sold Separately)

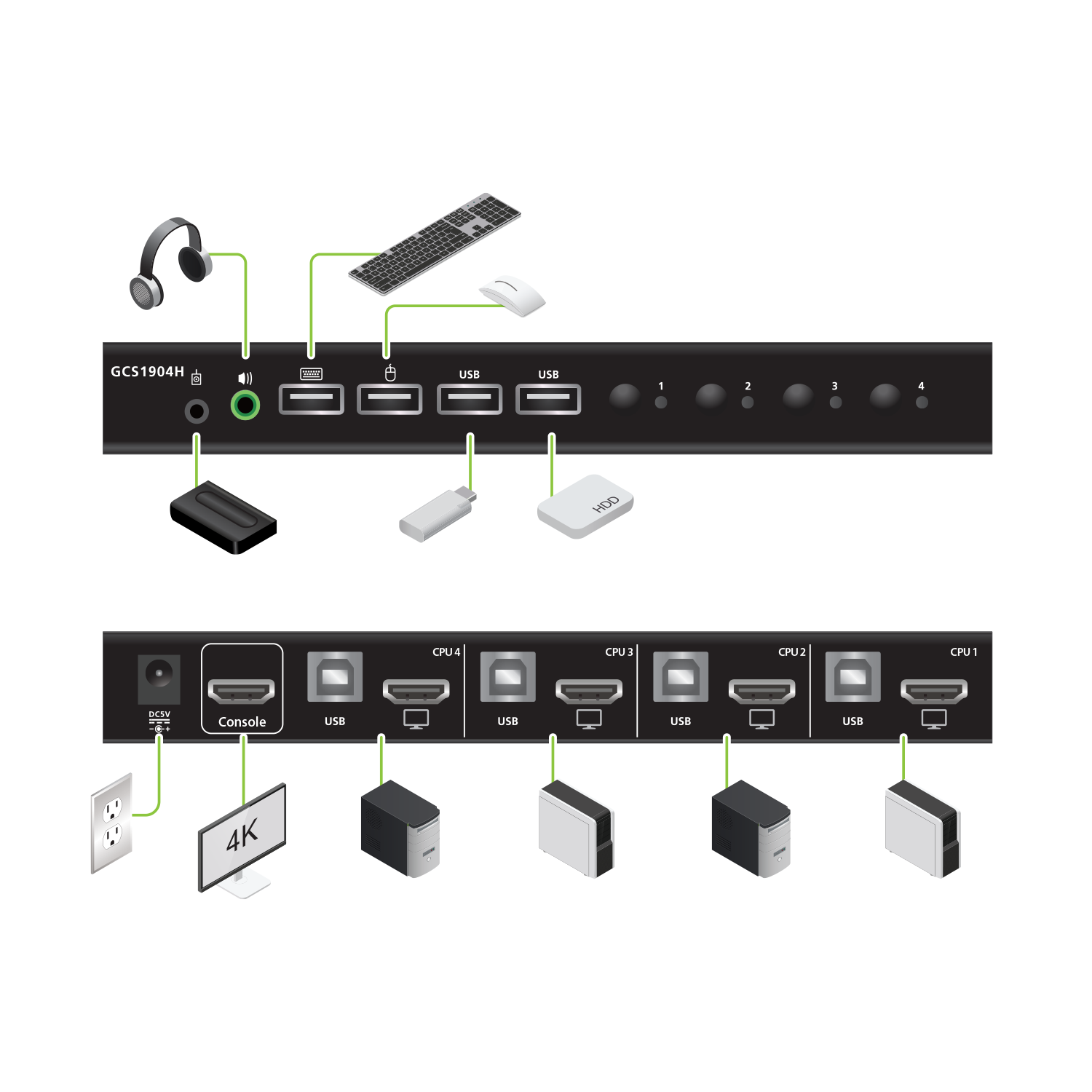

Control up to 4 PCs from a single monitor, keyboard, mouse, speaker and up to 2 USB peripherals
Superior video quality – up to 4096x2160 @60 Hz or 5120x1440 @60Hz (HDMI 2.0)
Exclusive IOGEAR DynaSync technology ensures optimal resolution and consistent window layout when port switching for smoother workflows
Computer selection via remote port selector, hotkeys, and USB mouse
All HDMI / USB cables and power adapter included – for plug-and-play setup and hassle-free installation, no extra purchases needed
Power-on detection automatically switches to the next active computer
Supports most gaming / multimedia keyboards and multifunction mice with emulation or bypass
Auto-scan function allows continuous monitoring of connected systems
Plug and play – no software installation or configuration required
Multiplatform support – Windows, Mac, and Linux
USB peripheral sharing
Supports hot plugging
Firmware upgradeable

Operating system

Windows 10,11
Mac OS X 10.15+
Linux

Console

1 x HDMI-enabled monitor
Standard 104-key wired USB keyboard
Standard 2 or 3-button USB mouse
Speakers (optional)

Computers

1 x HDMI port
Type-A USB port Cables
Use only the included IOGEAR KVM cables with HDMI connections designed specifically to work with the GCS1904H

Notes: The quality of the display is affected by the quality and length of the cables. If you need additional cables, please contactyour dealer or IOGEAR to purchase IOGEAR approved cables.

1 x GCS1904H
4 x HDMI cables
4 x USB 2.0 Type-A to Type-B cables
1 x Remote Port Selector
1 x Foot Pad Set (4 pieces)
1 x Power Adapter
1 x User Manual
1 x Registration/Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

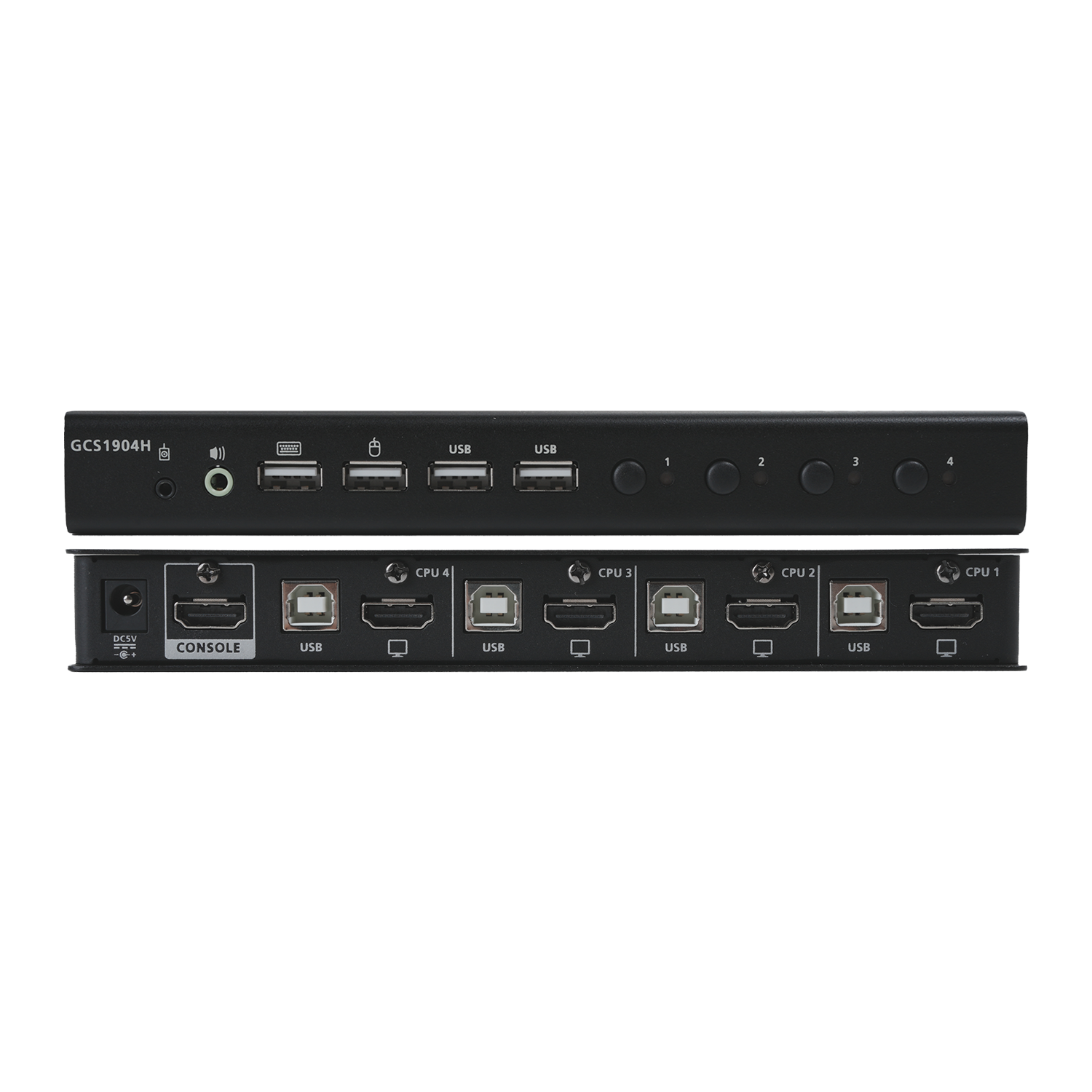

Function	GCS1904H
Computer Connections
Direct	4
Port Selection	Pushbutton, Hotkeys, Remote Port Selector, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode)
Console Connectors
Monitor	1 x HDMI
Keyboard	1 x USB 2.0 Type A
Mouse	1 x USB 2.0 Type A
USB Peripherial	2 x USB 2.0 Type A
Audio	1 x 3.5mm Mini Stereo Jack (Front)
CPU Connectors
Monitor	4 x HDMI
Keyboard & Mouse	4 x USB 2.0 Type B
Switches
Port Selection	4 x Pushbutton
Power Connections	1 x DC 5V Jack
LEDs
On Line	4 x Orange
Emulation
Keyboard	USB
Mouse	USB
Video Resolution	Up to 4096 x 2160 @ 60Hz, 5120 x 1440 @ 60Hz
Scan Interval	1~99 seconds (5 seconds default)
Power
Voltage	DC 5V
Amps	.34 Amps
Environment
Operation Temperature	0~40C
Storage Temperature	-20~60C
Humidity	0~80% RH, Non-condensing
Housing
Case	Metal, Plastic

Dimensions	GCS1904H
Unit Dimensions
Height	.98" (2.5cm)
Length	7.96" (20.23cm)
Depth	3.22" (8.17cm)
Weight
Unit Wt.	1.04 lb (0.47kg)

3 Year Limited Warranty
