2-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio (TAA)

2 Port Desktop KVMs

2-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio (TAA)

Name: 2-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio (TAA)
Brand: IOGEAR
SKU: GCS1942H
Price: 349.95 USD
Availability: InStock

2-Port HDMI TAA Compliant

MPN: GCS1942H

UPC: 881317518958

$349.95

Maximize your high-end dual HD workstations by connecting them to the 2-Port 4K Dual View KVMP Switch with HDMI(R) Connection, USB 3.0 and Audio. Experience Cinema 4K resolutions along with rich bass and 7.1 surround sound while switching between both computers and sharing two USB 3.0 peripherals with the push of a button.

2-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio (TAA)

$349.95

Dual View for better visual experience

Connect two Cinema 4K HDMI monitors to your desktop or laptop to experience superior screen, image, and video quality. GCS1942H delivers a 4K resolution up to 4096x2160@60Hz on each monitor. Now the desktop can be extended from each connected computer for better viewing and to handle more tasks.

Built-in USB 3.0 Peripheral Sharing

Control/share two USB 3.0 peripherals between two computers at up to 5Gbps data transfer speed. In addition, the USB peripheral can be separated from the KVM port switching, so when one computer is working with the connected USB device, user can switch to the other computer for other tasks without causing issues.

Convenient Switching Methods

Switch and access two HDMI-enabled computers from the push-button front panel or hotkey combination on your keyboard. Utilize the latest in mouse port-switching functionality to change ports by simply clicking the wheel button on your 3-button USB mouse.

Up to Quad View when daisy-chaining two GCS1942H together

Tackle large projects and double your desktop viewing space by adding a second 2-Port KVMP (GCS1942H). Expand your workstations to accommodate up to four Cinema 4K HDMI monitors.

Maximize your high-end multi-monitor workstation with superior video resolution
Share dual Cinema 4K HDMI-enabled monitors (4096 x 2160 @60Hz)
Operate 2 HDMI computers with 1 keyboard, mouse, and 2 monitors
Add another GCS1942H to expand up to four 4K monitors
HDMI 2.0 compliant, HDCP 2.2 compliant
Allows independent switching of the KVM, USB, and audio devices
Control/share USB3.0 peripherals between 2 computers; save money on duplicate devices
Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
SuperSpeed 5Gbps transfer rate
Computer selection via front panel pushbuttons, hotkeys, or mouse¹
Supports 7.1 HD audio through HD²
Full bass response for high quality 2.1 channel audio
Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows®7, Windows 8.1, Windows 10, Mac OS®, and Linux®
Multilingual keyboard mapping supports English, French, and German keyboards
Mac® keyboard support and emulation³
RS-232 Commands⁴
Auto-Scan Mode to monitor all computers
Power on detection
Hot pluggable
Firmware upgradable
Includes all KVM and audio cables

¹ Mouse port switching supported alongside mouse emulation mode using a USB 3-button mouse wheel.
² HD audio through HDMI cannot be switched independently.
³ PC keyboard combinations emulate Mac® keyboards.
⁴ DB9 to RJ-45 cable not included.

Console
2 x HDMI-enabled monitors
Standard 104-key wired USB keyboard
Standard 2 or 3-button wired USB mouse
Microphone and speakers (optional)
Computer
2 x HDMI ports
Type-A USB port
Audio ports (optional)

*Use with video adapter may change performance

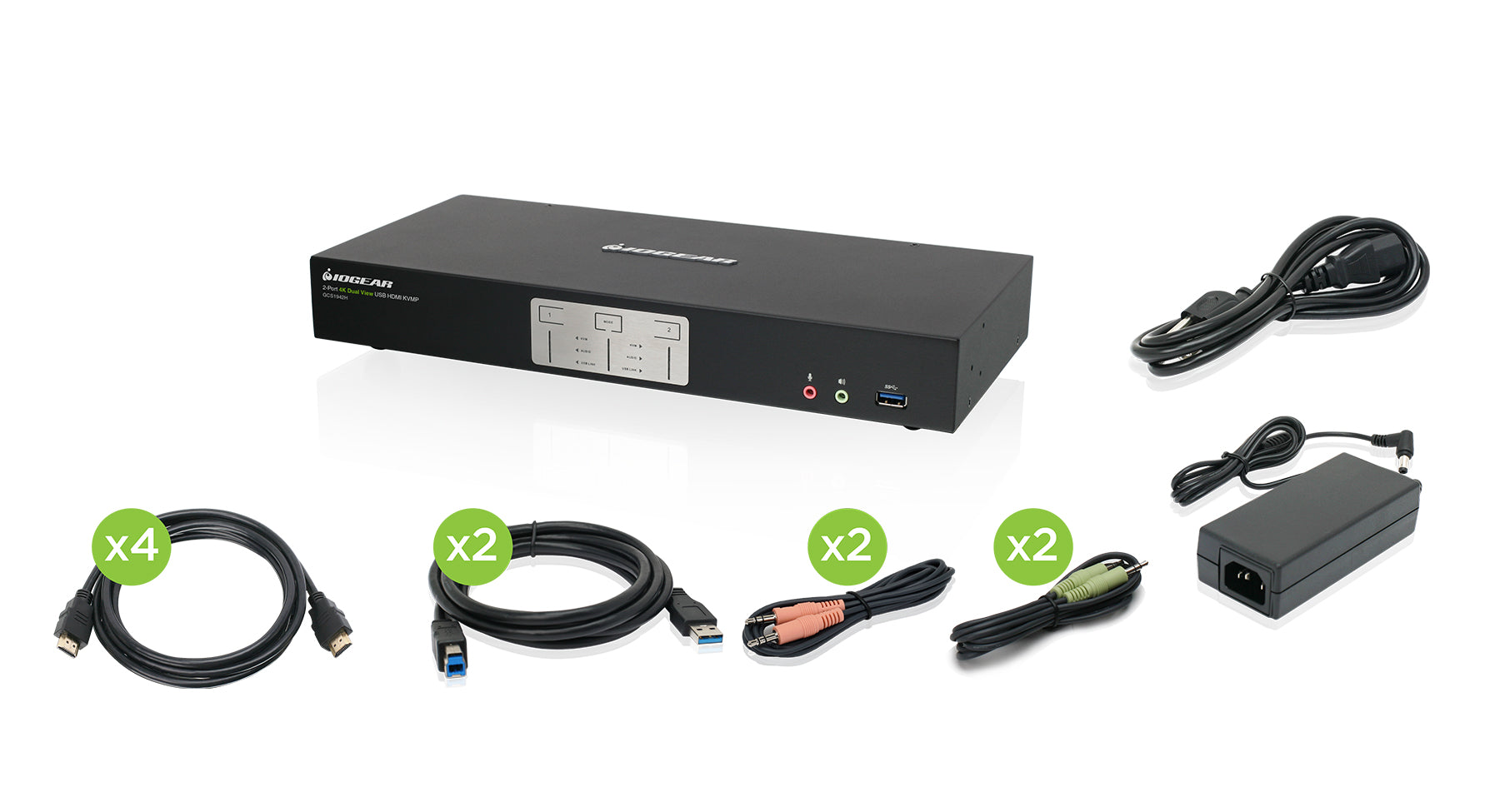

1 x 2-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio
4 x HDMI Cables (6ft.)
2 x USB 3.0 Cables (6ft.)
2 x Audio Cable Set (6ft.)
1 x Power Adapter
1 x Remote Port Selector
1 x Quick Start Guide

GCS1942H Product Manual Download

GCS1942H Quick Start Guide Download

GCS1942H Firmware V 1.1.101 Download

Release Date: 08/03/2023

Windows 10 32-bit
Windows 10 64-bit
Windows 11

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCS1942H
Computer Connections
Direct	2
Daisy Chain or Cascading	2
Port Selection	Hotkey, Pushbutton, Mouse, RS-232 Commands, Remote Port Selector
Console Connectors
Monitor	2 x HDMI (Black)
Keyboard	1 x USB Type A (Black)
Mouse	1 x USB Type A (Black)
Audio	2 x 3.5mm Mini Stereo Jack (Green; Front and Rear)
Microphone	2 x 3.5mm Mini Stereo Jack (Pink; Front and Rear)

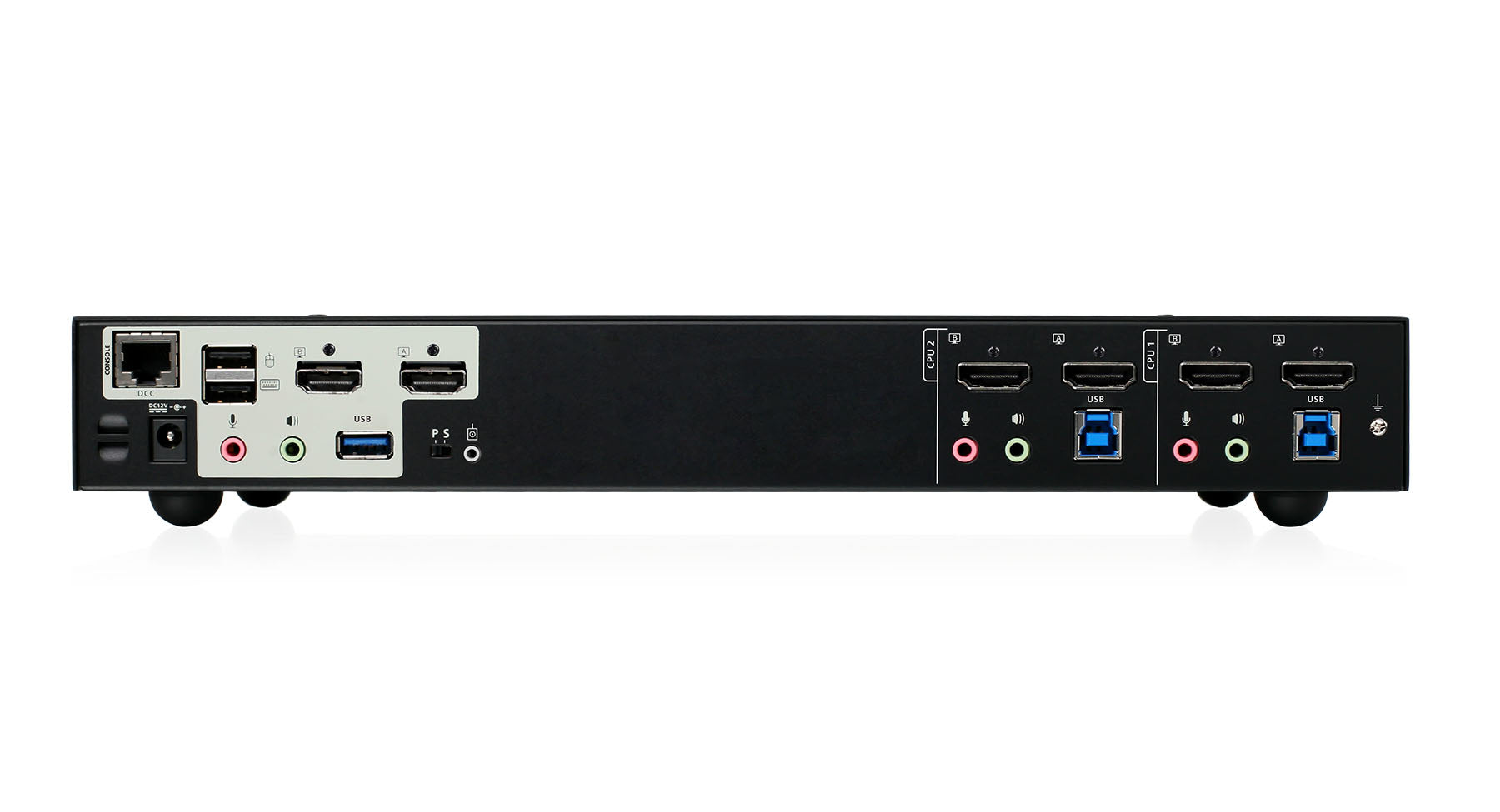

CPU Connectors
Monitor	4 x HDMI (Black)
Keyboard & Mouse	2 x USB 3.0 Type B (Blue)
Audio	2 x 3.5mm Mini Stereo Jack (Green; Front and Rear)
Microphone
Daisy Chain	1 x RJ-45 Female
Switches
Port Selection	2 x Pushbutton
Select	1 x Slide Switch
Connectors
USB	1 x USB 3.0 Type A (Blue; Front), 1 x USB 3.0 Type A (Blue; Rear)
Serial	1 x RJ-45 (DCC)
Remote Port Selector	1 x 2.5mm Audio Jack Female
LEDs
On Line	3 x Orange
Selected	3 x Orange
Audio	3 x Green
USB Peripherals	3 x Green
Emulation
Keyboard	USB
Mouse	USB
Video Resolution	4096 x 2160 @60 Hz (4K DCI)
Scan Interval	1-99 Seconds (Default: 5 sec.)
Power Consumption	DC12V:3.17W:57BTU
Environment
Operation Temperature	32~ 104F (0~40 C)
Storage Temperature	-4~140 F (-20~60 C)
Humidity	0~80% RH, Non-condensing
Housing
Case	Metal

Dimensions	GCS1942H
Unit Dimensions
Height	1.7 in. (4.4 cm)
Length	13.2 in. (33.5 cm)
Width	6.3 in. (16.1 cm)
Unit Package Dimensions
Height	9.2 in. (23.2 cm)
Length	21.3 in. (54.0 cm)
Width	4.8 in. (12.0 cm)
Master Carton
Height	10.3 in. (26.0 cm)
Length	22.0 in. (56.0 cm)
Width	15.2 in. (38.4 cm)
Master Carton Qty.	3
Weight
Master Carton Wt.	23.5 lb. (10.7 kg)
Unit Pack Wt.	7.25 lb. (3.3 kg)
Unit Wt.	3.5 lb. (1.6 kg)

3 Year Limited Warranty

Return policy info here.
