8-Port LCD KVM Console

8-Port 17" LCD Combo KVM Switch

Name: 8-Port 17" LCD Combo KVM Switch
Brand: IOGear
SKU: GCL1808
Price: 1199.95 USD
Availability: InStock

8-Port TAA Compliant VGA

MPN: GCL1808

UPC: 881317505613

$1,199.95

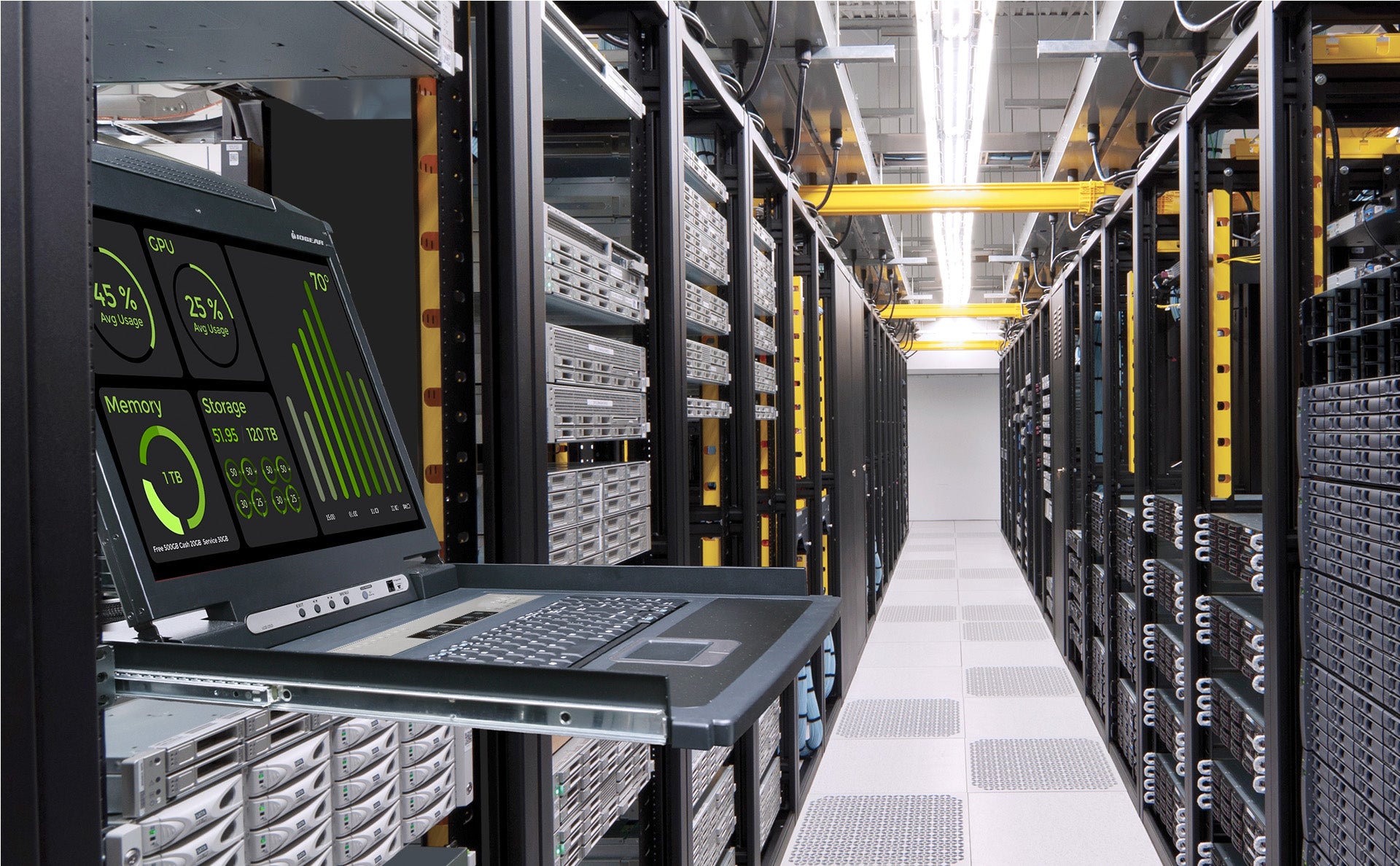

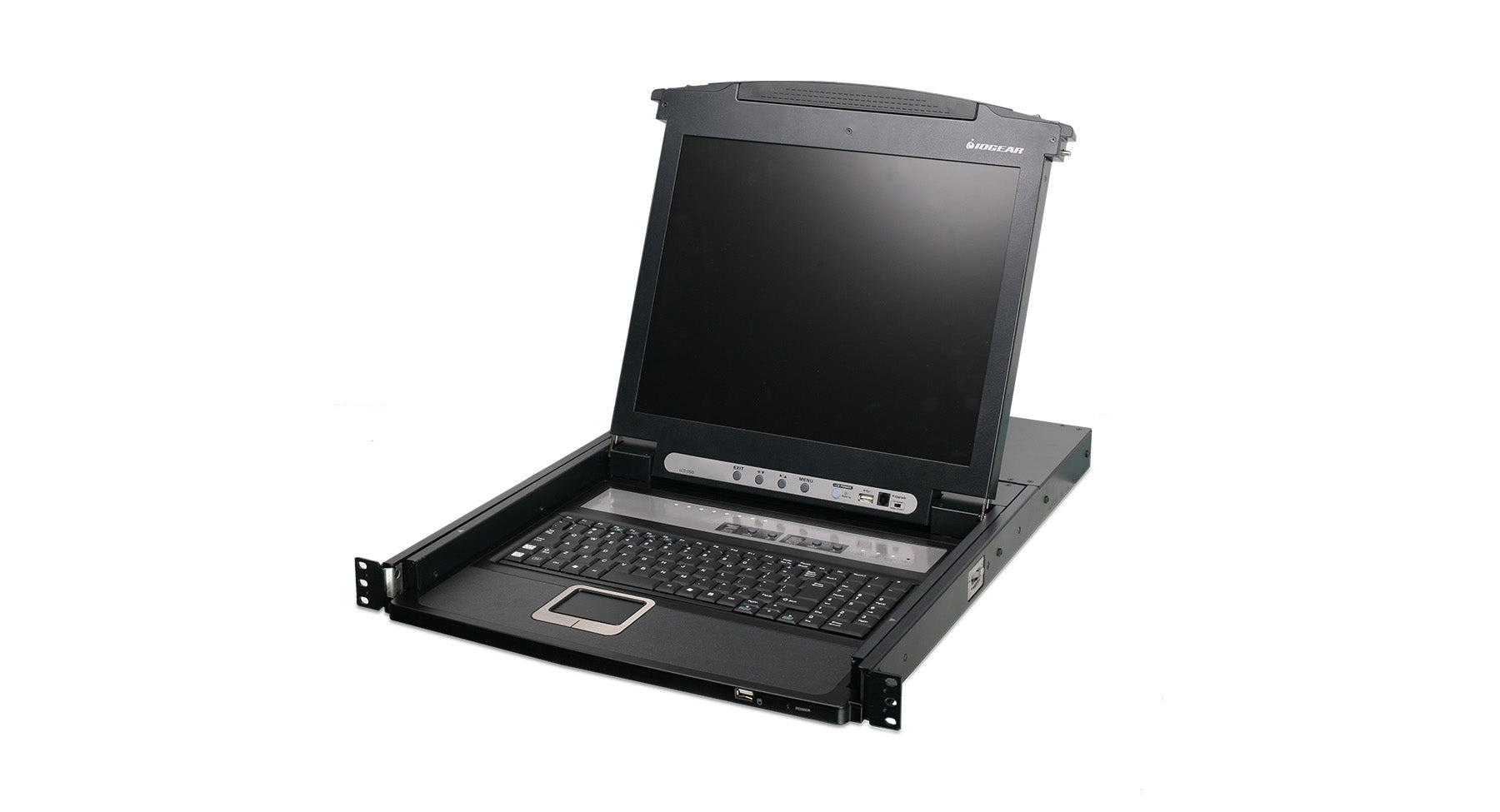

IOGEAR's 8-Port 17" LCD Combo KVM Switch integrates a 17" LCD console with an 8-port KVM (keyboard, video, and mouse) switch, offering secure access to 8 VGA, USB or PS/2 computers. This 8-Port LCD KVM features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. All this in a universal 1U rack mount space.

8-Port 17" LCD Combo KVM Switch

$1,199.95

Ease of Installation & Operation

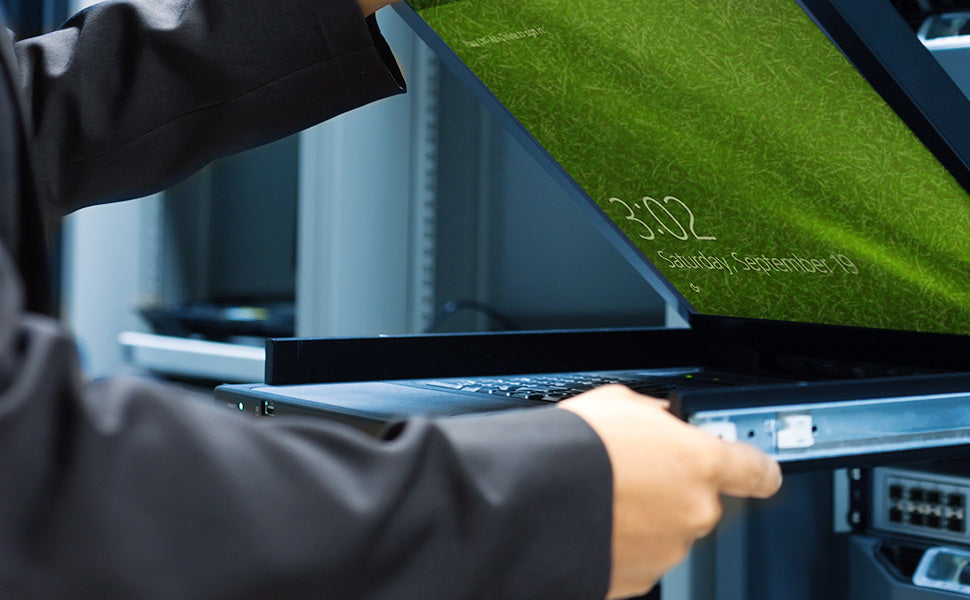

The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy with the included mounting brackets. There is no software to configure, no installation routines and no incompatibility problems. Simply slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module back into the rack.

Expand and Control MoreExpand and Control More

This 8-Port LCD KVM supports cascading additional compatible KVM switches. Conveniently switch and control up to 256 computers* from a single keyboard, monitor, and mouse console.

*Cascade with other IOGEAR KVM's: GCS1716, GCS1808.

Integrated 8-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
1280 x 1024 resolution on 17" rack mount LCD provides a sharp video display
Auto Scan Mode to monitor connected computers
Broadcast Mode to send commands to all connected computers
Adjustable depth to fit different sizes of racks
Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®

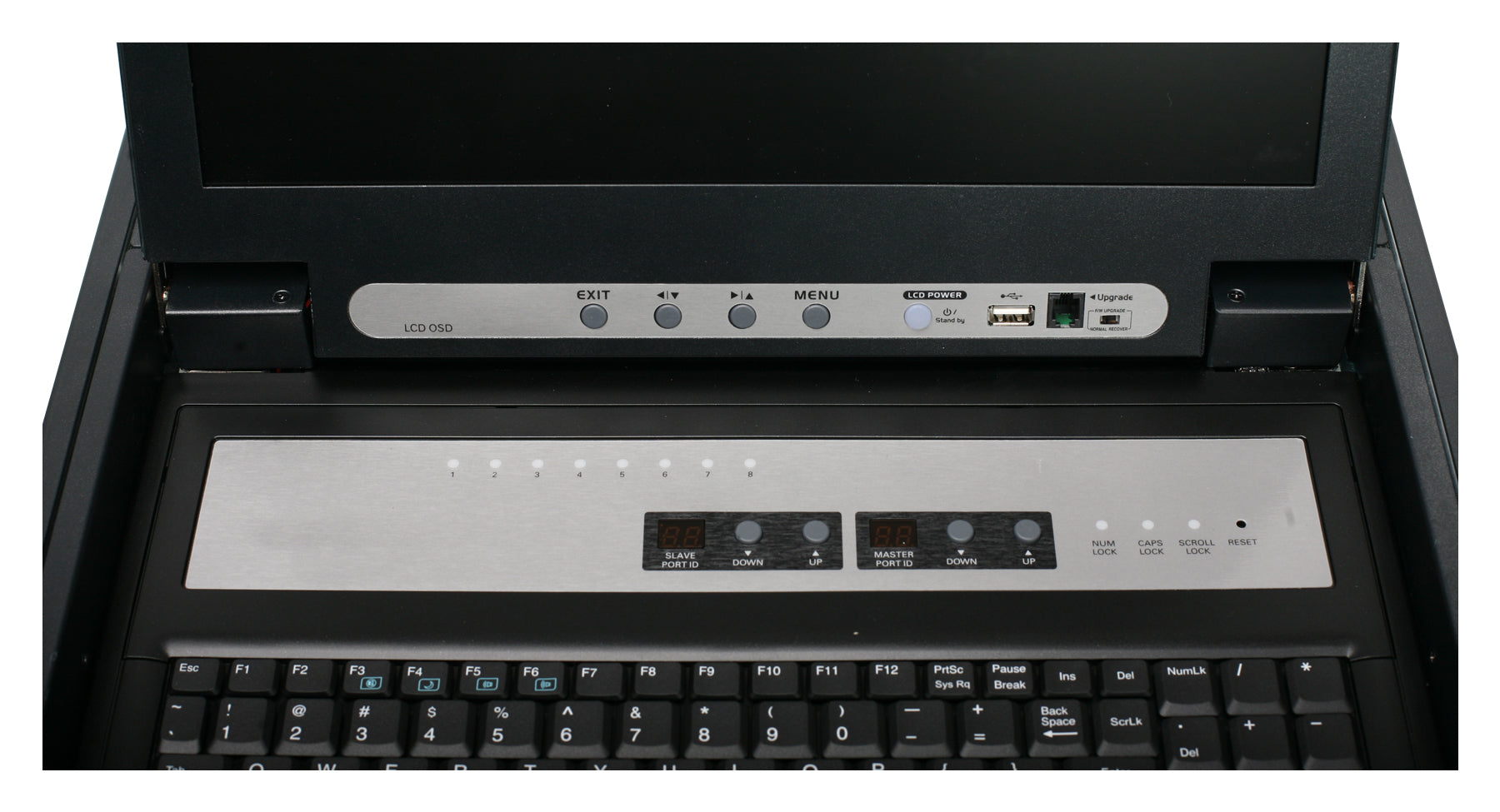

Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on screen display), and hotkeys
Auto Scan Mode to monitor all connected computers
External USB mouse port for convenience
External USB or PS/2 with VGA Console port
Support special keys on Mac and Sun keyboards
USB media port support for attached USB computers (system upgrades, etc) **
Cascade up to 2 levels - control up to 128 computers from a single console*
Security - 2 level password protection for OSD
DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
Rack mountable in a 19" (1U) system rack
Firmware upgradeable
Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
Fully Supports DDC2B

*Cascade with IGOEAR 8/16-Port VGA Combo KVM Switch (Model No. GCS1808 and GCS1716)

**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

Computers:

VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port

Operating Systems:

• Windows® XP, Windows Vista®, Windows® 7*, Windows® 8, Windows® 8.1, Windows 10®
• Mac OS® 9 to 10.x
• Oracle Solaris
• Linux , Unix and other USB supported systems **
**Additional drivers and support may be needed
*IOGEAR’s DynaSync provides the EDID support for Windows® 7

1 x 8-Port LCD KVM
1 x PS/2 KVM Cable
1 x USB KVM Cable
1 x Console Cable
1 x Cascade Cable
1 x Firmware Upgrade Cable
1 x Rack Mount Kit - Short Bracket( Fits 16.6~32.2 Inch Depth) and Long Brackets(Fits 26.8~41.3 Inch Depth)
1 x Grounding Wire
1 x Power Cord
1 x Installation Guide
1 x Warranty Card

GCL1808 Product Manual Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCL1808
Computer Connections
Direct	8
Daisy Chain or Cascading	128
Port Selection	OSD, Hotkeys, Pushbuttons
Connectors
Console	1 x SPHD-18 Male
Power	1 x 3-Prong AC Socket
Console Connectors
Monitor	1 x HDB-15 Female
Keyboard	PS/2 or USB
Mouse	PS/2 or USB
Extra Mouse	1 x USB Type A Female
Flash ROM Upgrade	1 x RJ-11 Female
CPU Connectors
Keyboard, Mouse, and Monitor	8 x SPHD-15 Female
Switches
Reset	1 x Semi-recessed Pushbutton
Power	1 x Rocker Switch
F/W Upgrade	1 x Switch
LCD Adjustment	4 x Pushbutton
LCD Power	1 x LED Pushbutton (Orange)
Port Selection	8 x Pushbutton
LEDs
On Line	8 (Orange)
Port ID	4 x 7 Segment LED Display (Yellow)
Power On	Dark Green
Emulation
Keyboard	PS/2, USB
Mouse	PS/2, USB
Video Resolution	1280 x 1024 @ 75Hz; DDC2B
Scan Interval	1-255 Seconds
Power Input Rating
Per AC Power Inlet, 50/60Hz	100~240VAC. 50/60Hz, 1A
Power Consumption	120V, 28W
Environment
Operation Temperature	0~40°C
Storage Temperature	-20~60°C
Humidity	0~80% RH; Non-condensing
Housing
Case	Metal and Plastic

Dimensions	GCL1808
Unit Dimensions
Height	1.75in.
Depth	25in.
Width	19in.
Unit Package Dimensions
Height	5.5in.
Width	26.75in.
Depth	28.5in.
Weight
Unit Pack Wt.	44.03lb
Unit Wt. w/accessories	33.07lb
Unit Wt.	27.78lb

3 Year Limited Warranty
