LCD KVM Console

17" LCD KVM Combo Console

Name: 17" LCD KVM Combo Console
Brand: IOGEAR
SKU: GCL1800
Price: 799.95 USD
Availability: InStock

Console VGA

MPN: GCL1800

UPC: 881317506139

$799.95

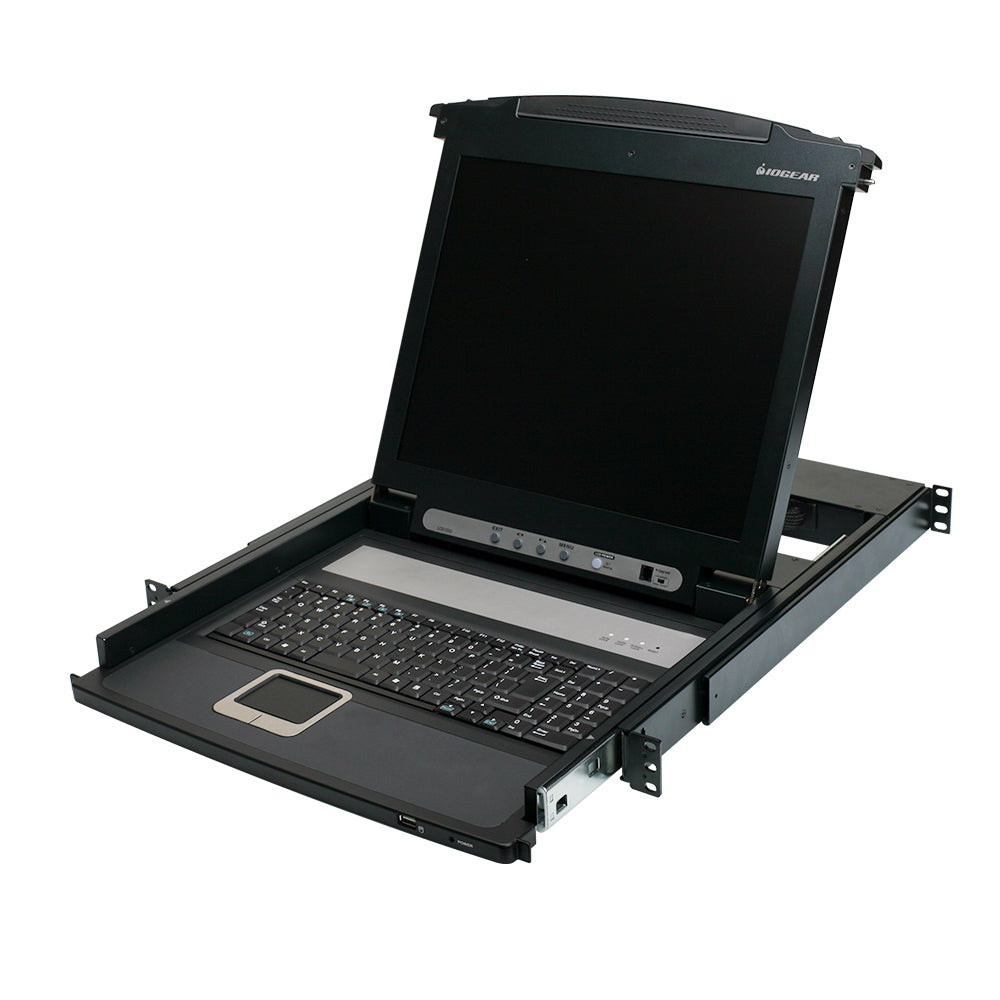

IOGEAR's new GCL1800 Rackmount LCD offers a space saving, streamlined approach to IT environments by integrating a keyboard, 17" TFT LCD active matrix monitor, and touchpad in one unit. The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy. There is no software to configure, no installation routines and no incompatibility problems. Slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module back into the rack.

17" LCD KVM Combo Console

$799.95

Ease of Installation & Operation

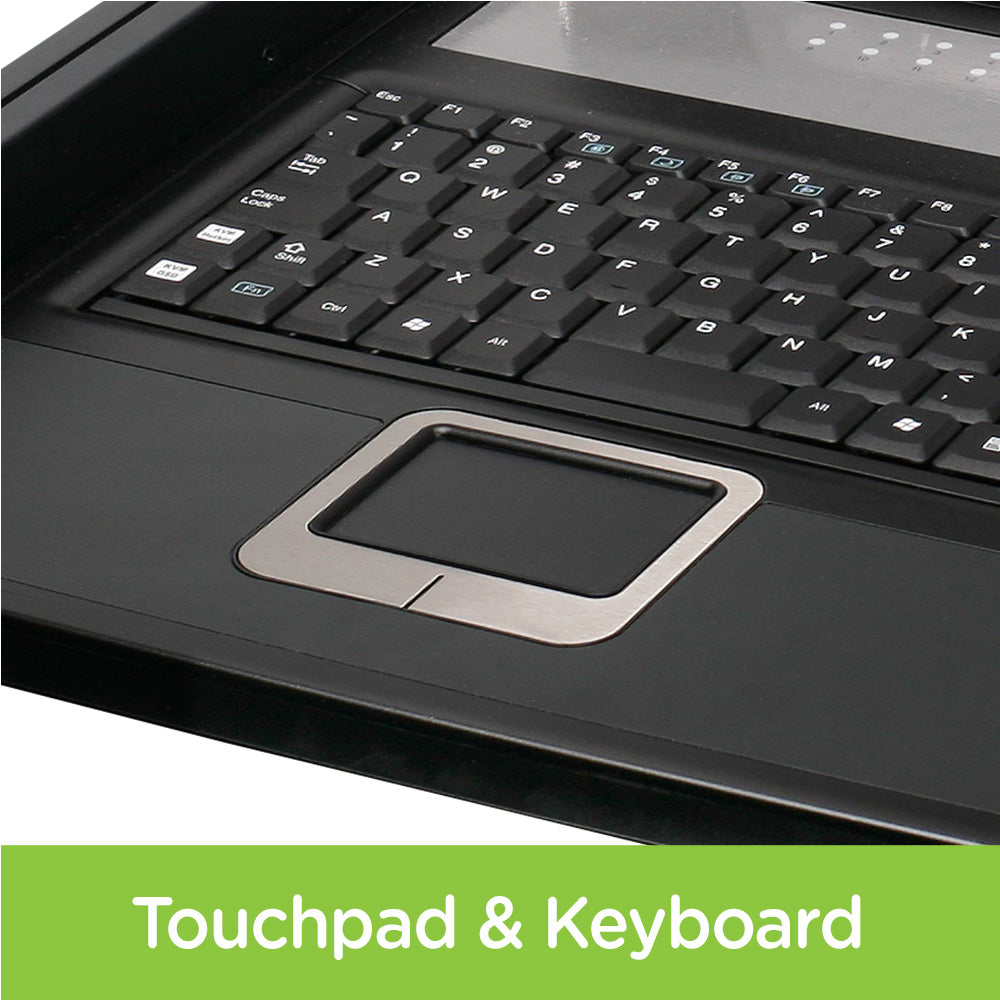

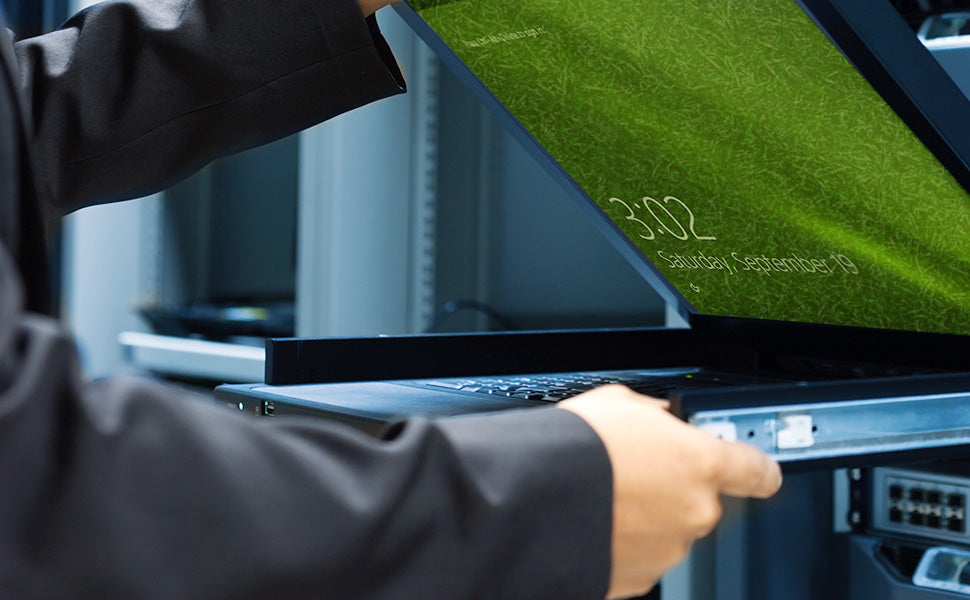

The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy with the included mounting brackets. There is no software to configure, no installation routines and no incompatibility problems. Simply slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module back into the rack.

Expand and Control More

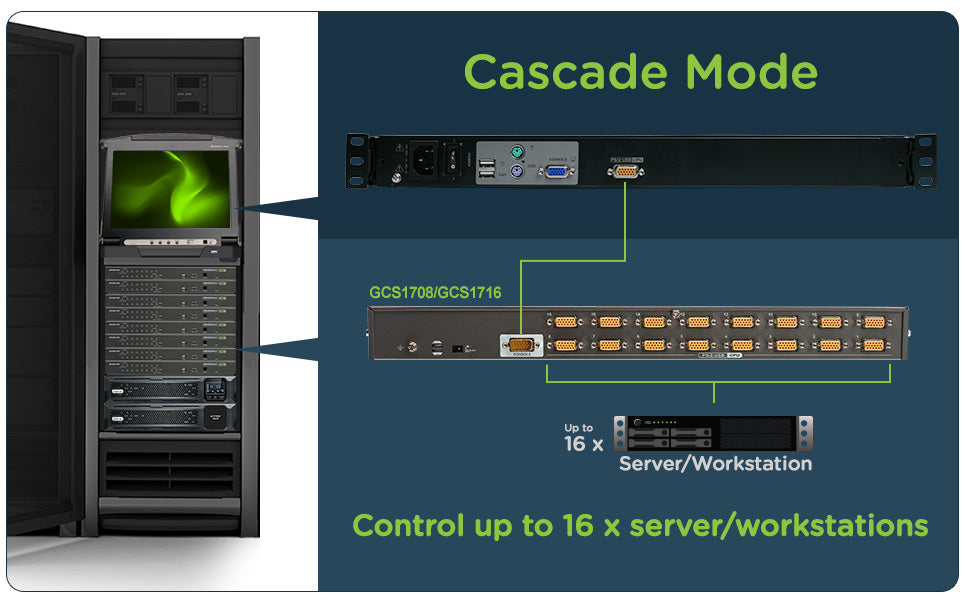

This 16 LCD Console supports cascading additional compatible KVM switches. Conveniently switch and control up to 256 computers* from a single keyboard, monitor, and mouse console.

*Cascade with IOGEAR KVM's: GCS1716, GCS1808.

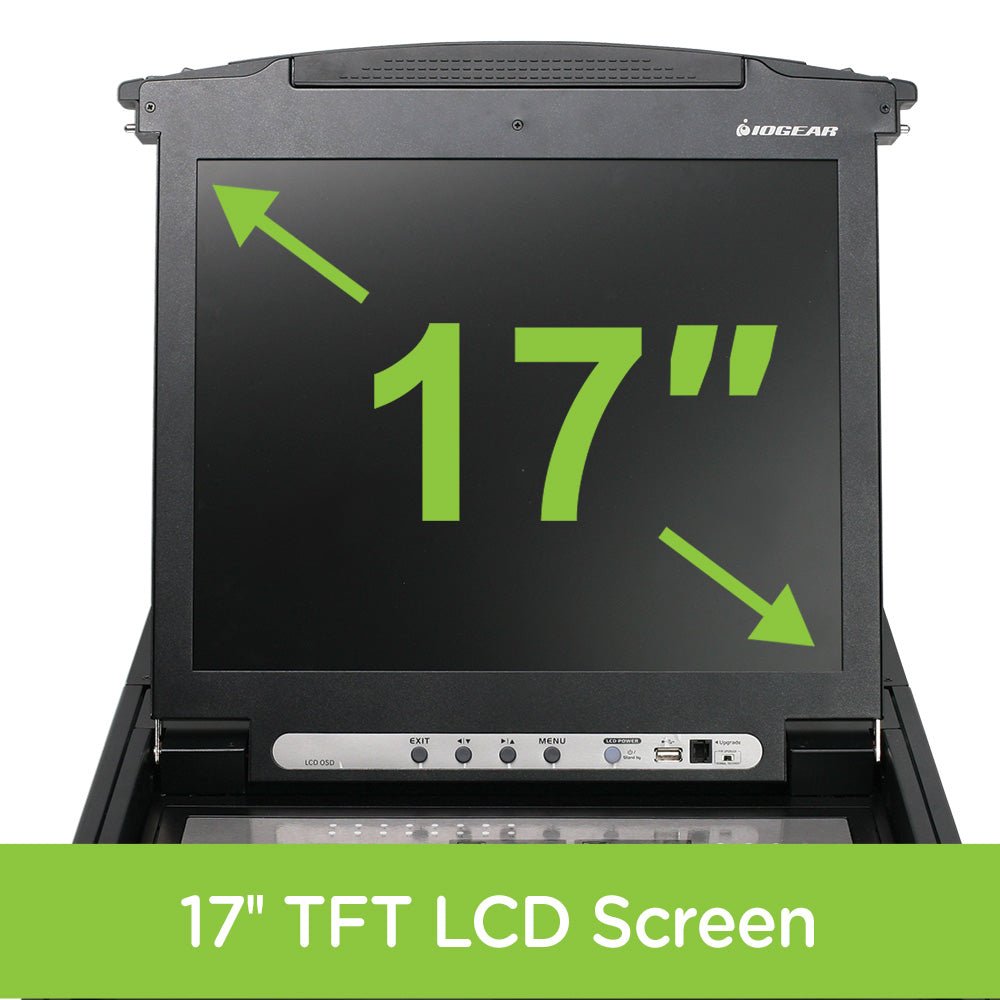

Integrated KVM console featuring a 17" TFT LCD active matrix monitor , keyboard and touchpad
1280 x 1024 resolution on 19" rack mount LCD provides a sharp video display
USB or PS/2 keyboard and mouse

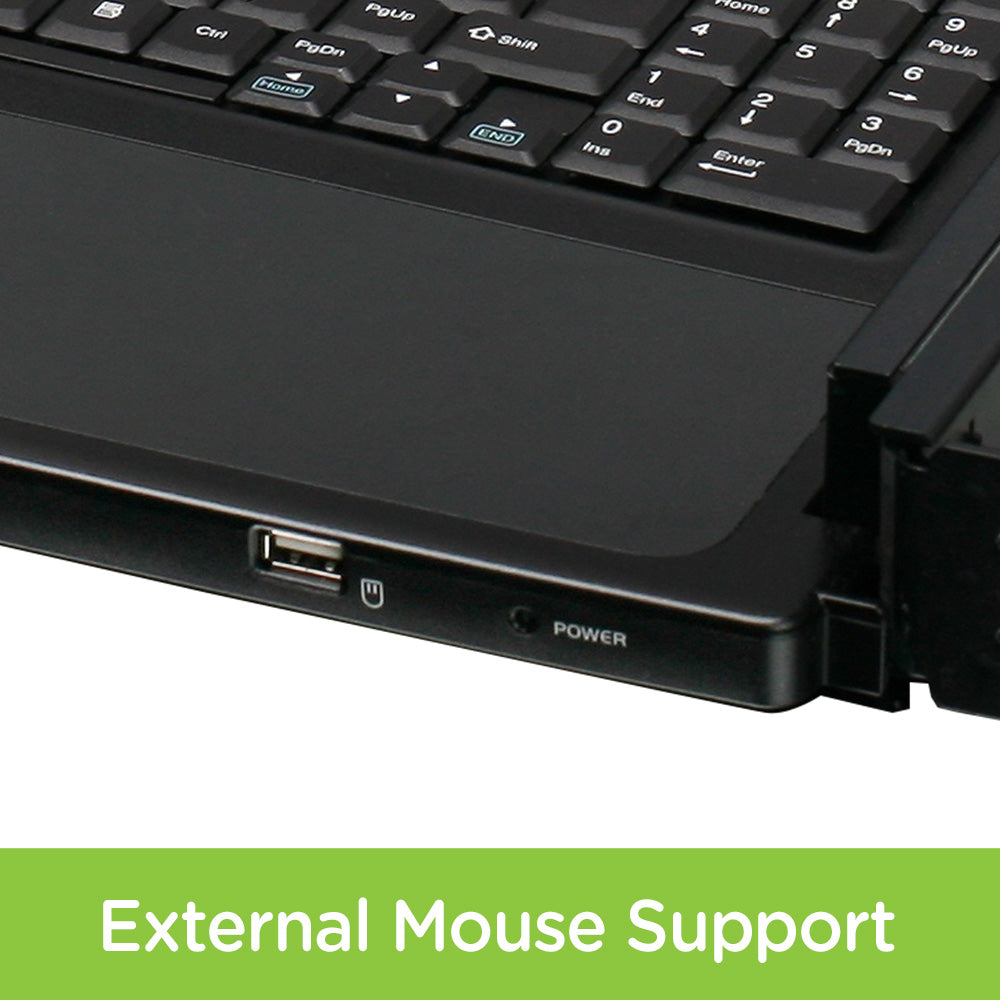

Built-in USB 1.1 port for external mouse
Adjustable depth to fit different sizes of racks
Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
Easy to operate - intuitive LCD OSD (on screen display) and hotkeys
Support special keys on Mac and Sun keyboards
Rack mountable in a 19" (1U) system rack
Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
Firmware upgradeable
Fully Supports DDC2B

Computers:

VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port

1 x 17" LCD Console
1 x USB KVM Cable
1 x Firmware Upgrade Cable
2 x Rack Mount Kit - Short Bracket( Fits 16.6~28.3 Inch Depth) and Long Brackets(Fits 26.8~39.3 Inch Depth)
1 x Grounding Wire
1 x Power Cord
1 x Installation Guide
1 x Warranty Card

GCL1800 Product Manual Download

GCL1800 Firmware V 1.4.133 Download

Release Date: 03/13/2019

Windows 10 32-bit
Windows 10 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCL1800
Computer Connections
Direct	1
Daisy Chain or Cascading	256 (If cascaded with GCS1716s)

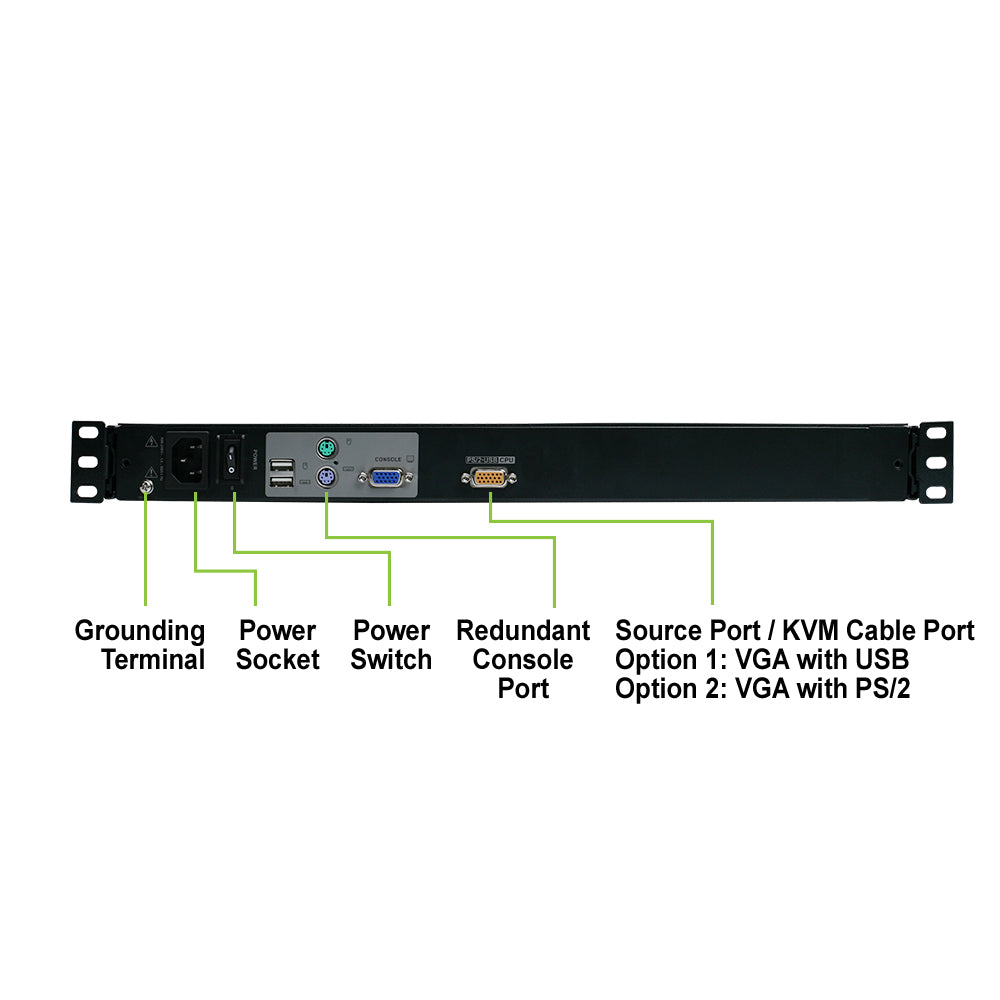

Connectors
Second Console Video	1 x HDB-15 Female
Second Console Keyboard	PS/2 or USB
Second Console Mouse	PS/2 or USB
Mouse	1 x USB (External USB Mouse Port)
Power	1 x 3-Prong AC Socket
Console Connectors
Flash ROM Upgrade	1 x RJ-11 Female
CPU Connectors
Keyboard, Mouse, and Monitor	1 x SPHD-15 Female

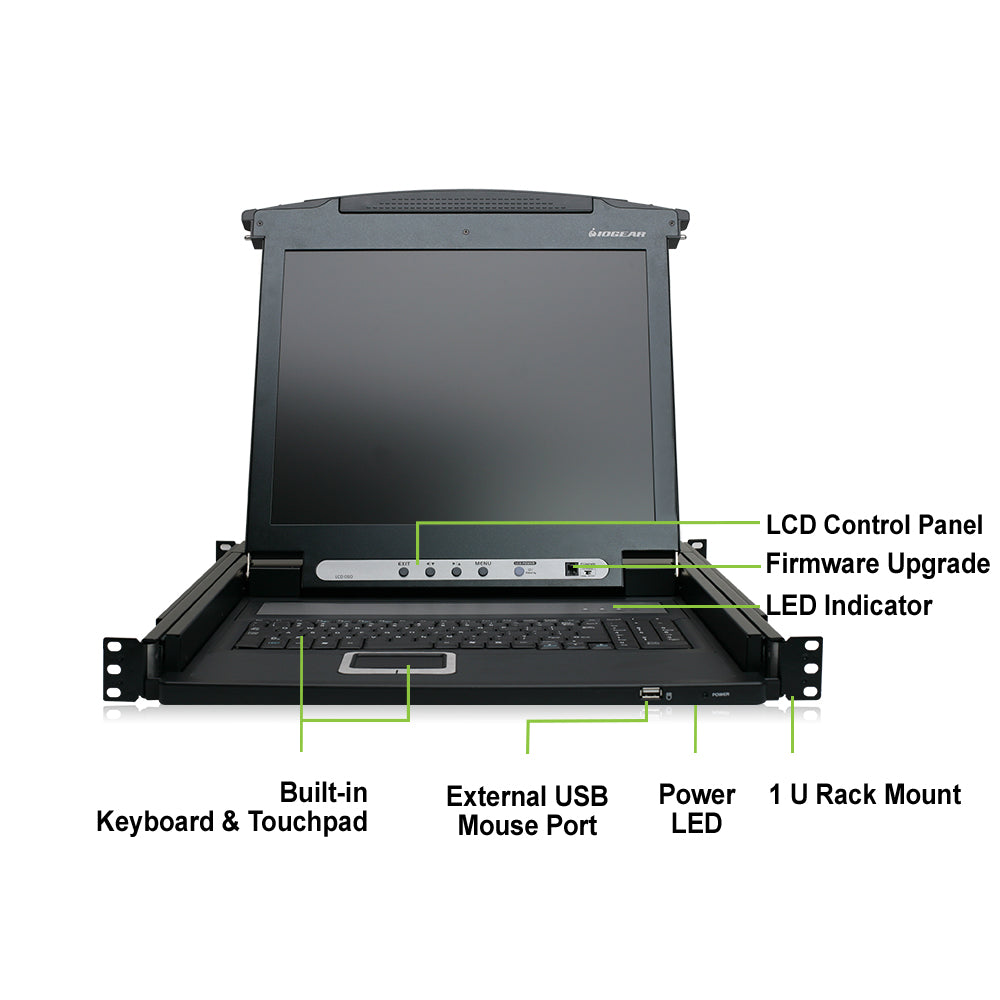

Switches
Power	1 x Rocker Switch
Reset	1 x Semi-recessed Pushbutton
F/W Upgrade	1 x Switch
LCD Power	1 x LED Pushbutton (Orange)
LCD Adjustment	4 x Pushbutton
LEDs
Power On	Dark Green
Emulation
Keyboard	PS/2, USB
Mouse	PS/2, USB
Video Resolution	1280 x 1024 @ 75Hz; DDC2B
Power Input Rating
Per AC Power Inlet, 50/60Hz	100~240VAC. 50/60Hz, 1A
Power Consumption	120V, 29.6W
Environment
Operation Temperature	0~40°C
Storage Temperature	-20~60°C
Humidity	0~80% RH; Non-condensing
Housing
Case	Metal and Plastic

Dimensions	GCL1800
Unit Dimensions
Height	1.75in.
Depth	21in.
Width	19in.
Unit Package Dimensions
Height	5.5in.
Width	26.75in.
Depth	28.5in.
Master Carton
Master Carton Qty.	1
Weight
Unit Pack Wt.	40.1lb
Unit Wt. w/accessories	30.27lb
Unit Wt.	25.94lb

3 Year Limited Warranty
