18.5" Widescreen Short Depth LCD Console with Audio

LCD KVM Console

18.5" Widescreen Short Depth LCD Console with Audio

Name: 18.5" Widescreen Short Depth LCD Console with Audio
Brand: IOGear
SKU: GCL1900W
Price: 849.95 USD
Availability: InStock

Console TAA Compliant VGA

MPN: GCL1900W

UPC: 881317519320

$849.95

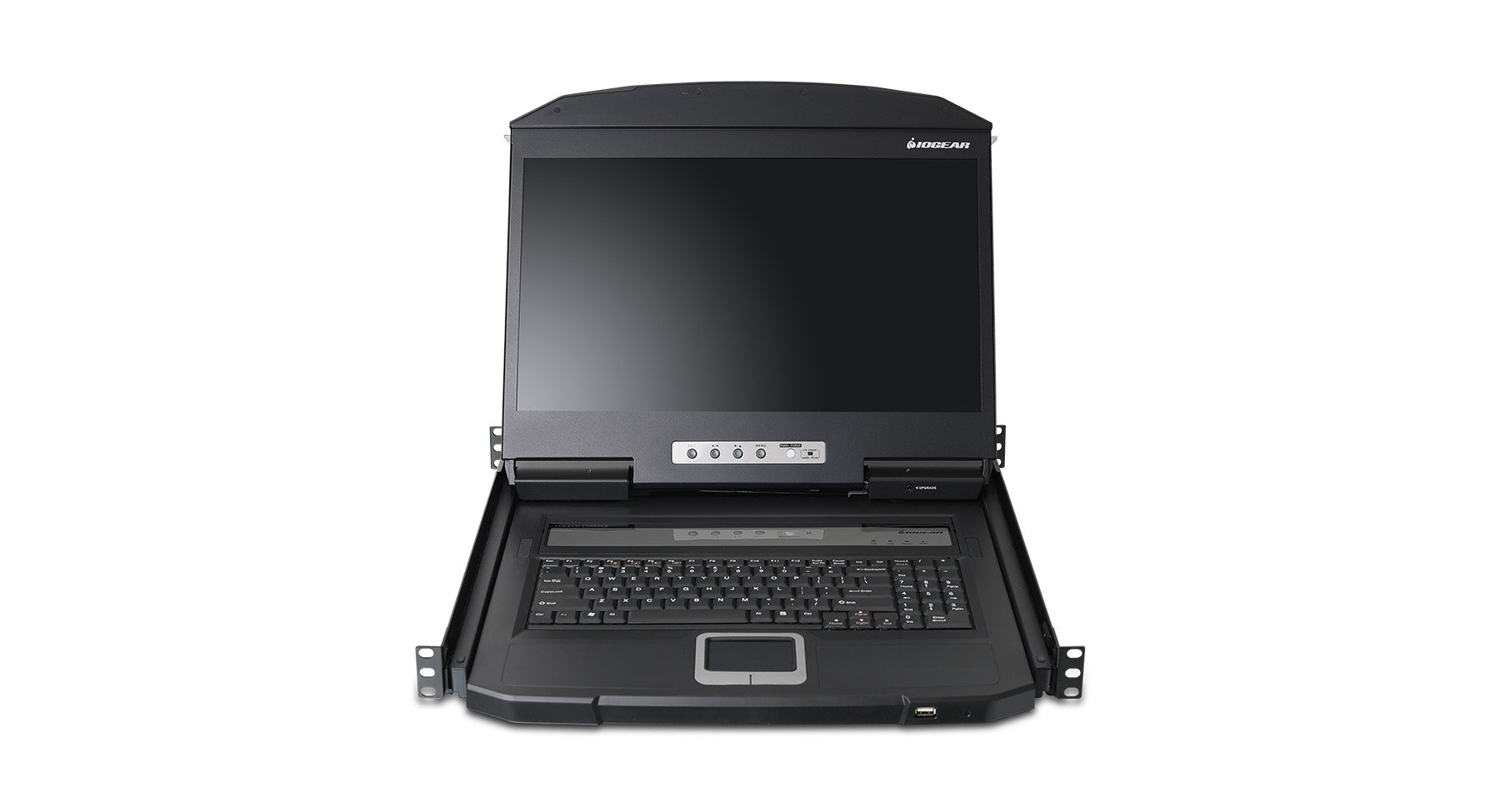

IOGEAR's GCL1900W, 18.5" Widescreen LCD KVM Console, offers a space-saving, streamlined approach to IT environments by integrating a 18.5" widescreen LCD monitor, keyboard, and touchpad in one unit. The LCD drawer supports an external USB mouse and external console ports for added flexibility.

18.5" Widescreen Short Depth LCD Console with Audio

$849.95

Ease of Installation & Operation

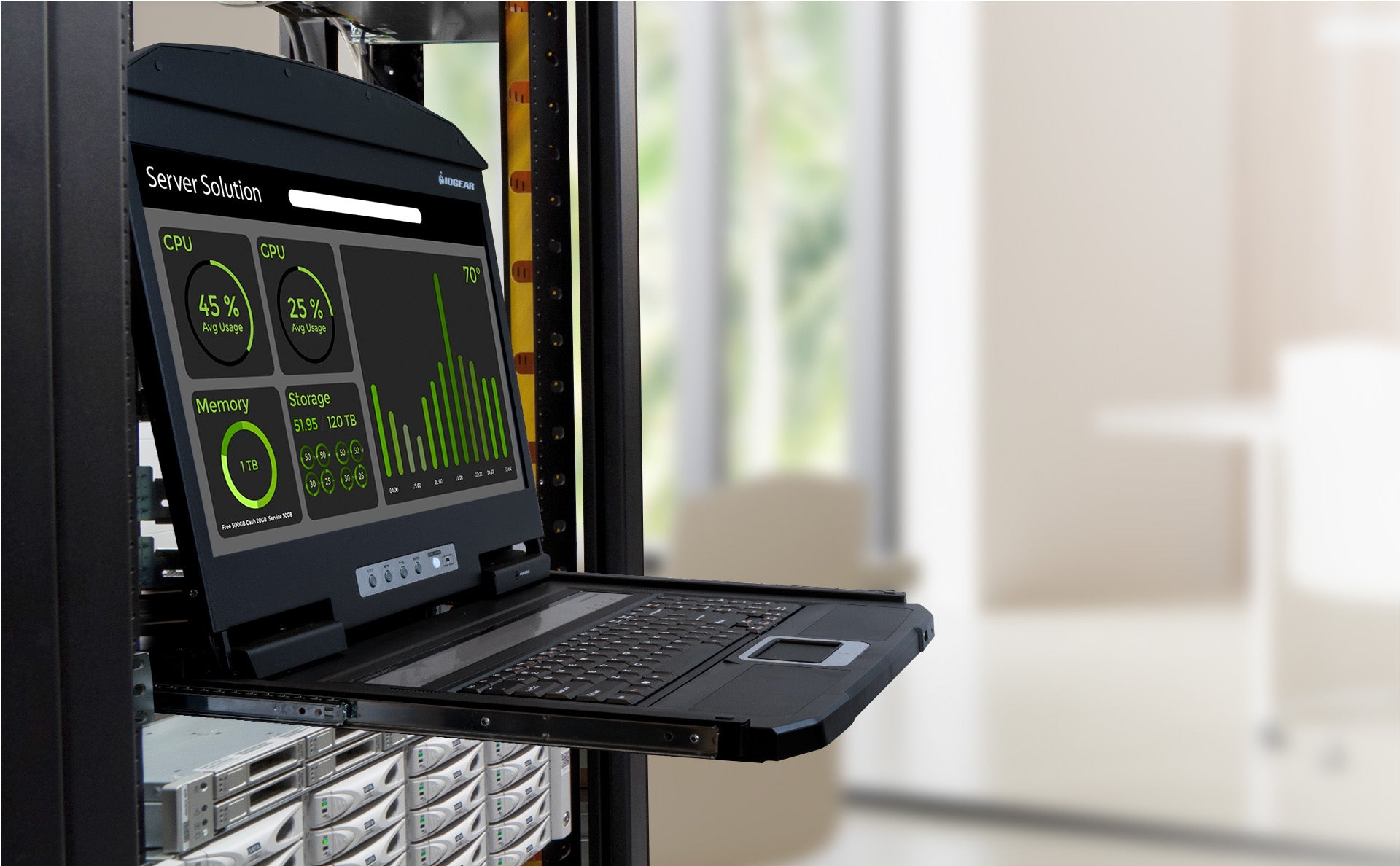

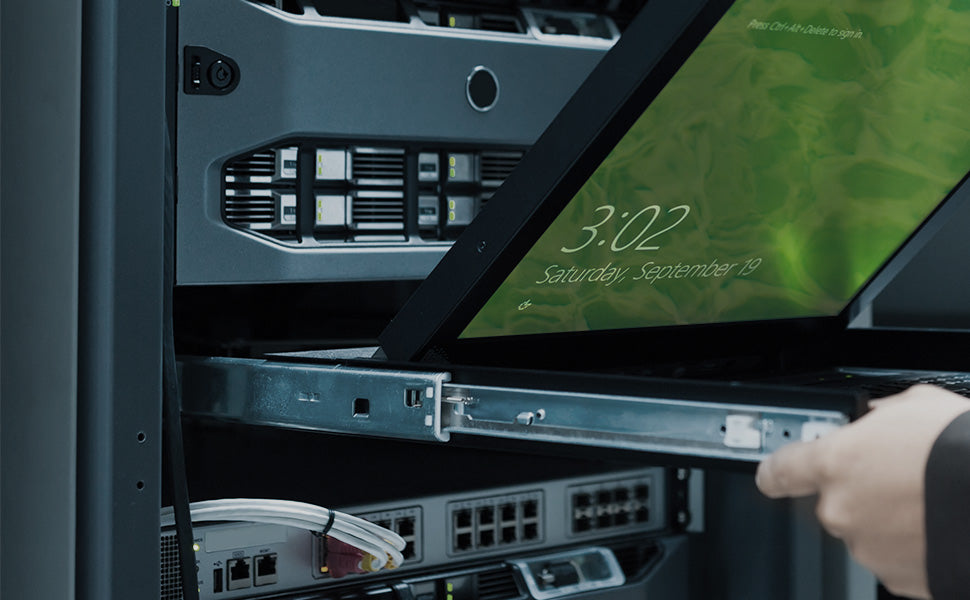

The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy with the included mounting brackets. There is no software to configure, no installation routines and no incompatibility problems. Simply slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module back into the rack.

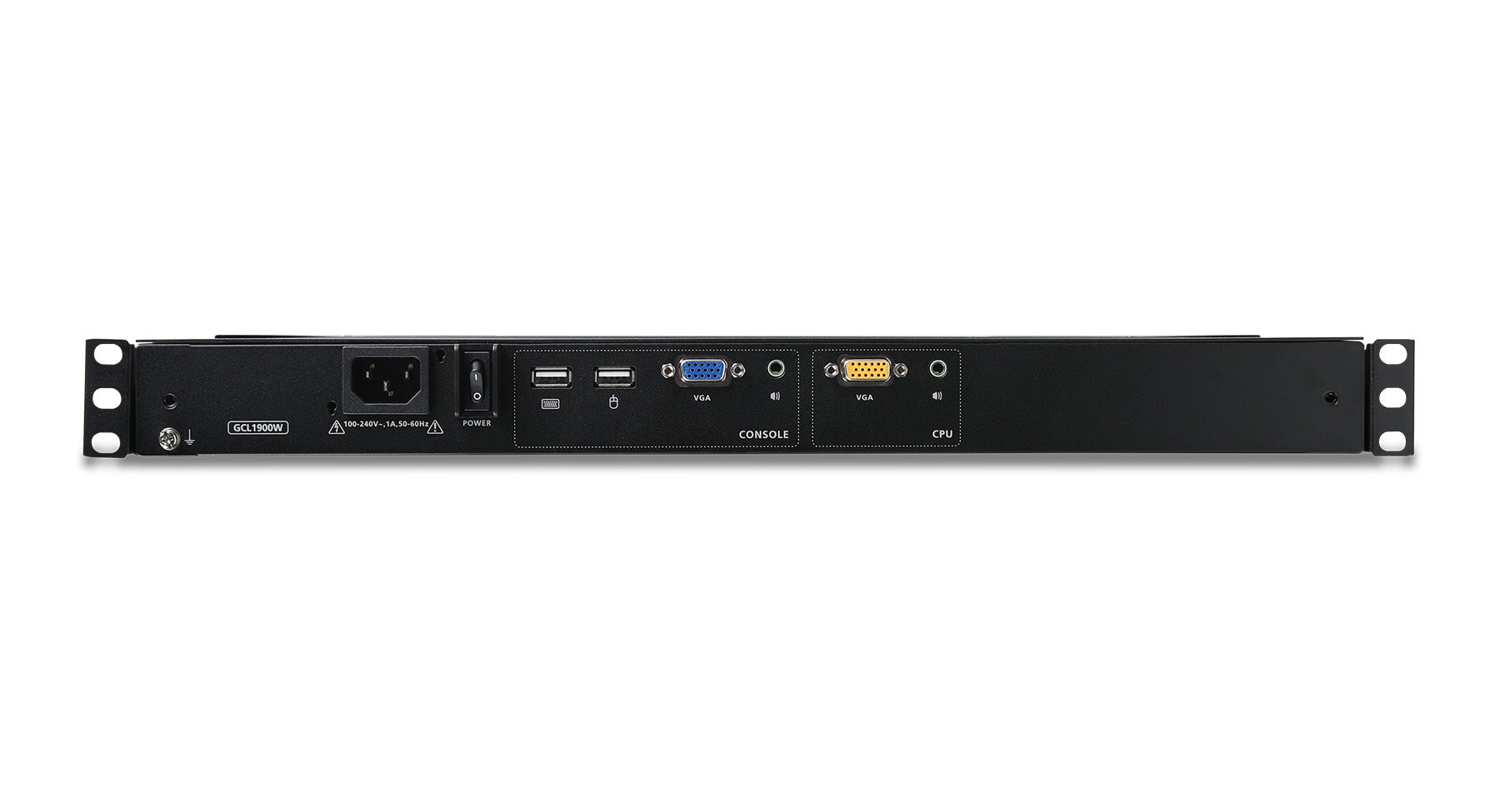

Extra Console Port for redundant operation

IOGEAR GCL1900W provides an extra console port on the back. In case, the main screen, keyboard, or touch pad failed by any accidents, an external monitor, keyboard and mouse can be connected for urgent operation.

Integrated LCD KVM console with 18.5” widescreen LCD monitor
Single rail housing with top & bottom clearance for smooth operation in a 1U high system rack
LCD monitor supports resolution of 1366 x 768 @60Hz
Short depth design allows for rack-mounting in narrow spaces
Supports VGA video input; supports an external console with USB/VGA connectors
Built-in USB Type-A port on front panel for peripheral sharing
Supports 2.1 audio
Console lock design enables the console drawer to remain securely locked away in position when not in use

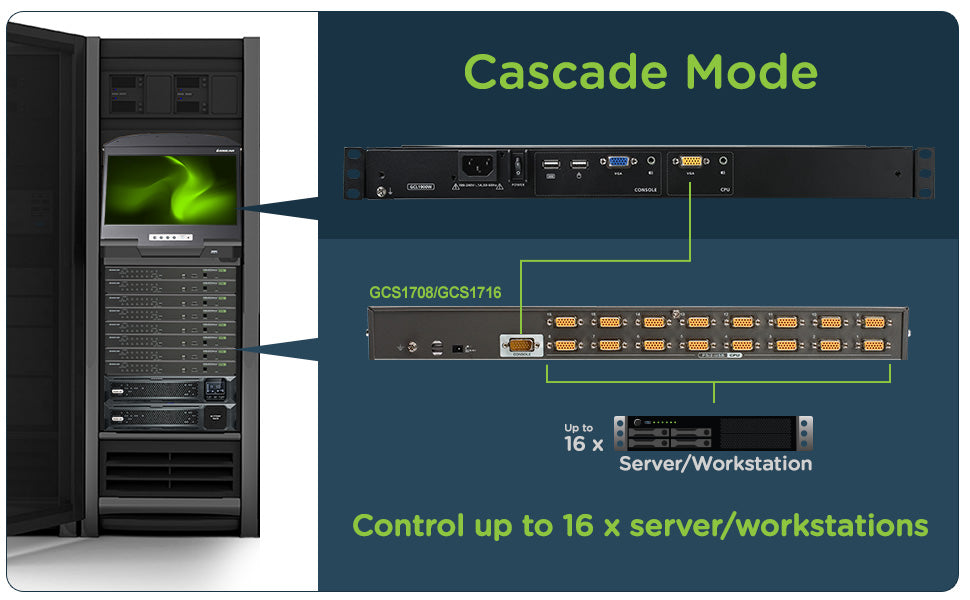

Console selection via hotkey
Multilingual keyboard mapping supports English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Turkish and Traditional Chinese
Standard rack mount kit included
Plug-n-Play
Firmware upgradable
Hot pluggable

Computers:

VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
USB mouse and keyboard ports (6-pin mini DIN) or 1 USB port

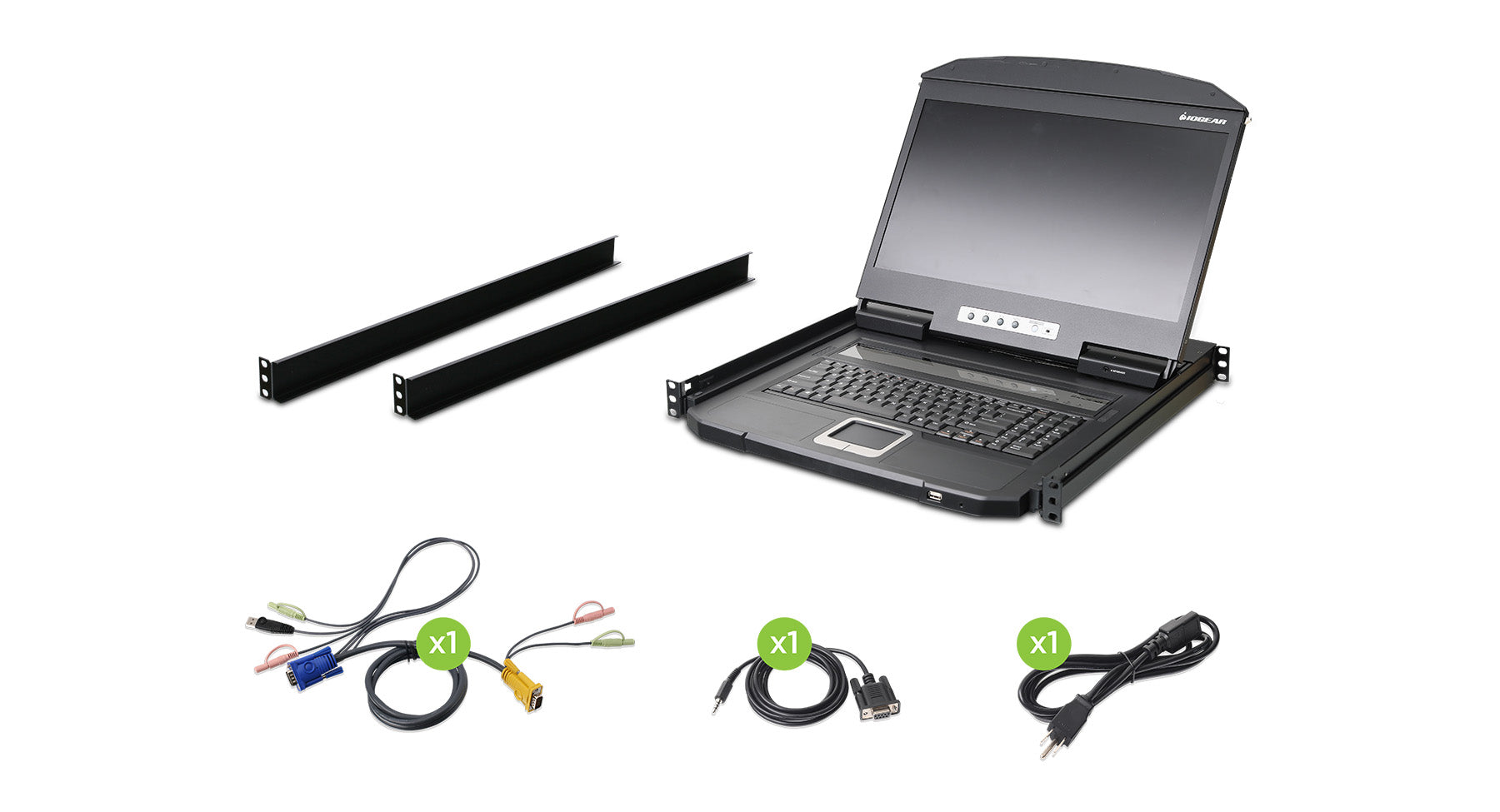

1 x 18.5" Widescreen Short Depth LCD KVM Console
1 x USB KVM Cable
1 x Firmware Upgrade Cable
1 x Grounding Wire
1 x Standard Rackmount Kit (Fits 16.6~28.3 Inch Depth)
1 x Power Cord
1 x Quick Start Guide

GCL1900W Product Manual Download

GCL1900W Quick Start Guide Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCL1900W
Computer Connections
Direct	1
Connectors
Power	1 x 3-Prong AC Socket
Computer/KVM	1 x SPHD Female (Yellow) 1 x 3.5 mm Audio Jack Female (Green)
USB-A	1
External Console Ports	1 x HDB-15 Female (Blue) 2 x USB Type A Female 1 x 3.5 mm Audio Jack Female (Green)
Switches
F/W Upgrade	1 x Slide Switch
Power	1 x Rocker Switch
Reset	1 x Semi-recessed Pushbutton
LCD Power	1 x Pushbutton
LCD Adjustment	4 x Pushbutton
Emulation
Keyboard	USB
Mouse	USB
Video Resolution	Input Resolution: 1920 x 1200 @60 Hz
Power
Amps	100-240 V AC, 50-60Hz, 1A
Voltage
Panel Spec
Contrast Ratio	700:1
LCD Module	18.5" TFT-LCD
Luminance	200cd/m²
Resolution	1366 x 768 @60 Hz
Response Time	5 ms
Support Color	16.7M colors
Viewing Angle	170° (H), 160° (V)
Environment
Storage Temperature	-20?60 C
Operation Temperature	0?40 C
Humidity	0?80% RH Non-condensing
Housing
Case	Metal + Plastic

Dimensions	GCL1900W
Unit Dimensions
Height	1.7" (4.28cm)
Length	18.9" (48.06 cm)
Width	18.8" (47.70 cm)
Master Carton
Height	5.5" (13.97 cm)
Length	26.0" (66.0 cm)
Width	24.3" (61.7 cm)
Master Carton Qty.	1
Weight
Master Carton Wt.	27.0 lb. (12.27kg)
Unit Wt.	20.0 lb. (9.09kg)
Physical Properties
Housing	Metal

3 Year Limited Warranty
