18.5" Widescreen Short Depth 8-Port LCD KVM Switch (TAA)

8-Port LCD KVM Console

18.5" Widescreen Short Depth 8-Port LCD KVM Switch (TAA)

Name: 18.5" Widescreen Short Depth 8-Port LCD KVM Switch (TAA)
Brand: IOGEAR
SKU: GCL1908W
Price: 1299.95 USD
Availability: InStock

8-Port TAA Compliant VGA

MPN: GCL1908W

UPC: 881317519337

$1,299.95

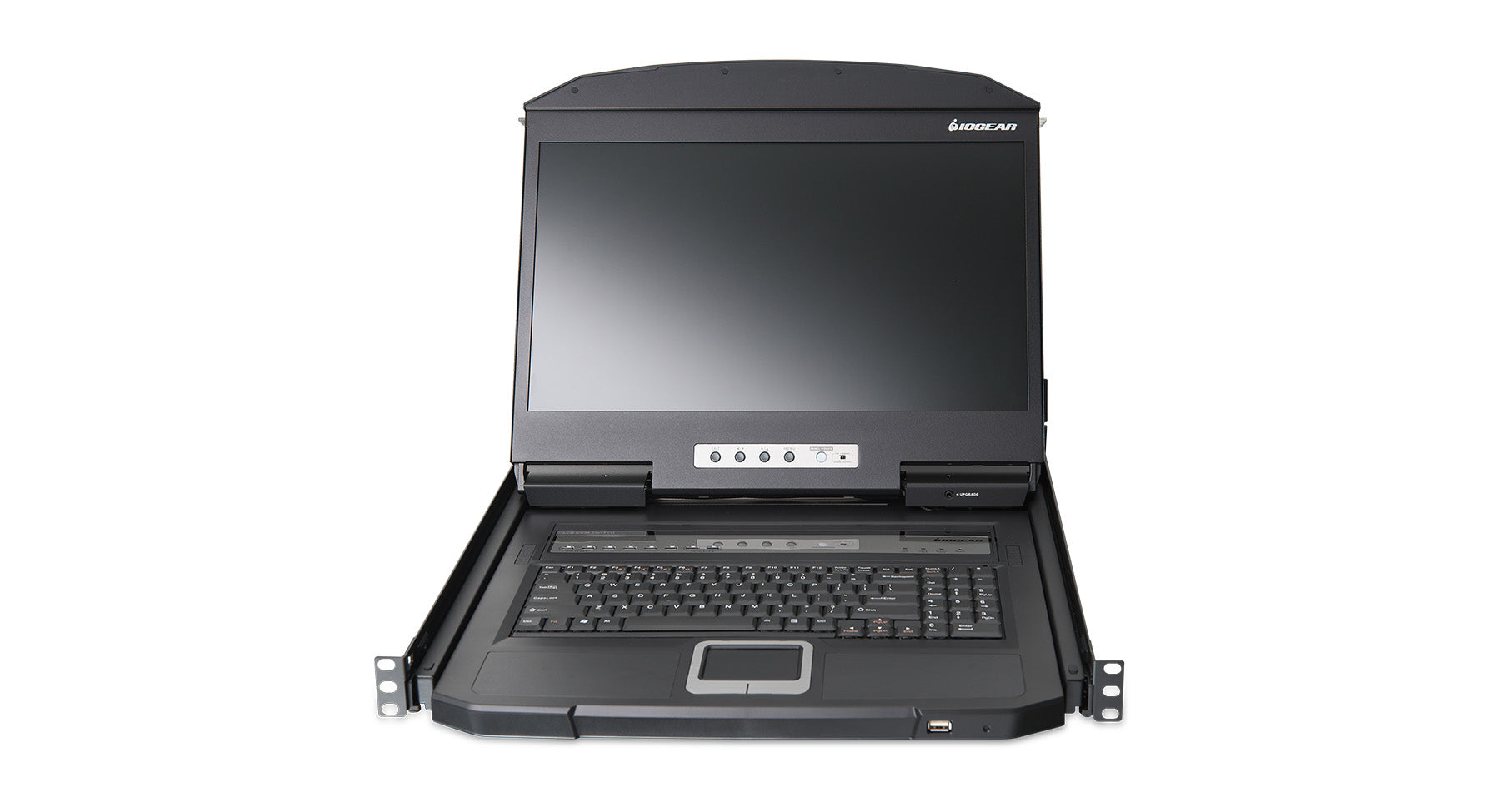

Integrated VGA 8-port LCD KVM console with 18.5" widescreen LCD monitor
Single rail housing; top/bottom clearance for smooth operation in a 1U high system rack
Control up to 128/256 computers by cascading up to 2 levels with IOGEAR's GCS1808 or GCS1716
LCD monitor supports resolution of 1366 x 768 @60Hz
Short depth design allows for rack-mounting in narrow spaces

18.5" Widescreen Short Depth 8-Port LCD KVM Switch (TAA)

$1,299.95

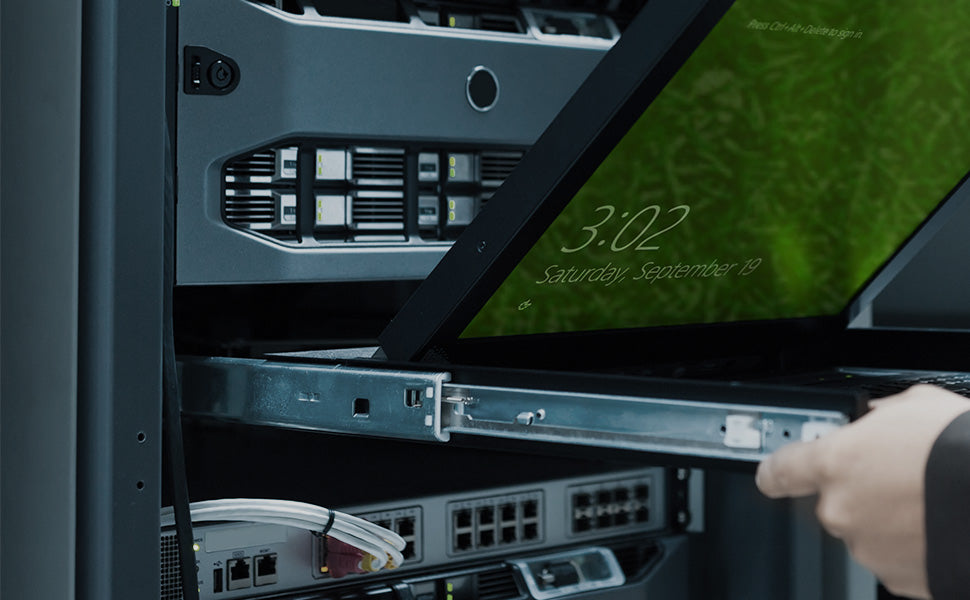

Ease of Installation & Operation

The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy with the included mounting brackets. There is no software to configure, no installation routines and no incompatibility problems. Simply slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module back into the rack.

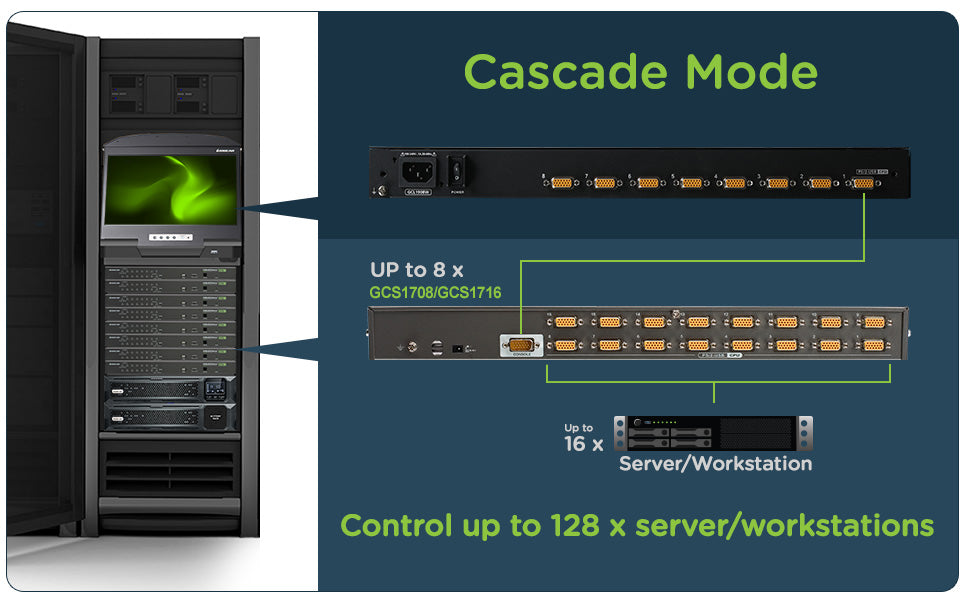

Expand and control More

A single GCL1908W can control up to eight (8) computers, but as many as two (2) additional compatible KVM switches can also be cascaded to reach up to 128 computers* controlled from a single keyboard, monitor and mouse console.

*Can only be cascaded with other IOGEAR KVMs: GCS1808 or GCS1716 models

Integrated VGA 8-port LCD KVM console with 18.5" widescreen LCD monitor
Single rail housing; top/bottom clearance for smooth operation in a 1U high system rack
Control up to 128/256 computers by cascading up to 2 levels with IOGEAR's GCS1808 or GCS1716
LCD monitor supports resolution of 1366 x 768 @60Hz
Short depth design allows for rack-mounting in narrow spaces
Supports VGA video input; supports an external console with USB/VGA connectors
Built-in USB Type-A port on front panel for peripheral sharing HID devices
Dual Interface - Supports computers with PS/2 or USB Keyboards and Mice
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 & USB) for smooth switching and simultaneously booting multiple computers even when the console's focus is elsewhere
Console lock design enables the console drawer to remain securely locked away in position when not in use
Computer selection via pushbuttons, hotkeys, and multilingual On Screen Display (OSD)
Broadcast mode - enables to send commands from the console to all connected computers to perform simultaneous operations
Two level password security - only authorized users can view and control computers
Auto Scan Mode - enables continuous monitoring of user-selected computers
Multilingual keyboard mapping supports English (US), English (UK), French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
Standard rack mount kit included
Plug-n-Play
Firmware Upgradable
Hot Pluggable

Computers:

VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
USB or PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port

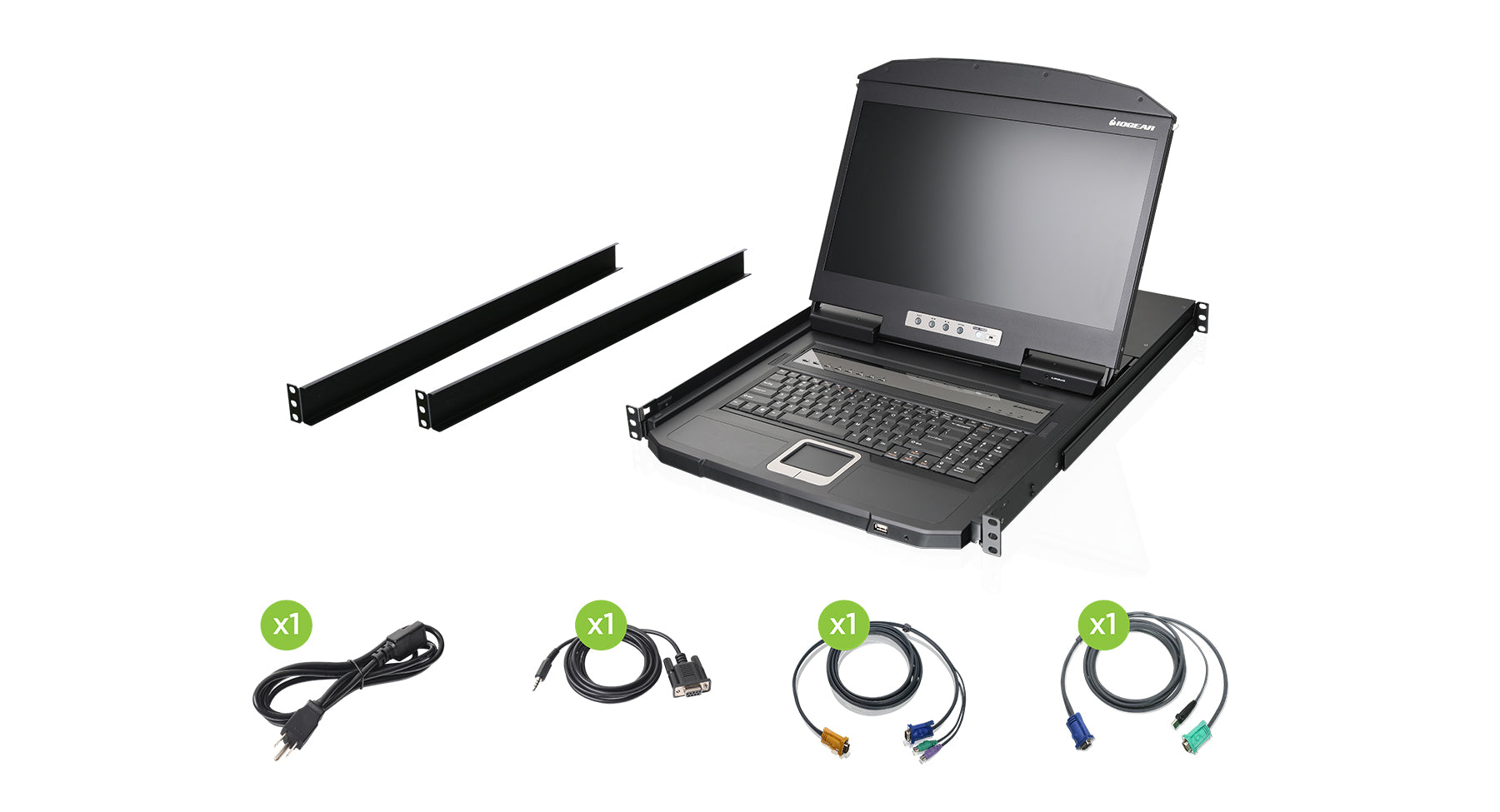

1 x 8-Port 18.5" Widescreen Short Depth LCD KVM Switch
1 x USB KVM Cable
1 x PS/2 KVM Cable
1 x Firmware Upgrade Cable
1 x Grounding Wire
1 x Standard Rackmount Kit (Fits 16.6~28.3 Inch Depth)
1 x Power Cord
1 x Quick Start Guide

GCL1908W Product Manual Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCL1908W
Computer Connections
Direct	8
Daisy Chain or Cascading	128
Port Selection	OSD, Hotkeys, Pushbuttons
Connectors

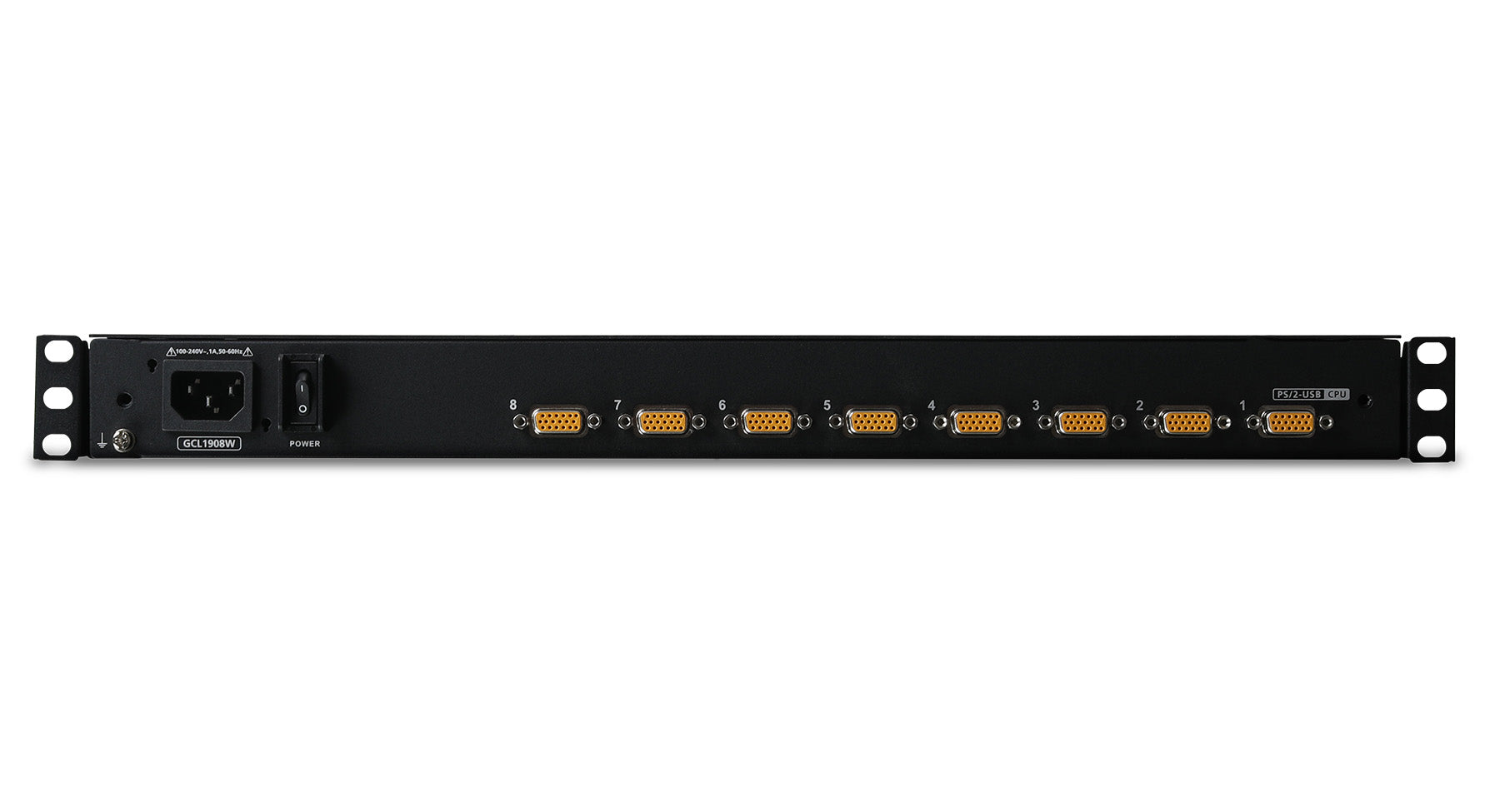

Computer/KVM	8 x SPHD-18 Male
USB-A	1 x USB Type A Female
Power	1 x 3-Prong AC Socket
Switches
Reset	1 x Semi-recessed Pushbutton
Power	1 x Rocker Switch
F/W Upgrade	1 x Slide Switch
LCD Power	1 x LED Pushbutton (Orange)
LCD Adjustment	4 x Pushbutton
Port Selection	8 x Pushbutton
LEDs
On Line	8 (Orange)
Power On	Dark Green
Emulation
Keyboard	PS/2, USB
Mouse	PS/2, USB
Video Resolution	1366x768@60Hz
Scan Interval	1 - 255 seconds
Power Input Rating
Per AC Power Inlet, 50/60Hz	100~240VAC. 50/60Hz, 1A
Power Consumption	110V: 14.1W: 70BTU
Environment
Operation Temperature	0~40°C
Storage Temperature	-20~60°C
Humidity	0~80% RH; Non-condensing
Housing
Case	Metal and Plastic

Dimensions	GCL1908W
Unit Dimensions
Height	1.7" (4.28cm)
Length	24.9" (63.24cm)
Width	18.9" (48.06cm)
Master Carton
Height	5.5" (13.97cm)
Length	28.3" (71.88cm)
Width	26.5" (67.31cm)
Master Carton Qty.	1
Weight
Master Carton Wt.	31.0 lb. (14.09kg)
Unit Wt.	23.2 lb. (10.5kg)

3 Year Limited Warranty
