18.5" Widescreen Short Depth 8-Port LCD KVM Switch w/8x USB KVM cables

8-Port LCD KVM Console

18.5" Widescreen Short Depth 8-Port LCD KVM Switch w/8x USB KVM cables

Name: 18.5" Widescreen Short Depth 8-Port LCD KVM Switch w/8x USB KVM cables
Brand: IOGEAR
SKU: GCL1908WKITU
Price: 1399.95 USD
Availability: OutOfStock

8-Port TAA Compliant VGA

MPN: GCL1908WKITU

UPC: 881317520074

$1,399.95

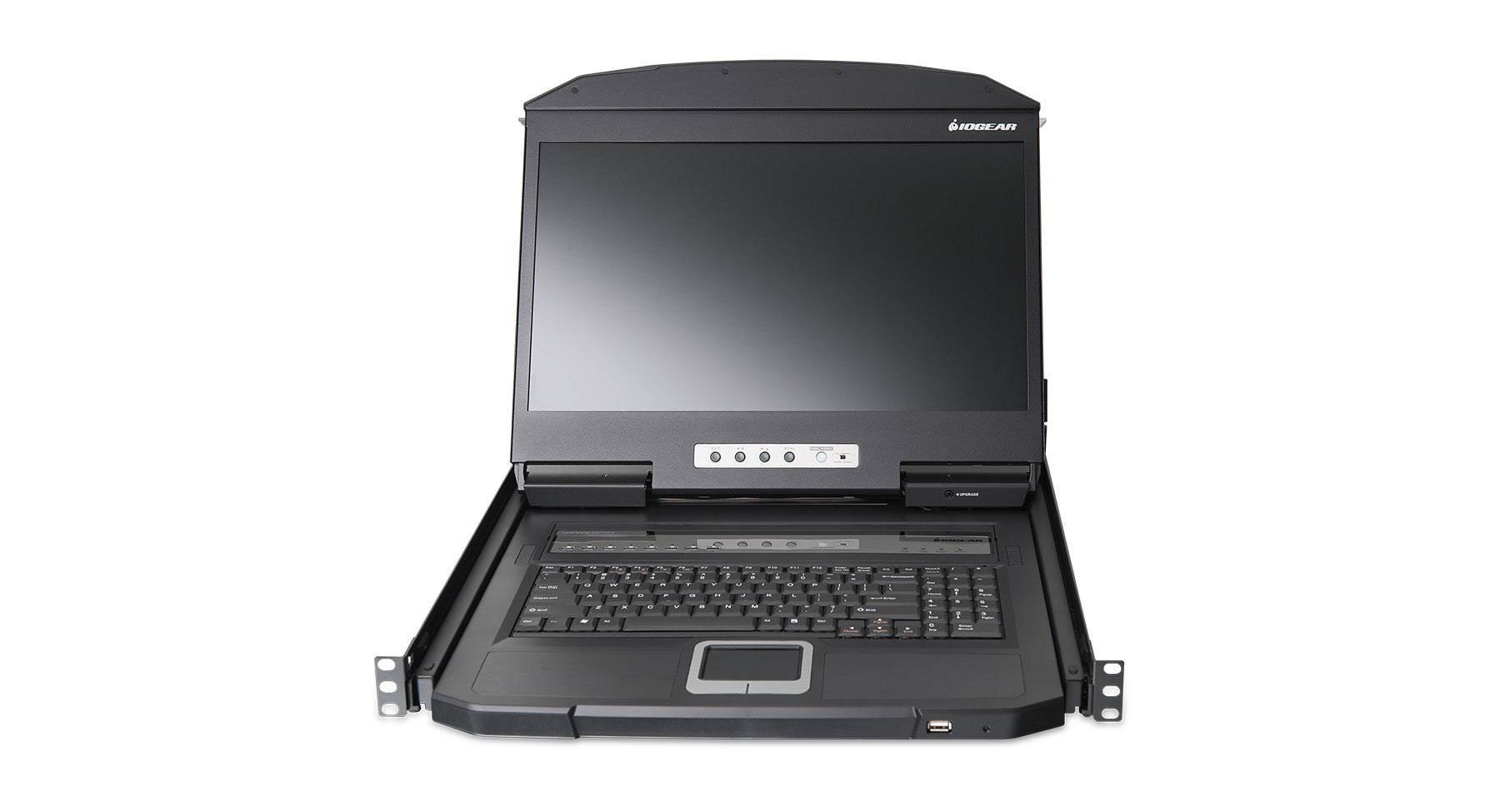

Integrated VGA 8-port LCD KVM console with 18.5" widescreen LCD monitor & cables
Single rail housing; top/bottom clearance for smooth operation in a 1U high system rack
Control up to 128/256 computers by cascading up to 2 levels with IOGEAR's GCS1808 or GCS1716
LCD monitor supports resolution of 1366 x 768 @60Hz
Short depth design allows for rack-mounting in narrow spaces

8-Port Widescreen Short Depth LCD KVM Switch

IOGEAR's GCL1908WKITU, is an integrated 18.5" Widescreen LCD console with an 8-port KVM (keyboard, video, and mouse) switch with eight (8) USB KVM cables that offers secure access to eight (8) VGA, USB or PS/2 computers. The KVM supports both PS/2 and USB keyboards and mice for the connected computers and supports USB peripheral devices for the attached computers.

Saving Space in the Rack

The GCL1908WKITU features a convenient rack mountable retractable 18.5" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving, streamlined integration. The GCL1908WKITU Switch fits into a universal 1U rack mount space and features a convenient rack mountable, retractable 18.5" TFT LCD active matrix monitor and keyboard with a built-in touchpad for a space-saving, streamlined integration. With the included rack mount kit, the Switch fits rack environments of varying depths ranging between 16.5" to 28.3".

The LCD KVM Switch:

Is an easy, efficient way to organize and streamline a growing or expanding server operation
Increases space, improves productivity, and provides an energy-cost saving solution
Contributes to a greener environment by reducing the amount of waste generated by multiple components

Control, View & Expand

A single GCL1908WKITU can control up to eight (8) computers, but as many as two (2) additional compatible KVM switches can also be cascaded to reach up to 128 computers* controlled from a single keyboard, monitor and mouse console.

*Can only be cascaded with other IOGEAR KVMs: GCS1808 or GCS1716 models

Integrated VGA 8-port LCD KVM console with 18.5" widescreen LCD monitor & cables
Single rail housing; top/bottom clearance for smooth operation in a 1U high system rack
Control up to 128/256 computers by cascading up to 2 levels with IOGEAR's GCS1808 or GCS1716
LCD monitor supports resolution of 1366 x 768 @60Hz
Short depth design allows for rack-mounting in narrow spaces
Supports VGA video input; supports an external console with USB/VGA connectors
Built-in USB Type-A port on front panel for peripheral sharing HID devices
Dual Interface - Supports computers with PS/2 or USB Keyboards and Mice
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 & USB) for smooth switching and simultaneously booting multiple computers even when the console's focus is elsewhere
Console lock design enables the console drawer to remain securely locked away in position when not in use
Computer selection via pushbuttons, hotkeys, and multilingual On Screen Display (OSD)
Broadcast mode - enables to send commands from the console to all connected computers to perform simultaneous operations
Two level password security - only authorized users can view and control computers
Auto Scan Mode - enables continuous monitoring of user-selected computers
Multilingual keyboard mapping supports English (US), English (UK), French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese
Standard rack mount kit included
Plug-n-Play
Firmware Upgradable
Hot Pluggable

Computers:

VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
USB or PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port

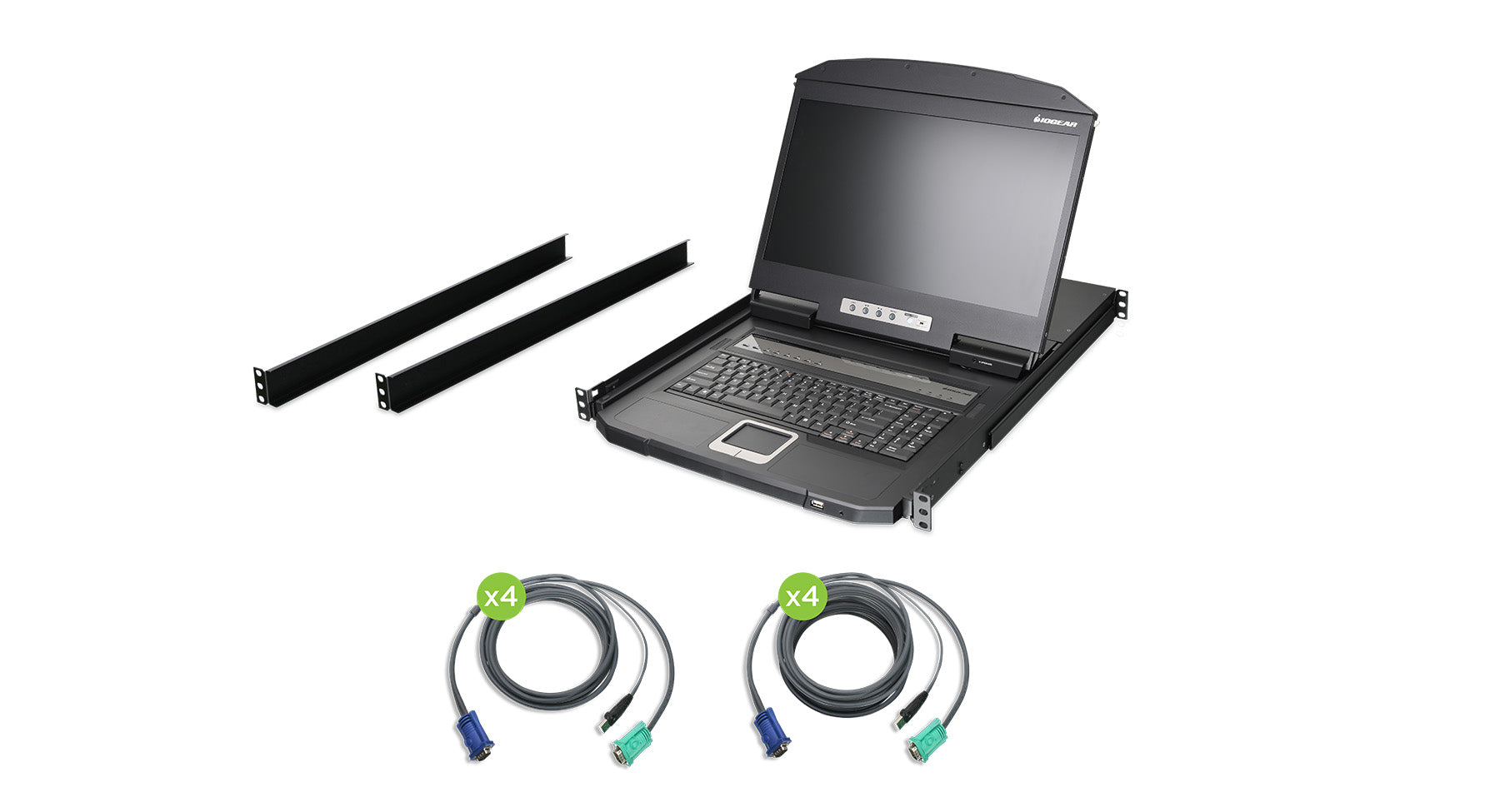

1 x 8-Port 18.5" Widescreen Short Depth LCD KVM Switch
4 x USB KVM Cable (6ft - G2L5202U)
4 x USB KVM Cable (10ft - G2L5203U)
1 x PS/2 KVM Cable
1 x Firmware Upgrade Cable
1 x Grounding Wire
1 x Standard Rackmount Kit (Fits 16.6~28.3 Inch Depth)
1 x Power Cord
1 x Quick Start Guide

GCL1908W Product Manual Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCL1908WKITU
Computer Connections
Direct	8
Daisy Chain or Cascading	128
Port Selection	OSD, Hotkeys, Pushbuttons

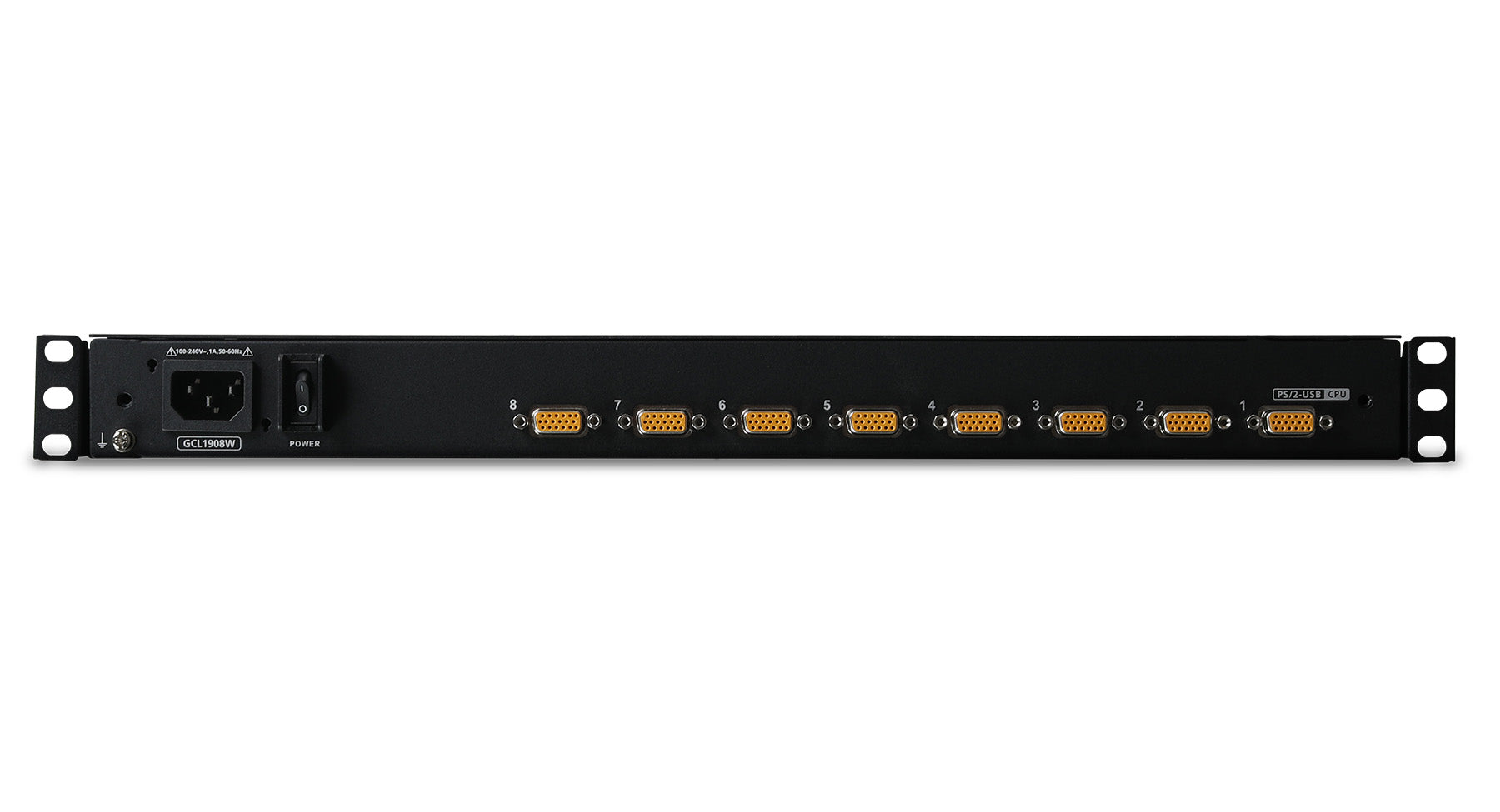

Connectors
Computer/KVM	8 x SPHD-18 Male
USB-A	1 x USB Type A Female
Power	1 x 3-Prong AC Socket
Switches
Reset	1 x Semi-recessed Pushbutton
Power	1 x Rocker Switch
F/W Upgrade	1 x Slide Switch
LCD Power	1 x LED Pushbutton (Orange)
LCD Adjustment	4 x Pushbutton
Port Selection	8 x Pushbutton
LEDs
On Line	8 (Orange)
Power On	Dark Green
Emulation
Keyboard	PS/2, USB
Mouse	PS/2, USB
Video Resolution	1366x768@60Hz
Scan Interval	1 - 255 seconds
Power Input Rating
Per AC Power Inlet, 50/60Hz	100~240VAC. 50/60Hz, 1A
Power Consumption	110V: 14.1W: 70BTU
Environment
Operation Temperature	0~40°C
Storage Temperature	-20~60°C
Humidity	0~80% RH; Non-condensing
Housing
Case	Metal and Plastic

Dimensions	GCL1908WKITU
Unit Dimensions
Height	1.7" (4.28 cm)
Length	24.9" (63.24 cm)
Width	18.9" (48.06 cm)
Master Carton
Height	6.5" (16.51 cm)
Length	37.3" (94.74 cm)
Width	30.3" (76.96 cm)
Master Carton Qty.	1
Weight
Master Carton Wt.	38.6 lb. (17.54kg)
Unit Wt.	23.2 lb. (10.5kg)

3 Year Limited Warranty

Return policy info here.
