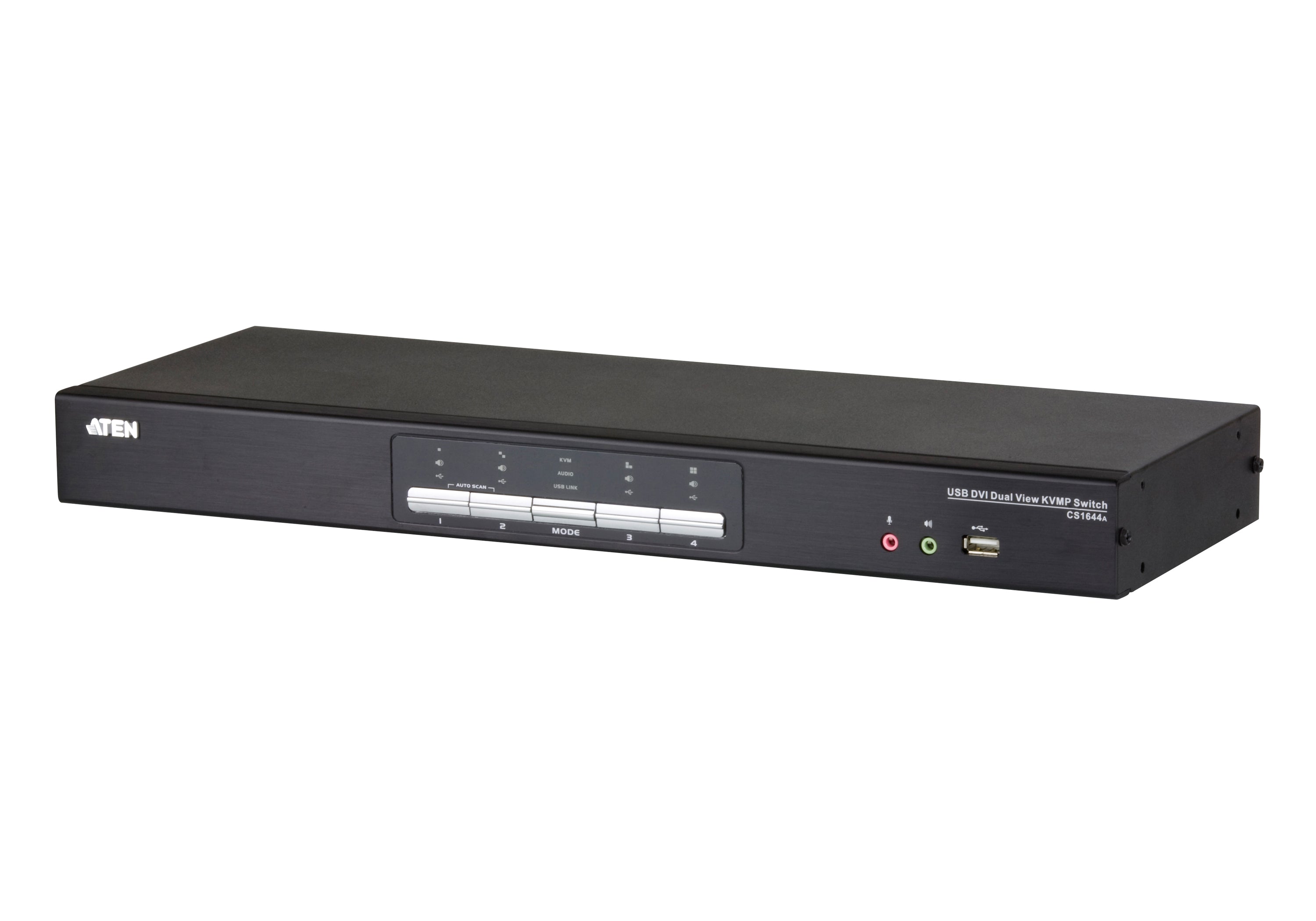

ATEN- 4-Port USB DVI Dual Link Dual Display/Audio KVMP™ Switch
UPC: 672792004278
- Superior video quality – 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link)
- Multi-Display – Easily connect two CS1642A/1644A's units for a second dual-screen setup controlled through a single connection
- Video DynaSync, exclusive ATEN technology, to eliminate boot-up display problems and optimizes resolution when switching between ports
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, Sun,and FreeBSD
Choose options
The ATEN CS1644 4-Port USB DVI Dual Link Dual Display/Audio KVMP™ Switch
- 1x CS1644A 4-Port USB DVI Dual View KVMP? Switch
- 4x KVM Cable (DVI-D DL, USB, Audio; 1.8 m/6 ft)
- 4x DVI-D DL Cable (1.8 m/6 ft)
- 1x Power Adapter
- 1x User Instructions
| Computer Connections | 4 |
| Port Selection | Hotkey, Pushbutton, Mouse |
| Connectors | |
| Console Ports | 2 x USB Type A Female (rear panel) 2 x DVI-I Female (White) 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink) |
| KVM Ports | 4 x USB Type B Female 8 x DVI-I Female (white) 4 x 3.5mm Audio Jack Female (Green) 4 x 3.5mm Audio Jack Female (Pink) |
| Daisy Chain Ports | 1 x RJ-45 Female (rear panel) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (1 x front panel; 1 x rear panel) |
| LEDs | |
| KVM | 4 (Orange) |
| Audio | 4 (Green) |
| USB Link | 4 (Green) |
| Switches | |
| Selected | 5 x Pushbutton |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | DVI Dual Link: 2560 x 1600 @ 60Hz; 3D Display: 1920 x 1200 @ 120Hz |
| Scan Interval | 1-99 secconds (default: 5 secs.) |
| Power Consumption | DC5.3V:5.34W:51BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic, Metal |
| Weight | 2.32 kg ( 5.11 lb ) |
| Dimensions (L x W x H) | 43.72 x 15.98 x 4.40 cm (17.21 x 6.29 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
During this Limited Warranty Period, ATEN will, in its sole discretion, repair or replace a defective product. This is the end user’s sole remedy. ATEN does not guarantee uninterrupted or error-free operation of the products. The warranty will not apply if (i) the product is damaged by accident, improper installation, intentional or accidental misuse, abuse, neglect, improper maintenance, use with products not manufactured or supplied by ATEN, abnormal use, lightning, fire, water, or other acts of nature; (ii) the product is damaged by alterations or repairs done by anyone other than ATEN or an ATEN authorized service provider; or (iii) the damage is cosmetic in nature or reasonably expected as a result of normal wear and tear. Replaced and repaired products undertake the remaining warranty period of the original product.
IN NO EVENT WILL ATEN BE LIABLE FOR ANY LOSS OF USE, REVENUES, ANTICIPATORY PROFIT, OR DIRECT OR INDIRECT CONSEQUENTIAL DAMAGES ARISING OUT OF OR CONNECTED WITH THE SALES, USE, OPERATION, OR INABILITY TO USE OF THE PRODUCTS SOLD.
EXCEPT AS OTHERWISE PROVIDED IN THIS SECTION, ATEN MAKES NO REPRESENTATIONS OR WARRANTIES, WHETHER EXPRESSED OR IMPLIED, WITH RESPECT TO ANY OF THE PRODUCTS, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ALL SUCH WARRANTIES ARE EXPRESSLY DISCLAIMED UNLESS SUCH A DISCLAIMER IS OTHERWISE PROHIBITED BY LAW.
For warranty questions or assistance, please contact ATEN in the US and Canada at 888-999-2836 option 2 or email us at support@aten-usa.com.
