ATEN-DVI HDBaseT KVM Extender with ExtremeUSB
UPC: 672792100598
- Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
- HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
- Long distance with superior video quality: (Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910) ; Long-Reach mode up to 1080P @ 150 m)
- Supports individual 2-channel stereo audio and USB 2.0 full speed ports
Choose options
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
- Supports HDBaseT™ 2.0 technology
• Extends video, audio, USB, RS-232, and Ethernet1 signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
• Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
• Status detection and LED indication for HDBaseT™ signal transmission on remote unit - EDID Buffer for smooth power-up and the highest quality display
- HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
- Long distance with superior video quality
• HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910)
• HDBaseT™ Long-Reach mode up to 1080P @ 150 m - Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
- Supports individual 2-channel stereo audio and USB 2.0 full speed ports
- Supports PC wakeup function via single pushbutton through RS-232 channel2
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
Note:
1. The CE820-AT supports Ethernet function, and the CE820-ATA does not.
2. The computer has to support Wake Up Ring for this function to work.

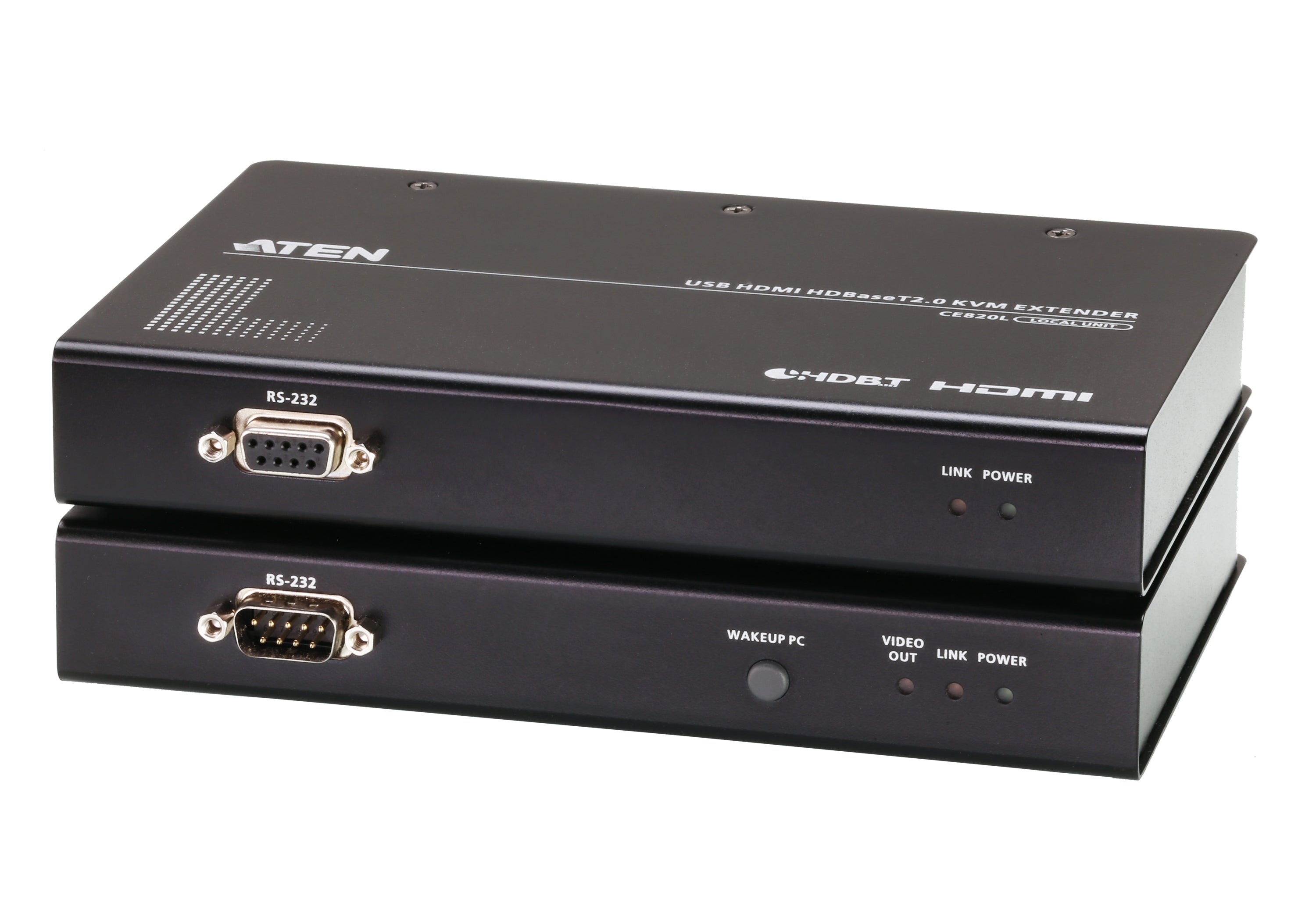

- 1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
- 1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
- 1x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
- 2x Power Adapters
- 2x Mounting Kits
- 1x User Instructions
| Function | CE820L | CE820R |
| Connectors | ||
| Console Ports | N/A | 1 x HDMI Female (Black) 3 x USB Type A Female 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x RJ-45 Female (Black) Note: The RJ-45 ports is functional for device supporting the Ethernet port |
| KVM Ports | 1 x HDMI Female (Black) 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x RJ-45 Female (Black) Note: The RJ-45 ports is functional for device supporting the Ethernet port | N/A |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack with locking | 1 x DC Jack with locking |
| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| LEDs | ||
| Power | 1 (Green) | 1 (Green) |
| Link | 1 (Orange) | 1 (Orange) |
| Video Output | N/A | 1 (Orange) |
| Switches | ||
| Long Reach Mode Switch | 1 x Slide Switch | 1 x Slide Switch |
| Firmware Upgrade | 1 x Slide Switch | 1 x Slide Switch |
| Pushbuttons | ||
| Wakeup button | N/A | 1 x Push button |
| Video | Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) | Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6) 1080P@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Power Consumption | DC5V:2.87W:13BTU Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. | DC5V:5.37W:40BTU Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | ||
| Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.63 kg ( 1.39 lb ) | 0.65 kg ( 1.43 lb ) |
| Dimensions (L x W x H) | 18.20 x 12.19 x 2.87 cm (7.17 x 4.8 x 1.13 in.) | 18.20 x 12.19 x 2.87 cm (7.17 x 4.8 x 1.13 in.) |
| Note | The CE820-AT supports Ethernet function and the CE820-ATA does not. | The CE820-AT supports Ethernet function and the CE820-ATA does not. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
During this Limited Warranty Period, ATEN will, in its sole discretion, repair or replace a defective product. This is the end user’s sole remedy. ATEN does not guarantee uninterrupted or error-free operation of the products. The warranty will not apply if (i) the product is damaged by accident, improper installation, intentional or accidental misuse, abuse, neglect, improper maintenance, use with products not manufactured or supplied by ATEN, abnormal use, lightning, fire, water, or other acts of nature; (ii) the product is damaged by alterations or repairs done by anyone other than ATEN or an ATEN authorized service provider; or (iii) the damage is cosmetic in nature or reasonably expected as a result of normal wear and tear. Replaced and repaired products undertake the remaining warranty period of the original product.
IN NO EVENT WILL ATEN BE LIABLE FOR ANY LOSS OF USE, REVENUES, ANTICIPATORY PROFIT, OR DIRECT OR INDIRECT CONSEQUENTIAL DAMAGES ARISING OUT OF OR CONNECTED WITH THE SALES, USE, OPERATION, OR INABILITY TO USE OF THE PRODUCTS SOLD.
EXCEPT AS OTHERWISE PROVIDED IN THIS SECTION, ATEN MAKES NO REPRESENTATIONS OR WARRANTIES, WHETHER EXPRESSED OR IMPLIED, WITH RESPECT TO ANY OF THE PRODUCTS, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ALL SUCH WARRANTIES ARE EXPRESSLY DISCLAIMED UNLESS SUCH A DISCLAIMER IS OTHERWISE PROHIBITED BY LAW.
For warranty questions or assistance, please contact ATEN in the US and Canada at 888-999-2836 option 2 or email us at support@aten-usa.com.
