ATEN-USB HDMI HDBaseT™ 2.0 KVM Extender
UPC: 672792007163
- Uses a single Cat 5e cable to connect the local and remote units
- Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
- Superior Video Quality – up to 1920 x 1200 @ 60 Hz at 100 m
- ExtremeUSB ® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
Choose options

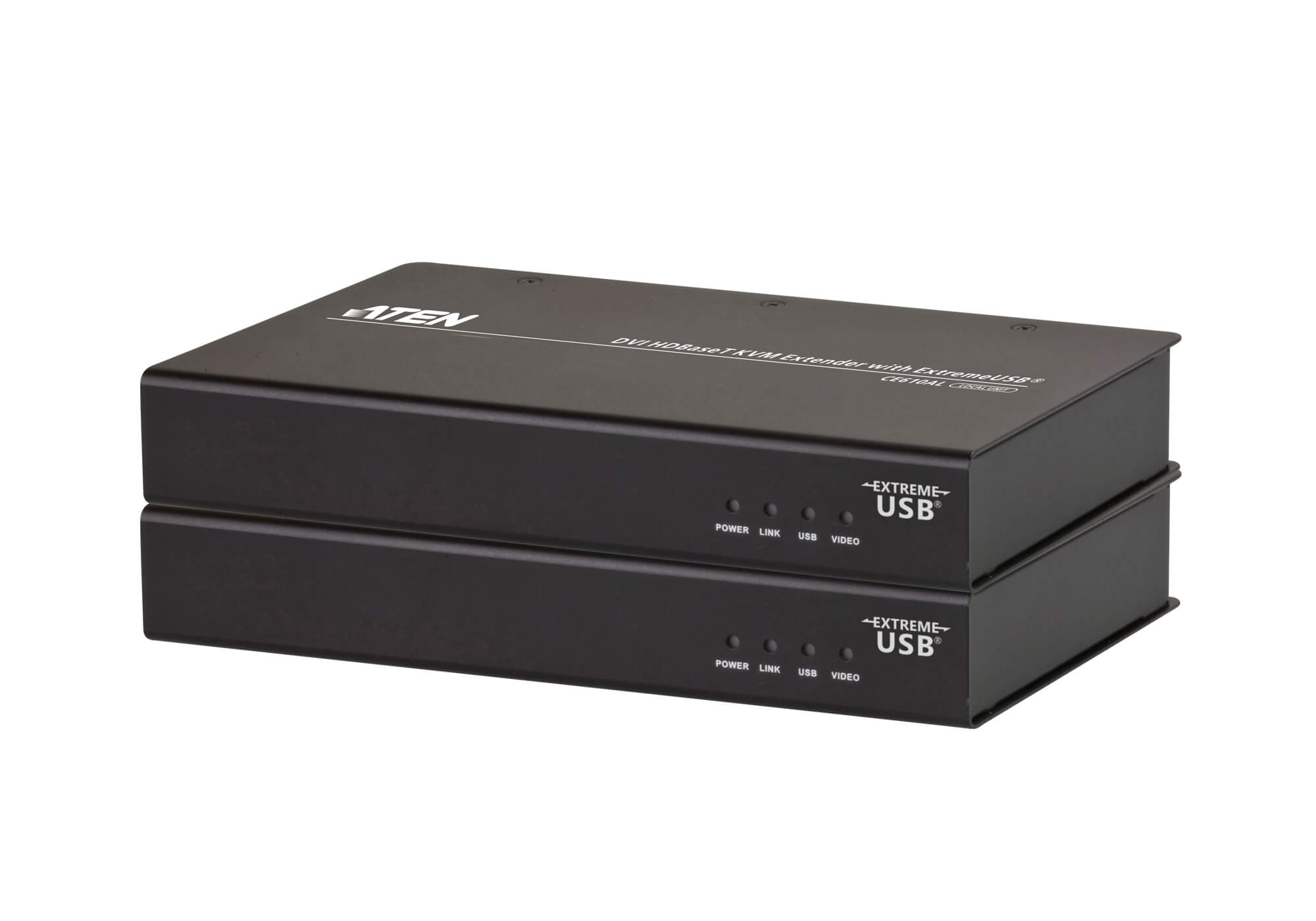

The CE610A USB DVI KVM Extender is a DVI and USB Extender that supports ExtremeUSB ® and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.
- Uses a single Cat 5e cable to connect the local and remote units
- Allows access to a computer or KVM installation from a remote console
- Superior Video Quality – up to 1920 x 1200 @ 60 Hz at 100 m
- Anti-jamming – resists signal interference during high-quality video transmissions using HDBaseT technology
- ExtremeUSB ® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
- Supports USB 1.1 web cameras
- USB 2.0 Support* – connects devices such as keyboard, mouse, audio, flash drive, printer, touch panel other USB devices which require moderate amounts of bandwidth
- Extends local PC Video/Keyboard/Mouse to remote side
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Works with all major operating systems: Windows®, OS X®, and Linux®
*Note: The CE610A supports a maximum combined USB transfer rate of 40 Mbps for attached USB devices.
- 1x CE610AL DVI HDBaseT KVM Extender with ExtremeUSB ® (Local Unit)
- 1x CE610AR DVI HDBaseT KVM Extender with ExtremeUSB ® (Remote Unit)
- 1x Custom DVI Cable (DVI Dual Link; 1.8 m)
- 1x USB Cable (1.8 m)
- 2x Power Adapters
- 1x Mounting Kit
- 1x User Instructions
| Function | CE610AL | CE610AR |
| Connectors | ||
| Video In | 1 x DVI-D Female (White) | N/A |
| Video Output | N/A | 1 x DVI-D Female (White) |
| Power | 1 x DC Jack | 1 x DC Jack |
| Firmware Upgrade | 1 x mini-USB | 1 x mini-USB |
| USB Port | 1 x USB Type B Female (White) | 3 x USB Type A Female (White) |
| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| LEDs | ||
| Power | 1 (Green) | 1 (Green) |
| Link | 1 (Green) | 1 (Green) |
| USB | 1 (Green) | 1 (Green) |
| Video | 1 (Green) | 1 (Green) |
| USB | USB 2.0 (Transfer Rate: Up to 40Mbps) | USB 2.0 (Transfer Rate: Up to 40Mbps) |
| Video | 1920 x 1200 @ 60Hz (100 m) | 1920 x 1200 @ 60Hz (100 m) |
| Power Consumption | DC5V:1.99W:41BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. | DC5V:3.95W:50BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | ||
| Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.62 kg ( 1.37 lb ) | 0.62 kg ( 1.37 lb ) |
| Dimensions (L x W x H) | 18.20 x 11.79 x 2.87 cm (7.17 x 4.64 x 1.13 in.) | 18.20 x 11.79 x 2.87 cm (7.17 x 4.64 x 1.13 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
During this Limited Warranty Period, ATEN will, in its sole discretion, repair or replace a defective product. This is the end user’s sole remedy. ATEN does not guarantee uninterrupted or error-free operation of the products. The warranty will not apply if (i) the product is damaged by accident, improper installation, intentional or accidental misuse, abuse, neglect, improper maintenance, use with products not manufactured or supplied by ATEN, abnormal use, lightning, fire, water, or other acts of nature; (ii) the product is damaged by alterations or repairs done by anyone other than ATEN or an ATEN authorized service provider; or (iii) the damage is cosmetic in nature or reasonably expected as a result of normal wear and tear. Replaced and repaired products undertake the remaining warranty period of the original product.
IN NO EVENT WILL ATEN BE LIABLE FOR ANY LOSS OF USE, REVENUES, ANTICIPATORY PROFIT, OR DIRECT OR INDIRECT CONSEQUENTIAL DAMAGES ARISING OUT OF OR CONNECTED WITH THE SALES, USE, OPERATION, OR INABILITY TO USE OF THE PRODUCTS SOLD.
EXCEPT AS OTHERWISE PROVIDED IN THIS SECTION, ATEN MAKES NO REPRESENTATIONS OR WARRANTIES, WHETHER EXPRESSED OR IMPLIED, WITH RESPECT TO ANY OF THE PRODUCTS, INCLUDING WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ALL SUCH WARRANTIES ARE EXPRESSLY DISCLAIMED UNLESS SUCH A DISCLAIMER IS OTHERWISE PROHIBITED BY LAW.
For warranty questions or assistance, please contact ATEN in the US and Canada at 888-999-2836 option 2 or email us at support@aten-usa.com.
