Wired Video Extender

Cinema 4K HDBaseT-Lite Extender with HDMI® Connection and POH (TAA)

4K@60hz TAA Compliant Wired HDMI Extender
MPN: GVE340

UPC: 881317517173

Sale price$329.95

The IOGEAR GVE340 Cinema 4K HDBaseT-Lite Extender with HDMI Connection and POH (TAA) is an extender allows you to transmit high-quality 4K HDMI signals up to 131 feet away using a standard Cat 5e/6/6a cable, giving you more flexibility in setting up your home theater, conference room, or any other environment where you need pristine audio and video over extended distances.

Cinema 4K HDBaseT-Lite Extender with HDMI® Connection and POH (TAA)
Cinema 4K HDBaseT-Lite Extender with HDMI® Connection and POH (TAA) Sale price$329.95
Professional-Grade Features

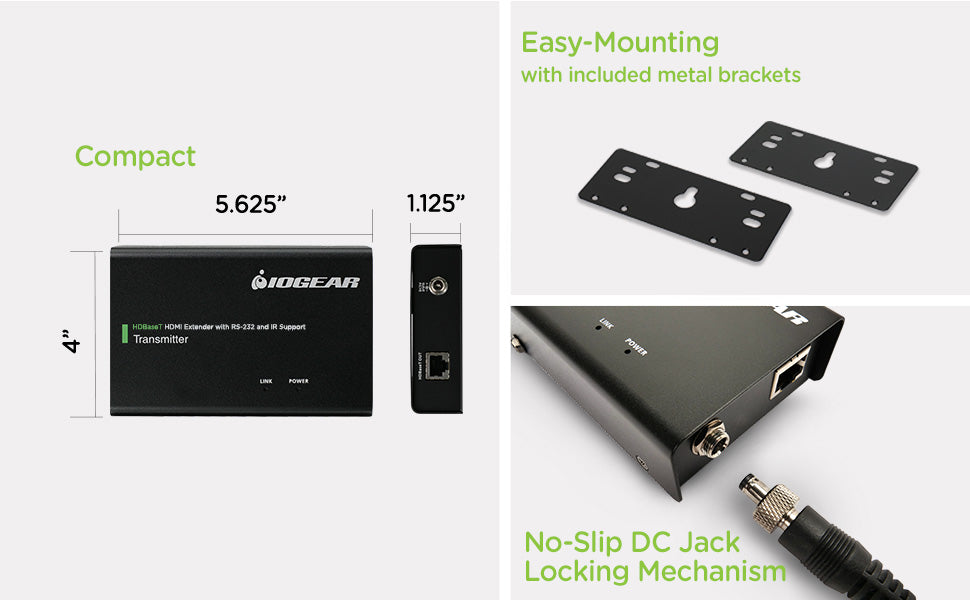

The 4K HDBaseT-Lite Extender is designed with the professional AV installer in mind. The compact, all metal Extender is easily mounted in an AV rack, enclosure or cabinet and features a no-slip DC jack locking mechanism and HDMI locking screw for enhanced reliability. Bi-directional RS-232 support and extended IR pass-through enable source control via a universal remote or touch panel.

Need More Distance?

Daisy chain the Extender to quickly expand the distance between a display and its HDMI source. Connect up to three HDBaseT-Lite HDMI Extenders to reach a maximum range of 669 feet at 1920 x 1080 resolutions and distribute Cinema 4K quality up to 339 feet ensuring the highest quality video without signal loss or drops.

  • Extends an HDMI® connection up to 229 ft. via one CAT5e/6/6a cable
  • Achieve Cinema 4K resolutions up to 130 ft. & HD resolutions to 229 ft.
  • HDBaseT Anti-Jamming resist signal interference during video transmission
  • Transmit Power-over-HDBaseT (POH) to receiver via CAT5e/6/6a cable
  • Daisy chain up to 3 levels to extend HDMI up to 339 ft. at 4096 x 2160 @ 60Hz resolution, or 687 ft. at 1080p
  • Bi-directional RS-232 support for universal remotes, touch panels & barcode scanners
  • HDCP1.4 Content protection
  • Rack- Mountable
  • Source with HDMI output
  • Display with HDMI input

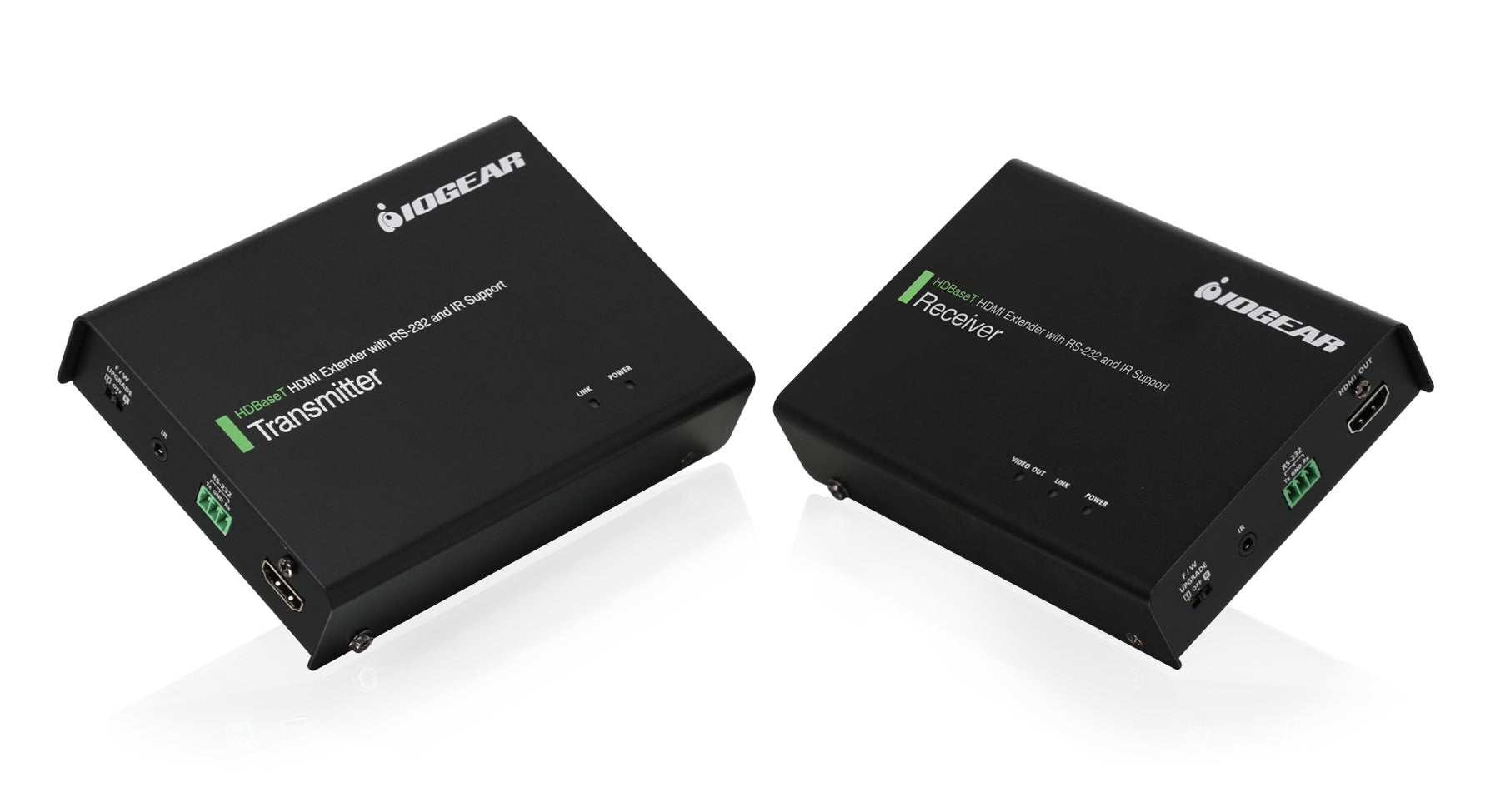

  • 1 x GVE340T/R HDMI HDBaseT-Lite Extender with POH
  • 1 x Power Adapter (GVE340T)
  • 1 x IR Transmitter
  • 1 x IR Receiver
  • 2 x Terminal Blocks
  • 1 x User Instructions

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGVE340
Connectors
Video InputHDMI
Video OutputHDMI
RS-232Bi-Directional
ConnectorsEthernet ports
Color Depth4:2:0
Daisy Chain3-Levels
Environment
Humidity0-80%
Operation Temperature0 - 122 F
Storage Temperature-4F ~ 140F (-20 - 60C)
Housing
CaseMetal
Power Adapter5V/3A
Power Consumption3.6W
Video Resolution4096 x 2160 @ 60Hz
Video Streaming10.2 Gbps (3.4 Gbps per lane)
Cable Length131 ft @ 4K/230 ft @ 2K
Cable TypeCAT 5e/6
Display Output
HDMI1.4
DimensionsGVE340
Unit Dimensions
Height1.125 in
Length5.625 in
Depth4 in
Unit Package Dimensions
Height6.75 in
Width11 ion
Depth4 in
Master Carton
Height14.75 in
Width12.50 in
Depth11.50 in
Master Carton Qty.6
Weight
Master Carton Wt.21.90 lb
Unit Pack Wt.3.45 lb
Unit Wt.1.00 lb
