Cinema 4K DisplayPort HDBaseT-Lite Extender (TAA)
Cinema 4K DisplayPort HDBaseT-Lite Extender (TAA)
Cinema 4K DisplayPort HDBaseT-Lite Extender (TAA)
Cinema 4K DisplayPort HDBaseT-Lite Extender (TAA)
Wired Video Extender

Cinema 4K DisplayPort HDBaseT-Lite Extender (TAA)

4K@60hz EOL TAA Compliant Wired DisplayPort Extender
MPN: GVE440

UPC: 881317517166

This product is EOL and is no longer being sold.
Sale price$349.95

The IOGEAR Cinema 4K DisplayPort HDBaseT-Lite Extender transmits crystal-clear audio and video signals over long distances using standard Cat 5e/6/6a cables.

Professional-Grade Features

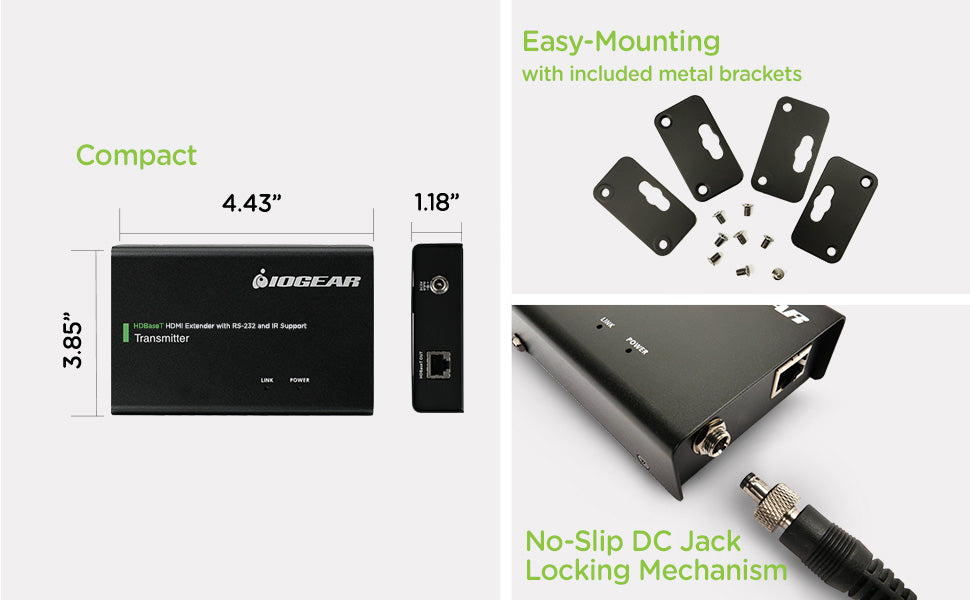

The Cinema 4K DisplayPort HDBaseT-Lite Extender is designed with the professional AV installer in mind. The compact, all metal Extender is easily mounted in an AV rack, enclosure or cabinet and features a no-slip DC jack locking mechanism for enhanced reliability.
Professional-Grade Features

The Cinema 4K DisplayPort HDBaseT-Lite Extender is designed with the professional AV installer in mind. The compact, all metal Extender is easily mounted in an AV rack, enclosure or cabinet and features a no-slip DC jack locking mechanism for enhanced reliability.
  • Extends a DisplayPort connection up to 229 ft. via a single Cat 6/6a cable
  • Achieve Cinema 4K resolutions up to 130 ft. & 1080p resolutions up to 229 ft.
  • HDBaseT Anti-Jamming resists signal interference during video transmission
  • Features 3.3V/500mA output for powering auxiliary devices such as active adapters

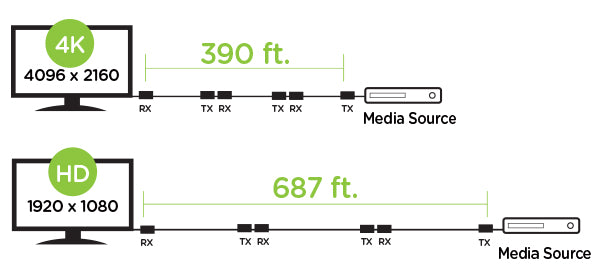

  • Daisy chain up to 3 levels to extend up to 390 ft. at 4096 x 2160 @ 30Hz resolution, or 687 ft. at 1080p
  • DHCP 1.3 content protection
  • Rack-mountable
  • Display Port Source Device
  • Display Port Display or Projector
  • Cat 6a Ethernet Cables

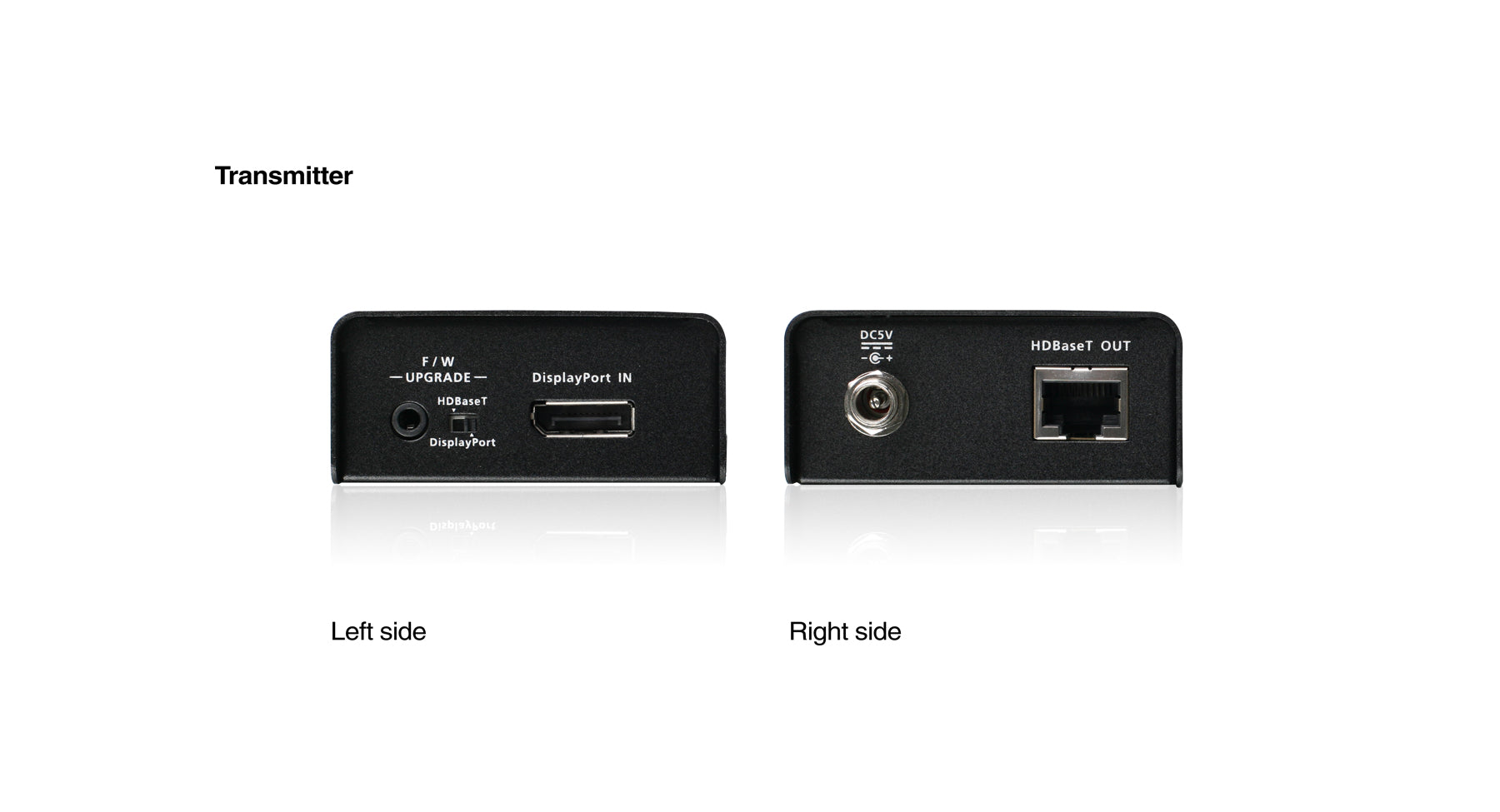

  • 1x GVE440 DisplayPort HDBaseT-Lite Transmitter

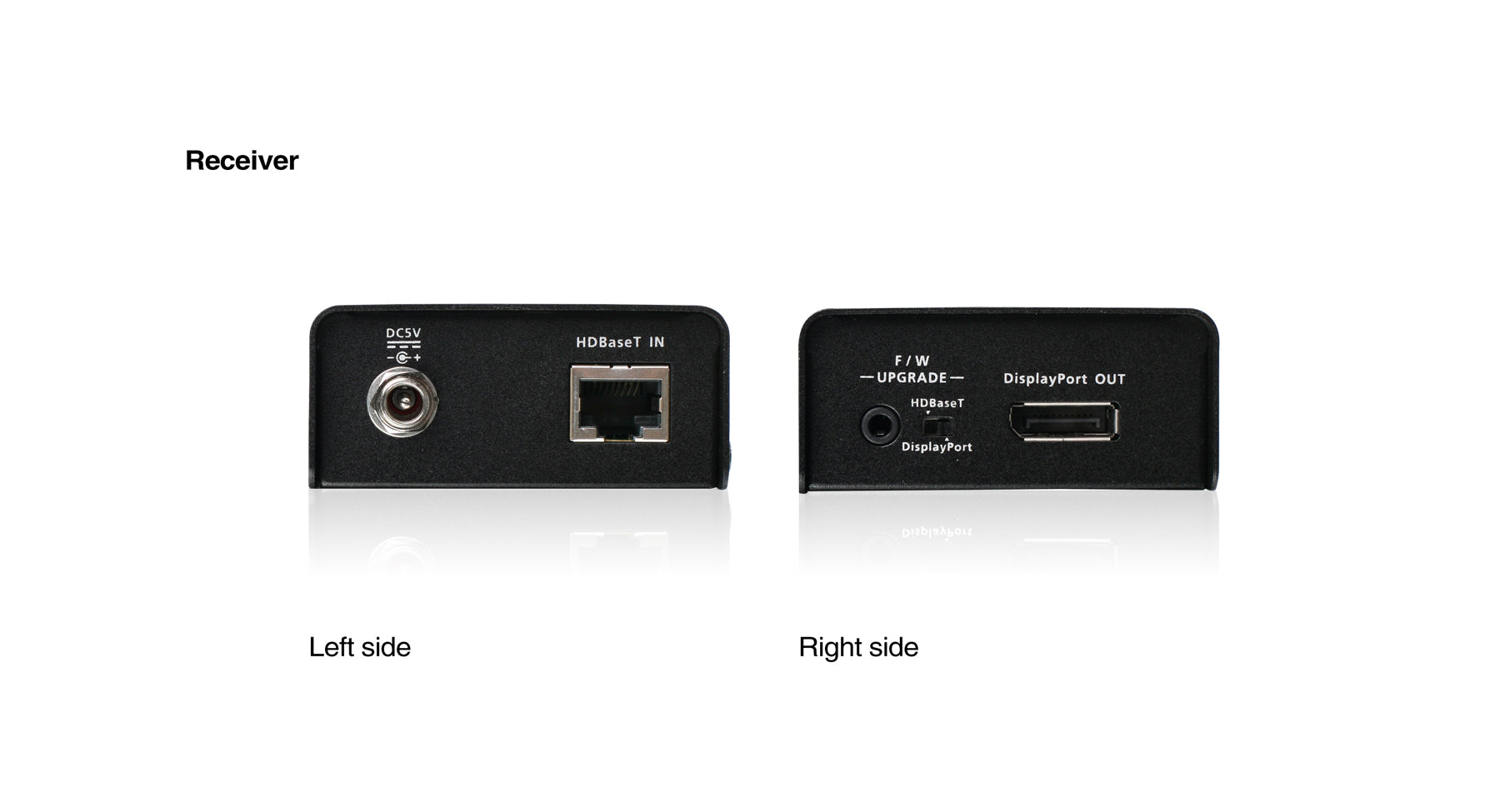

  • 1x GVE440 DisplayPort HDBaseT-Lite Receiver
  • 2x Power Adapters
  • Mounting Kit
  • Quick Start Guide

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGVE440
Video connections
InputDisplayPort DP1.1
OutputDisplayPort DP1.1
Video Resolution4096 x 2160 @ 30Hz
Video Streaming10.2 Gbps (3.4 Gbps per lane)
Warranty3 - Years
Power ConsumptionRx 5VDC, 7.95W: Tx 5VDC 3.13W
Daisy ChainUp to 3 levels
Downstream Port
Audio In1 x DisplayPort on Transmitter
Audio Out1 x DisplayPort on Receiver
Power Adapter2 x 2V/2A
Housing
CaseMetal
Environment
Humidity0 - 80% RH, Non-Condensing
Operating Temperature32 - 104 F
Storage Temperature-4F ~ 140F
DimensionsGVE440
Unit Dimensions
Height1.18 in
Length3.85 in
Depth4.43 in
Unit Package Dimensions
Height9.40 in
Length6.30 in
Depth2.32 in
Master Carton
Height10.04 in
Width14.89 in
Depth7.17 in
Master Carton Qty.6
Physical Properties
Unit Weight1.90 lb
Unit Weight with package2.00 lb

3 Year Limited Warranty
