HDBaseT 4K UHD HDMI® Extender Over Cat5e/6

Wired Video Extender

HDBaseT 4K UHD HDMI® Extender Over Cat5e/6

Name: HDBaseT 4K UHD HDMI® Extender Over Cat5e/6
Brand: IOGEAR
SKU: GVE330
Price: 249.95 USD
Availability: OutOfStock

4K@30Hz TAA Compliant Wired HDMI Extender

MPN: GVE330

UPC: 881317513687

$249.95

Tired of running multiple wires for your home theater or conference room setup? The IOGEAR HDBaseT 4K UHD HDMI Extender is your solution. This extender transmits crystal-clear, uncompressed 4K UHD audio and video signals over long distances using a single Cat5e/Cat6/Cat6a cable, eliminating the hassle of bulky cable bundles and signal degradation.

Astonishing Picture Quality at Long Distances

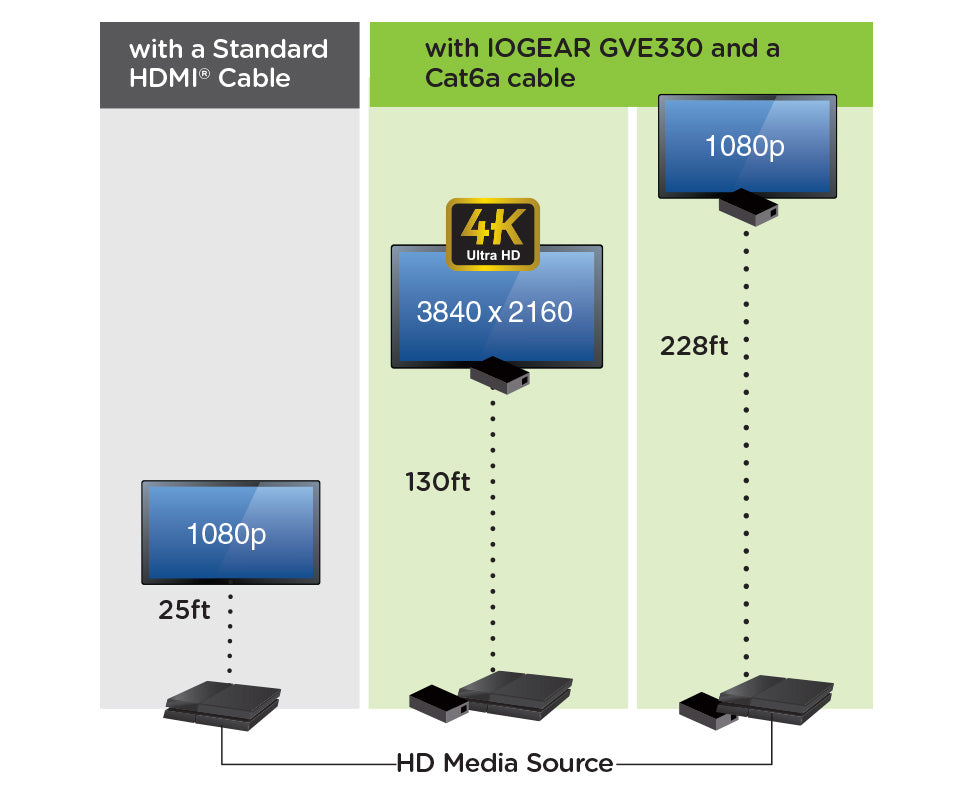

With the A/V industry quickly adopting 4K (UHD) as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables that experience signal degradation at 25 feet. Using IOGEAR’s HDBaseT Video Extender and a single Cat6a cable, transmit HDMI signals at distances up to 228ft (70m) at 1080p resolution. Be amazed at how 4K UHD (3840x2160) picture quality, four times the resolution of high-definition 1080p, can be maintained even at 130ft (40m) away from your video source using Cat6a cable. This HDMI extender kit can make any video source look great, while future proofing your setup for 4K implementation.

UHD Extender for Multiple Applications

IOGEAR’s HDBaseT Video Extender is an ideal solution for digital signage applications and for routing uncompressed 4K (UHD) HDMI A/V signals over inexpensive Ethernet cable at home for digital entertainment centers or in boardrooms, conference rooms, classrooms, and sports bars that require HDMI video to be extended for greater distances. The extender also has applications for home installation, retro-fitting, retail environments, show rooms and worship centers where remote displays are required.

What is HDBaseT?

HDBaseT is a consumer electronic and connectivity standard that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables the transmission of uncompressed multimedia content at resolutions up to 4K (UHD). The HDBaseT architecture allows for a full bandwidth of 10.2Gbps data throughput over a single Cat 5e/Cat6/Cat6a cable and supports all High Speed HDMI functions including high-definition video, audio, power, 100BaseT Ethernet, USB, and certain control signals such as CEC, RS-232 or IR.

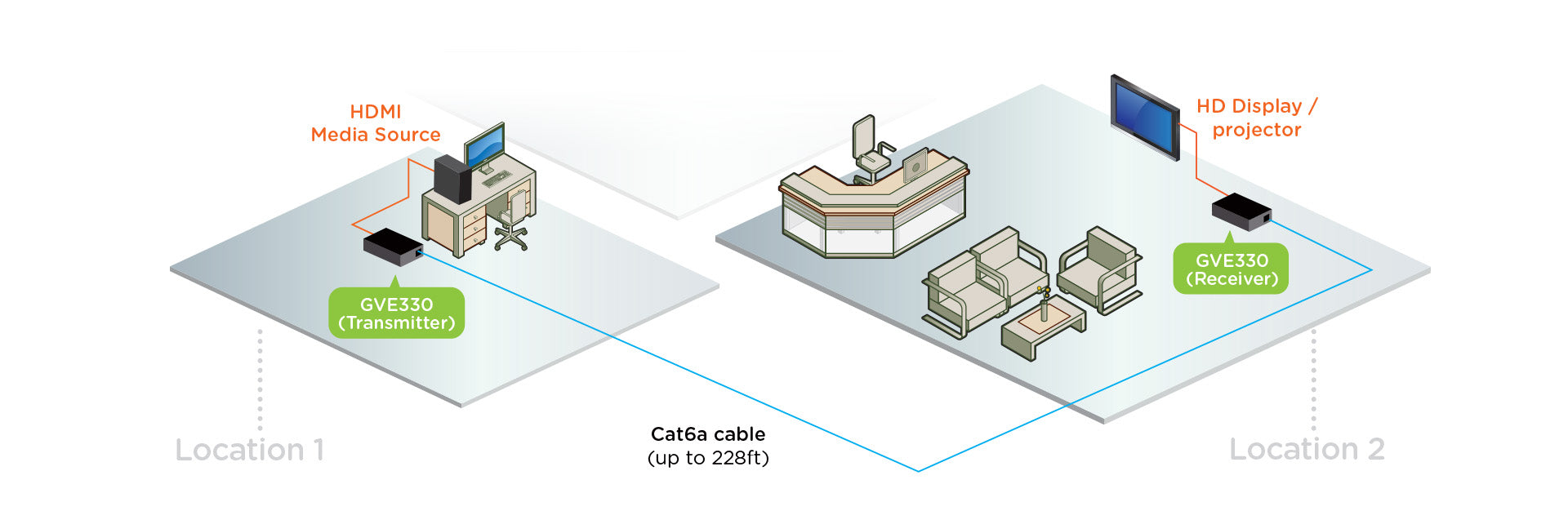

UHD extender for long distance audio/video transmissions
Use a single Cat5e/Cat6/Cat6a cable to transmit A/V data using HDBaseT technology
Keep your DVR/Set-top box, Blu-ray player or computer out of sight and place your HDMI display or HDMI projector up to 228ft away*
Supports 3D, Deep Color and 4K image resolutions
HDCP compliant
Dolby® True HD and DTS-HD Master Audio pass through support
Rack mount kit included
Durable metal casing

* Note: Extension range may vary with different devices and Cat5e/Cat6/Cat6a cables

Display
- 1 HDMI Input
Media Source
- 1 HDMI Output
Cables*
- 1 x Cat5e/Cat6/Cat6a cable
- 2 x HDMI cables
*Cables not included

1 x HDBaseT Video Transmitter

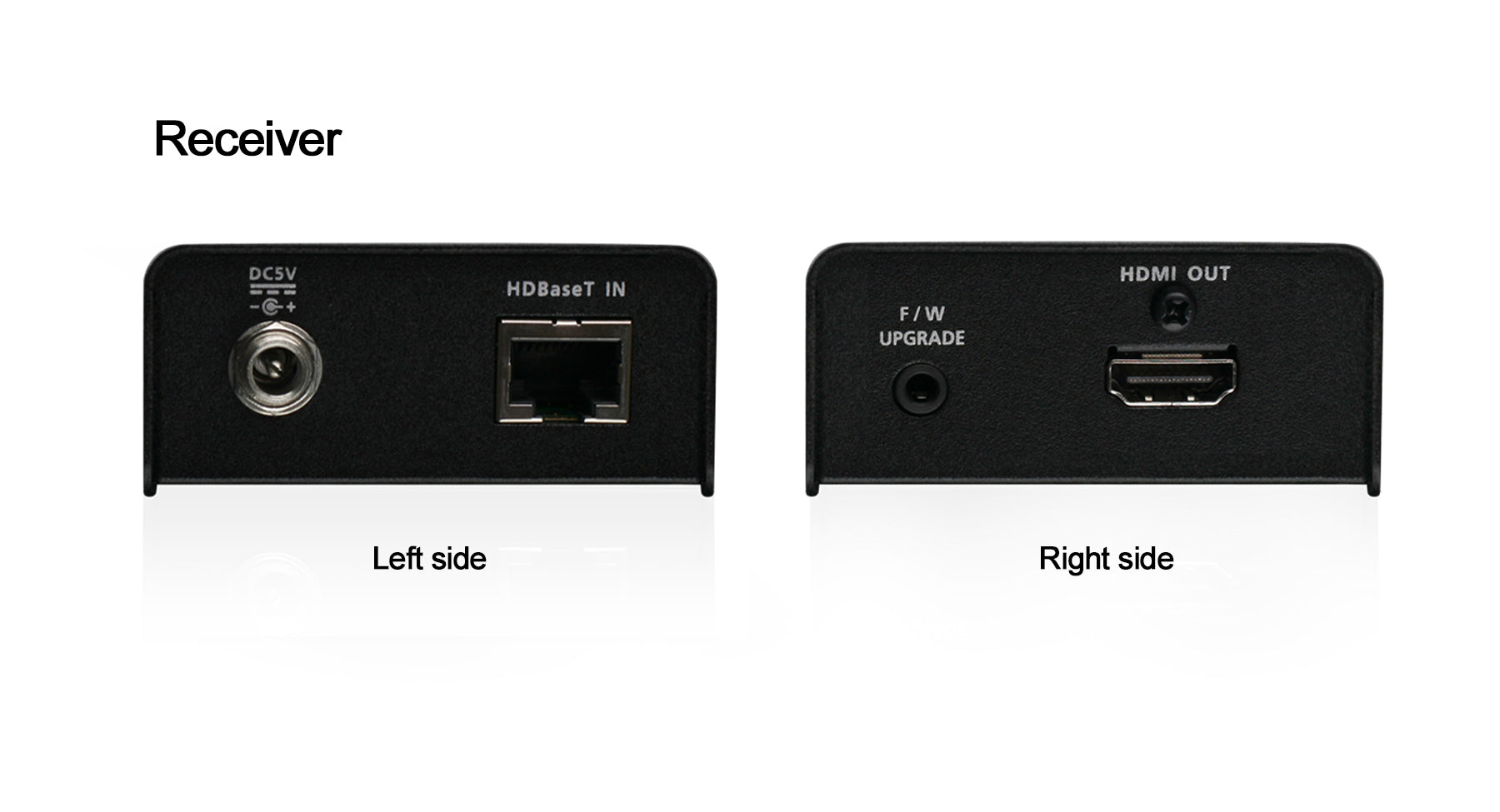

1 x HDBaseT Video Receiver
2 x Locking Power Adapters
2 x Wall Mount Kits
1 x Quick Start Guide
1 x Warranty Card

GVE330 Quick Start Guide Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GVE330
Cable Type	1 x Solid Cat5e/Cat6/Cat6a
Cable Distance	Max Cat5e/6 cable distance for 4K resolution: 114ft (35m), Max Cat6a cable distance for 4K resolution: 130ft (40m), Max Cat5e/6 cable distance for 1080p resolution: 195ft (60m), Max Cat6a cable distance for 1080p resolution: 228ft (70m)
Housing
Case	Metal
Data Rate	Up to 10.2Gbps (3.4Gbps per lane)
Cable Connections
Input	HDMI Type A Female
Output	HDMI Type A Female
Environment
Operation Temperature	32~122ºF (0~50ºC)
Storage Temperature	-4~140ºF (-20~60ºC)
Humidity	0-80% RH, Non-condensing
Power Connections	2 x DC Jack (Black) with locking
Video Resolution	Up to 4K @ 30fps
Power Adapter	AC Adapter 5V 2.6A output

Dimensions	GVE330
Unit Dimensions
Height	Tx: 2.62" (6.7cm), Rx: 2.62" (6.7cm)
Length	Tx: 4" (10.2cm), Rx: 4" (10.2cm)
Depth	Tx: 1.19" (3.01cm), Rx: 1.19" (3.01cm)
Unit Package Dimensions
Height	6.37" (16.2cm)
Width	9.5" (24.1cm)
Depth	2.37" (6.02cm)
Master Carton
Height	7.5" (19.05cm)
Width	10.25" (26.03cm)
Depth	15" (38.1cm)
Master Carton Qty.	6
Weight
Master Carton Wt.	12.7lb (5.76kg)
Unit Pack Wt.	1.95lb (0.9kg)
Unit Wt.	Tx: 0.5lb (0.24kg), Rx: 0.5lb (0.24kg)

3 Year Limited Warranty
