DVI-D CAT5e/6 Extender with Stereo Audio
UPC: 881317509079
Choose options

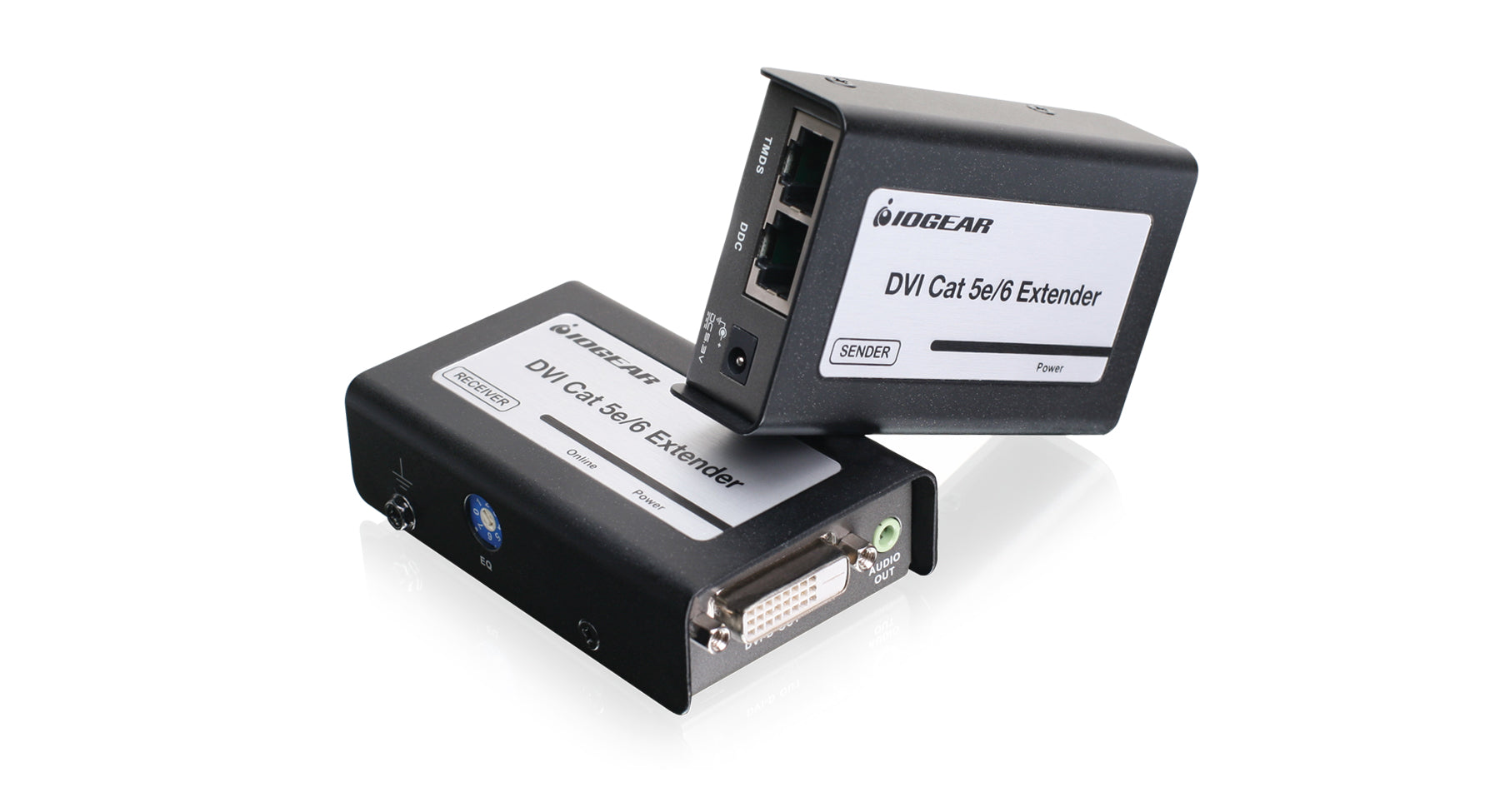

IOGEAR's DVI-D CAT5e/6 Extender with Stereo Audio gives you the distance between the 1080p (1920x1080) media source and the HD display unit you're connecting by up to 130 feet. It consists of a local sending unit and remote receiving unit connected by two standards solid CAT5e/6 twisted pair solid Ethernet cables. Additionally, you can extend up to 200 feet* at 720p resolution.
The DVI-D CAT5e/6 Extender with Stereo Audio is ideal for home installation, retrofitting, retail environments, show rooms and large worship centers where remote displays are required. The DVI-D CAT5e/6 Extender with Stereo Audio is also useful for control and security purposes, where you can have the system unit in a secure area at the same time that you put the display in an area that is convenient for viewing.
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GWAV8101R |
|---|---|
| Connectors | |
| Video Input | 2 x HDMI, 1 x Composite, 1 x VGA |
| Video Output | 1 x HDMI, 1 x Composite, 1 x YPbPr Component |
| LAN | 1 x LAN POrt (Transmitter and Receiver) |
| Power | 1 x Power Jack (Transmitter and Receiver) |
| USB | 1 x USB Type A Female |
| Audio Input | 1 x 3.5mm Audio Jack (Transmitter) |
| Audio Output | 1 x 3.5mm Audio Jack (Receiver) |
| Video Resolution | 480i/p, 720p, 1080i and 1080p (24/30/60fps) |
| Video Streaming | <30ms Latency |
| Frequency | 5.15~5.25GHz |
| LAN Connection | 10/100 Base |
| Range | 100ft (30m) |
| Broadcast | 1 Transmitter to 4 Receivers |
| Security | 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP AES |
| Antenna Type | 2 x Internal Antenna (Transmitter and Receiver) |
| Power Switch | 1 x Power/Port Switching Pushbutton (Transmitter and Receiver) |
| LEDs | |
| Port ID | 4 x LED on Transmitter; 3 x LED on Receiver |
| Power On | 1 x LED (Transmitter and Receiver) |
| Link | 1 x LED (Transmitter and Receiver) |
| Power | |
| Voltage | 12VDC |
| Amps | 2A |
| Housing | |
| Case | Plastic |
| Dimensions | GWAV8101R |
|---|---|
| Unit Dimensions | |
| Width | 1.25in. |
| Height | 7.625in. |
| Depth | 4.5in. |
| Unit Package Dimensions | |
| Width | 4.875in. |
| Height | 8.375in. |
| Depth | 4in. |
| Master Carton | |
| Width | 10.5in. |
| Height | 9.5in. |
| Depth | 12.125in. |
| Master Carton Qty. | 6 |
| Weight | |
| Master Carton Wt. | 10.71lb |
| Unit Pack Wt. | 1.62lb |
| Unit Wt. w/accessories | 1.1lb |
| Unit Wt. | 0.66lb |
