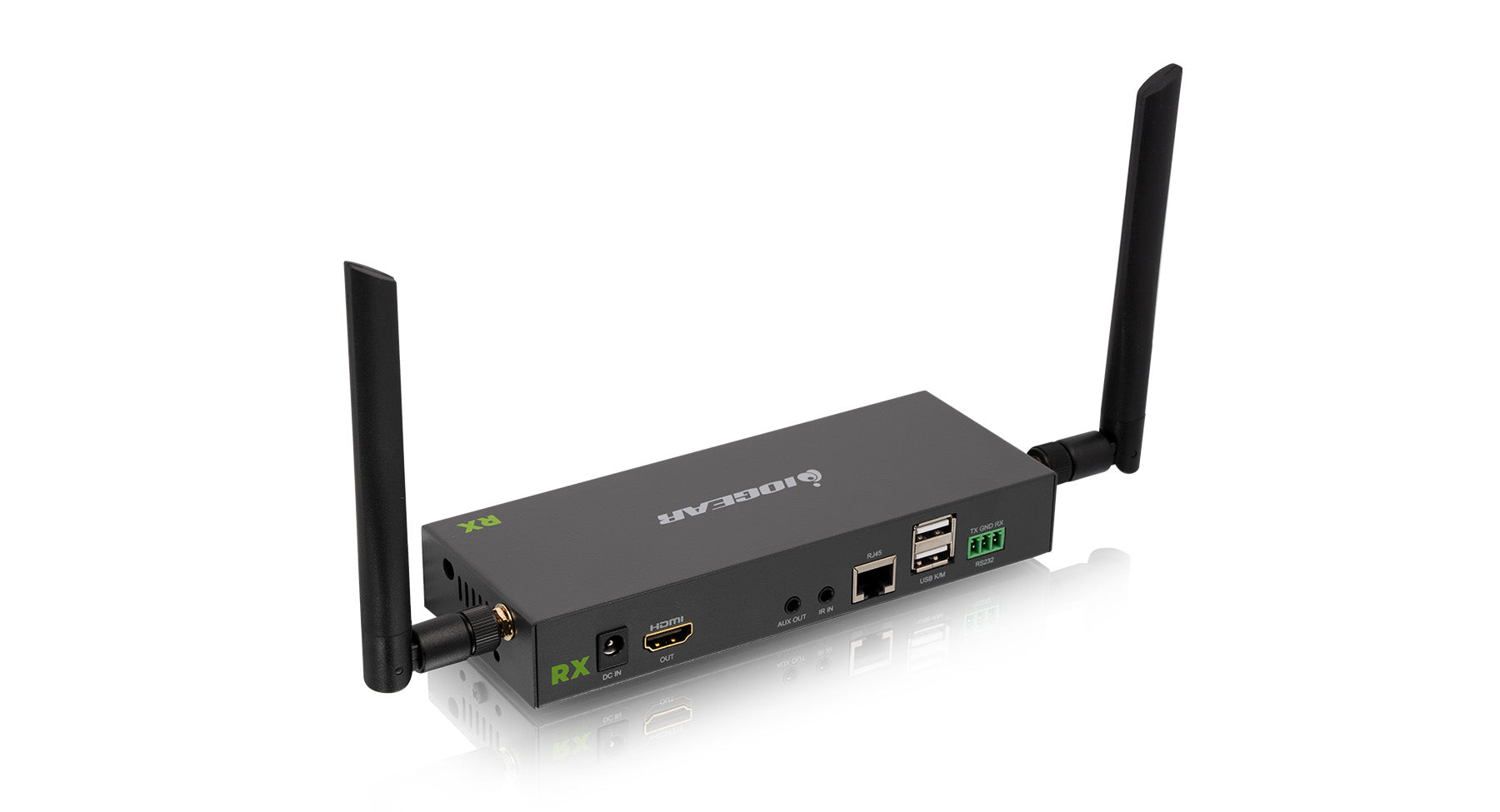

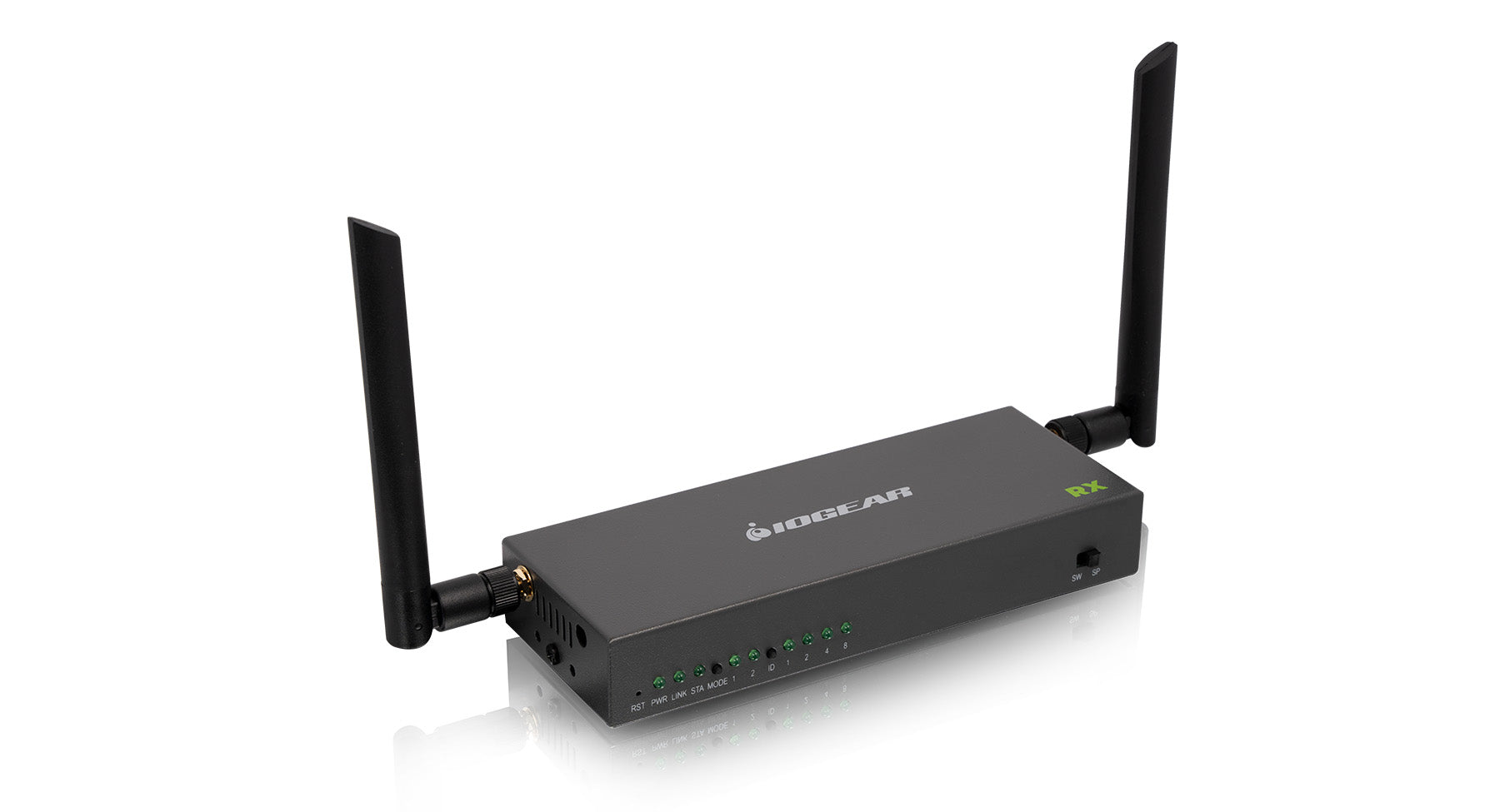

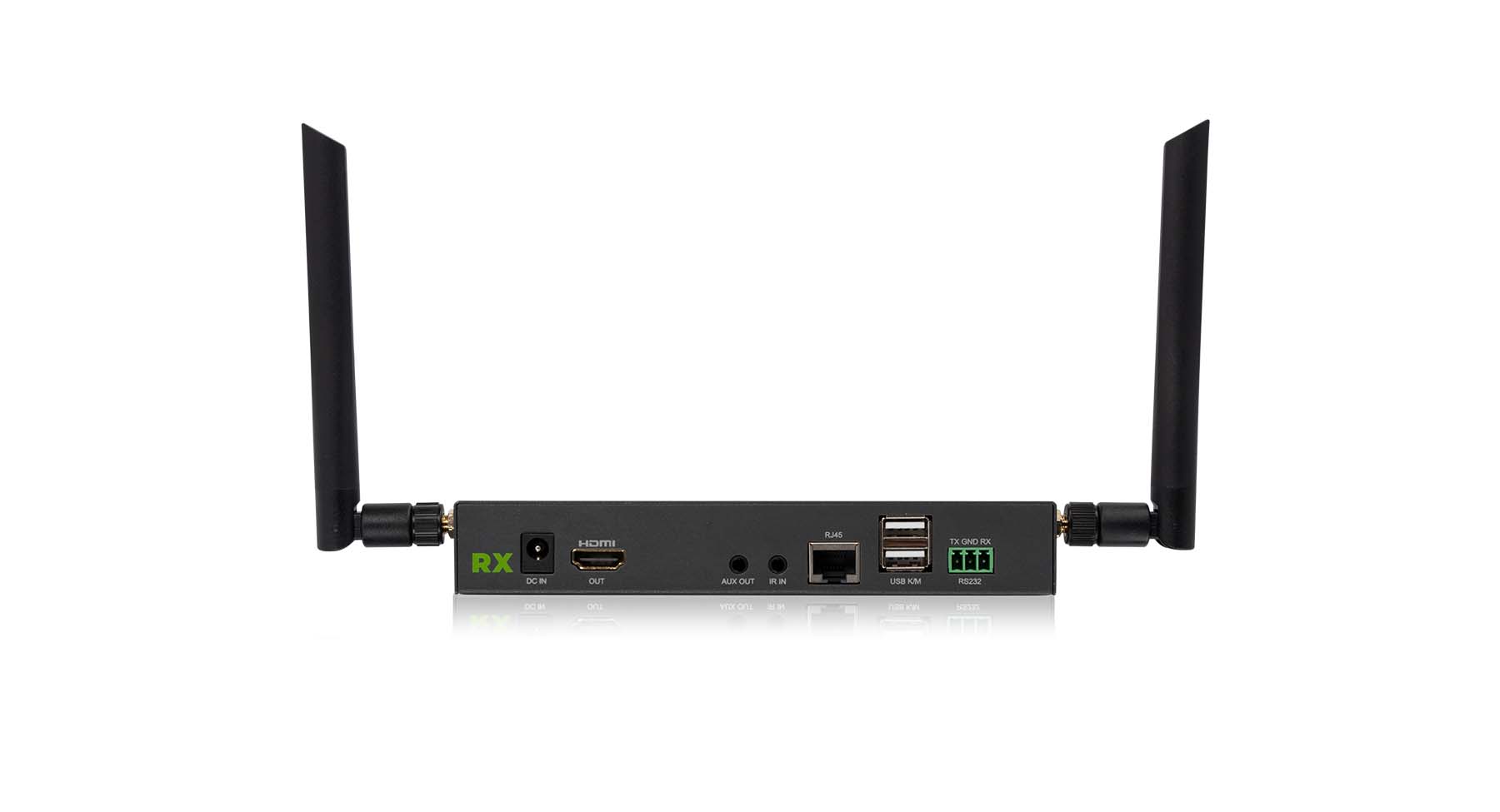

Additional Receiver for GWLRSSKIT4K Long Range Wireless 4K HDMI® Video Kit
UPC: 881317520883
Choose options
Interchangeable Long Range Wireless
Splitter & Switcher Technology for Any AV Solution
IOGEAR Long Range Wireless 4K Switch/Splitter Receiver operates as either a wireless HDMI switcher to swap between up to 10* UHD sources to a wireless splitter sending a single UHD source to up to four 4K HDTVs or HDMI enabled projectors anywhere up to 600 ft. or 182 meters** without sacificing picture and sound quality.
Expand Your GWLRSSKIT4KTX Setup
Add additional recievers to expand up to four 4K HDTVs or displays in splitter mode.
Wireless Long Range
Up to 600 ft./182 m range
Ultra-High Definition
Support Up To 4K @30Hz
HDMI Switch
Up To 4 Sources
Easily Switch Between Splitter and Switch Mode
Configure the Long Range Wireless 4K Switch/Splitter Kit as an HDMI switcher to wireless swap between up to four 4K sources including UHD 4K Blueray™ players, set-top boxes, HDMI-capable laptops, or PCs to a single 4K HDTV within a 600 ft.** range. Expand the system with additional transmitters (for switch model) to extra recievers (for splitter mode).
Perfect for Office, Education, or House of Worship
Fast, Plug-n-Play Setup
Setup is hassle-free and does not require a Wi-Fi network or complicated security configurations. The included transmitter and receiver kit come pre-paired and ready with wireless security enabled
Control Sources Remotely
Control each HDMI video source with your existing remote control. The included IR blast cable and IR extension cable allow signal transmission between your remote and audio/video equipment. Take control of your PC or Laptop wirelessly with keyboard and mouse support.
*Kit includes only 1 set of transmitter and receiver. Expand the system with additional transmitters for switch mode (GWLRSSKIT4KTX - Transmitter) or extra receiver for splitter mode (GWWLRSSKIT4KRX - Receiver).
**Note Ideally best performance is obtained using line-of-sight. Distances may vary depending on the environment. Solid and non-porous materials such as steel, concrete, brick, and glass (varies depending on coating and thickness) may cause shorter viewing distances or loss signal. Adding more receivers in splitter mode could potentially shorten the range.
- Adds an additional wireless display to the GWLRSSKIT4K in Splitter Mode (up to a maximum of 4) to extend your cable box, Blu-ray, etc. to additional rooms or locations around your home—perfect for adding an outdoor TV or projector for viewing on a giant outdoor screen
- Maximum output resolution of 4K 4096x2160@30Hz
- Mirror or extend your laptop screen or other HDMI sources to a big display or projector
- Range up to 600 feet with a single receiver under optimal conditions, using built-in MIMO technology
- Remote Console feature provides 2 USB ports for keyboard and mouse, allowing user to remotely control a PC or laptop
- IR extender allows control of video source from remote display
- Audio output provides easy connection to externally amplified speakers or a remote amplifier
- RS-232 port to extend control to serial enabled displays such as projectors
- Very low latency (average latency <10ms)
Note: Maximum range is reduced with each additional receiver added
- Source with HDMI Input.
- Transmitter
1 x Receiver.
1 x 12V/1A Power Supply.
2 x Antennas.
1 x Mounting Kit.
1 x IR Receiver Cable.
1 x HDMI Cable.
1 x Quick Start Guide for Receiver.
1 x Warranty Card.
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GWLRSSKIT4KRX |
|---|
| Dimensions | GWLRSSKIT4KRX |
|---|---|
| Unit Dimensions | |
| Height | 1" (without antennas) |
| Length | 9.75" |
| Depth | 2.50" |
| Inner Pack | |
| Height | 6.30" |
| Length | 12.30" |
| Depth | 9.90" |
| Unit Package Dimensions | |
| Height | 5.90" |
| Length | 9.30" |
| Depth | 2.00" |
| Master Carton | |
| Height | 14.25" |
| Length | 14.00" |
| Depth | 11.50" |
| Master Carton Qty. | 12 |
| Weight | |
| Master Carton Wt. | 22.50 lb |
| Inner Pack Wt. | 11.00 lb |
| Unit Pack Wt. | 1.70 lb |
| Unit Wt. | 0.67 lb |
