Long-Range HDMI Wireless Video 5x2 Matrix PRO with 1 Receiver

Wireless Video Extender

Long-Range HDMI Wireless Video 5x2 Matrix PRO with 1 Receiver

Name: Long-Range HDMI Wireless Video 5x2 Matrix PRO with 1 Receiver
Brand: IOGEAR
SKU: GWHDMS52MB
Price: 699.95 USD
Availability: OutOfStock

TAA Compliant Up to 200ft. Wireless HDMI Extender

MPN: GWHDMS52MB

UPC: 881317511799

$699.95

Cut the cords and enjoy crystal-clear Full HD wirelessly with the IOGEAR Long-Range HDMI® Wireless Video 5x2 Matrix PRO! This innovative system combines a transmitter and receiver to send uncompressed 1080p video up to 200 feet, eliminating the need for messy cables.

Wireless Matrix

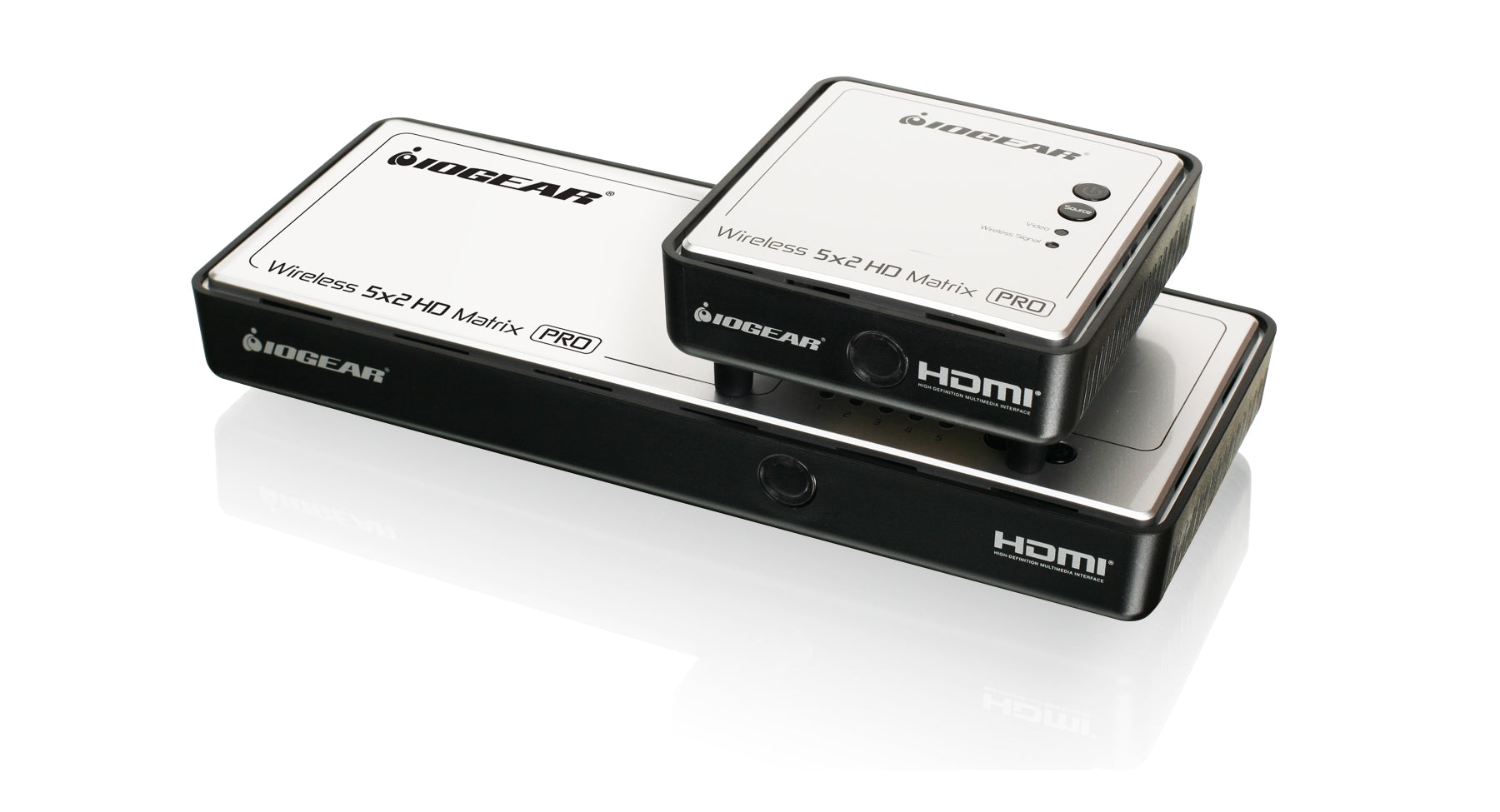

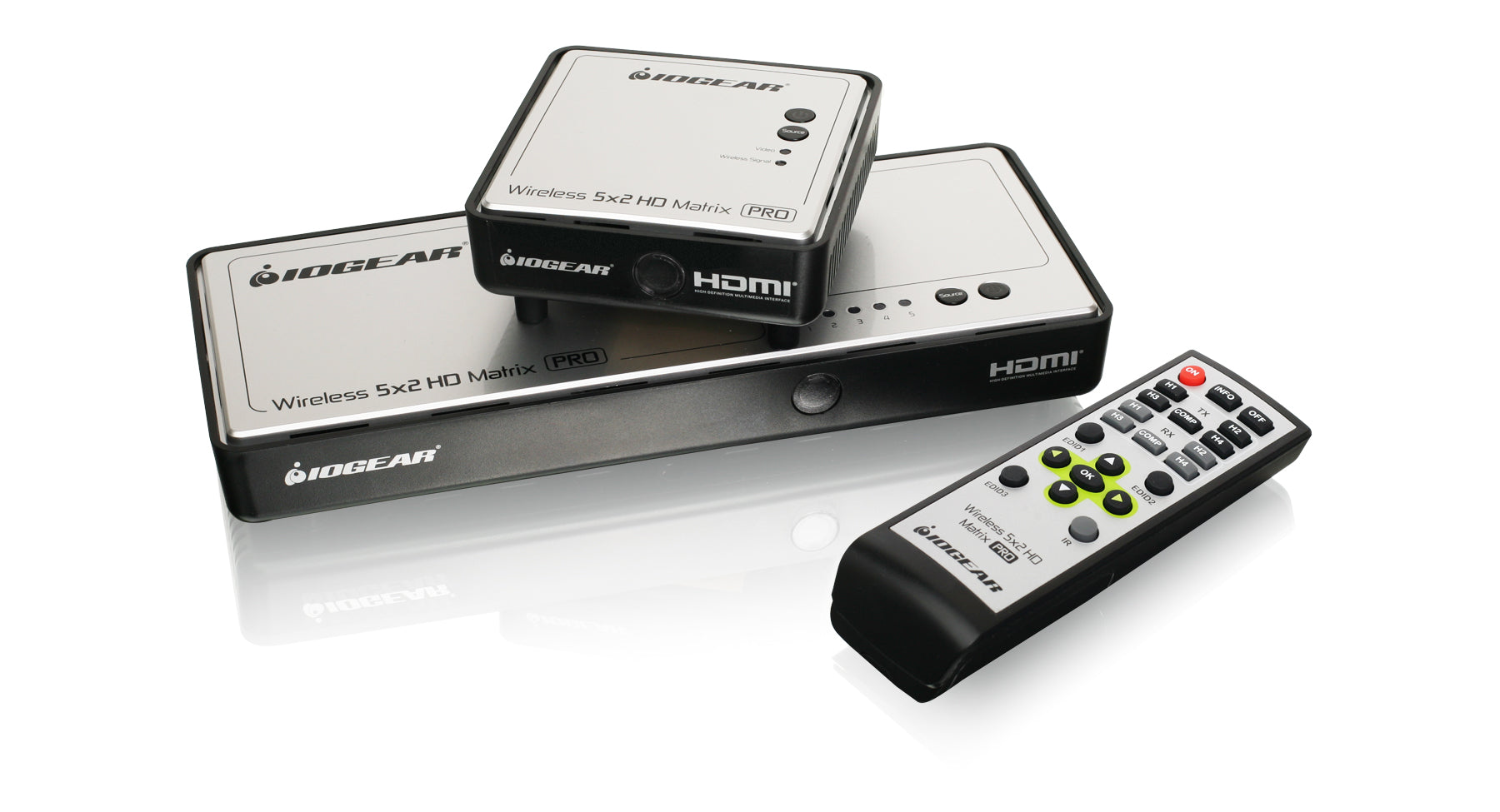

The Long Range Wireless 5x2 HDMI Matrix PRO is setting a new standard in wireless connectivity, flexibility, convenience and decor. Natively, the kit consists of a Transmitter with connections for HDMI and Component (5-port switch / matrix) and a Wireless Receiver. It also provides a loop through (local port) on the transmitter for an advanced 2 HDTV set up. The wireless matrix feature allows a user to switch and independently select any of the 5 sources between 2 HDTVs, creating 2 completely different video zones, making this one of the biggest breakthroughs in wireless A/V solutions available today.

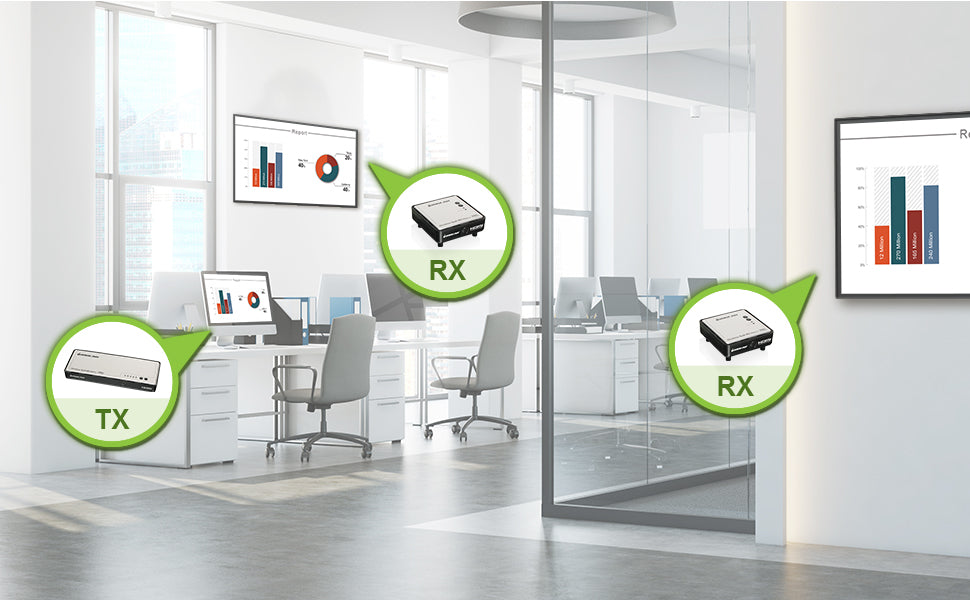

Commercial and Home Applications

Commercial and Home Applications
IOGEAR's Long Range Wireless 5 x 2 HDMI Matrix PRO is an easy, affordable and reliable wireless A/V solution for any place that requires a multi-display installation. This HDMI wireless matrix is ideal within the home, retail environments, lobbies, offices, commercial settings, schools or classrooms, houses of worship, and in entertainment venues. Other applications include any retrofitting projects where demolition or running wires is not an option or becomes too expensive. When you are at home, you can watch cable TV in the living room while the bedroom independently selects a Blu-ray® movie to watch wirelessly at the same time.

Multicast Capability

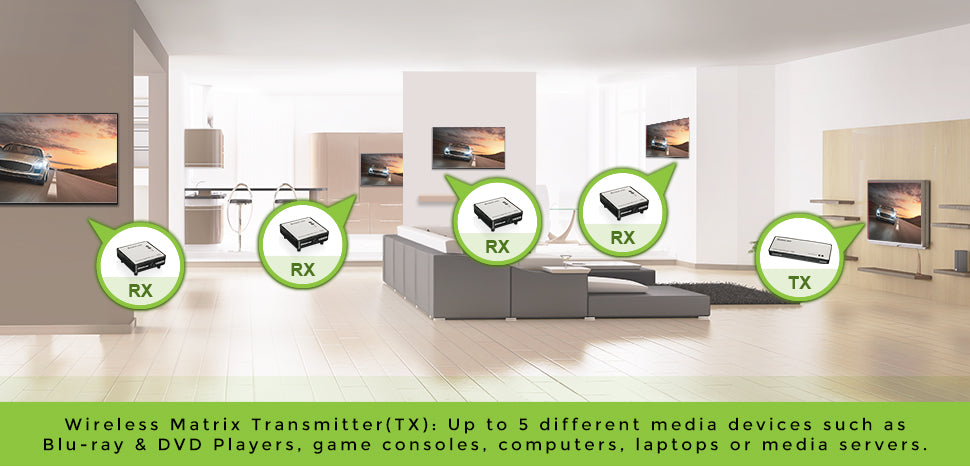

Expand beyond one wireless display to multiple wireless displays with the Multicast feature. Simply add up to 3 additional wireless receivers* broadcasting to a total of 4 wireless receivers from the same HDMI enabled video source.

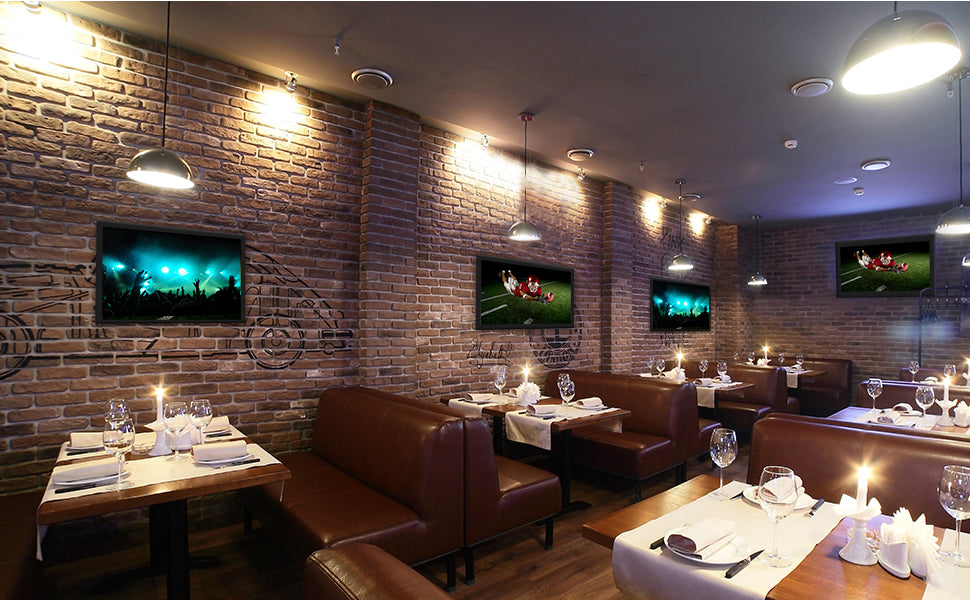

This makes it an ideal solution for distributing Full HD video for retail advertisements, cinema concessions and fast food menus, sporting event parties at home or in a sports bar, and more.

*Additional wireless receivers sold separately. Visit the GWHDRX01 product page for more information.

Cut the Cables and Keep Equipment Out-of-Sight

The Long Range Wireless 5x2 HDMI Matrix PRO does not require a line-of-sight placement, keeping A/V devices neatly out of sight, which enables a quick, simple, and flexible wireless Full HD video/audio solution.

Take re-decorating, retrofitting and designing to a new level of creativity and convenience. Setup your A/V equipment in a media closet or office and transmit to your HDTVs wirelessly. Send video through walls, doors and floors without the cost and the hassle of wires, turning your office, retail store, sports bar, waiting rooms, house of worship or living room into a fully customized, easy to work with, media center.

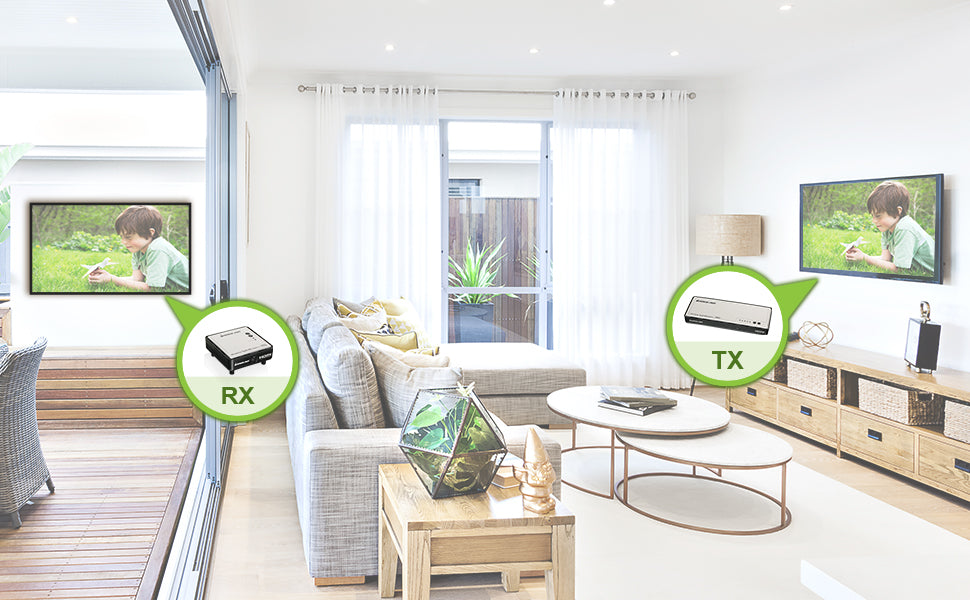

While at home, have you ever wanted to set up another HDTV in the bedroom, kitchen, den or patio? Now you can have an HDTV in almost any room of the house. Set up the HDTV in the back patio for sporting events while the kids play video games or watch a Blu-ray movie in the living room!

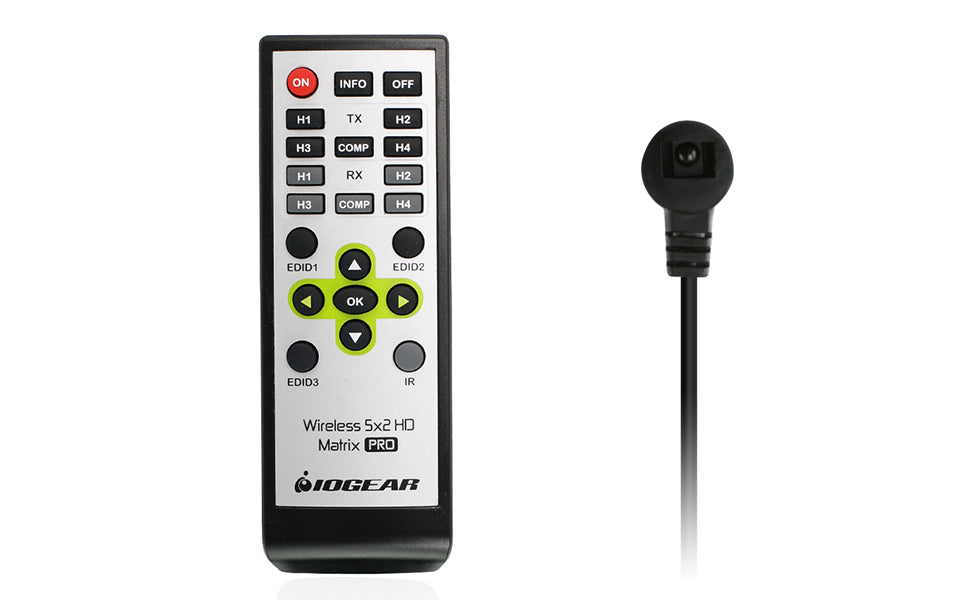

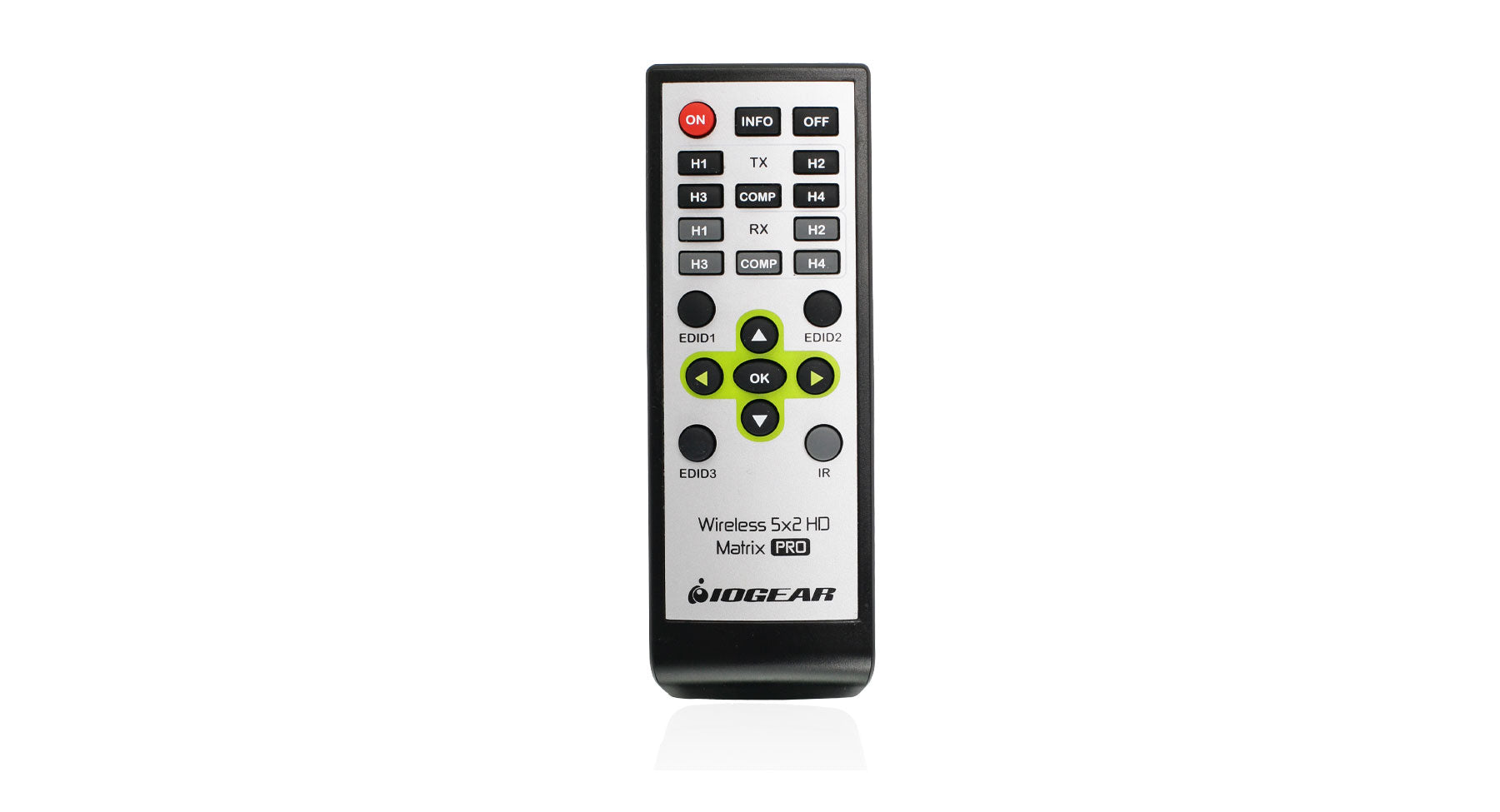

Discrete Remote

The discrete remote was specifically designed with installers and prosumers in mind. Each of the Matrix’s functions has an individual button dedicated to it, making easy to integrate functionality into existing Universal Remotes or Home Automation systems.

With the IR pass-through feature, use remotes from your current video devices to control your DVD / Blu-ray players, DVR / Cable boxes, A/V receivers and media streaming devices such as Apple® TV and control them from wherever your HDTV is located. You can hide your equipment in another room while controlling them as if they were in the same room.

EDID Management

When using different video displays with varying resolutions in your setup, EDID management makes it easy to find the best resolution to work with all your displays. The default EDID resolution setting is 720p to ensure HD video on every initial set up. The PRO unit provides three (3) EDID management modes for the best installation every time. This gives flexibility and power for any install or end customer’s desired set up.

EDID 1 Mode: Changes the default setting to 1080p Full HD.
EDID 2 Mode: Refreshes the screens and sets the highest common resolution of ALL the connected displays.
EDID 3 Mode: Restores the factory default video resolution back to 720p

Wireless uncompressed Full HD 1080p video up to 200 feet* through standard home walls

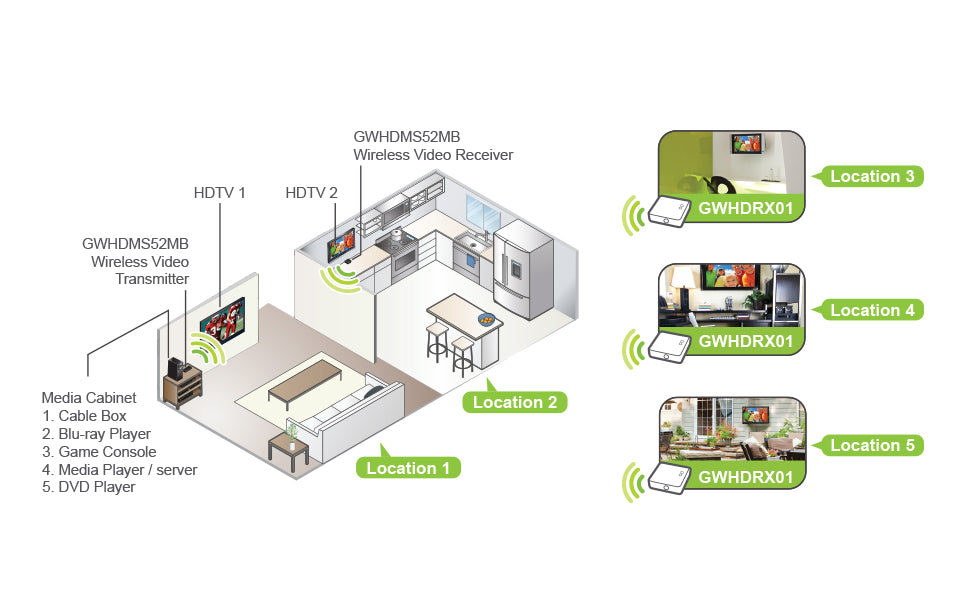

Built in 5x2 Matrix - Switch & independently select any of 5 sources between 2 HDTVs
- Location 1: HDTV can connect to transmitter's loop-through (local) port
- Location 2: HDTV can receive content from wireless receiver**
Multicast - Send video to up to 5 HDTVs simultaneously 4 wireless)***
Send video from a Blu-ray player, DVR, cable boxe, game console, computer/laptop, media streaming devices,and media servers
Supports 3D content and 5.1 channel digital audio
Video Resolutions:
- 480p, 720p, 1080i and 1080p (24/30/60fps)

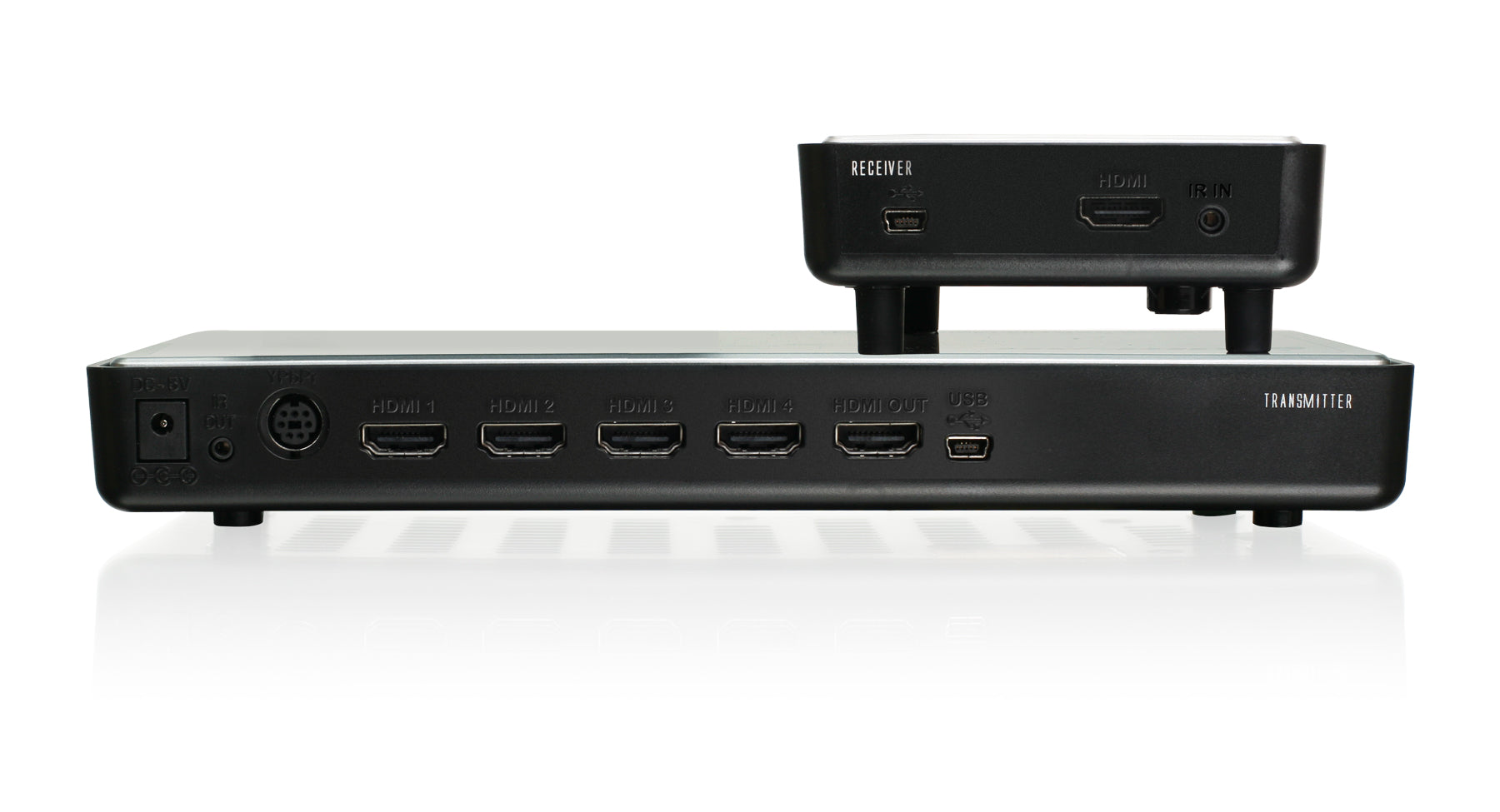

HDMI® Inputs / Outputs:
- Wireless Transmitter:
  - 4 x HDMI Connection In
  - 1 x Component In
  - 1 x HDMI Connection Out (local port)
  - 1 x IR Out
- Wireless Receiver
  - 1 x HDMI Connection Out
  - 1 x IR In
Based on WHDI™ Technology
HDCP 2.0 Compliant
Built-in Infrared (IR) pass-through allows user control over their source devices that are in a different location from the wireless receiver
No software or driver installation needed

*Distances may vary depending on environment. Solid and non-porous materials such as steel, concrete, brick and glass (varies depending on coating and thickness) may cause shorter viewing distances or loss of signal

**Note: Wireless Video Receiver – Part# GWHDRX01 sold separately. Multicast Kits available. GWHDMS52MBK2 / GWHDMS52MBK3 / GWHDMS52MBK4

***Expand beyond one wireless display to multiple wireless displays with Multicast capabilities. Simply add up to 3 additional wireless receivers broadcasting to a total of 4 wireless receivers from the same HD video source.

Displays:

HDTV or HD Projector with HDMI Connection

Media Source:

1 HDMI Connector Output

1 Component Output*

Multicast:

Additional Wireless Video Receivers sold separately - Part# GWHDRX01
It is recommended that the distance between receivers to be at least 12 feet apart

Cables:

HDMI Cables (1 included)
Component Cable (not included)
RCA Audio Cable (L&R, not included)

*Only 1 Component Input available on the Transmitter

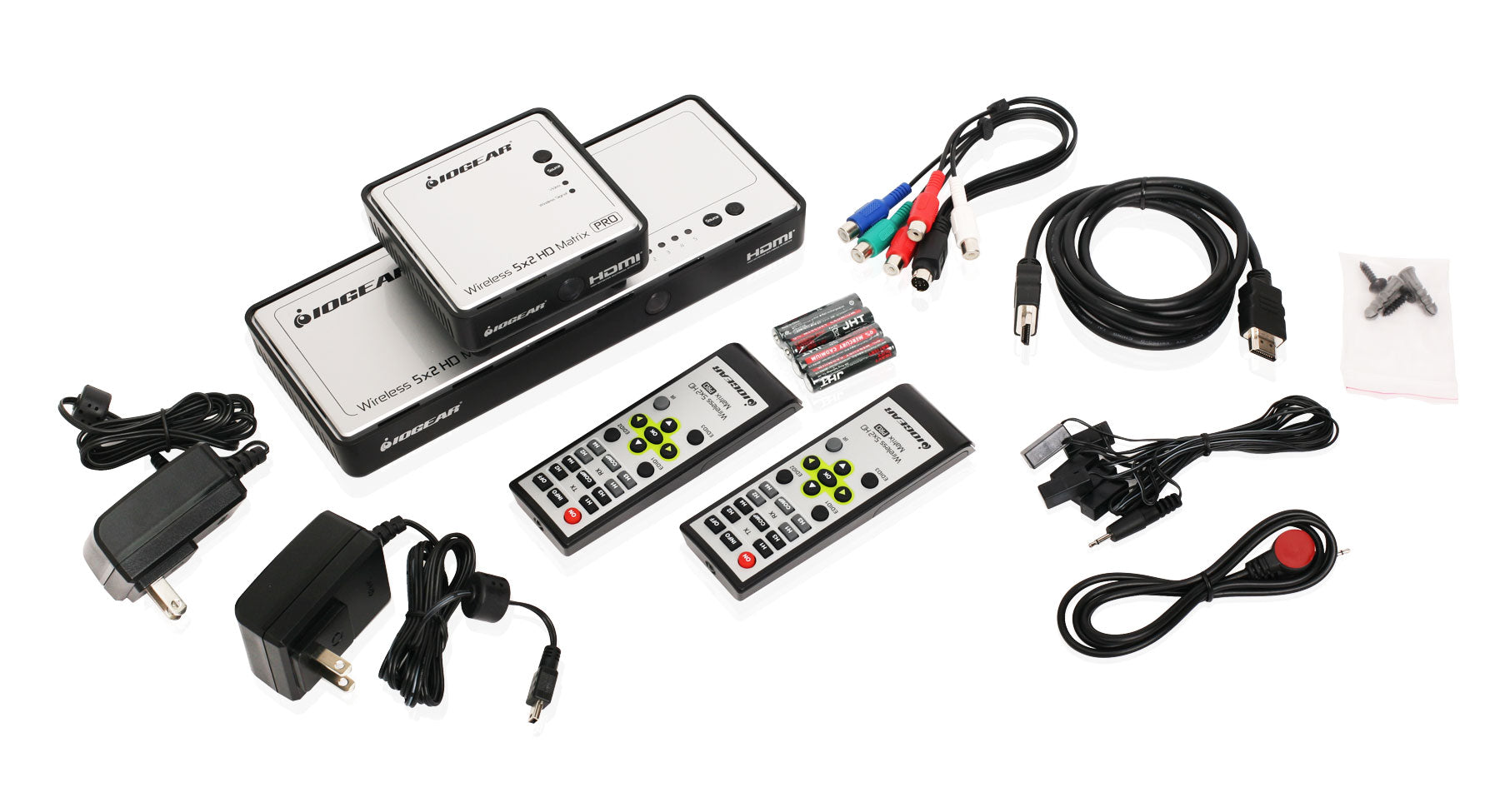

1 x Wireless Video ransmitter
1 x Wireless Video Receiver
2 x Remote Controls
1 x Component Adapter Cable
1 x IR Blaster Cable (Transmitter)
1 x IR Sensor Extender Cable (Receiver)
2 x Power Adapters
1 x HDMI Cable
4 x AAA Batteries
1 x User Manual
1 x Warranty Card

GWHDMS52MB Manual Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GWHDMS52MB
Connectors
Video Input	4 x HDMI Connectors, 1 x Component
Video Output	1 x HDMI Loop Through Connector (Transmitter), 1 x HDMI (Receiver)
Power	1 x Power Jack (Transmitter and Receiver)
Video Resolution	480p, 576p, 720p, 1080i, 1080p (24/30/60fps) and 3D Support
Video Streaming	<1ms Latency
Audio
Audio Output	Digital 6Mbps AC3 and DTS, Analog 48KHz and 24-bit per sample
Frequency	4.9 ~ 5.9GHz (Includes non-DFS and DFS Frequency Bands)
Antenna Type	High Performance Internal
Range	Maximum video transmission range is 200ft (60m)
Power Switch	1 x Push Button (Transmitter and Receiver)
LEDs
Power On	Green / Red LED (Transmitter and Receiver)
Link	Green LED (Transmitter and Receiver)
Input	5 x Green (Transmitter) 1 x Green (Receiver)
Power
Voltage	100~240v - 5V DC Jack (Transmitter), 5V DC mini USB (Receiver)
Amps	Transmitter: 2A, Receiver: 1.5A
Infrared
Frequency	3ft IR Extension Cable 38kHz, 47kHz & 56kHz
Operating Temperature	-32°F~104°F (0°C~40°C)
Housing
Case	Plastic
Cable Connections
Input	Receiver: 1 x IR Extension Input
Output	Transmitter: 1 x IR Output
Security	128-Bit AES Encryption
Warranty	1-Year

Dimensions	GWHDMS52MB
Unit Dimensions
Height	1.25" (3.18cm)
Length	9.50" (24.1cm)
Depth	3.88" (9.86cm)
Inner Pack
Height	9.38" (23.8cm)
Length	10.75" (27.3cm)
Width	11.25" (28.6cm)
Inner Pack Qty.	3
Unit Package Dimensions
Height	8.63" (21.9cm)
Width	10.81" (27.5cm)
Depth	3.38" (8.59cm)
Master Carton
Height	21.81" (55.4cm)
Width	19.88" (50.5cm)
Depth	12.19" (31.0cm)
Master Carton Qty.	12
Weight
Master Carton Wt.	43.95lb (19.94kg)
Inner Pack Wt.	10.35lb (4.70kg)
Unit Pack Wt.	3.20lb (1.46kg)
Unit Wt.	1.15lb (0.52kg)

1 Year Limited Warranty

Return policy info here.
