Wireless Video Extender

Long Range Wireless 4K HDMI® Video Transmitter and Receiver Kit with Local Passthrough

Up to 600ft. Range Wireless Console Extender Wireless HDMI Extender
MPN: GWLRSSKIT4K

UPC: 881317520685

Sale price$249.95

IOGEAR Long Range Wireless 4K Video Transmitter & Receiver Kit with Local Pass-through operates as a 1-to-1 4K Video HDMI® extender within to 600 ft. (182 meter) range® without sacrificing picture and sound quality, or IR control, making it ideal for outdoor TV setups. Alternatively, the kit can also provide a mid-range** multi-screen digital signage splitter for small businesses, houses of worship, education, or hospitality with up to four 4K screens for static graphic content. The kit also features a long-range wireless keyboard and mouse support effectively transforming any PC and HDMI screen into a long-range KVM controller.

Long Range Wireless 4K Expandable Extender Kit for Any AV Solution

IOGEAR Long Range Wireless 4K Video Transmitter & Receiver Kit with Local Pass-through operates as a 1-to-1 4K Video HDMI® extender within to 600 ft. (182 meter) range® without sacrificing picture and sound quality, or IR control, making it ideal for outdoor TV setups. Alternatively, the kit can also provide a mid-range** multi-screen digital signage splitter for small businesses, houses of worship, education, or hospitality with up to four 4K screens for static graphic content. The kit also features a long-range wireless keyboard and mouse support effectively transforming any PC and HDMI screen into a long-range KVM controller.

Multi-Screen Digital Signage: Perfect for Small Businesses or Restaurants

Easily display your signage without running cables and enjoy wireless flexibility by connecting up to four 4K screens as up to 600 ft.** From conference center displays showing events to showcasing restaurant menus, digital signage offers an attractive way to provide information, whether it is product demos, directions, announcements, emergency alerts, or any other messaging you need to convey. The Long Range Wireless 4K Video Transmitter & Receiver Kit with Local Pass-through provides an easy-to-deploy multi-screen setup for any small business, restaurant, hospitality, house of worship, or educational facility.

**Maximum range is approximately 600 feet using a single receiver. Each additional receiver (up to 4) reduces the effective range by 50%, so a 4-receiver system has a maximum range of about 75 feet.

Perfect for Outdoor TV Setups

Take the big game outside with the Long Range Wireless 4K Video Transmitter & Receiver Kit with Local Pass-through. Avoid the cost and mess of lengthy wire runs with up to 600 ft. wireless range and support for UHD TVs with 4K video. The kit is the ideal solution, as it allows you to "cut the cord" and the included IR repeater keeps your sources out of sight. The configuration possibilities and uses for this solution are endless. Setup your A/V equipment in a media closet and transmit wirelessly to your TVs in the living room, patio garage, or just about anywhere in your home.

Perfect for Office, Education, or House of Worship

Setup is hassle-free and does not require a Wi-Fi network or complicated security configurations. The included transmitter and receiver kit comes pre-paired and ready with wireless security enabled.

  • Wirelessly add a single 4K HDTV or display from up to 600 feet away, or add additional receivers up to a maximum of 4 displays*
  • Can be set up to be used in switch mode or splitter mode to support either 10 transmitters to one receiver (switch mode) or 1 transmitter to 4 receivers (splitter mode)
  • Mirror or extend laptop/PC screen or other HDMI source to a larger high-definition display or projector
  • Range up to 600 feet with a single receiver under optimal conditions, using built-in MIMO technology
  • Maximum 4K wireless resolution of 4096x2160@30Hz, and maximum 4K wired pass-through resolution of 4096x2160@60Hz for local monitor
  • IR extender allows control of video source from remote display
  • RS-232 port to extend control to end devices such as projector with RS-232 support
  • Remote Console feature provides 2 USB ports for keyboard and mouse, allowing user to remotely control a PC or laptop
  • Auxiliary audio input and output provide easy connection to externally amplified speakers or a remote amplifier
  • Supports most video sources with HDMI output resolutions from 640x480 to 4096x2160@60Hz
  • Supports HDCP 1.4


Note: Maximum range is reduced with each additional receiver added

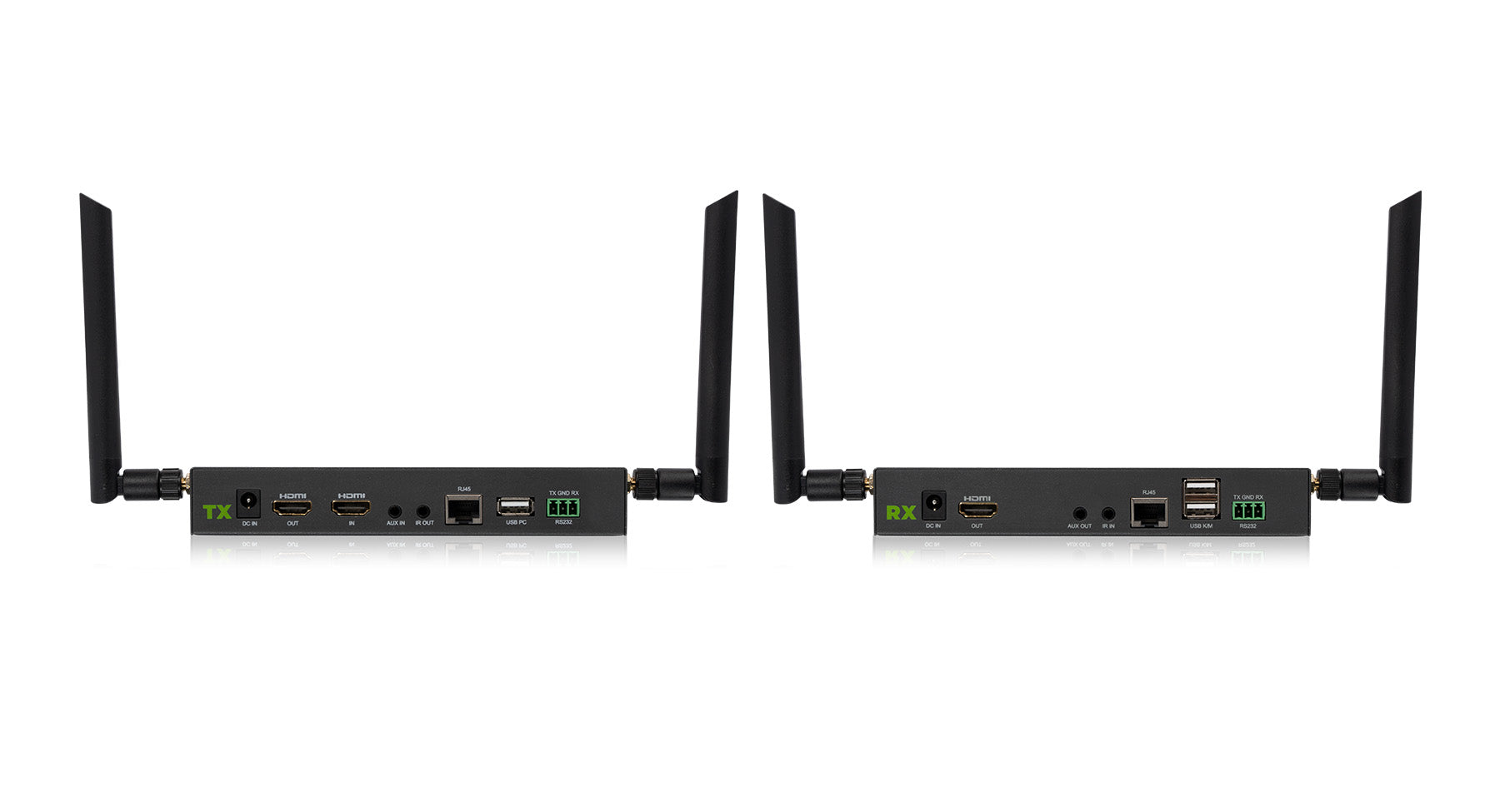

Source (Transmitter Side):

  • 1x HDMI Out
  • 1x USB-A (for Keyboard and Mouse)

Display (Receiver Side):

  • 1x HDMI In to Display
  • 1x USB-A Keyboard
  • 1x USB-A Mouse
  • 1 x Transmitter
  • 1 x Receiver
  • 2 x 12V/1A Power Supply
  • 4 x Antennas
  • 2 x Mounting Kits
  • 1 x IR Receiver Cable
  • 1 x IE Emitter Cable
  • 2 x HDMI Cables
  • 1 x USB-A Male to USB-A Male Cable
  • 1 x Quick Start Guide for Transmitter
  • 1 x Quick Start Guide for Receiver
  • 2 x Warranty Cards

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGWLRSSKIT4K
Connectors
Video InputTransmitter: 1 x HDMI Input; Receiver: 1 x HDMI Output
Video OutputTransmitter: 1 x HDMI Output (Local Pass-through); Receiver: 1 x HDMI Output
PowerTransmitter/Receiver: 1 x 12VDC Power Jack
RS-232Transmitter/Receiver: 1 x 3-Pin Block Connector
USB-ATransmitter: 1 x USB HID Input (for Mouse & Keyboard); Receiver: 2 x USB Input (for Mouse & Keyboard)
LinkTransmitter/Receiver: 3.5mm IR port
Video Resolution640 x 480 to 4K@30Hz
Video StreamingApprox. 3~6ms Latency
Audio
Audio OutputPCM Stereo
Frequency4.9 ~ 5.9GHz
Antenna Type5GHz High-Gain
RangeMaximum video transmission range is 600ft (182m)
Power Switch1 x Push Button (Transmitter and Receiver)
LEDs
Power OnGreen
LinkGreen
InputGreen
Power
Voltage100~240v - 12V DC Jack
Amps1A@12VDC
Infrared
FrequencyIR Emitter & Receiver: 38kHz, 47kHz & 56kHz
Operating Temperature-32°F~131°F (0°C~55°C)
Housing
CasePainted steel
Security
Warranty1-Year
DimensionsGWLRSSKIT4K
Unit Dimensions
Height1" (without antennas)
Length9.75"
Width2.50"
Unit Package Dimensions
Height5.9"
Length9.30"
Depth4.00"
Master Carton
Height14.25"
Length14.00"
Depth11.50"
Master Carton Qty.6
Weight
Master Carton Wt.23.55 lb
Unit Pack Wt.3.46 lb
Unit Wt.0.70 lb x 2
