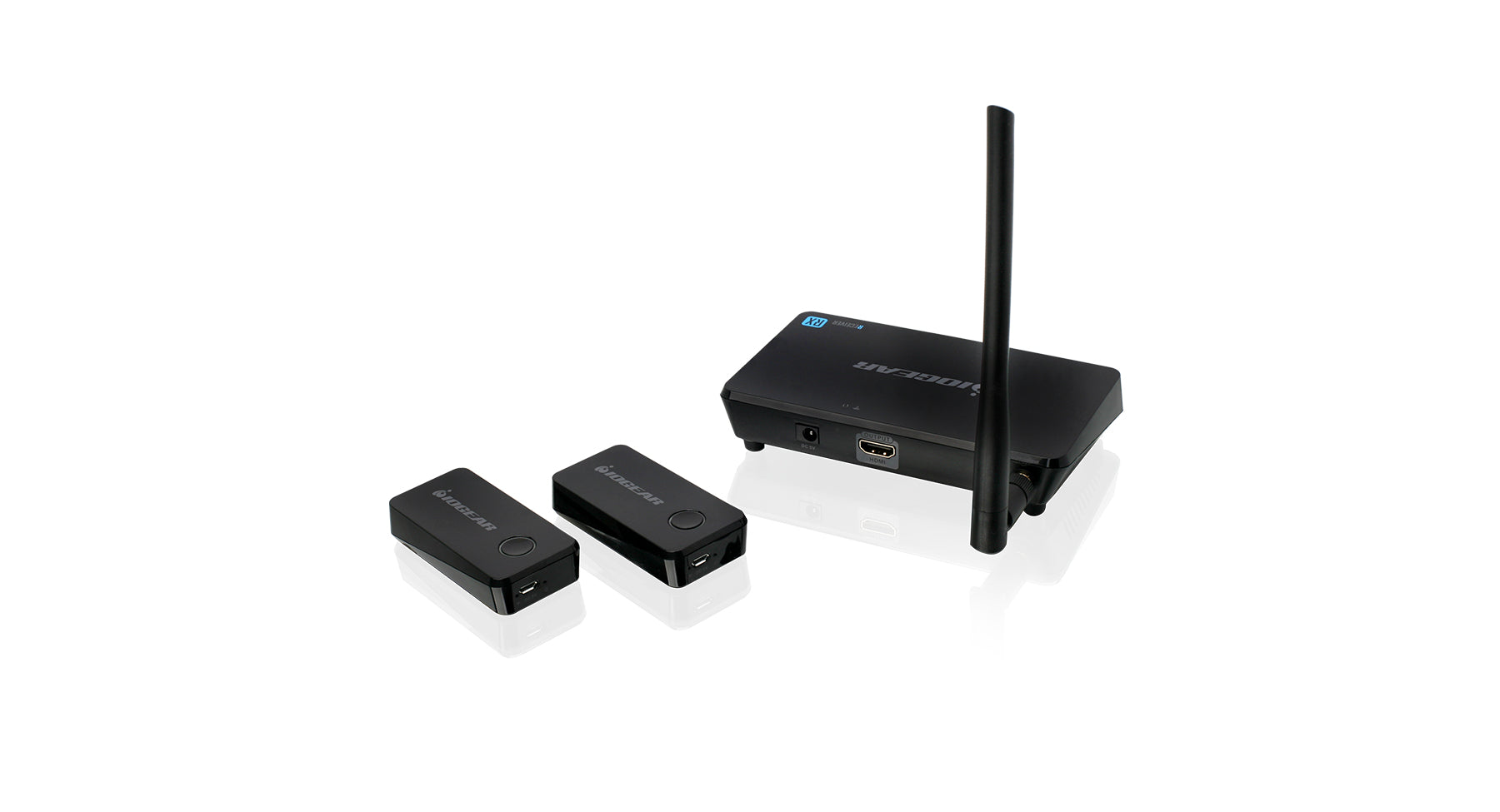

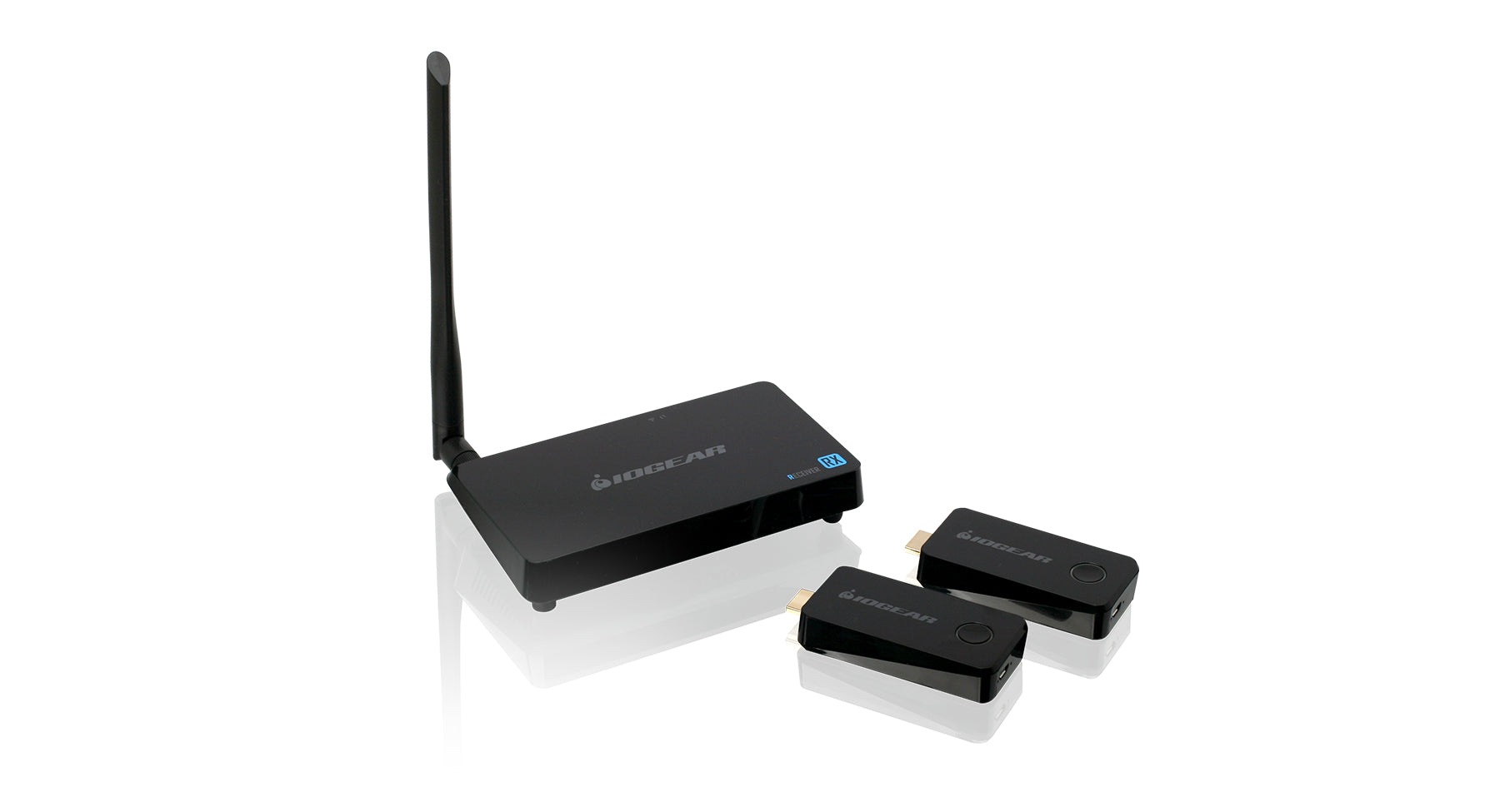

Share Pro Expandable Wireless Presentation System
UPC: 881317518828
Choose options
Present Your HD Content at the Push of a Button
IOGEAR's Share Pro™ Expandable Wireless Presentation System offers flexible, simple push-button wireless connectivity for multiple presenters, one at a time. Eliminate unsightly, cumbersome HDMI cable runs and bulky adapters to connect in meeting rooms and classrooms.
Share & Expand Your Presentation Capacity

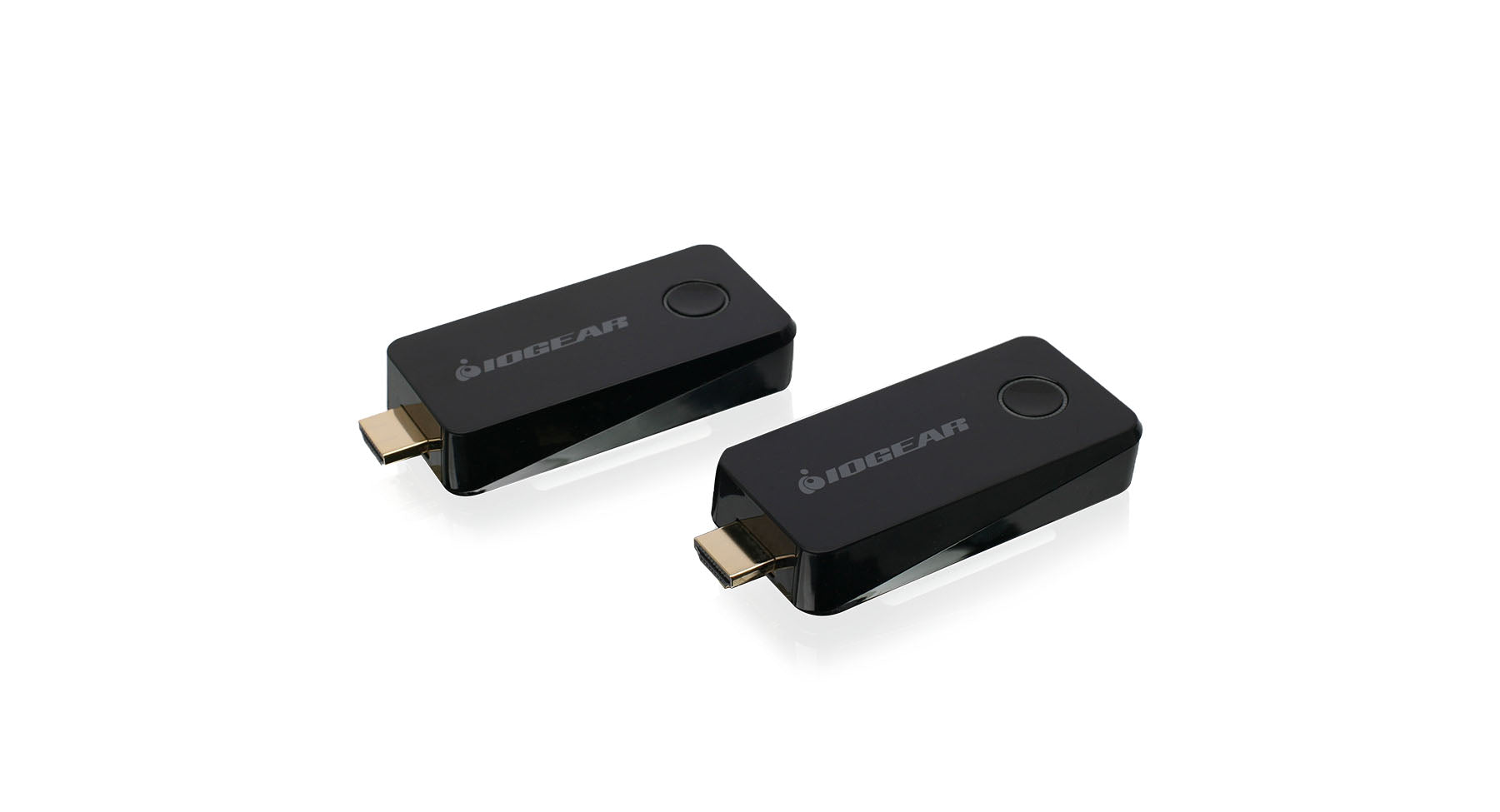

Share full HD content from an HDMI or USB-C*-enabled laptop or tablet to a larger in-room TV or display up to 120 feet away. Expand the system from two to 10 in-room presenters by adding a mix of either HDMI connector or USB-C* push-button transmitters for fast, effortless presentation viewing.
Simple, Straightforward Setup
Installation is fast and straightforward - simply connect the transmitter to your laptop, tablet or other AV source, attach the receiver to your TV, and in no time, you're ready to present! No software or network configuration is needed, making Share Pro quickly moved between conference or meeting rooms as your presentation needs dictate.
*USB-C push-button transmitter coming soon
Flexible, Advanced Wi-Fi Eliminates Cables
Do away with passing cumbersome HDMI wiring and any adapters from presenter to presenter with ultra-fast Wi-Fi speeds reaching to 5 Gbps and enjoy smooth video and rapid source switching. Quickly create a dedicated, secure AV network without utilizing an existing office wireless network.
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GWHD101KIT |
|---|---|
| Power Adapter | DC5V/2A |
| Power Consumption | TX: 2.5W RX:5W |
| Display Output | |
| HDMI | HDMI Connector |
| Video Resolution | 1080p |
| Audio | |
| Codec | PCM |
| Video Streaming | 4.95 Gbps |
| Signal Type | Input and output TMDS signal: 0.5?1.5Vp-p(TMDS) |
| WiFi | |
| Standard | 5.8 GHz |
| Power Management | |
| Safety Design | 1a Contact discharge level 3 |
| Operating Range | 120 ft. |
| Environment | |
| Operation Temperature | 0° - 122° F |
| Storage Temperature | - 4°~158ºF |
| Humidity | 0-90% |
| Warranty | 1-Year Limited |
| LEDs | |
| Power On | TX RX |
| Link | TX RX |
| Dimensions | GWHD101KIT |
|---|---|
| Unit Dimensions | |
| Height | TX 0.625" RX 0.75" |
| Length | TX 3" RX 5.625" |
| Depth | TX 1.50" RX 3.125" |
| Unit Package Dimensions | |
| Height | 7.50" |
| Length | 6" |
| Depth | 3.25" |
| Master Carton | |
| Height | 8.66" |
| Width | 12.59" |
| Depth | 10.43" |
| Master Carton Qty. | 6 |
| Weight | |
| Master Carton Wt. | 11.46 lb |
| Unit Pack Wt. | 1.82 lb |
| Unit Wt. | TX 0.25 lb RX (x2) 0.075 lb |
