1U 19" Horizontal Cable Management Duct

Name: 1U 19" Horizontal Cable Management Duct
Brand: IOGEAR
SKU: GROHD1U
Price: 27.95 USD
Availability: InStock

1U Height Rack Accessory TAA Compliant

MPN: GROHD1U

UPC: 881317522184

$27.95

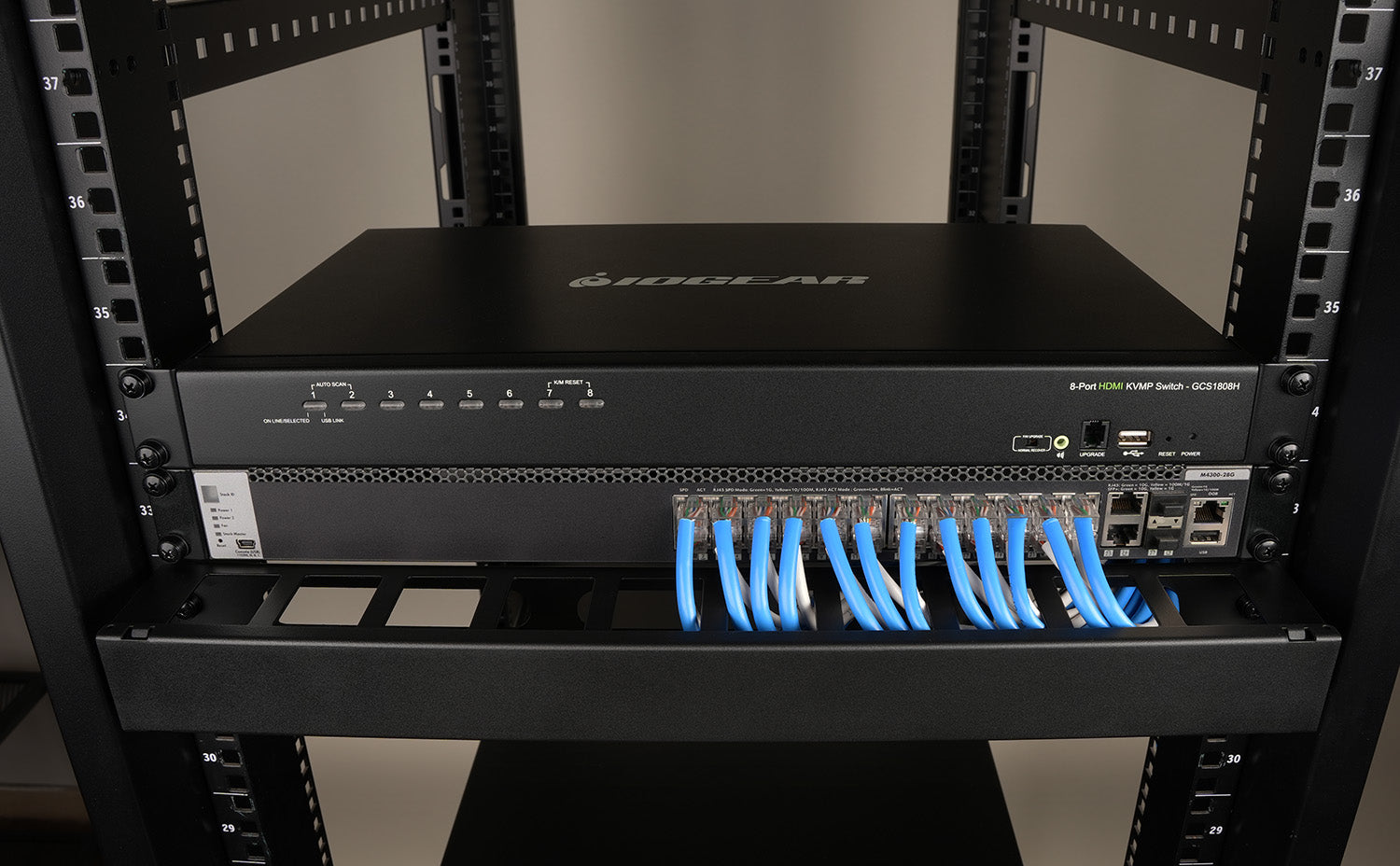

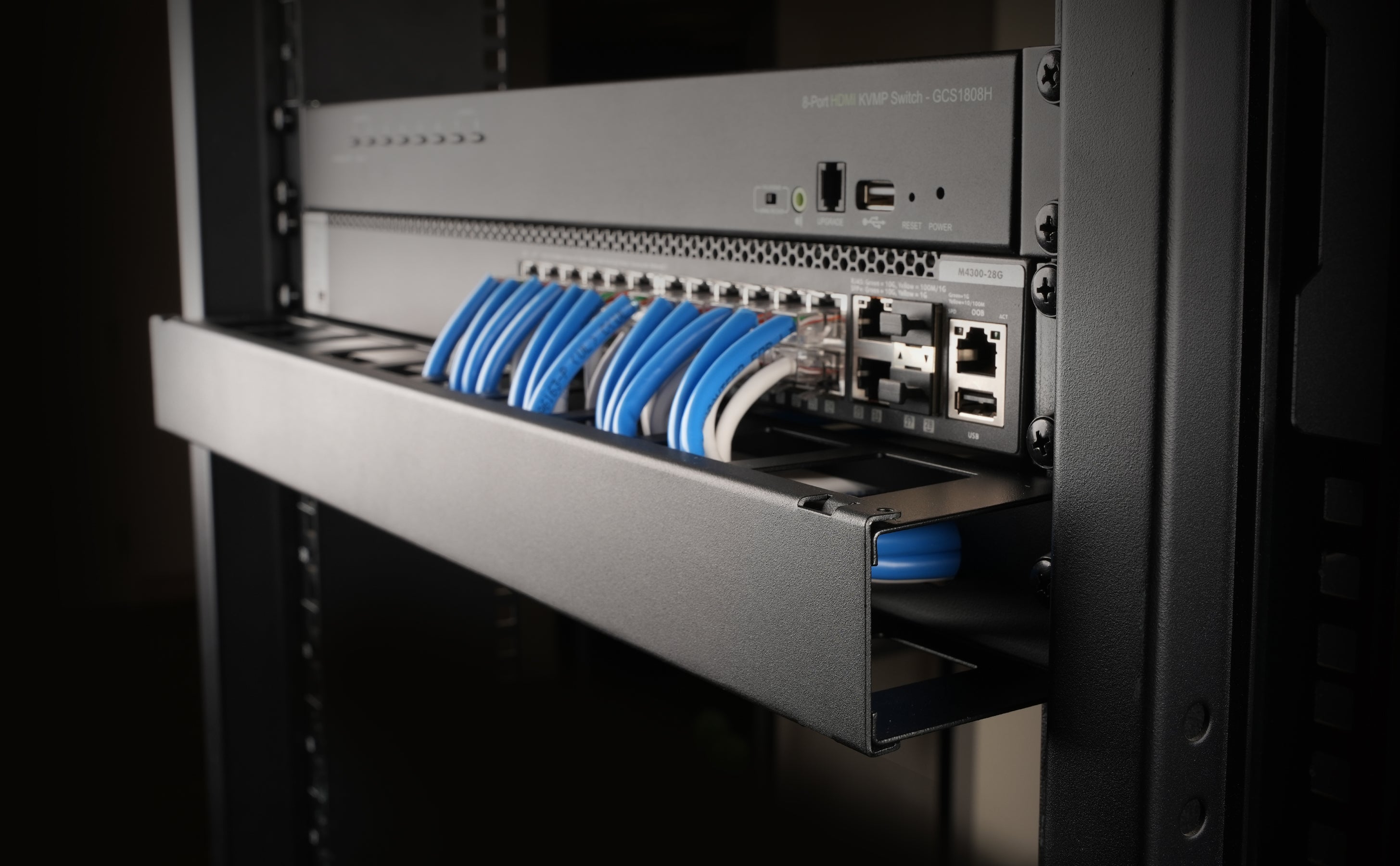

The GROHD1U 1U 19" Horizontal Cable Management Duct offers a secure and organized solution for routing cables within a rack. Mounting ears ensure stable attachment, while a removable duct cover with secure latches protects cables and allows for easy access during installation or upgrades.

1U 19" Horizontal Cable Management Duct

$27.95

Removable Duct Cover

The removable duct cover features secure latches on each corner. This keeps the cover firmly in place, protects cables, and provides easy access for installations or upgrades.

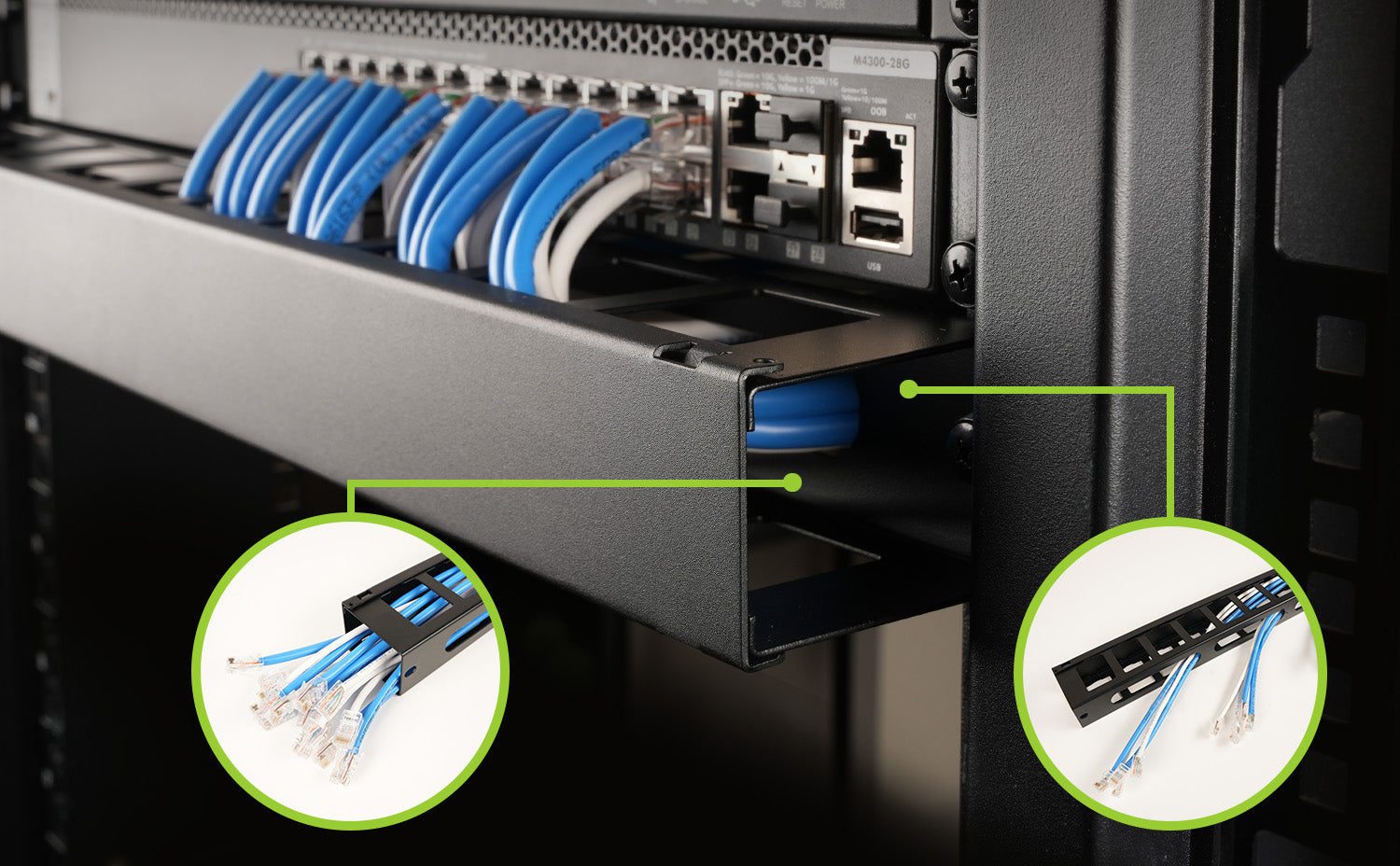

Cable Management Fingers

Allows for cables to be inserted and held precisely where they are needed, reducing cable strain and ensuring perfect routing.

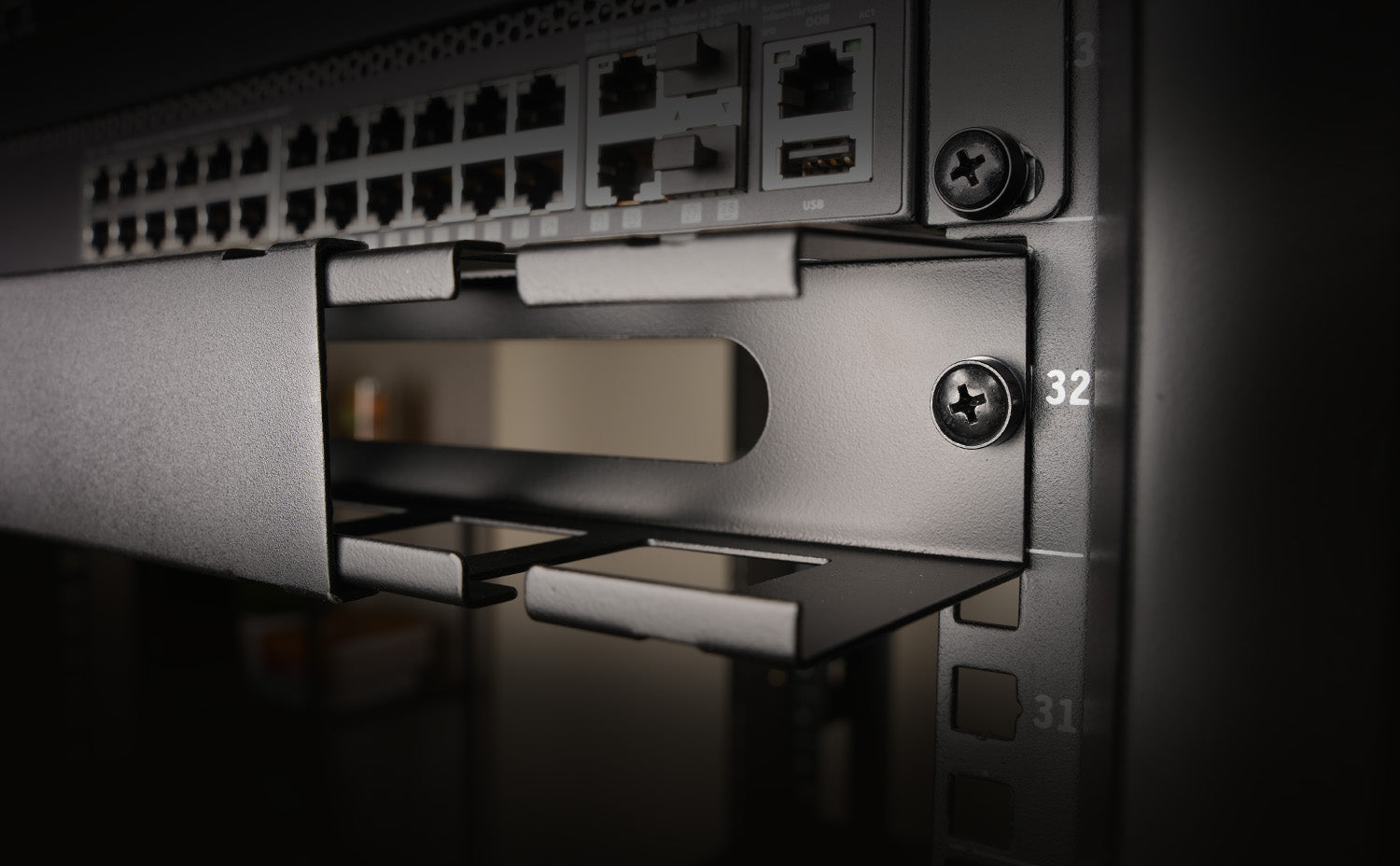

Cable Path with Rear Access

The cable path allows the inserted cables to run to the rear or side of the duct.

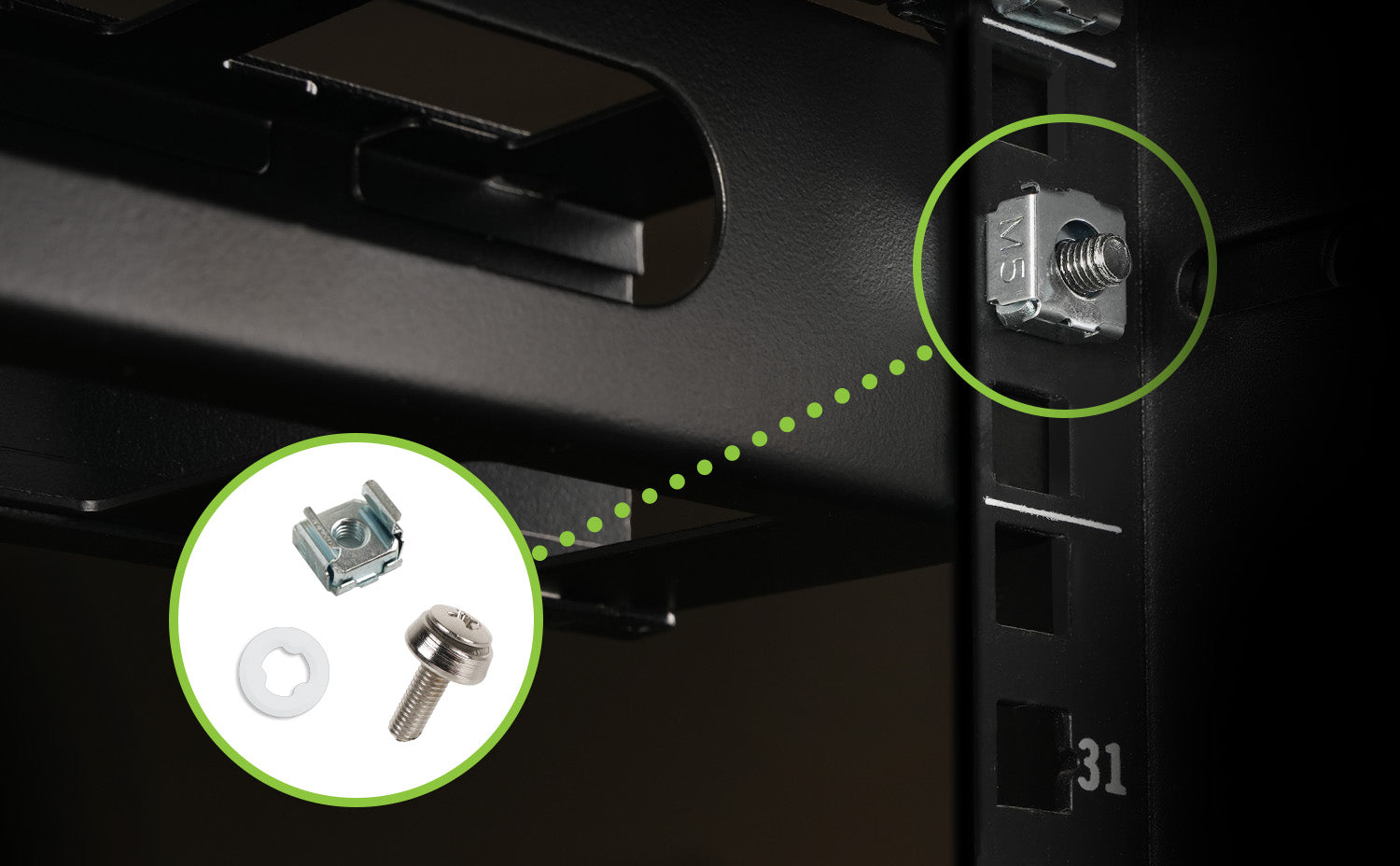

Rack Mounting Equipment

Rack Mounting Equipment
For secure installation of the cable management duct, 2x M5 cage nuts and 2x M5 16mm Screws are included.

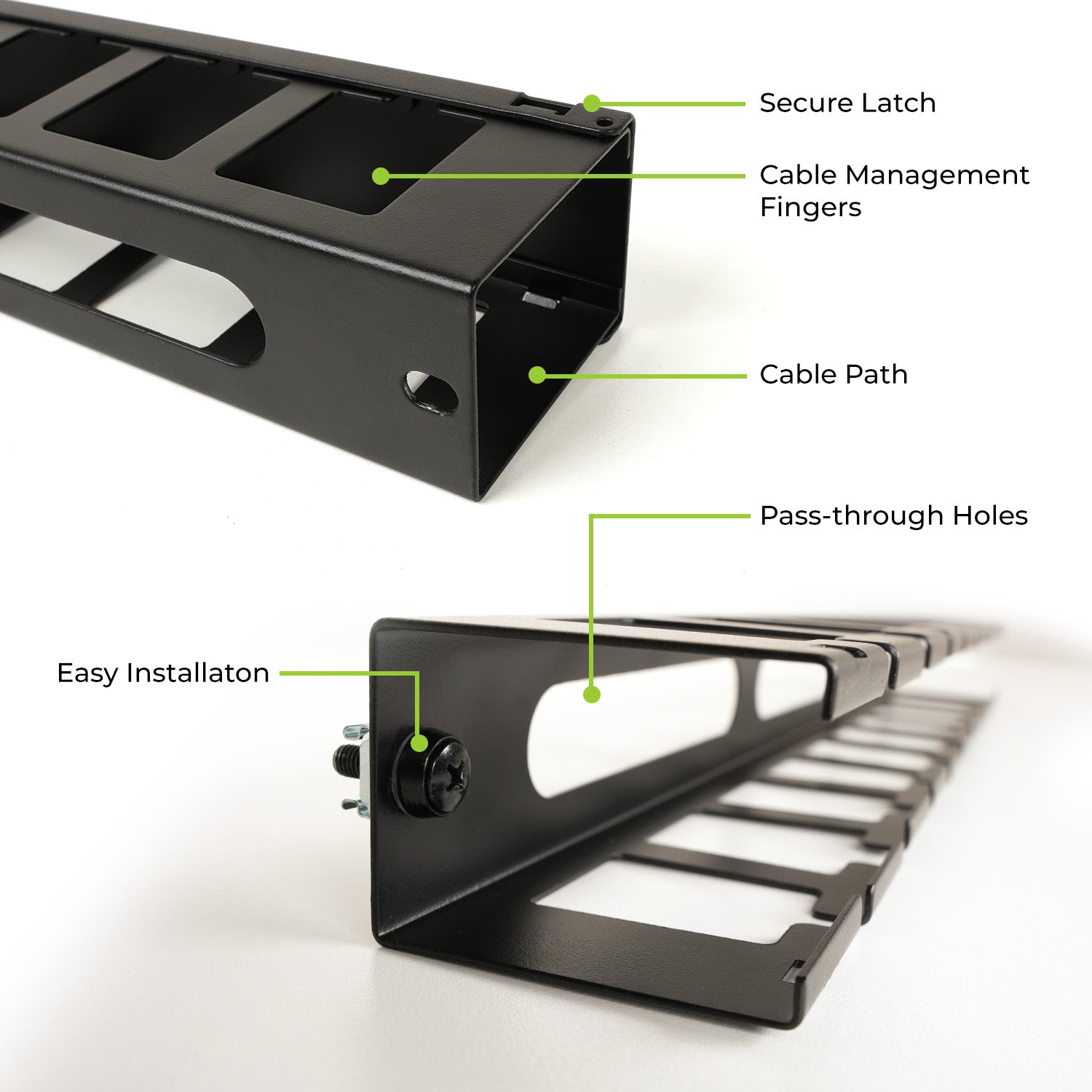

Duct cover to keep cables out of the way and can be removed for installation or upgrades.
Cable management fingers allow cables to be inserted and held in place.
Duct cover latches on each corner of the panel have a latching mechanism that keeps the cover in place.
Cable path allow the inserted cables to run off to the side of the duct.
Pass-through holes to insert the cables through the rear of the duct.

Mounting to Square Cage Holes:

The included M5 cage nuts will be needed along with the M5 Screws and washers.

Mounting to M5 Threaded Holes:

No cages nuts are needed. Only M5 screws and washers
are needed.

1 x Horizontal Cable Duct
2 x M5 Screws (Silver)
2 x Cage Nuts
2 x Washers
1 x Quick-Start Guide

GROHD1U Quick Start Guide Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GROHD1U
Housing
Case	Metal

Dimensions	GROHD1U

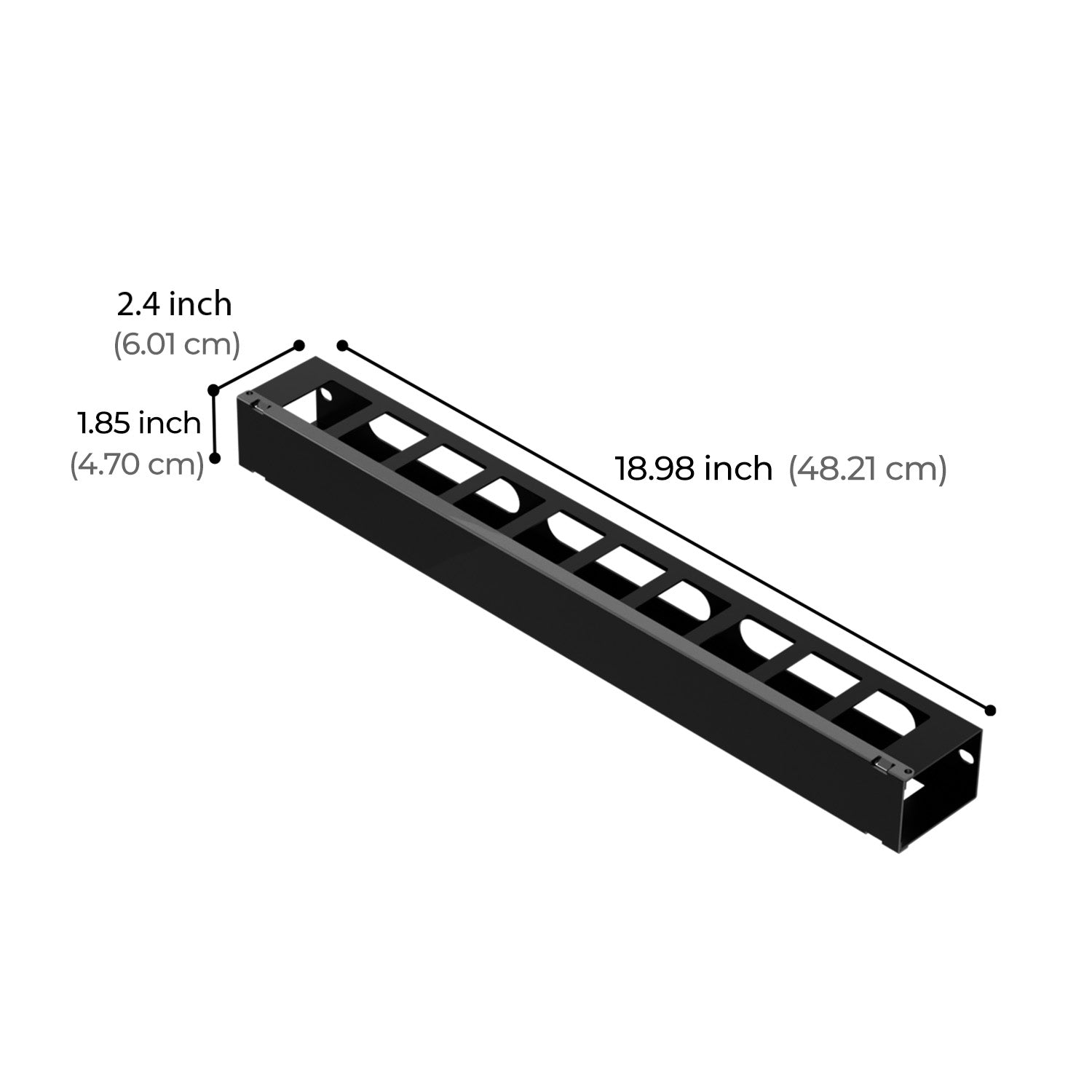

Unit Dimensions
Height	1.8" (4.6cm)
Length	19" (48.3cm)
Width	2.8" (7.1cm)
Unit Package Dimensions
Height	2.6" (6.6cm)
Width	3.4" (8.6cm)
Depth	22.4" (56.9cm)
Master Carton
Height	2.6" (6.6cm)
Width	3.4" (8.6cm)
Depth	22.4" (56.9cm)
Master Carton Qty.	1
Weight
Master Carton Wt.	1.9lb (.9kg)
Unit Pack Wt.	1.9lb (.9kg)
Unit Wt.	1.6lb (.7kg)

3 Year Limited Warranty
