8-Port USB HDMI KVM Switch with Audio (TAA)
UPC: 881317518378
Choose options

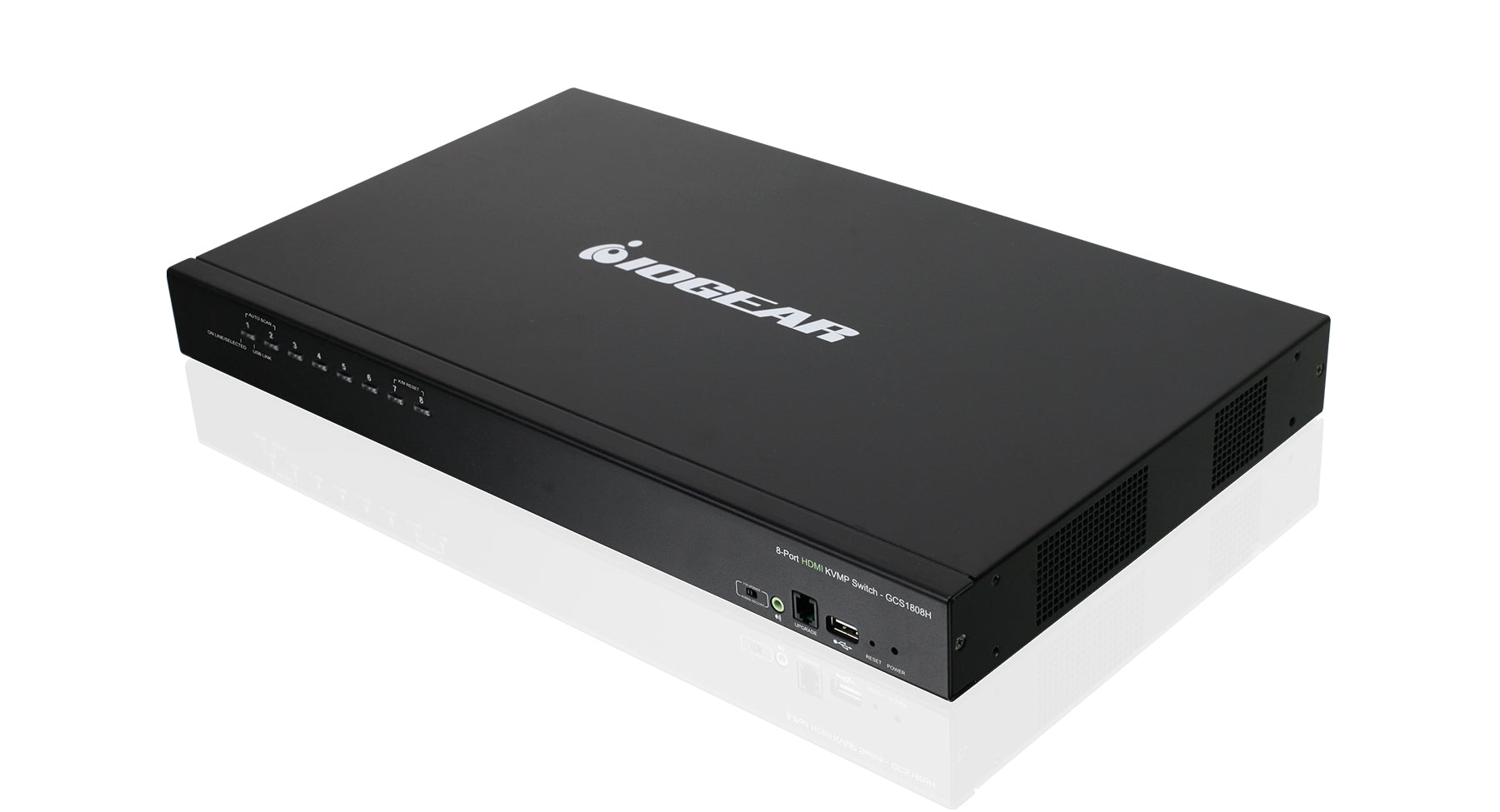

8-Port HDMI KVMP Switch
IOGEAR's 8-port USB HDMI KVMP Switch allows you to control and access up to 8 computers from a single USB keyboard, USB mouse, and an HDMI monitor console. Experience high-definition video resolution to 1080p (1920 x 1200) while sharing USB 2.0 peripherals and listening to 2.1 stereo surround sound.
Expanded Connectivity
IOGEAR's 8-Port USB HDMI KVMP Switch is designed to control up to 512 computers by cascading three levels of the GCS1808H. The built-in USB 2.0 hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can easily broadcast messages, announcements, firmware updates, or notifications to all connected sources.
EDID Support
IOGEAR's Video DynaSync™ technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between or booting computers.
Simple Switching Methods
Easily switch between connected computers by either manually pressing the front panel pushbuttons, entering hotkey combinations from the keyboard, or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices.
2.1 Surround Sound
This 8-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers.
*IOGEAR's DynaSync provides the EDID support for Windows 7
Multi-Display Setup
Enhance productivity and view all connected sources on up to eight displays by stacking eight (8) IOGEAR GCS1808H together.
- Controls up to 8 HDMI® sources while sharing 2 additional USB 2.0 devices
- Supports up to 1080p (1920 x 1200) HD video resolution
- Cascade up to 3 levels1 - Control up to 512 computers from a single console
- Features 2 built-in USB 2.0 ports 2 for USB peripheral sharing
- Multi-display feature allows viewing of up to 8 monitors when stacking up to (8) GCS1808H together
- Independent KVM and USB focus switching
- Password protection security for On-Screen Display (OSD)
- OSD Backup/Restore configuration and user profile information
- Broadcast Mode sends commands to all connected computers
- Auto Scan Mode monitors connected computers
- HDMI input connectors equipped with screw lock for secure connection
- Rack mountable in a 19" (1U) system rack
- Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®
- Easy-to-operate computer selection via front panel LEDs, intuitive multi-lingual OSD, and hotkeys
- Video DynaSync3 - An exclusive IOGEAR technology, optimizes resolution when booting-up or switching between ports
- Console mouse port emulation & bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation provides error-free booting
- Mac/Sun keyboard support and emulation4
- Multilingual OSD supports English, German, Japanese, Chinese, Spanish, Russian, and French
- Multilingual keyboard mapping supports English (US), English (UK), German, Japanese, Traditional Chinese, Spanish, Korean, and French
- HDCP compatible
- Firmware upgradable
1Cascades only with another GCS1808H for control over 512 computers
2The built-in USB 2.0 hub cannot be accessed from sources on the second or third level of a cascaded installation
3IOGEAR's DynaSync Display Emulation Technology provides the DDC support for Windows® 7
4PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own OS
- Console:
- HDMI display
- Standard 104 key wired USB keyboard
- Standard 2 or 3 button wired USB mouse
- Speakers (optional)
- Source devices:
- HDMI output
- USB Type-A port
- Speaker ports (optional)
- Operating Systems:
- Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
- Mac OS 9 to 10.x
- Oracle® Solaris
- Linux®, Unix and other USB supported systems1
1Additional drivers and support may be needed

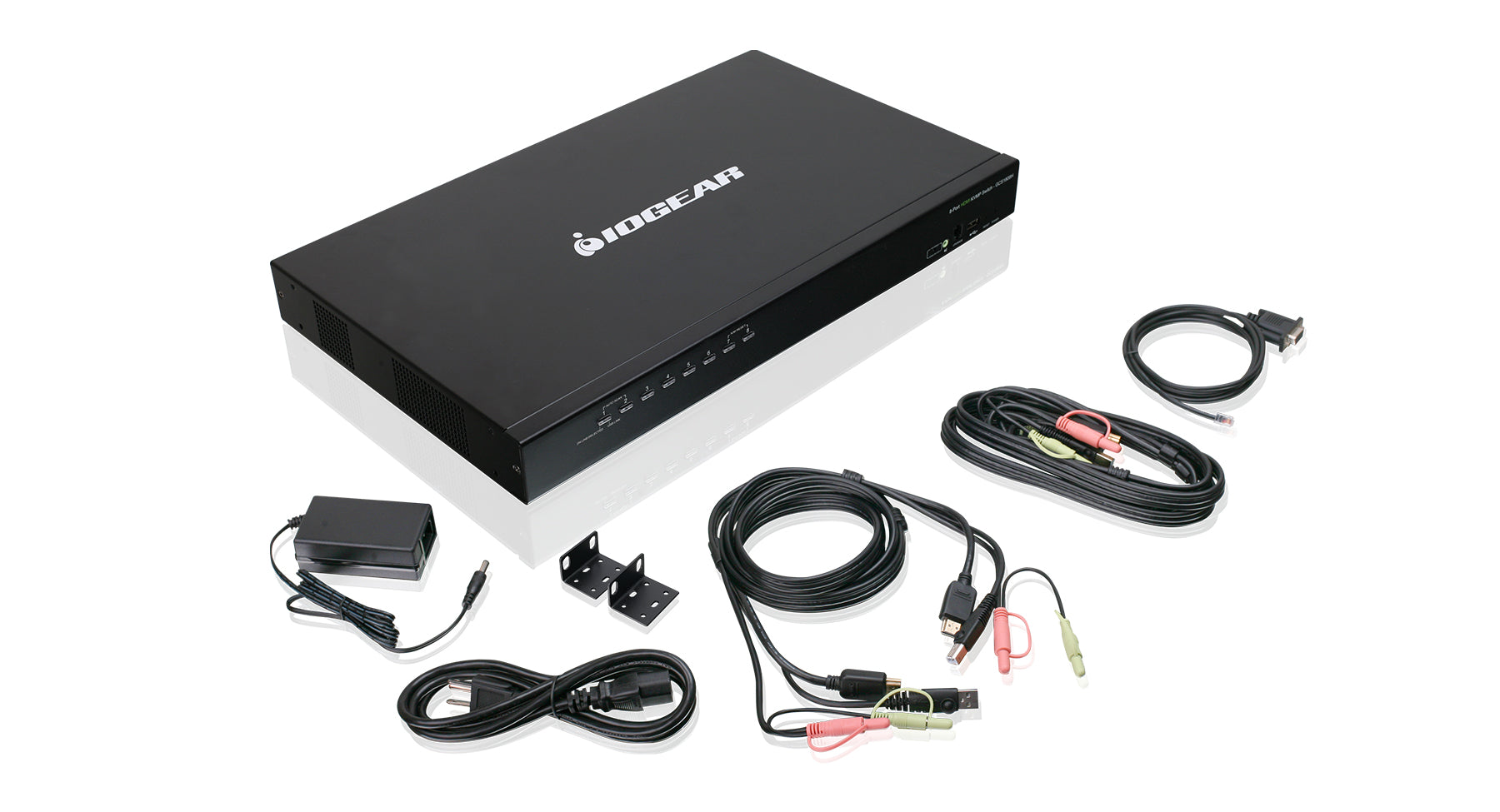

- 1 x 8-port USB HDMI KVMP Switch
- 2 x Custom 6ft USB HDMI KVM Cable Sets
- 1 x Firmware Upgrade Cable
- 1 x Power Adapter
- 1 x Foot Pad Set (4 pcs)
- 1 x Quick Start Guide
- 1 x Rack Mounting Kit
Need more help with this product? Visit IOGEAR Knowledge Base
| Function | GCS1808H |
|---|---|
| Computer Connections | |
| Direct | 8 |
| Daisy Chain or Cascading | 512 (via Cascade) |
| Port Selection | OSD, Hotkey, LED Pushbutton |
| Console Connectors | |
| Monitor | 1 x HDMI Female |
| Keyboard | 1 x USB Type-A Female |
| Mouse | 1 x USB Type-A Female |
| Audio | 2 x 3.5mm Stereo Jack Female (1 x Front Panel; 1 x Rear Panel) |

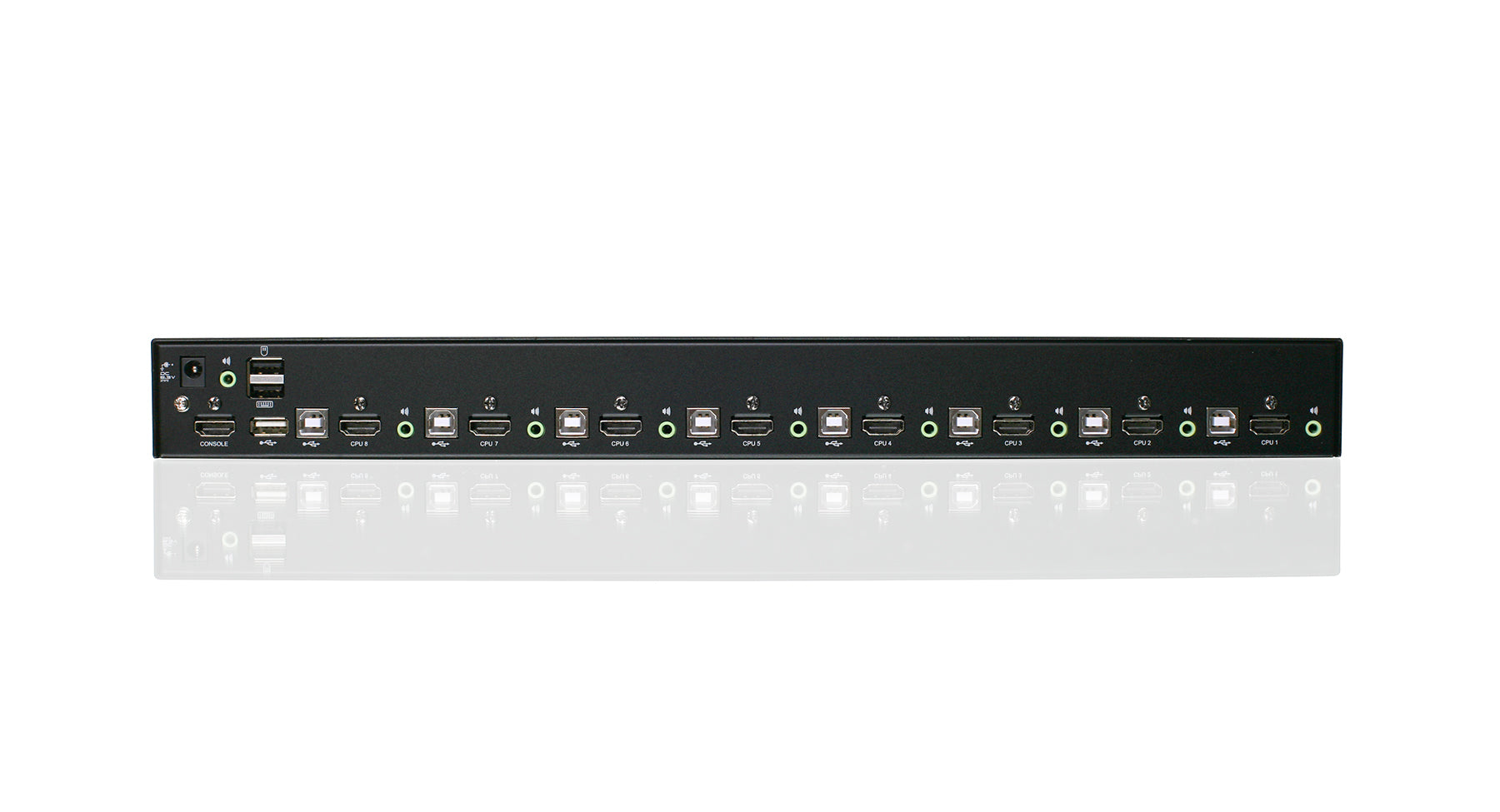

| CPU Connectors | |
| Monitor | 8 x HDMI Female |
| Keyboard & Mouse | 8 x USB Type-B Female |
| Audio | 8 x 3.5mm Stereo Jack Female |
| Switches | |
| F/W Upgrade | 1 x Slide Switch (Front Panel) |

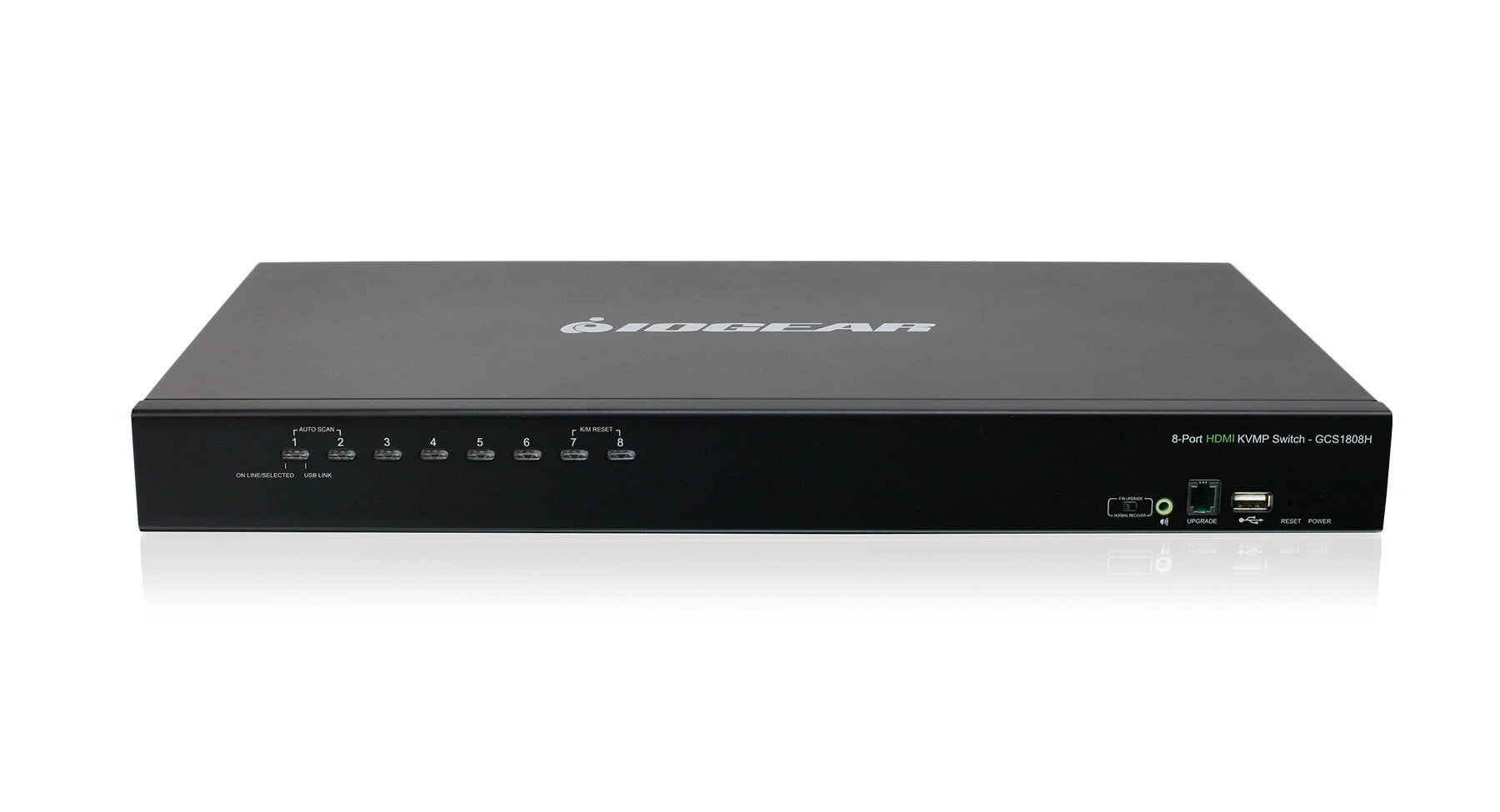

| Port Selection | 8 x LED Pushbutton (Front Panel) |
| Connectors | |
| Power | 1 x DC Jack |
| USB | 2 x USB 2.0 Type-A Female (1 x Front Panel; 1 x Rear Panel) |
| LEDs | |
| USB Peripherals | 8 (Green) |
| On Line | 8 (Orange) |
| Power On | 1 (Dark Green) |
| Emulation | |
| Keyboard | USB |
| Mouse | USB |
| Video Resolution | 480i, 480p, 720p, 1080i, and 1080p (HDTV) / 1920 x 1200 @60Hz |
| Scan Interval | 1 - 255 Seconds (Default: 5 sec) |
| Power Consumption | DC 5.0V; 12.2W |
| Environment | |
| Operation Temperature | 0 - 50C |
| Storage Temperature | -20 - 60C |
| Humidity | 0 - 80% RH; Non-condensing |
| Housing | |
| Case | Metal |
| Cable Length | 2 x 6 feet custom USB HDMI KVM cable |
| Dimensions | GCS1808H |
|---|---|
| Unit Dimensions | |
| Height | 1.75" (4.45cm) |
| Length | 17" (43.18cm) |
| Depth | 10" (25.4cm) |
| Unit Package Dimensions | |
| Height | 12.75" (32.39cm) |
| Width | 19.75" (50.17cm) |
| Depth | 5.25" (13.3cm) |
| Master Carton | |
| Height | 14" (35.56cm) |
| Width | 20.5" (52cm) |
| Depth | 17" (43.18cm) |
| Master Carton Qty. | 3 |
| Weight | |
| Master Carton Wt. | 34.7lb (15.8kg) |
| Unit Pack Wt. | 11.4lb (5.18kg) |
| Unit Wt. | 7.75lb (3.52kg) |
