16-Port USB HDMI KVMP Switch with USB Cable Sets (TAA)

16 Port Rackmount KVMs

16-Port USB HDMI KVMP Switch with USB Cable Sets (TAA)

Name: 16-Port USB HDMI KVMP Switch with USB Cable Sets (TAA)
Brand: IOGear
SKU: GCS1816HKITU
Price: 1999.95 USD
Availability: InStock

16-Port HDMI TAA Compliant

MPN: GCS1816HKITU

UPC: 881317518651

$1,999.95

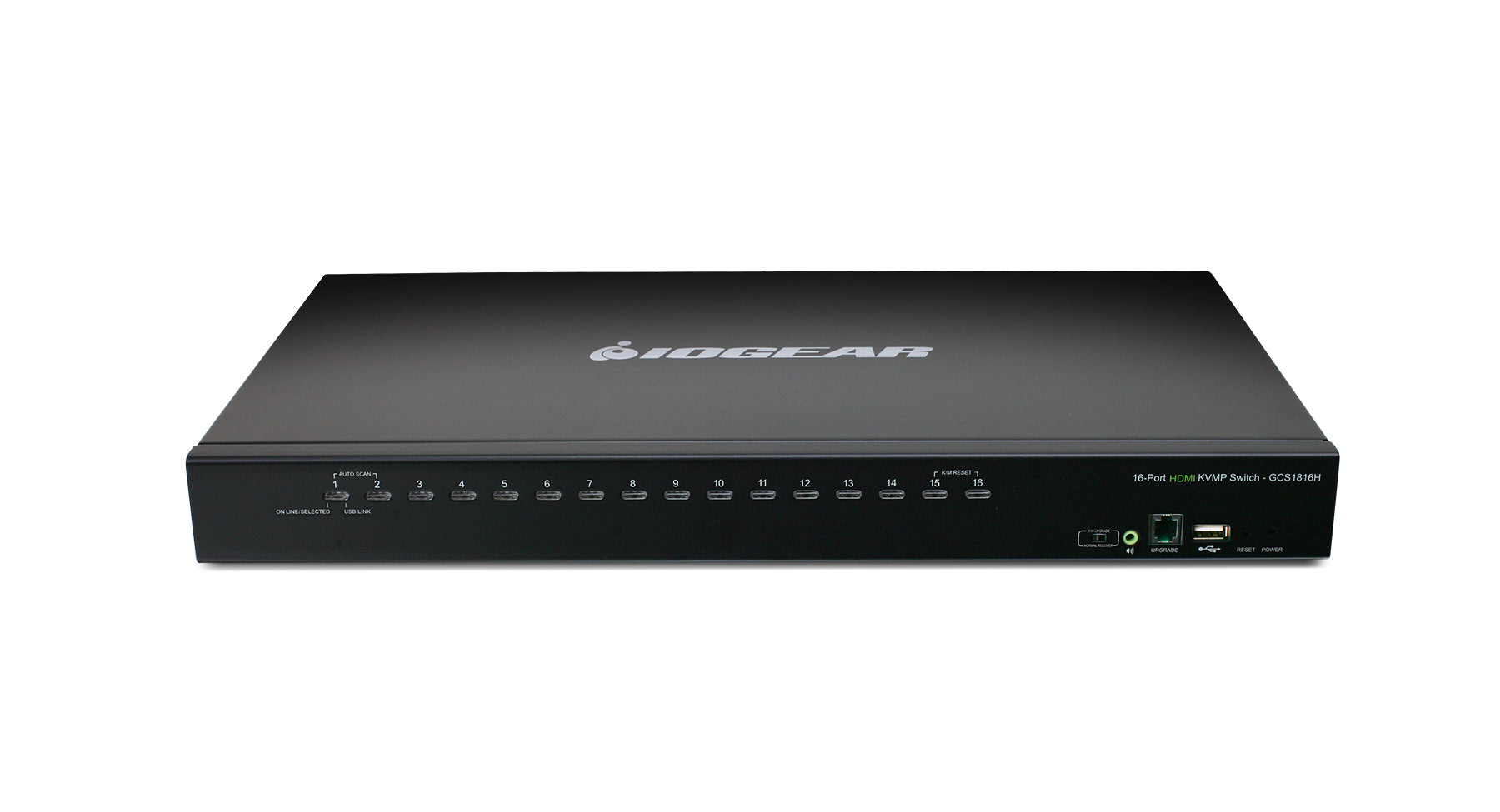

IOGEAR's 16-port USB HDMI KVMP Switch with USB Cable Set allows you to control and access up to 16 computers from a single USB keyboard, USB mouse, and an HDMI monitor console. Using the included USB cables, experience high-definition video resolution to 1080p (1920 x 1200) while sharing USB 2.0 peripherals and listening to 2.1 stereo surround sound.

16-Port USB HDMI KVMP Switch with USB Cable Sets (TAA)

$1,999.95

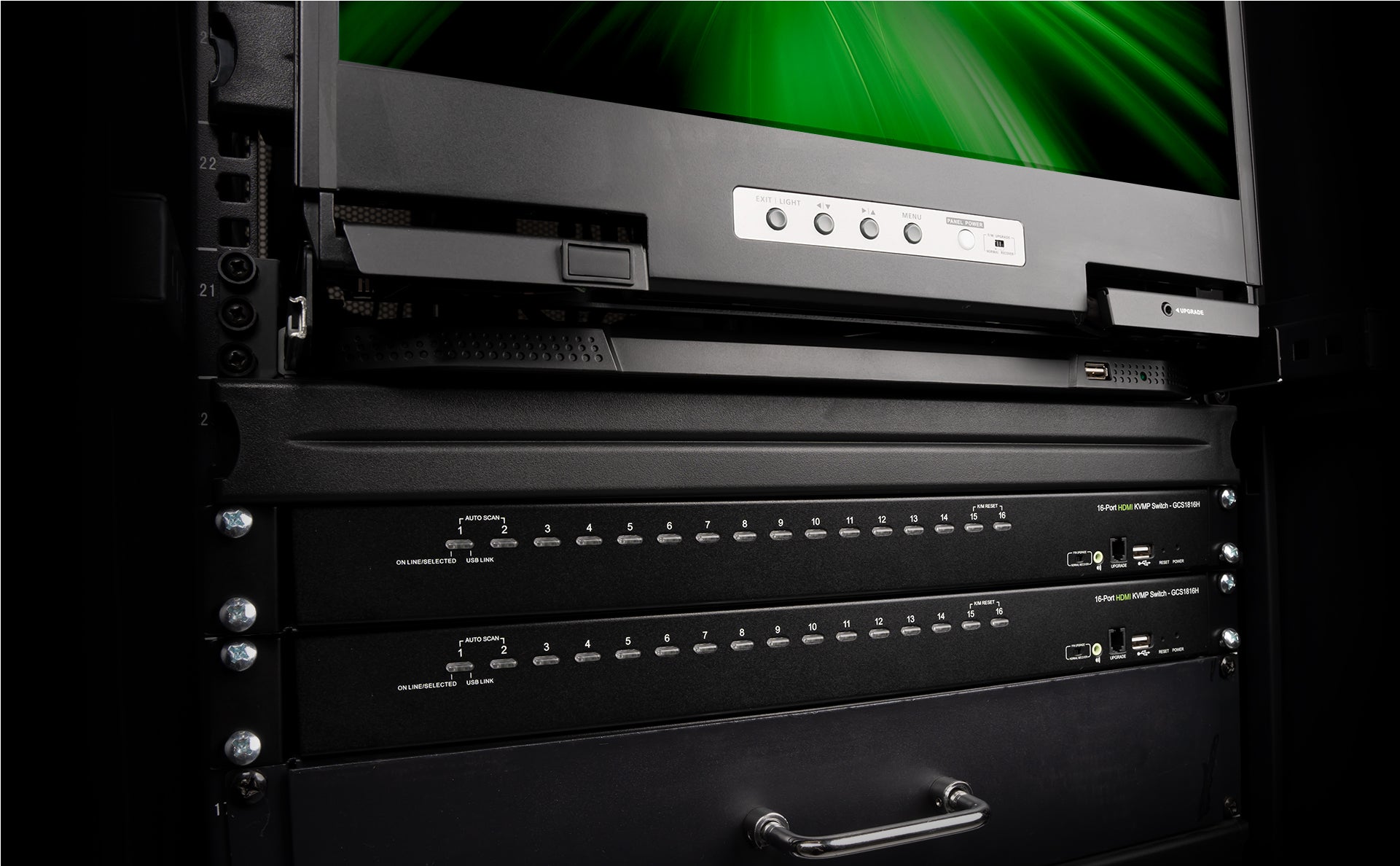

Expanded Connectivity

IOGEAR's 16-Port USB HDMI KVMP Switch is designed to control up to 256 computers by cascading two levels of the GCS1816H. The built-in USB 2.0 hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can easily broadcast messages, announcements, firmware updates, or notifications to all connected sources.

EDID Support

IOGEAR's Video DynaSync™ technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between or booting computers.

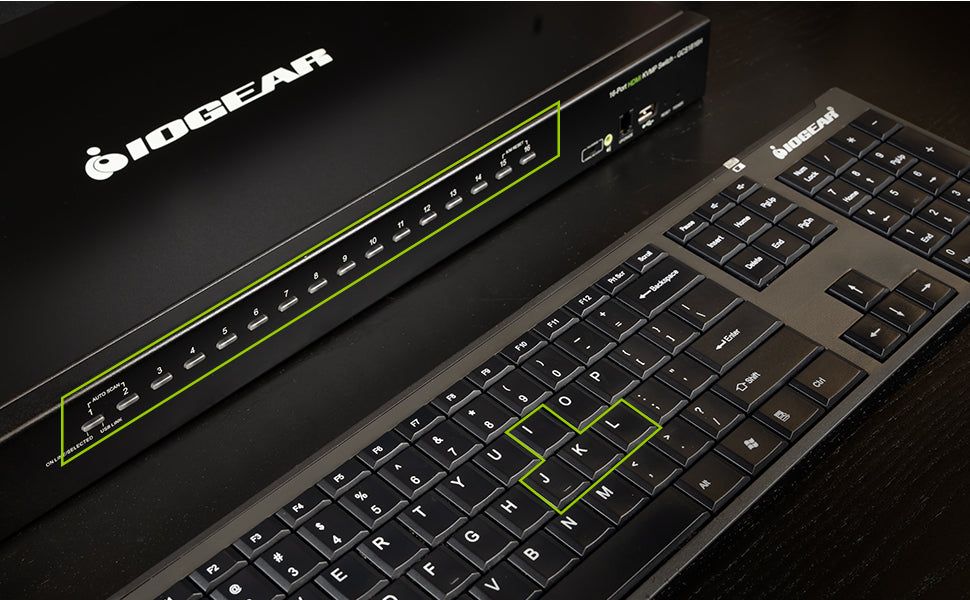

Simple Switching Methods

Easily switch between connected computers by either manually pressing the front panel pushbuttons, entering hotkey combinations from the keyboard, or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices.

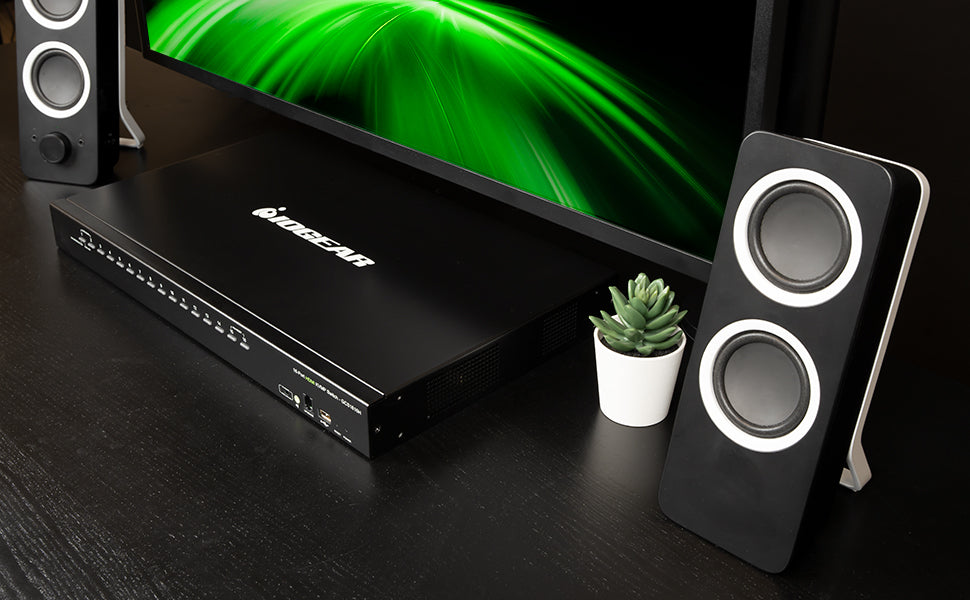

2.1 Surround Sound

This 16-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers.

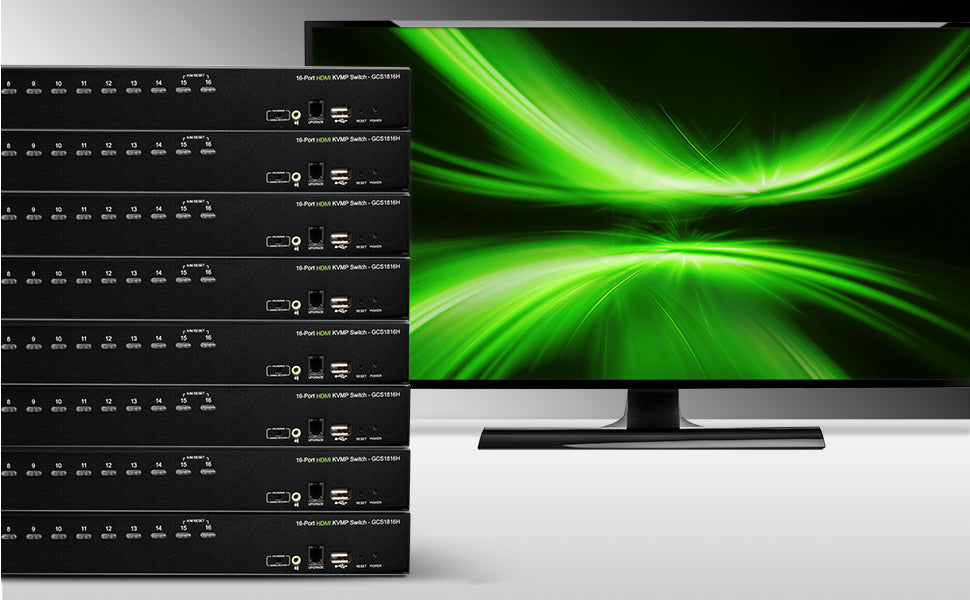

Multi-Display Setup

Enhance productivity and view all connected sources on up to eight displays by stacking eight (8) IOGEAR GCS1816H together.

Controls up to 16 HDMI® sources while sharing 2 additional USB 2.0 devices
Supports up to 1080p (1920 x 1200) HD video resolution
Cascade up to 2 levels¹ - control up to 256 computers from a single console
Features 2 built-in USB 2.0 ports ² for USB peripheral sharing
Multi-display feature allows viewing of up to 8 monitors when stacking up to (8) GCS1816H together
Independent KVM and USB focus switching
Supports 2 level password protection security for On-Screen Display (OSD)
OSD Backup/Restore configuration and user profile information
Broadcast Mode sends commands to all connected computers
Auto Scan Mode monitors connected computers
HDMI input connectors equipped with screw lock for secure connection

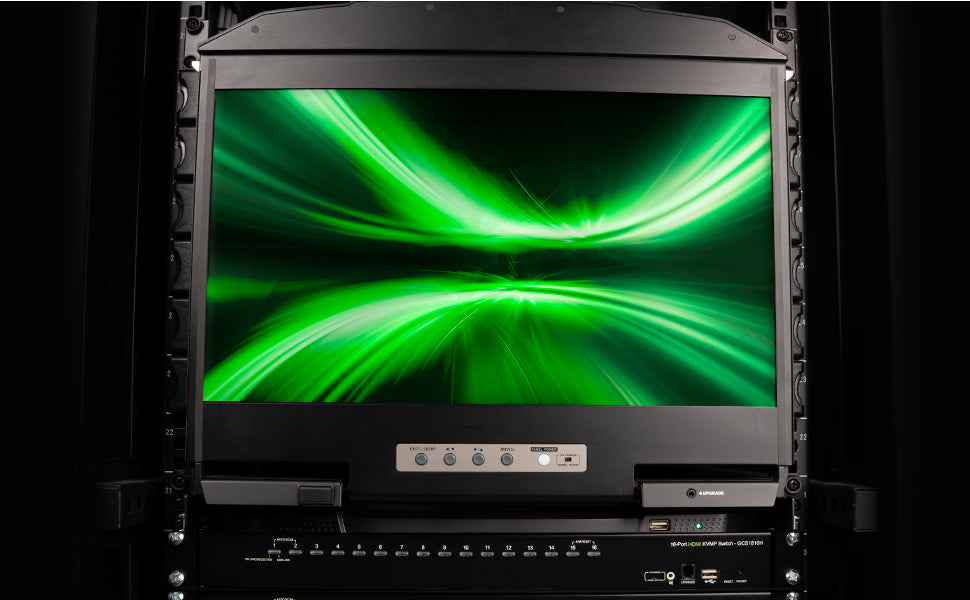

Rack mountable in a 19" (1U) system rack
Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®
Easy-to-operate computer selection via front panel LEDs, intuitive multi-lingual On-Screen Display (OSD), and hotkeys
Video DynaSync³ - An exclusive IOGEAR technology, optimizes resolution when booting-up or switching between ports
Console mouse port emulation & bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation⁴
Multilingual OSD supports English, German, Japanese, Chinese, Spanish, Russian, and French
Multilingual keyboard mapping supports English (US), English (UK), German, Japanese, Traditional Chinese, Spanish, Korean, and French
HDCP compatible
Firmware upgradable

¹Cascade only with another GCS1816H for control over 256 computers
²The built-in USB 2.0 hub cannot be accessed from sources on the second or third level of a cascaded installation
³IOGEAR's DynaSync Display Emulation Technology provides the DDC support for Windows® 7
⁴PC keyboard combinations emulate Mac/Sun keyboards; Mac/Sun keyboards work only with their own OS

Console:
HDMI display
Standard 104 key wired USB keyboard
Standard 2 or 3 button wired USB mouse
Speakers (optional)
Source devices:
HDMI output
USB Type-A port
Speaker ports (optional)
Operating Systems:
Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
Mac OS 9 to 10.x
Oracle® Solaris
Linux®, Unix and other USB supported systems¹

¹Additional drivers and support may be needed

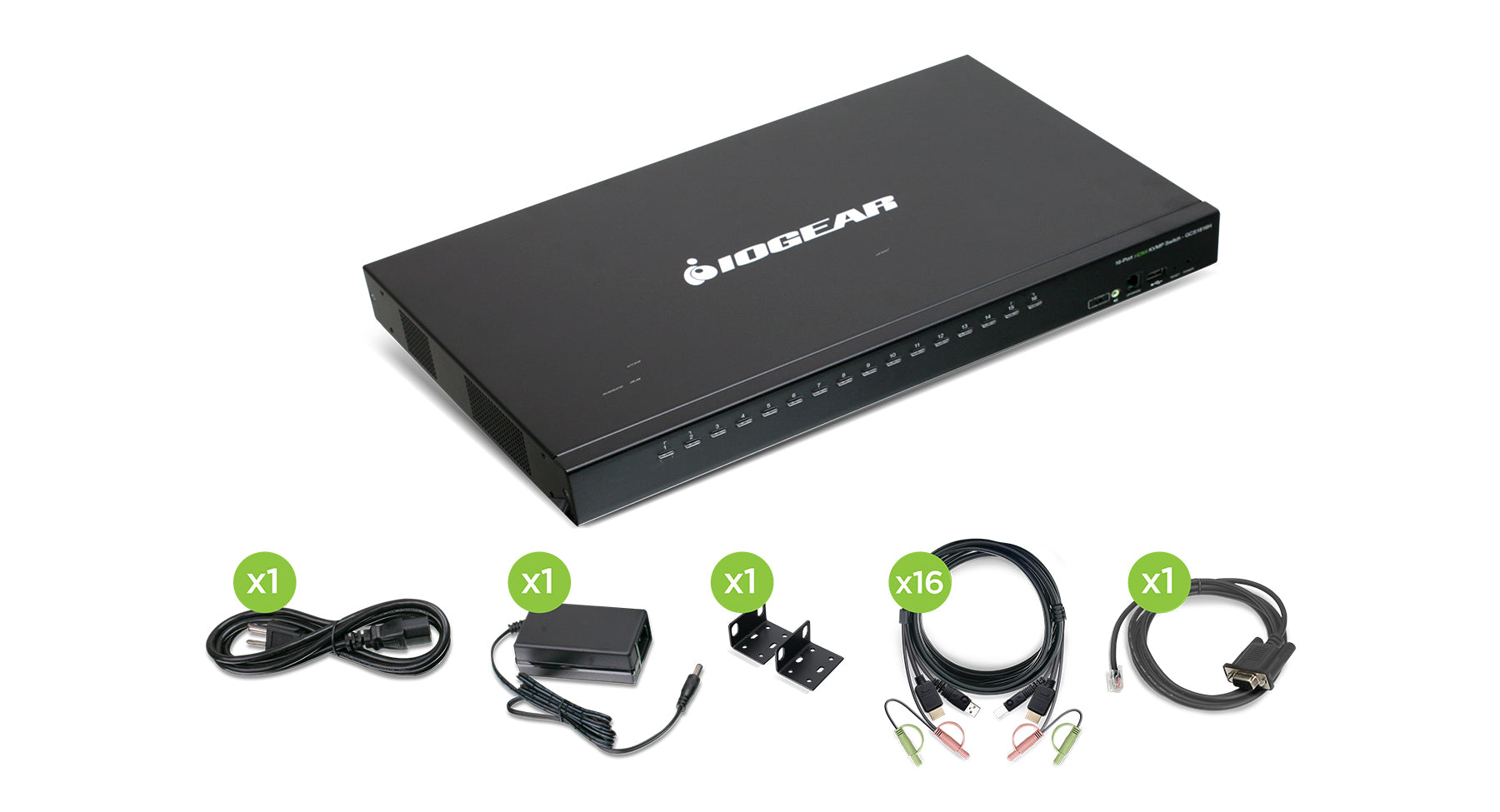

1 x 16-port USB HDMI KVMP Switch
16 x Custom 6ft. USB HDMI KVM Cable Sets
1 x Firmware Upgrade Cable
1 x Power Adapter
1 x Foot Pad Set (4 pcs)
1 x Quick Start Guide
1 x Rack Mounting Kit

GCS1816H Product Manual Download

GCS1816H Quick Start Guide Download

GCS1816H Firmware V 1.2.114 Download

Release Date: 4/11/2019

Windows 10 32-bit
Windows 10 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCS1816HKITU
Computer Connections
Direct	16
Daisy Chain or Cascading	256 (via Cascade)
Port Selection	OSD, Hotkey, LED Pushbutton
Console Connectors
Monitor	1 x HDMI Female
Keyboard	1 x USB Type-A Female
Mouse	1 x USB Type-A Female
Audio	2 x 3.5mm Stereo Jack Female (1 x Front Panel; 1 x Rear Panel)

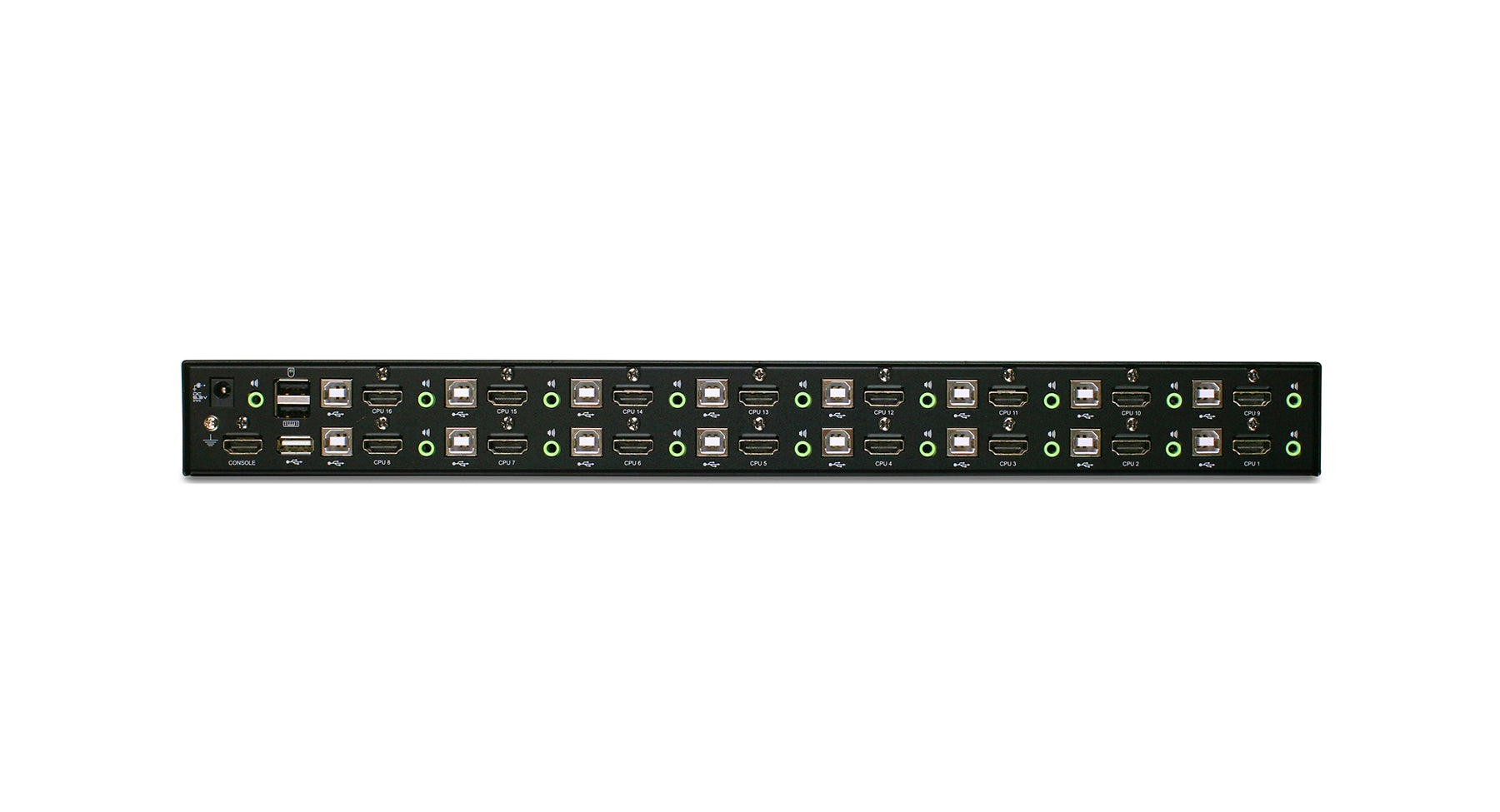

CPU Connectors
Monitor	16 x HDMI Female
Keyboard & Mouse	16 x USB Type-B Female
Audio	16 x 3.5mm Stereo Jack Female
Switches
F/W Upgrade	1 x Slide Switch (Front Panel)
Port Selection	16 x LED Pushbutton (Front Panel)
Connectors
Power	1 x DC Jack
USB	2 x USB 2.0 Type-A Female (1 x Front Panel; 1 x Rear Panel)
LEDs
USB Peripherals	16 (Green)
On Line	16 (Orange)
Power On	1 (Dark Green)
Emulation
Keyboard	USB
Mouse	USB
Video Resolution	480i, 480p, 720p, 1080i, and 1080p (HDTV) / 1920 x 1200 @60Hz
Scan Interval	1 - 255 Seconds (Default: 5 sec)
Power Consumption	DC 5.0V; 12.2W
Environment
Operation Temperature	0 - 50C
Storage Temperature	-20 - 60C
Humidity	0 - 80% RH; Non-condensing
Housing
Case	Metal
Cable Length	16 x 6 feet custom USB HDMI KVM cable

Dimensions	GCS1816HKITU
Unit Dimensions
Height	1.75" (4.45cm)
Depth	10" (25.4cm)
Length	17" (43.18cn)
Unit Package Dimensions
Width	22.75" (57.79cm)
Height	5.25" (13.34cm)
Depth	20.75" (51.44cm)
Master Carton
Width	22.75" (57.79cm)
Height	5.25" (13.34cm)
Depth	20.25" (51.44cm)
Master Carton Qty.	1
Weight
Master Carton Wt.	21.65lb (9.85kg)
Unit Pack Wt.	21.65lb (9.84kg)
Unit Wt.	8.8lb (4kg)

3 Year Limited Warranty
