Video Splitter

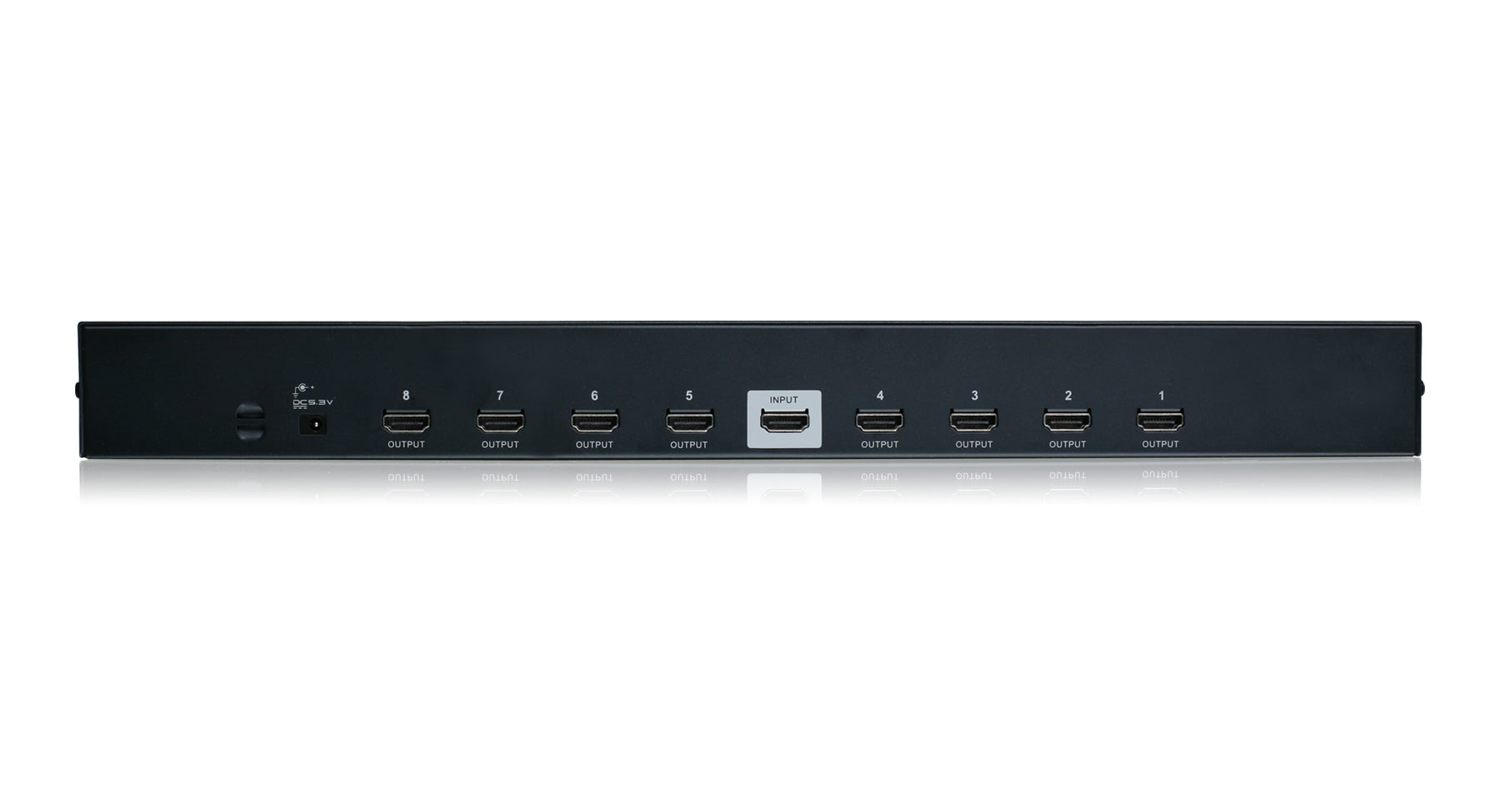

8-Port Splitter with HDMI Connectors

8-Port EOL HDMI Splitter
MPN: GHSP8118

UPC: 881317507150

Sale price$265.95

The IOGEAR 8-Port Splitter with HDMI Connectors allows you to connect a single HDMI source device to eight HDMI display devices simultaneously. It supports high-resolution video up to 1080p (60Hz), 3D content, and deep color. This splitter is ideal for applications such as digital signage, conference rooms, and classrooms where you need to distribute an HDMI signal to multiple displays. It's also rack-mountable for professional installations

HDMI Splitter

The IOGEAR 8-Port HDMI® Splitter that takes high definition audio and video from a single HDMI media source and directs it to 8 separate HD TVs or displays with 3D support. Being HDCP compliant, the unit is able to support the highest quality HD video and multi-channel digital audio; enabling the splitting of HD content from DVR/Set-top boxes, Blu-Ray players, computers and other HD or non HD devices. Designed with 1Urack-mountable metal casing.

Distribute Full HD 1080p (24/60 Hz) or your 3D content with multi-channel digital audio and 12-bit Deep Color.

Applications: Home - Boardroom - Education - House of Worship - Sports Bar

The IOGEAR 8 port HDMI Splitter can cascade up to 3 levels supporting up to 512 HDMI signals. Cascading distance from source to device 6ft, device to device 50ft and device to display 65ft; makes a total of 121ft through cascade.

  • Distribute a single HDMI media source up to 8 HDMI displays
  • Works with DVR / Set-top boxes, Blu-ray / DVD players, video game consoles, media servers, computers, and many more
  • Full 3D Support
  • Supports high-resolution video:
    - HDTV resolution of 480p, 720p, 1080i and 1080p (1920x1080)
  • Auto-detects the highest common resolution of connected displays*
  • Supports 12-bit Deep Color
  • Cascadable***
  • LED indication of displays
  • HDCP Compliant
  • Backwards compatible with DVI devices with HDMI to DVI adapter**

* Note: For HD media sources that support auto video resolution scaling.
**Via HD (F) to DVI (M) Adapter - IOGEAR Part No. GHDFDVIMW6

***HDCP Limitation While Cascading:
If your media content is HDCP enabled, the splitters will only support up to the maximum HDCP keys that are available (127 keys).  In other words, with HDCP enabled content, the splitters can support up to 127 displays.  If your media content is not HDCP enabled, then the splitters can support the full three-level cascade (512 displays).

Display

  • 1 HDMI input

Media Source

  • 1 HDMI output

1 x 8-Port HD Audio/Video Splitter
1 x Rack Mount Kit
1 x Power Adapter
1 x Quick Start Guide
1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGHSP8118
LEDs
Power On1
Port Status8 (Output)
Power
VoltageDC5.3 V
Amps2A
Power Consumption12 Watts (max)
Data RateUp to 2.25Gbps
Video Resolution480i / 480p / 720p / 1080i / 1080p; VGA / SVGA / XGA / SXGA / UXGA
Cable Connections
InputHDMI
OutputHDMI
Connectors (Input)1 x HDMI Type A 19 Pin Female
Connectors (Output)8 x HDMI Type A 19 Pin Female
Environment
Operation Temperature32F~122F (0C~50C)
Humidity0-80% RH (Non Condensing)
Storage Temperature-4F~140F (-20C~60C)
Housing
CaseMetal
DimensionsGHSP8118
Unit Dimensions
Height1.75"
Length17"
Depth6"
Unit Package Dimensions
Height3.5"
Length20.3"
Width8.6"
Master Carton
Height9.75"
Width11.25"
Depth20.75"
Master Carton Qty.3
Weight
Master Carton Wt.16.8lb
Unit Pack Wt.5.2lb
Unit Wt.3.95lb
