Video Splitter

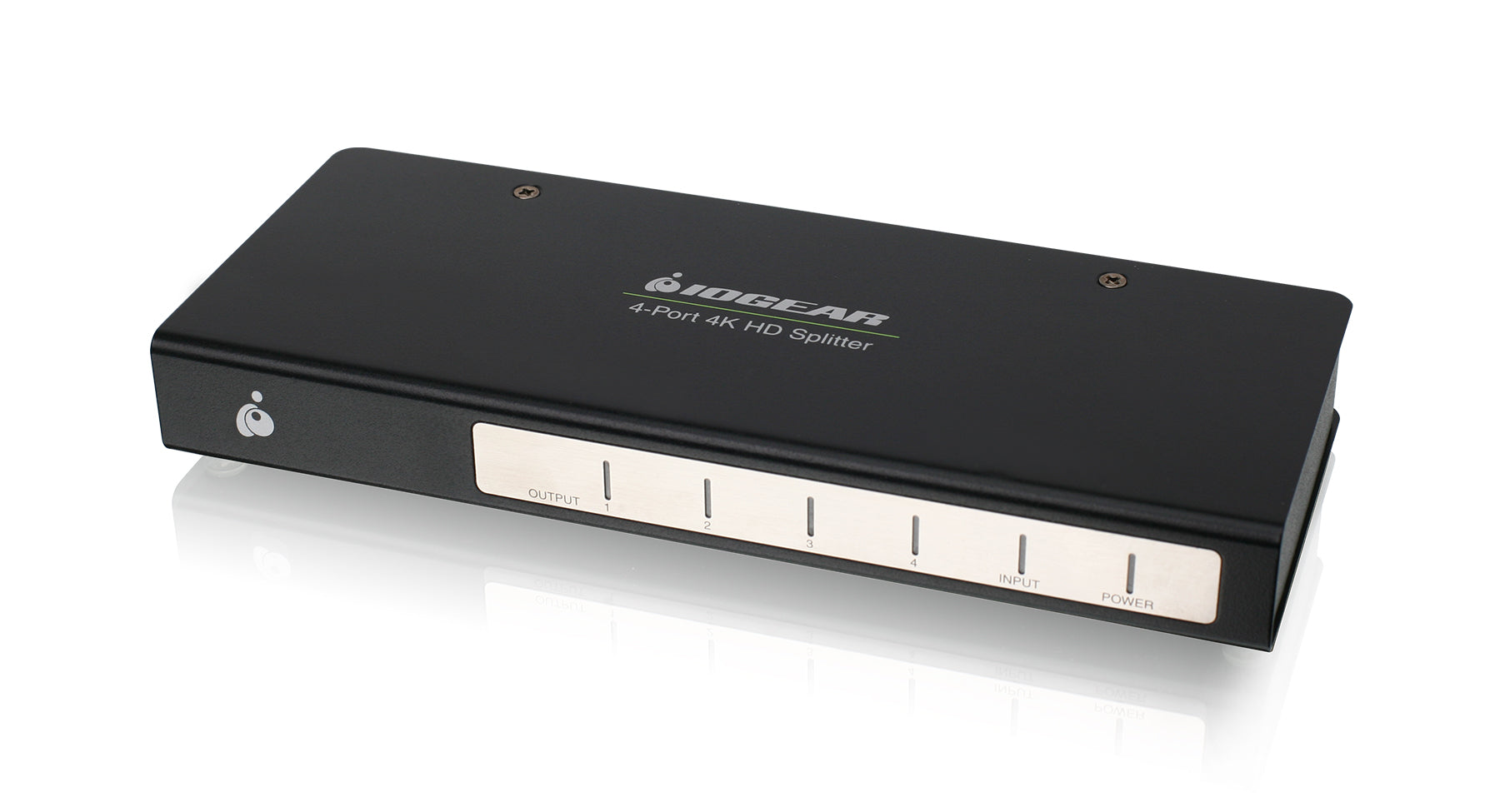

4-Port Cinema 4K Splitter with HDMI® Connectors

4-Port 4K@60hz EOL HDMI Splitter

UPC: 881317517098

This product is EOL and is no longer being sold.
Sale price$99.95

The IOGEAR 4-Port Cinema 4K Splitter, empowers you to seamlessly share your HDMI source's stunning visuals across four 4K displays. Experience breathtaking resolutions up to 4096 x 2160 @ 60Hz on each screen, perfect for captivating presentations, immersive gaming experiences, or expanding your workstation real estate.

4-Port Cinema 4K Splitter With HDMI®

Send Cinema 4K audio and video from a single HDMI source such as a set-top box, game console, Blu-ray™ player or media server or computer to four 4K displays or projectors.

Highest Quality Video at Extended Distances

Deliver exceptional Cinema 4K resolutions (4096 x 2160 @ 60Hz) with crisp, 3D, and Deep Color images up to 4K 12- bit (4:2:0), or 68 billion colors, for a remarkable visual experience. The splitter extends the distance between your HDMI video sources and your HDMI displays up to 49 feet with data rates up to 10.2 Gbps, providing greater flexibility in system design.

  • Send audio & video from 1 HDMI source to 4 HDMI displays
  • Cinema 4K resolutions up to 4096 x 2160 @ 60Hz, (4:2:0)
  • Long distance connections to 49 ft. (24 AWG)
  • Dolby True HD and DTS HD Master Audio
  • Supports up to 10.2 Gbps data speeds for high performance video
  • Plug-n-play – No software installation required
  • HDCP 1.4 compatible
  • Rack Mountable
  • All metal chassis


  • 1x 4K HDMI Enabled Display

Media Source:

  • 1x 4K HDMI Enabled Device
  • 1 x GSP8424B 4-Port Splitter with HDMI Connectors
  • 1 x Power Adapter
  • 1 x HDMI Cable
  • 1 x Mounting Kit
  • 1 x Quick Install Guide

Need more help with this product? Visit IOGEAR Knowledge Base

Video connections
InputHDMI Type A Female
OutputHDMI Type A Female
Video Resolution4096 x 2160 @ 60Hz
Video StreamingMax Data Rate 10.2 Gbps
Power Consumption6.02W
Power Adapter5.3V/2.4A
Operation Temperature32~122ºF (0~50ºC)
Storage Temperature-4F ~ 140F (-20 - 60C)
Humidity0 - 80% RH, Non-Condensing
Warranty3 - Years
Unit Dimensions
Height0.98 in
Length7.87 in
Depth3.15 in
Unit Package Dimensions
Height6.25 in
Width9.375 in
Depth2.25 in
Master Carton
Height7.125 in
Width15.125 in
Depth10.50 in
Master Carton Qty.6
Master Carton Wt.12.70 lb
Unit Wt. w/accessories1.90 lb
Unit Wt.1.05 in
