Video Splitter

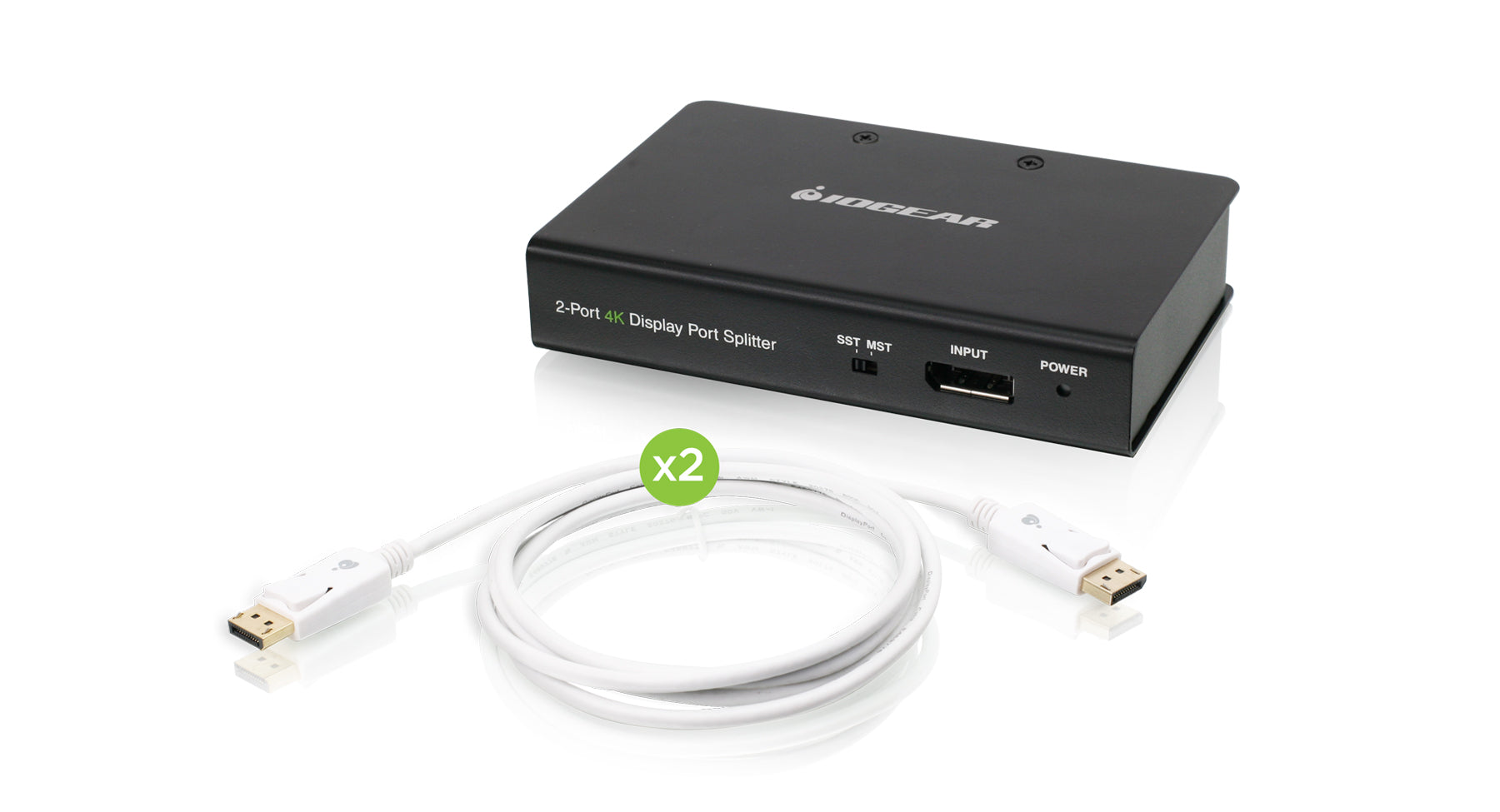

2-Port DisplayPort 1.2 Cinema 4K Splitter & Multi-Monitor MST Hub w/Cables Kit

DisplayPort Splitter Plug-N-Play

UPC: 881317519146

Sale price$169.95

Unleash the power of multi-tasking with the IOGEAR 2-Port DisplayPort 1.2 Cinema 4K Splitter & Multi-Monitor MST Hub w/Cables Kit, a 2-in-1 solution for expanding your visual horizons. This versatile kit combines a DisplayPort 1.2 splitter and MST hub, allowing you to connect two independent displays to your computer using just a single DisplayPort output.

2-Port DisplayPort Cinema 4K Splitter and MST Hub with cables

Connect two displays from a single DisplayPort 1.2-enabled computer with the IOGEAR 2-Port DisplayPort Splitter/MST Hub. Increase productivity and workflow by expanding the amount of usable screen space on two independent screens for multi-document viewing, media streaming, and content/web browsing, or mirror your computer's display across two monitors to allow remote viewing applications such as monitoring equipment diagnostics or the status of a remote server. The kit comes complete with two DisplayPort cables for a trouble-free installation.

Cinema 4K Video Support

IOGEAR's 2-Port DisplayPort 1.2 Splitter and MST Hub supports Cinema 4K resolutions up to 4096 x 2160 @60Hz and is ideal for use with applications such as medical imaging, graphic design, gaming, and more.

A Broad Range of Uses

Add two independent displays to your DisplayPort 1.2-enabled computer with a single DisplayPort video output in a variety of applications.

  • Business – Use one monitor to view your email, web browser or presentation while composing and generating content on the other.
  • Digital Signage – Create a high-resolution panoramic video display to showcase new products and capture the attention of prospective customers.
  • Data Management – Great for laying out multiple spreadsheets to show data more effectively, leading to greater workflow and enhanced productivity in the office or workplace.
  • Digital Arts – Compose, open, and edit various images, videos or audio files in a variety of resolutions and screen orientations.
  • Web Development - Edit source code on one display while previewing work in a browser on the other screen.

  • Connect 2 independent displays from a single DisplayPort 1.2 video output
  • Mirror or extend a desktop across 2 displays from a computer with 1 DisplayPort output
  • Enjoy Cinema 4K video resolutions up to 4096 x 2160 @60Hz
  • With DisplayPort 1.2 Graphic Cards:
  • Supports 7.1 digital audio surround sound
  • Push-button toggle between Single Stream Transport (SST) and Multi-Stream Transport (MST)
  • DPCP & HDCP compliant
  • No driver or software installation needed
  • Supports DisplayPort 1.2a; HDCP 1.3
  • Complete with cables


  • Computer with DisplayPort 1.2 compatible graphics card
  • 2 Monitors with DisplayPort ports
  • 1 x GDPSP2 2-Port DisplayPort Splitter/MST Hub
  • 1 x Power Adapter
  • 2 x DisplayPort Cables
  • 1 x Quick Start Guide
  • 1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

Cable Connections
InputDisplayPort 1.2
OutputDisplayPort 1.2
Video Input1 x DisplayPort Female
Video Output2 x DisplayPort Female
Data RateUp to 5.4Gbps
Operation Temperature32ºF~104ºF (0ºC~40ºC)
Storage Temperature-4ºF~140ºF (-20ºC~60ºC)
Humidity20~90% RH (Non Condensing)
VoltageDC 5V
Video ResolutionUp to 4K@60Hz
Codec2-Ch LPCM / AC3 / DTS
Sample Rate32-192kHz
Unit Dimensions
Height1" (2.5 cm)
Depth4.4" (11.1 cm)
Length3" (7.6 cm)
Unit Package Dimensions
Width9.4" (23.8 cm)
Height2.32" (5.9 cm)
Depth6.3" (16 cm)
Unit Pack Wt.1.3 lb (0.6 kg)
Unit Wt.0.45 lb (0.2 kg)
