2-Port DisplayPort 1.2 Graphics Splitter / Multi-Monitor MST Video Hub (TAA)

Video Splitter

2-Port DisplayPort 1.2 Graphics Splitter / Multi-Monitor MST Video Hub (TAA)

Name: 2-Port DisplayPort 1.2 Graphics Splitter / Multi-Monitor MST Video Hub (TAA)
Brand: IOGEAR
SKU: GDPSP2
Price: 99.99 USD
Availability: InStock

4K@60hz DisplayPort Splitter TAA Compliant

MPN: GDPSP2

UPC: 881317512949

$99.99

$129.95

The IOGEAR 2-Port DisplayPort 1.2 Cinema 4K Splitter & Multi-Monitor MST Hub splits a single DisplayPort signal to two displays, letting you extend your desktop or mirror your screen for a more immersive and productive experience. Supporting high-resolution displays up to Cinema 4K (4096 x 2160 at 60Hz), the GDPSP2 is ideal for gamers, graphic designers, and anyone who demands exceptional clarity and performance.

2-Port DisplayPort 1.2 Graphics Splitter / Multi-Monitor MST Video Hub (TAA)

$99.99

$129.95

2-Port DisplayPort Cinema 4K Splitter and MST Hub

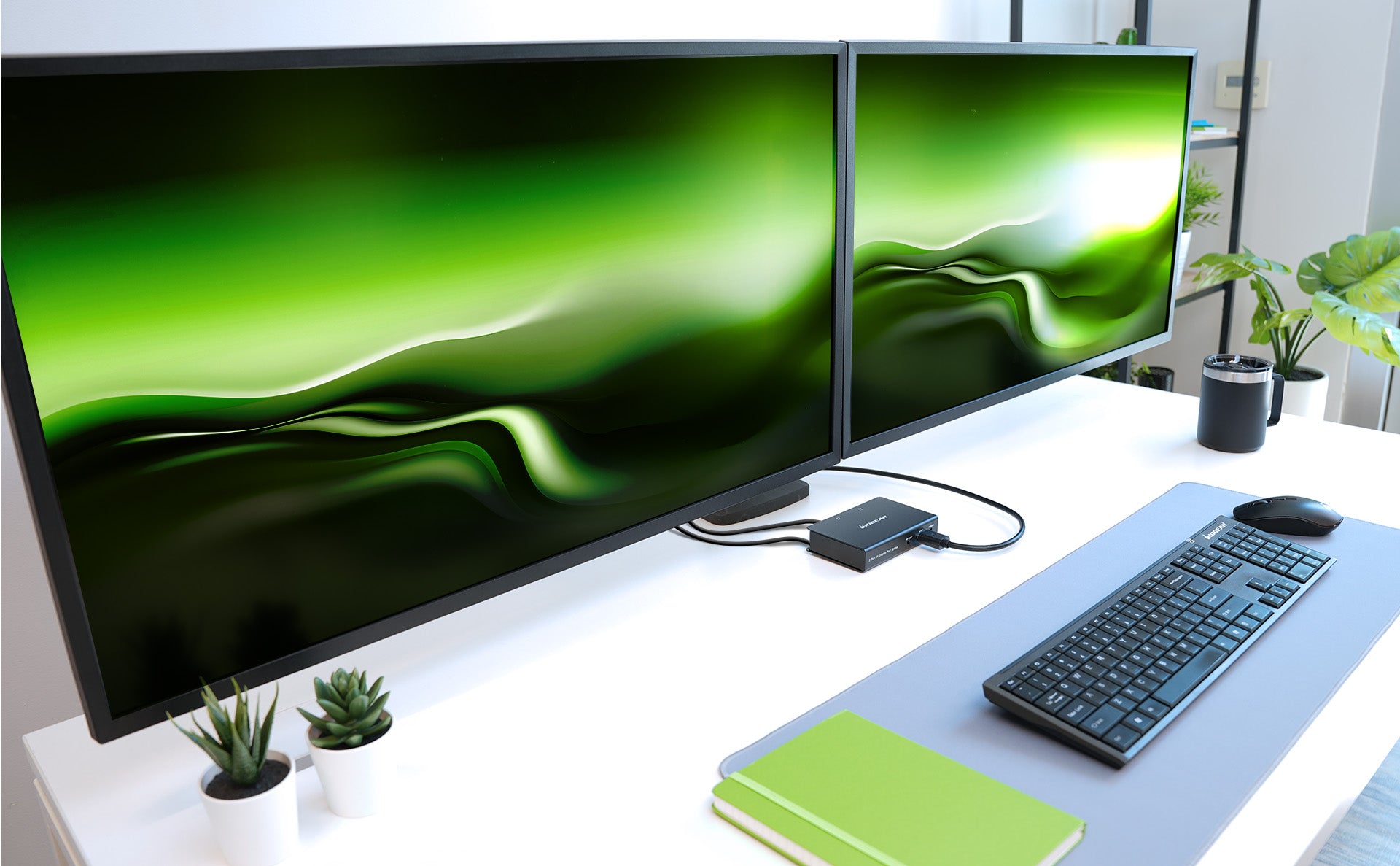

IOGEAR's 2-Port DisplayPort 1.2 Splitter and MST Hub supports Cinema 4K resolutions up to 4096 x 2160 @ 60Hz and is ideal for use with applications such as medical imaging, graphic design, gaming, and more. Connect two displays from a single DisplayPort 1.2-enabled computer with the IOGEAR 2-Port DisplayPort Splitter/MST Hub. Increase productivity and workflow by expanding the amount of usable screen space on two independent screens for multi-document viewing, media streaming, and content/web browsing, or mirror your computer's display across two monitors to allow remote viewing applications such as monitoring equipment diagnostics or the status of a remote server.

A Broad Range of Uses

Add two independent displays to your DisplayPort 1.2-enabled computer with a single DisplayPort video output in a variety of applications.

Business – Use one monitor to view your email, web browser or presentation while composing and generating content on the other.
Digital Signage – Create a high-resolution panoramic video display to showcase new products and capture the attention of prospective customers.
Data Management – Great for laying out multiple spreadsheets to show data more effectively, leading to greater workflow and enhanced productivity in the office or workplace.
Digital Arts – Compose, open, and edit various images, videos or audio files in a variety of resolutions and screen orientations.
Web Development - Edit source code on one display while previewing work in a browser on the other screen.

Connect 2 independent displays from a single DisplayPort 1.2 video output
Mirror or extend a desktop across 2 displays from a computer with 1 DisplayPort output
Enjoy Cinema 4K video resolutions up to 4096 x 2160 @ 60HZ
With DisplayPort 1.2 Graphic Cards:
- 2 Monitors: Up to 4K 4096 x 2160 (DisplayPort/HDMI)
Supports 7.1 digital audio surround sound
Push-button toggle between Single Stream Transport (SST) and Multi-Stream Transport (MST)
DPCP and HDCP compliant
No driver or software installation needed
Supports DisplayPort 1.2a; HDCP 1.3

Hardware:
Computer with DisplayPort 1.2 compatible graphics card
2 Monitors with DisplayPort ports
Optional:
G2LDPDP02 DisplayPort to DisplayPort Cable

1 x GDPSP2 2-Port DisplayPort Splitter / MST Hub
1 x Power Adapter
1 x Quick Start Guide
1 x Warranty Card

GDPSP2 Quick Start Guide Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GDPSP2
Cable Connections
Input	DisplayPort 1.2
Output	DisplayPort
Connectors
Video Input	1 x DisplayPort Female
Video Output	2 x DisplayPort Female
Data Rate	Up to 5.4Gbps
Environment
Humidity	20~90% RH (Non Condensing)
Operation Temperature	32ºF~104ºF (0ºC~40ºC)
Storage Temperature	-4ºF~140ºF (-20ºC~60ºC)
Housing
Case	Metal
LEDs
Input	1
Output	2
Power
Amps	2A
Voltage	DC 5V
Video Resolution	Up to 4K@60Hz
Audio
Codec	2-Ch LPCM / AC3 / DTS
Sample Rate	32-192kHz

Dimensions	GDPSP2
Unit Dimensions
Height	1" (2.5 cm)
Length	3" (7.6 cm)
Depth	4.4" (11.1 cm)
Unit Package Dimensions
Height	2.32" (5.9 cm)
Width	9.4" (23.8 cm)
Depth	6.3" (16 cm)
Master Carton
Height	10.04 " (25.5 cm)
Width	14.89" (37.8 cm)
Depth	7.17" (18.2 cm)
Master Carton Qty.	6
Weight
Master Carton Wt.	8.95 lb
Unit Pack Wt.	1.3 lb (0.6 kg)
Unit Wt.	0.45 lb (0.2 kg)

3 Year Limited Warranty
