8 Port Rackmount KVMs

8-Port USB PS/2 Combo VGA KVM Switch with Cables

8-Port VGA
MPN: GCS1808KIT

UPC: 881317505248

Sale price$424.95

Access and control of up to 64 computers* from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded* bringing the total number of connected computers to 64 computers* that can be controlled from a single keyboard-monitor-mouse console.

8-Port USB PS/2 Combo VGA KVM Switch with Cables
8-Port USB PS/2 Combo VGA KVM Switch with Cables Sale price$424.95

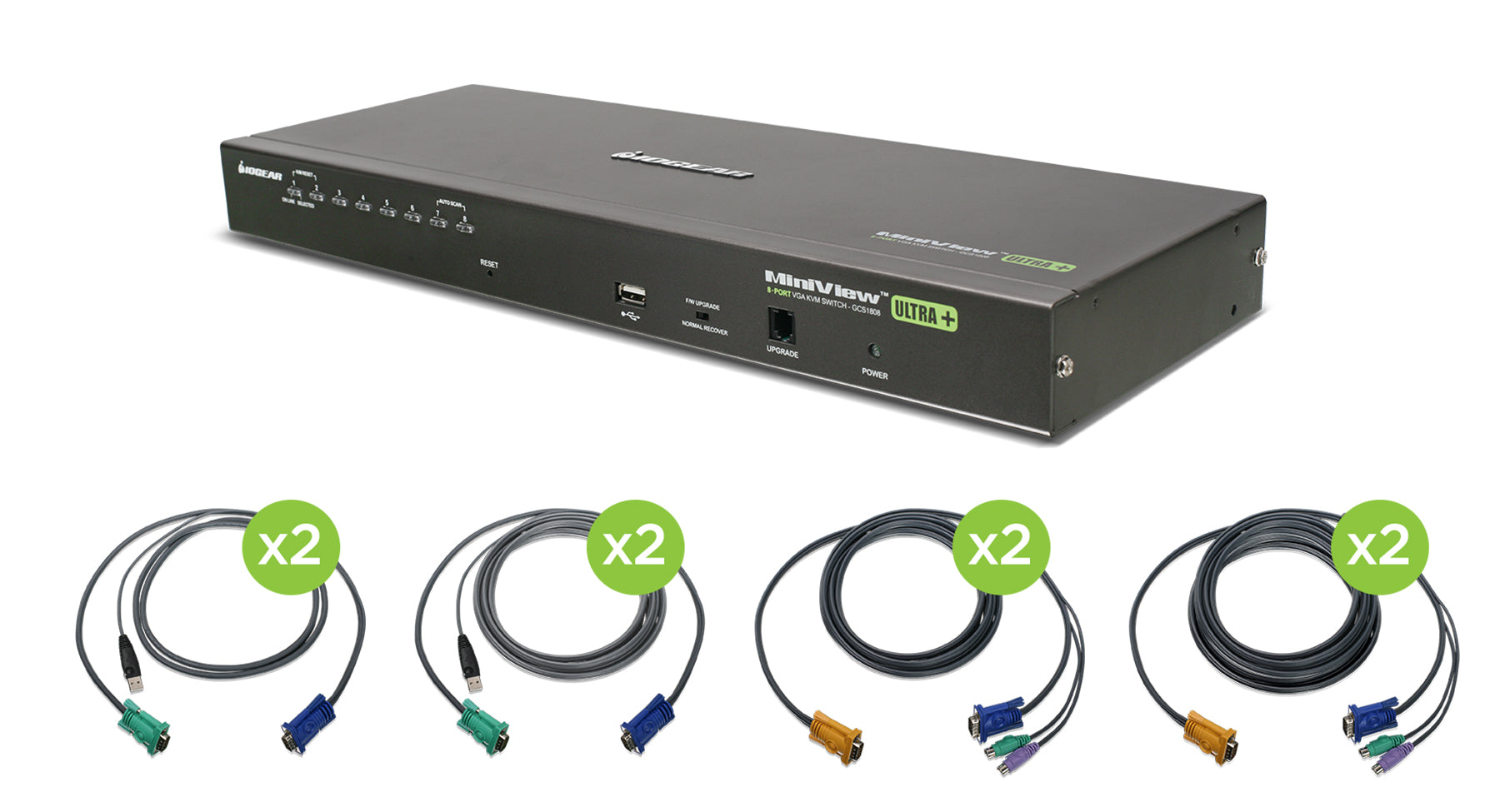

The GCS1808KIT KVM is a combo VGA switch that includes 8 KVM cables - Set of 4 USB and 4 PS/2 KVM cables.

Access and control of up to 64 computers* from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded* bringing the total number of connected computers to 64 computers* that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1808KIT features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

The GCS1808KIT includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1808KIT intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.

Benefits:

  • Equipped with USB & PS/2 KVM Cables
    • 2 x 6ft USB & 2 x 6ft / PS/2 (G2L5202U / G2L5202P)
    • 2 x 10ft USB &2 x 10ft PS/2 (G2L5203U / G2L5203P)
  • Eliminates the excessive expense of additional monitors, keyboards and mice
  • Increases office space, productivity, and provides as an energy cost savings solution
  • It contributes to a greener environment by reducing the amount of waste generated by multiple components
  • An easy / efficient way to organize and streamline a growing or expanding server operation

*Cascade compatible with GCS1716 for control over 128 computers

  • Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®
  • Supports both USB and PS/2, VGA computers
  • Equipped with 4 USB & 4 PS/2 KVM Cables
  • Auto Scan Mode to monitor connected computers
  • Broadcast Mode to send commands to all connected computers
  • Easy to operate - computer selection via front panel LED’s, intuitive OSD (on screen display) and hotkeys
  • Cascade up to 2 levels* - control up to 128 computers from a single console
  • Security - 2 level password protection for OSD
  • Maximum video resolution: up to 2048 x 1536
  • Front USB Port** - for system upgrades and shared peripherals (fully compliant with USB 1.1)
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully supports DDC2B

*Cascade compatible with GCS1716 for control over 128 computers
**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

Console:

  • VGA, SVGA, or MultiSync Monitor
  • A Keyboard and Mouse (USB or PS/2)

Computers:

  • VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
  • PS/2 mouse and keyboard ports (6-pin mini DIN)
  • 1 x USB port
  • Multi OS Platform Support: Windows®, Mac, Oracle® Solaris and Linux®
  • 1 x 8-Port USB PS/2 Combo KVM
  • 2 x PS/2 KVM Cables (6ft - G2L5202P)
  • 2 x PS/2 KVM Cables (10ft - G2L5203P)
  • 2 x USB KVM Cables (6ft - G2L5202U)
  • 2 x USB KVM Cables (10ft - G2L5203U)
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Foot Pad Set (4 Pads)
  • 1 x Power Adapter
  • 1 x Standard Rack Mounting Kit
  • 1 x Installation Guide
  • 1 x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCS1808KIT
Computer Connections
Direct8
Daisy Chain or Cascading64 (via Cascade)
Port SelectionHotkeys, OSD, Button
Connectors
Console1 x SPHD-18 Male (Yellow)
Computer/KVM8 x SPHD-15 Female (Yellow)
Power1 x DC Jack
USB1 x USB 1.1 Type A Female
Reset Switch1 x Semi-Recessed Push Button
Switches
F/W Upgrade1 x Slide Switch
Port Selection8 x Push Button
Emulation
KeyboardPS/2, USB
MousePS/2, USB
Video ResolutionVGA 2048x1536, DDC2B
Power
VoltageDC 5.3V
Amps2.4A
Scan Interval1-255 sec
Environment
Operation Temperature0~50C
Storage Temperature-20~60C
Humidity0~80% RH, Non-condensing
Housing
CaseMetal
DimensionsGCS1808KIT
Unit Dimensions
Width17in.
Height1.75in.
Depth6.25in.
Unit Package Dimensions
Width10.25in.
Height9.625in.
Depth22.375in.
Weight
Unit Pack Wt.13.97lb
Unit Wt. w/accessories11.11lb
Unit Wt.5.58lb
