8 Port Rackmount KVMs

8-Port USB PS/2 Combo VGA DisplayPort KVM Kit

8-Port DisplayPort TAA Compliant VGA
MPN: GCS1808DPKITU

UPC: 881317519795

Sale price$524.95

IOGEAR's 8-Port USB PS/2 Combo VGA KVM Kit (GCS1808DPKITU) includes a combo 8-port KVM USB and PS/2 switch that allows you to control and access up to eight (8) USB or PS/2 computers from a single keyboard, mouse and VGA monitor console. The Kit includes a complete set of USB KVM cables and DisplayPort to VGA adapters (support DP ver. 1.1a) to ease your installation process.

8-Port USB PS/2 Combo VGA DisplayPort KVM Kit
8-Port USB PS/2 Combo VGA DisplayPort KVM Kit Sale price$524.95

Connect & Access up to 8 VGA or DisplayPort Computers

IOGEAR's 8-Port USB PS/2 Combo VGA KVM Kit (GCS1808DPKITU) includes a combo 8-port KVM USB and PS/2 switch that allows you to control and access up to eight (8) USB or PS/2 computers from a single keyboard, mouse and VGA monitor console. The Kit includes a complete set of USB KVM cables and DisplayPort to VGA adapters (support DP ver. 1.1a) to ease your installation process.

Support video resolution up to 2048x1536 under VGA connection and 1920x1200 under DisplayPort connection.


Connect & Control More

Expand the number of computers you can connect to and control through a single set of peripherals. Cascade and control as many as eight (8) additional IOGEAR 8-Port USB PS/2 Combo VGA KVMP Switch (GCS1808) switches for a total of 64 connected computers, all controlled from a single keyboard-monitor-mouse console. Need to control more computers? Cascade the IOGEAR 16-Port USB PS/2 Combo KVM Switch (GCS1716) to control up to 128 VGA and DisplayPort computers.


Expanded Peripheral Sharing

The KVM switch includes a single USB port located on the front panel for quick system access for upgrades and shared peripherals. Setup is fast and easy; plug the cables into their appropriate ports and you're ready to work. The switch supports both USB and PS/2 connections for both the console and computers. The switch intercepts the keyboard input directly, eliminating the need for software configuration.


Convenient Switching Methods

Switching between computers is quickly accomplished by pressing the front panel pushbutton, entering hotkey combinations from the keyboard, or via a menu driven, multilingual On-Screen Display (OSD) system. The switch also includes a convenient auto-scan feature which permits automatic scanning and monitoring of activities on all connected computers.

*Cascade with GCS1716 for control over 128 computers


  • Connect & control up to 8 USB or PS/2 computers from 1 keyboard, mouse & VGA monitor
  • Kit includes adapters & cables needed to connect up to 8 computers
  • Eliminates the expense of additional monitors, keyboards & mice
  • Cascade up to 2 levels* to control up to 128 computers from a single console

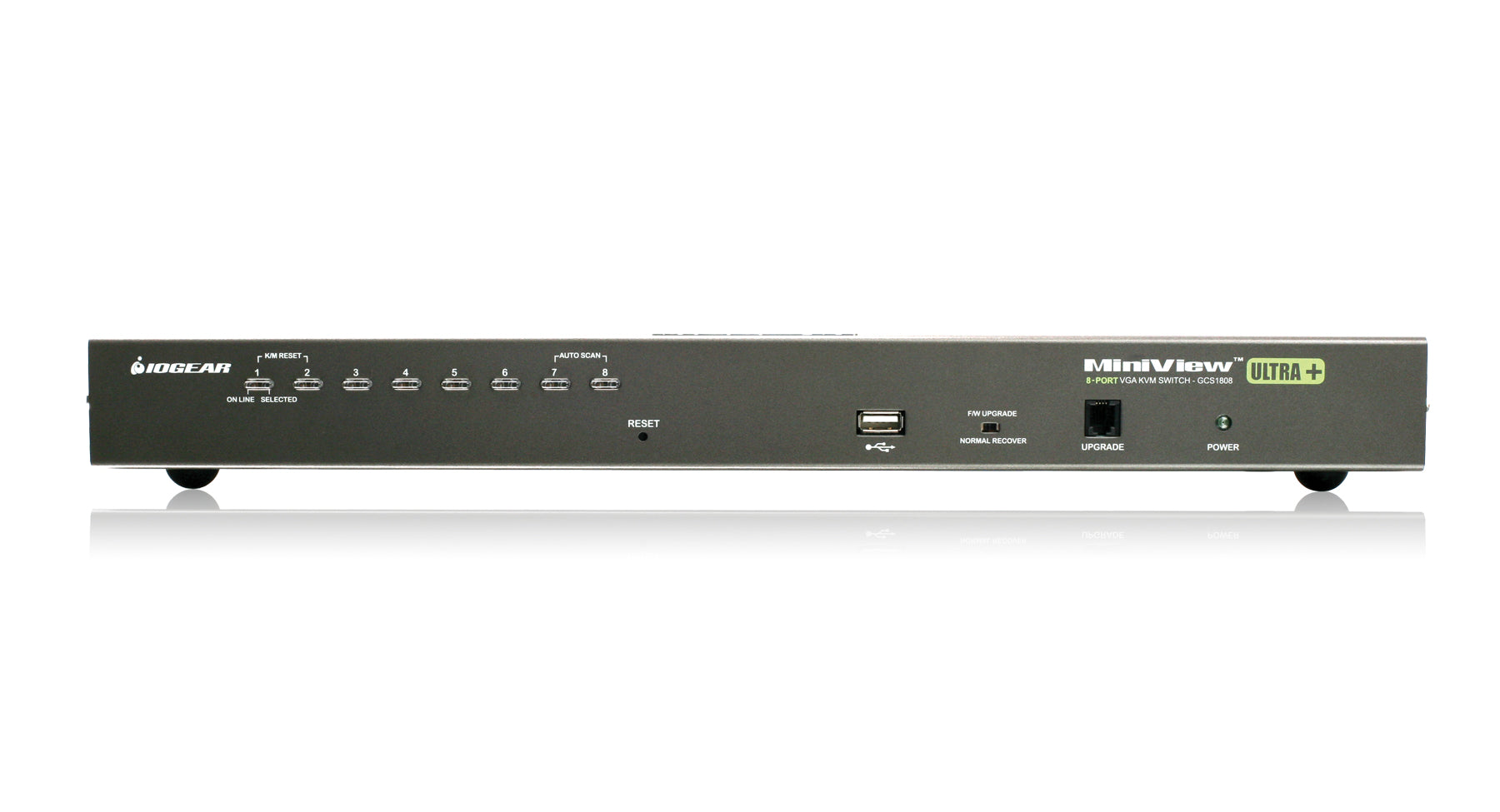

  • Easy to operate - computer selection via front panel LEDs, intuitive on-screen display & hotkeys
  • An easy, efficient way to streamline an expanding server operation
  • Display Emulation Technology provides the DDC support for Windows® 10
  • Supports both USB and PS/2, VGA and DisplayPort(ver 1.1a) computers
  • Auto Scan Mode to monitor connected computers
  • Broadcast Mode to send commands to all connected computers
  • Security - 2 level password protection for OSD
  • Maximum video resolution: up to 2048 x 1536
  • Front USB Port** - for system upgrades & shared peripherals
  • Rack mountable in a 19" (1U) system rack
  • Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully supports DDC2B

*Cascade compatible with GCS1716 for control over 128 computers

**Only systems connected with the USB KVM cables can access the front USB port for system upgrades and shared peripherals

Console:

  • VGA, SVGA, or MultiSync Monitor
  • A Keyboard and Mouse (USB or PS/2)

Computers:

  • VGA or DisplayPort video graphic card
  • PS/2 mouse and keyboard ports (6-pin mini DIN)
  • USB mouse and keyboard ports
  • Multi OS Platform Support: Windows®, Mac, Oracle® Solaris and Linux®

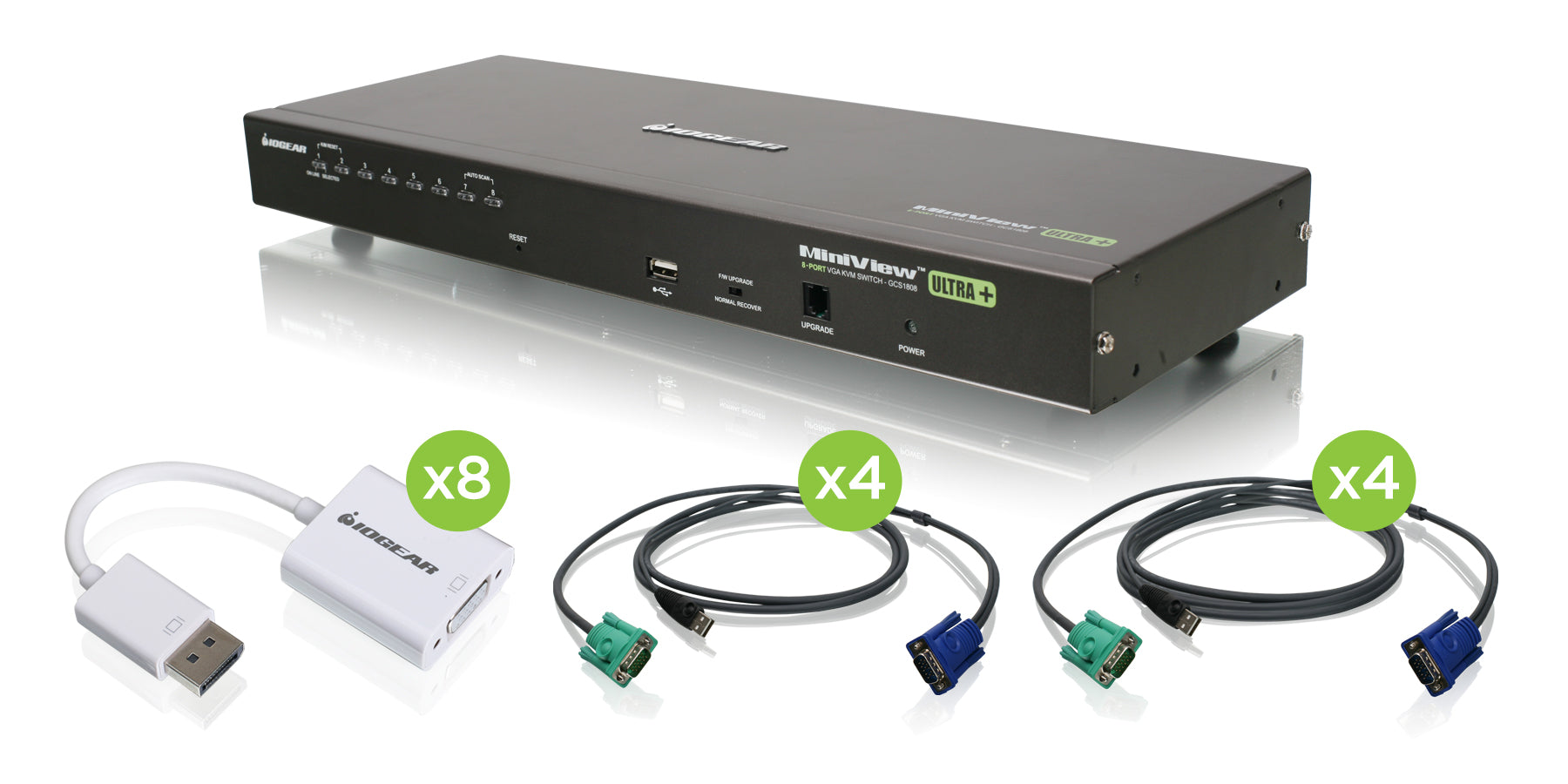

  • 1 x 8-Port USB PS/2 Combo VGA KVMP Switch(TAA Compliant) (GCS1808)

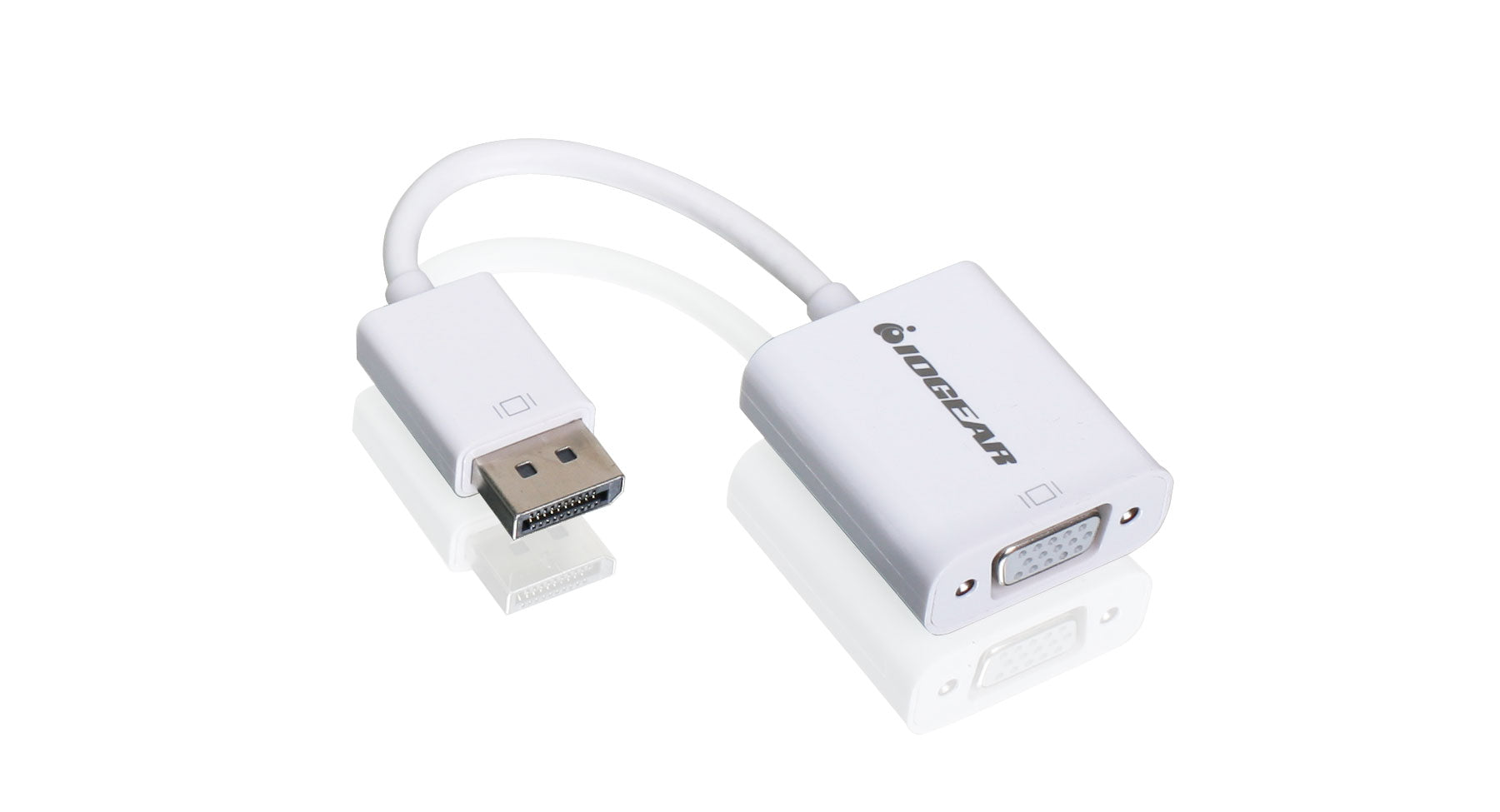

  • 8 x DisplayPort to VGA Adapters(GDPVGAW6)
  • 4 x USB KVM Cable(6ft - G2L5202U)
  • 4 x USB KVM Cable(10ft - G2L5203U)
  • 1 x PS/2 KVM Cable (6ft - G2L5202P)
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Foot Pad Set (4 Pads)
  • 1 x Power Adapter
  • 1 x Standard Rack Mounting Kit
  • 1 x Installation Guide
  • 1 x Warranty Card

GCS1808 Firmware V 3.3.327 Download

Release Date: 03/13/2019

If the GCS1808 or GCS1716 production code is below 2015 or current firmware version is below 3.3.318 Please do not upgrade to this version firmware without contacting Technical support first . Version 3.3.327 could damage early production KVMS.

Windows 10 32-bit
Windows 10 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCS1808DPKITU
Computer Connections
Direct8
Daisy Chain or Cascading64
Port SelectionHotkeys, OSD, Button
Connectors
Console1 x SPHD-18 Male (Yellow)

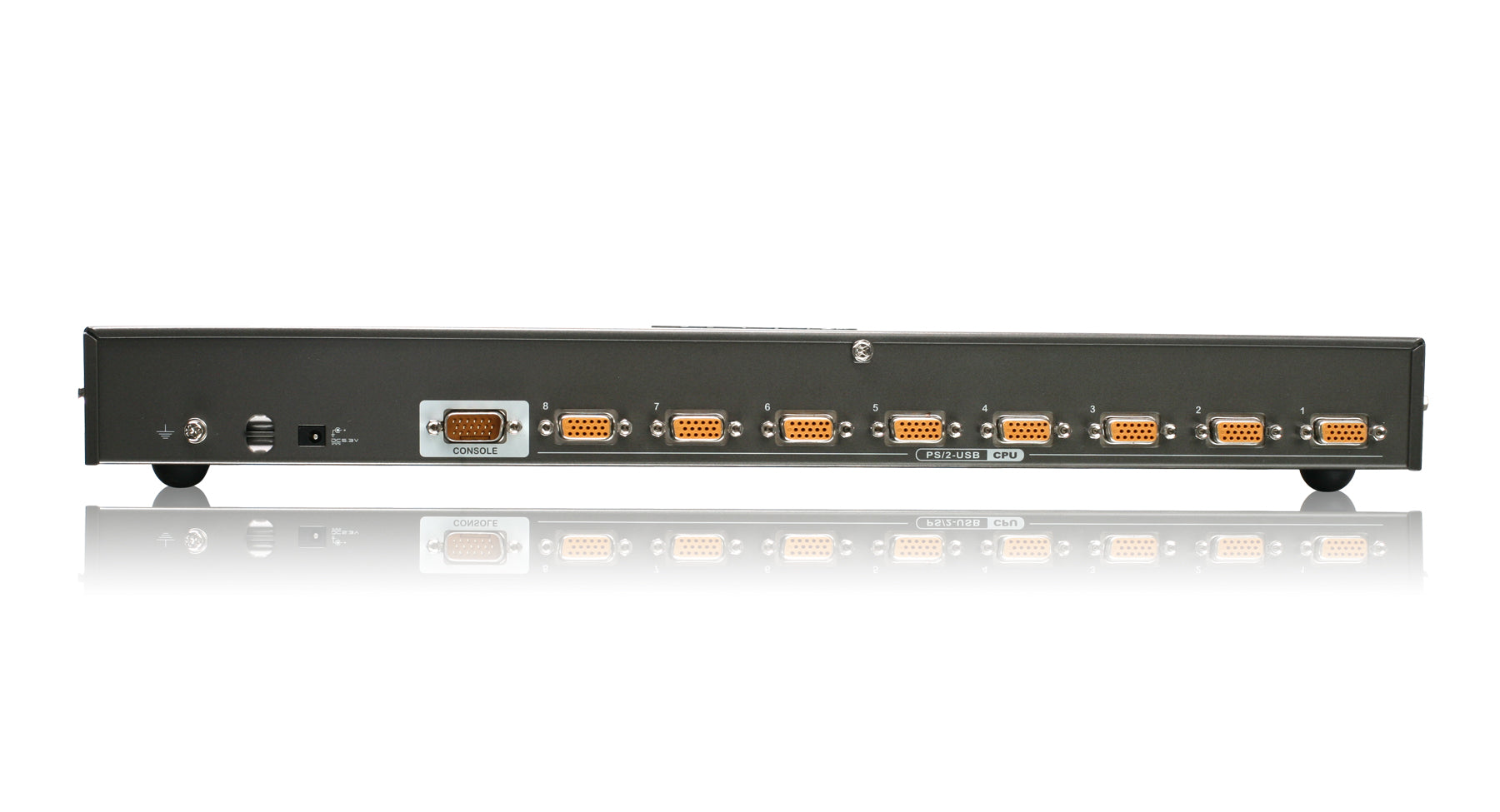

Computer/KVM8 x SPHD-15 Female (Yellow)
Power1 x DC Jack
USB1 x USB 1.1 Type A Female
Reset Switch1 x Semi-Recessed Push Button
Switches
F/W Upgrade1 x Slide Switch
Port Selection8 x Push Button
Emulation
KeyboardPS/2, USB
MousePS/2, USB
Video ResolutionVGA 2048x1536, DDC2B
Power
VoltageDC 5.3V
Amps2.4A
Scan Interval
Environment
Operation Temperature0~50C
Storage Temperature-20~60C
Humidity0~80% RH, Non-condensing
Housing
CaseMetal
DimensionsGCS1808DPKITU
Unit Package Dimensions
Height10.50in.
Width22.38in.
Depth9.25in.
Weight
Unit Pack Wt.14.9lb.
Unit Wt. w/accessories12.0lb.
Unit Wt.5.6lb.
