8-Port USB PS/2 Combo VGA KVMP Switch (TAA Compliant)

8-Port TAA Compliant VGA
MPN: GCS1808

UPC: 881317504050

Sale price$349.95

IOGEAR's GCS1808 KVMP is a combo USB and PS/2 switch allowing access and control of up to 128* computers from a single console (keyboard, mouse, and monitor). Cascade as many as 8 additional switches to bring the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console.

8-Port VGA KVMP with USB & PS/2 Interface

IOGEAR's GCS1808 KVMP is a combo USB and PS/2 switch allowing access and control of up to 128* computers from a single console (keyboard, mouse, and monitor). Cascade as many as 8 additional switches to bring the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1808 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

Expanded Peripheral Sharing

The GCS1808 includes one USB port located on the front panel for easy access for system upgrades and shared peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1808 intercepts keyboard input directly, thus eliminating the need for any software configuration.

Convenient Switching Methods

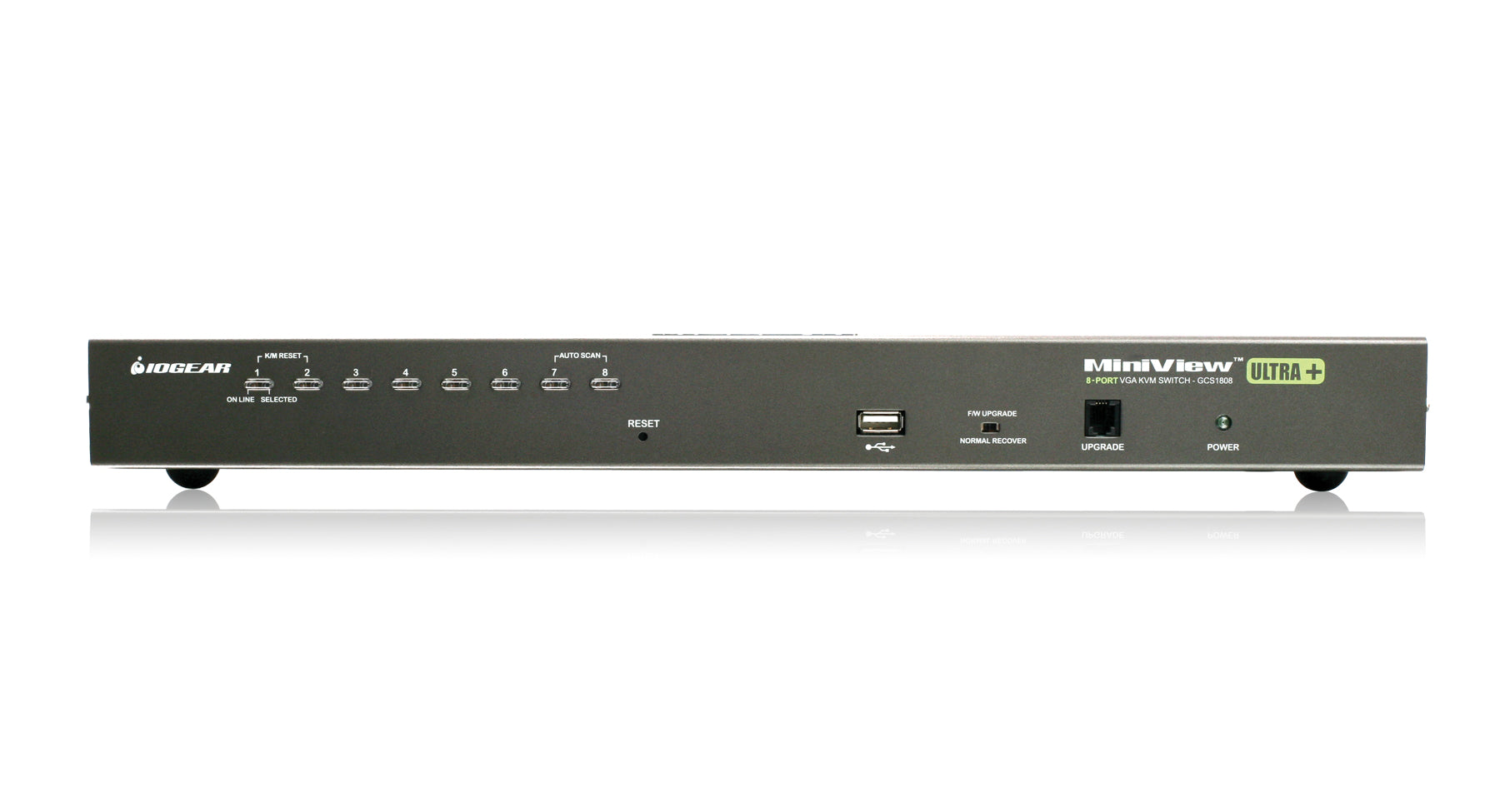

Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.

Benefits:

  • Eliminates the excessive expense of additional monitors, keyboards and mice
  • Increases office space, productivity, and provides as an energy cost savings solution
  • It contributes to a greener environment by reducing the amount of waste generated by multiple components
  • An easy / efficient way to organize and streamline a growing or expanding server operation
  • IOGEAR's Display Emulation Technology provides the DDC support for Windows® 7

*Cascade with GCS1716 for control over 128 computers

  • 8-Port VGA KVMP with USB and PS/2 Interface
  • Maximum video resolution: up to 2048 x 1536
  • **Cascade up to 2 levels - control up to 128 computers from a single console
  • *** Front USB Port - for system upgrades
  • Security - 2 level password protection for OSD
  • Auto Scan Mode to monitor connected computers
  • Broadcast Mode to send commands to all connected computers
  • Rack mountable in a 19" (1U) system rack
  • Multi-platform OS support - Windows®*, Mac, Oracle® Solaris and Linux®
  • Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully supports DDC2B
  • Firmware upgradable
  • TAA Compliant

*IOGEAR's Display Emulation Technology provides the DDC support for Windows® 7
**Cascade with GCS1716 for control over 128 computers
***Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

Console:

  • VGA, SVGA, or MultiSync Monitor
  • A Keyboard and Mouse (USB or PS/2)

Computers:

  • VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
  • PS/2 mouse and keyboard ports (6-pin mini DIN)
  • 1 x USB port

Operating Systems:

• Windows(R) XP, Windows Vista(R), Windows(R) 7*, Windows(R) 8, Windows(R) 8.1, Windows 10
• Mac OS 9 to 10.x
• Oracle(R) Solaris
• Linux , Unix and other USB supported systems **
**Additional drivers and support may be needed
*IOGEAR’s DynaSync provides the EDID support for Windows(R) 7



  • 1 x 8-Port USB PS/2 Combo KVM
  • 1 x PS/2 KVM Cable (6ft - G2L5202P)
  • 1 x USB KVM Cable (6ft - G2L5202U)
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Foot Pad Set (4 Pads)
  • 1 x Power Adapter
  • 1 x Standard Rack Mounting Kit
  • 1 x Installation Guide
  • 1 x Warranty Card

GCS1808 Firmware V 3.3.327 Download

Release Date: 03/13/2019

If the GCS1808 or GCS1716 production code is below 2015 or current firmware version is below 3.3.318 Please do not upgrade to this version firmware without contacting Technical support first . Version 3.3.327 could damage early production KVMS.

Windows 10 32-bit
Windows 10 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCS1808
Computer Connections
Direct8
Daisy Chain or Cascading64 (via Cascade)
Port SelectionHotkeys, OSD, Button
Connectors
Console1 x SPHD-18 Male (Yellow)

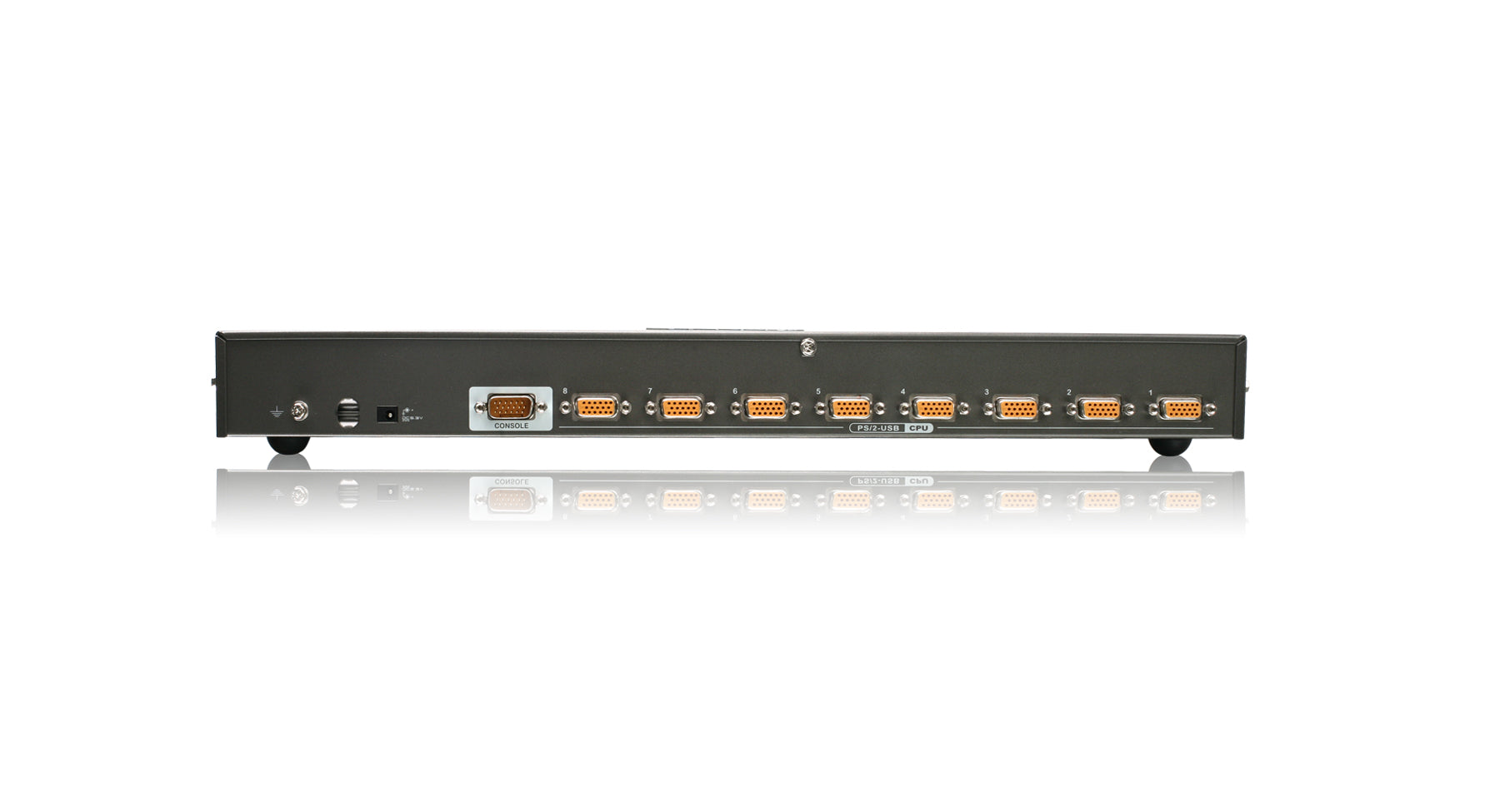

Computer/KVM8 x SPHD-15 Female (Yellow)
Power1 x DC Jack
USB1 x USB 1.1 Type A Female
Reset Switch1 x Semi-Recessed Push Button
Switches
F/W Upgrade1 x Slide Switch
Port Selection8 x Push Button
Emulation
KeyboardPS/2, USB
MousePS/2, USB
Video ResolutionVGA 2048x1536, DDC2B
Power
VoltageDC 5.3V
Amps2.4A
Scan Interval1-255 sec
Environment
Operation Temperature0~50C
Storage Temperature-20~60C
Humidity0~80% RH, Non-condensing
Housing
CaseMetal
Cable Length1 x 6ft USB KVM Cable; 1 x 6ft PS/2 KVM Cable
DimensionsGCS1808
Unit Dimensions
Height1.75in.
Depth6.25in.
Width17in.
Unit Package Dimensions
Height9.625in.
Width22in.
Depth5.5in.
Master Carton
Height10.75in.
Width18.25in.
Depth22.75in.
Master Carton Qty.3
Weight
Master Carton Wt.30.66lb
Unit Pack Wt.9.4lb
Unit Wt. w/accessories7.68lb
Unit Wt.5.58lb
