16 Port Rackmount KVMs

16-Port USB PS/2 Combo KVM Switch with Cables (TAA)

16-Port TAA Compliant VGA
MPN: GCS1716KITTAA

UPC: 881317509475

Sale price$729.95

The GCS1716 KVM is a combo switch allowing access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console.

The GCS1716 KVM is a combo switch allowing access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

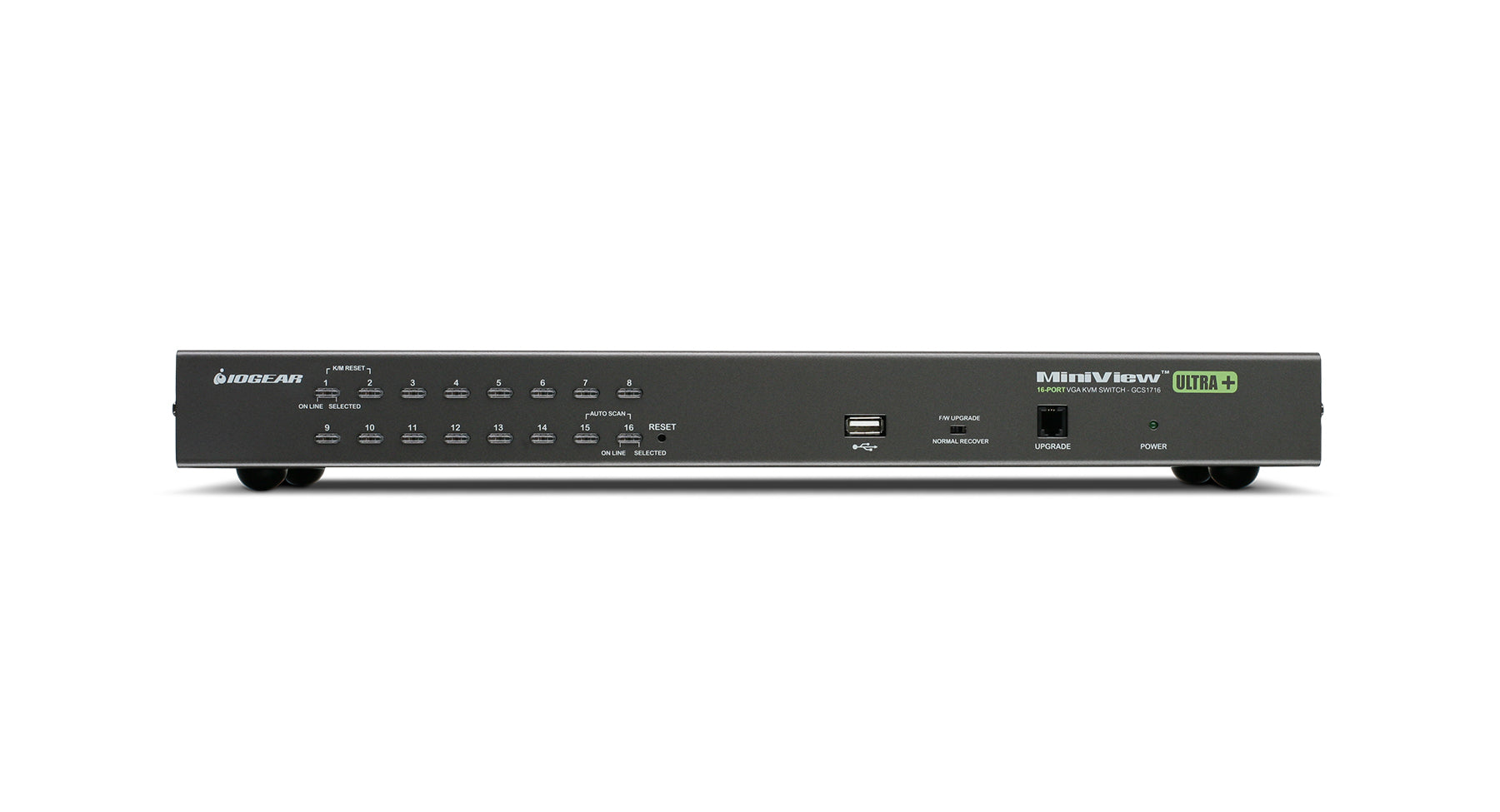

The GCS1716 includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1716 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.

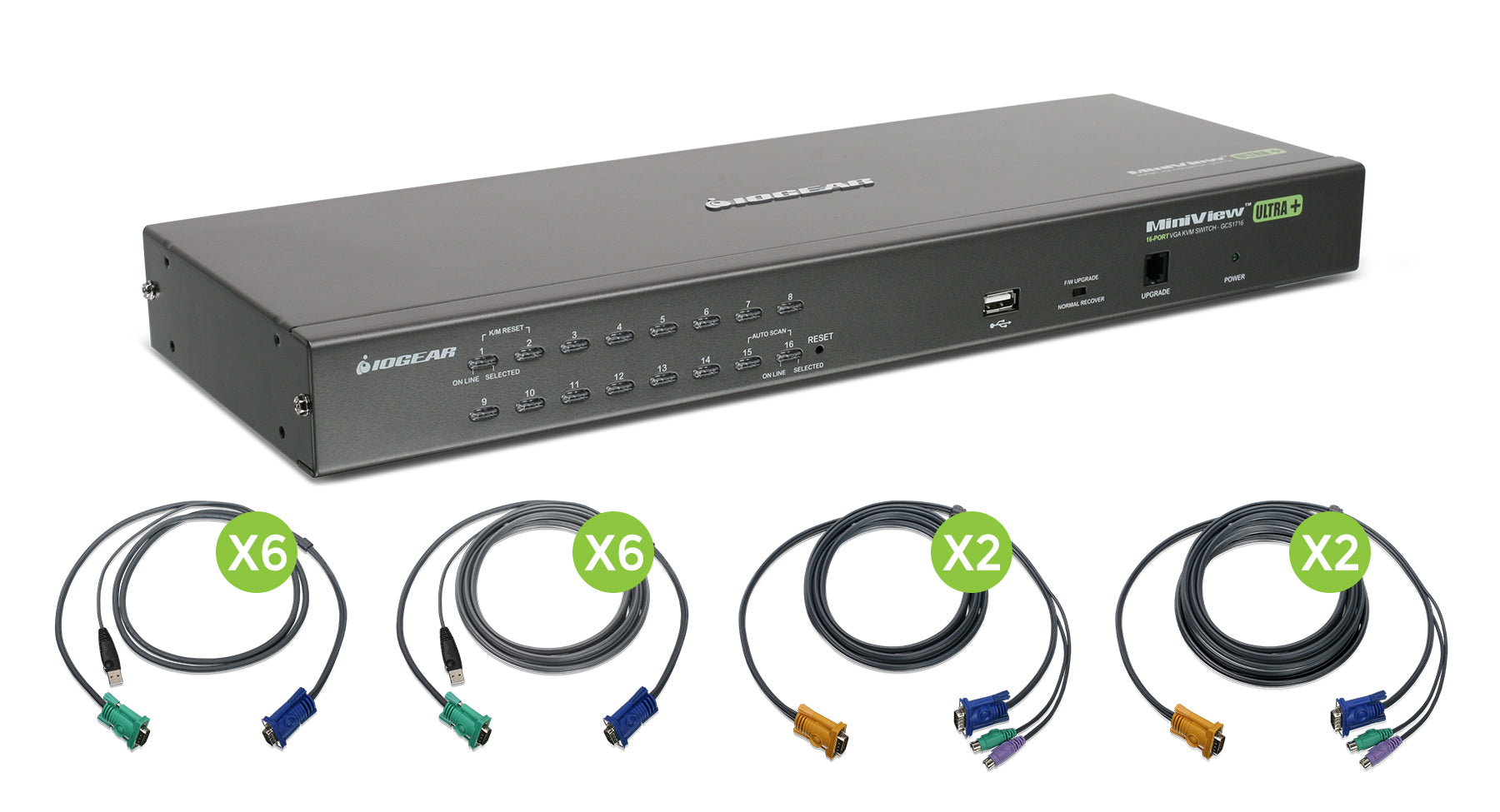

GCS1716KITTAA Included Cables:

6 x 2M USB KVM cable (G2L5202UTAA)
6 x 3M USB KVM cable (G2L5203UTAA)
2 x 2M PS/2 KVM cable (G2L5202PTAA)
2 x 3M PS/2 KVM cable (G2L5203PTAA)
Benefits:

Eliminates the excessive expense of additional monitors, keyboards and mice.
Increases office space, productivity, and provides as an energy cost savings solution.
It contributes to a greener environment by reducing the amount of waste generated by multiple components.
An easy / efficient way to organize and streamline a growing or expanding server operation.

  • Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
  • Auto Scan Mode to monitor connected computers
  • Broadcast Mode to send commands to all connected computers
  • Easy to operate - computer selection via front panel LED’s, intuitive OSD (on screen display), and hotkeys
  • *Cascade up to 2 levels - control up to 256 computers from a single console
  • Security - 2 level password protection for OSD
  • Maximum video resolution: up to 2048 x 1536
  • Supports both USB and PS/2, VGA computers
  • ** Front USB Port - Fully compliant with USB 1.1 for system upgrades and shared peripherals
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully Supports DDC2B

*(Firmware update is now available at http://www.iogear.com/support/dm/driver/GCS1716)

** Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals.

Console:

  • VGA, SVGA, or MultiSync Monitor
  • A Keyboard and Mouse (USB or PS/2)

Computers:

  • VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
  • PS/2 mouse and keyboard ports (6-pin mini DIN) and at least 1 USB port
  • Multi OS Platform Support: PC / Mac / Sun / Linux

* Recommended Cables:

  • G2L5202U / G2L5203U - USB KVM cable (6ft / 10ft)
  • G2L5202P/ G2L5203P - PS/2 KVM cable (6ft / 10ft)

* (Cables Not Included)

  • 1 x GCS1716, 16-Port Combo KVM w/ Standard Rack Mounting Kit
  • 6 x 2M USB KVM cable (G2L5202U)
  • 6 x 3M USB KVM cable (G2L5203U)
  • 2 x 2M PS/2 KVM cable (G2L5202P)
  • 2 x 3M PS/2 KVM cable (G2L5203P)
  • 1 x Console cable
  • 1 x Cascade cable
  • 1 x Firmware upgrade cable
  • 1 x Grounding wire
  • 1 x Foot pad set (4 pads)
  • 1 x Power adapter
  • 1 x Installation Guide
  • 1 x Warranty Card

GCS1716 Firmware V 3.3.327 Download

Release Date: 03/13/2019

If the GCS1808 or GCS1716 production code is below 2015 or current firmware version is below 3.3.318 Please do not upgrade to this version firmware without contacting Technical support first . Version 3.3.327 could damage early production KVMS.

Windows 10 32-bit
Windows 10 64-bit
Windows 7 32-bit
Windows 7 64-bit
Windows 8.1 32-bit
Windows 8.1 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCS1716KITTAA
Computer Connections
Direct16
Daisy Chain or Cascading256 (via Cascade)
Port SelectionHotkeys, OSD, Button

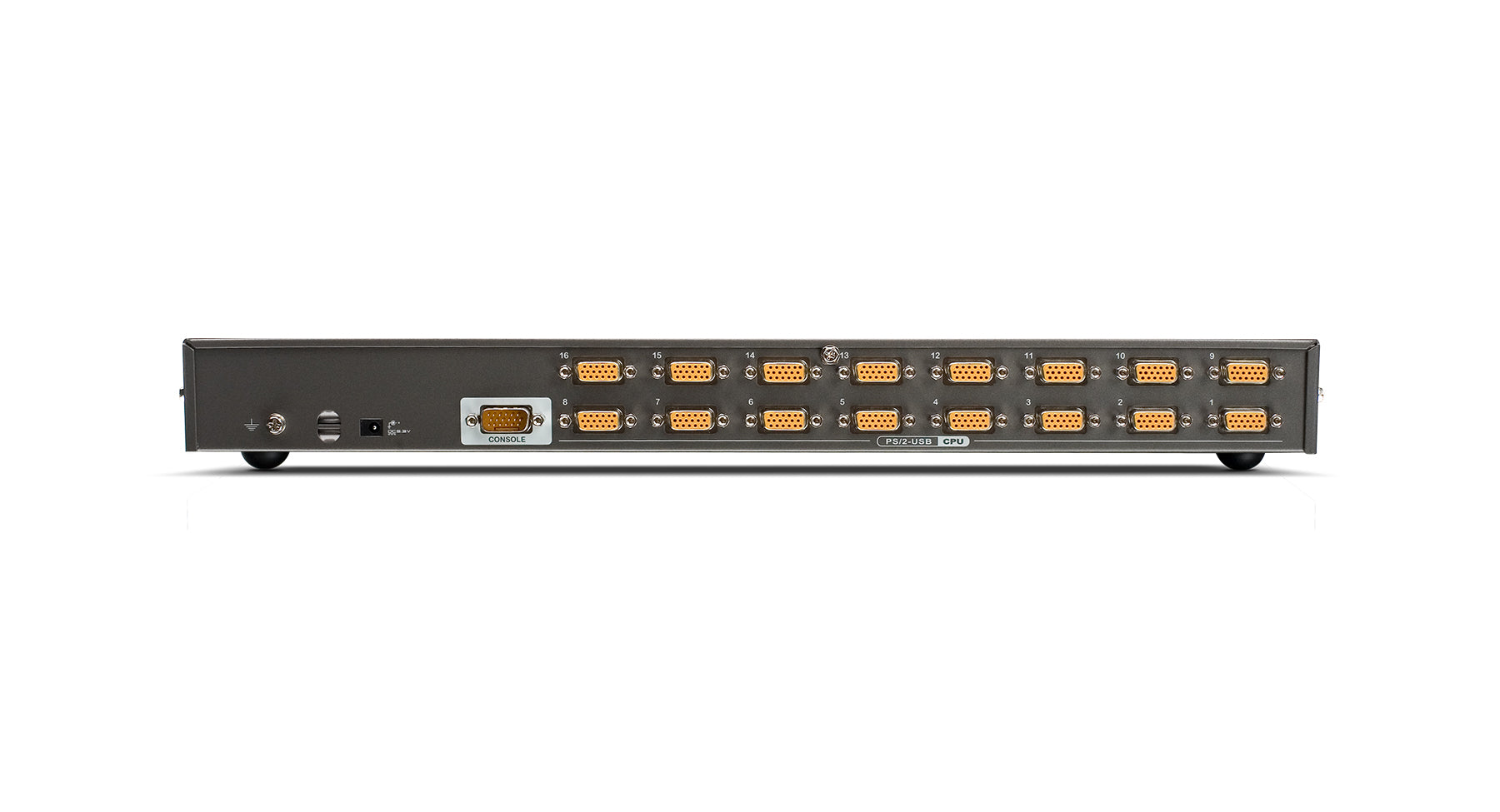

Connectors
Console1 x SPHD-18 Male (Yellow)
Computer/KVM16 x SPHD-15 Female (Yellow)
Power1 x DC Jack
USB1 x USB 1.1 Type A Female
Reset Switch1 x Semi-Recessed Push Button
Switches
F/W Upgrade1 x Slide Switch
Port Selection16 x Push Button
Emulation
KeyboardPS/2, USB
MousePS/2, USB
Video ResolutionVGA 2048x1536, DDC2B
Power
VoltageDC 5.3V
Amps2.4A
Scan Interval1-255 sec
Environment
Operation Temperature0~50C
Storage Temperature-20~60C
Humidity0~80% RH, Non-condensing
Housing
CaseMetal
DimensionsGCS1716KITTAA
Unit Dimensions
Width17in.
Height1.75in.
Depth6.25in.
Unit Package Dimensions
Width10.25in.
Height9.625in.
Depth22.375in.
Weight
Unit Pack Wt.18.39lb
Unit Wt. w/accessories15.61lb
Unit Wt.6.02lb
