USB-C Docking stations

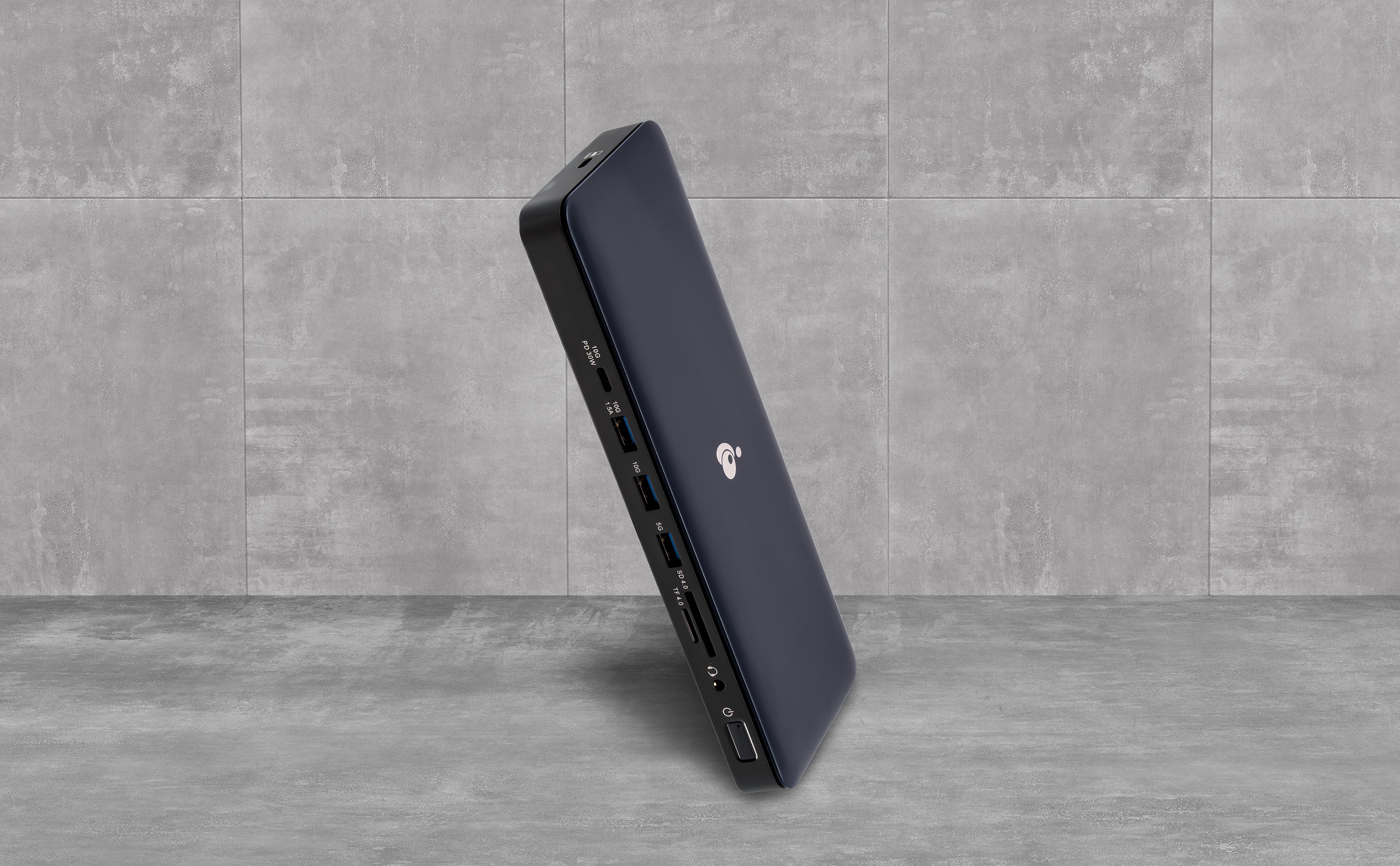

Docking Station Dock Pro USB4 8K Triple View

Thunderbolt 4 compatible Triple Monitor USB 4
MPN: GUD4C8K3

UPC: 881317521699

Sale price$329.95

This is IOGEAR’s most powerful dock which provides the most advanced, efficient, and versatile I/O solution available. With up to 40Gbps for data and video the Dock Pro allows Thunderbolt 4 or USB4 laptops to reach their highest capabilities. Connect up to three displays and many other devices with just one cable.

Docking Station Dock Pro USB4 8K Triple View
Docking Station Dock Pro USB4 8K Triple View Sale price$329.95
Max Performance

Whether you have USB4 or Thunderbolt 4 the Dock Pro's Goshen Ridge controller allow for full 40Gbps transfer rate. This allows doe full compatibility with Thunderbolt 4 laptops. Work and play at Max Performance.

Triple 4K Displays

40 Gbps transfer speeds for data and video means that you can run up to three 4K displays off of just one USB4 or Thunderbolt 4 connection. Choose from HDMI or DisplayPort depending on your configuration.

Peak network speeds

A wired connection at 2.5 Gbps speeds gives users MAX performance when it comes to download and upload speeds. Match your high speed network environment with the most popular protocols. (10/100/1000/2500MB)

Mobile Charging

Charge any mobile device with up to 30W of power via a USB-C port. Perfect for the latest smartphones and tablets.

  • 2x HDMI up to 4K@60Hz
  • 2x Displayport up to 8K@30Hz
  • 2x USB4 full feature ports, up to 8K@30Hz
  • 1x USB-C 3.2 Gen 2 (10Gpbs)
  • 2x USB-A 3.2 Gen 2 (10Gbps)
  • 1x USB-A 3.2 Gen 1 (5Gbps)
  • 1x SD/Micro SD up to 312 Mbps
  • 1x 2.5G Ethernet port
  • 1x 3.5mm Audio Combo port
  • Features Goshen Ridge Controller, this supports Thunderbolt 4 at max bandwidth (40Gbps)
  • Supports 8K@30hz in Single View, 4K@60hz in Dual View, 2x 4K@60hz 1x 4K@30hz in Triple View
  • Power Delivery up to 96W

Host device requirements

  • USB4 or Thunderbolt 4 host required for max bandwidth (40Gbps)
  • USB-C (DP alt mode) and Thunderbolt 3 hosts are compatible at lower bandwidth OS requirements
  • Windows 10,11
  • Mac OS X 10.13+
  • 1x GUD4C8K3
  • 1x USB4 C to C cable (.08m)
  • 1x Power Adapter
  • 1x QSG
  • 1x Warranty Card

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGUD4C8K3
Upstream Port
USB-CUSB4 Type-C for Host (40Gbps)
Downstream Port
Audio1x 3.5mm Audio Combo port
USB-A2x USB-A 3.2 Gen 2 (10Gbps) 1x USB-A 3.2 Gen 1 (5Gbps)
USB-C1x USB 3.2 Gen 2 (10Gbps) 2x USB4 full feature (40Gbps) up to 8K@30hz
Card Reader1x SD 1x Micro SD/TF Max 312 mbps
Ethernet1x RJ45 10/100/1000/2.5G bandwidth
HDMI2x HDMI up to 8K@30hz
DisplayPort2x Displayport up to 8K@30hz
Power AdapterDC 20V 150W Power supply
Power
Output RatingPD 3.0 up to 96W
DimensionsGUD4C8K3
Unit Dimensions
Height0.7" (1.8 cm)
Length8.8" (22.5 cm)
Width3.3" (8.5 cm)
Unit Package Dimensions
Height2.5" (6.5 cm)
Length9.64" (24.5 cm)
Width4.3" (11 cm)
Master Carton
Height
Length
Width
Master Carton Qty.
Weight
Unit Pack Wt.
Unit Wt.0.9 lbs (0.4 kgs)
