USB-C Docking Station

Dock Pro Duo USB-C Docking Station

Name: Dock Pro Duo USB-C Docking Station
Brand: IOGear
SKU: GUD3CDHTAA
Price: 299.95 USD
Availability: InStock

DisplayLink KVM TAA Compliant

MPN: GUD3CDHTAA

UPC: 881317521682

$299.95

The IOGEAR Dock Pro Duo USB-C Docking Station merges cutting edge technology and high-quality hardware with innovative design elements. The Dock Pro Duo allows users to switch the three display monitors and USB peripherals by multi switch mode, this allows for easy multi-tasking between both computers.

Dock Pro Duo USB-C Docking Station

$299.95

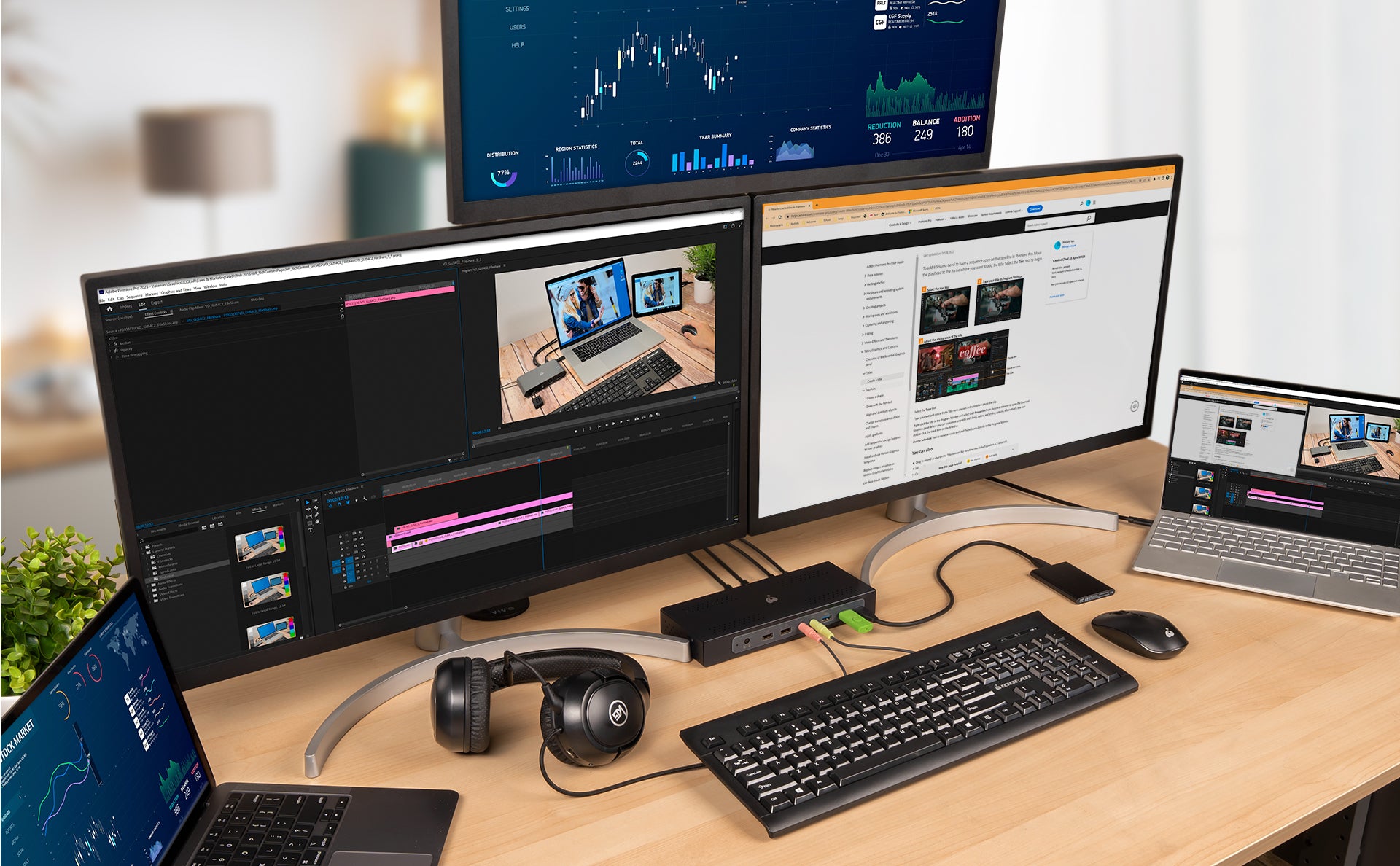

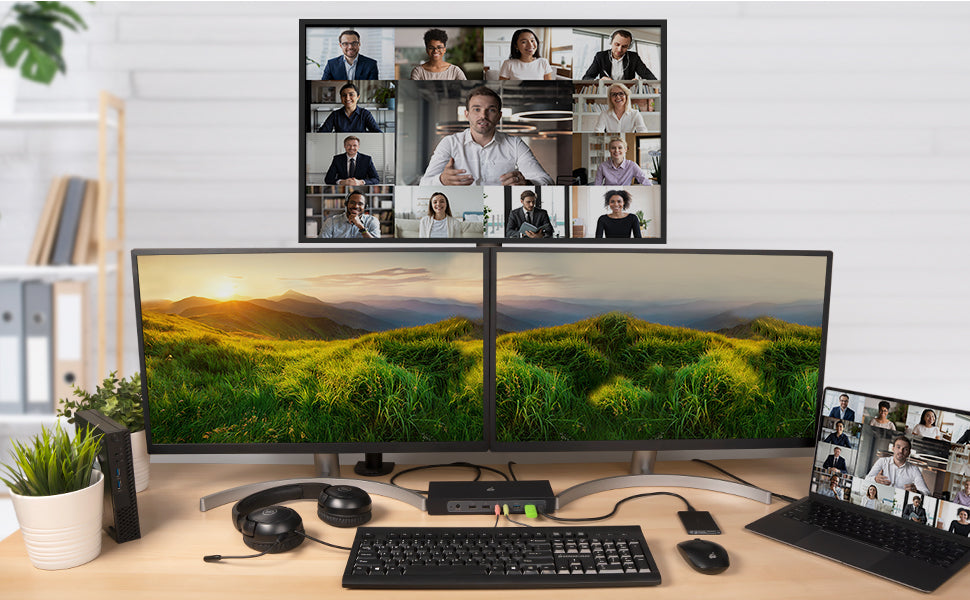

Multitask efficiently

Share video and USB peripherals between 2 USB-C host computers. Work on high resolution projects with the ability to run up to three 4K displays via HDMI and Displayport. Hotkeys allow for easy switching between the two computers.

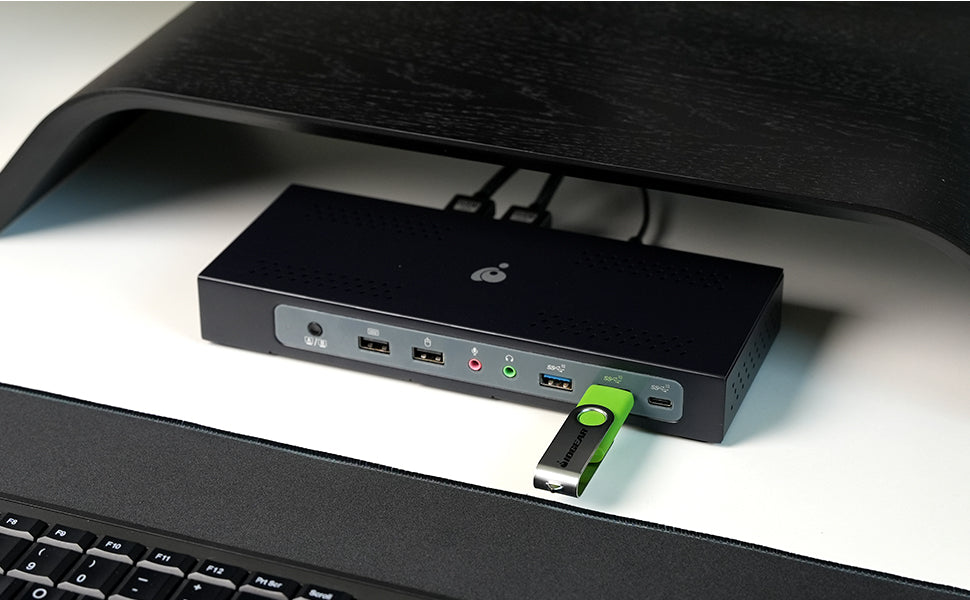

Data speeds for Power Users

Need fast transfer rates? The Dock Pro Duo provides 2 USB-A Gen 2 ports capable of transfer data at 10gbps. Have a USB-C SSD or HDD? Dock Pro Duo also has you covered with a USB-C Gen 2 10gbps port available for data transfer.

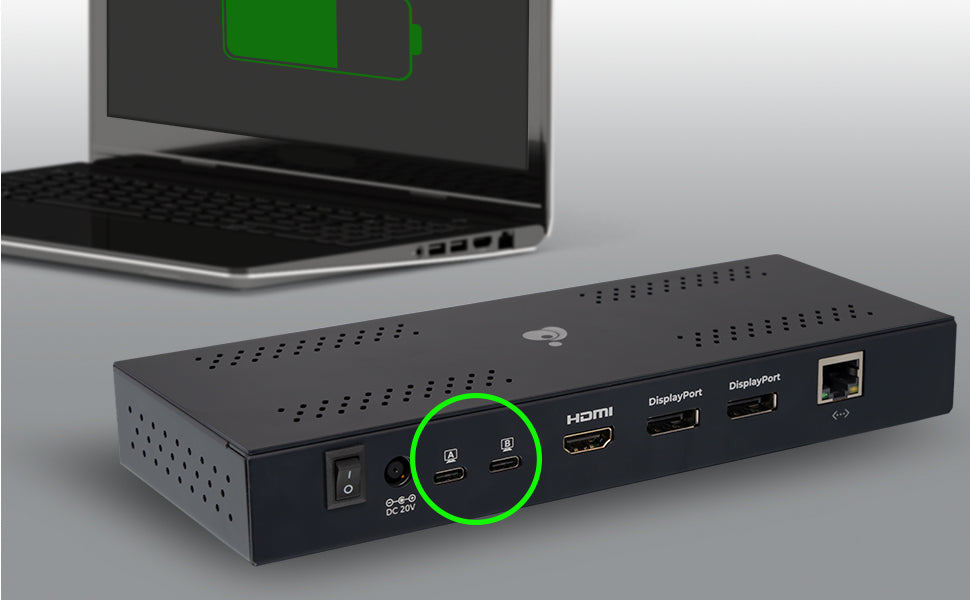

PD 3.0 Power for both Hosts

Keep both USB-C host computers charging with up to 100W of PD power to EACH computer. No need to worry about your laptops battery draining when working for long hours.

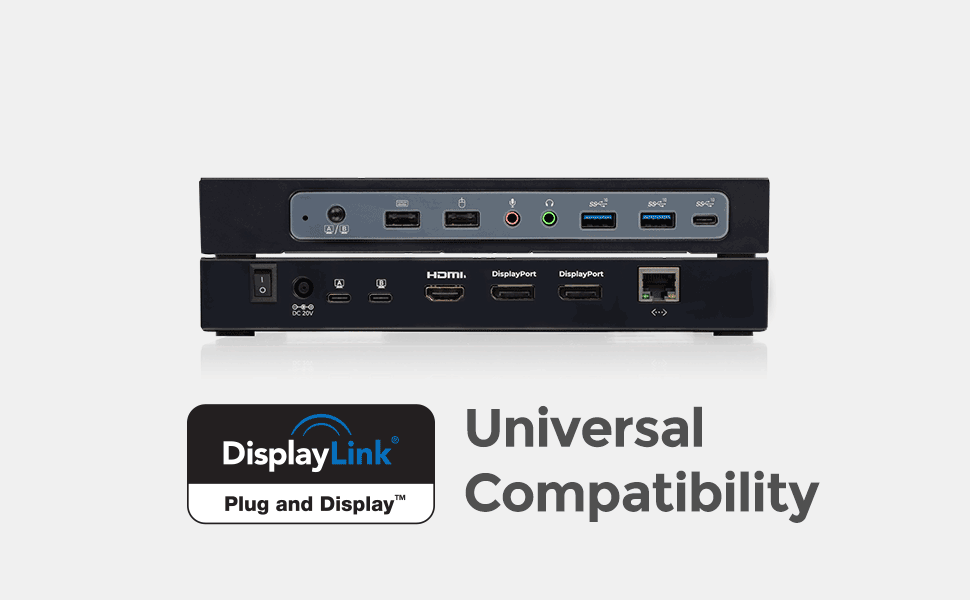

Ultimate Compatibility

With integrated DisplayLink® chipset, the dock is compatible with all USB-C computers including Windows and Mac OS platforms. The Dock Pro is also compatible with most USB-C tablets such as the iPad Pro or Windows tablets. Connect and charge your tablet to experience new connectivity options.

Dock 2 USB-C laptops and expand to 11 ports
Share Video and USB peripherals between TWO host computers over USB-C
Hotkey Switching
1x HDMI up to 4096x2160@60Hz (DP Alt mode)
2x Displayports up to 4096x2160@60Hz (Displaylink mode)
1x USB-C 3.2 Gen 2 (10 Gbps)
2x USB-A 3.2 Gen 2 (10 Gbps)
2x USB-A 2.0 (Keyboard and Mouse)
1x 3.5mm Mic In 1x 3.5mm Speaker Out
1x Gigabit Ethernet port
DisplayLink chip allows for Windows and macOS compatibility
Power button
TAA Compliant
Charging Power Up to 100W (100W provided to each host computer)

Host device requirements

USB-C (Thunderbolt 3/4 compatible) device

OS requirements

Windows 10,11
Mac OS X 10.13+
DisplayLink Driver installation (http://www.displaylink.com/downloads)

Notes for M1/M2 Mac Users: For M1/M2 Mac Users, please check DisplayLink website for latest Mac Displaylink driver:
http://www.displaylink.com/downloads/macos

1x GUD3CDHTAA
2x USB-C to C cables for Host computers
1x Power adapter
1x QSG
1x Warranty Card

GUD3CDHTAA Manual Download

GUD3CDHTAA Quick Start Guide Download

DisplayLink Driver installation (http://www.displaylink.com/downloads)

Notes for M1 Mac Users: For M1 Mac Users, please check DisplayLink website for latest Mac Displaylink driver:
http://www.displaylink.com/downloads/macos

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GUD3CDHTAA
Upstream Port
USB-C	2x USB-C 3.2 Gen 2 (For Host 1 and Host 2)
Downstream Port
Audio	1x Mic in 1x Speaker Out
Ethernet	1x Gigabit Ethernet port
USB-A	2x USB-A 2.0 2x USB-A 3.2 Gen 2 (10Gbps)
USB-C	1x USB-C 3.2 Gen 2 (10Gbps)
HDMI	1x HDMI Up to 4096x2160 @60hz (DP Alt Mode)
DisplayPort	2x 4096x2160@60Hz (Displaylink)
Power Adapter	DC 230W Power adapter
Power
Output Rating	Up to 100W to each Host

Dimensions	GUD3CDHTAA
Unit Dimensions
Height	1.2" (3.2 cm)
Length	8.6" (21.9 cm)
Width	3.4" (8.8 cm)
Unit Package Dimensions
Height	6.4" (16.3 cm)
Length	3.6" (9.2 cm)
Width	11.1" (28.4 cm)
Master Carton
Height	12.5" (32 cm)
Length	11.8" (30 cm)
Width	13.7" (35 cm)
Master Carton Qty.	6
Weight
Master Carton Wt.	26 lbs (11.8 kgs)
Unit Pack Wt.	4.07 lbs (185 kgs)
Unit Wt.	1.5 lbs (0.68 kgs)
