USB-A Docking Station

USB 3.0 Universal Docking Station

Name: USB 3.0 Universal Docking Station
Brand: IOGear
SKU: GUD300
Price: 174.99 USD
Availability: InStock

DVI HDMI USB-A

MPN: GUD300

UPC: 881317511638

$174.99

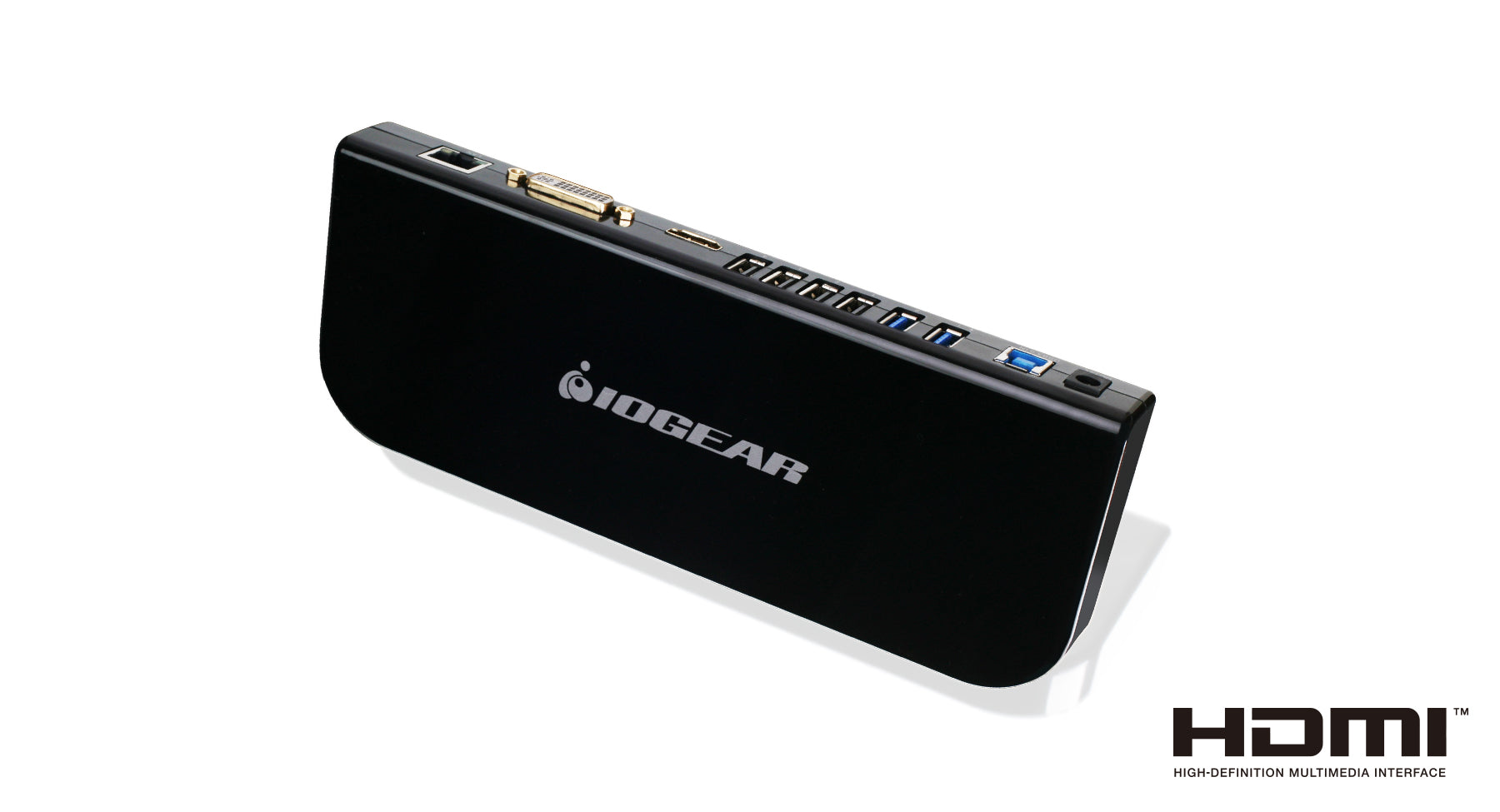

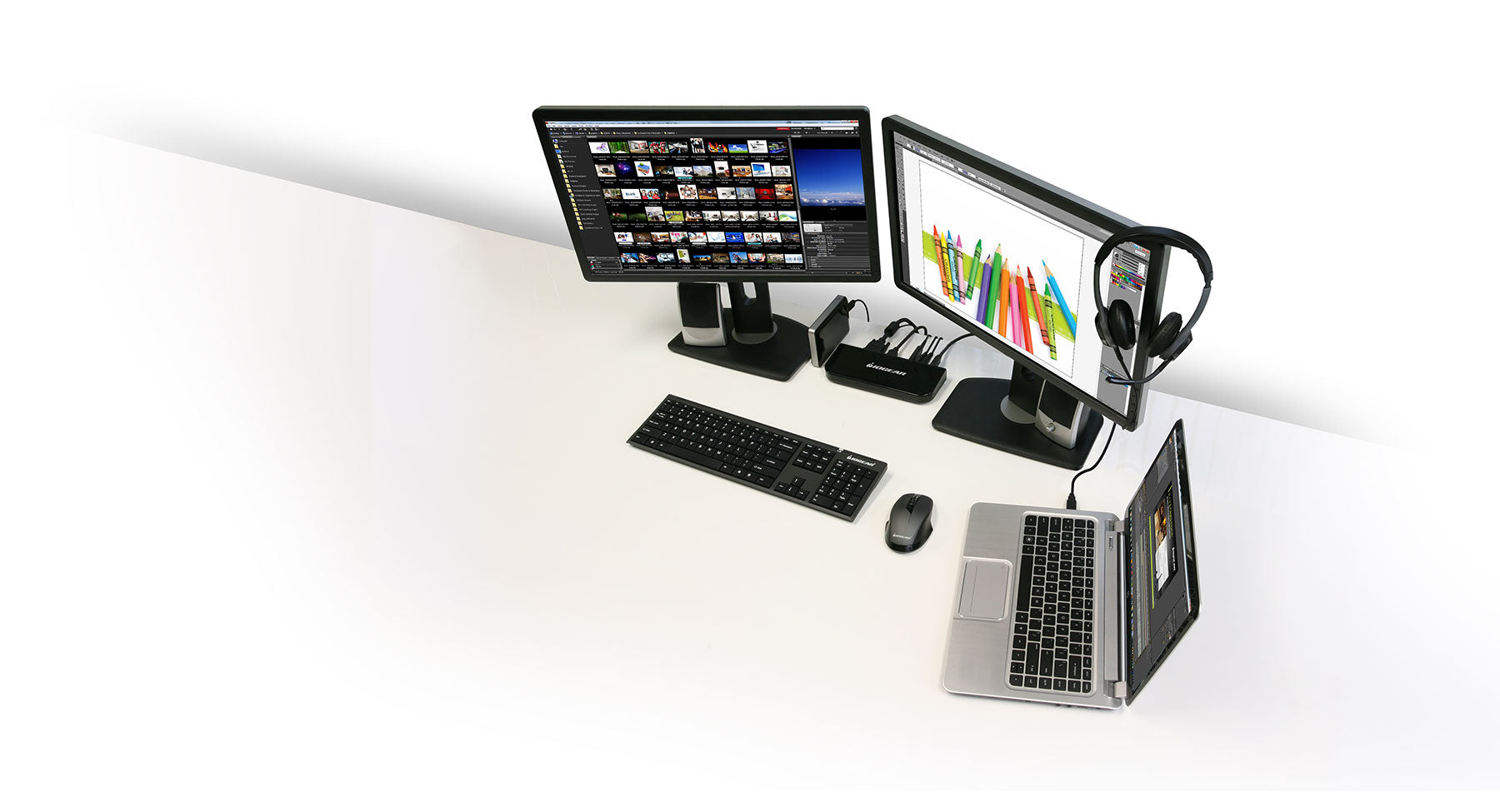

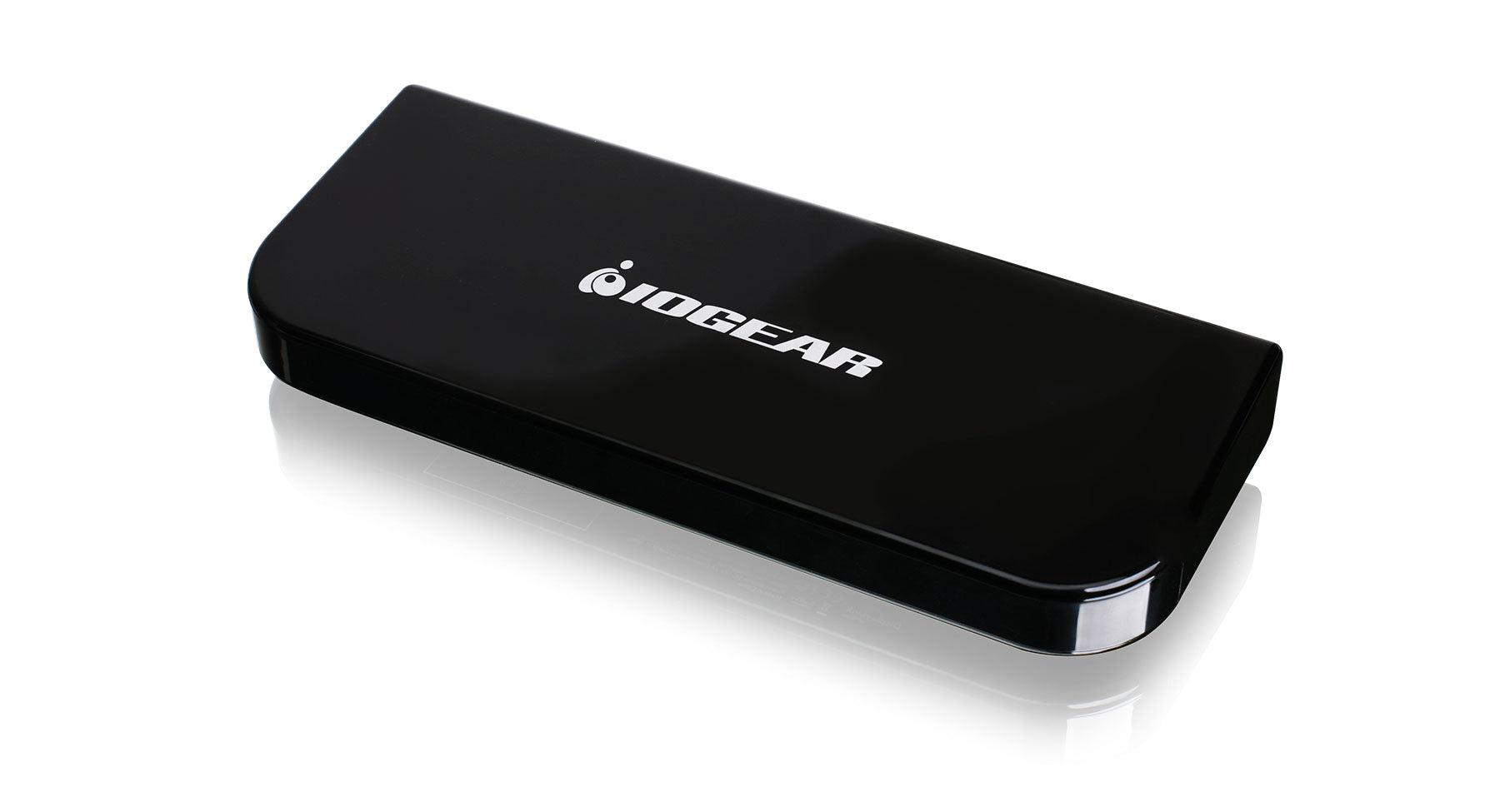

IOGEAR'S USB 3.0 Universal Docking Station quickly and easily transforms your laptop, Ultrabook or Microsoft Surface® Pro tablet into a full-featured workstation. This universal dock is an all-in-one solution to the latest port-deficient laptops and tablets. It allows you to connect as many as 10 devices to your laptop through a single high speed USB 3.0 cable that offers speeds up to ten times faster than the previous USB 2.0 standard.

USB 3.0 Universal Docking Station

$174.99

Optimal Productivity

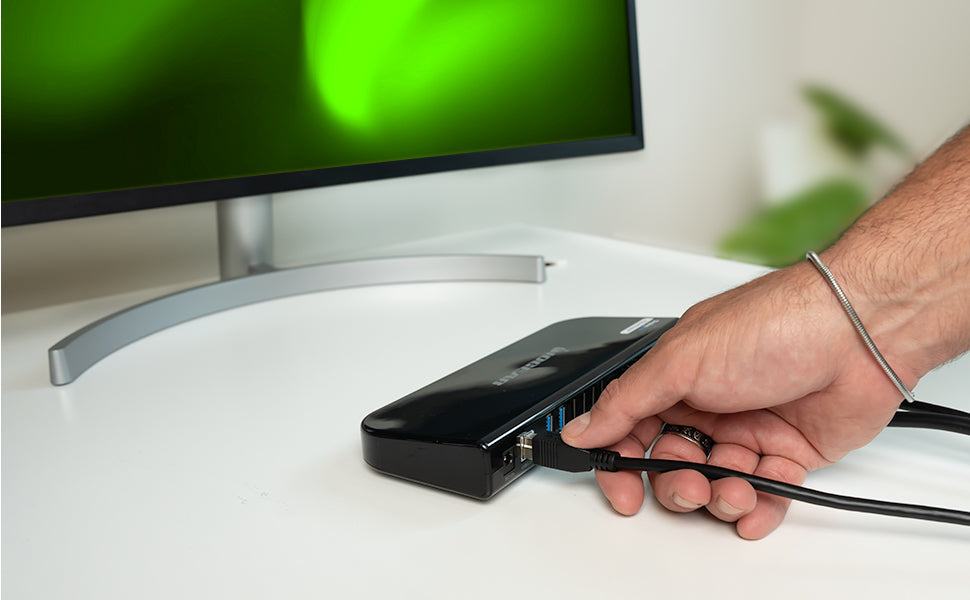

The USB 3.0 Universal Docking Station has connections to suit virtually every application. Although this universal dock is equipped to take advantage of USB 3.0 Super Speed technology, it is fully backwards compatible with USB 2.0 devices. And since the connections from all your peripheral devices are consolidated to your computer through a single USB 3.0 cable, disconnecting only takes removing one plug.

Support for many devices

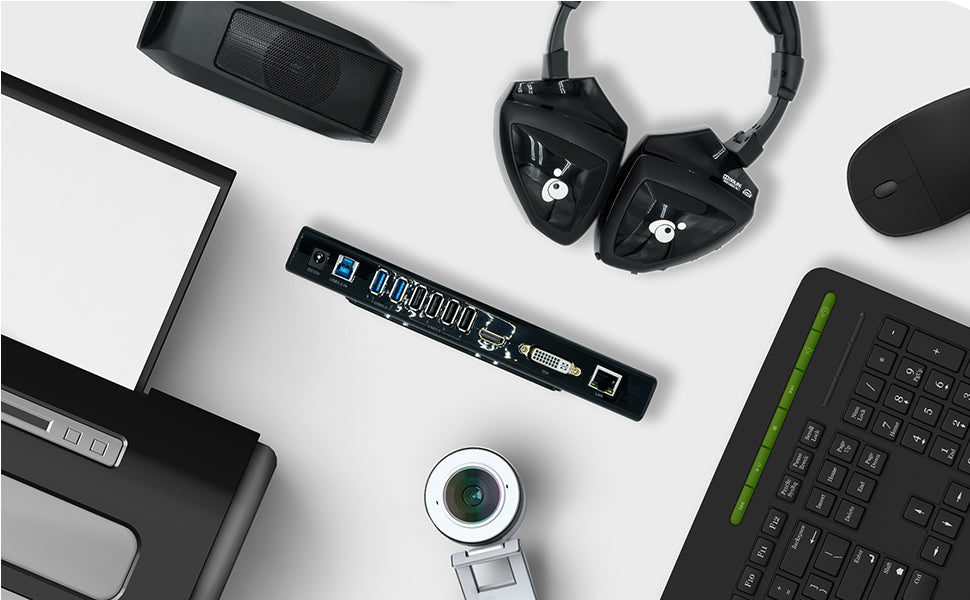

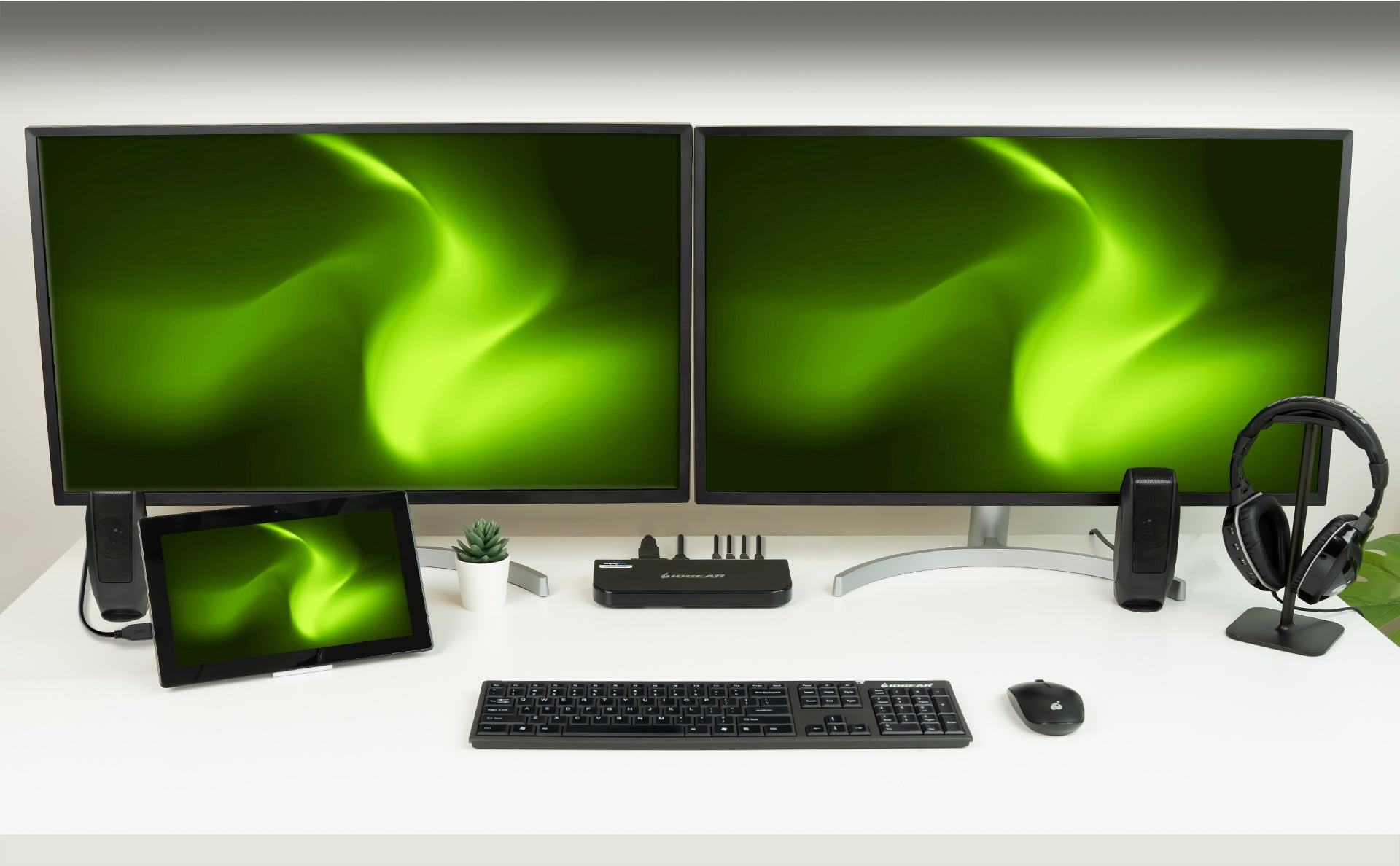

This universal dock allows you to connect through a single high speed USB 3.0 cable that offers speeds up to ten times faster than the previous USB 2.0 standard. With support for dual monitors, Gigabit Ethernet, 6 USB ports, plus microphone and speaker connections, the USB 3.0 Universal Docking Station connects you to all your peripherals so that you can completely mobilize your customized home office.

Multitask

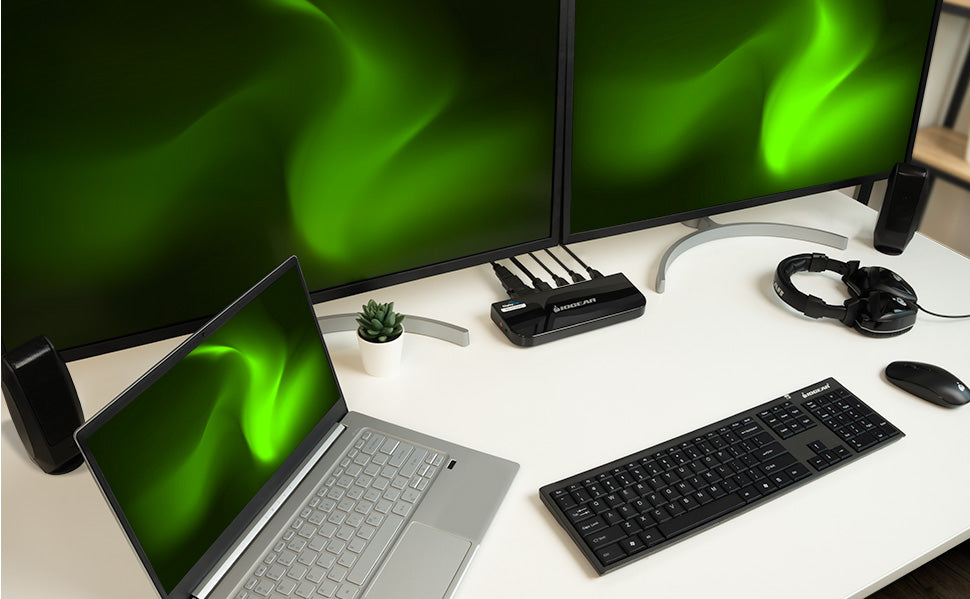

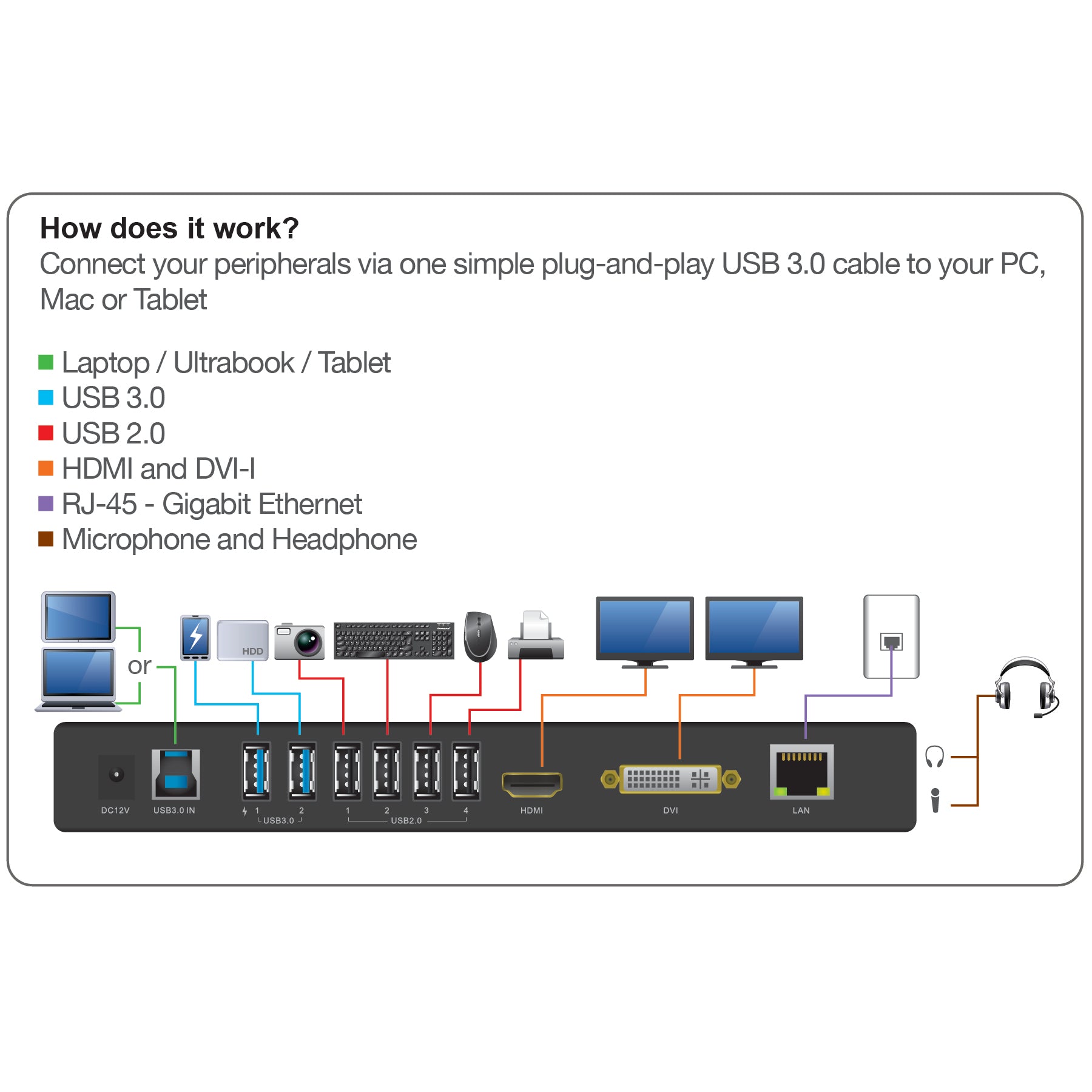

The IOGEAR USB 3.0 Universal Docking Station gives you HDMI and DVI connections that can support a resolution of 2560 x 1440. It also has a gigabit Ethernet port, six USB ports (two USB 3.0 and four USB 2.0), and audio input/output jacks for headsets or speakers. Now you can easily add a full-sized keyboard and mouse, external hard drives, printers, webcams, etc. to turn your laptop into a complete workstation.

Ultimate Compatibility

With integrated DisplayLink® chipset, the dock is compatible with all USB-C computers including Windows, Mac OS, and Chrome OS platforms

Universal USB 3.0 Ultrabook / Laptop / Tablet* Docking Station
Dual Monitor support with DVI-I and HDMI outputs
Resolution**- HDMI: 2560x1440 single monitor only, DVI: 2048 x 1152, VGA (using supplied adapter): 1920x1200
Integrated 2-port USB 3.0 and 4-port USB 2.0 Hub for external drives, cameras and phones
Integrated Gigabit Ethernet port (RJ-45) - Supports 10/100/1000BASE-T
Stereo audio with 3.5mm headphone output jack
Microphone 3.5mm input jack
Perfect for Workstations, Business, Home Offices and Entertainment Centers

*Windows 8 Pro tablets (Microsoft Surface™ Pro, Surface™ Pro 2, etc.)
**2560x1440 resolution requires connection via HDMI 1.4 cable and DVI output not used; maximum resolution with two monitors connected is 1920x1080 for both monitors
Microsoft and Surface are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries
DisplayLink driver does not work on MacOS 10.13.4 and above - learn more

Hardware

Computer or tablet with USB 3.0 or USB 2.0 port*

* USB 3.0 speeds are not available when connected to a USB 2.0 port.

Operating System

Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 , Windows® 11
MAC OSX 10.6 or later

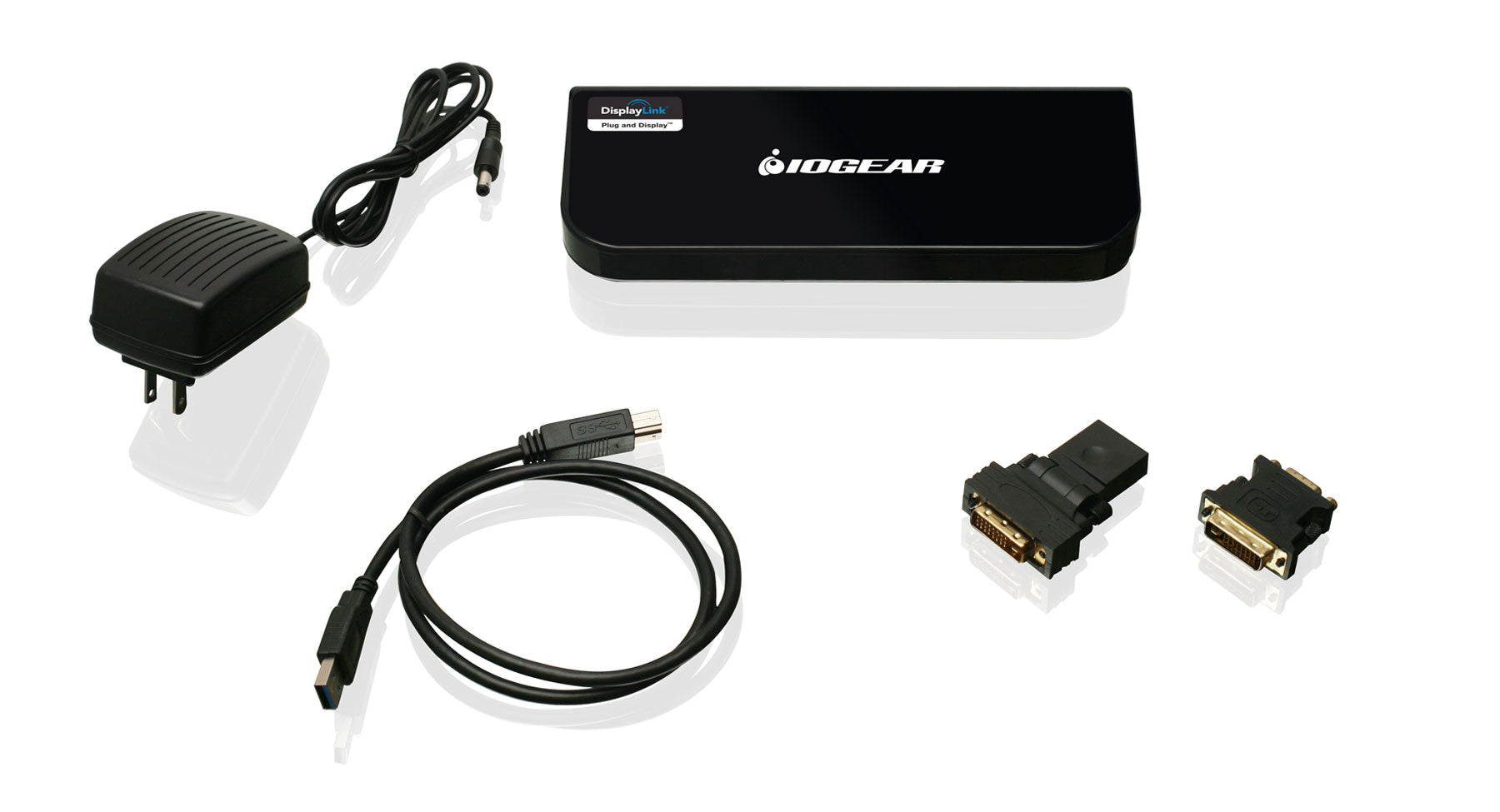

1 X GUD300 Universal Docking Station

1 X USB 3.0 Super Speed Cable

1 X HDMI to DVI Adapter

1 X DVI to VGA Adapter

1 X Software Installation CD

1 X Quick Start Guide

1 X AC Adapter

1 X Warranty Card

GUD300 Quick start Guide Download

DisplayLink Driver installation (http://www.displaylink.com/downloads)

Notes for M1 Mac Users: For M1 Mac Users, please check DisplayLink website for latest Mac Displaylink driver:
http://www.displaylink.com/downloads/macos

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GUD300
Operating System Support	Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.6, 10.7, 10.8, 10.9, 10.10
USB Specification	USB 3.0
Resolution	HDMI: up to 2560x1440 (1 monitor connected via HDMI 1.4 cable), up to 2048x1152, 1920x1200 (2 monitors connected) / DVI: up to 2048x1152, 1920x1200 / VGA (using included adapter): up to 1920x1200
LAN Connection	Gigabit 10/100/1000Mbps
Power Adapter	Input: 100-240VAC @ 50/60Hz 2A Output: 12VDC @ 2A
Connectors
Audio Input	3.5mm mic input
Audio Output	Stereo audio with 3.5mm headphone output jack
USB	(2) USB 3.0 / (4) USB 2.0 / (2) USB charge ports @ 1.5A output
LAN	RJ-45 Ethernet connector
Audio
Audio Output	Supports 6 channel audio (5.1 surround) over HDMI
Console Connectors
Monitor	1 HDMI output & 1 DVI output (includes DVI to VGA & HDMI to DVI adapters

Dimensions	GUD300
POP Information
10'' Peg Hook	2
6'' Peg Hook	1
Unit Dimensions
Height	1.4" (3.5cm)
Length	8.8" (22.2cm)
Depth	3.4" (8.7cm)
Unit Package Dimensions
Height	5.4" (13.7cm)
Width	9.3" (23.5cm)
Depth	3.5" (8.9cm)
Master Carton
Height	6.4" (16.2cm)
Width	10" (25.4cm)
Depth	11.5" (29.2cm)
Master Carton Qty.	3
Weight
Master Carton Wt.	5.4lbs (2.4kg)
Unit Pack Wt.	1.6lbs (.70kg)
Unit Wt.	.60lbs (.28kg)

3 Year Limited Warranty
