USB-C Pocket Dock with Power Pass through
UPC: 881317518057
Choose options

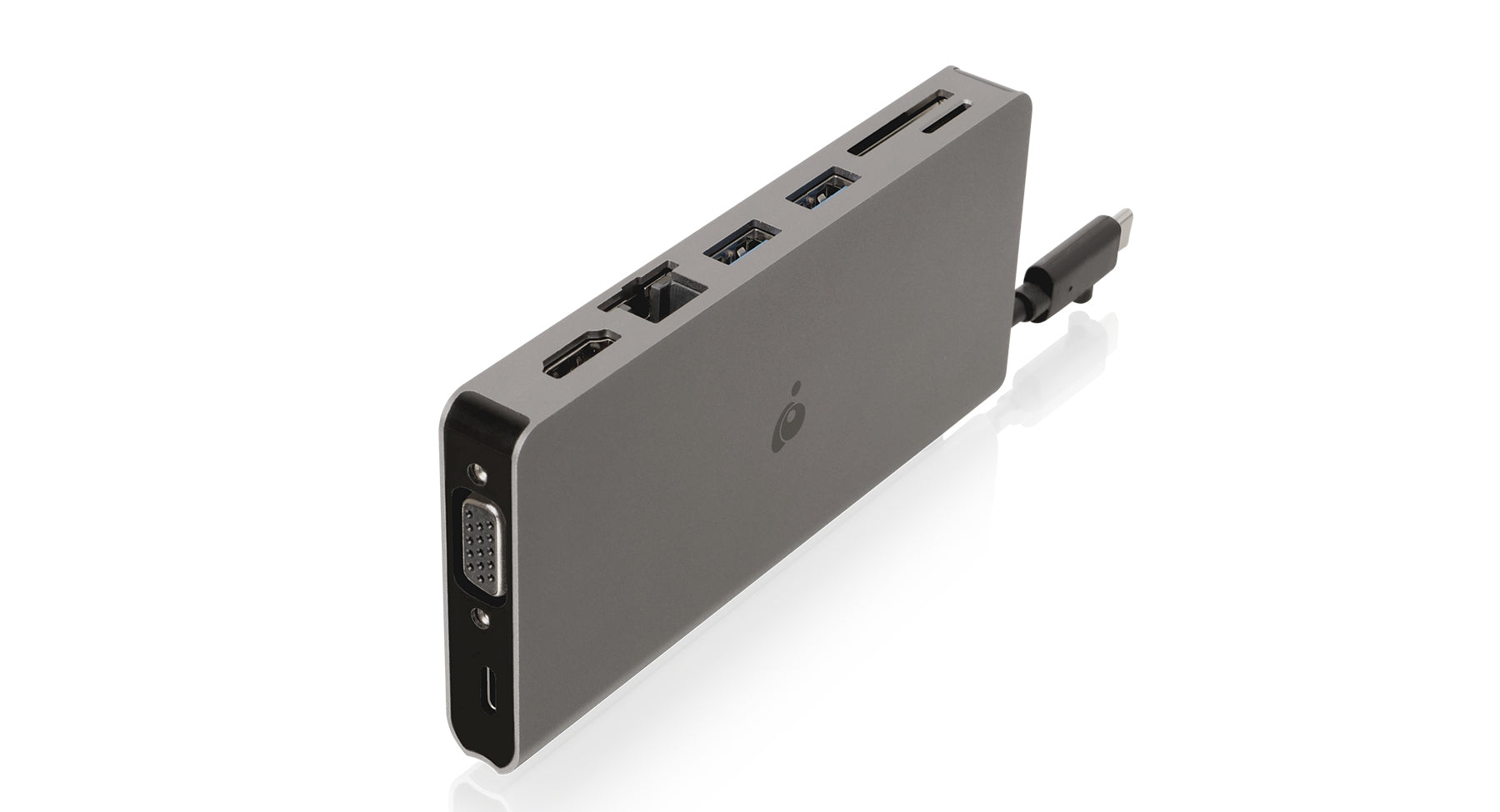

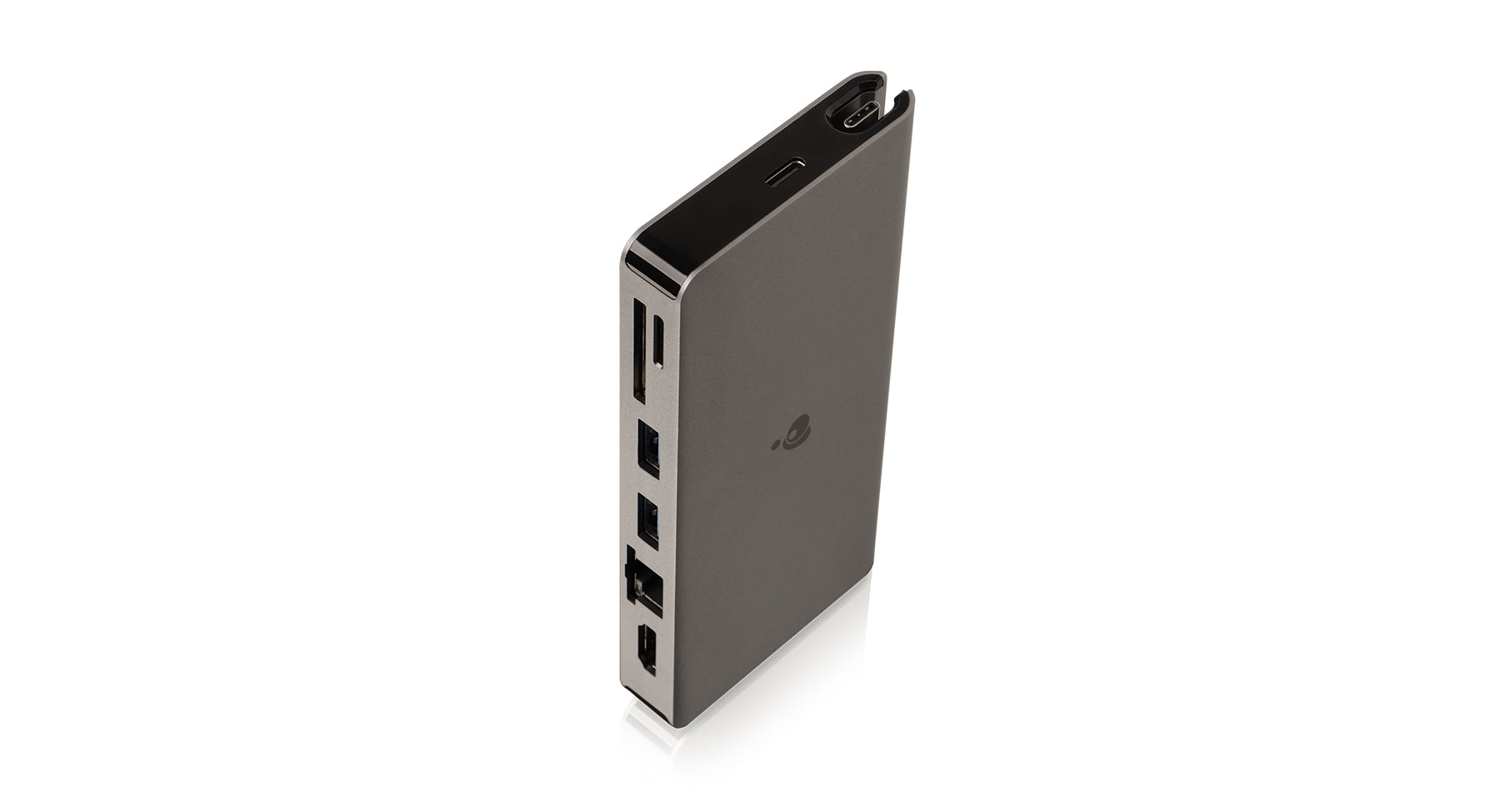

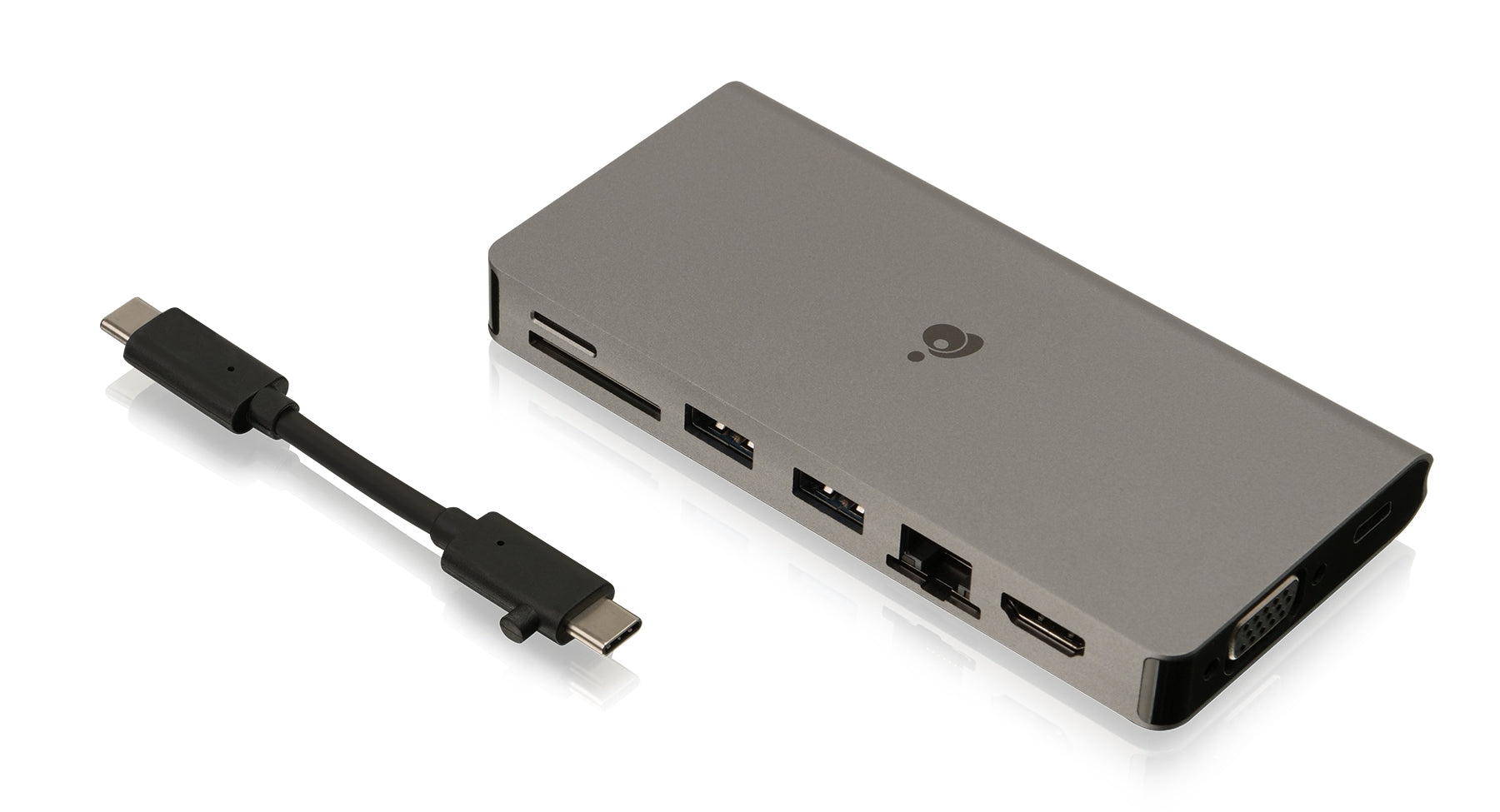

8-In-1 Pocket-Size USB-C Dock
Take expanded USB-C connectivity on-the-go with you. The IOGEAR USB-C Pocket Dock with Power Pass through is a compact travel companion that expands your laptop or tablet's USB-C port and is compatible with Thunderbolt 3-enabled computers.
Charge Laptop & Devices With 100W Power Pass through
Never worry about running out of power while using the IOGEAR USB-C Pocket Dock. Attach your laptop or tablet's original USB-C AC charger to the dock's USB-C port to deliver up to 100W* of power to all dock-connected devices.
USB-C to SD/MicroSD Card Reader
Read and write both SD and MicroSD card content and efficiently transfer full-resolution photos, documents and videos between your laptop or tablet and external storage devices.
4K Resolution Video Output
Add an HDMI monitor for a more complete visual experience. The Pocket Dock supports sharp, crystal clear image resolutions up to 4K quality or high-definition 1080p through its VGA connector.
Maintain Power
Fast Role Swap is an advanced feature in the USB-C Power Pass through specification which ensures the docking station will maintain power anytime it drops below a set threshold such as while unplugging the USB-C power adapter from the dock or during an unexpected loss of building power. This feature provides a smooth, safer operation of connected devices, so your work does not get interrupted.
Easily Add USB Ports
Add two USB Type-A 3.0 ports to your laptop or tablet's USB-C port to use your existing USB peripherals such as your favorite keyboard and mouse, printer, or HDD with your new USB-C-enabled device. The Pocket Dock is capable of transferring pictures, video and music at high-speed data rates reaching 5 Gbps and is backwards compatible with USB 2.0 and 1.1 devices.

*Maximum of up to 85W of power can be delivered to the laptop after deduction of 15W used by the docking station.Pass-thru power delivered to the laptop is dependent upon the capacity of your USB-C power supply. Ex. If your USB-C power supply is 60W, then the maximum power can be delivered to the laptop is 60W-15W = 45W.
Need more help with this product? Visit IOGEAR Knowledge Base
Function GUD3C08 Upstream Port USB-C USB 3.1 Gen 1 (Detach) Downstream Port VGA 1920 x 1080p @60Hz HDMI HDMI 1.4 compliant, resolution up to 4Kx2K @30Hz USB-A 2 x USB-A 3.0 (1 support BC1.2 charging) USB-C 1x USB 3.1 supports data transfer or Power Pass through Card Reader Supports Secure Digital v3.0 UHS-I (Ultra High Speed)?SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s) Ethernet Supports 10/100 /1000Mbps Power Power Pass-Thru 100W (A total of up to 85W can be charged to the laptop after deduction of max 15W used by the dock) Operating System Requirements Mac Mac OS X 10.7+ Windows Windows 7 / 8 / 8.1 / 10
Dimensions GUD3C08 Unit Dimensions Height 4.9" (12.5cm) Length 2.36" (0.6cm) Depth 0.51" (1.3cm) Inner Pack Height 5.91" (15cm) Length 11.42" (29cm) Width 6.3" (16cm) Inner Pack Qty. 6 Unit Package Dimensions Height 5.67" (14.4cm) Length 5.31" (13.5cm) Width 1.77" (4.5cm) Master Carton Height 12.20" (31cm) Width 13.39" (34cm) Depth 12.6" (32cm) Master Carton Qty. 24 Weight Master Carton Wt. 12.79lb (5.8kg) Inner Pack Wt. 2.87lb (1.3kg) Unit Pack Wt. 0.4lb (0.18kg) Unit Wt. 0.3lb (0.13kg)
