USB 2.0 4-Port BoostLinq Ethernet - 164ft, USB Extender over Cat5e/Cat6 Ethernet Cable (TAA)

USB Extender

USB 2.0 4-Port BoostLinq Ethernet - 164ft, USB Extender over Cat5e/Cat6 Ethernet Cable (TAA)

Name: USB 2.0 4-Port BoostLinq Ethernet - 164ft, USB Extender over Cat5e/Cat6 Ethernet Cable (TAA)
Brand: IOGEAR
SKU: GUCE64
Price: 89.95 USD
Availability: OutOfStock

4 Port USB Hub Plug-N-Play TAA Compliant

MPN: GUCE64

UPC: 881317513199

$89.95

The IOGEAR TAA Compliant USB 2.0 4-Port BoostLinq Ethernet combines a USB extender and a USB hub to allow connecting as many as four USB 2.0 (and/or USB 1.1) devices from up to 164 feet away from your computer.

Keep data integrity at distance

The USB 2.0 4-Port BoostLinq Ethernet converts a USB 2.0 or USB 1.1 connection to RJ-45, and sends the USB data over a common Cat5, Cat5e or Cat 6 Ethernet cable up to 164 feet (50 meters). The USB 2.0 4-Port BoostLinq Ethernet is considered an active repeater, using a small power supply to amplify the USB signal and preserve the integrity of the data over long distances. The power supply also helps maintain enough current to power any connected USB devices such as hard drives, etc.

How it works

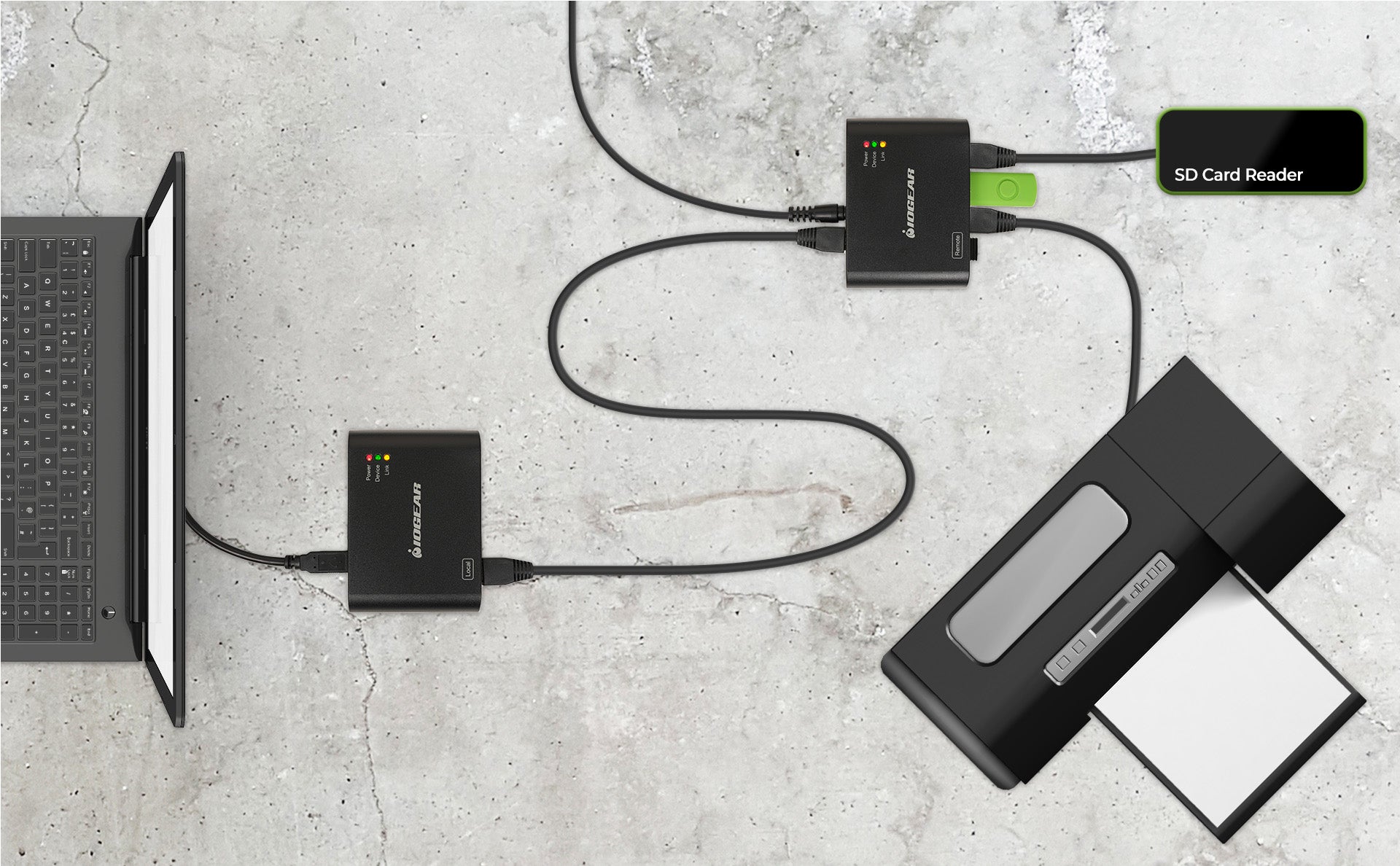

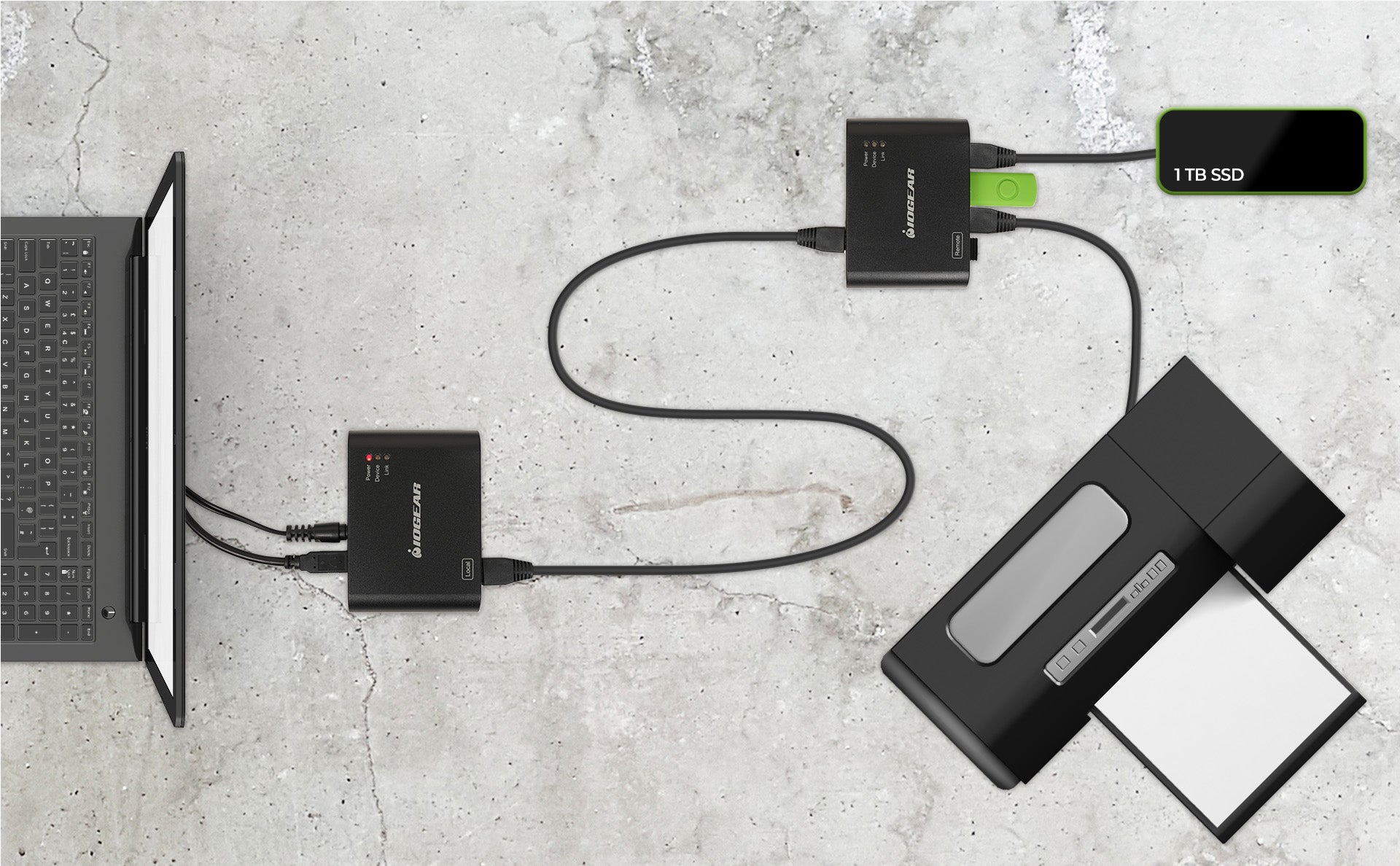

The USB 2.0 4-Port BoostLinq Ethernet kit includes a local unit, a remote unit and a power supply. The local unit connects directly to your computer while the remote unit connects with up to four USB devices. The local and remote units are connected to each other with Cat5, Cat5e, or Cat6 Ethernet cabling (not included) up to a maximum length of 164 feet (50 meters). The GUCE64 is simple to set up and requires no additional drivers to install.

Why you need it

Designed with classrooms, labs, offices and conference rooms in mind, the USB 2.0 4-Port BoostLinq Ethernet offers an easy means of operating USB devices at an extended distance from your computer. Typical USB devices are limited to a maximum distance of 16ft before signal loss causes significant problems. Unlike ordinary passive USB extension cables, the GUCE64 uses active amplification so you can place devices on the other side of your office, or even the other side of the building (up to 164ft distance). The USB 2.0 4-Port BoostLinq Ethernet makes it easy to connect your USB 2.0 peripherals such as scanners, printers, cameras, electronic whiteboards, etc. and is backward compatible with most USB 1.1 devices. Please note that maximum transfer rate drops to 12Mbps with USB 1.1 devices connected.

Extend four USB 2.0 or USB 1.1 devices up to 164 feet (50 meters) over Cat5, Cat5e or Cat6 Ethernet cable
USB 2.0 High Speed (480Mbps), backwards compatible with USB 1.1 Full Speed (12Mbps)
Built-in hub to connect up to 4 USB 2.0 or USB 1.1 devices
Support suspend / resume detection
Plug-n-Play - no driver required
Power supply included
TAA compliant

Hardware:
USB 2.0 port
USB 2.0 devices
CAT5e, CAT6, CAT6e or Better Solid Core RJ45 Ethernet cables
Operating System:
Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
Mac OS 9 to 10.x
Oracle® Solaris
Linux®, Unix and other USB supported systems*
Google Chrome OS™

*Additional drivers and support may be needed

1 x GUCE64 Local unit
1 x GUCE64 Remote unit
1 x USB Type A to B Cable
1 x Power Adapter
1 x Quick Start Guide
1 x Warranty Card

GUCE64 Quick Start Guide Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GUCE64
Operating System Requirements
Windows	Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1
Mac	Mac OS X10.3+
USB Specification	USB 2.0
Cable Connections
Input	Transmitter: USB Type B Female x 1; Receiver: RJ45 Ethernet Connector
Output	Transmitter: RJ45 Ethernet connector; Receiver: USB Type A Female x 4
Transfer Rate	Up to 480 Mbps
Cable Length	Transmitter: USB cable 1ft (included); Receiver: Cat 5, Cat 5e or Cat 6 cable (not included) up to 164ft (50m)
Cable Distance	Maximum cable distance from Transmitter to Receiver: 164ft (50m)
Cable Type	Ethernet Cat 5, Cat 5e or Cat 6 required for connection between receiver and transmitter.
Connectors
AC Power Inlets	Barrel type
Max Output Power	500mA @ 5V
Power Supply	2A @ 5VDC
LEDs
Power On
Operating Temperature	32F ~ 122F(0 C ~ 50C)

Dimensions	GUCE64
Unit Dimensions
Height	.9" (2.3vm)
Length	3.7" (9.5cm)
Depth	2.7" (6.8cm)
Inner Pack
Height	5.16" (13.1cm)
Length	8" (20.4cm)
Width	9.65" (24.5cm)
Inner Pack Qty.	6
Unit Package Dimensions
Height	4.7" (12cm)
Width	3.8" (9.7")
Depth	3.1" (7.8cm)
Master Carton
Height	11.3" (28.7cm)
Width	8.5" (21.7cm)
Depth	10.4" (26.5cm)
Master Carton Qty.	12
Weight
Master Carton Wt.	9.9lb (4.5kg)
Inner Pack Wt.	4.69lb (2.09kg)
Unit Pack Wt.	.7lb (.3kg)
Unit Wt.	.39lb (.18kg)

3 Year Limited Warranty

Return policy info here.

USB 2.0 4-Port BoostLinq Ethernet - 164ft, USB Extender over Cat5e/Cat6 Ethernet Cable (TAA)
