USB Extender

USB Ethernet Extender (TAA Compliance)

Name: USB Ethernet Extender (TAA Compliance)
Brand: IOGEAR
SKU: GUCE51
Price: 49.95 USD
Availability: InStock

Plug-N-Play TAA Compliant Up to 198 ft

MPN: GUCE51

UPC: 881317006622

$49.95

Keep data integrity at distance The USB Ethernet Extender converts a USB 1.1 connection to RJ-45, and sends the USB data over a common Cat5, Cat5e or Cat 6 Ethernet cable up to 198 feet.

USB Ethernet Extender (TAA Compliance)

$49.95

Keep data integrity at distance

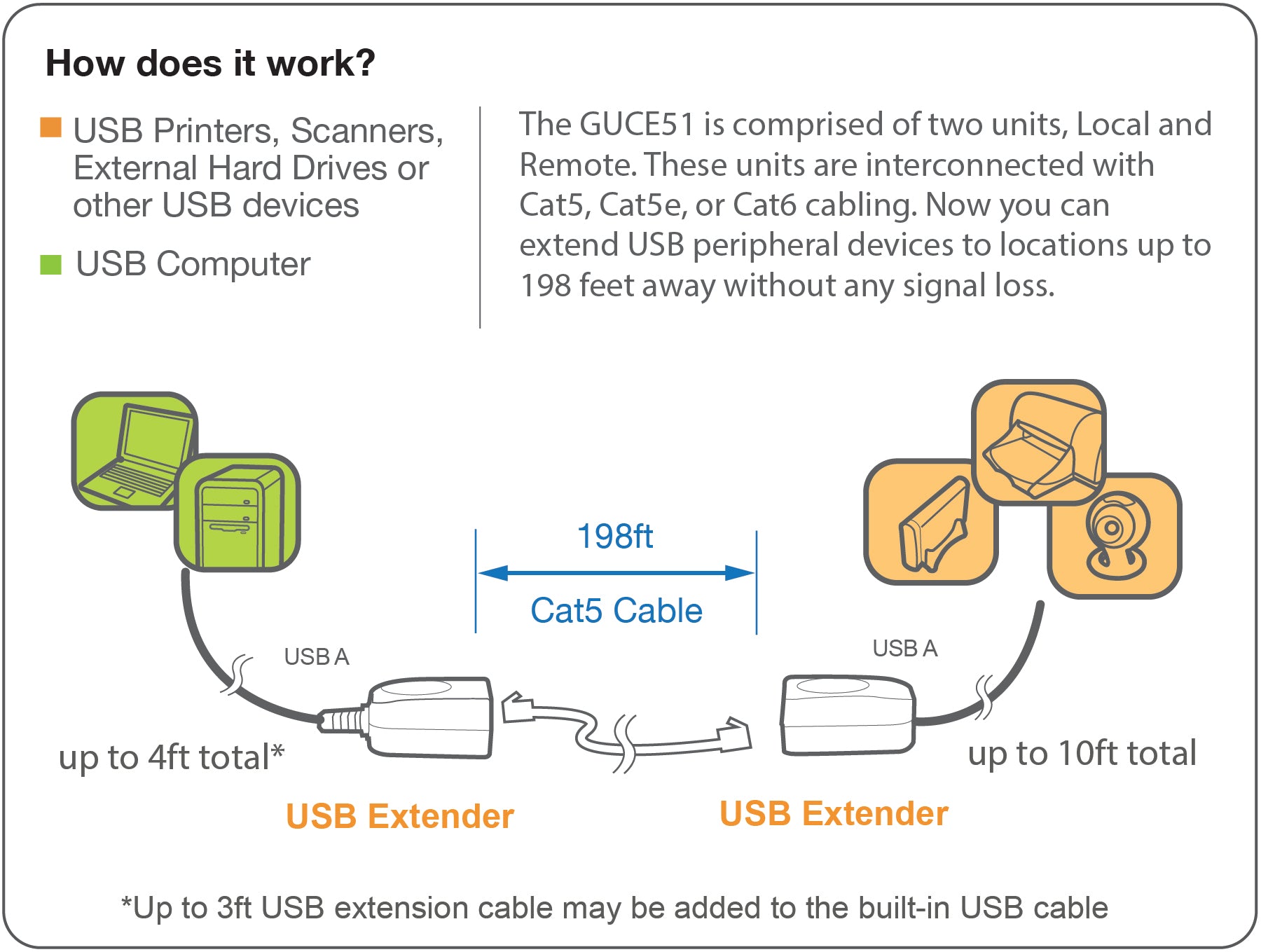

The USB Ethernet Extender converts a USB 1.1 connection to RJ-45, and sends the USB data over a common Cat5, Cat5e or Cat 6 Ethernet cable up to 198 feet. Connected devices still maintain data transfer rate of up to 12 Mbps, while operating from a more convenient location.

Why you need it

Designed with classrooms, labs, offices and conference rooms in mind, the USB Ethernet Extender offers an easy means of operating USB devices at an extended distance from your computer. Typical USB devices are limited to a maximum distance of 16ft before signal loss causes significant problems. The USB Ethernet Extender makes it easy to connect your USB 1.1 peripherals such as scanners, printers, etc.

Extend USB connection through Cat5, Cat5e, or Cat6 cable
Access a single USB device from up to 198 feet away via Ethernet connection
Extremely easy to install
Compact design, allows for easy placement
Fully compliant with (1.0, 1.1) USB standards
For use with any USB compatible computer
No software required
TAA compliant

Hardware:
USB 1.1 port
USB 1.1 devices
CAT5e, or CAT6 RJ45 Ethernet cables
Operating System:
Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows® 11
Mac OS 9 to 10.x
Oracle® Solaris
Linux®, Unix and other USB supported systems*
Google Chrome OS™

*Additional drivers and support may be needed

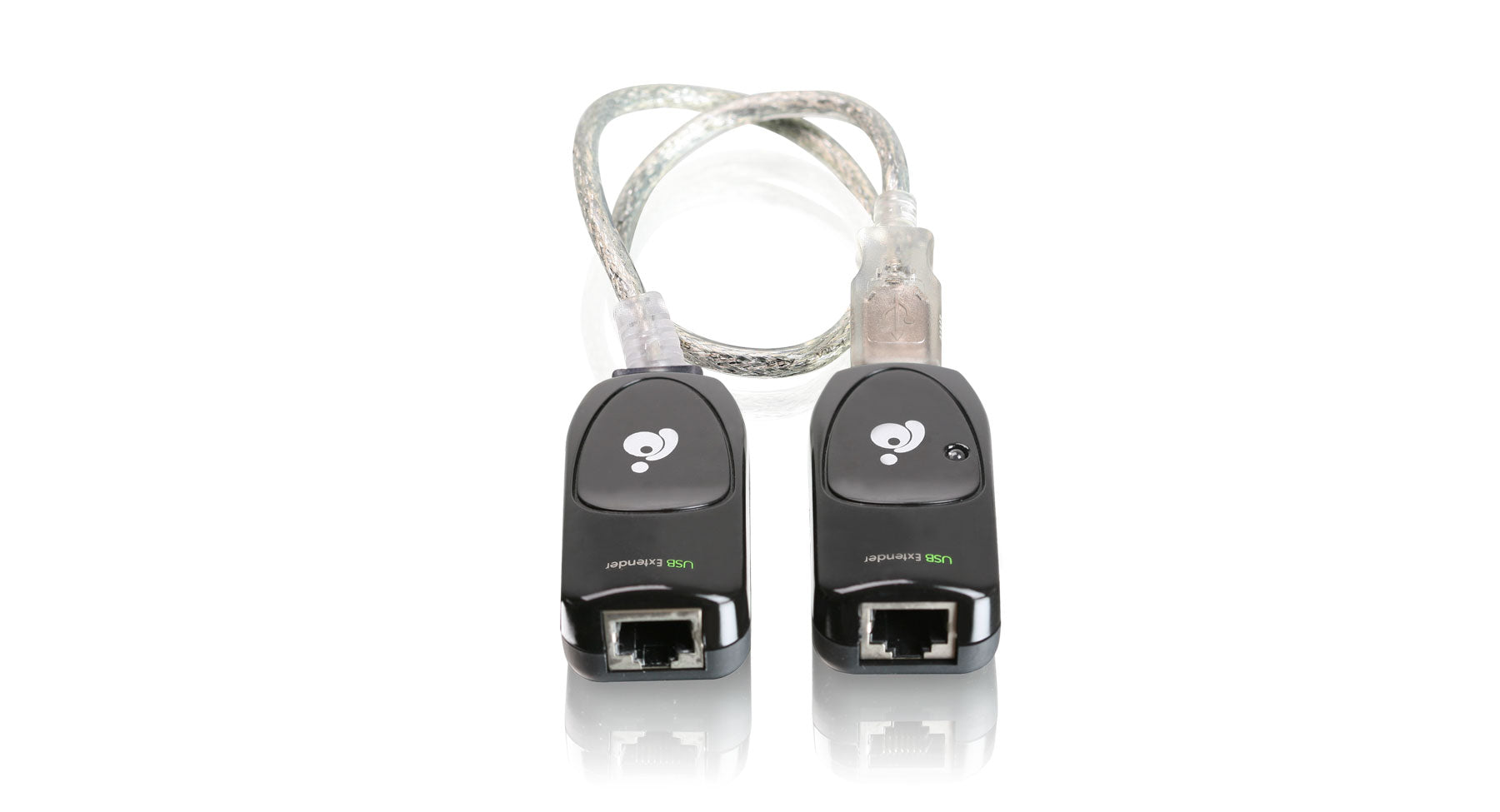

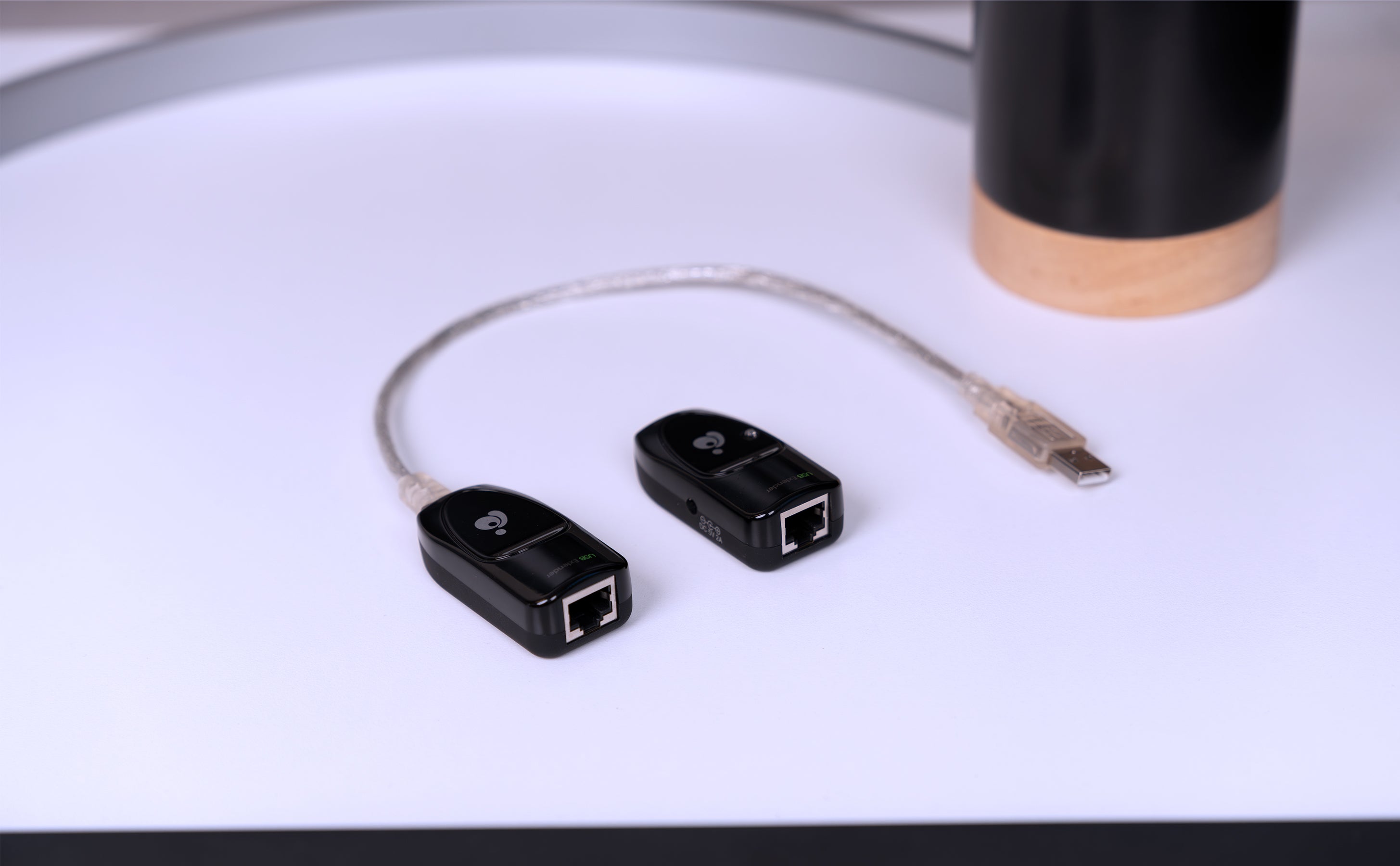

1 - GUCE51 Remote Unit
1 - GUCE51 Local Unit
1 - Warranty/Registration Card

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GUCE51
Housing
Case	Plastic
Power
Voltage	5.0 V
Amps	300mA
Power Consumption	5.0 V; 300mA
Operating Temperature	0 to 40 degrees (Celsius)
Storage Temperature	0 to 70 degrees (Celsius)
Operating System Support	Windows XP®, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1 / Mac OS X v8.6 and above / Linux Kernel / Google Chrome OS?
USB Specification	USB 1.1 compliant
Humidity	20-80% RH, (Non Condensing)
USB bandwidth	12 Mbps (1.5MBps)

Dimensions	GUCE51
Unit Dimensions
Height	0.93 in. (2.3 cm.)
Length	18.0 in. (45.0 cm.) Local Units Cable Length
Depth	1.93 in. (4.9 cm.)
Width	1.31 in. (3.3 cm.)
Inner Pack
Height	11.5"
Length	12.13"
Width	17.25 "
Inner Pack Qty.	20
Unit Package Dimensions
Height	6 in.
Width	8.38 in.
Depth	2.13 in.
Master Carton
Height	24 in.
Width	17.88 in.
Depth	13 in.
Master Carton Qty.	40
Weight
Master Carton Wt.	20.35 lb.
Inner Pack Wt.	9.05 lb.
Unit Pack Wt.	0.4 lb.
Unit Wt.	0.20 lb.

3 Year Limited Warranty
