Video Switch

True 4K 8-Port Switcher with HDMI® connection (TAA)

4K@60hz 8-Port HDMI Switch
MPN: GHSW8481

UPC: 881317517289

Sale price$359.95

Conquer cable clutter and simplify your entertainment setup with the IOGEAR True 4K 8-Port Switcher with HDMI® connection (GHSW8481). This TAA compliant device boasts the ability to connect and switch between a whopping eight HDMI sources, like your gaming console, Blu-ray player, or streaming device, to a single HDMI display, all while delivering smooth, high-quality True 4K visuals.

True 4K 8-Port Switcher with HDMI® connection (TAA)
True 4K 8-Port Switcher with HDMI® connection (TAA) Sale price$359.95
8-Port True 4K Switch With HDMI®

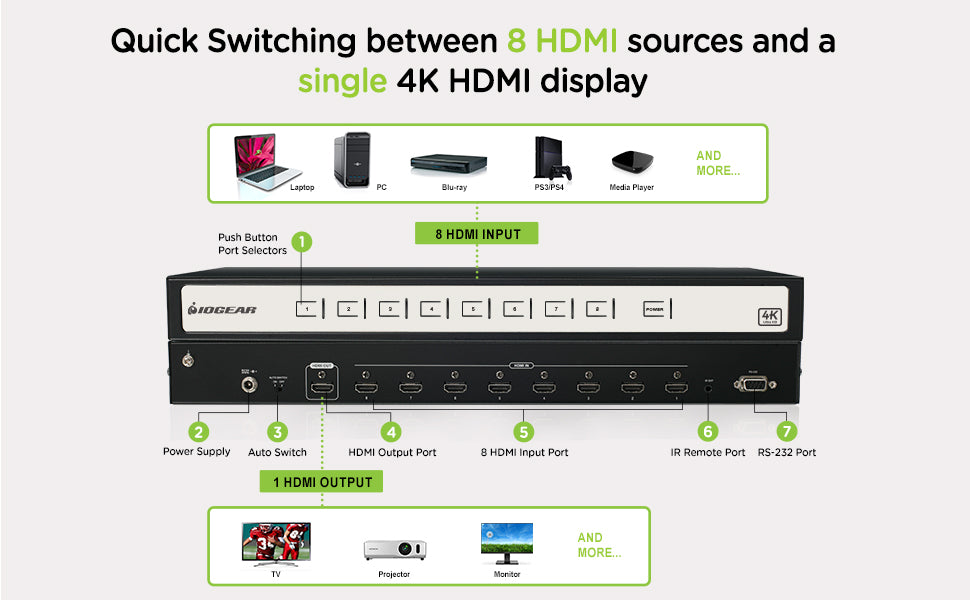

The IOGEAR 8-Port True 4K Switch with HDMI connection offers smooth, quick switching between eight HDMI video sources such as a computer, Blu-ray or media player, and cable or satellite receivers and a single HDMI display. Send crystal clear, Cinema 4K video reaching true 4K resolutions to 4096 x 2160 @ 60Hz with 4:4:4 Chroma subsampling, High Dynamic Range (HDR) and uncompressed audio for any variety of uses including home theater, in lobbies and conference rooms and for digital signage.

Flexible Source Switching

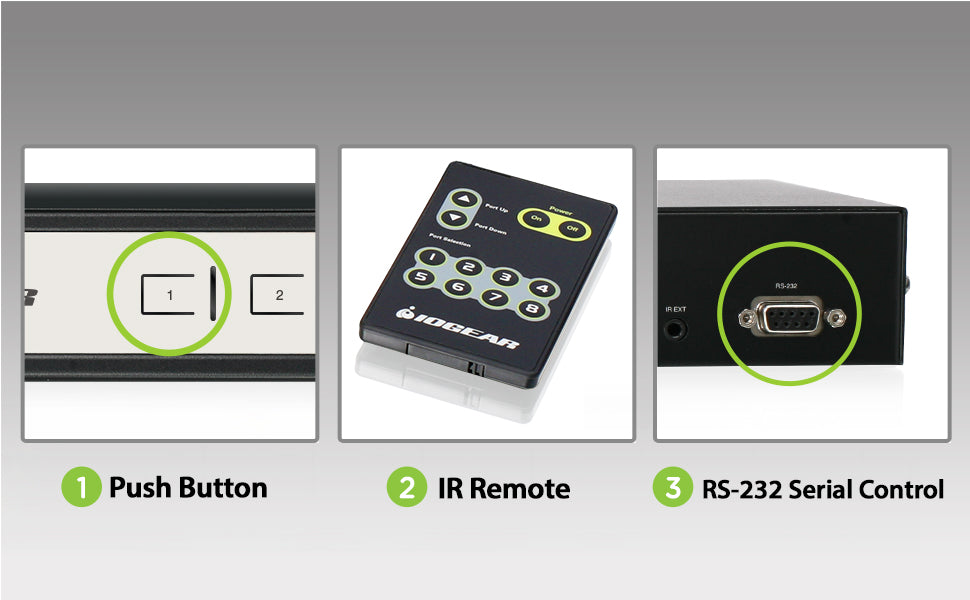

Easily switch between each source automatically or manually. Utilize one of three Switch Modes and auto-cycle through your sources with smooth video transitions to display a variety of content. Manually switch between sources with the included IR remote control, program a universal remote via the RS-232 serial interface or select a source via front panel push-buttons in settings where a remote control is not needed.

True 4K Video Quality

Enjoy clear, superior Cinema 4K video quality with true 4K resolutions to 4096 x 2160 @ 60Hz (4:4:4) and HDR support to the display.

Perfect for Small Businesses or Digital Media Signage

Manage multiple displays showcasing promotions, product information, or wayfinding directions. Connect up to eight different media players or content sources to a single display in each zone. This allows for easy switching between content or scheduling specific content for different times of day.

  • Connect and switch between 8 HDMI sources on 1 HDMI display
  • True 4K resolutions to 4096 x 2160 @ 60Hz (4:4:4)
  • HDMI (3D, 12-Bit Deep Color, 4K); HDCP 2.2 compliant
  • Supports HDR10+; distributes uncompressed audio formats
  • Cascade up to 3 levels (512 source ports)
  • Flexible control via push-button, IR remote & RS-232 serial control
  • Bi-directional RS-232 support for universal remotes & touch panels
  • Auto-switch mode detects & selects new HDMI port connections
  • Supports high-speed data rates up to 18 Gbps
  • No-slip locking power supply mechanism
  • CEC compliant
  • Plug-n-Play
  • Up to 8 HDMI source Devices
  • 1 HDMI Display or Projector
  • 1 x GHSW8481 8-Port True 4K Video Switch
  • 1 x IR Remote Control
  • 1 x IR Extension Cable
  • 1 x Power Adapter
  • 1 x Rack Mounting Kit
  • 1 x Quick Start Guide
  • 1 x Warranty Card

FunctionGHSW8481
Switches
DIP1 x Auto Switch On/Off
Video connections
Input8 x HDMI Type A Female
Output1 x HDMI Type A Female
Cable LengthMaximum of 9.84 Feet
Video Performance
LocalHDCP 2.2 with CEC support
Video Resolution4096 x 2160 @ 60Hz (4:4:4)
Connectors
RS-232Connector: 1 x DB-9 Female (Black)
Power1 x DC Jack with locking barrel
Power Adapter5.3 VDC/1A
Power Consumption3.73 W
Transmission PowerMax. Data Rate 18 Gbsp
Operating Temperature32~104°F (0~40°C)
Storage Temperature-4F ~ 140F (-20 - 60C)
Environment
Humidity0 - 80% RH, Non-Condensing
DimensionsGHSW8481
Unit Dimensions
Height1.75 in
Length17.25 in
Depth6.25 in
Unit Package Dimensions
Height9.25 in
Length21.25 in
Depth4.50 in
Master Carton
Height
Width
Depth
Master Carton Qty.3
Weight
Master Carton Wt.
Unit Pack Wt.5.70 lb
Unit Wt.3.95 lb
