4K UHD 4-Port HDMIÂ® Switch with RS-232 Support

Video Switch

4K UHD 4-Port HDMIÂ® Switch with RS-232 Support

Name: 4K UHD 4-Port HDMIÂ® Switch with RS-232 Support
Brand: IOGEAR
SKU: GHSW8241
Price: 99.95 USD
Availability: InStock

4-Port 4K@30Hz HDMI Switch

MPN: GHSW8241

UPC: 881317512239

This product is EOL and is no longer being sold. Click here for replacement product

$99.95

Introducing the IOGEAR 4K UHD 4-Port HDMI® Switch with RS-232 Support. Designed to simplify your home entertainment setup. This versatile switch lets you connect up to four HDMI devices to your TV, eliminating the need for constant cable swapping. It supports resolutions up to 4K for stunning visuals, and even boasts RS-232 control for seamless integration with home automation systems.

4K UHD 4-Port HDMIÂ® Switch with RS-232 Support

$99.95

Flexible Source Switching

Easily switch between each source automatically or manually. Utilize one of three switch Modes and auto-cycle through your sources with smooth video transitions to display a variety of content. Manually switch between sources with the included IR remote control or select a source via front panel push-buttons in settings where a remote control is not needed.

True 4K Video Quality

Enjoy clear, superior Cinema 4K video quality with true 4K resolutions to 4096 x 2160 @ 60Hz (4:4:4) and HDR support to each display.

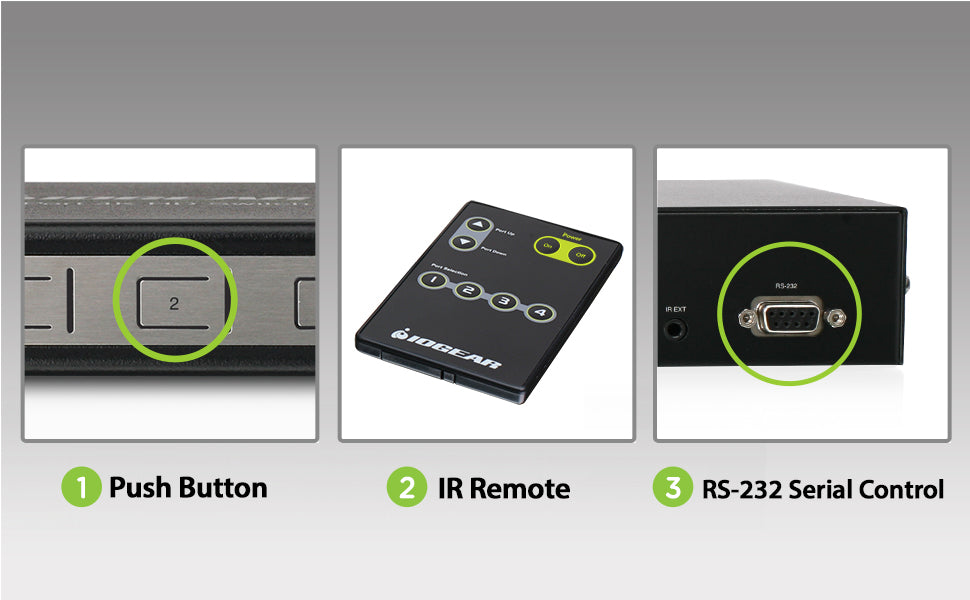

Flexible Control Options

Talk about the three options - push button, IR Remote, RS-232 Serial Control.

Bi-Directional RS-232 Support

The built-in bi-directional RS-232 serial port allows you to integrate the switch into a home automation or a theater system along with commercial and SMB video distribution systems. The 4K UHD 4-Port Video Switch can be controlled with high-end universal home controllers such as Crestron® and Extron®.

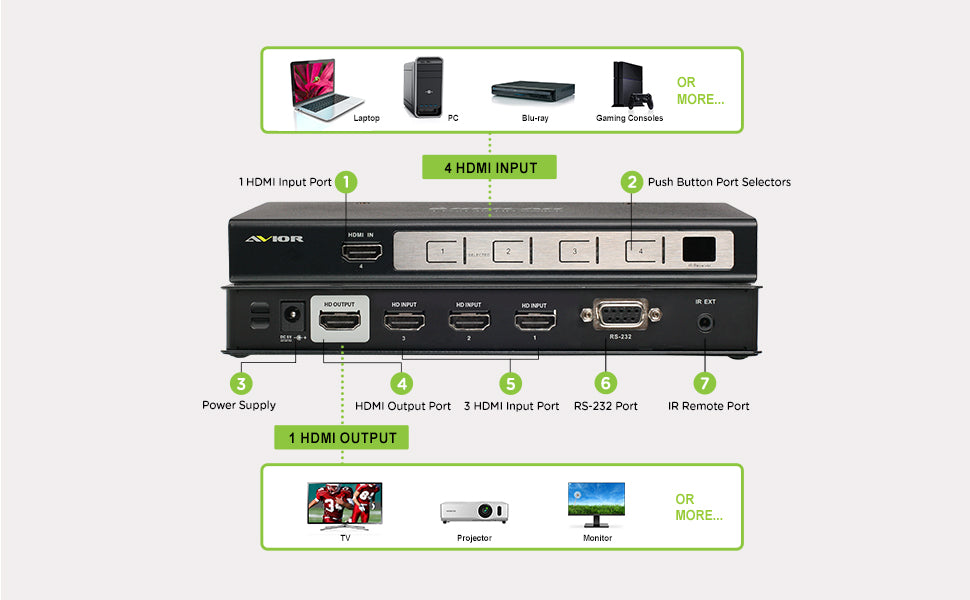

Allows up to four HDMI source devices to be connected to one HDMI display
Supports 3D, Deep Color and resolutions up to 4K @ 30fps
Compatible with Dolby® TrueHD and DTS-HD for uncompressed 7.1 digital surround sound
Quick and easy switching between HDMI sources via front panel pushbuttons, IR remote control or RS-232
Auto-switching modes for auto port selection
Consumer Electronics Control (CEC) support
Built-in bi-directional RS-232 serial remote port for high-end system control
Supports IR extension using a receiver extension cable*
Front panel LED indicators for port and power status
HDCP compliant
Backward compatible with DVI devices with an HDMI to DVI adapter**

*The IR extension cable is not included in the packaging
**Via HDMI (F) to DVI (M) Adapter - Part # GHDFDVIMW6

Source Devices
HDMI Output
Display
HDTV or HD Projector with an HDMI Input
Cables
4 HDMI Cables*
RS-232 Cable (optional)*
IR extension Cable (optional) *

*Cables not included

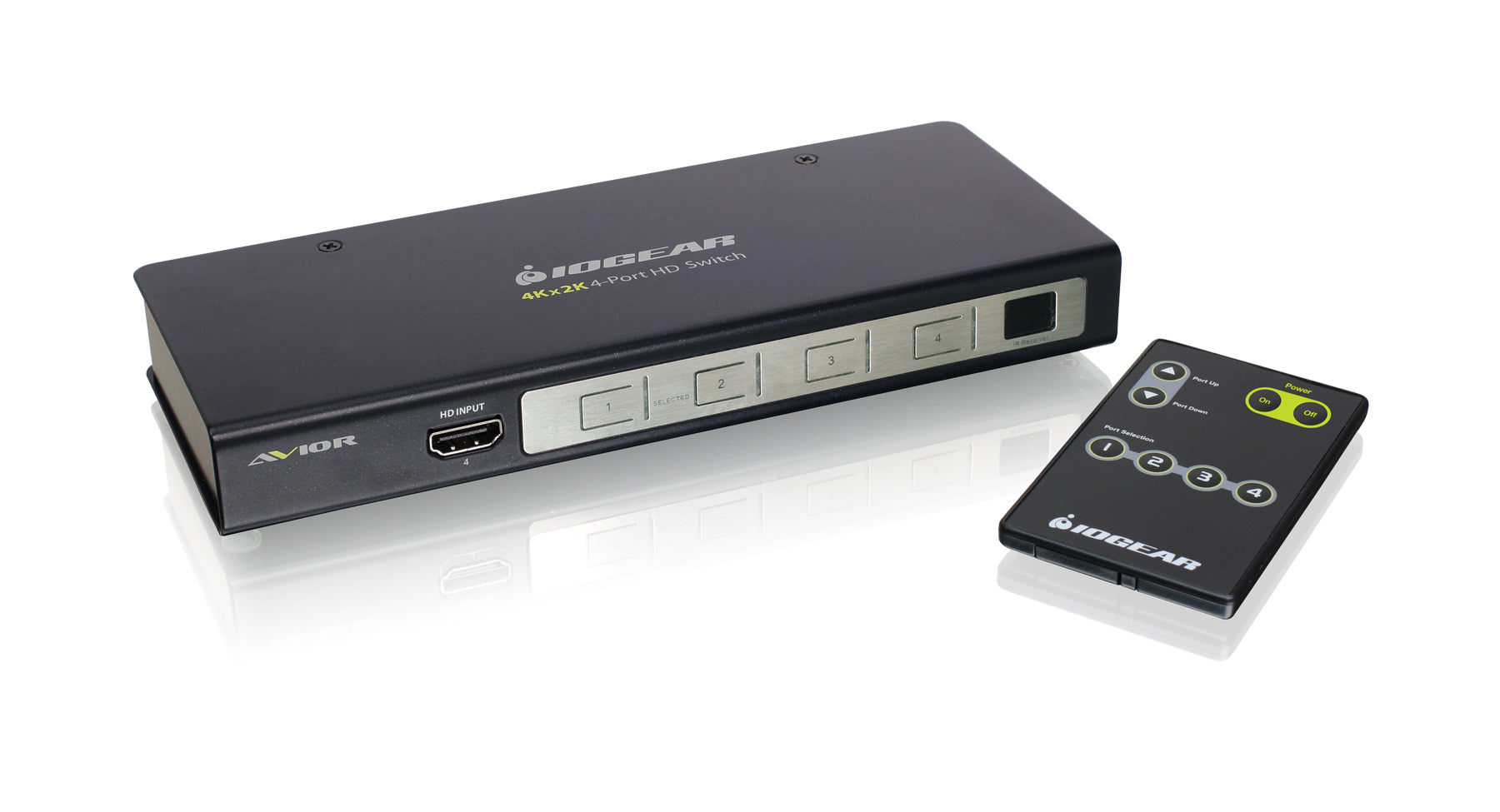

1 x GHSW8241 4K UHD 4-Port Switch with HDMI Connectors
1 x IR Remote Control
1 x High-Speed HDMI Cable
1 x Power Adapter
1 x User Manual
1 x Warranty Card

GHSW8241 Manual Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GHSW8241

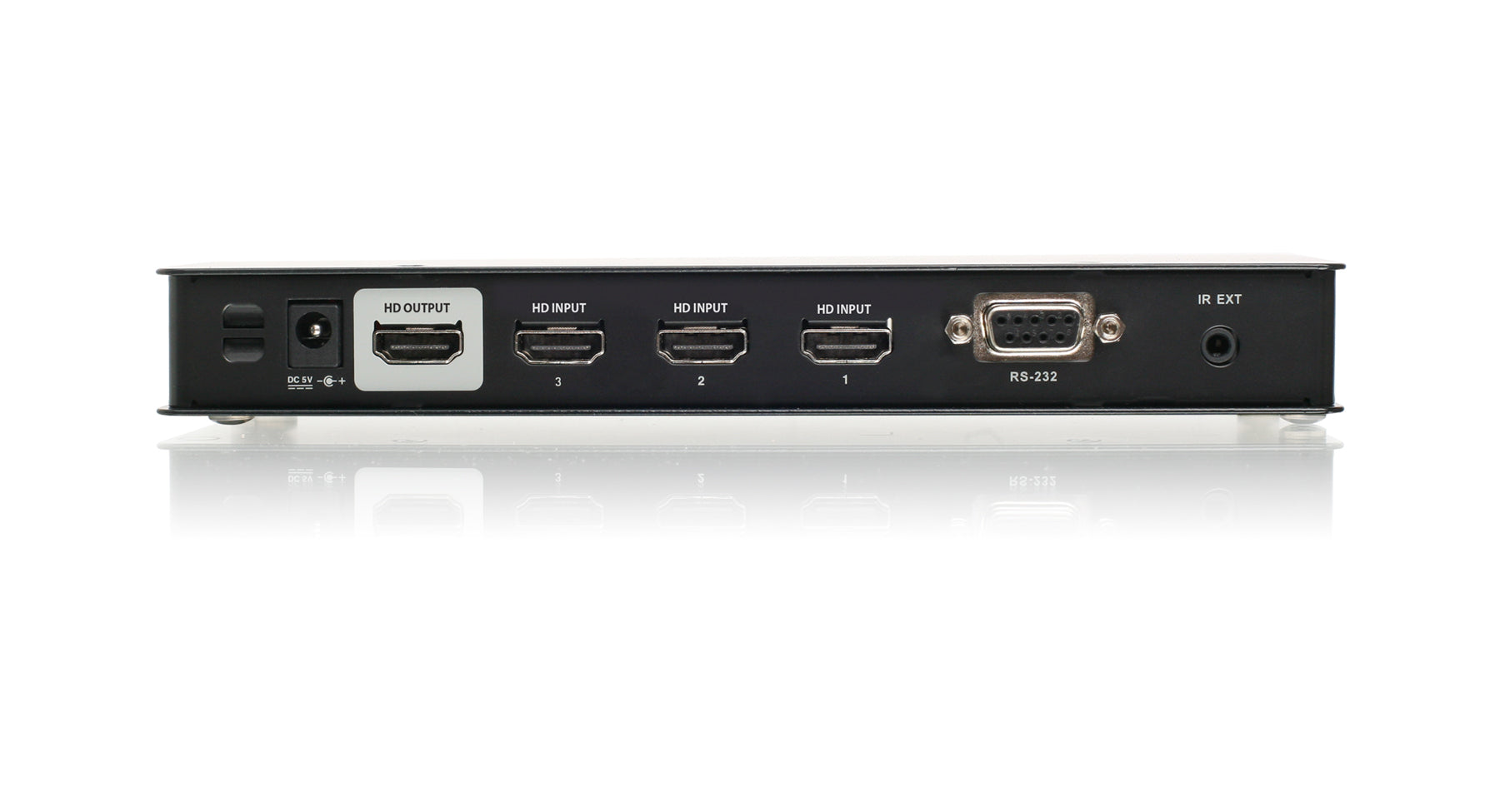

Connectors
Video Input	HDMI Type A Female
Video Output	HDMI Type A Female
RS-232	1 x DB-9 Female
Power	1 x DC Jack
Video connections
Input	4 x HDMI Type A Female
Output	1 x HDMI Type A Female
Switches
Port Selection	4 pushbuttons
LEDs
Selected	4 (Green)
Video Resolution	HDTV resolution: 480p, 720p, 1080i, 1080p, and up to 4K @ 30fps (4096 x 2160 or 3840 x 2160)
Power Consumption	DC5V
Environment
Operation Temperature	32~122ºF (0~50ºC)
Storage Temperature	-4~140ºF (-20~60ºC)
Humidity	0?80% RH, Non-condensing
Housing
Case	Metal

Dimensions	GHSW8241
Unit Dimensions
Height	1" (2.5 cm)
Length	7.9" (20.1 cm)
Depth	3.1" (7.9 cm)
Unit Package Dimensions
Height	3.5" (8.9 cm)
Width	10.5" (26.7 cm)
Depth	5.5" (13.97 cm)
Master Carton
Height	11.6 " (29.5 cm)
Width	11.25" (28.6 cm)
Depth	11.25 (28.6 cm)
Master Carton Qty.	6
Weight
Master Carton Wt.	13.85 lb (6.28 kg)
Unit Pack Wt.	2.1 lb (0.95 kg)
Unit Wt.	1.05 lb (0.48 kg)

3 Year Limited Warranty
