4-Port DualView USB VGA KVMP Switch with audio and Cables (TAA Compliance)

EOL
MPN: GCS1744

UPC: 881317003645

This product is EOL and is no longer being sold.
Sale price$229.95

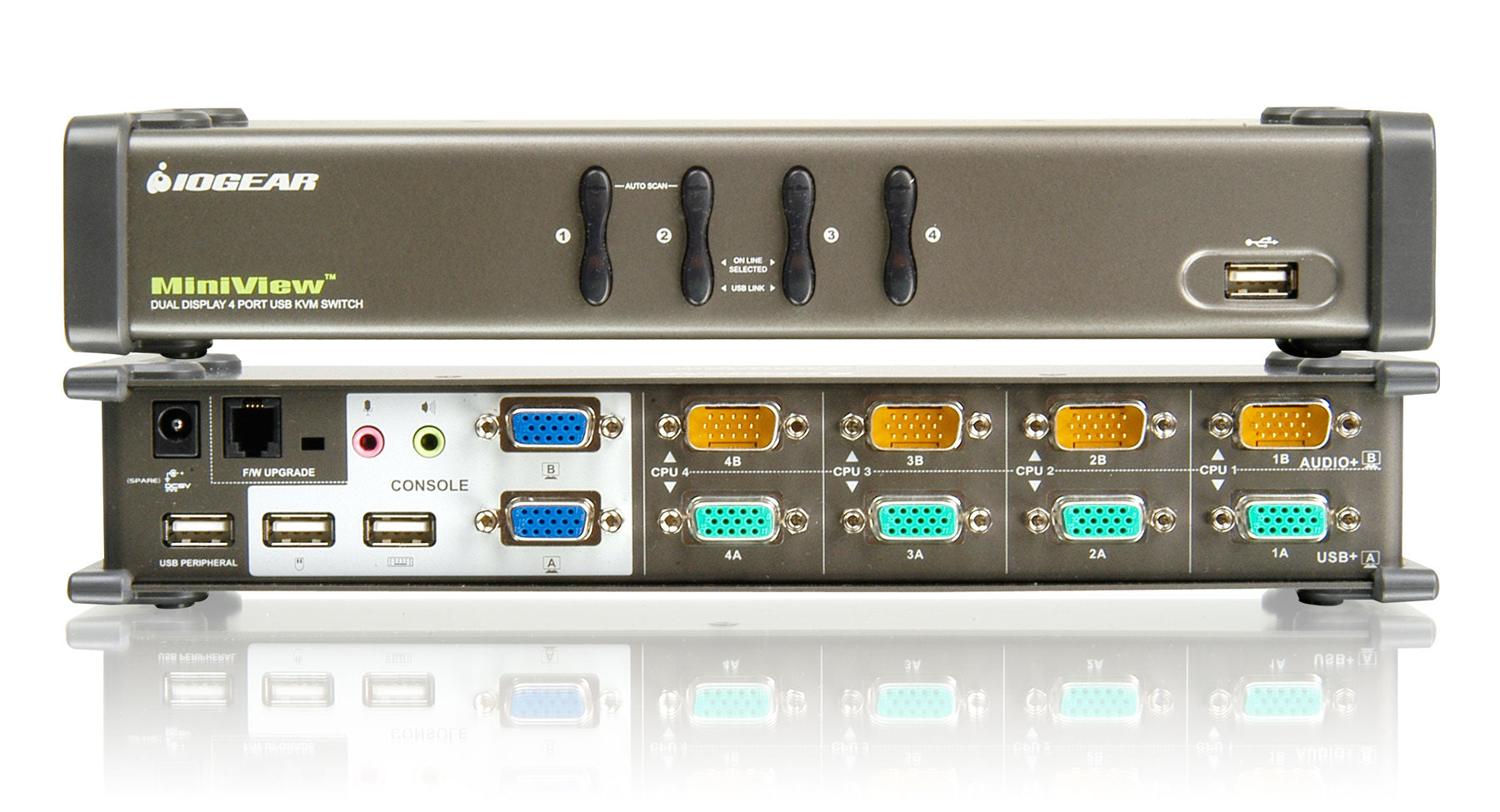

IOGEAR's DualView GCS1744 USB KVMP Switch brings dual head video functionality to IOGEAR's USB KVM switch technology. Now four dual-display computers can be accessed and controlled from a single console that consists of a USB keyboard, USB mouse, and two VGA, SVGA, or Multisync monitors.

HD Resolution

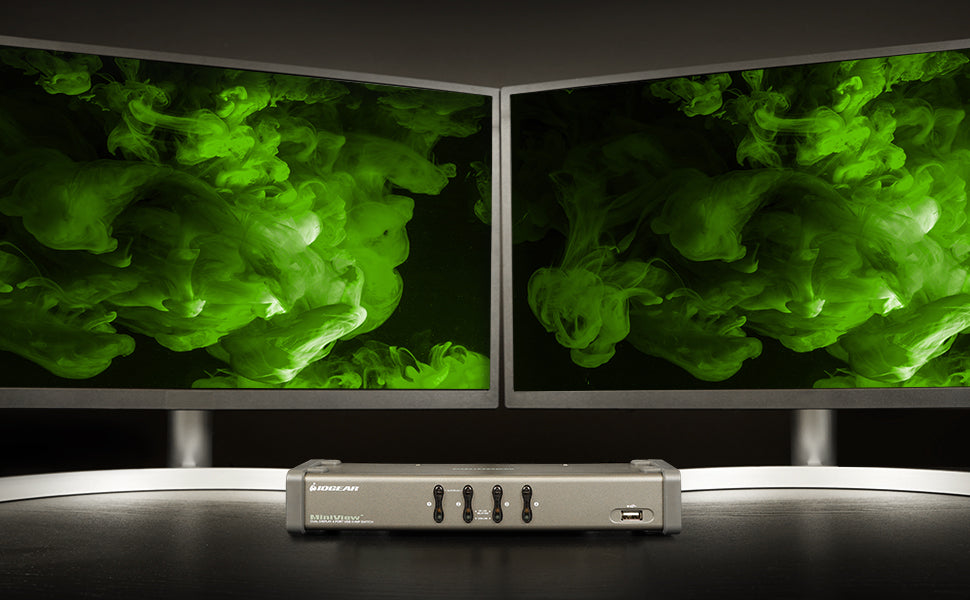

The GCS1744 4 Port Dual Display KVM supports video resolution up to 2048x1536, giving users excellent, crisp images on the screen every time.

Port Switching

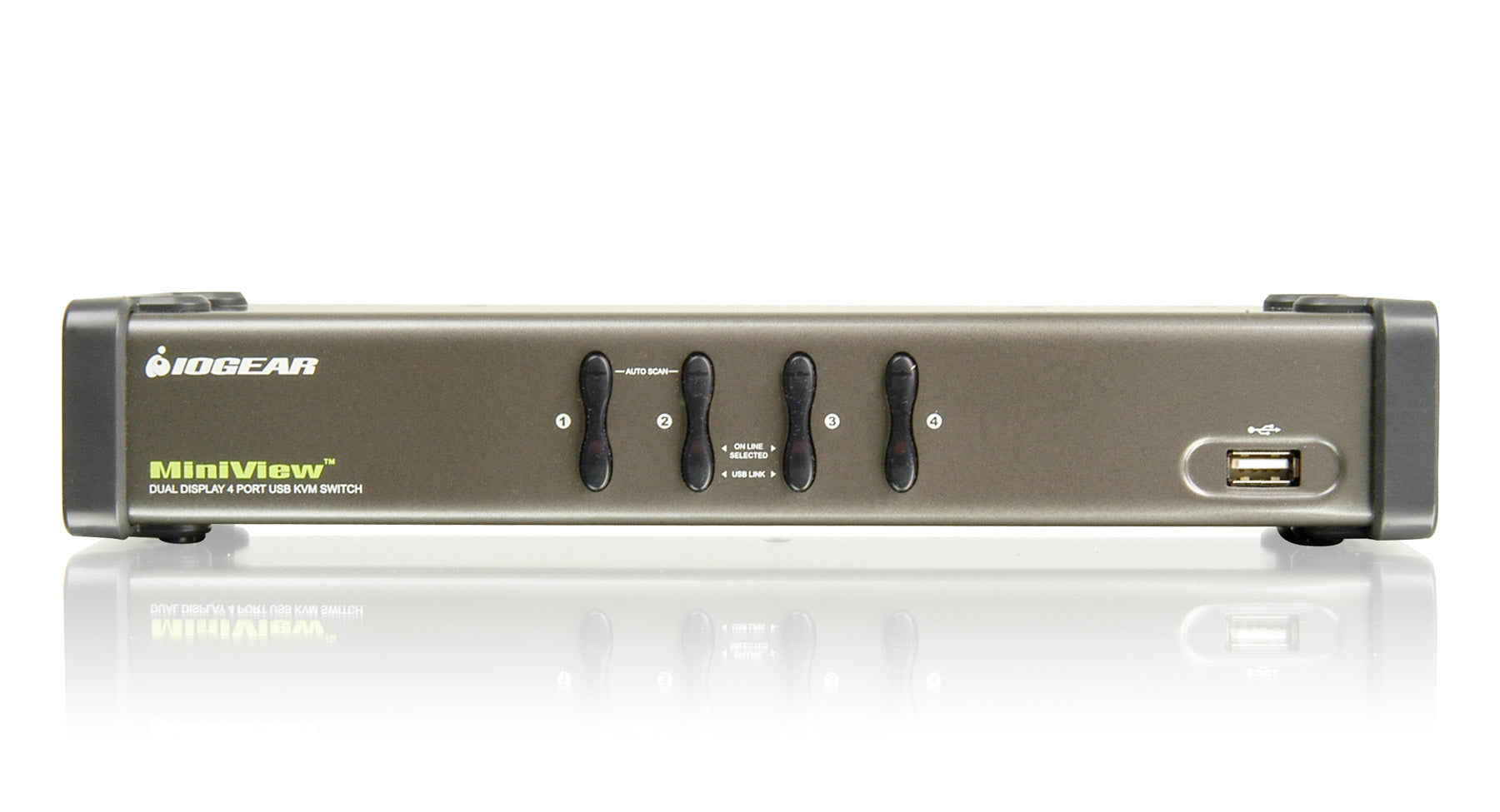

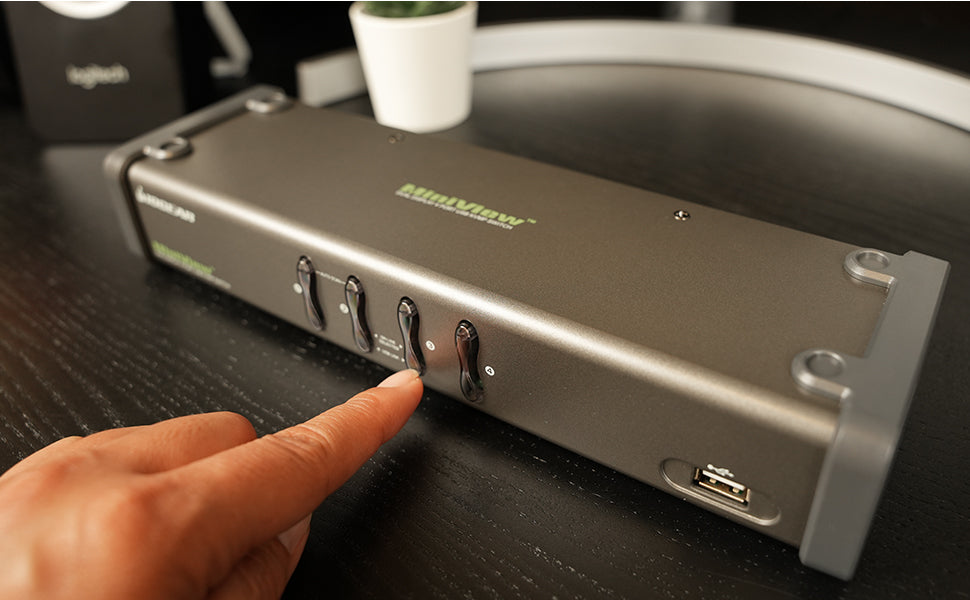

There are two ways to access the computers in your KVM setup. Manual switching by pressing the pushbuttons on the unit's front panel and hotkey switching by entering commands from the keyboard.

Share USB 2.0 Devices

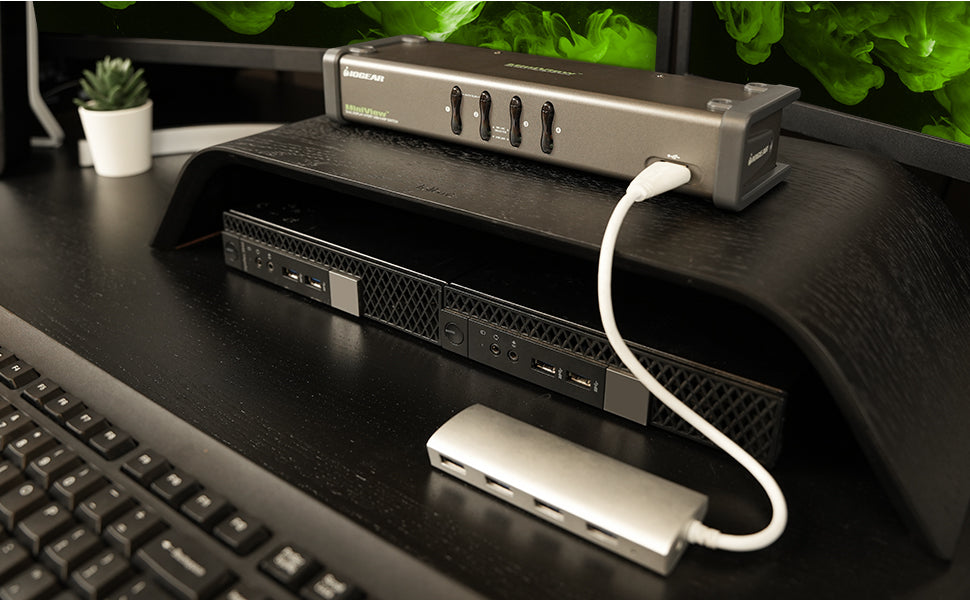

The GCS1744 also features two USB 2.0 peripheral ports for asynchronously sharing USB devices between your computers. A powered USB hub may be attached to the peripheral ports for added functionality. Audio and microphone support makes sharing speakers and a microphone a convenience for the users which serves as an extra value.

Asynchronous Switching

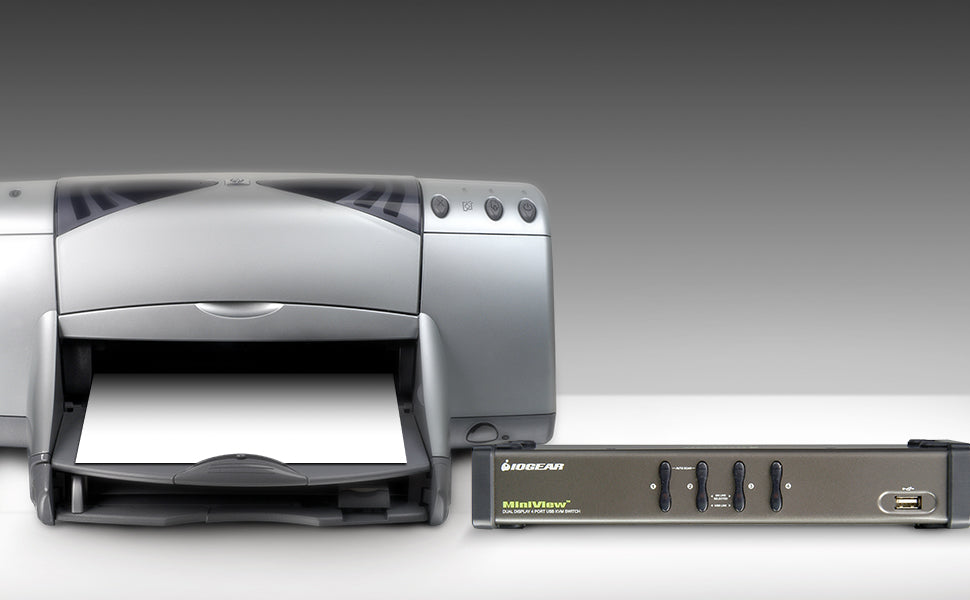

The GCS1744's independent (asynchronous) switching feature allows the KVM focus to be on one computer while the USB peripheral focus is on another. The user can switch from one computer to another without interrupting print jobs, downloads or other functions being handled by connected peripherals.

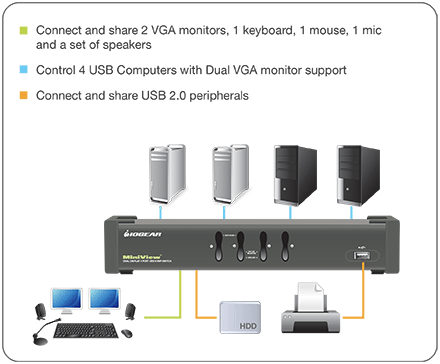

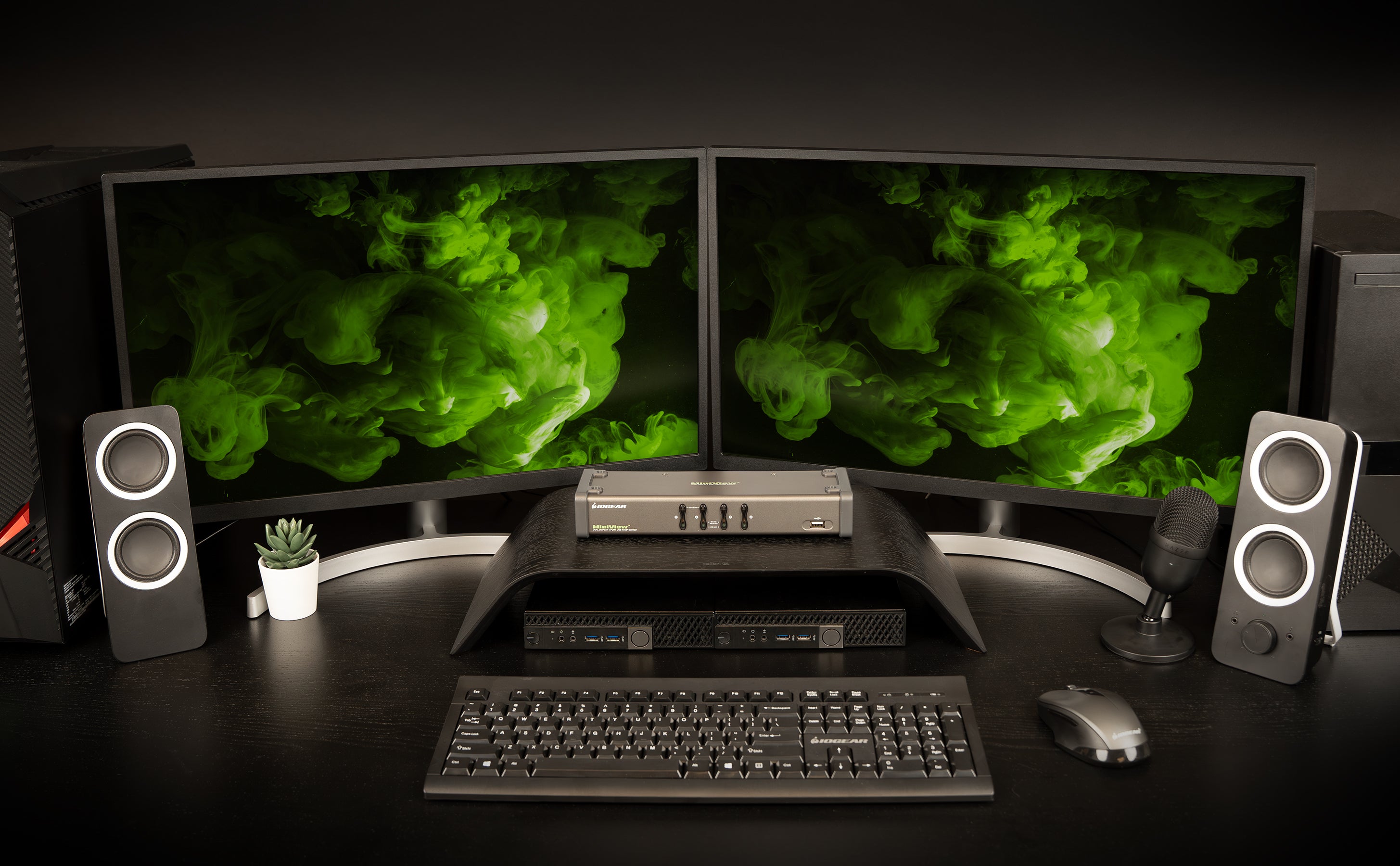

  • One dual monitor console controls 4 dual monitor computers
  • Additional VGA display channel provided for dual display of each computer
  • Additional USB peripheral ports for the connected computers to share USB devices, such as printers, scanners, and portable hard drives, etc.
  • Advanced Control: Switch computers without interrupting USB or Audio operations
  • Audio jacks provided for speaker and microphone sharing
  • Independent switching of KVM, USB, and audio
  • Easy to install - no software required - connecting cables is all it takes
  • Easy to operate - computer selection via push button switches or hotkeys
  • Auto Scan function to monitor computer operation
  • Hotkey selection for OS and keyboard language
  • LED display for easy status monitoring
  • Caps Lock, Num Lock, and Scroll Lock, states are saved and restored when switching
  • Hot pluggable™ add or remove computers for easy maintenance
  • Firmware upgradable
  • Keyboard and mouse emulation for error free booting
  • Supports Mac & Sun keyboards
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Efficient, ergonomic design - logical connector layout

Console:

  • 2 x VGA Monitors
  • 1 x standard 104 key wired USB keyboard
  • 1 x standard 2 or 3 button wired USB mouse

Computers:

  • 2 x VGA, SVGA, or Multisync port
  • 1 x Type A USB port

Operating Systems:

  • Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10
  • Mac OS 9 to 10.x
  • Oracle® Solaris
  • Linux, UNIX and other USB supported systems*

*Additional drivers and support may be needed

Cables:

  • Only IOGEAR Custom cable sets specifically designed to work with this switch may be used to link to the computers. Four cable sets are provided with this package.

AUDIO

  • Requires 2-piece powered speaker system

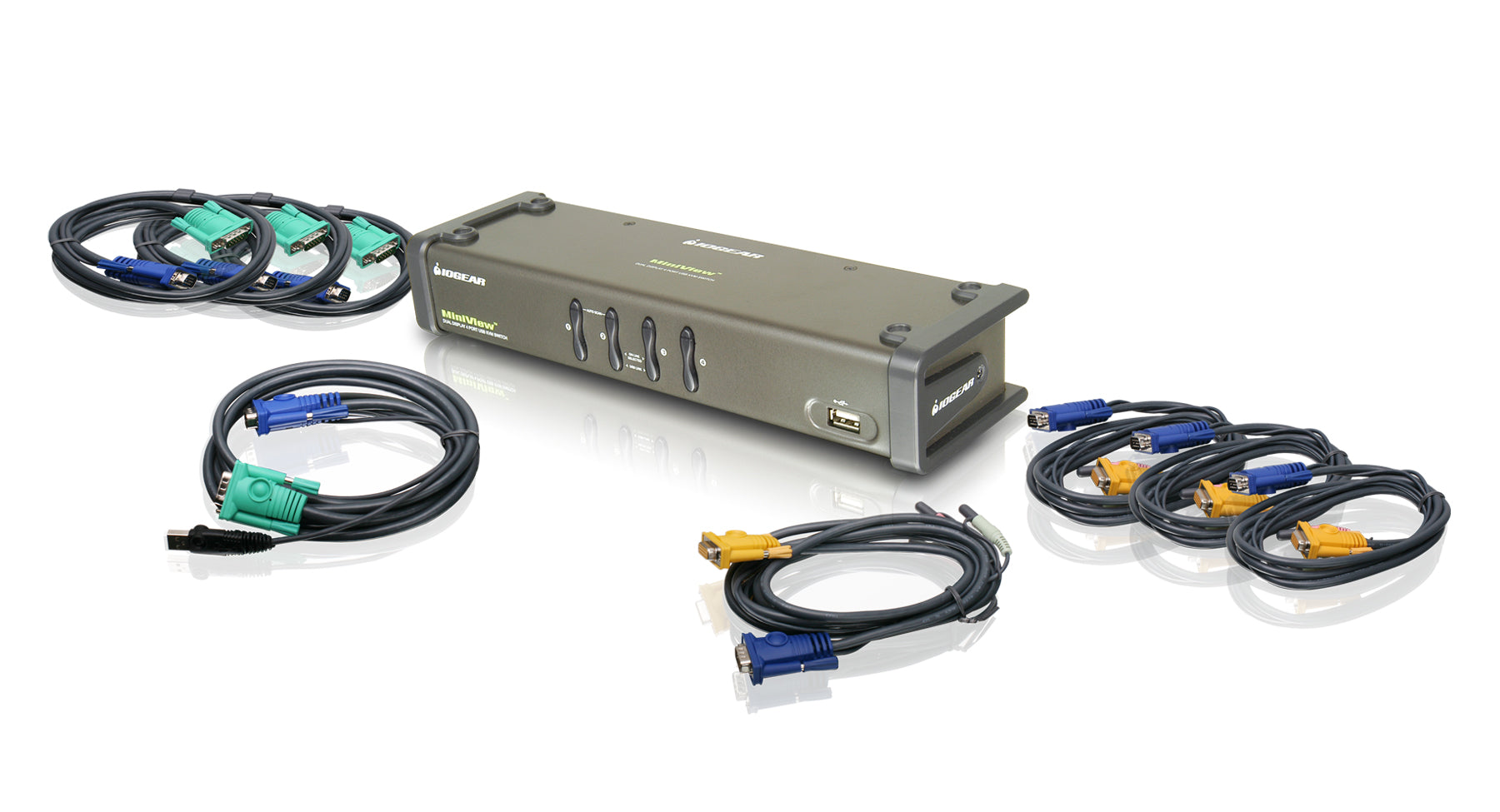

  • 1 x GCS1744 USB KVM Switch
  • 1 x Power adapter
  • 4 x Custom audio/video cables (5.9 ft long)
  • 4 x Custom USB/video cables (5.9 ft long)
  • 1 x Firmware upgrade cable
  • 1 x User Manual

Windows 10 32-bit


Windows 10 64-bit


Windows 7 32-bit


Windows 7 64-bit


Windows 8.1 32-bit


Windows 8.1 64-bit

Need more help with this product? Visit IOGEAR Knowledge Base

FunctionGCS1744
Housing
CaseMetal

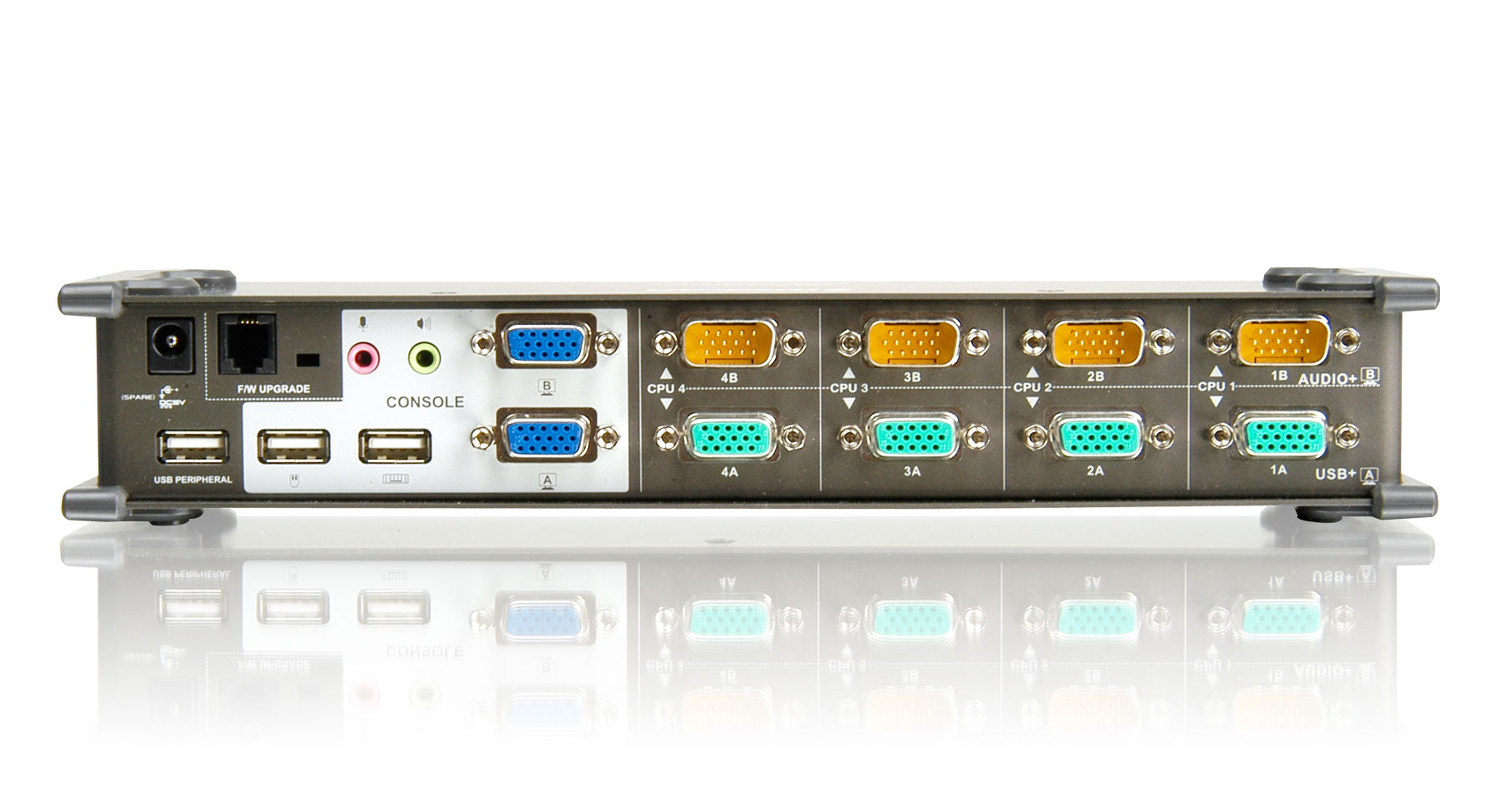

CPU Connectors
MonitorUSB/Video1: 4 x SPHD-15 Female, Audio/Video2: 4 x SPHD-15 Male
Peripherals2 x USB Type A female
Console Connectors
Mouse1 x USB Type A Female
Keyboard1 x USB Type A Female
Monitor2 X HDB15 Female
Audio1 x Earphone Jack Female, 1 x Microphone Jack Female
Flash ROM Upgrade1 x RJ11 Socket
Port SelectionPush button, Hotkey
Power ConsumptionDC5V, 1.25W
Video ResolutionUp to 2048 x 1536, DDC2B
Scan Interval1-99 secs
Emulation
KeyboardUSB
MouseUSB
Computer Connections
Direct4
LEDs
On Line4 x Orange
Link4 x Green
Operating Temperature0-50 C
Storage Temperature-20-60 C
Humidity0 - 80% RH, NC
Cable Length4 USB/Video and 4 Audio/video @ 5.9 ft (1.8m)
Power Adaptor Part #
for North America# 0AD8-0005-261G
for Continental Europe# 0AD6-1005-261G
for UK# 0AD4-3005-261G
DimensionsGCS1744
Unit Dimensions
Height2.25"
Depth3"
Width10.75"
Unit Package Dimensions
Height8.5 in.
Width13 in.
Depth4 in.
Master Carton
Height9.5 in. (24.13 cm)
Width13.5in (34.29cm )
Depth12.5 in. (31.75 cm)
Master Carton Qty.3
Weight
Master Carton Wt.21.95 lb. ( 9.956 kg)
Unit Pack Wt.6.9 lb. (3.129 kg )
Unit Wt.3 lbs (1.360 kg)
