4-Port Dual View True Universal (DP/HDMI) Secure KVM Switch w/Audio and CAC Support

Secure KVMs

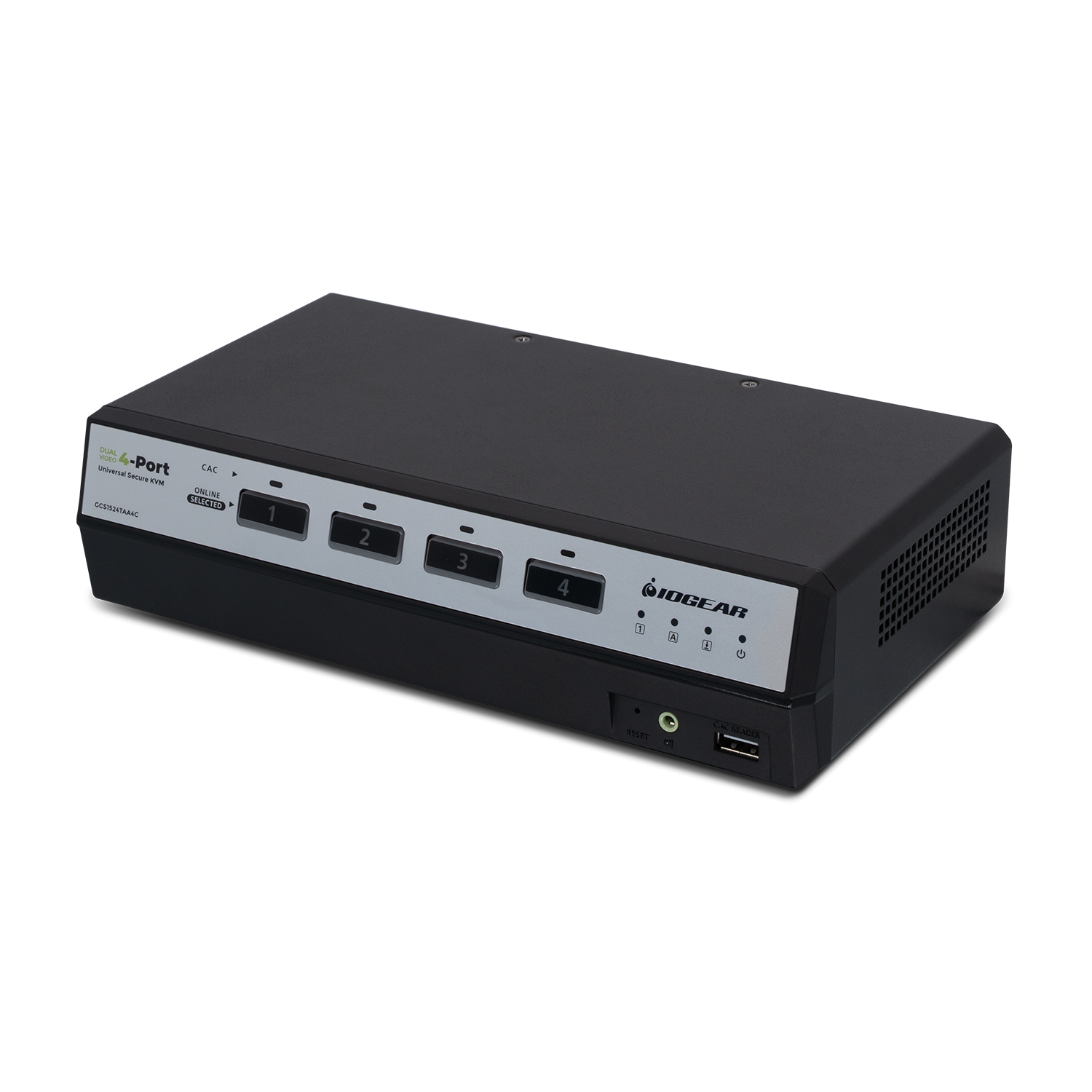

4-Port Dual View True Universal (DP/HDMI) Secure KVM Switch w/Audio and CAC Support

Name: 4-Port Dual View True Universal (DP/HDMI) Secure KVM Switch w/Audio and CAC Support
Brand: IOGEAR
SKU: GCS1524TAA4C
Price: 1158.95 USD
Availability: OutOfStock

DisplayPort HDMI NIAP PP4.0 TAA Compliant

MPN: GCS1524TAA4C

UPC: 881317522504

$1,158.95

UNDER NIAP EVALUATION

COMING SOON!!

The 4-Port Dual View True Universal (DP/HDMI) Secure KVM Switch with Audio and CAC Support offers a highly secure and efficient solution for managing up to four computers across two displays. This NIAP-certified KVM switch provides robust data isolation between shared peripherals and computers, ensuring sensitive data remains protected. With support for both DisplayPort and HDMI, audio, and a dedicated CAC port for secure authentication, it streamlines operations while meeting stringent security standards.

Protect Multiple Desktops with True Universal (DP/HDMI) Secure KVM Technology

IOGEAR's True Universal Secure KVM (Keyboard, Video, Mouse) switches, with NIAP Protection Profile for Peripheral Sharing Device (PP4.0) certification, offer top-tier security for managing multiple computers, including dual-head setups. These KVMs prevent data leakage and unauthorized access, crucial for sensitive environments. Beyond broad operating system compatibility, they feature a specialized port design that supports both HDMI and DisplayPort inputs, providing unmatched flexibility for connecting diverse systems to two monitors. PP4.0 compliance ensures rigorous security features: isolated data paths, unidirectional data flow, anti-tampering, and strict peripheral filtering (e.g., only keyboards and mice, with CAC reader support). This robust security, combined with dual-screen universal connectivity via adaptable video ports, provides a highly protected and efficient solution for diverse, classified computing environments.

NIAP Certified, Common Criteria Compliance & TAA Compliant

IOGEAR secure KVM switches comply with NIAP PP v4.0 security certification meeting the latest security requirements from the U.S. government. The secure KVM also meets with the Common Criterial Compliance as part of the international Common Criteria Recognition Arrangement. The unit also meets with all TAA-compliant guidelines.

Data Channel Isolation and Unidirectional Data Flow

IOGEAR Secure KVM switches control and isolate data flow between the console device and the connected computers preventing any data transfer between the connected computers. Data channel isolation prevents data leakage between connected computers via isolated channel per port and unidirectional data flow ensures unidirectional data flow between the console devices and the selected computer. The secure KVM switch supports analog audio via speakers only.

Active Tamper-Proof System

IOGEAR secure KVM switch hardware security is comprised of tamper-evident seals, active chassis intrusion detection, and tamper-proof hardware. Compliance with NIAP Protection Profile v4.0 certifies that non-approved USB peripherals will be rejected and cannot be connected to the secure KVM switch, providing high-level security, protection and data safekeeping.

With the combination of physical and software security, secure KVM switches offer secure isolation to prevent internal and external access to individual system with authorization while consolidating multiple workstations with varying security classification levels.

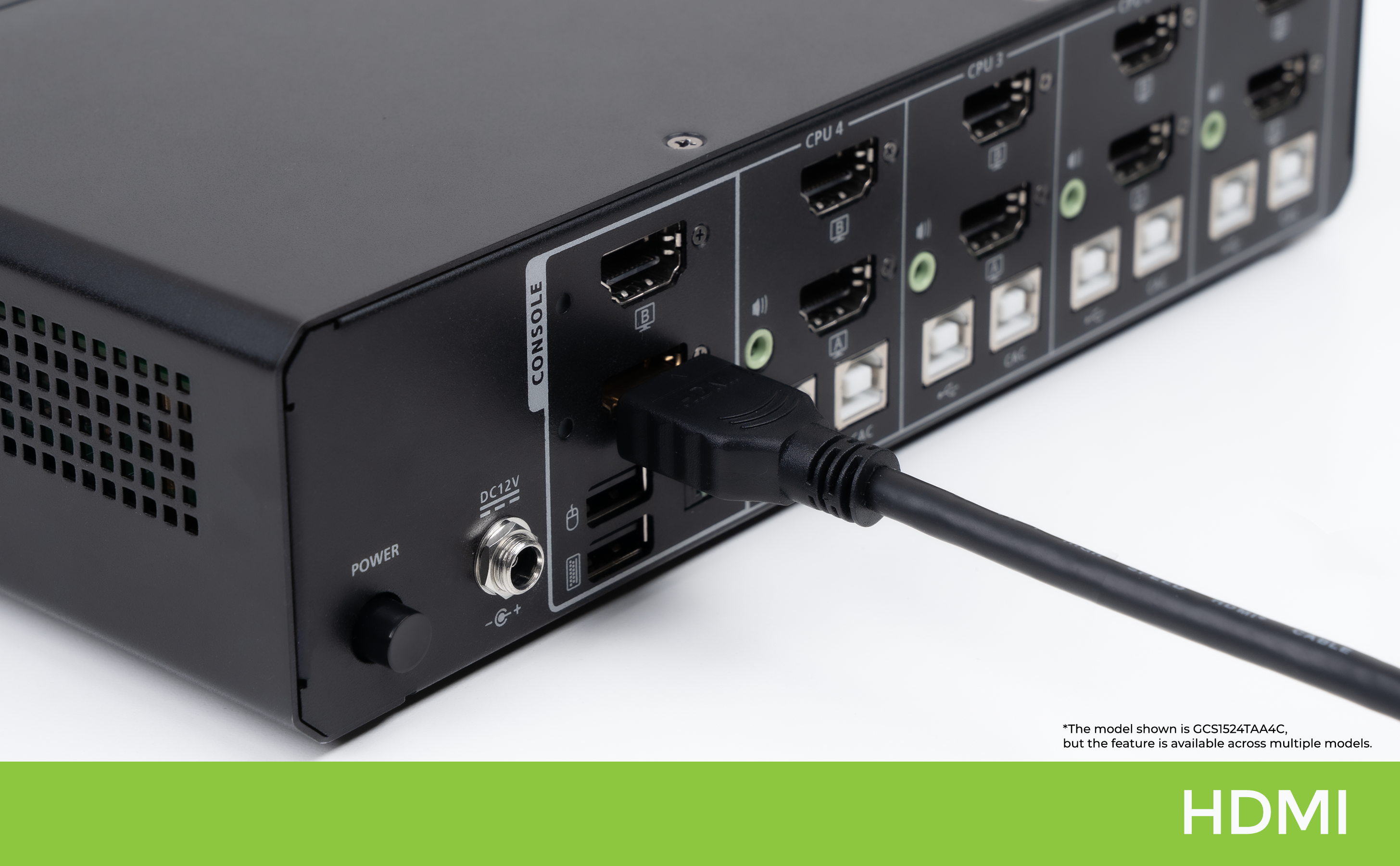

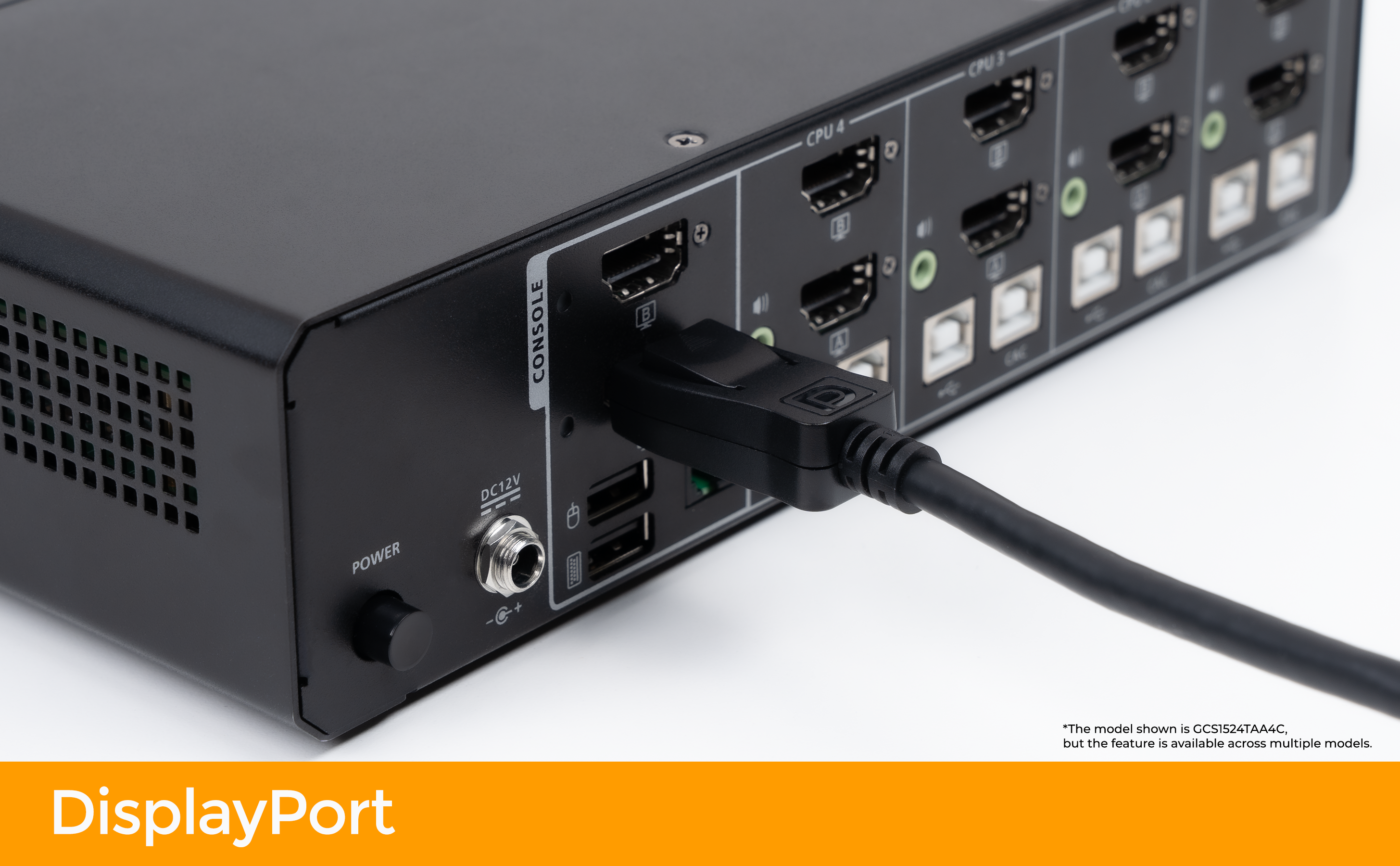

True Universal HDMI and DisplayPort functionality

A universal video connector provides seamless display compatibility by integrating both HDMI and DisplayPort signal capabilities within a single, innovative port design. This eliminates the need for separate dedicated ports or multiple adapters when connecting to modern displays. By offering a unified solution for these two prevalent video standards, it greatly simplifies setup, reduces cable complexity, and ensures broad compatibility for high-definition and multi-monitor setups.

*The model shown is GCS1524TAA4C, but the feature is available across multiple models.

Superior Ultra-High Video Quality

The secure KVM switch supports a dual view display and exceptional 4K Ultra-HD resolutions up to 5120×2880 @60Hz.

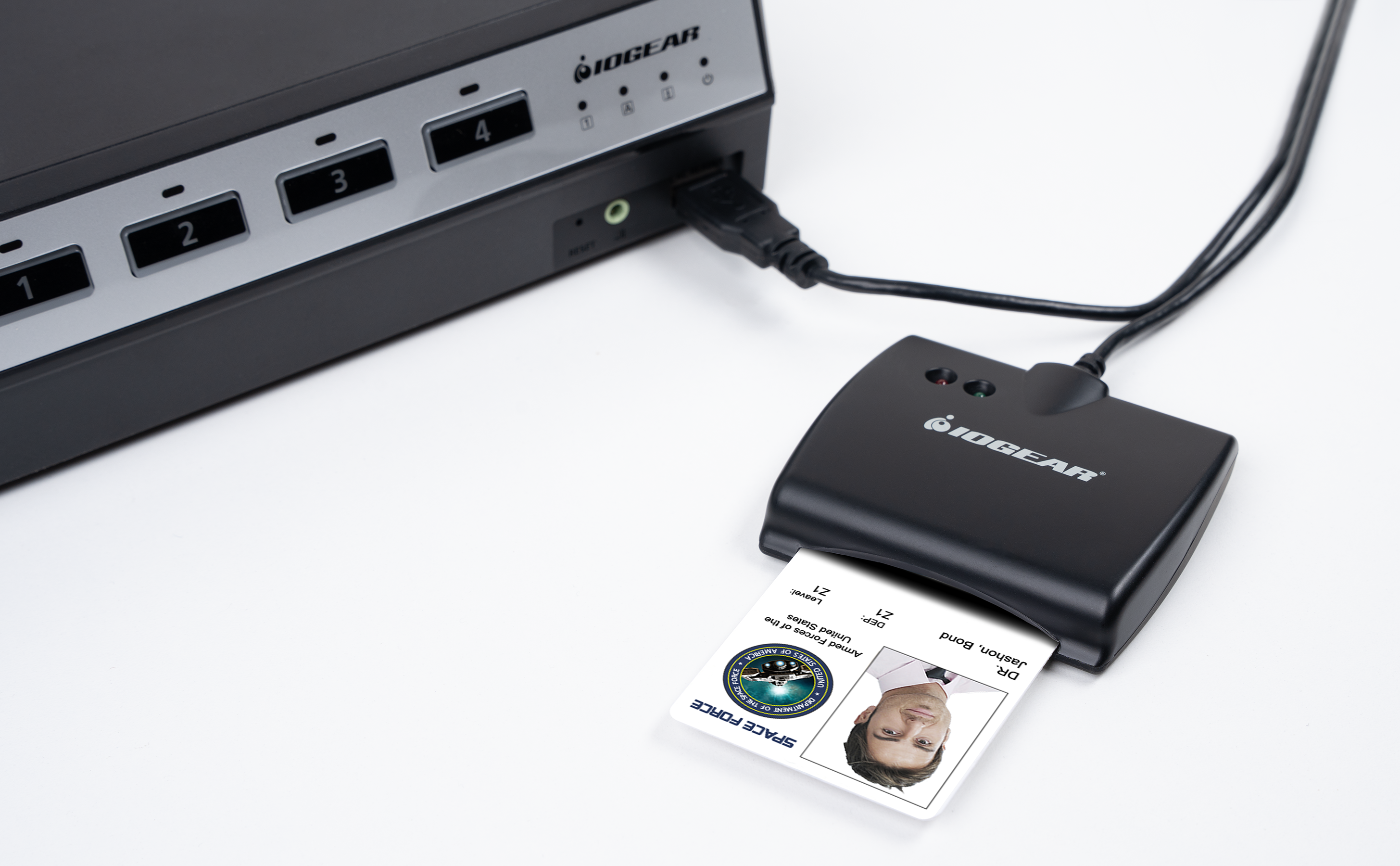

Dedicated Common Access Card Reader Port

A fully advanced and configurable CAC reader port supports smart cards or biometric readers in compliance with NIAP-certified access accessories.

Enhanced Reliability: Easy On/Off Push Power and Secure Locking Connectors

The push switch ensures deliberate power engagement, preventing accidental cycling. The screw-locking power connector provides a robust and secure physical connection, virtually eliminating accidental disconnections from movement or vibration. This combination ensures continuous power supply and stable operation in demanding environments.

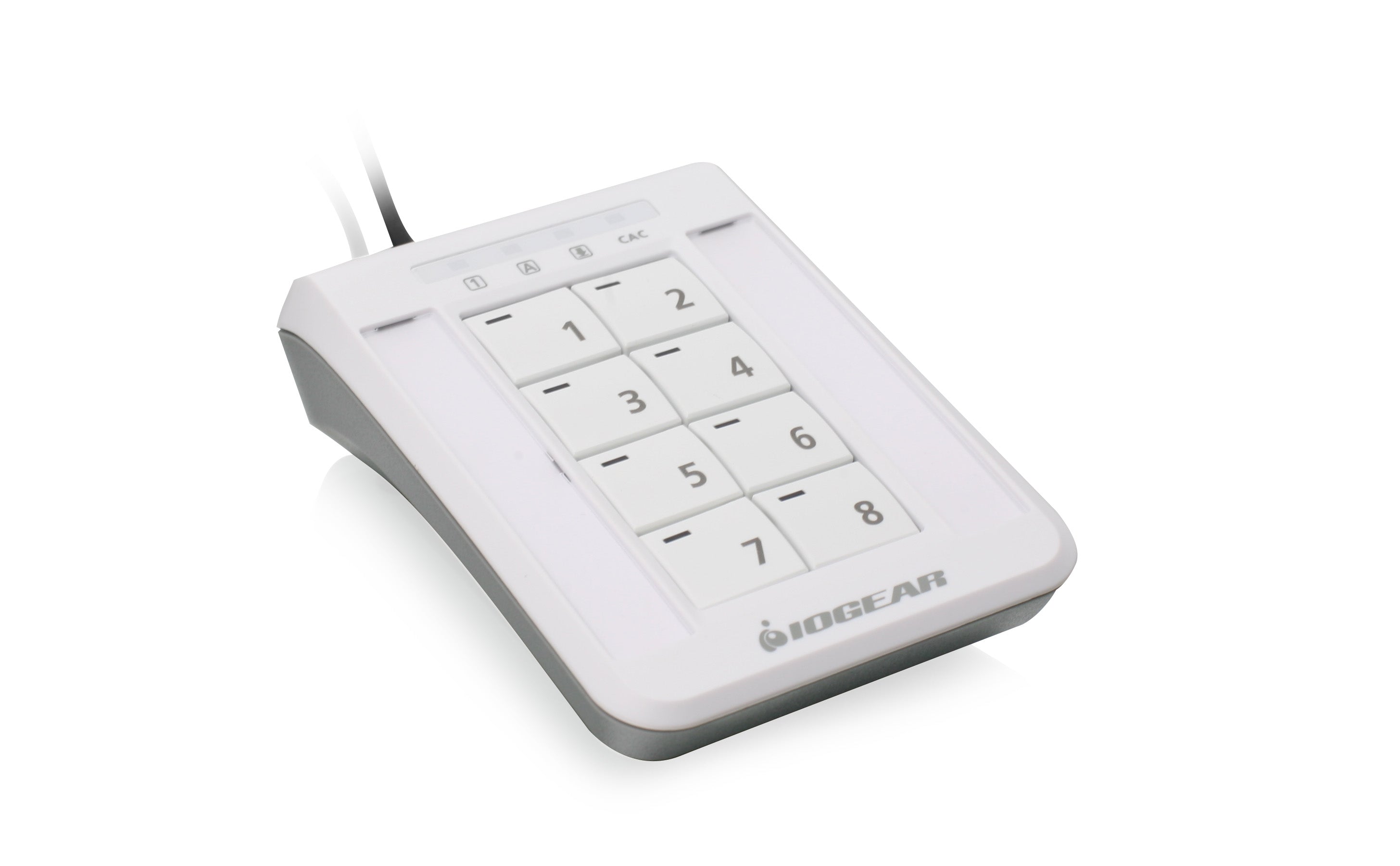

Compatible with IOGEAR Secure KVM Remote Port Selector (v2)

IOGEAR Secure KVM Remote Port Selector (TAA-Compliant) enables users to securely select and switch between systems with an optional external remote port selector that provides full operator control for an optimized user experience. Easily switch between 2, 4, or 8 computer systems via the wired port selector to your secure KVM switch and use indicator lights to know which system is currently selected on the console.

Government, Military and Commercial Applications

IOGEAR secure KVM switches provide a physical barrier that protects sensitive networks and assets from public internet exposure, granting access only to authorized users. Moreover, these KVM switches can filter or block USB ports on servers and desktop computers, ensuring that data integrity remains uncompromised. Originally designed for military and federal intelligence agencies, secure KVM switches are now utilized by various organizations, including the FBI, CIA, NSA, Department of Defense, federal departments, state and local utilities, financial institutions, healthcare organizations, law firms, defense industries, laboratories, and more.

4-Port USB DisplayPort/HDMI Dual Display Universal Secure KVM Switch with CAC Support
DisplayPort/HDMI combo connectors - Connect DisplayPort or HDMI cables without the need for adapters¹
Superior ultra-high video resolution to 5K UHD 5120 × 2880@ 60hz²
Configurable Port LED color and Port Name Labels
NIAP-Certified PP4.0 - Validated to Protection Profile for Peripheral Sharing Device v4.0
Port Selection via Push-Button and Remote Port Selector³ for Enhanced Security - Keyboard restrictions - OSD & hotkey methods are not allowed
Isolated Channel per Port - Unidirectional data flow restricts data leakage between connected computers

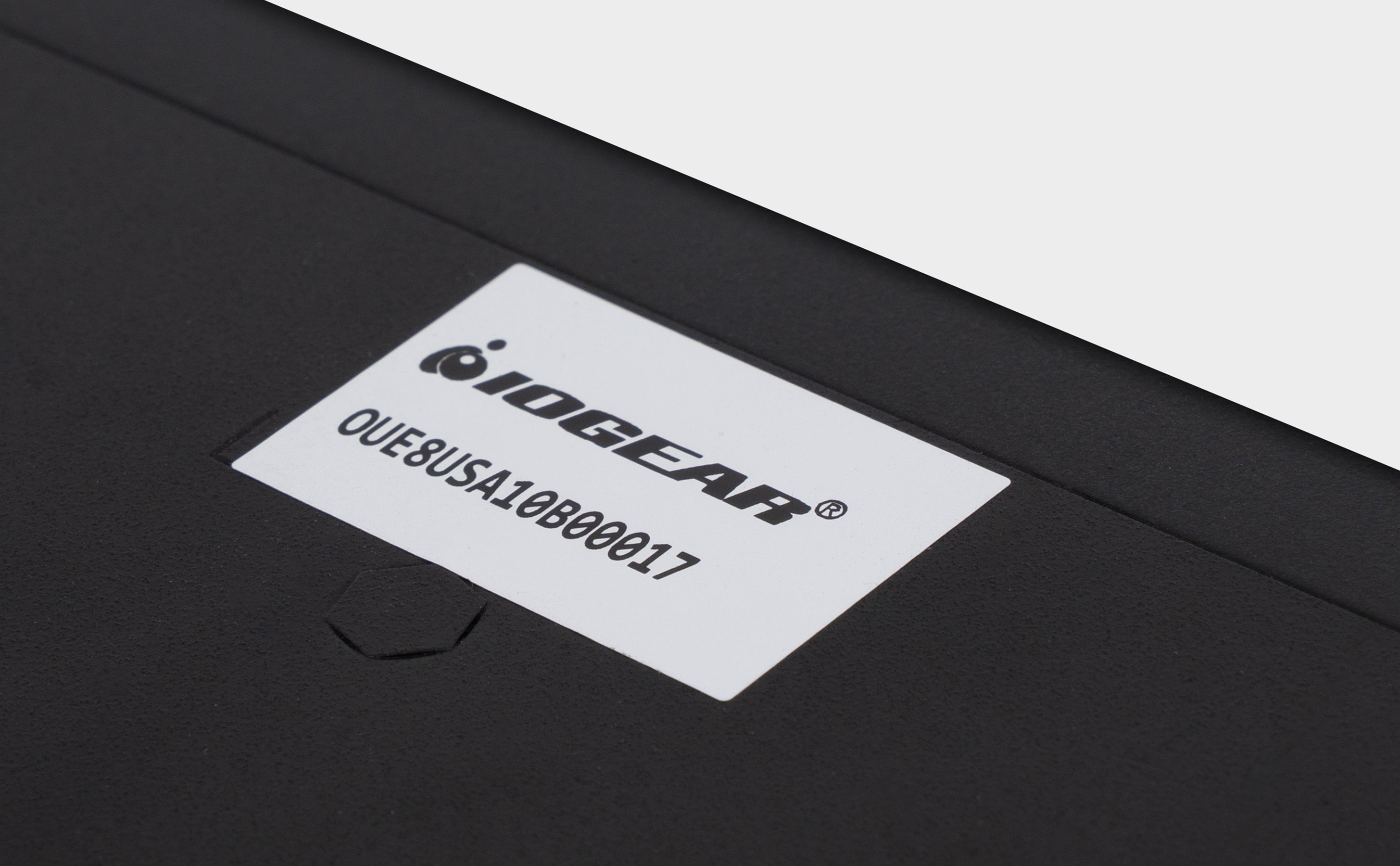

Tamper-Evident Seals - Visually detect attempts to gain access to switch's internal components
Tamper-Proof Hardware - Integrated circuits are soldered directly onto the circuit board to hinder component sabotage
Active Chassis Intrusion Detection - Compromising the unit's cover renders the switch inoperable
Shared peripherals with computer isolation and DisplayPort AUX channel filtering
Clears Keyboard Buffer - Data clears automatically after transmission to switch and resets
Non-Reprogrammable Firmware - Prevents tampering and attempts to reprogram the switch's firmware
Analog Speaker Support - Secure audio data input does not convert digital audio to analog audio⁴
Multiplatform Support - Windows® 2000, Vista, 7, 8, 8.1, 10, 11 Linux, Mac OS X, & Sun Rugged Metal Enclosure - Durable, Full Metal Chassis
Note:
1. Connect the DisplayPort cable to the DisplayPort section (upper side) of the DisplayPort/HDMI combo connector or connect the HDMI cable to the HDMI section (lower side) of the DisplayPort/HDMI combo connector.
2. Supports video output resolutions to 5120×2880 @60Hz, 5120x2160 @60Hz, 5120x1440 @60Hz, 120Hz, 144Hz, 3840x2160 @60Hz, 120Hz, 144Hz.
3. Remote Port Selector is not supplied in the package and requires a separate purchase
4. Only analogue speaker data input is supported. The IOGEAR Universal Secure KVM Switch does not convert digital audio to analogue audio.

Requirements

Console

HDMI or DisplayPort monitor capable of the highest resolution that you will be using on any computer in the installation
Standard 2 or 3 button wired USB mouse
Standard 104-key wired USB keyboard
Speaker (Optional)
USB Smart card or CAC (Common Access Card) reader (Optional)*
Remote Port Selector (Optional)*

Computers

A HDMI/DisplayPort video output connector
A USB Type A port for keyboard and mouse
A USB Type A port for Smart Card or CAC reader (Optional)
A 3.5 mm jack Audio port for speaker (Optional)

Cables

HDMI or DisplayPort cables to connect from sources computers and to the console monitors. The KVM cable sets which are specifically designed to work with this switch are not supplied in the package and require a separate purchase. For best results, use IOGEAR Secure KVM cable kits (Sold Separately).
For security, do not connect any cable that has a microphone audio input or line in audio input.

Operating Systems:

Win 7, 8, 10, 11
Linux: Kernel2.6+, RedHat v6.0+, SuSE v8.2+ Mandriva(Mandrake) v9.0+
Unix: AIX v4.3, FreeBSD v3.51+, Sun Solaris v9.0+
Novell Netware v5.0+Mac OS v9+
DOS v6.2+

Note:
* Remote Port Selector is not supplied in the package and requires a separate purchase

1 x Universal Secure KVM Switch
1 x Power Adapter
1 x Foot Pad Set
1 x Port Name Labels
1 x User Manual
1 x HDMI Cable Lock Set (12 pieces)

GCS1524TAA4C User Manual Download

Need more help with this product? Visit IOGEAR Knowledge Base

Function	GCS1524TAA4C
Computer Connections
Direct	4
Port Selection	Pushbutton or Remote Port Selector
Console Connectors
Monitor	2 x DisplayPort/HDMI Combo Connector
Keyboard	USB Type-A
Mouse	USB Type-A
Audio	1 x 3.5mm Mini Stereo Jack Female
CAC	1x USB Type-A Female

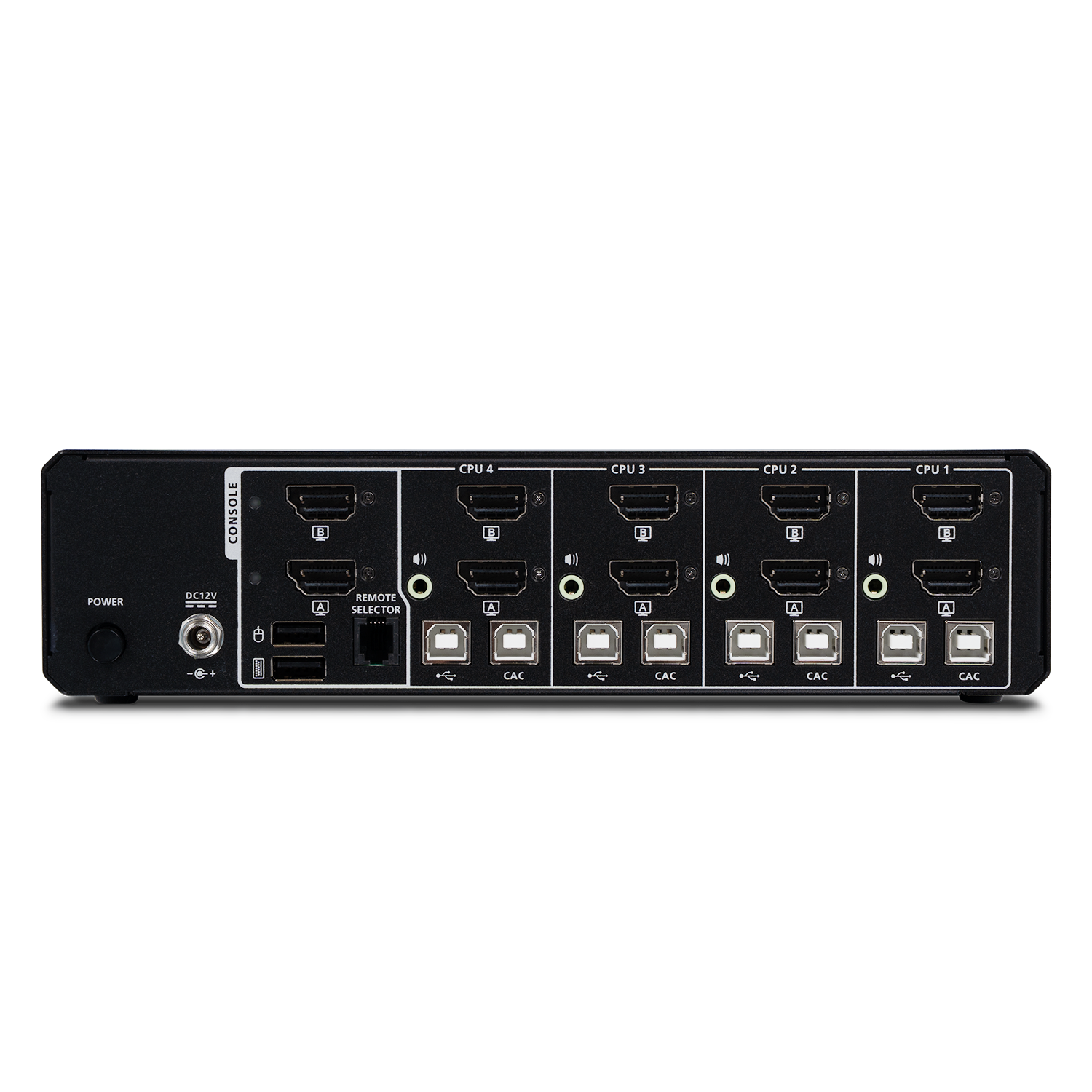

CPU Connectors
Monitor	8 x DisplayPort/HDMI Combo Connector
Keyboard & Mouse	4 x USB Type-B Female
Audio	4 x 3.5 Mini Stereo Jack Female
CAC	4 x USB Type-B Female
Switches
Port Selection	4 x Pushbuttons
Reset	1 x Semi-recessed Pushbutton
Power	1x Pushbuttons
LEDs
Online/Selected	4 x Orange/Green
CAC	4 x Orange/Green
Power On	1 x Green
Num Lock	1 x Green
Caps Lock	1 x Green
Scroll Lock	1 x Green
Console Video	2 x Green
Emulation
Keyboard	USB
Mouse	USB
Video Resolution	Up to 5120 × 2880 @60Hz
Power
Input Rating	100 - 240V, 50 - 60Hz; 1A
Environment
Operation Temperature	0 - 50C
Storage Temperature	-20 - 60C
Humidity	0 - 80% RH, Non-condensing
Housing
Case	Metal

Dimensions	GCS1524TAA4C
Master Carton
Height	9.13 in (23.2 cm)
Length	14.57 in. (37 cm)
Width	16.81 in. (42.7 cm)
Unit Package Dimensions
Height	4.61 in. (11.7 cm)
Length	8.15 in. (20.7 cm)
Width	16.3 in. (41.4 cm)
Unit Dimensions
Height	2.36 in. (6 cm)
Length	5.7 in. (14.5 cm)
Width	9.65 in. (24.5 cm)
Master Carton Qty.	3
Weight
Master Carton Wt.	15.41 lb. (7 kg)
Unit Pack Wt.	5.47 lb. (2.5 kg)
Unit Wt.	3.46 lb. (1.6 kg)

3 Year Limited Warranty
